All-in-One 24kW Power Station with MPPT Controller

Name: All-in-One 24kW Power Station with MPPT Controller
Brand: BarEquip.Pro
SKU: BEP-0474-01
Price: 7225.0 USD
Availability: BackOrder

A stackable, weatherproof all-in-one solar power station that pairs an MPPT controller with LiFePO4 storage for off-grid and hybrid-grid backup.

From$ 7 225 $ 8 598 15% discount

Custom order

Made to order to your spec — you choose the size and configuration.

This all-in-one solar power station bundles the MPPT charge controller, inverter and LiFePO4 battery into a single IP66-rated unit, so a venue can add resilient backup power without building out a rack of separate components. It runs off-grid or as a hybrid-grid system, which lets a bar, café or small production site cover outages and shave peak demand from the same box.

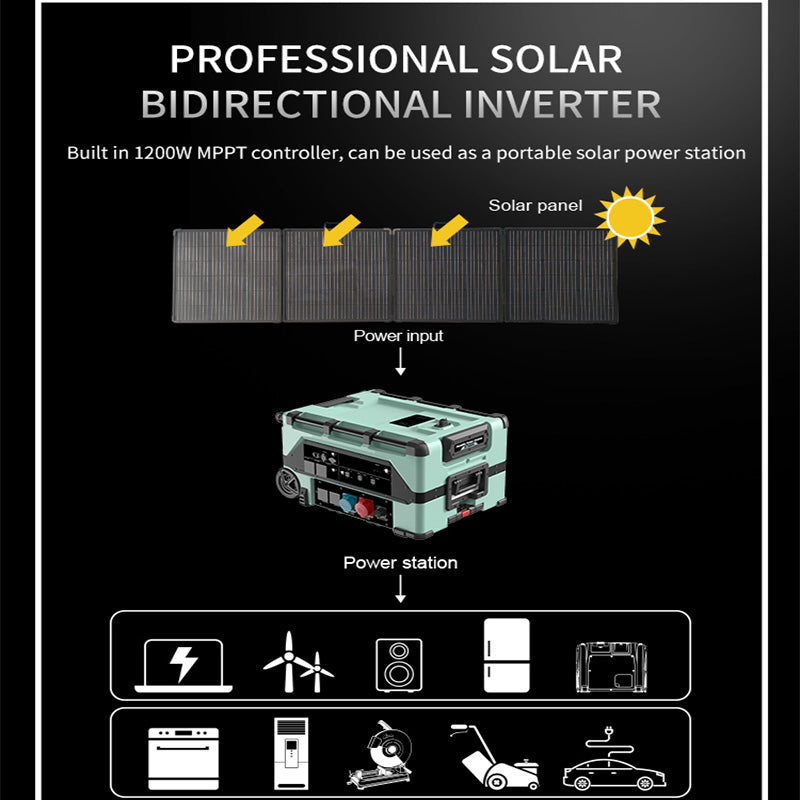

The stackable architecture is the point for commercial use: units scale up to 31 in parallel, so you size the array to the load instead of over-buying on day one. LiFePO4 cells rated for 3,000 cycles keep the maintenance and replacement math predictable, and the MPPT controller squeezes usable output from the panels across changing light. Charging is flexible — solar, wind, AC or DC — so the same station fits a rooftop install, a mobile setup or an emergency reserve.

All-in-one enclosure: controller, inverter and battery in one IP66 weatherproof cabinet
Stackable to 31 units for scalable capacity
LiFePO4 chemistry rated for 3,000 charge cycles
Off-grid or hybrid-grid operation with multi-source charging

For a home, this station works as whole-house backup and a way to lean on solar day to day. The all-in-one cabinet keeps the wiring simple, and the weatherproof IP66 build means it can sit outdoors or in a garage without a special enclosure. When you need more capacity — an EV charger, a workshop, a bigger battery reserve — you stack additional units rather than replacing the system. It suits home emergency power, RV and outdoor living, with USB-A and USB-C outputs for everyday device charging.

Specifications

Dimensions (L × W × H): 840 × 670 × 490 mm
Weight: 200.0 kg
Power: 25000 W
Voltage: 102.4 V
Certifications: CE
Battery type: LiFePO4

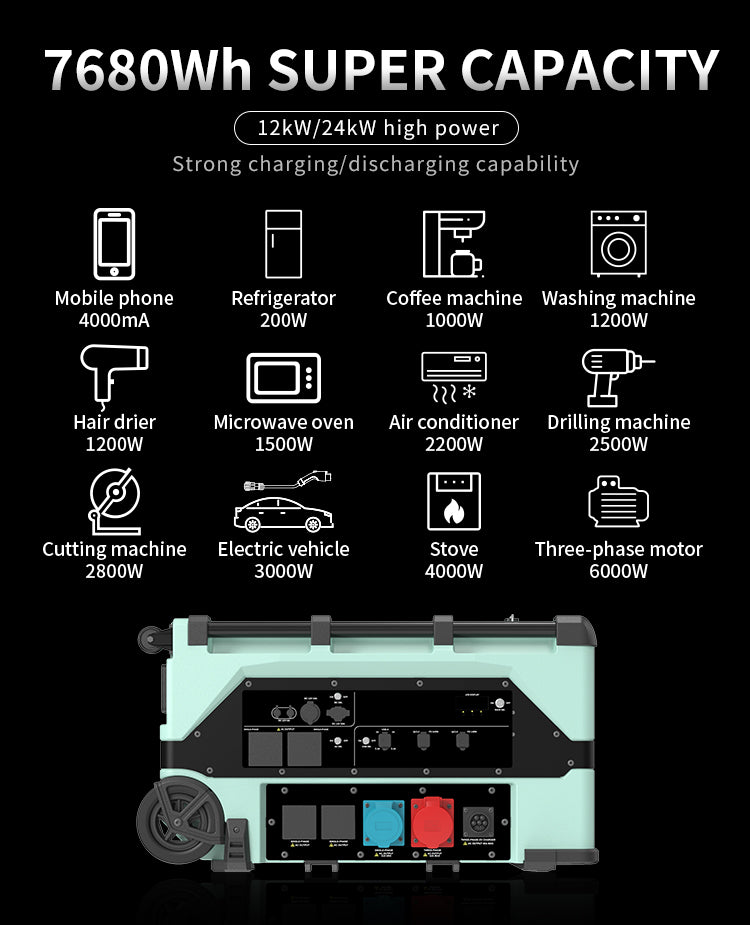

Battery capacity: 7680 Wh
Battery cycle life: 3000 cycles
Output power range: 20-30 kW
System type: Stackable (up to 31 units)
Type: All-in-One
Protection class: IP66
Grid connection: Off-grid, Hybrid-grid

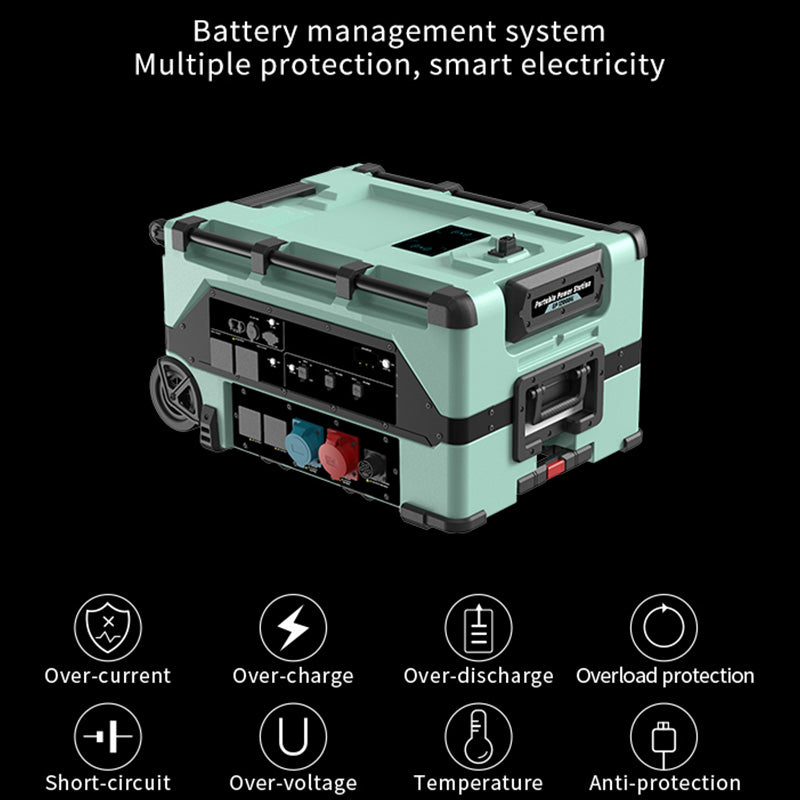

Battery management: Multi-level protection BMS

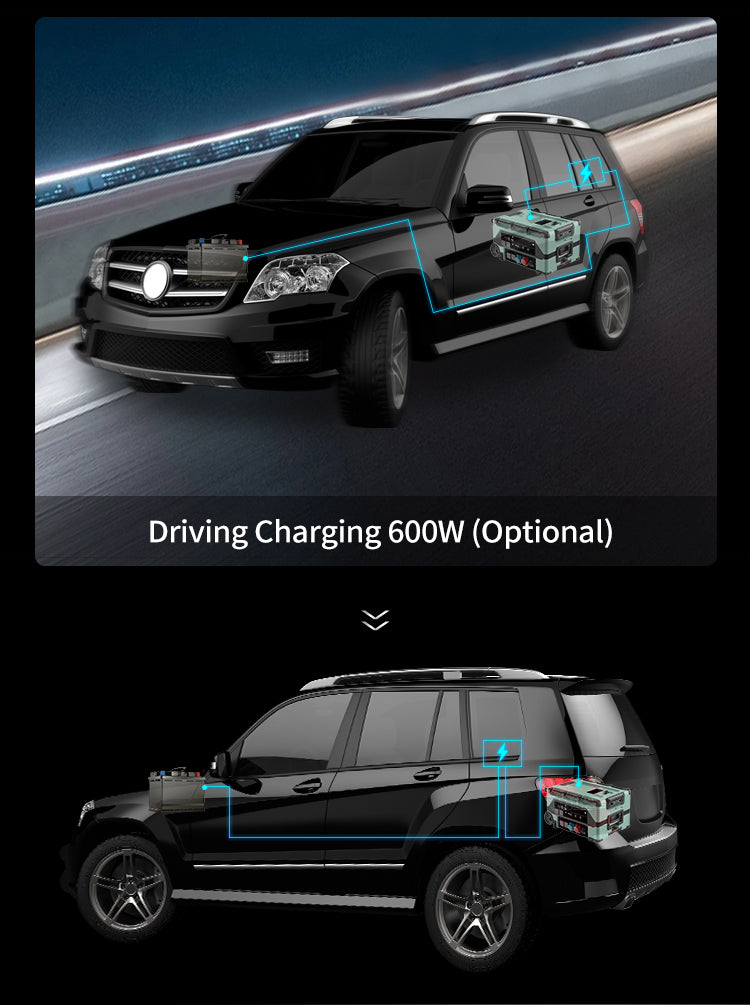

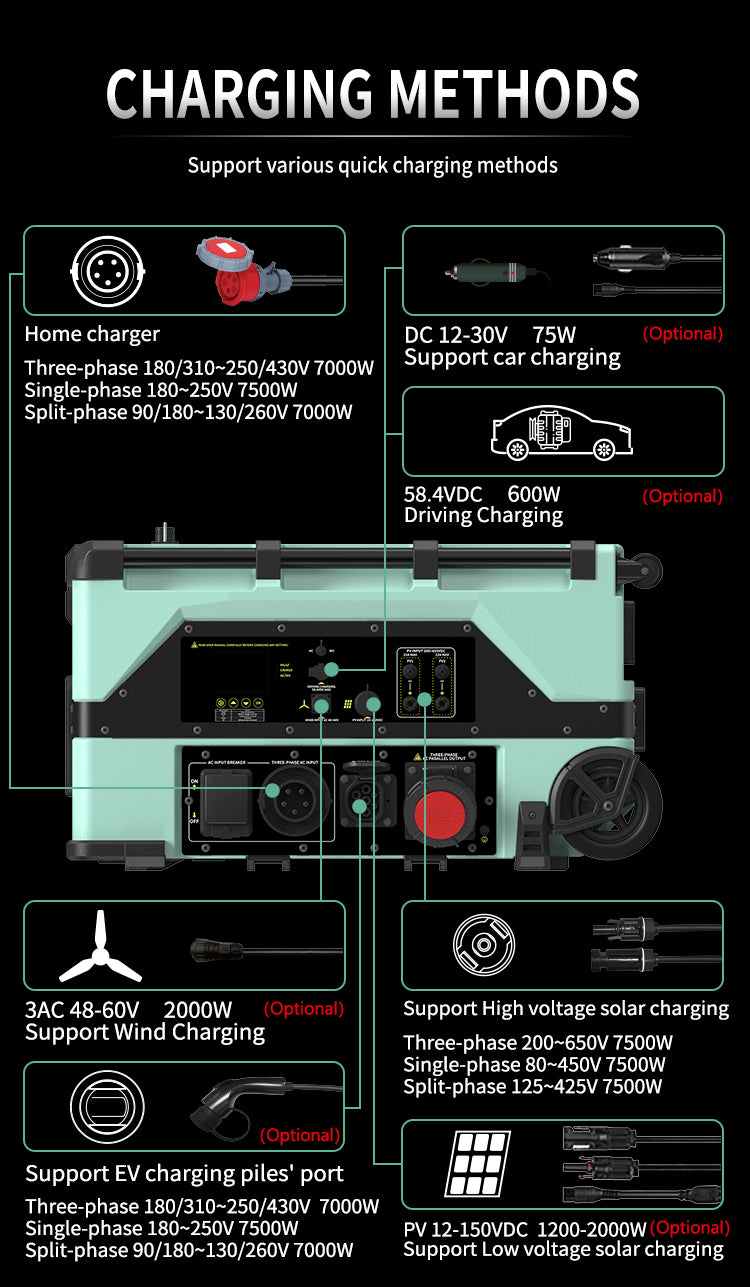

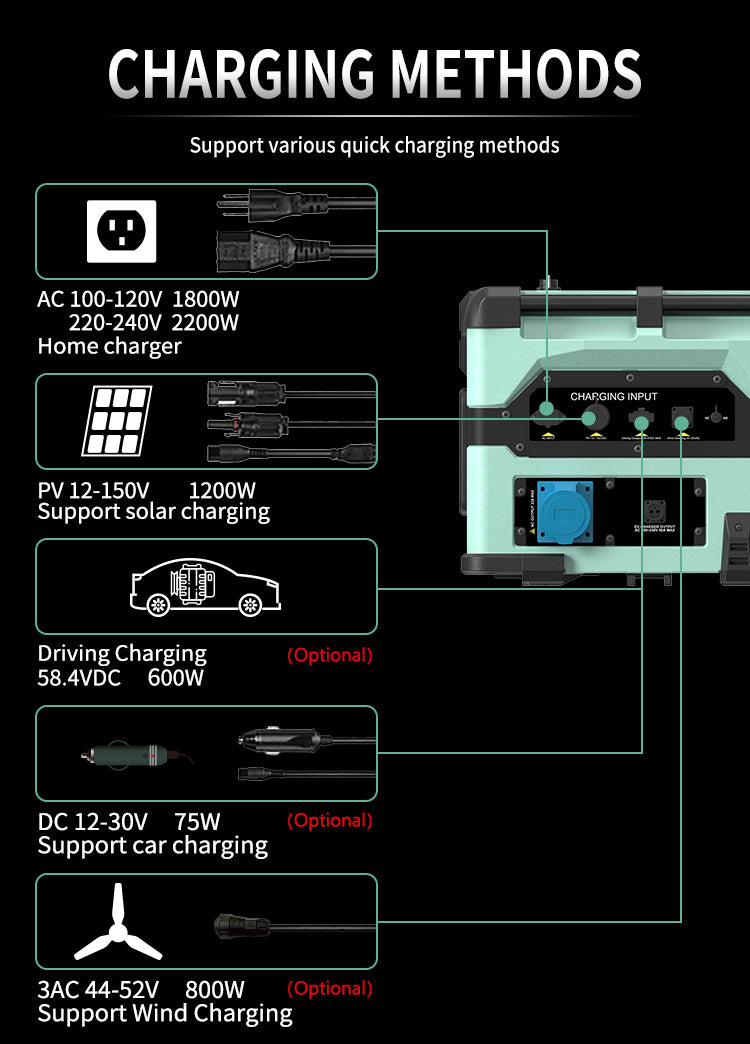

Charging methods: Solar / Wind / AC / DC quick / EV charger / Car
USB outputs: USB-A 5V/3A, USB-C

Frequently asked questions

Can this solar power station run off-grid without a mains connection?

Yes. It supports both off-grid and hybrid-grid operation, so it works as a standalone system or alongside the mains for backup and peak shaving.

How many units can be stacked together for more capacity?

The system is stackable and supports up to 31 units in parallel, letting you scale total capacity to your load over time.

What battery chemistry does the station use, and how long does it last?

It uses LiFePO4 cells rated for 3,000 charge cycles — a safe, stable chemistry chosen for long service life in backup applications.

Which charging inputs does the all-in-one station support?

You can charge from solar, wind, AC, DC quick-charge, an EV charger or a car source, so the same unit fits fixed installs and mobile setups.

Is the unit rated for outdoor installation?

Yes. The enclosure carries an IP66 weatherproof rating, so it can be installed outdoors and in exposed environments.

What is the difference between the 20 kW and 25 kW variants?

The two variants differ in rated energy output. Choose the 20 kW model for lighter loads and the 25 kW model for higher continuous demand; contact us to confirm the best fit for your setup.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
