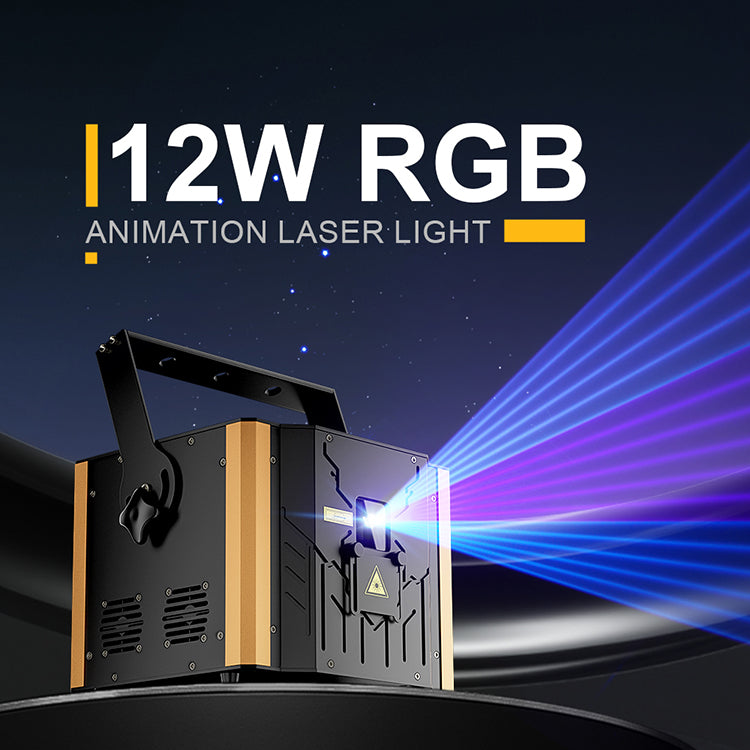

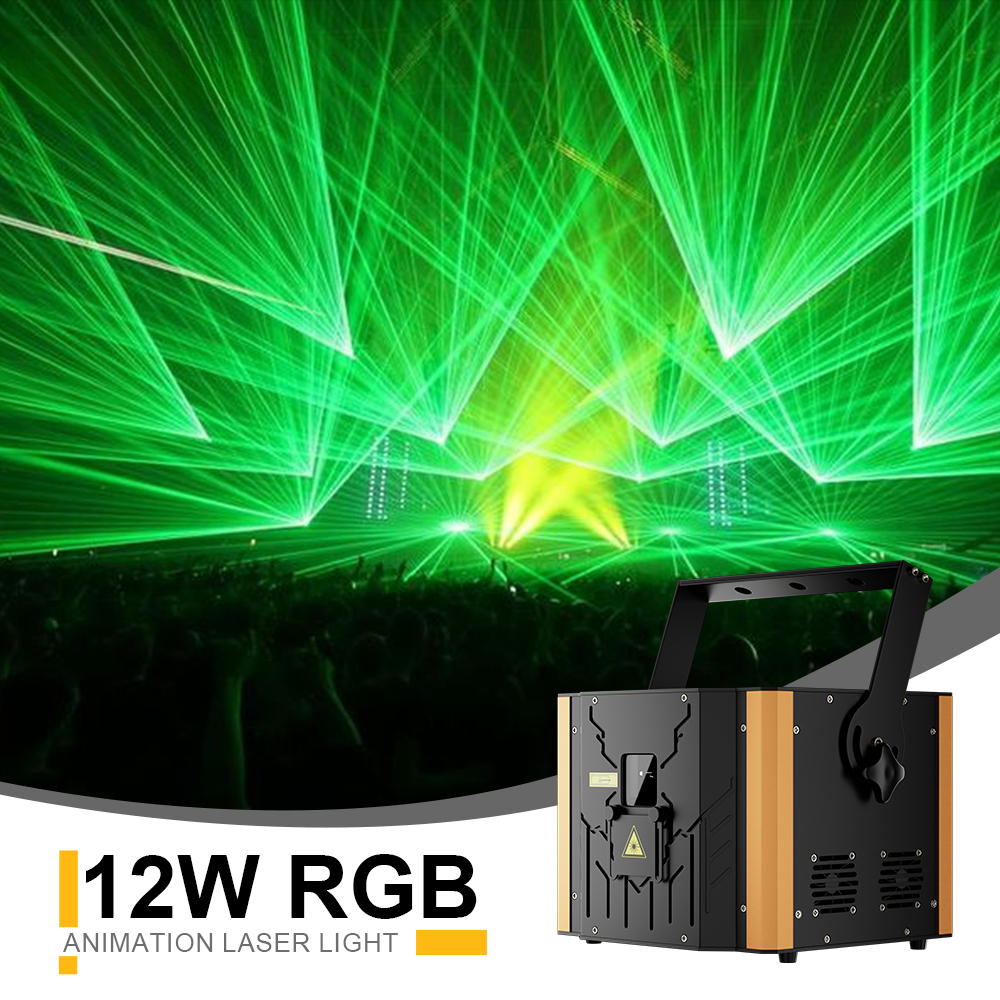

Full-Color 12W RGB Animation Laser Projector — DMX/ILDA

A full-color 12W RGB animation laser that projects sharp beams, patterns and logos for DJ sets, clubs and live shows.

58,565.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

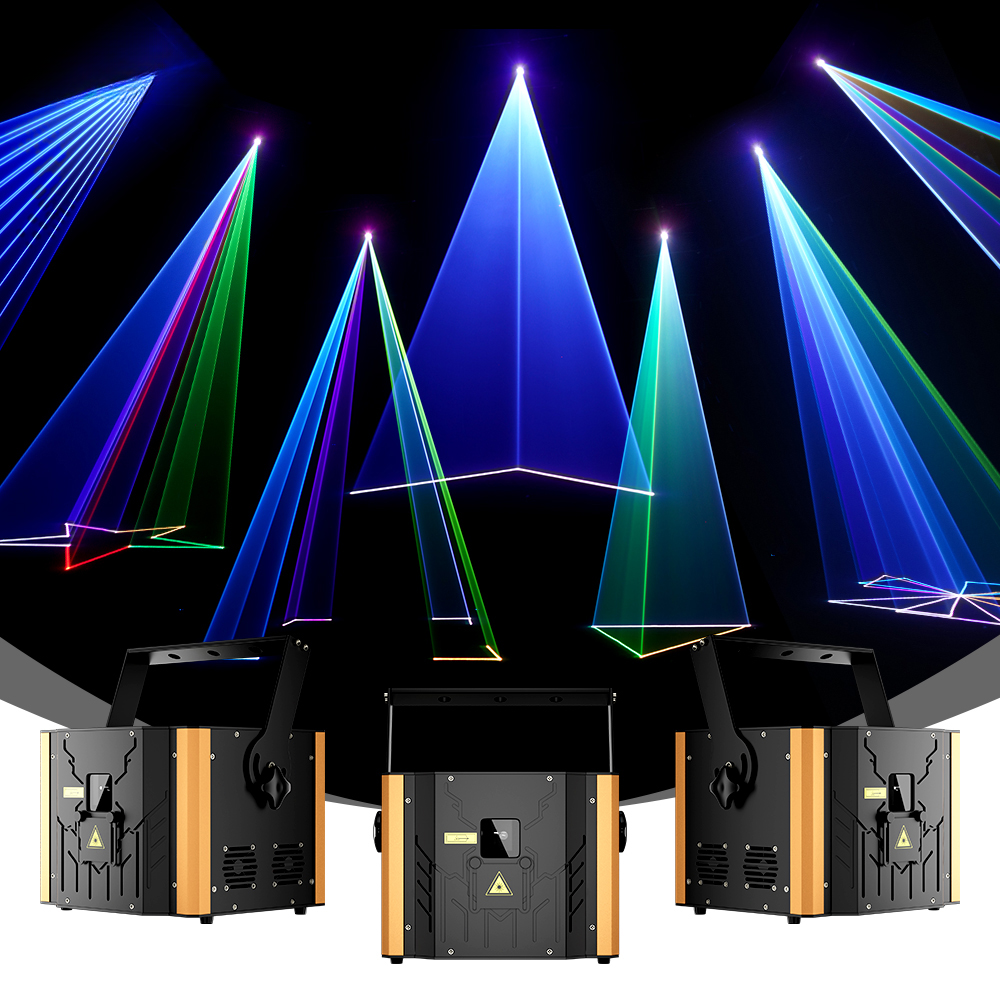

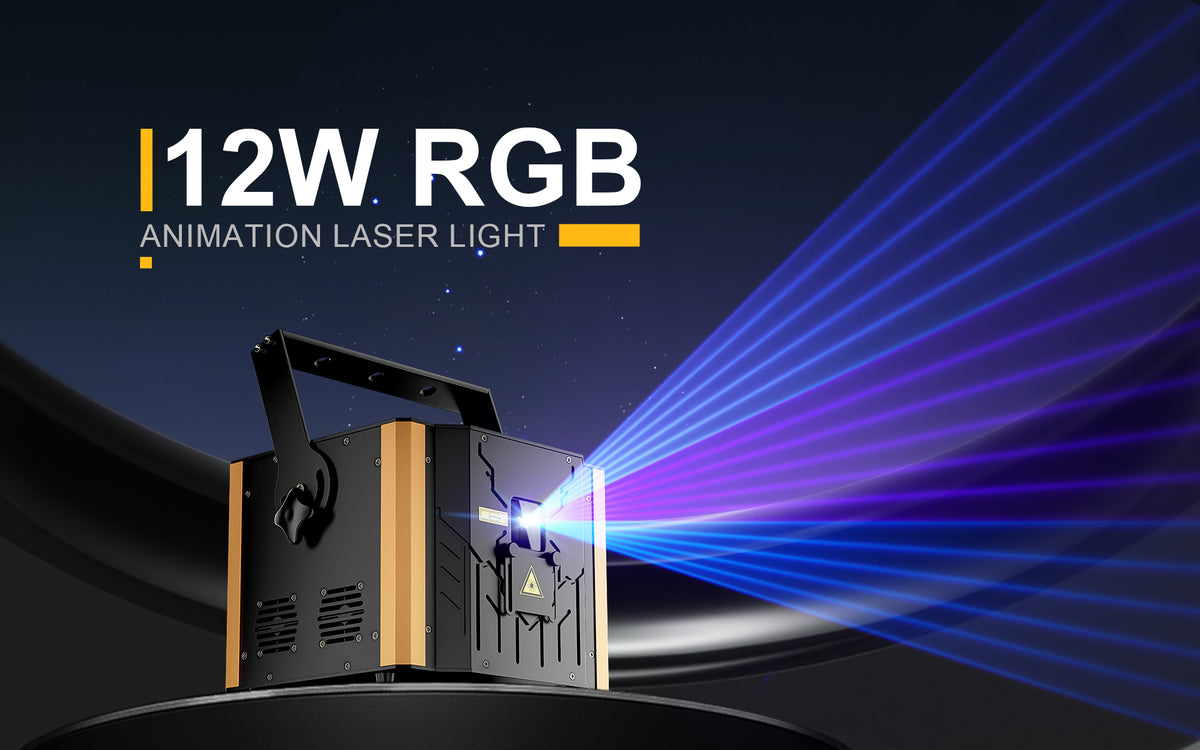

This full-color animation laser is a 12W RGB projector built to headline the light show at a club, concert stage, wedding or mobile DJ rig. It mixes red (638nm), green (520nm) and blue (450nm) beams to draw crisp aerial patterns, tunnels and 2D/3D animations, plus custom text and logos when driven through ILDA software. The tight 5.5mm window spot keeps beams and graphics sharp across a packed room.

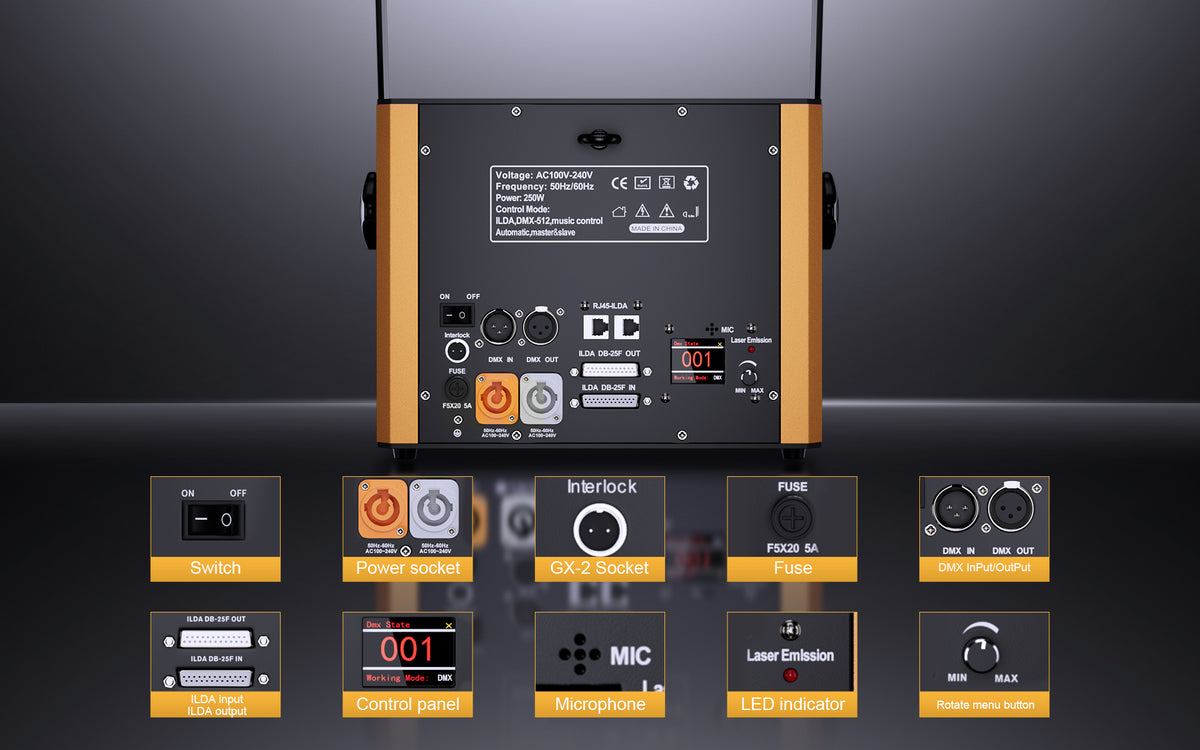

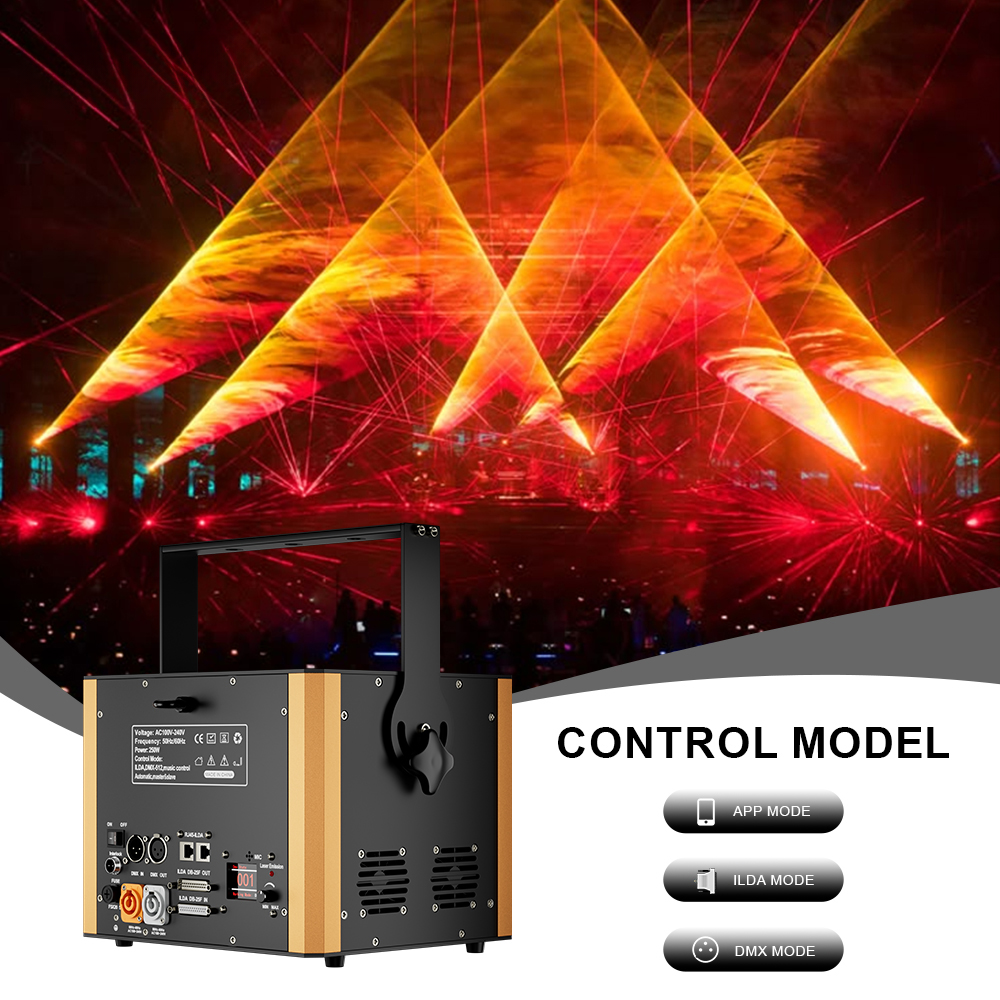

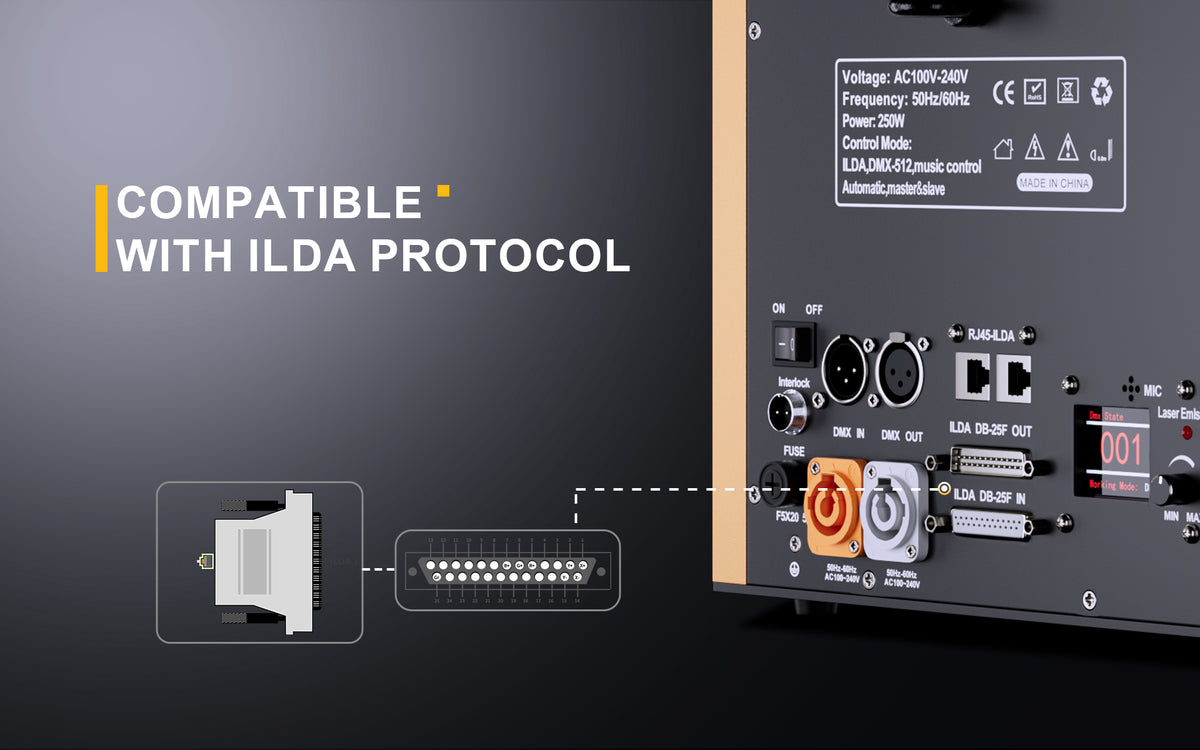

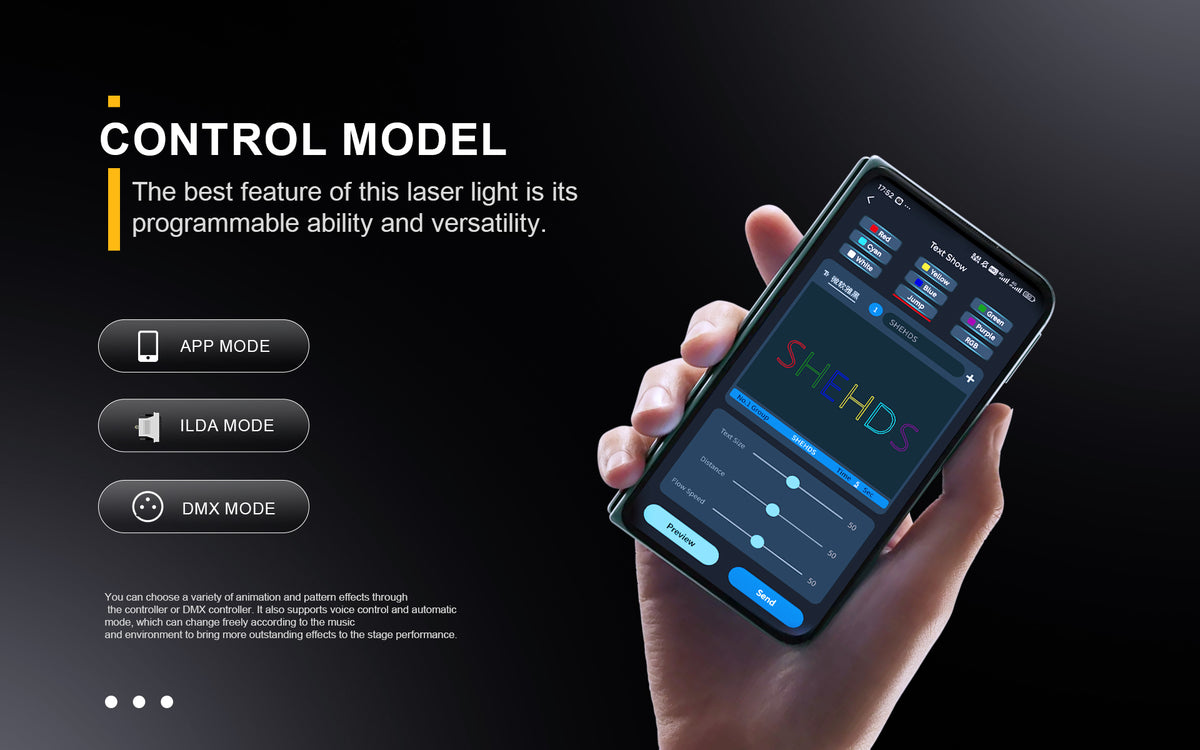

Control fits how venues actually run a show. Standalone modes cover quick setups, while 16/20-channel DMX512 folds it into a lighting desk alongside your other fixtures, and the ILDA input hands full graphic control to laser software. Horizontal and vertical lens offset (-30% to +30%) helps you place the projection where the crowd sees it without moving the fixture.

  • RGB laser source: R-3W / G-4W / B-5W, 12W total
  • DMX512, ILDA and standalone control; 16/20 DMX channels
  • 2D/3D patterns, animation and logo projection via software
  • Aluminum-alloy housing with multiple mounting options for hang, pole or ground rigging

The powder-coated aluminum-alloy body runs on 100–240V, so the same unit travels between venues and regions on a plug change. Backed by a 1-year manufacturer warranty.

Specifications

Material
Aluminum alloy, Powder-coated finish
Color
RGB (full color)
Dimensions (L × W × H)
431 × 480 × 465 mm
Weight
7.38 kg
Power
12 W
Voltage
AC 100–240V, 50/60Hz
Warranty
1-year manufacturer warranty
Certifications
Declaration of Conformity, ANSI/IES LM-79, IEC 60598, EN IEC 55015, FCC
Customization
OEM logo printing available; plug choice (US, EU, UK, AU)
Light source
Laser
Laser colors
Red, green, blue (mixed)
Laser wavelength
R-638nm, G-520nm, B-450nm
Laser power
R-3W, G-4W, B-5W
Window spot size
5.5 mm
Imaging mode
2D/3D patterns and animation (with software)
Control method
DMX512, ILDA, standalone
DMX channels
16/20 CH
Lens horizontal/vertical offset
-30% to +30%
IP rating
IP20
Working temperature
-15 to 45 °C
Dimmer
Yes
Install style
Hanging, pole, track, ground mount

Frequently asked questions

How do I run it — off a lighting desk or laser software?

Either. DMX512 in 16- or 20-channel mode puts it on the desk with your other fixtures, ILDA hands full graphic control to laser software, and standalone modes cover a quick setup with no console at all.

Can it project a client's logo or custom text?

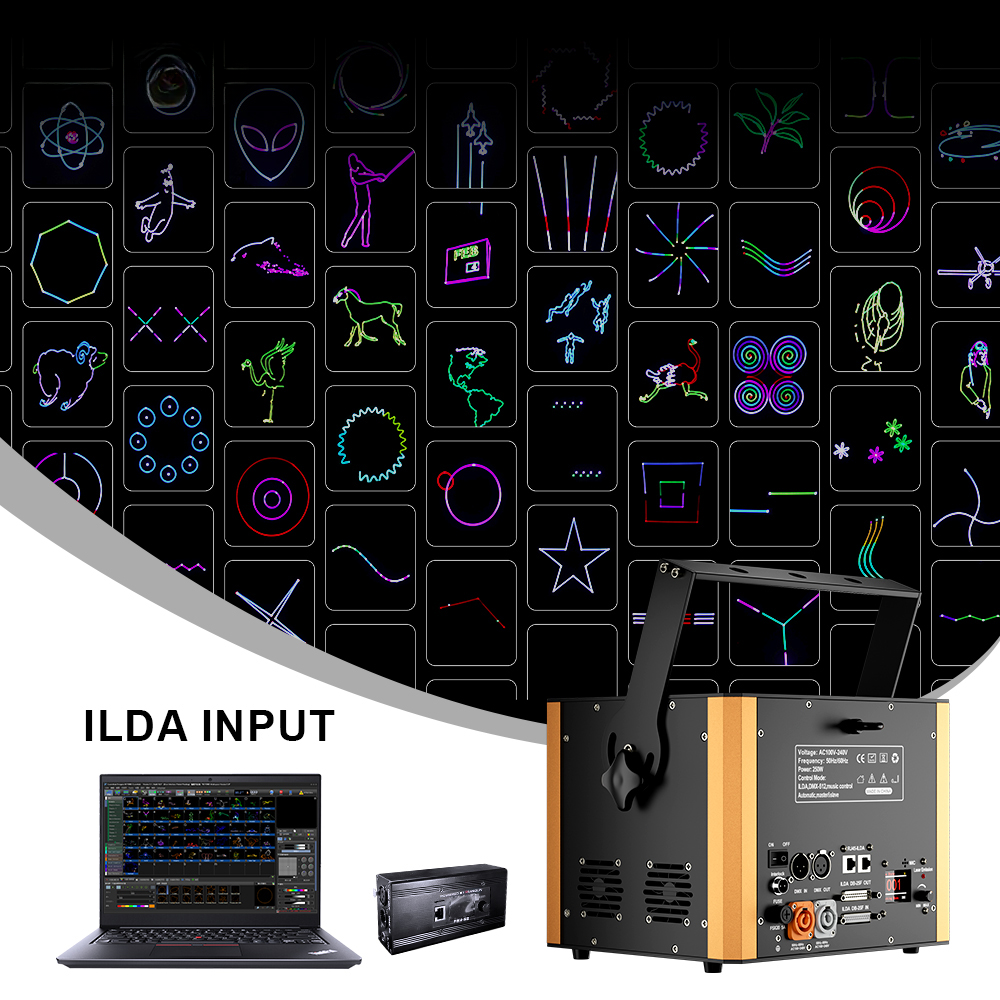

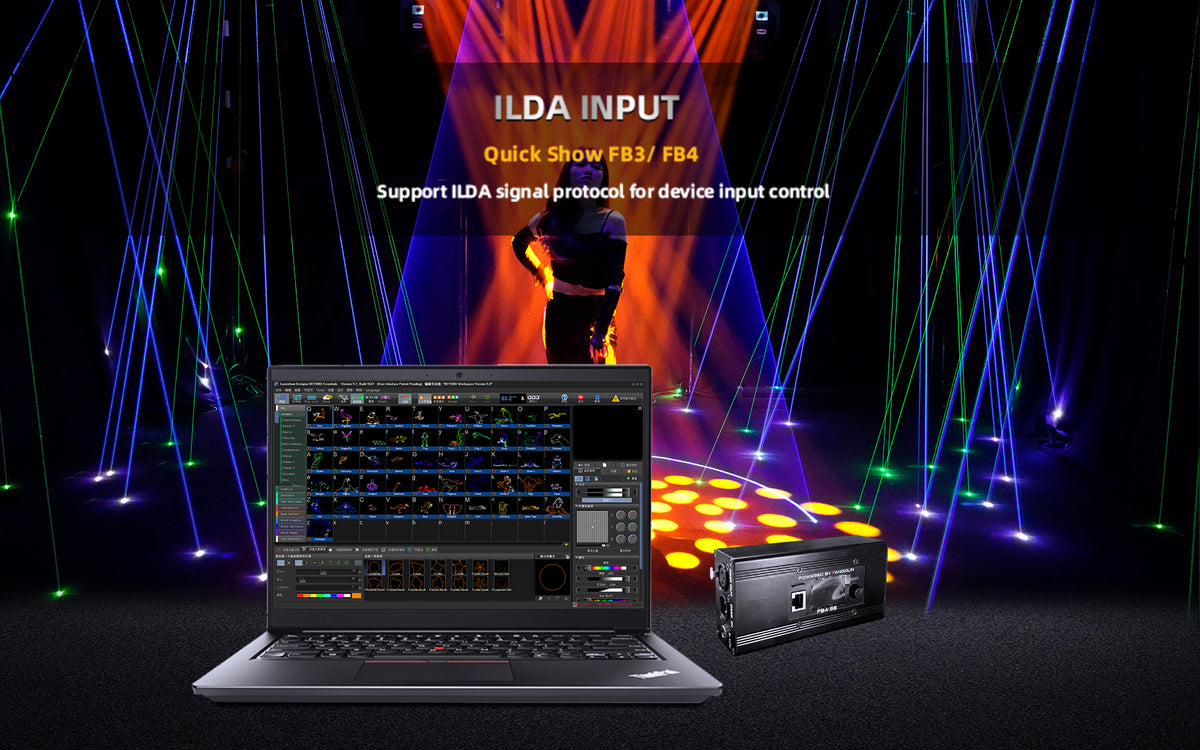

Yes, over the ILDA input. Drive it from laser software and it will draw custom logos, text and animated graphics alongside the built-in 2D and 3D patterns — the reason most buyers specify ILDA over DMX alone.

How is the 12W split across the three colors?

3W red at 638nm, 4W green at 520nm and 5W blue at 450nm, mixed for full-color output. The 5.5mm window spot is what keeps beams and graphics tight across a busy room rather than bloomed.

What do I specify for power when ordering?

Only the plug. The supply is AC 100–240V, 50/60Hz, so one unit covers venues in either region — choose US, EU, UK or AU when you order and the fixture travels with the rig.

What are the rigging options and how much can I aim it without moving the fixture?

Hang, pole, track or ground mount, all from the aluminum-alloy housing. Horizontal and vertical lens offset of -30% to +30% shifts the projection onto the crowd once the fixture is clamped and cabled.

Where can it be installed — is it rated for outdoor stages?

Indoor use only: the housing is IP20, so it needs cover from rain and spray. Working temperature runs -15 to 45°C, which covers unheated warehouse rooms and hot club ceilings. Warranty is 1 year from the manufacturer.
