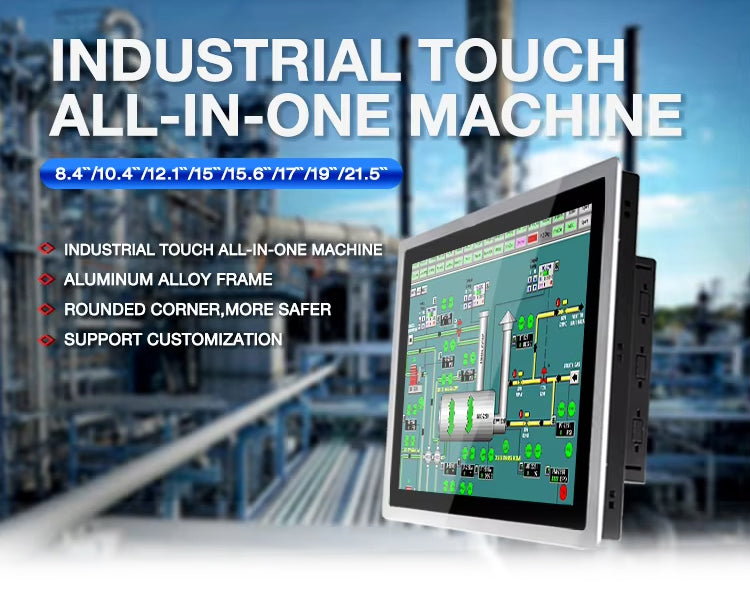

Industrial IP65 Waterproof Capacitive Touch Screen Monitor

A rugged, IP65-sealed capacitive touch monitor built for outdoor kiosks, industrial panels and high-traffic self-service points.

From$ 163 $ 194 15% discount
Custom order
Made to order to your spec — you choose the size and configuration.

MOQ: 2

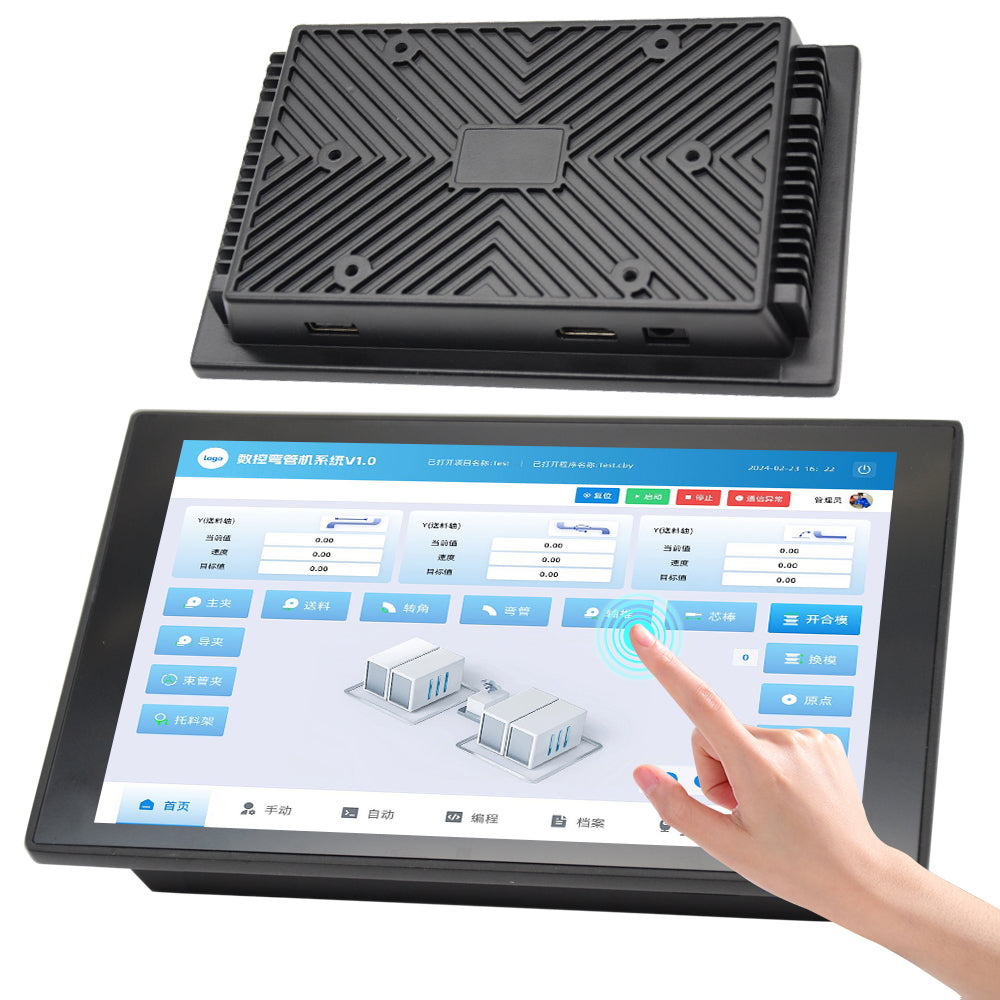

This is an industrial-grade touch screen monitor with an IP65-rated front panel, designed for venues where a standard display would fail — outdoor kiosks, factory floors, self-order stations and any interactive point exposed to dust, splashes or cleaning water. The sealed front uses a silicon gasket behind strengthened cover glass, so operators can wipe it down or run it in humid, splash-prone areas without risking the electronics behind it.

The panel runs projected-capacitive 10-point multitouch with a 7H hardness surface, giving it the same responsiveness guests expect from a phone while standing up to constant public use. It drives from Windows, Linux, Mac and Android over USB, mounts on a VESA 75/100 pattern, and connects through VGA, HDMI, DVI and USB, so it slots into most existing kiosk, POS or signage builds.

  • IP65-sealed front with silicon seal and strengthened cover glass
  • Projected-capacitive 10-point multitouch, 7H surface hardness
  • Screwable connectors for vibration-prone, rugged environments
  • VESA 75/100 mounting; USB touch, plug-and-play across major OSes
  • Wide operating range for outdoor and industrial installation

Specifications

Material
Metal, Plastic
Color
Black
Weight
0.6 kg
Power
5 W
Voltage
100-240V AC / 12V DC
Warranty
1-year manufacturer warranty
Customization
Custom size, resolution, brightness and silk-screened logo available (MOQ applies)
Touch technology
Projected capacitive, 10-point multitouch
IP rating (front panel)
IP65
Touch connector
USB
Surface hardness
7H
Touch life
Unlimited contacts
Aspect ratio
16:9
Brightness
350 cd/m²
Contrast ratio
700:1
Colors displayed
16.7M
Response time (Tr/Tf)
10/15 ms
Viewing angle (H/V)
150/145 °
Backlight
LED
Backlight lifetime
30000 hours
Drivers
Windows; Linux; Mac; Android
Mounting
VESA 75/100
Interfaces
VGA, HDMI, DVI, USB
Operating temperature
-10 to +65 °C
Humidity range
10%-90% RH
Power indicator
Green LED

Frequently asked questions

What does the IP65 rating on the front panel protect against?

The IP65 front seals the glass to the housing with a silicon gasket, so the display face resists dust and low-pressure water jets — you can wipe it down or run it in splash-prone, outdoor and washdown areas. Note the rating covers the front panel; the rear housing and cable entry should still be installed in a suitable enclosure for full outdoor exposure.

Which operating systems does the touch screen support?

Touch is projected-capacitive over USB with plug-and-play drivers for Windows, Linux, Mac and Android. It behaves like a standard USB HID touch device, so it drops into most kiosk, POS and signage builds without extra software.

What sizes and connections are available for this monitor?

The monitor is offered across a range of screen sizes to match your enclosure and viewing distance. Connectivity covers VGA, HDMI, DVI and USB for touch, with a 100–240 V AC supply and a 12 V DC input for embedded installs. Contact us to confirm the exact size, resolution and port layout for your build.

Can the monitor be mounted into a custom kiosk or enclosure?

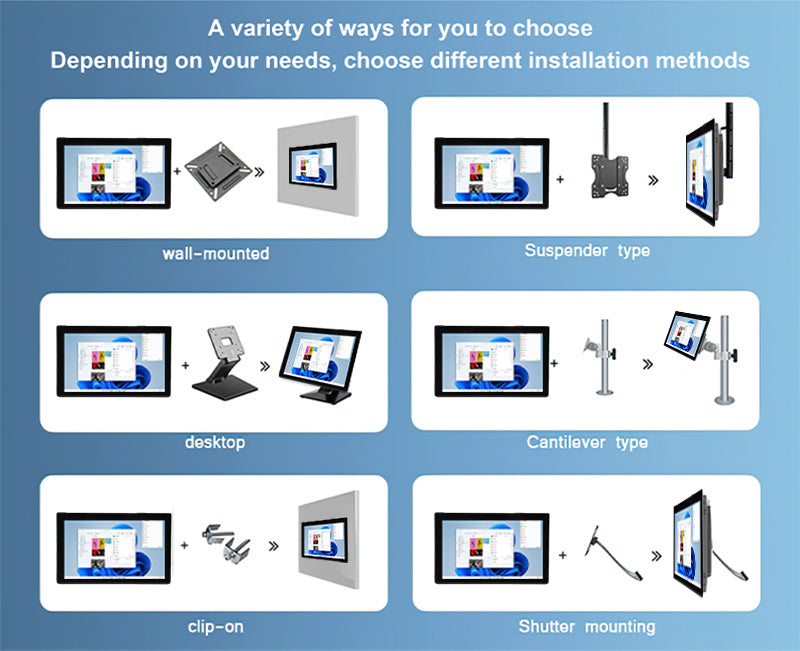

Yes. It uses a VESA 75/100 mounting pattern and screwable connectors that stay secure in vibration-prone settings, so it integrates into kiosks, panel builds and embedded cabinets.

Is customization available for logo, brightness or resolution?

Yes. The manufacturer supports customization of size, resolution, brightness and appearance, plus silk-screened branding on the housing. Minimum order quantities apply for logo printing and custom builds — contact us to confirm.

What warranty apply?

Backed by a 1-year manufacturer warranty.
