LED Video Wall — Indoor/Outdoor Panels, P1.9–P4.81

Modular full-color LED video wall in P1.9–P4.81 pixel pitches, rated IP65 for indoor and outdoor stages, concerts, and events.

From$ 326 $ 381 14% discount
Custom order
Made to order to your spec — you choose the size and configuration.

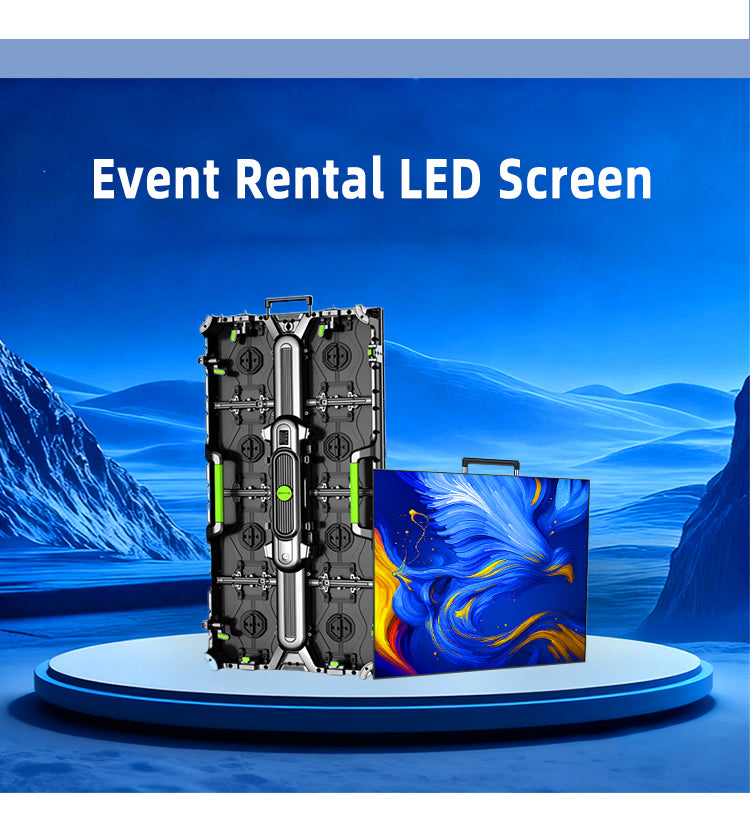

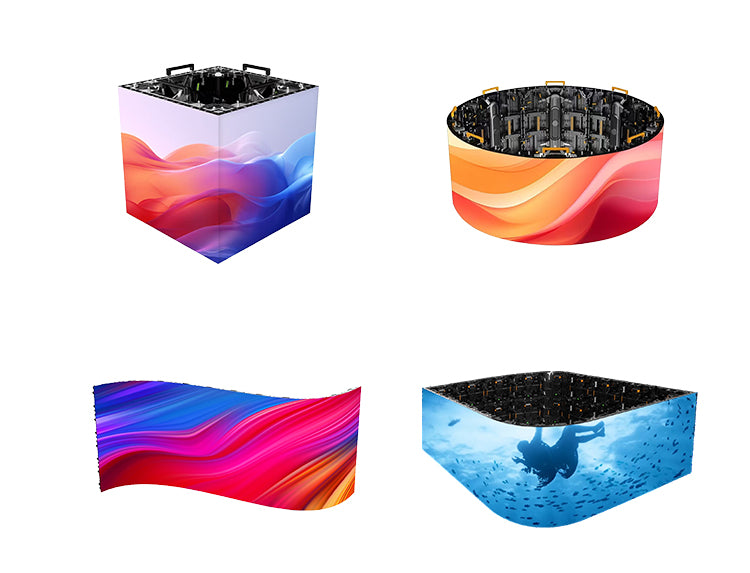

A modular LED video wall built from interlocking cabinets that clip together into any width and height a stage or backdrop calls for. Each panel runs full color at 5,000 cd/m² brightness with a 7680 Hz refresh rate, so on-camera footage stays flicker-free and readable even under stage lighting or direct sun. The die-cast aluminum cabinets are light enough to fly from truss and rugged enough to floor-stack, and an IP65 rating lets the same panels move from an indoor club to an outdoor festival.

Pixel pitch sets how close the audience can stand before the image breaks up. Tighter pitches suit close-viewing backdrops and premium interiors; wider pitches cover large-format outdoor screens where viewers sit farther back.

  • Pixel pitch options: P1.9, P2.6, P2.9, P3.9, and P4.81

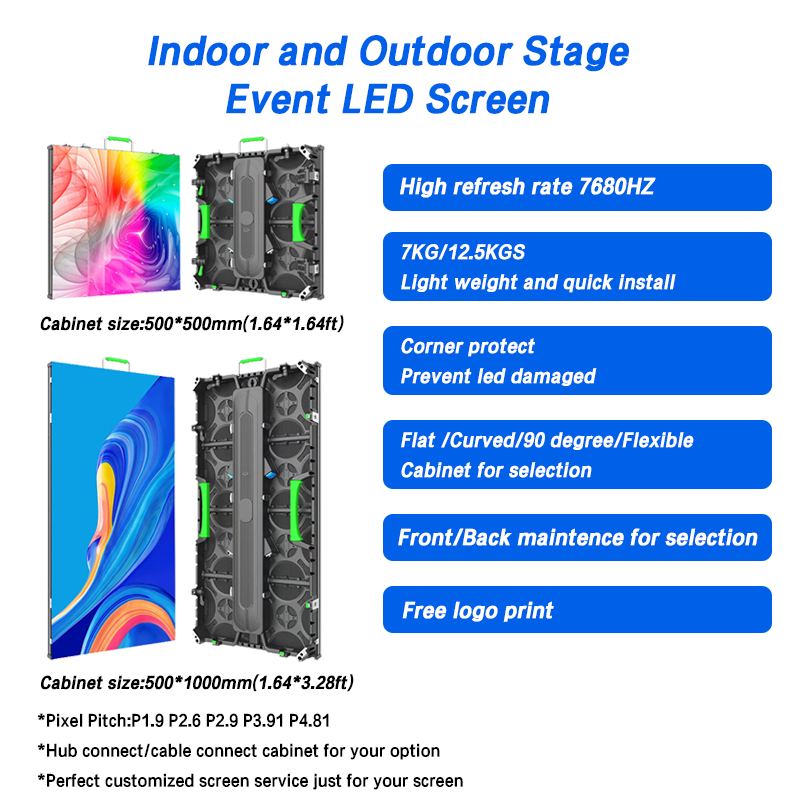

  • Cabinet sizes: 500 × 500 mm and 500 × 1000 mm, tiled to any canvas
  • Brightness 5,000 cd/m², contrast 5000:1, 160° viewing angle
  • Supports 1080p, 4K, and 8K resolution across the assembled wall
  • Remote content management with multi-language support
  • Operating range −30°C to 60°C, IP65 rated for wet and dusty sites

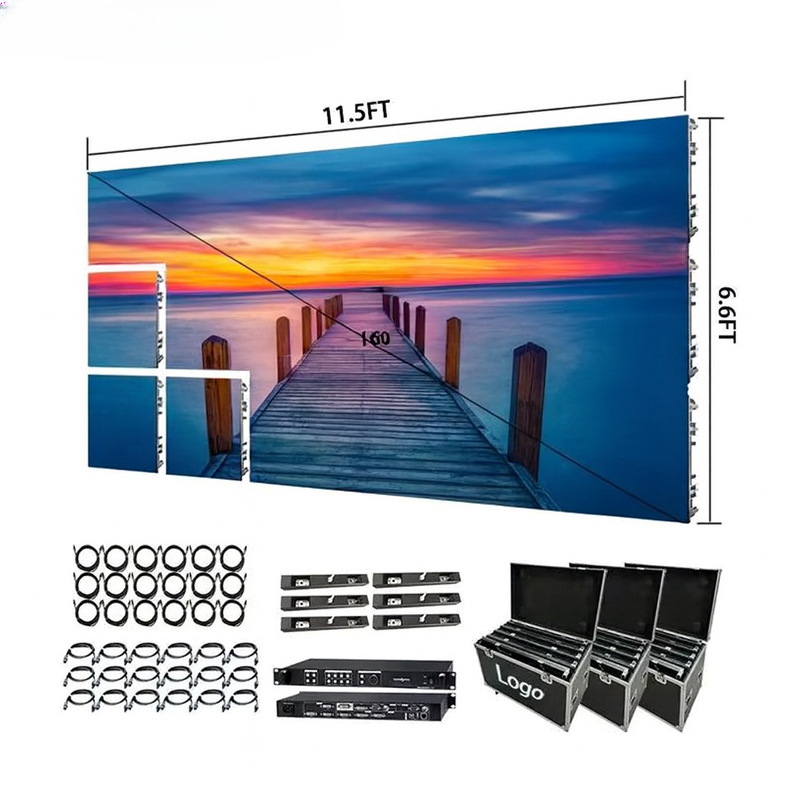

Backed by a 5-year manufacturer warranty and a rated 100,000-hour lifespan. Contact us to confirm the exact panel count and controller package for your target screen size.

Specifications

Material
Die-cast aluminum
Color
Full color
Voltage
110-240V
Warranty
5-year manufacturer warranty
Certifications
IP65, EMC, LVD, CE, CCC, FCC
Customization
Custom pixel density and screen size
Pixel pitch options
P1.9, P2.6, P2.9, P3.9, P4.81
Brightness
5000 cd/m²
Contrast ratio
5000:1
Refresh rate
7680 Hz
Viewing angle
160 °
Color depth
16 bit
Power consumption
400 W/m²
Supported resolution
1080p, 4K, 8K
Operating temperature
-30 to 60 °C
Mounting options
Floor stand, truss
LED chip
Nationstar / Kinglight / Hongsheng
Control card
Novastar / Huidu / Colorlight
Operating system
Windows 7/8/10
Lifespan
100000 hours
After-sales support
24/7 technical guidance

Frequently asked questions

What pixel pitches does this LED video wall come in?

The panels are available in P1.9, P2.6, P2.9, P3.9, and P4.81 pixel pitches. Tighter pitches like P1.9 and P2.6 suit close-viewing indoor backdrops and premium interiors, while P3.9 and P4.81 are built for large outdoor screens where the audience sits farther back.

Can these LED panels be used outdoors in rain?

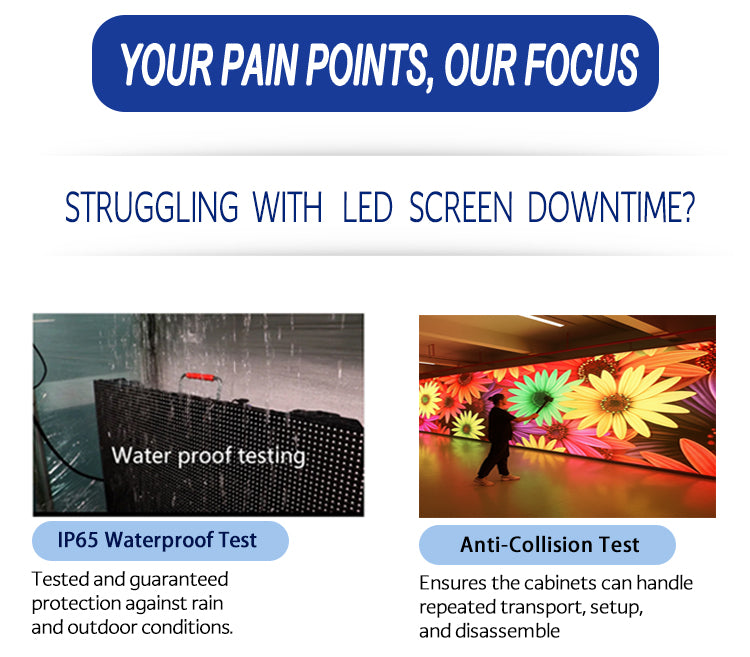

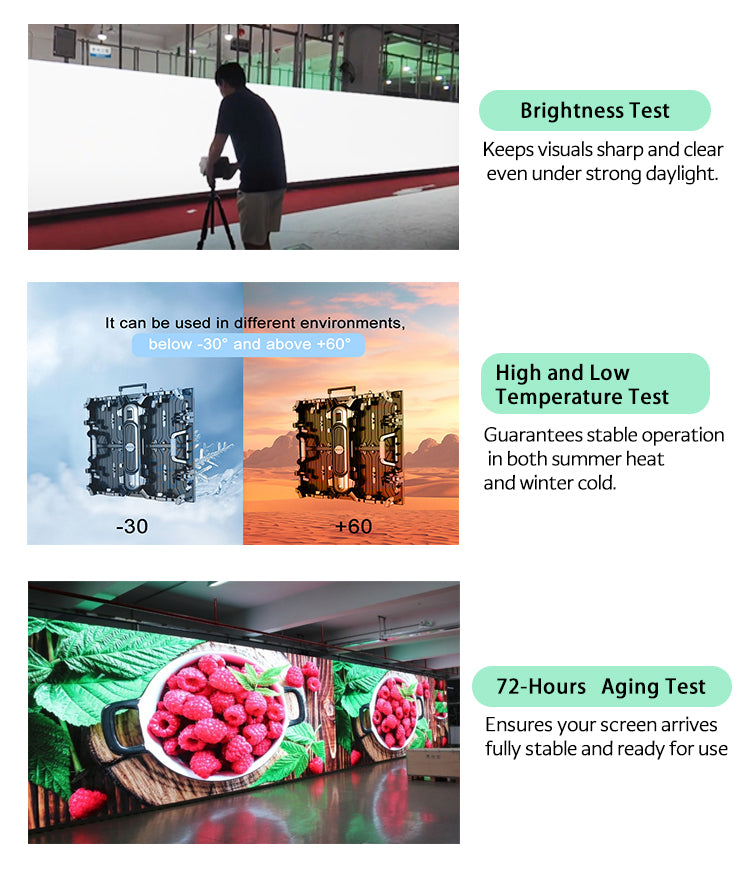

Yes. The cabinets carry an IP65 rating, which means they resist dust and water jets, so they hold up at outdoor stages, festivals, and event sites. They also operate across a −30°C to 60°C range and stay readable in direct sunlight at 5,000 cd/m².

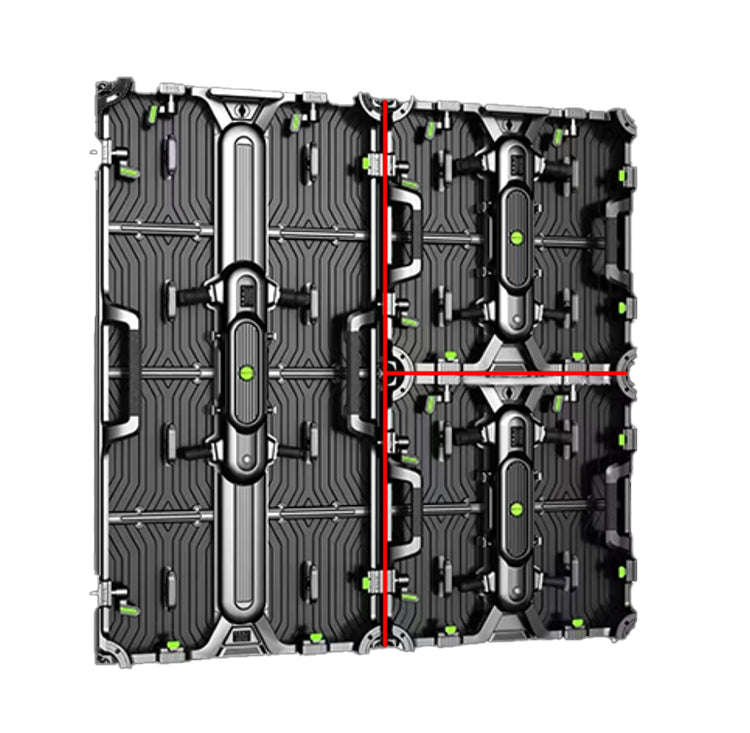

How do the cabinet sizes tile into a full screen?

Cabinets come in 500 × 500 mm and 500 × 1000 mm sizes and lock together into any width and height you need. The assembled wall can resolve up to 1080p, 4K, or 8K depending on how many panels you combine. Contact us to confirm the panel count for your target dimensions.

How are the panels mounted for events?

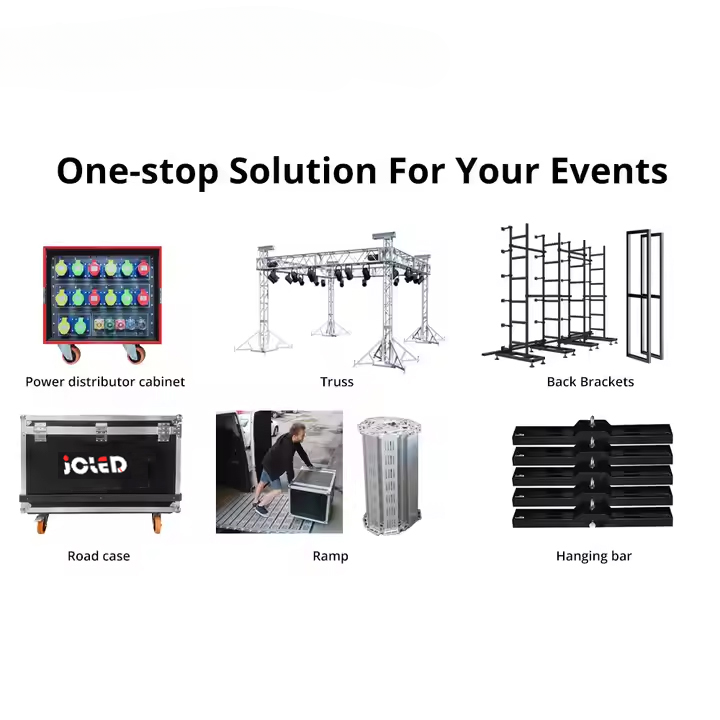

The die-cast aluminum cabinets support both floor-stand and truss mounting, so the same panels can floor-stack for a backdrop or fly overhead for a stage. They are light enough to rig and rugged enough for repeated setup and teardown on the rental circuit.

What warranty and lifespan do these LED screens have?

The panels are backed by a 5-year manufacturer warranty and a rated lifespan of 100,000 hours, with 24/7 technical guidance for setup and troubleshooting.

What content management and control systems are supported?

The wall uses industry-standard control cards (Novastar, Huidu, or Colorlight) and runs on Windows 7/8/10. It supports remote content management with multi-language menus, so you can update playback from a connected workstation.
