Mobile Solar Power Trailer — 5 kWh Off-Grid Storage

A towable 5 kWh solar-plus-storage trailer that delivers off-grid AC power for remote sites, security and lighting.

177,497.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

MOQ: 2

The mobile solar power trailer packs monocrystalline panels, a lithium-ion battery bank and an MPPT charge controller onto a towable base, giving a work site clean off-grid power without a fuel line or a grid tie. Its 5 kWh of storage runs cameras, floodlights and small industrial tools through a full 24-hour cycle, with the panels topping up the bank through the day — useful where mains power is far away or not yet installed.

Built for crews that move between locations, the trailer rolls to wherever the load is: a construction perimeter, an event field, a temporary security post or a lighting run. The AC output covers 110 V and 240 V at 50/60 Hz, so it feeds standard tools and fixtures directly.

  • 5 kWh lithium-ion storage for around-the-clock operation
  • Monocrystalline silicon panels for efficient harvesting in remote spots
  • MPPT controller for maximum charge from available sunlight
  • 110 V / 240 V AC output at 50/60 Hz for standard equipment

Specifications

Material
Monocrystalline silicon
Power
5000 W
Voltage
AC 110 V / 240 V, 50/60 Hz
Energy storage capacity
5 kWh
Battery type
Lithium-ion / lead-acid
Charge controller
MPPT
Solar panel type
Monocrystalline silicon
Work time
24 h
Application
Outdoor / off-grid
Max load power
5 kW

Frequently asked questions

How much load will 5 kWh actually carry through a night?

Plan around low-draw loads — monitoring cameras, a security post, floodlighting and small industrial tools — which 5 kWh of storage carries through roughly a 24-hour cycle while the panels top the bank back up in daylight. Peak draw must stay under the 5 kW maximum.

What AC output does the trailer supply, and do I need to specify it?

Output is AC 110 V and 240 V at 50/60 Hz, so standard fixtures and tools plug in directly with no step-up transformer. State which voltage and frequency your site equipment runs on when ordering.

Lithium-ion or lead-acid — which should I order?

Both are offered. Lithium-ion is the lighter pack with the longer cycle life, which suits a trailer that moves between sites weekly; lead-acid is the alternative where that matters less. Name the chemistry on the order.

Does it need a grid tie, a fuel line or a backup generator?

None of the three. Monocrystalline panels feed the battery bank through an MPPT controller, which tracks the available sunlight to pull maximum charge — the system is self-contained for sites where mains power is distant or not yet installed.

How does it relocate between sites?

Tow it. Panels, battery bank and controller are all mounted on one durable trailer base, so the whole system moves as a unit and can be repositioned to a perimeter, an event field or a lighting run without breaking anything down.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

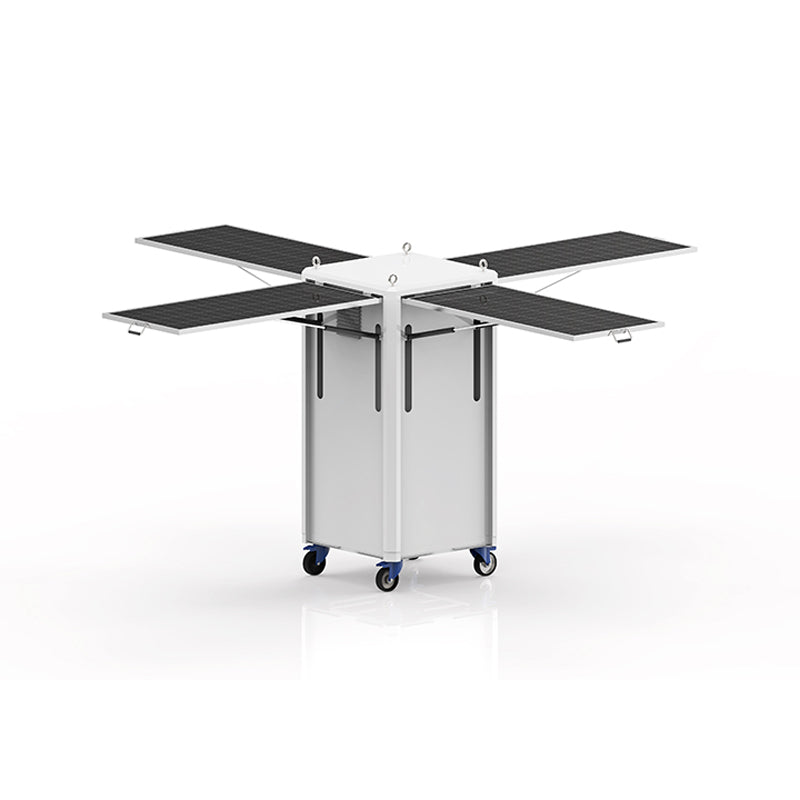

Off grid solar kit with four fold-out panels in X formation on a wheeled white cabinet, studio shot
