Vertical Hydraulic Baler — Cardboard, Plastic & Scrap Compactor

Name: Vertical Hydraulic Baler — Cardboard, Plastic & Scrap Compactor
Brand: BarEquip.Pro
SKU: BEP-0285-05

A vertical hydraulic baling press that compacts cardboard, plastic, cans and scrap into tie-off bales, cutting waste storage space by up to 80%.

47,215.00 ฿ 53,353.00 ฿ 11% discount

Shipping calculated separately

Lead time: 2–4 weeks

model number: 8 ton

8 ton 10 ton 20 ton 30 ton 40 ton 60 ton 80 ton 100 ton

Quantity

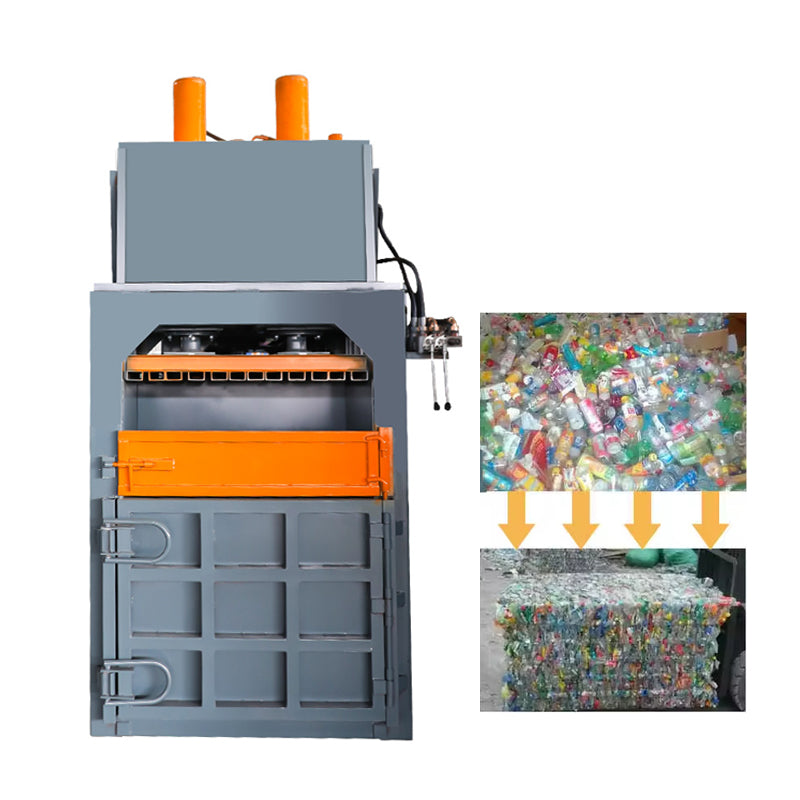

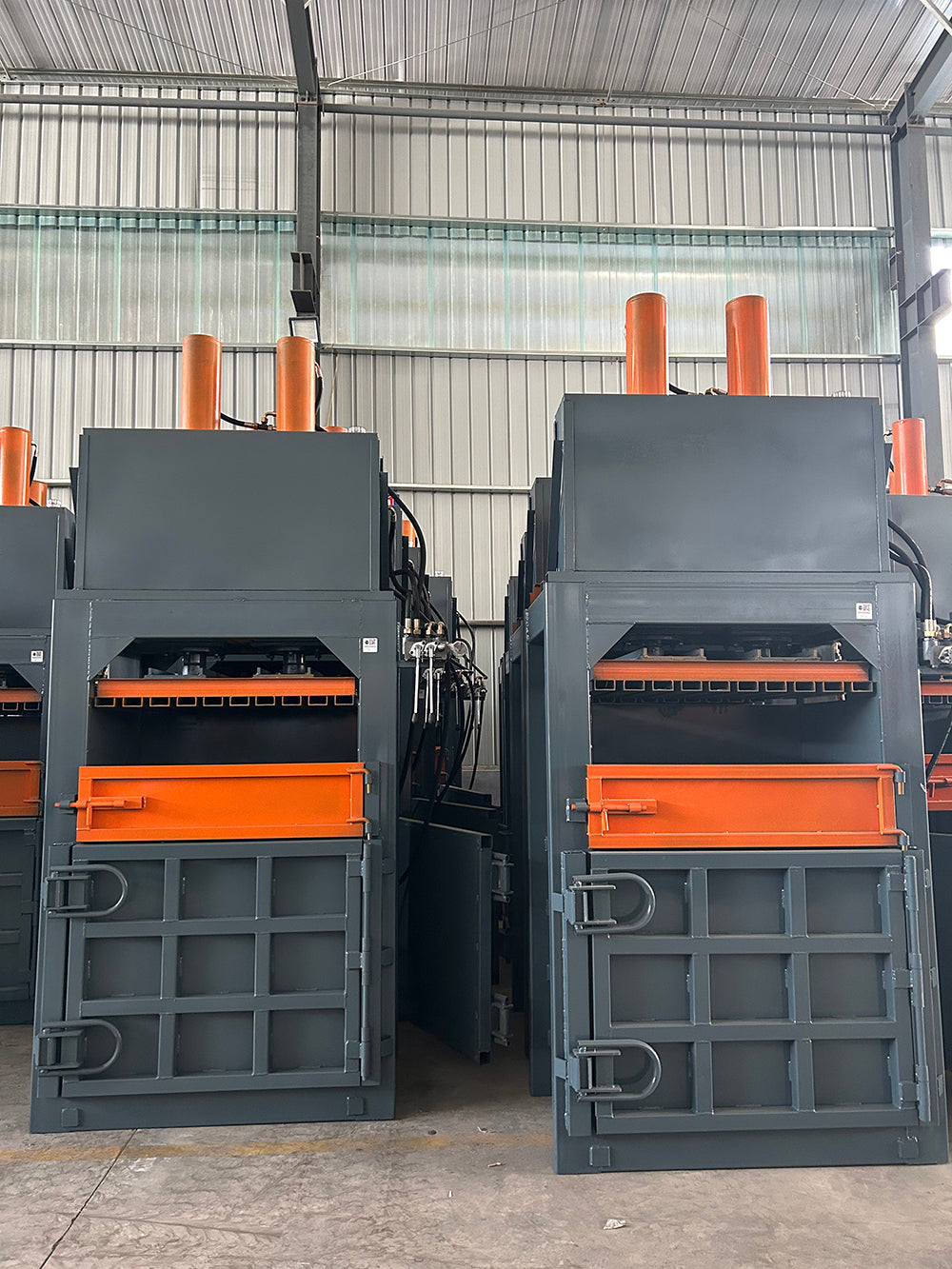

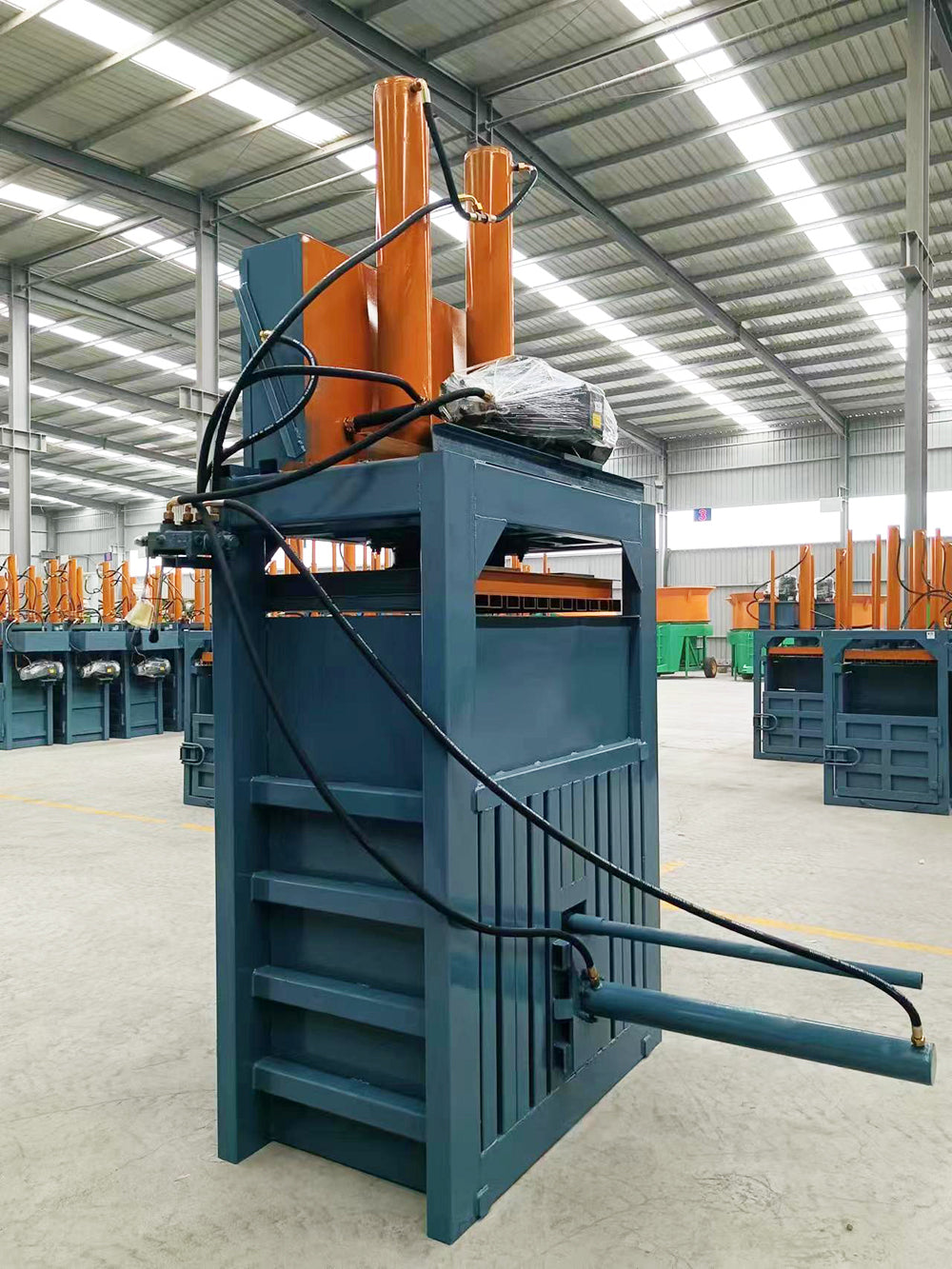

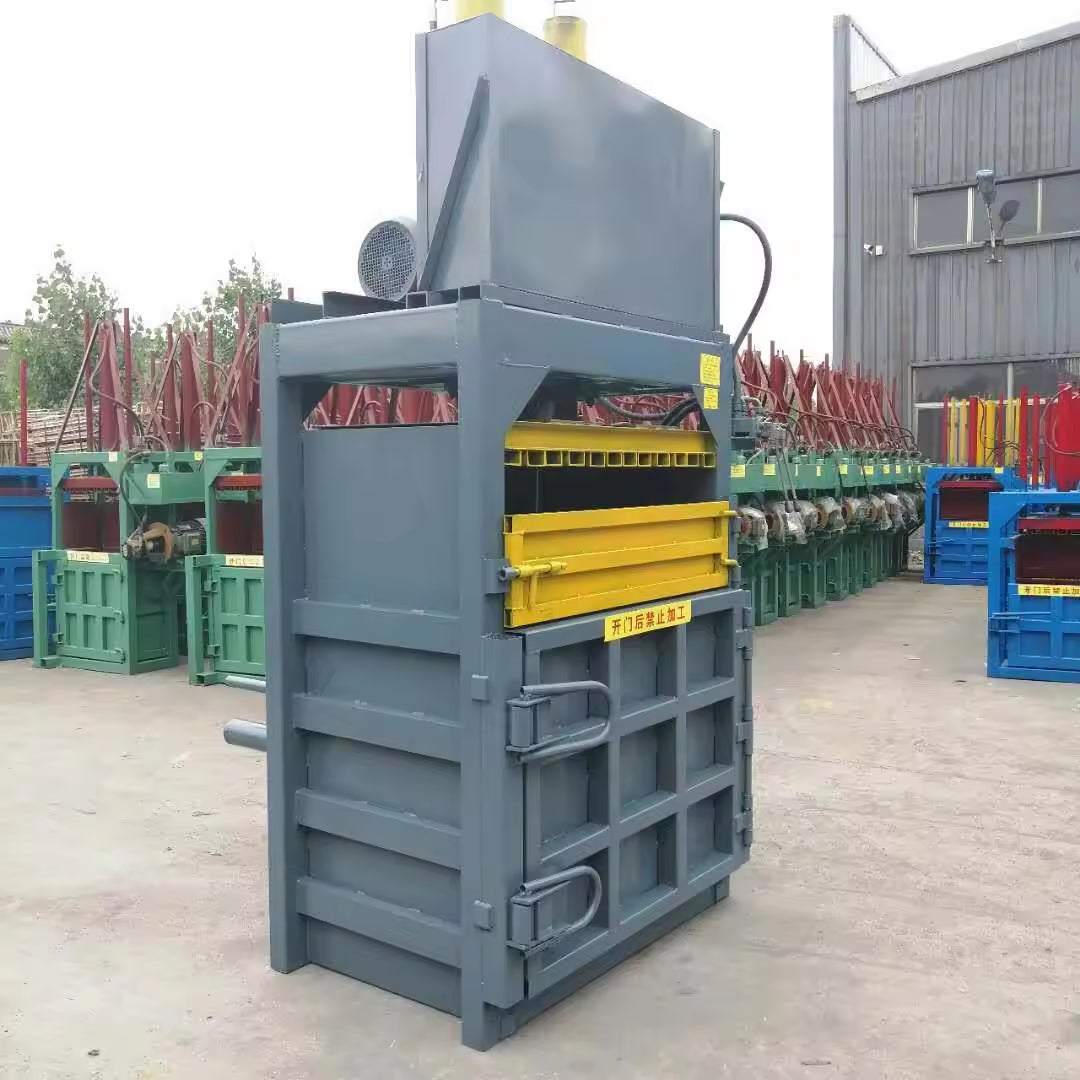

A vertical hydraulic baler is a floor-standing waste compactor that presses loose recyclables — cardboard, PET bottles, aluminum cans, waste film, foam and industrial scrap — into dense, strapped bales. For any venue that generates volume packaging waste, from a busy bar back-of-house to a warehouse or production floor, it turns sprawling piles into stackable, transportable units and reclaims up to 80% of the space that loose waste would otherwise eat.

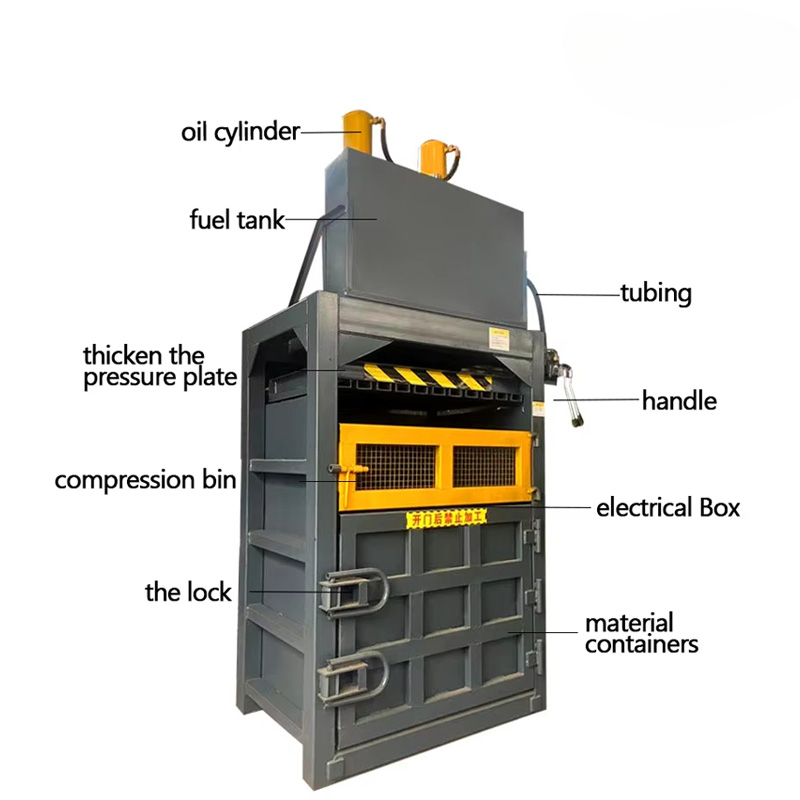

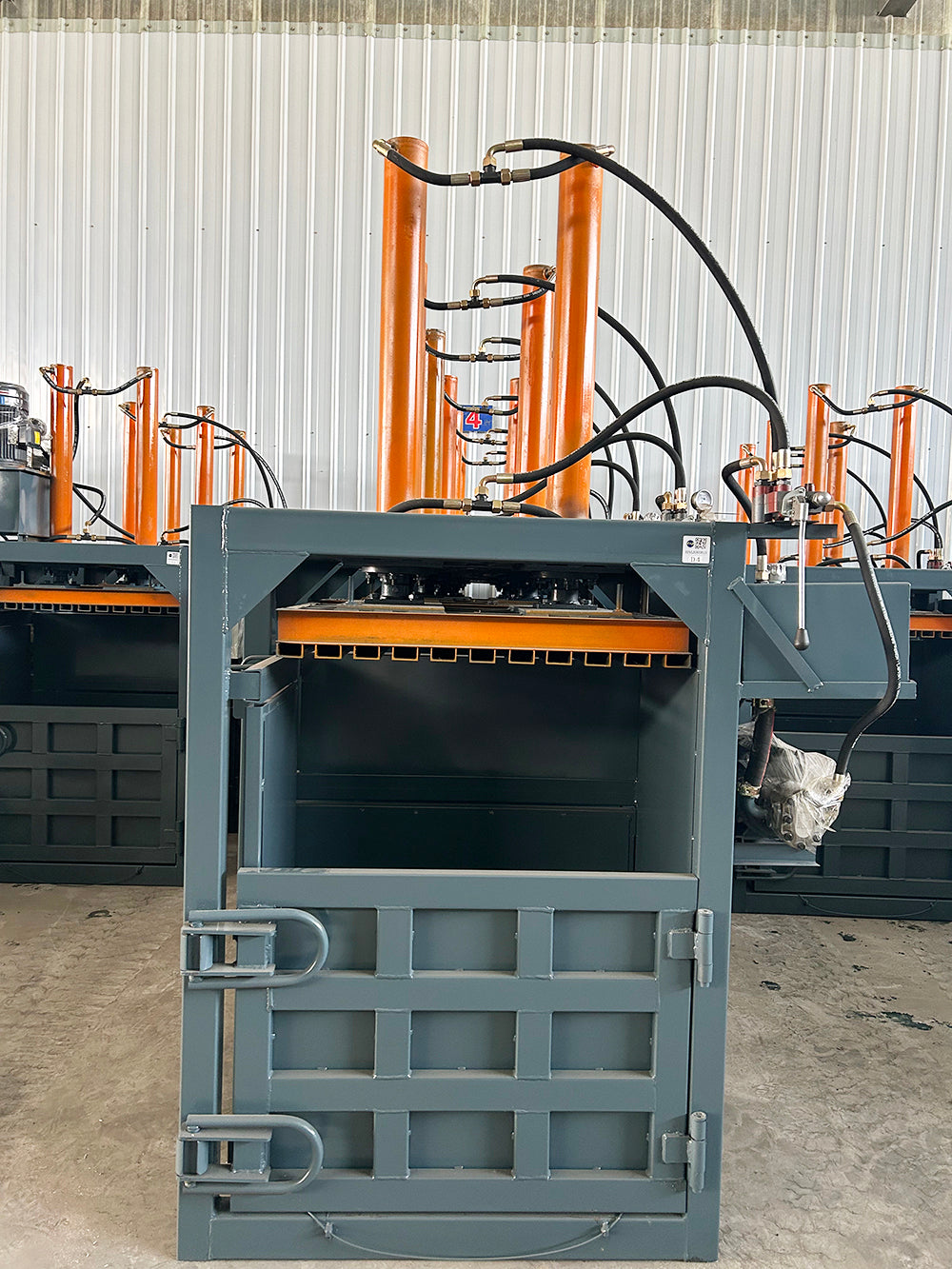

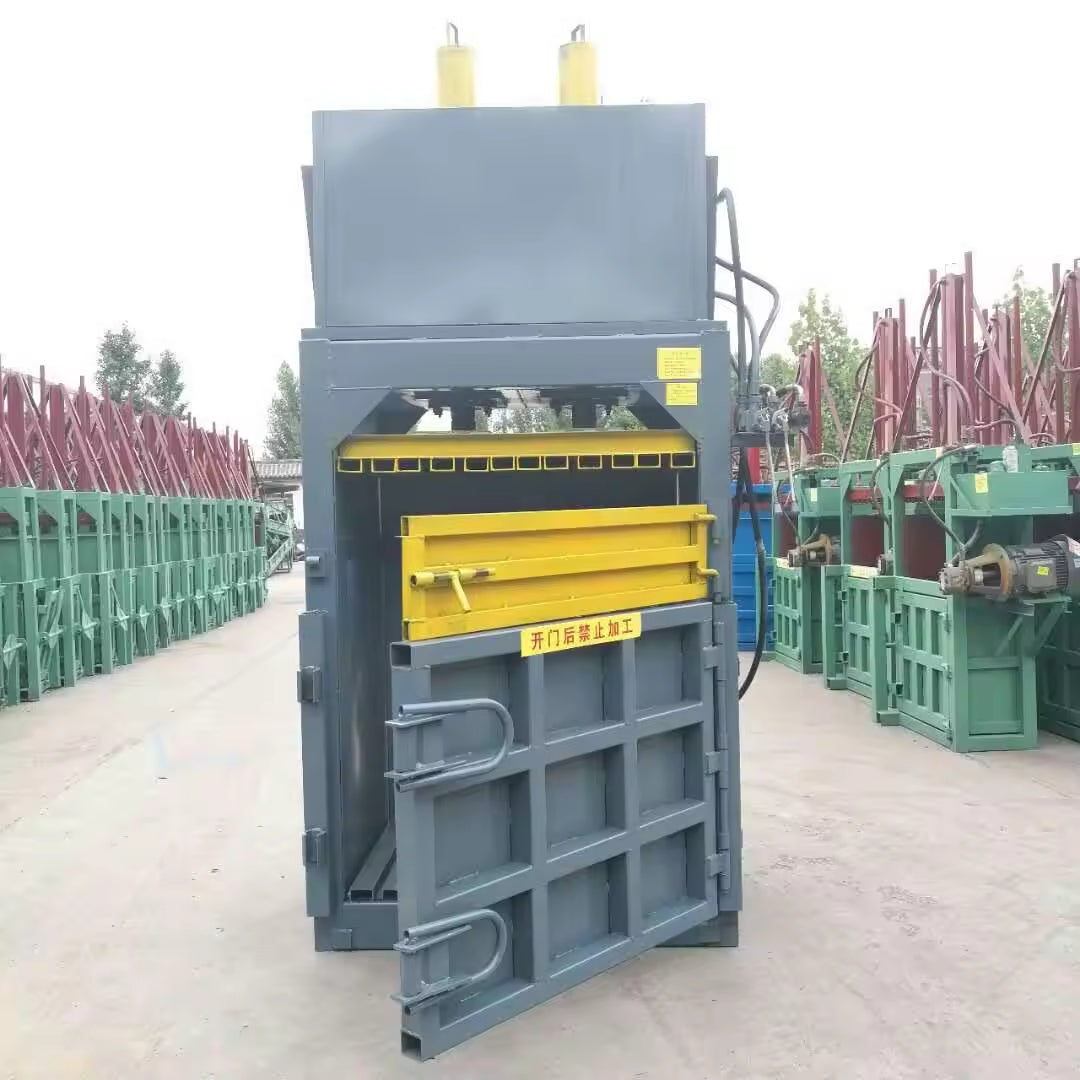

Operation is straightforward: material is hand-loaded, the platen is driven down by the hydraulic ram at the push of a button, and an anti-rebound barb holds the compaction while the platen returns to position on its own. Two tying lanes make banding the finished bale quick, and the press keeps the physical characteristics of the baled material intact for clean resale or collection.

Press force spans 8–120 tons across the model range, for light packaging through to dense scrap.
Compaction ratio up to 5:1, cutting hauling trips and transport cost.
Semi-automatic hydraulic drive with manual button control and manual strapping.
Anti-rebound barb and self-returning platen for consistent, repeatable bales.

Available voltages cover 110–440 V single- and three-phase supply. Backed by a 2-year manufacturer warranty. Contact us to confirm the force, bale size and voltage for your model.

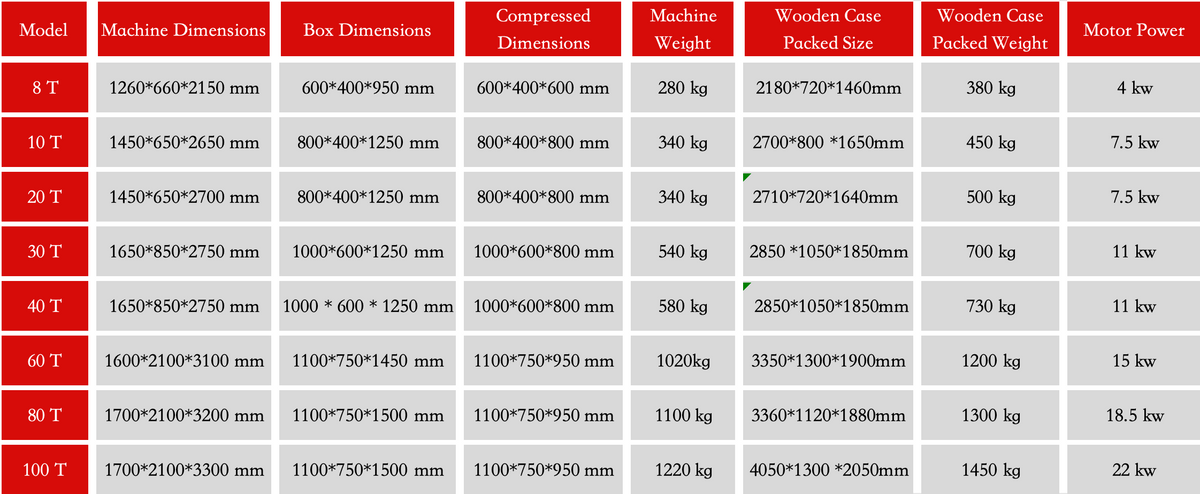

Specifications

model number	8 ton	10 ton	20 ton	30 ton	40 ton	60 ton	80 ton	100 ton
Dimensions (L × W × H)	660 × 1260 × 2150 mm	650 × 1450 × 2650 mm	650 × 1450 × 2700 mm	850 × 1650 × 2750 mm	850 × 1650 × 2750 mm	2100 × 1600 × 3100 mm	2100 × 1700 × 3200 mm	2100 × 1700 × 3300 mm
Power	4000 W	7500 W	7500 W	11000 W	11000 W	15000 W	18500 W	22000 W
Voltage	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V	110 V, 115 V, 220 V, 230 V, 380 V, 415 V, 440 V
Weight	280.0 kg	340.0 kg	340.0 kg	540.0 kg	580.0 kg	1020.0 kg	1100.0 kg	1220.0 kg
Material	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap	Cardboard, Waste paper, PET plastic bottles, Plastic film, Aluminum cans, Foam, Cotton / rags / fabrics, Industrial scrap
Warranty	2 years	2 years	2 years	2 years	2 years	2 years	2 years	2 years
Certifications	CE	CE	CE	CE	CE	CE	CE	CE
Customization	Voltage and press force options across the model range	Voltage and press force options across the model range	Voltage and press force options across the model range	Voltage and press force options across the model range	Voltage and press force options across the model range	Voltage and press force options across the model range	Voltage and press force options across the model range	Voltage and press force options across the model range
Automatic grade	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic
Driven type	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Press force	8–120 tons	8–120 tons	8–120 tons	8–120 tons	8–120 tons	8–120 tons	8–120 tons	8–120 tons
Bale size	600 × 400 × 950 mm	800 × 400 × 1250 mm	800 × 400 × 1250 mm	1000 × 600 × 1250 mm	1000 × 600 × 1250 mm	1100 × 750 × 1450 mm	1100 × 750 × 1500 mm	1100 × 750 × 1500 mm
Compressed dimensions	600 × 400 × 600 mm	800 × 400 × 800 mm	800 × 400 × 800 mm	1000 × 600 × 800 mm	1000 × 600 × 800 mm	1100 × 750 × 950 mm	1100 × 750 × 950 mm	1100 × 750 × 950 mm
Bale weight	30–50 kg	30–50 kg	30–50 kg	30–50 kg	30–50 kg	30–50 kg	30–50 kg	30–50 kg
Compaction ratio	up to 5:1	up to 5:1	up to 5:1	up to 5:1	up to 5:1	up to 5:1	up to 5:1	up to 5:1
Core components	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear	PLC, engine, bearing, gearbox, motor, pressure vessel, gear
Tying lanes	2	2	2	2	2	2	2	2

Frequently asked questions

What materials can this vertical baler compact?

It presses loose recyclables and packaging waste into strapped bales — cardboard and waste paper, PET bottles, aluminum cans, plastic film and foil, foam, cotton, rags and fabrics, plus industrial scrap. The press keeps the physical characteristics of the baled material intact for clean resale or collection.

How much press force does the machine deliver?

Press force spans 8 to 120 tons across the model range, from light packaging up to dense metal scrap. Contact us to confirm the force rating for the specific model you choose.

How much space does baling actually save?

Compaction runs up to a 5:1 ratio and reclaims up to 80% of the floor space that loose waste would otherwise occupy. Denser bales also cut hauling frequency and transport cost.

Is the baler easy to operate day to day?

Yes. Material is hand-loaded, then the hydraulic platen is driven by a push button. An anti-rebound barb holds the compaction, the platen returns to position automatically, and two tying lanes make banding the bale quick.

What power supply does the baler need?

The motor is rated at 7.5 kW, and supply voltage options cover 110, 115, 220, 230, 380, 415 and 440 V for single- and three-phase installations. Confirm your site voltage when ordering.

What warranty and support come with the machine?

It's backed by a 2-year manufacturer warranty. Each unit is tested before shipment, spare parts are included, and remote video support plus instructional videos are available if you have questions during use.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
