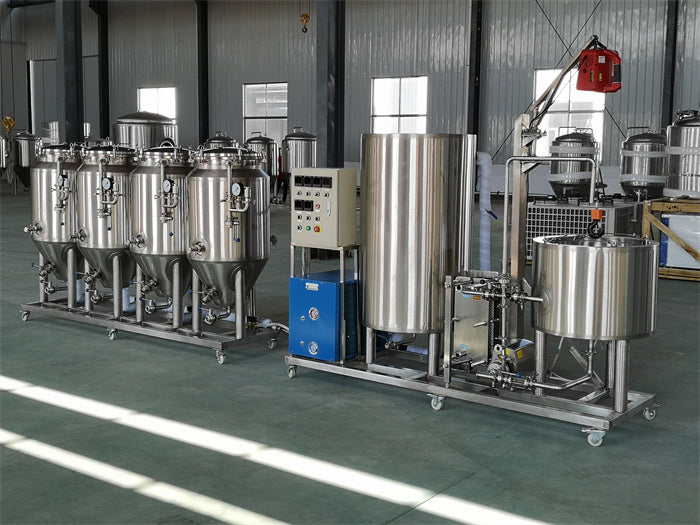

100L Craft Microbrewery System — Brewhouse & Fermenters

A 100L brewhouse plus four 100L fermentation tanks, with pump and pressure vessel as core components, a machinery test report, and local installation and operator training. Utilities — power, steam or gas supply — are on your side.

Match it to the utility you already have: electric where you have the load, steam if a boiler is on site, direct fire where gas is the cheapest line. State the choice when ordering, as the brewhouse is built for one. Fermenter cooling is water belt / miller board.

SUS304 food-grade stainless throughout, mirror-polished to under 0.6μm Ra on interiors so there is little for soil or yeast to key into. SUS316 or red copper can be substituted if you request it at order.

Capacity runs 100L, 300L, 500L and 1000L, with power, dimensions and material all adjustable to the room you have. A 100L rig is also a sensible pilot scale for proving recipes before a larger build.

Tanks carry 80–100mm of polyurethane or rockwool insulation with water-belt cooling jackets, and the cone bottoms are built at 60° or 75° so yeast collects at the outlet rather than smearing up the wall.

A semi-automatic PLC/HMI touch panel handles the process, and operator training is given locally at installation. Warranty is 5 years, with online support continuing after it ends.

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
