Manual Cup, Tray & Container Sealing Machine

A manual bench-top tray sealer that heat-seals up to four food trays, portion cups, yogurt cups, or foil containers per press with PE, PP, PET, or PS film.

From25,778.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

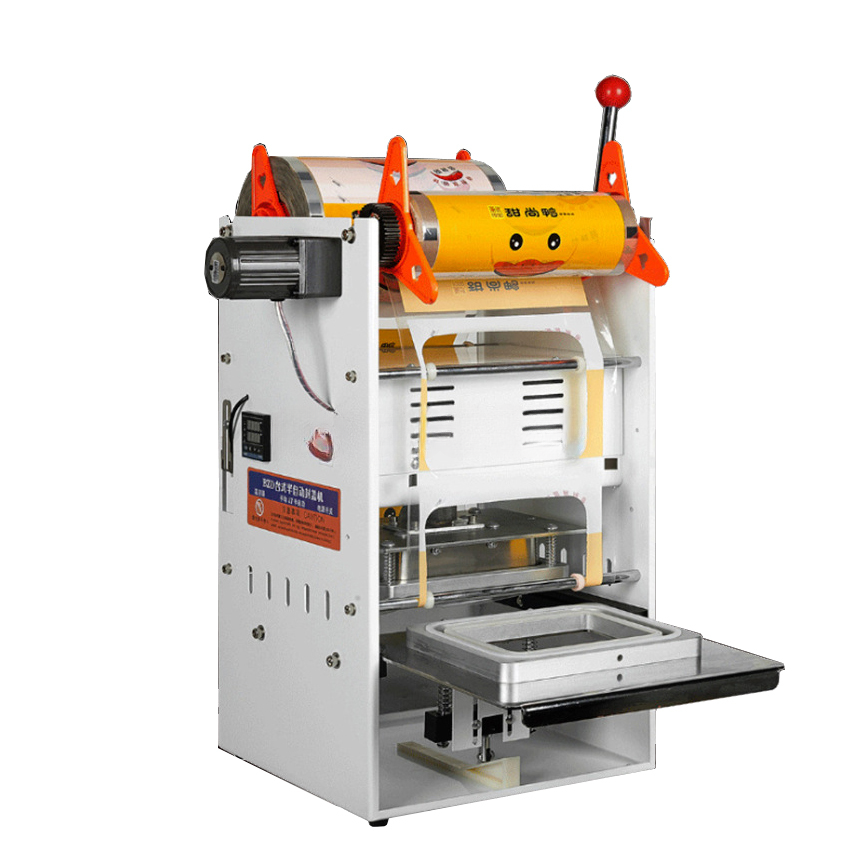

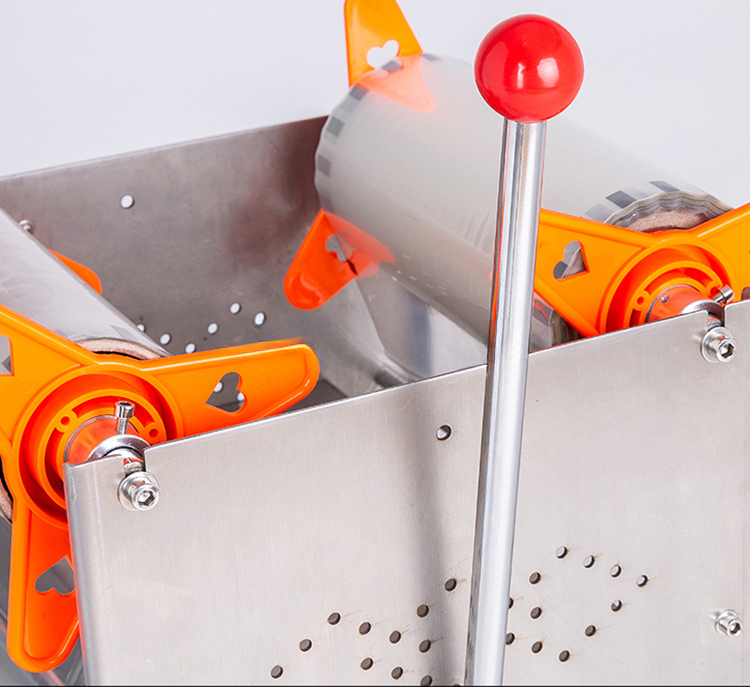

The Manual Tray & Container Sealing Machine heat-seals food containers by hand, one press at a time, so a deli, caterer, snack packager, or small food producer can send sealed portions out without an automatic line. A single operator loads up to four containers, lays the film over them, and pulls the lever; the heated head bonds the film to each rim in one stroke. Rated output is 400–500 units per hour — enough for steady packing without the footprint or price of a conveyor sealer.

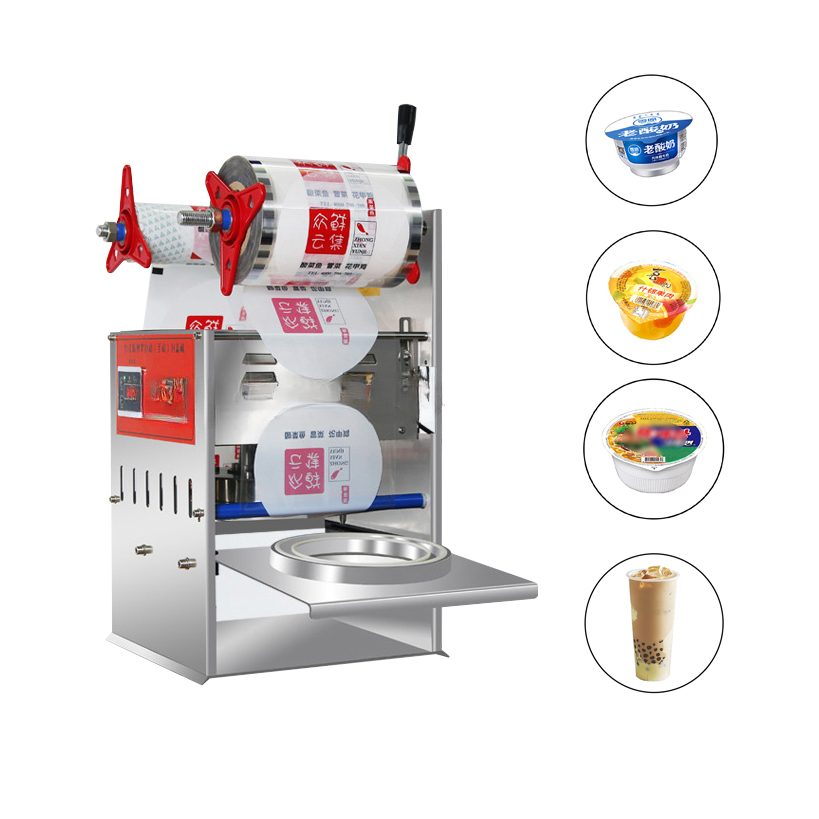

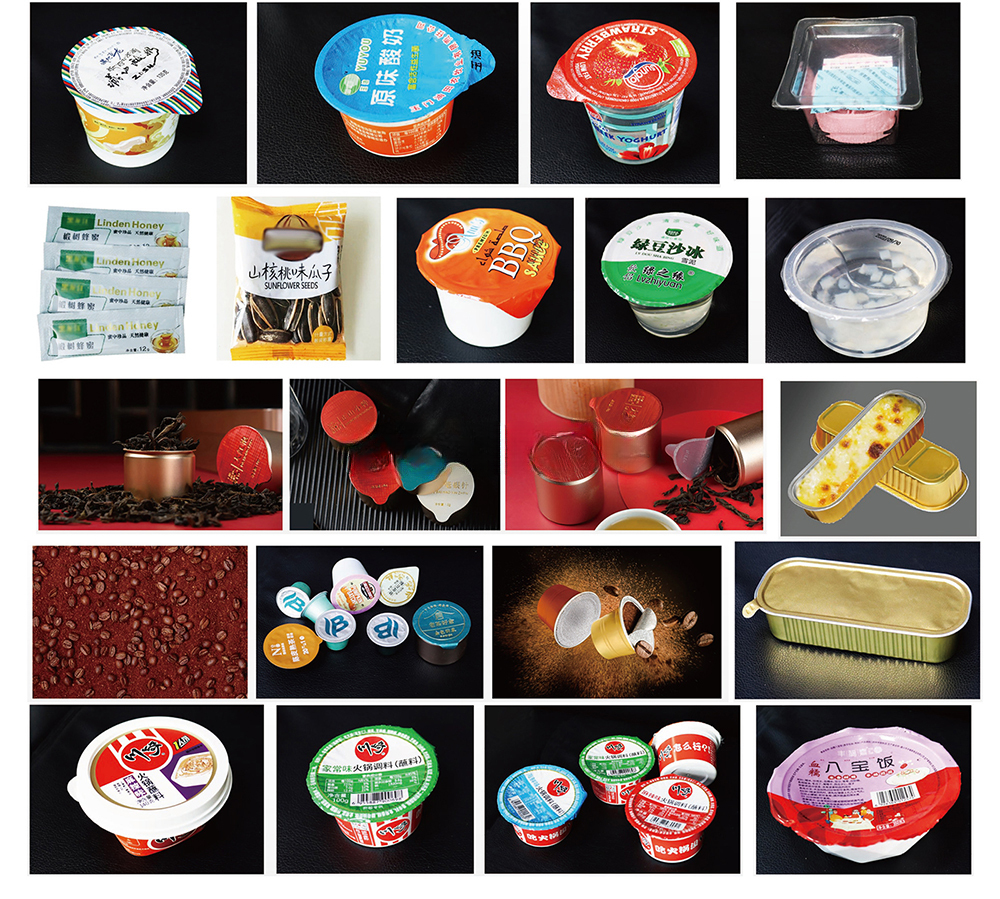

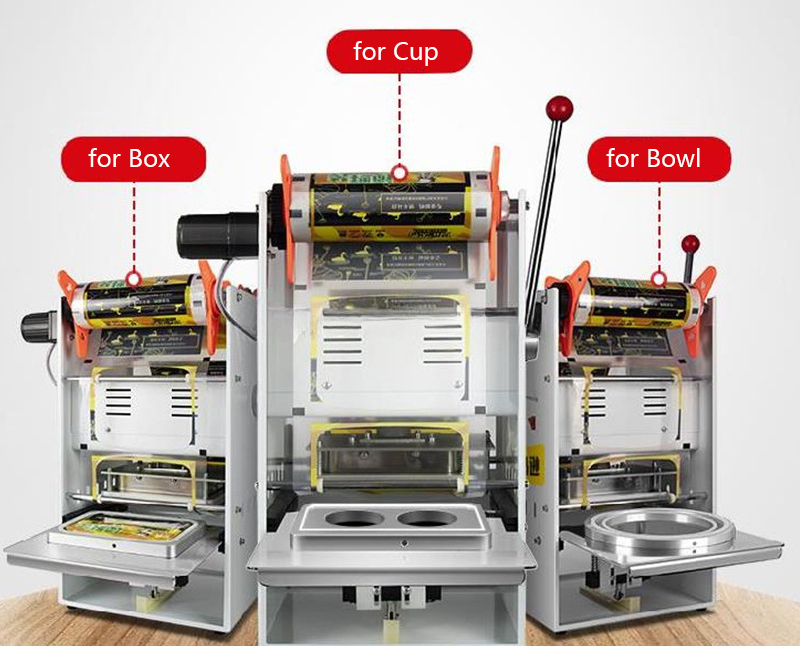

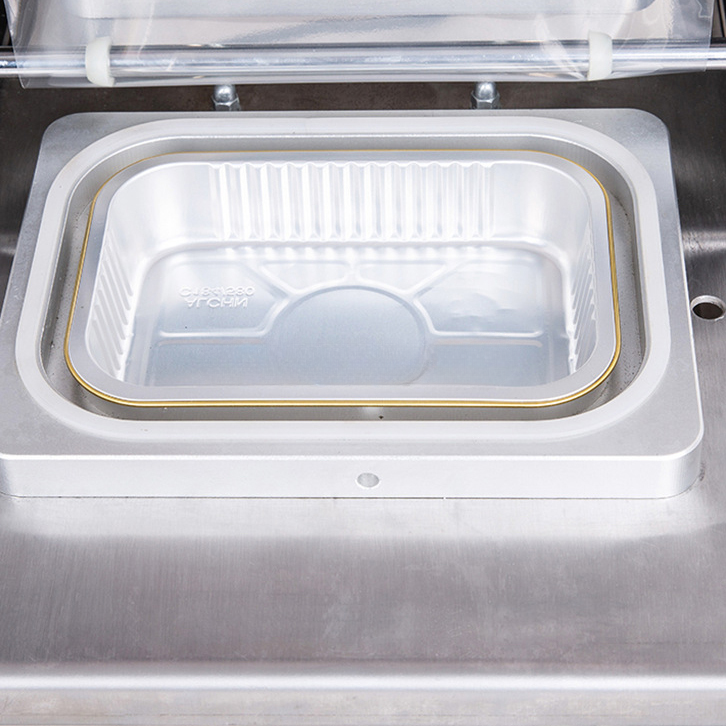

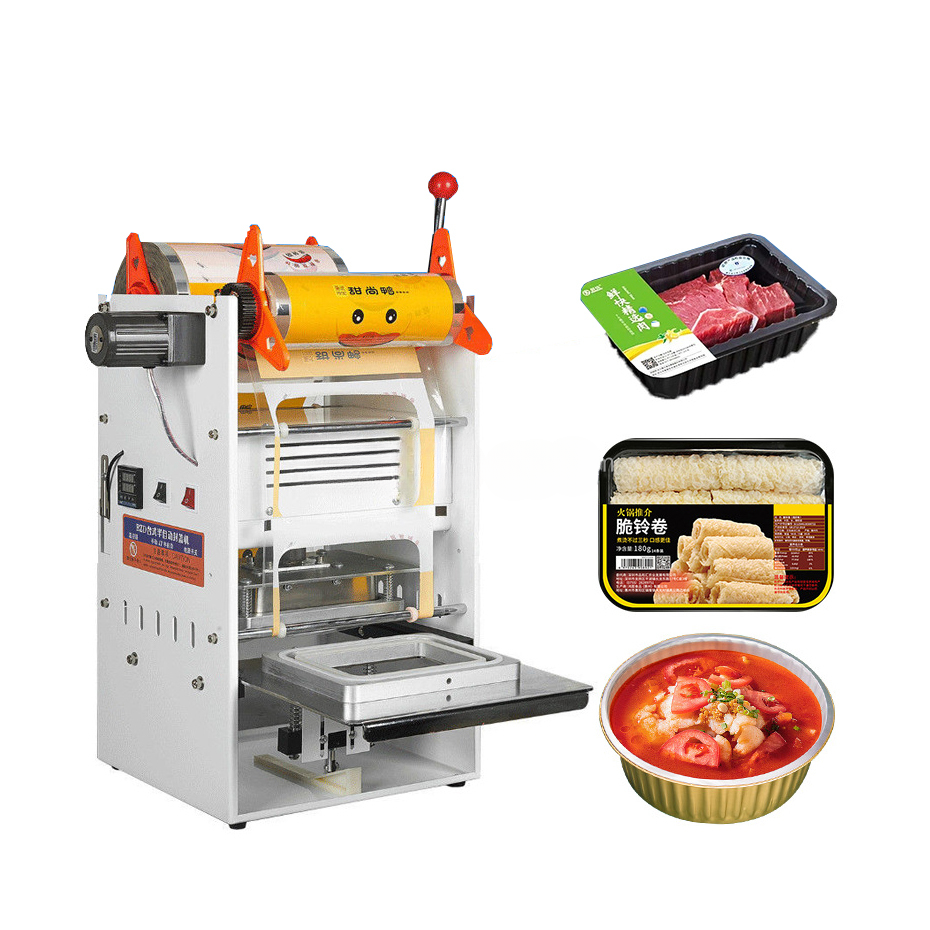

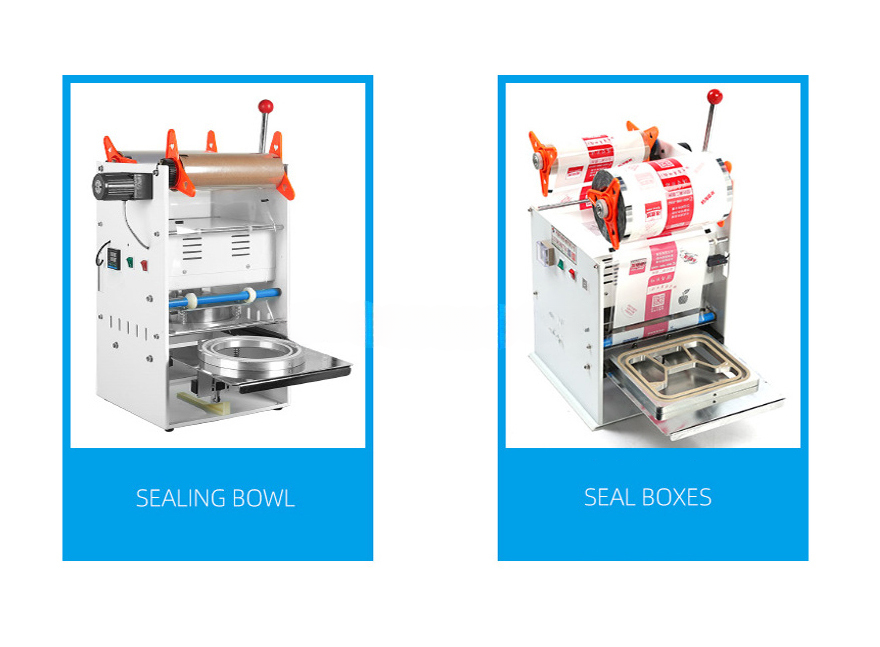

The same head takes on a wide range of packaging: yogurt and portion cups, sauce pods, ready-meal trays in both plastic and aluminum foil, round and rectangular food trays, coffee and tea capsules, snack cups, hotpot condiment pods, jelly cups, tofu and deli trays, and takeaway food boxes. Seal height adjusts from 1 to 18 cm to match each container profile, and the head works with PE, PP, PET, and PS films.

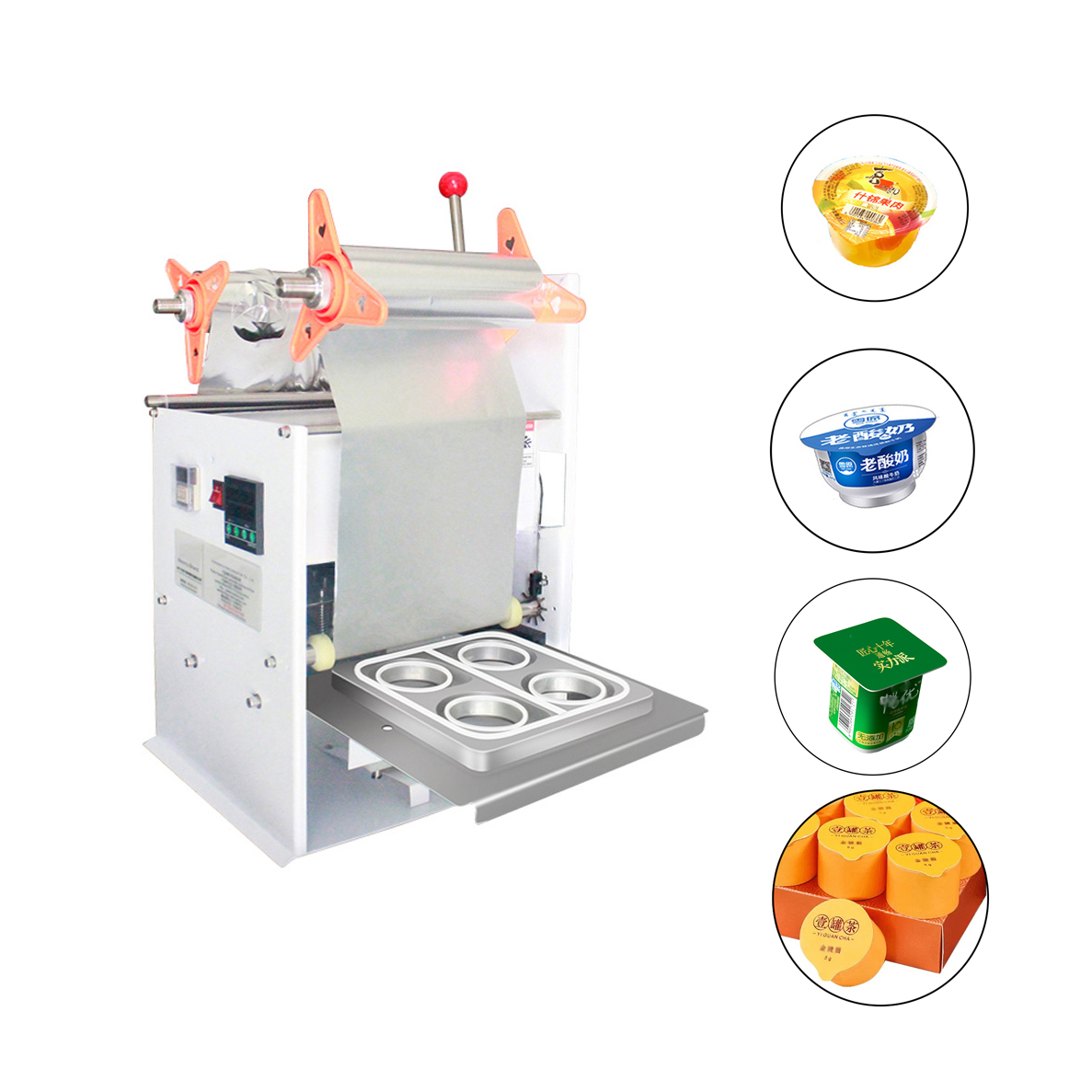

  • Seals up to 4 containers per stroke, 400–500 per hour
  • Adjustable seal height, 1–18 cm, for cups, trays, tubs, and capsules
  • Handles plastic and aluminum foil trays with PE, PP, PET, or PS film

It runs on 220V single phase at 0.8 kW with no compressed air, and the 420 × 400 × 730 mm bench frame drops onto a counter or packing station. CE certified, with OEM and buyer-designed branding available. Backed by a 1-year manufacturer warranty.

Specifications

Material
PE, PP, PET, PS
Dimensions (L × W × H)
400 × 420 × 730 mm
Weight
35.0 kg
Power
800 W
Voltage
220V, 50/60Hz
Warranty
1 Year
Certifications
CE
Customization
OEM and buyer-designed branding available
Operation mode
Manual / Semi-automatic
Production capacity
400-500 cups/hour
Cups per stroke
4
Seal height
1-18 cm
Sealing film
PP sealing film
Model
JC-A011
Automatic grade
Semi-Automatic
Driven type
Manual

Frequently asked questions

What containers will this seal, and how deep can they be?

Yogurt and portion cups, sauce and hotpot pods, jelly cups, coffee and tea capsules, snack tubs, tofu and deli trays, round and rectangular ready-meal trays in plastic or aluminum foil, and takeaway boxes. Seal height adjusts from 1 to 18 cm.

What sealing films can I use with this tray sealer?

PE, PP, PET and PS films all run on this tray sealer, including over aluminum foil containers. Match the film to the rim material of the container you are sealing so the bond takes cleanly.

How much can one operator get through in a shift?

400–500 units an hour, sealing up to four containers per pull of the lever. One person loads the trays, lays the film across and presses — that pace suits a deli or caterer packing steadily rather than a continuous line.

What power and services does it need on site?

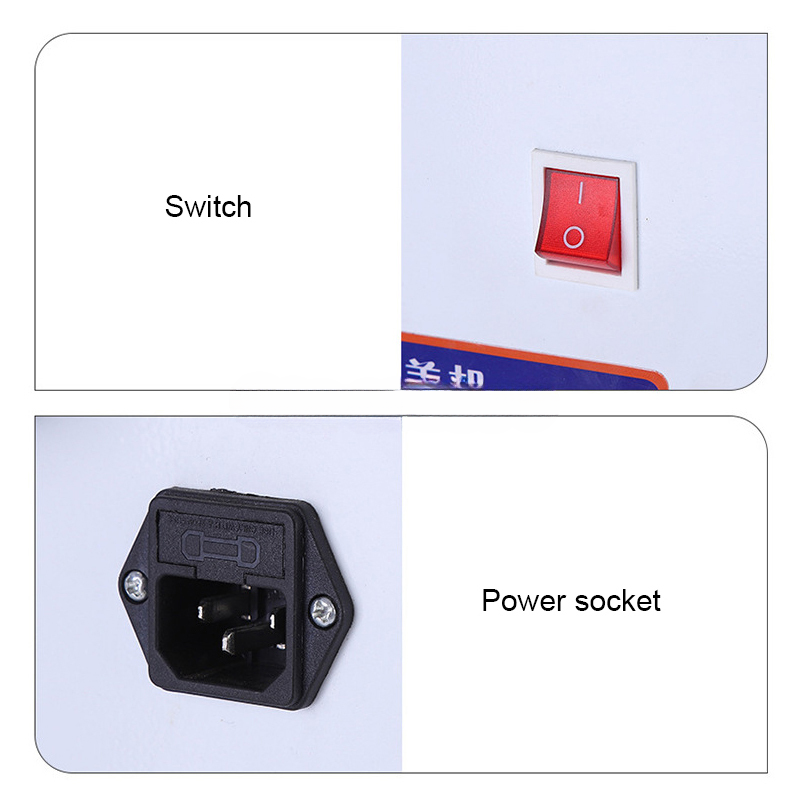

Single-phase 220V at 50/60Hz, drawing 0.8 kW from a standard outlet. No compressed air line is needed and no three-phase supply, since the press itself is hand-driven.

How much bench space does it take?

420 mm wide by 400 mm deep and 730 mm tall, at 35 kg — a counter footprint, though allow headroom above for the lever stroke and clear reach in front for loading trays.

Can it be branded, and what certification does it carry?

OEM and buyer-designed branding are available on the machine, which is CE certified. A 1 Year warranty covers the unit.
