Walk-In Cold Room — Modular Cold Storage with Solar Option

Modular walk-in cold storage with insulated PU panels, an air-cooled system, and an optional solar panel for reliable food preservation.

From67,832.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

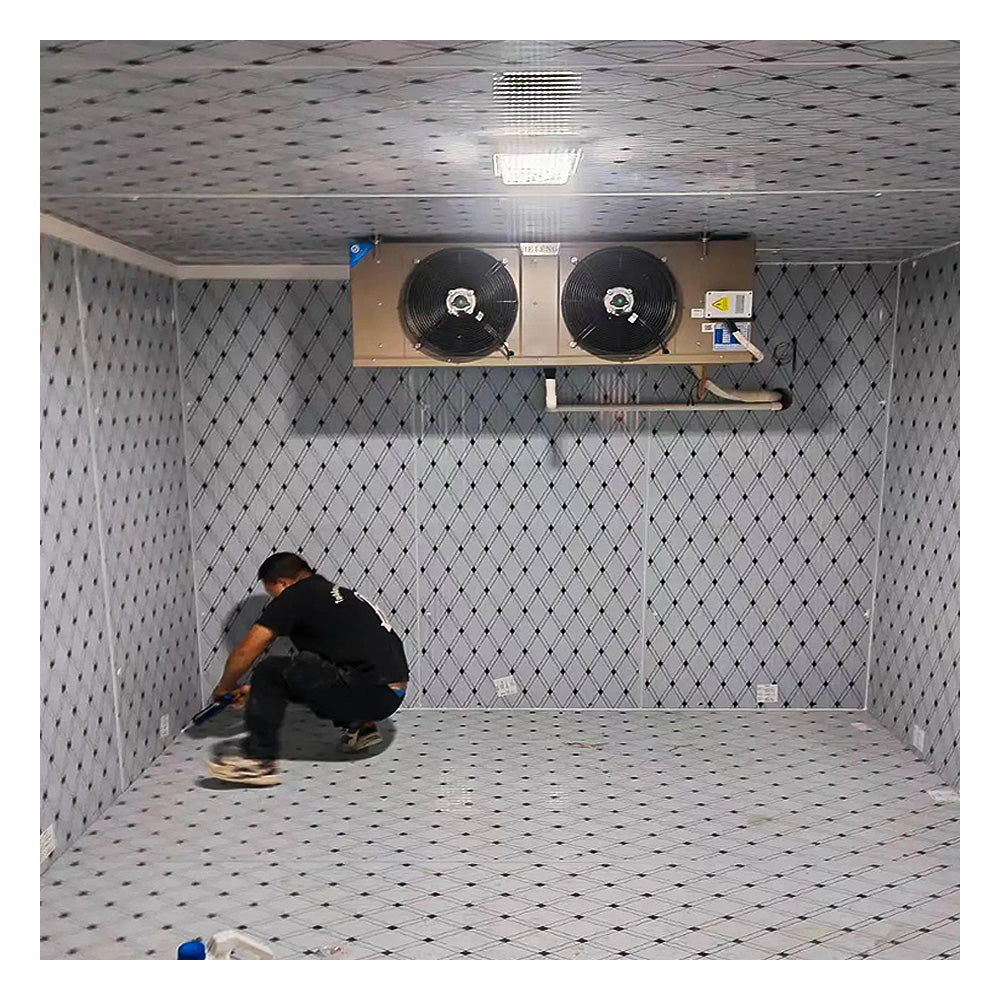

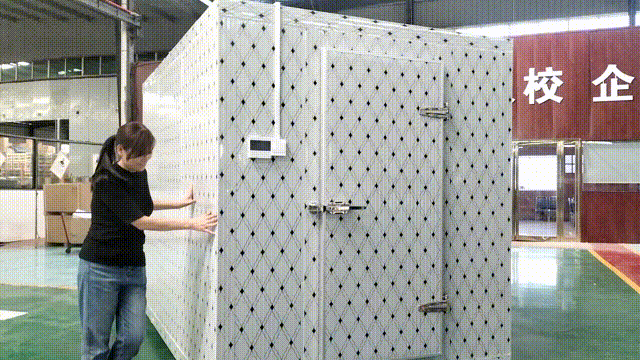

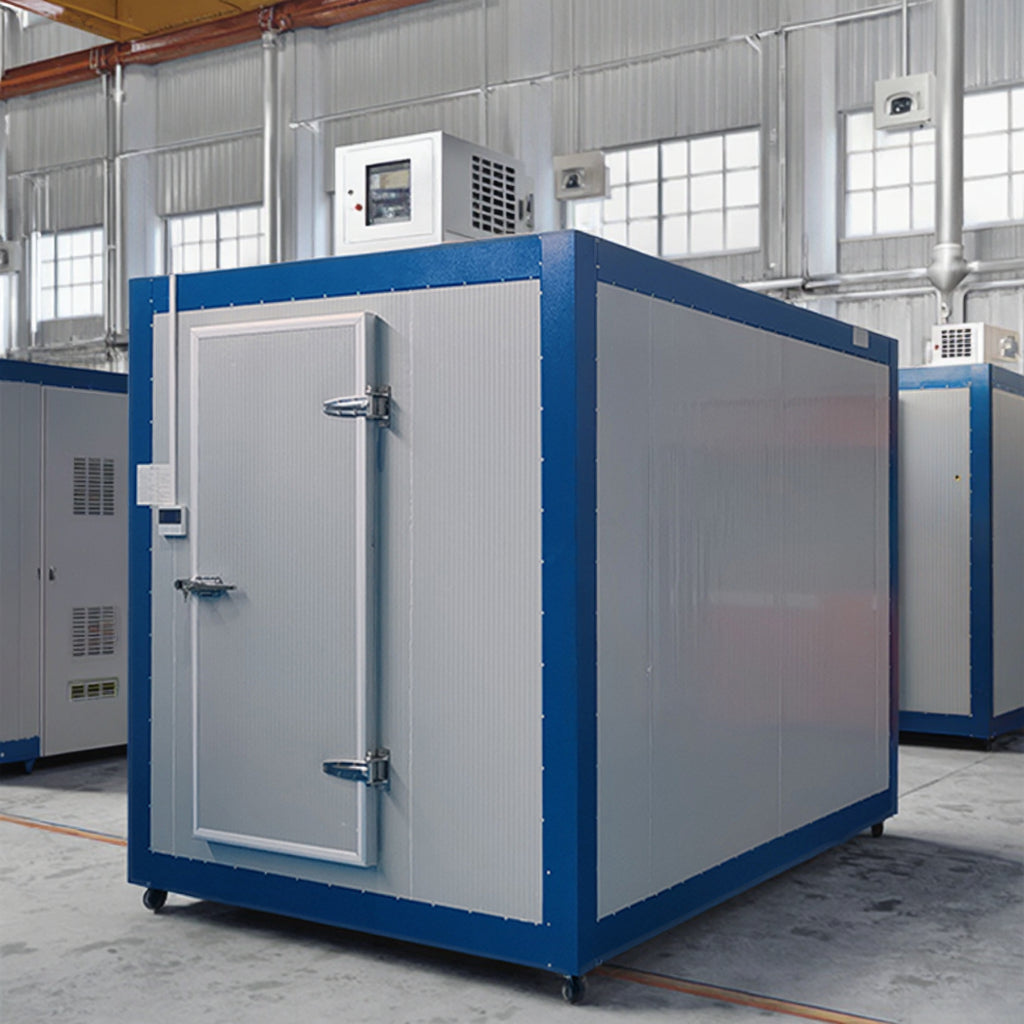

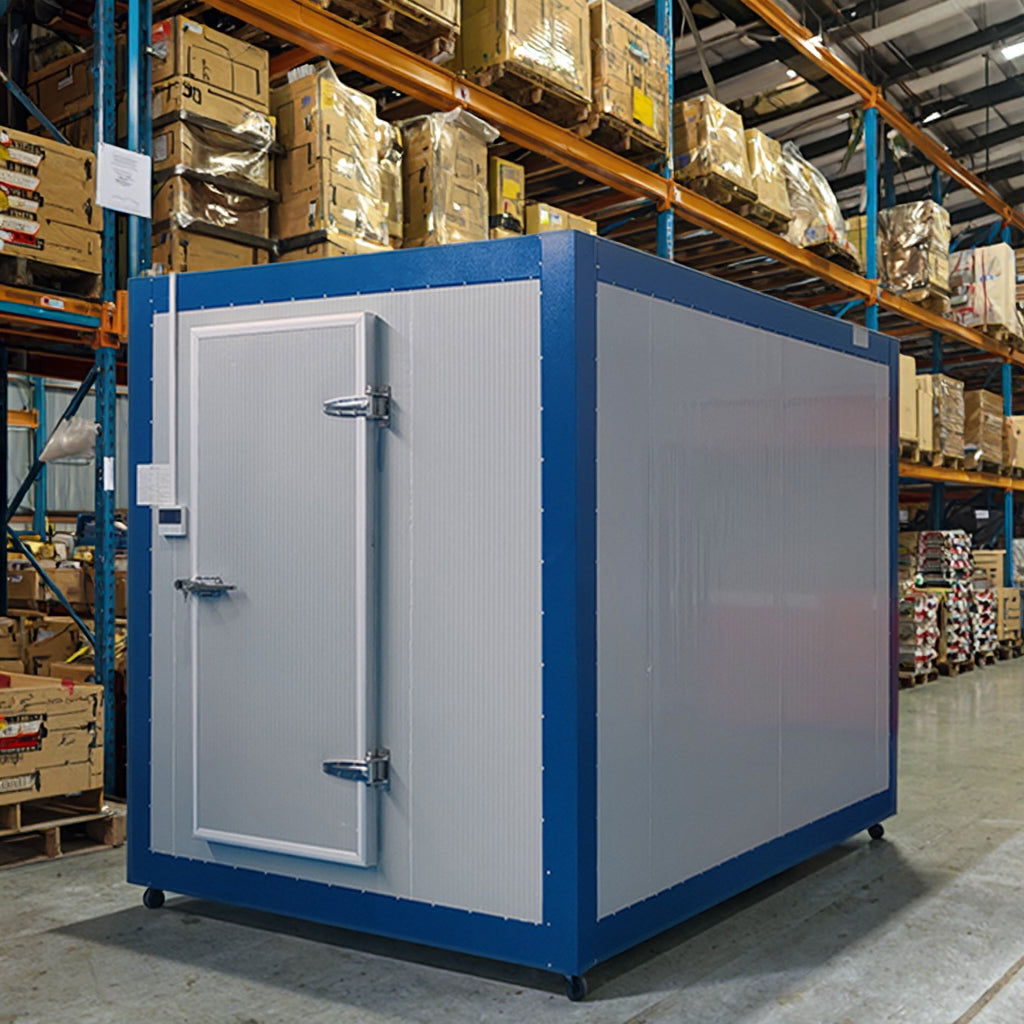

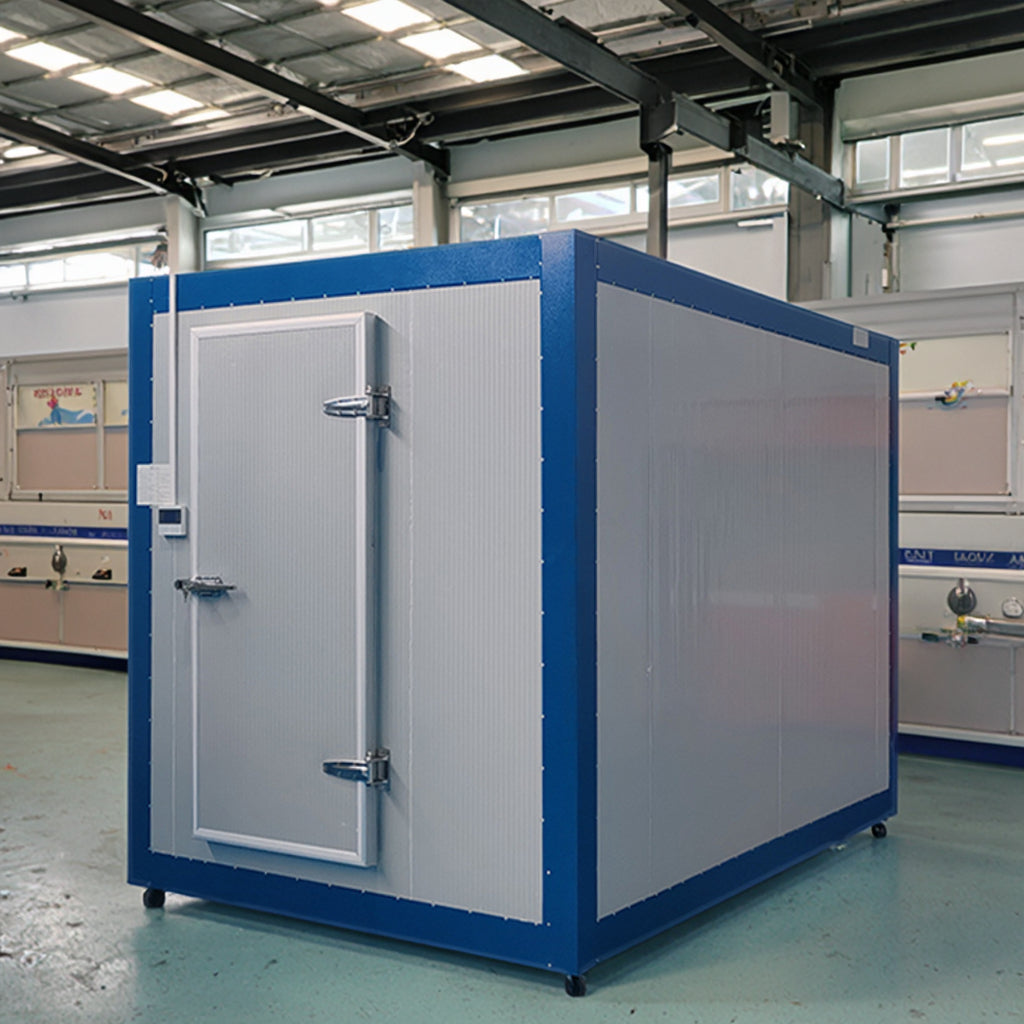

A walk-in cold room is a modular refrigerated enclosure built from insulated polyurethane panels, sized to turn a corner of the kitchen, back-of-house, or yard into cold storage. This unit ships with the full refrigeration package — compressor condensing unit, evaporator air cooler, and PU panels — so a venue can hold meat, produce, dairy, ice cream, or prepared stock at a controlled temperature instead of stacking undercounter units.

Temperature range spans chiller and freezer duty depending on configuration, from a 0–15 °C holding room down to a −25 °C freezer, with cooling capacity in the 2.5–3 ton range. Panel thickness runs from 50 mm to 150 mm, so you can match insulation to the target temperature and climate. The air-cooled condensing system pairs with widely available compressor brands, and the hinged door carries a safety escape lock for anyone working inside.

  • Insulated PU panels, 50–150 mm thick
  • Chiller-to-freezer range, roughly −25 °C to +15 °C by configuration
  • Air-cooled system, 2.5–3 ton cooling capacity
  • Optional solar panel for off-grid or supplemental power
  • Wide input range, 110–480 V; hinged door with safety escape lock

Backed by a 1-year manufacturer warranty, with video technical support and free spare parts after the warranty period. Contact us to confirm the layout, capacity, and temperature that fit your space.

Specifications

Material
Stainless steel, Color steel, Polyurethane (PU) panel
Dimensions (L × W × H)
300 × 200 × 220 cm
Weight
500.0 kg
Power
750 W
Voltage
110V-480V
Warranty
1 Year
Certifications
ISO9001 CE
Customization
Customizable size, temperature, and surface material
Refrigerant
R404A (also R-22 / R-407 / R-408 / R-507)
Cooling way
Air-cooled system
Door type

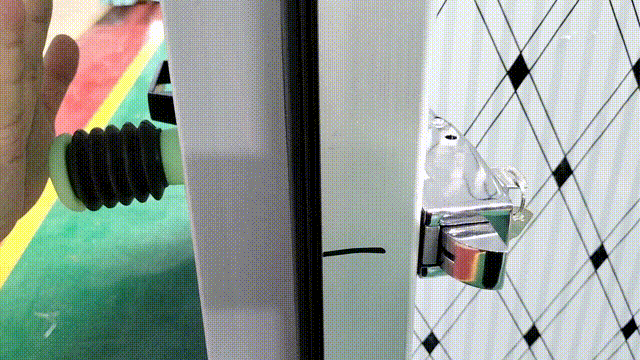

Hinged door with safety escape lock
Number of doors
1
Core components
PLC
Application
Food preservation
After-warranty service
Video technical support, free spare parts
Solar
Optional solar panel
Temperature range
-25 to +15 °C
Cooling capacity
2.5-3 ton
Panel thickness
50-150 mm

Frequently asked questions

What temperature can the room hold, and what do I specify when ordering?

Anywhere from −25 °C up to +15 °C, set by configuration — a 0–15 °C holding room, a chiller, or a freezer. State the target temperature with the order, since it drives panel thickness and the condensing unit sizing.

How thick are the insulation panels, and which thickness suits my room?

Panels run 50 mm to 150 mm. Freezer duty and hot climates generally want 100–150 mm to hold temperature efficiently, while a straightforward chiller can work with thinner panels.

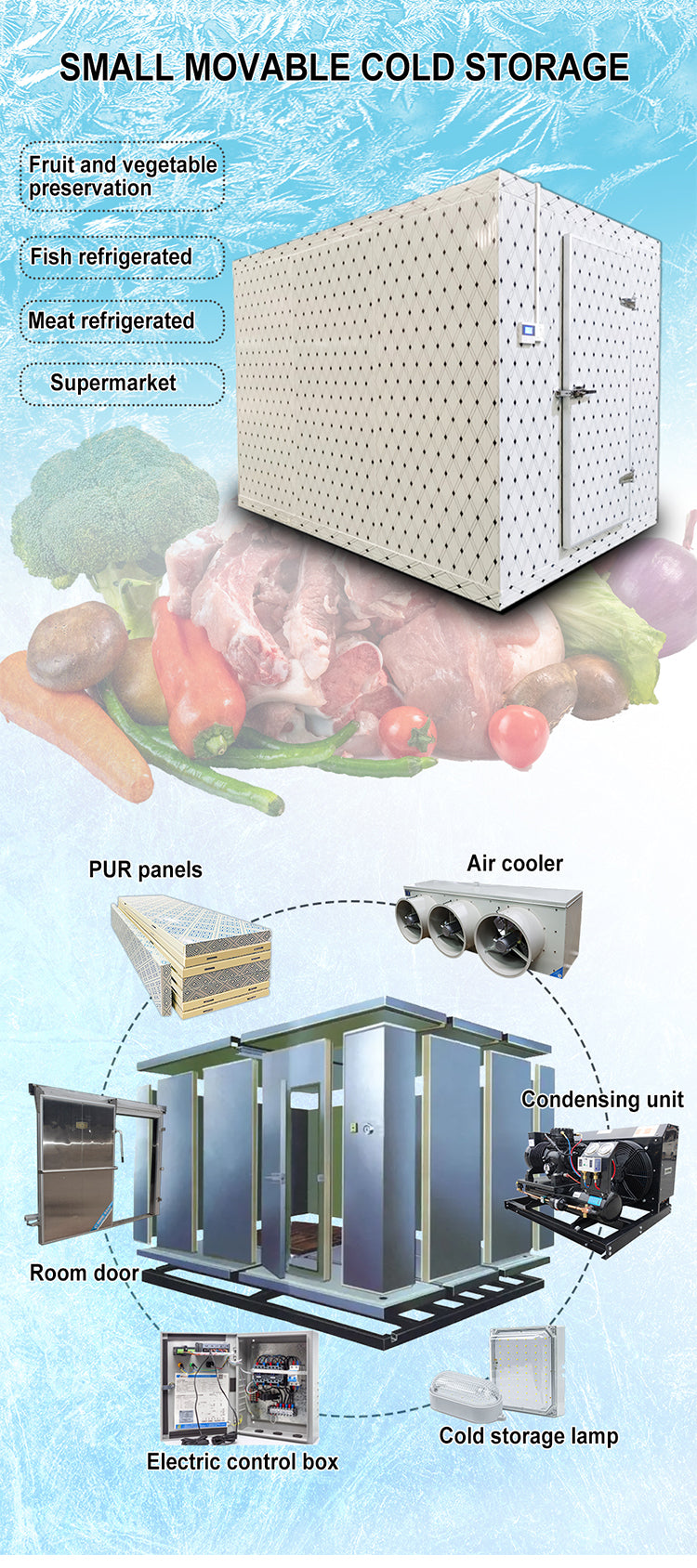

What arrives in the shipment — is the refrigeration included?

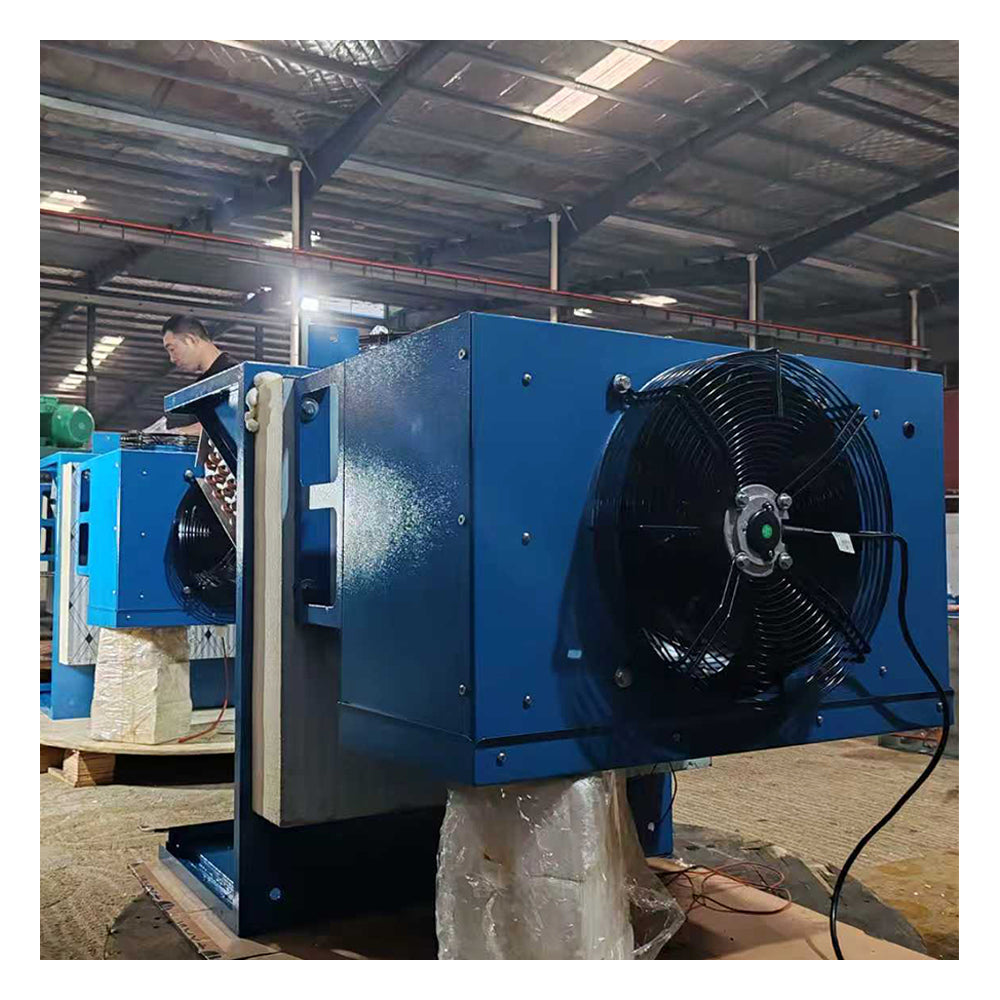

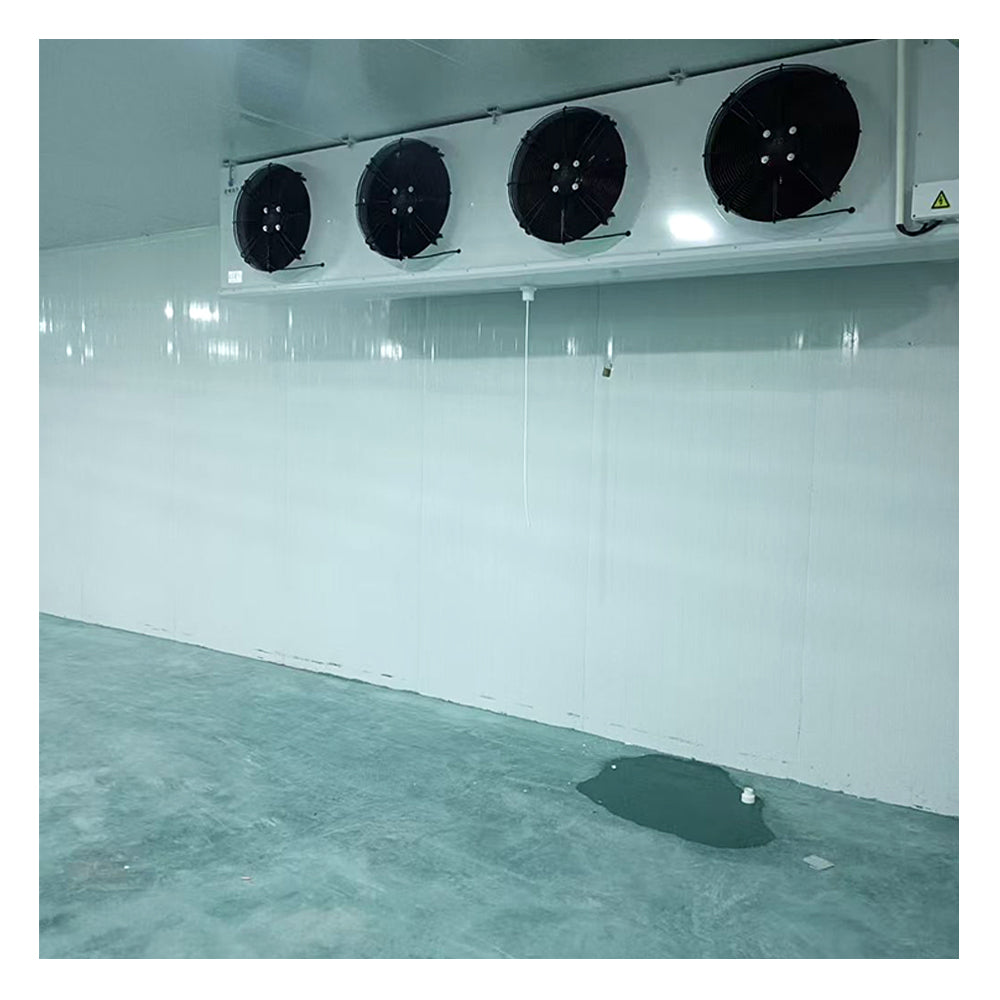

The full package ships together: compressor condensing unit, evaporator air cooler and the insulated PU panels. Cooling is air-cooled at 2.5–3 ton capacity, charged for R404A, with R-22, R-407, R-408 or R-507 available on request.

What power supply does it need, and can it run on solar?

Input covers 110–480 V, so it suits most site supplies at around 750 W; give your site voltage when ordering. A solar panel is an option for off-grid locations or to offset running cost.

How far does customisation go?

Size, temperature and surface material are all made to order — stainless steel or colour steel skins, with the standard build measuring 300 × 200 × 220 cm. Send your dimensions and holding temperature and the room is cut to suit.

What warranty and after-sales support come with it?

Cover runs 1 Year from the manufacturer. Past that point you still get video technical support and free spare parts, and the unit is built to ISO9001 and CE.
