Commercial Glycol Beer Chiller — Instant Inline Water Chiller
A compact recirculating glycol chiller that holds draft beer and cocktails at a precise pour temperature down to 0.1°C.
30,601.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks
An inline glycol chiller keeps a draft line, cocktail rig or small brewing setup at a steady serving temperature, circulating chilled water or a glycol solution through the run so every pour lands cold. A rotary compressor and built-in pump handle continuous duty behind the bar, and temperature control holds to 0.1°C accuracy across a 10–35°C working range — tight enough for cask ale, keg beer and pre-batched cocktails where a few degrees change the taste.
Rotary compressor with an integrated recirculation pump, up to 24 L/min flow.
Temperature control accurate to 0.1°C over a 10–35°C ambient range.
Runs on water or a glycol aqueous solution from a 1.8 L tank.
110V or 220V input, 500 W draw — fits a standard underbar or back-bar spot.
Available in 420 W and 580 W cooling capacities to match line length and load.
The footprint stays small enough for underbar mounting, and low-voltage control components keep it serviceable. Backed by a 1-year manufacturer warranty.
For a home brewer or a keezer build, this chiller circulates cold water or glycol to hold your kegs and lines at pour temperature, so the last glass of the session tastes like the first. The 1.8 L tank and compact case sit easily in a garage or basement setup, and 0.1°C control means you can dial in the exact serving temp for lagers, ales or cold-brew coffee.

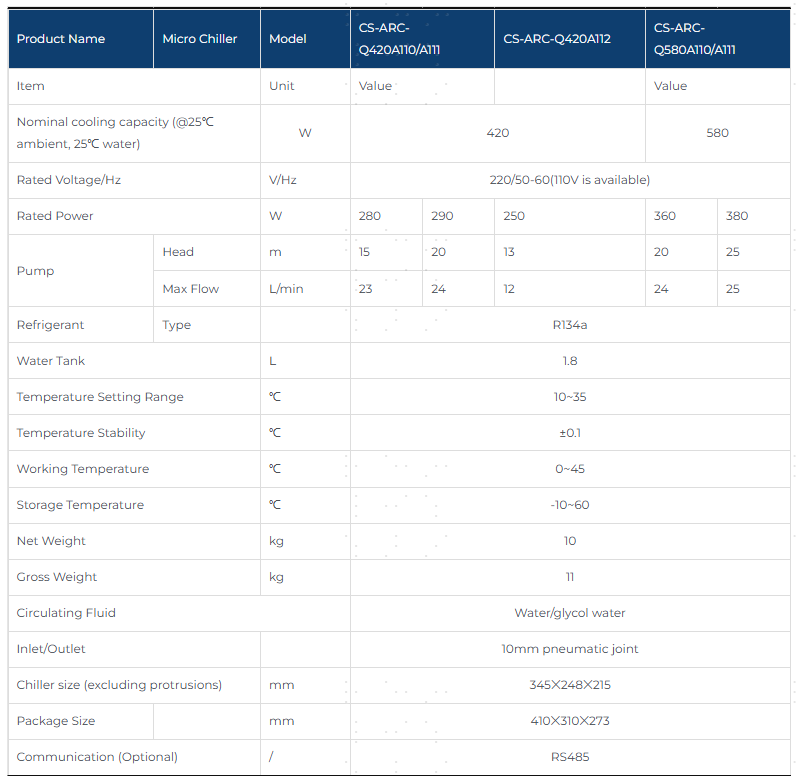

Specifications
Capacity
1800 ml
Dimensions (L × W × H)
345 × 248 × 215 mm
Weight
10.0 kg
Power
500 W
Voltage
110V or 220V
Warranty
1 Year
Certifications
CE ROHS
Customization
Customized solutions available
Compressor type
Rotary compressor
Pump max flow
24 L/min
Temperature control accuracy
0.1 °C
Working temperature range
10-35 °C
Coolant
Water or glycol aqueous solution
Core components
Pump, Compressor
Water tank volume
1.8 L
Frequently asked questions
How do I choose between the 420 W and 580 W cooling capacities?
Size it to line length and load: 420 W covers shorter draft runs and lighter duty, while 580 W suits longer lines, more kegs or a warmer back-bar. Both share the same cabinet, pump and controls.
Can I fill it with plain water instead of glycol?
Plain water works for loop temperatures above freezing, and the 1.8 L tank takes either. A glycol aqueous solution is the usual choice for draft beer and pre-batched cocktails, since it lets the loop run colder without freezing.
What does the 0.1°C accuracy mean in practice behind a bar?
Control holds the setpoint to 0.1°C anywhere in a 10–35°C ambient range, so a busy service or a warm afternoon doesn't drift your pour temperature — the margin cask ale and batched cocktails need.
What do I need to specify when ordering?
Two things: 110 V or 220 V, and the 420 W or 580 W capacity. Draw is 500 W on either voltage, so a standard single-phase outlet is enough. Customised solutions are also available.
Will it fit under a bar, and what is the flow rate through the loop?
The cabinet measures 248 mm wide, 345 mm deep and 215 mm high, which suits an underbar or back-bar spot, and the integrated pump pushes up to 24 L/min through the run. Warranty is 1 Year.
