10W RGB Animation Laser Light — Class IV Show Laser

A 10W full-color RGB animation laser that projects beams, tunnels and logo graphics for clubs, stages and outdoor shows.

42,933.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

This 10W RGB animation laser is a Class IV show projector built for nightclubs, DJ booths, stages and event spaces that need bright, saturated beam and graphic effects. Its three-color engine — 3W red at 638nm, 3W green at 520nm and 4W blue at 445nm — mixes into full white and a wide palette, so the same fixture handles aerial beam fans, liquid-sky tunnels and animated logos or text.

A 25kpps galvo scanner with a scanning angle up to 60° keeps fast animations crisp, and the dielectric-coated mirrors (reflectance over 99% at 45° incidence) hold brightness across the 400–680nm range. Control is flexible enough for a fixed install or a touring rig:

  • SD card with more than 200 built-in effects for standalone playback
  • Sound-active and auto modes for hands-off operation
  • DMX 18/27 channels with RDM, plus master/slave linking
  • ILDA software control and onboard AI show software for custom animations

The sealed IP54 chassis keeps dust and haze fluid out of the optics, while dedicated air cooling and a full-contact heat sink protect the laser diodes across a −10°C to 45°C working range. Rated for 10,000+ hours, it runs on 100–250V and draws 250W. Backed by a 1-year manufacturer warranty.

Specifications

Material
Aluminum
Color
Full color (RGB)
Weight
6.6 kg
Power
250 W
Voltage
100-250V
Warranty
1-year manufacturer warranty
Customization
Plug type: US, UK, AU, EU
Laser power
10W (Red 3W 638nm, Green 3W 520nm, Blue 4W 445nm)
Light source
Laser
Laser class
Class IV
Scanner
25 kpps
Scanning angle
up to 60 °
Laser divergence angle
<1.6mrad (full angle)
Laser spot size
5×6.2 mm
Modulation voltage
≤100K
Control signal mode
TTL/analog automatic switching
Control methods
SD (200+ effects), sound control, auto-run, DMX 18/27ch with RDM, master/slave, ILDA

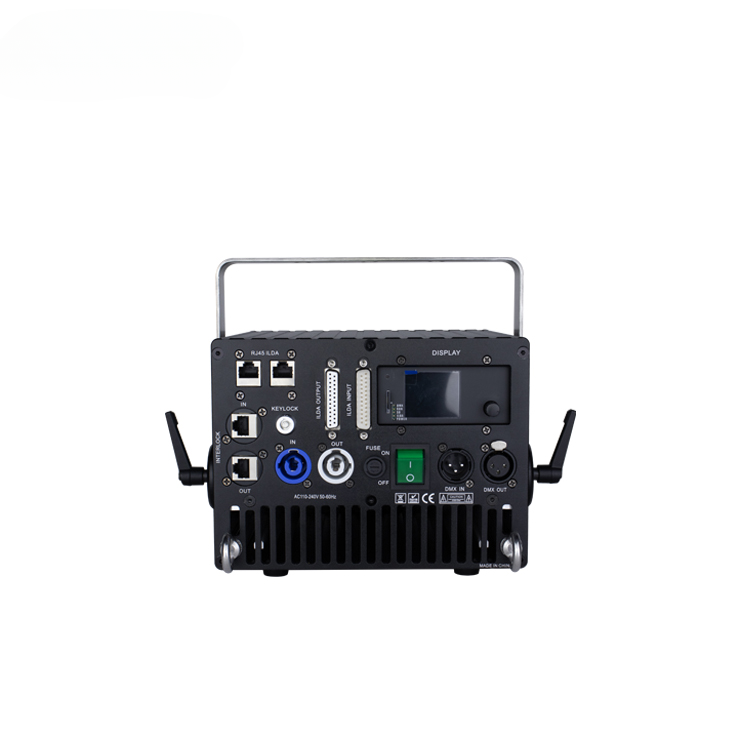

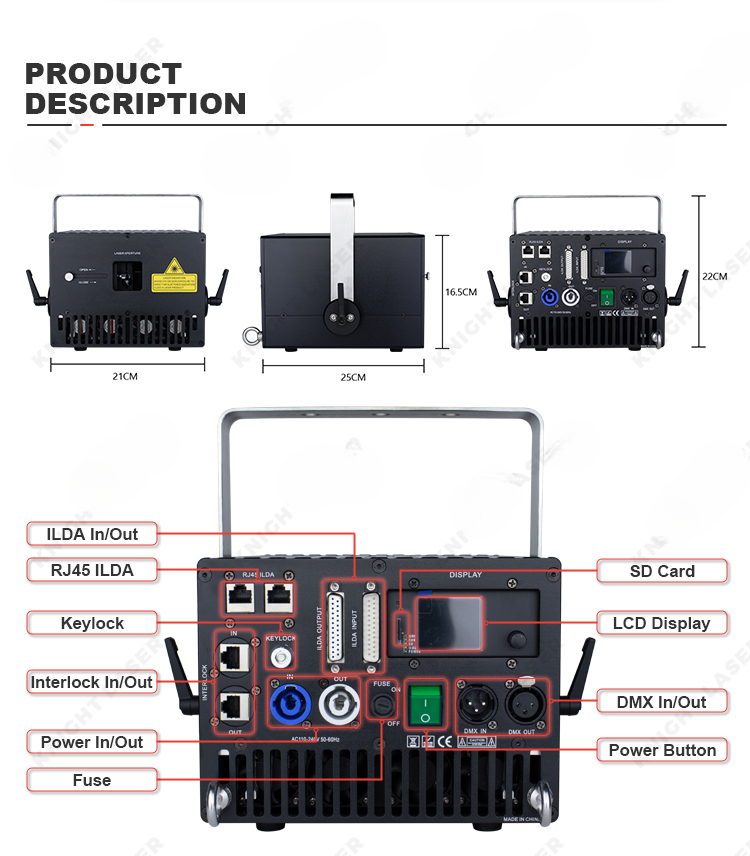

Back controls
AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
Cooling method
Air cooling
IP rating
IP54
Lifespan
10000 hours
Working temperature
-10 to 45 °C
Install style
Hanging mount
Finish
Polished
Dimmer
Yes

Frequently asked questions

How is the 10W split across the three colors?

3W red at 638nm, 3W green at 520nm and 4W blue at 445nm. That mix gives true white and a full palette, so one fixture covers aerial beam fans, liquid-sky tunnels and animated logos or text.

What control options does it accept, and does it need a console?

No console is required: an SD card with 200+ built-in effects, sound-active and auto-run modes cover standalone work. For a programmed rig, use DMX 18/27 channels with RDM, master/slave linking or ILDA software.

What does Class IV mean for installing this?

Class IV means professional setup, safe beam zoning and compliance with local regulations — not a plug-and-play fixture. It hangs from a mount, and the key switch on the rear panel controls arming.

Will it hold detail on fast graphics and text?

The 25kpps galvo scanner with up to 60° scanning angle keeps fast animations crisp, and divergence under 1.6mrad from a 5x6.2mm aperture keeps long beams tight rather than bloomed.

Can it live in a hazy club or an outdoor rig?

The IP54-sealed chassis keeps dust and haze fluid off the optics, and it works from -10°C to 45°C on air cooling with a full-contact heat sink. Rated life is 10,000+ hours.

What should I specify when ordering, and what is the warranty?

State your plug type — US, UK, AU or EU — as the unit itself takes 100-250V and draws 250W, so no voltage variant is needed. Supplied with a 1-year manufacturer warranty.
