21.5" Android Kitchen Display System (KDS) — IP65 Touchscreen

An IP65-rated 21.5" Android 13 touchscreen that routes tickets to the line and keeps the kitchen synced with the front of house.

From22,966.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

MOQ: 2

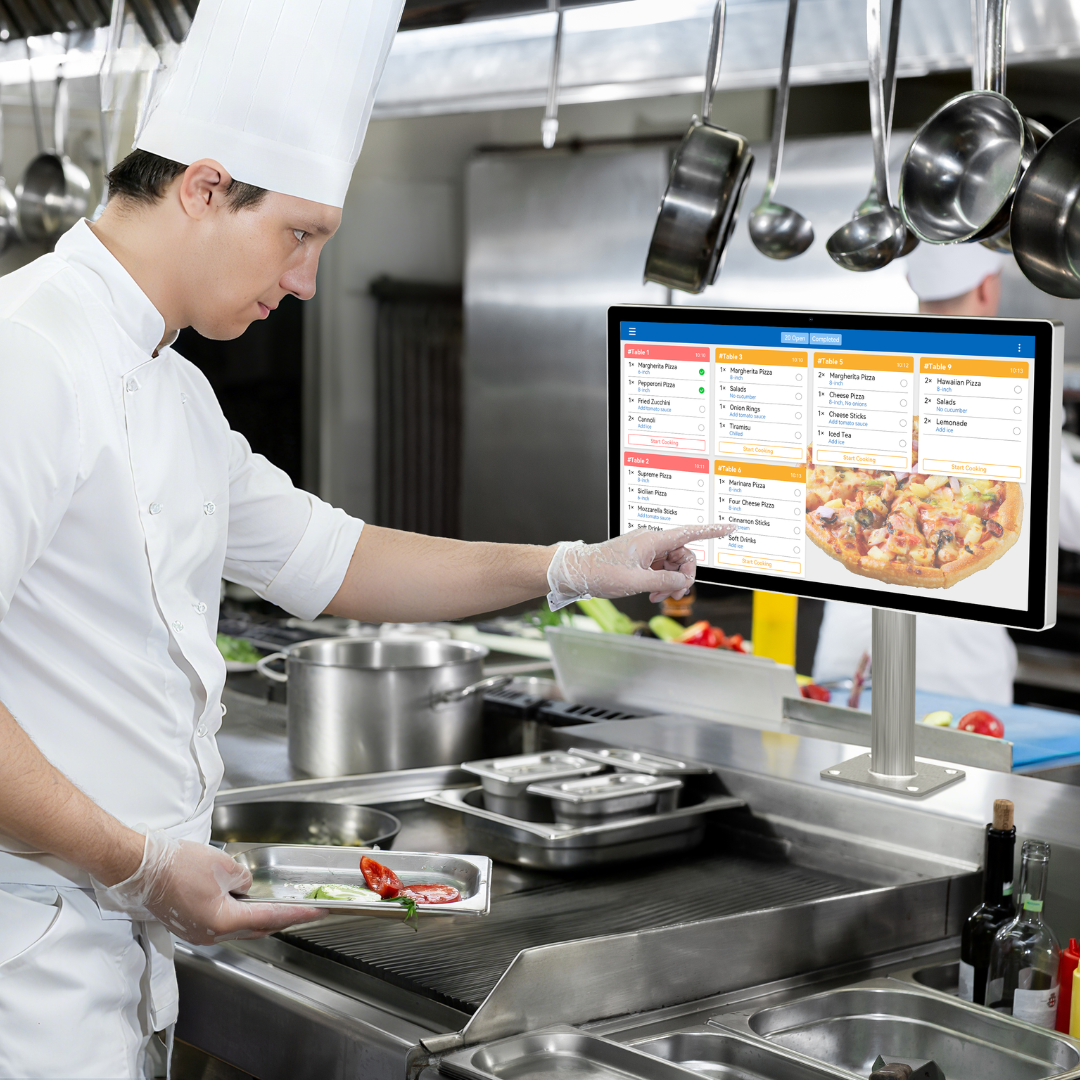

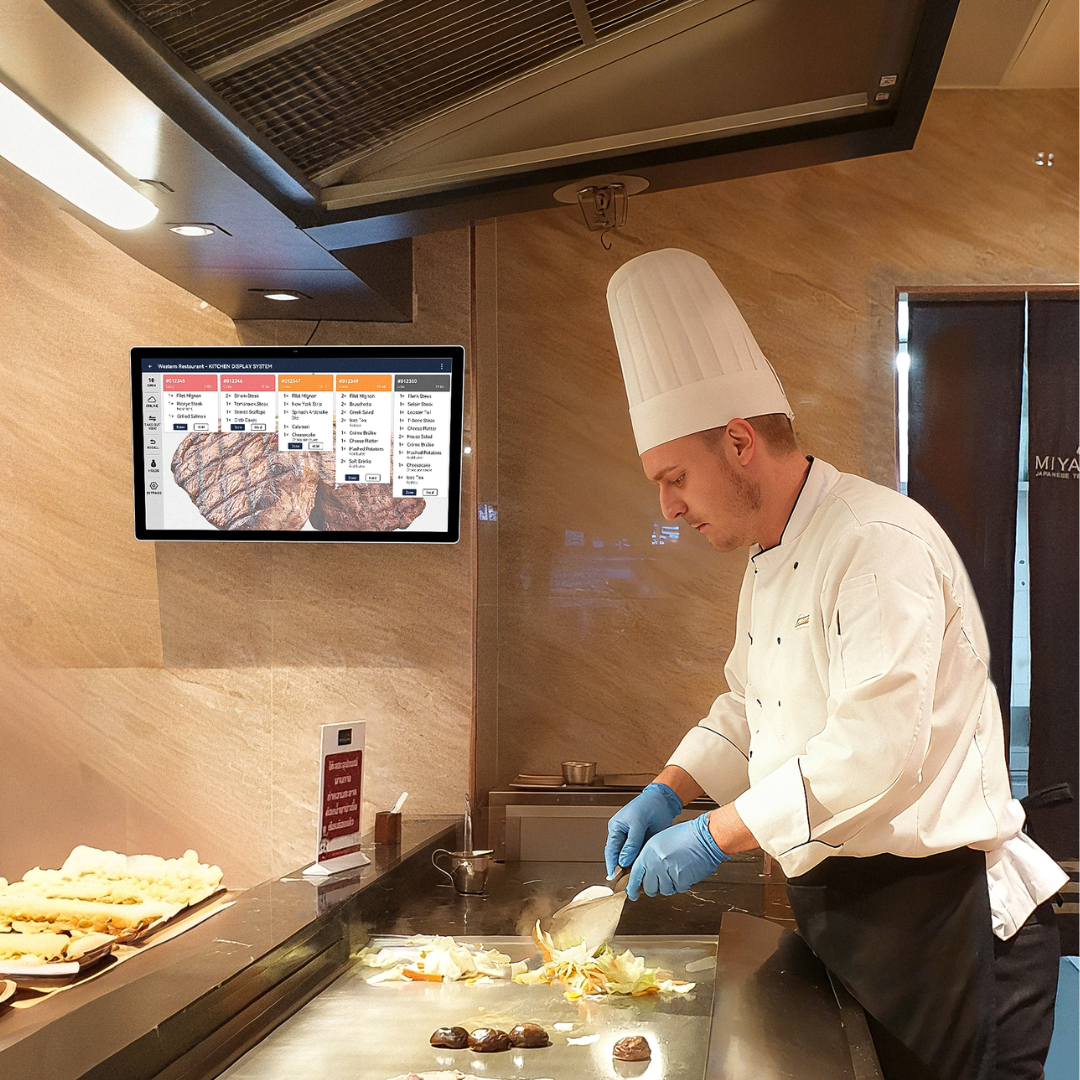

A kitchen display system (KDS) replaces paper tickets with a live, wipe-clean screen on the cook line. Orders fire from the POS straight to the 21.5" display, so the kitchen sees every ticket, bump time and modifier without a printer jamming mid-rush. The 10-point capacitive touch responds through gloves and grease, and the front panel carries an IP65 rating against splashes, steam and hose-down cleaning — the back stays IP54.

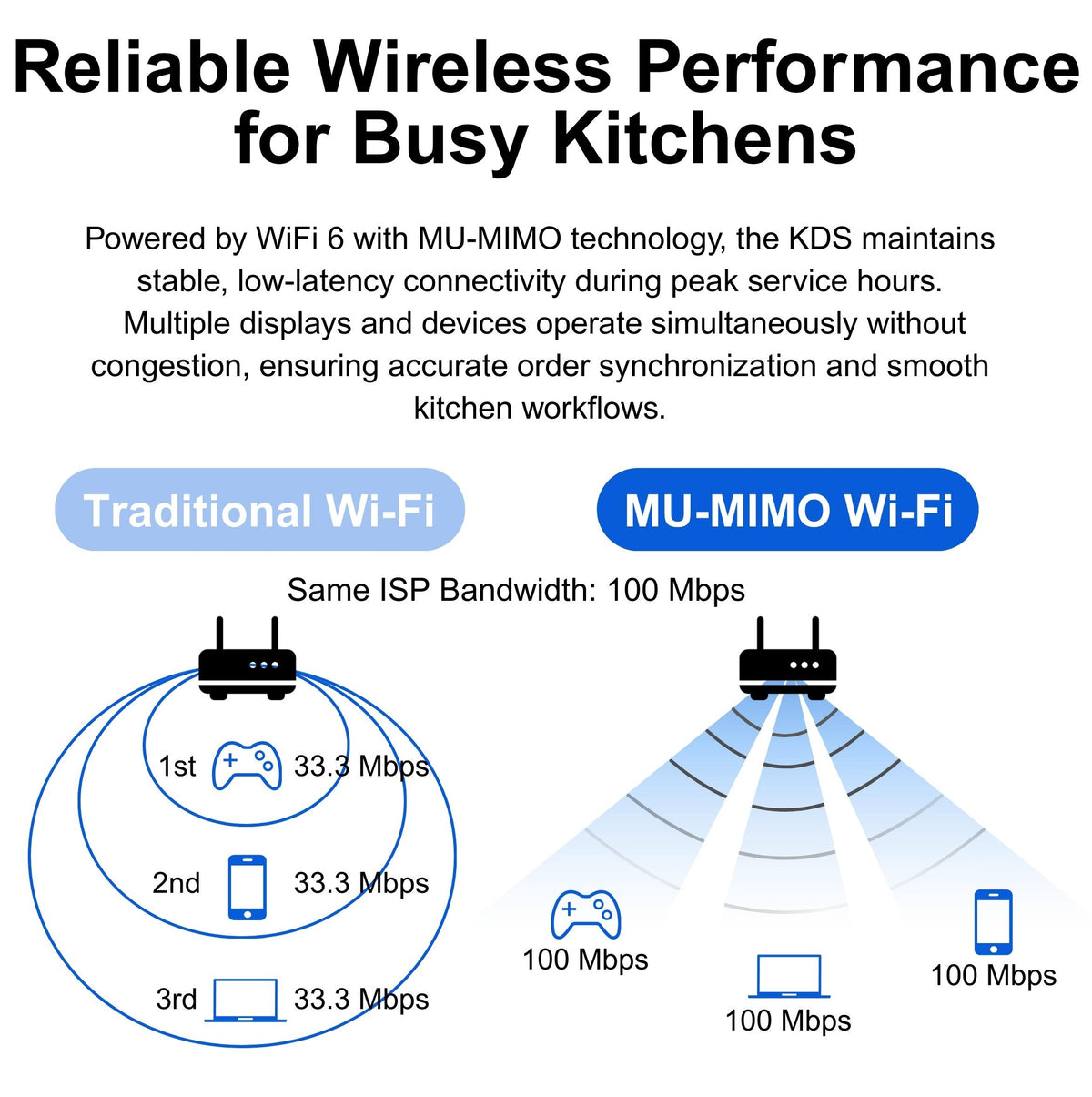

Under the glass sits an Android 13 build on an RK3588S2 processor, which drives the 1920×1080 Full HD panel and connects over Wi-Fi, Ethernet (RJ45 with POE), Bluetooth or USB. It pairs with most POS and content-management platforms on the market, and offers API integration and an SDK for kitchens that run their own ticketing stack.

  • Front IP65 / back IP54 — built for wash-down zones near the pass
  • Wall-mounted, hanging, floor-standing or battery-equipped install
  • RK3588S2 quad-A76 + quad-A55 CPU with 4+64 GB or 8+128 GB memory
  • POE over RJ45, plus USB, Type-C and HDMI-in
  • 400-nit panel, 3000:1 contrast, rated for 50,000 hours

The stainless S304 housing and 0–40 °C operating range suit the heat and humidity of a working line. Backed by a 1-year manufacturer warranty.

Specifications

Material
Stainless steel S304
Color
Black / White / Custom
Dimensions (L × W × H)
13.9 × 60.6 × 38.1 cm
Voltage
100-240 V
Warranty
1 Year
Certifications
RoHS, CCC, CE, FCC
Customization
Custom color, ODM/OEM, SDK and API integration
Operating system
Android 13
CPU
RK3588S2 quad Cortex-A76 + quad Cortex-A55
RAM / Storage options
4+64 GB / 8+128 GB
Screen size
21.5 inch
Resolution
1920 x 1080
Aspect ratio
16:9
Brightness
400 nits
Contrast ratio
3000:1
Color depth
72% NTSC
Touch
10-point capacitive / infrared
Waterproof rating
Front IP65, back IP54
Interface
RJ45 POE, USB, Type-C, HDMI-in, DC power input
Connectivity
Wi-Fi, Ethernet/POE, Bluetooth, USB
Operating temperature
0–40 °C
Panel lifespan
50000 h
Installation
Wall-mounted / hanging / floor-standing / battery-equipped
Application
Indoor

Frequently asked questions

Which POS systems does this kitchen display system work with?

Most POS and content-management platforms on the market pair with this kitchen display system, which runs Android 13. Kitchens on their own ticketing stack can hook in directly through the API and SDK.

Can it take splashes and wash-down cleaning at the pass?

Front panel is rated IP65 against splashes, steam and hose-down cleaning. The back is only IP54, so position it with the cable entries turned away from where the water lands.

How does the touchscreen respond to wet or gloved hands?

Ten-point capacitive touch reads through gloves and grease, so a cook bumps a ticket mid-service without stripping off and drying their hands first. Infrared touch is the alternative option.

How do I mount the display on the line?

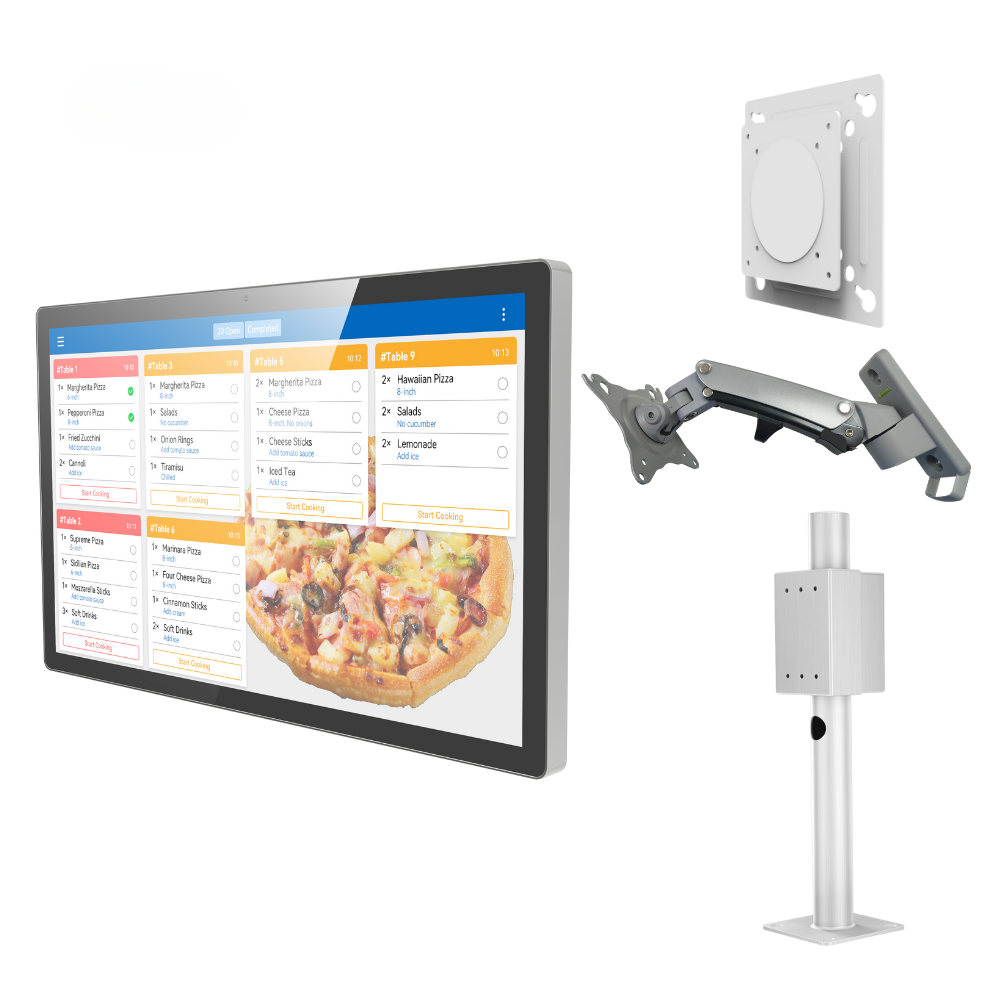

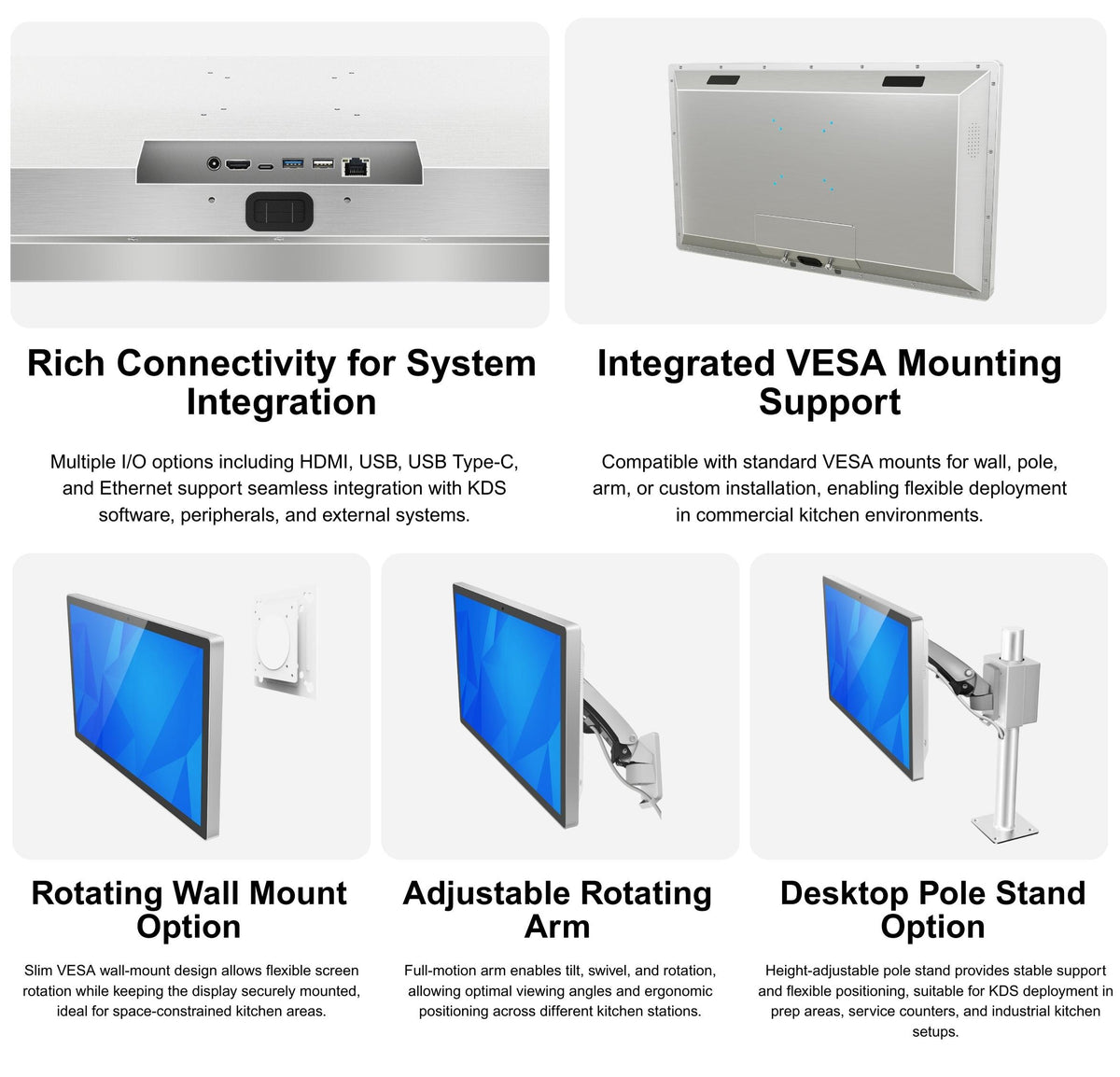

Four ways: wall-mounted, hanging, floor-standing, or battery-equipped where there is no power nearby. Allow 60.6 cm wide by 38.1 cm high and 13.9 cm deep for the stainless S304 housing.

Does it connect over Ethernet and support POE?

The RJ45 port carries Power over Ethernet, so one cable does data and power above a pass where sockets are scarce. Wi-Fi, Bluetooth, USB, Type-C and HDMI-in are all present, on 100–240 V.

Which memory build should I order, and what can be customised?

Choose 4+64 GB or 8+128 GB on the RK3588S2 processor — specify 8+128 GB if a heavy ticketing or CMS app runs alongside. Black, white or custom colour, plus ODM/OEM work, and a 1 Year warranty.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

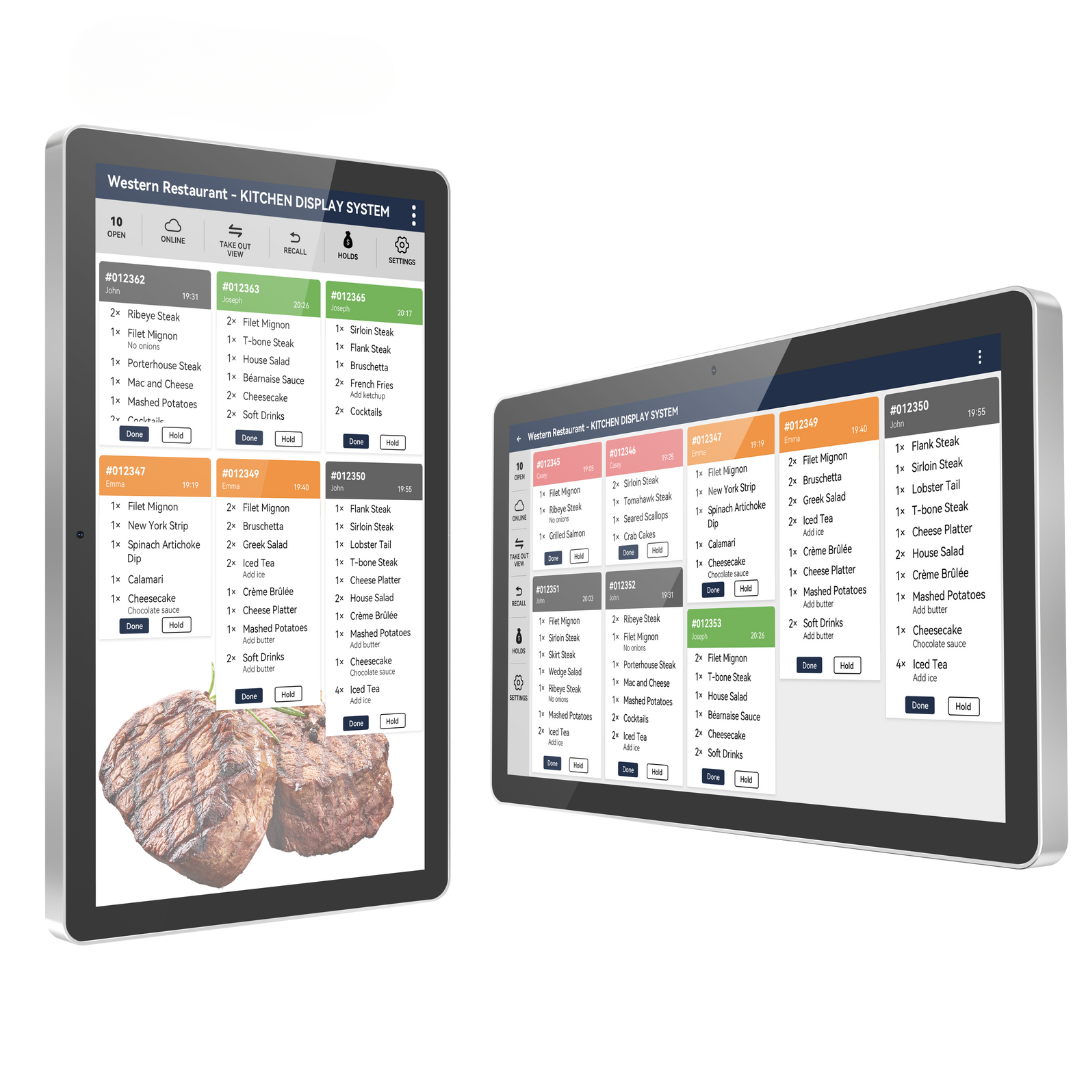

Kitchen display system tablets showing restaurant order tickets in portrait and landscape layouts
