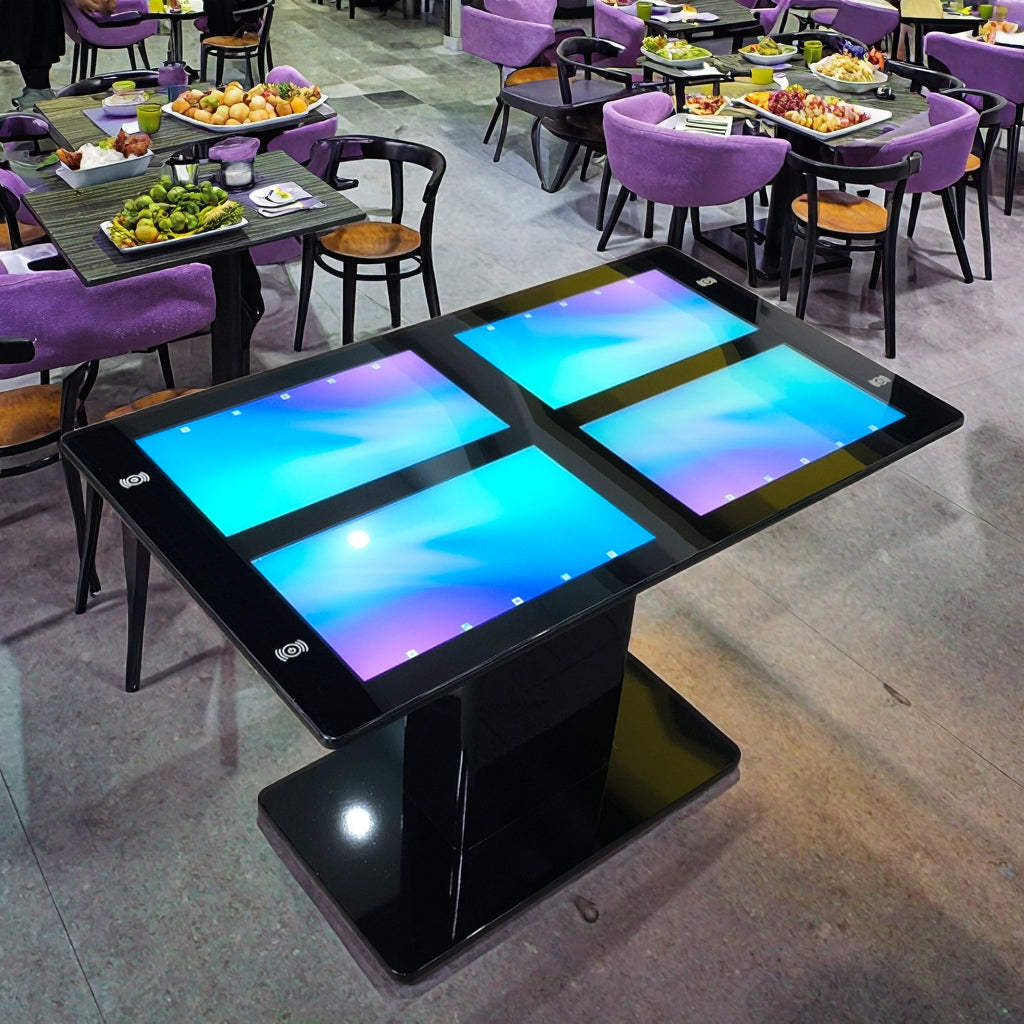

Interactive bar table with 4 touchscreens in a restaurant setting surrounded by purple chairs

4 x 21.5" Interactive Smart Touch Table with NFC & Wireless Charging

Name: 4 x 21.5" Interactive Smart Touch Table with NFC & Wireless Charging
Brand: BarEquip.Pro
SKU: BEP-0556
Price: 41876.0 THB
Availability: BackOrder

A 21.5-inch PCAP touchscreen table with NFC payment reading, Qi wireless charging and Android or Windows, built for restaurants, retail floors and interactive spaces.

From41,876.00 ฿

Custom order

Made to order to your spec — you choose the size and configuration.

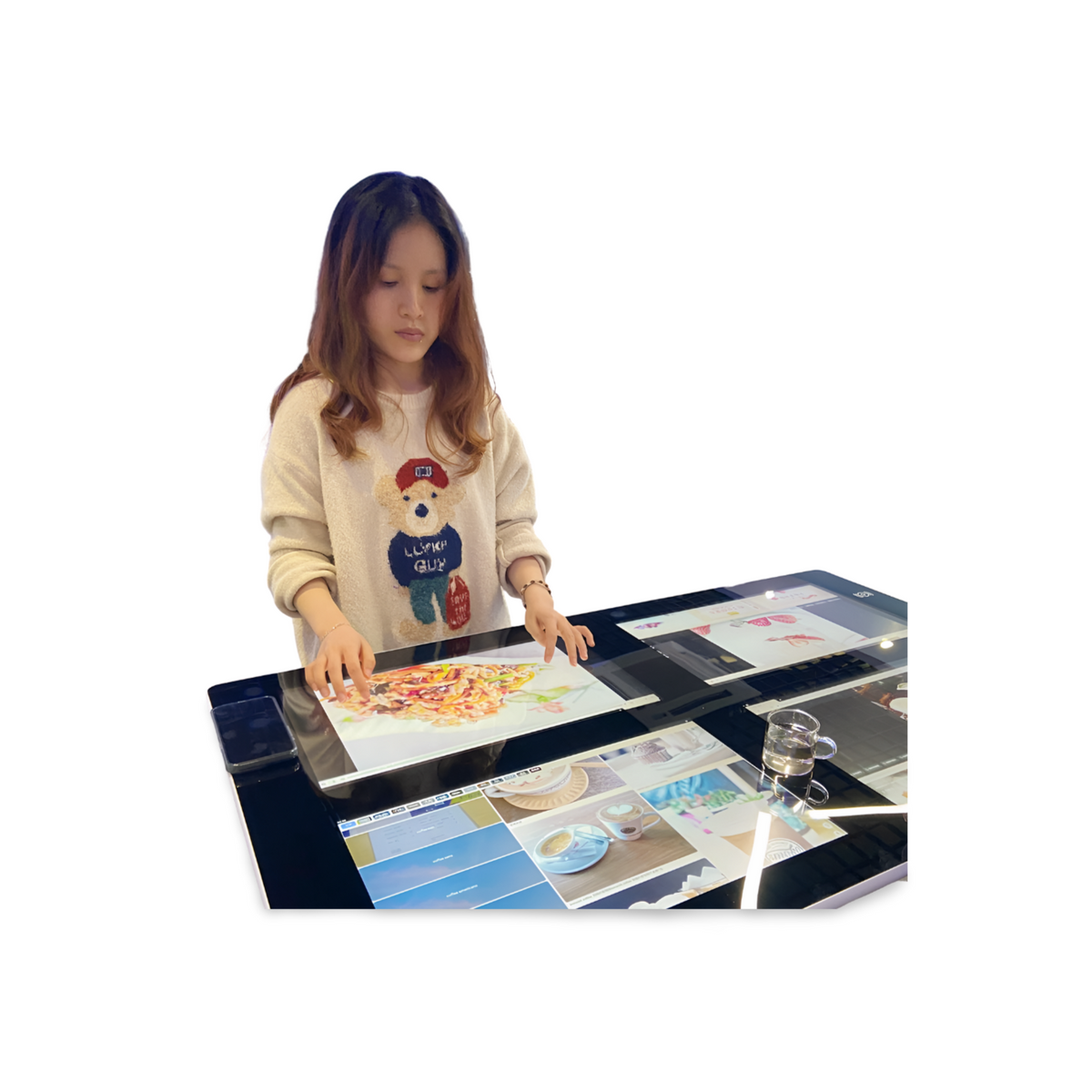

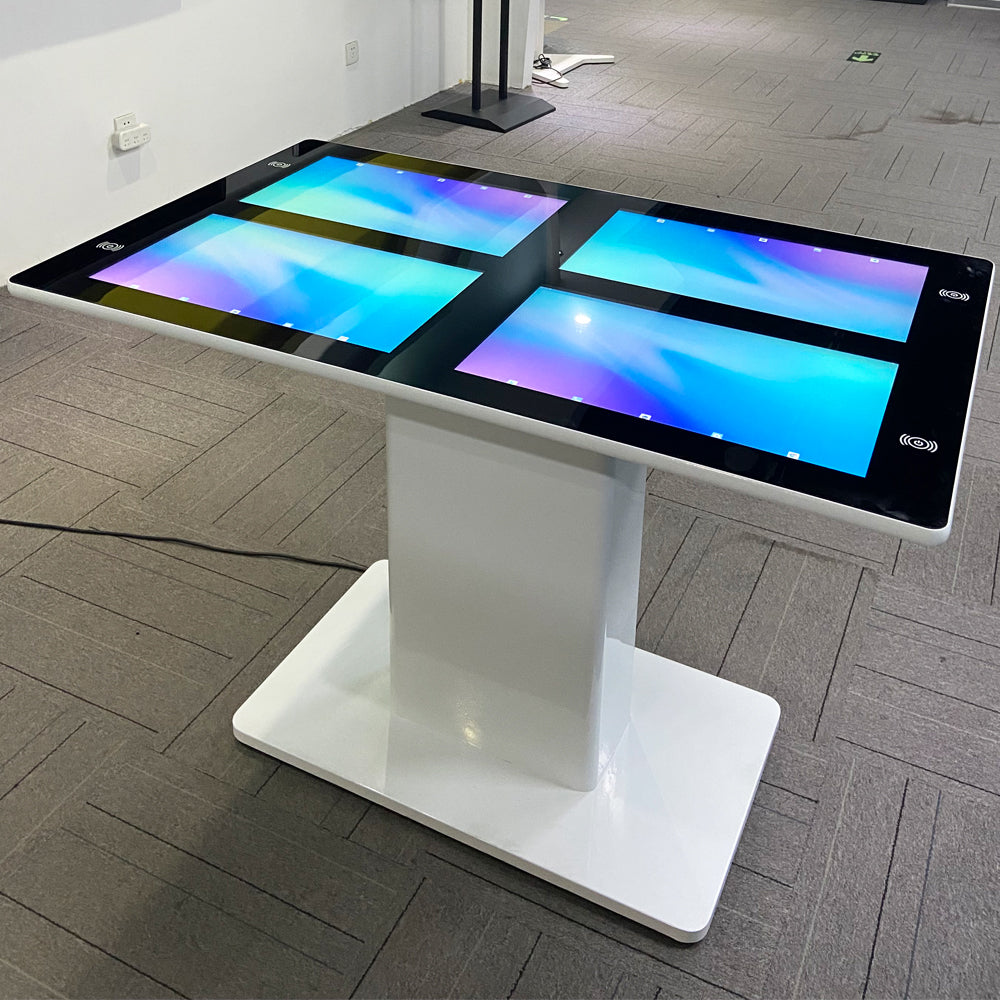

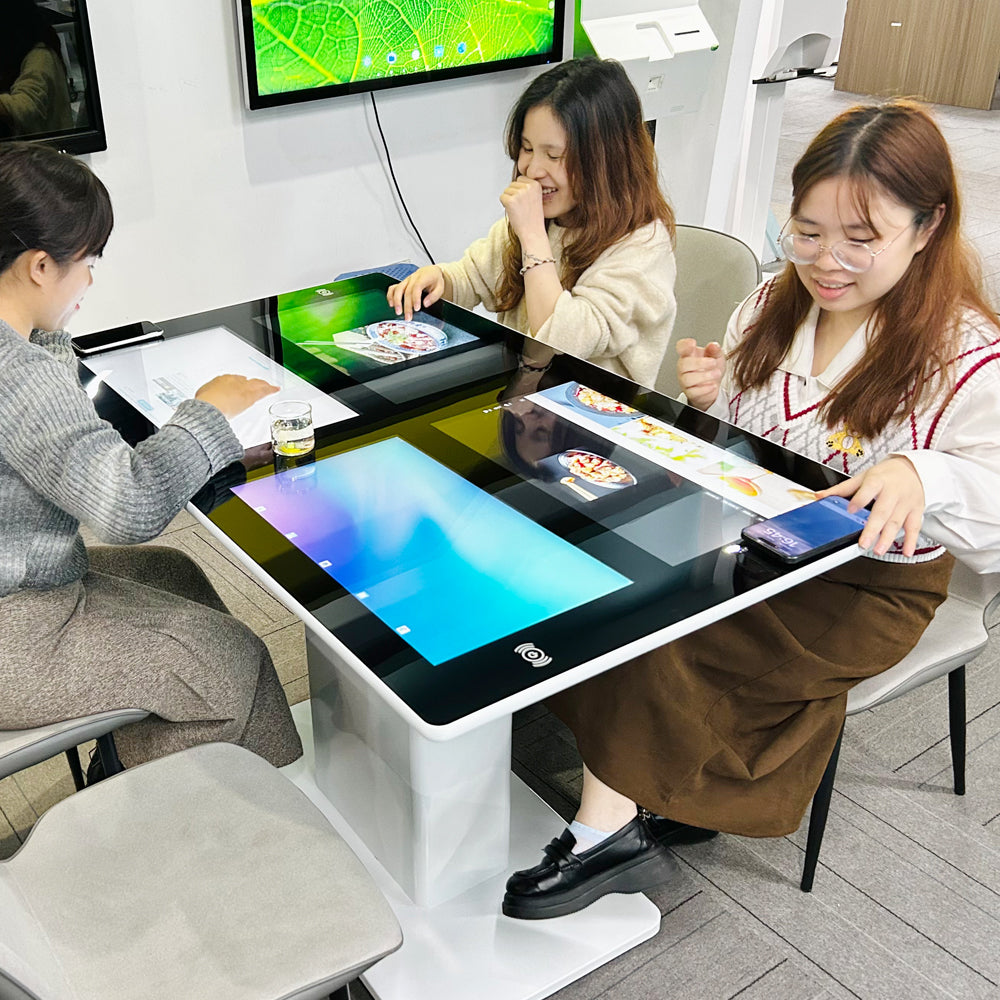

The 21.5" smart touch table is a table-mounted interactive display that puts a full computer under a tempered-glass surface — guests order, browse, pay and play without a separate kiosk. The 1920×1080 PCAP panel supports 10- or 20-point multi-touch, so several people can tap at once, and the rounded-corner housing is built for high-traffic guest areas. It runs Android 11 on a quad-core Rockchip RK3568 or Windows 7/8/10 on an Intel i3/i5/i7, giving you a choice between a lean signage-and-ordering setup or a full desktop-class workstation.

Two integrated features make it earn its place in a venue: an NFC card reader for contactless payment and a Qi wireless charging pad that keeps a customer's phone topped up while they sit. Connectivity covers HDMI, USB, Ethernet, VGA and Wi-Fi (802.11 b/g/n), and the built-in 5W stereo speakers handle audio for menus, games and promotions. The manufacturer prints your logo or startup screen and finishes the shell in white, black or a custom color, so the table reads as part of your brand rather than a generic terminal.

10- or 20-point projected-capacitive touch on a tempered-glass, waterproof, heat-resistant surface
NFC payment reader plus Qi wireless phone charging built into the tabletop

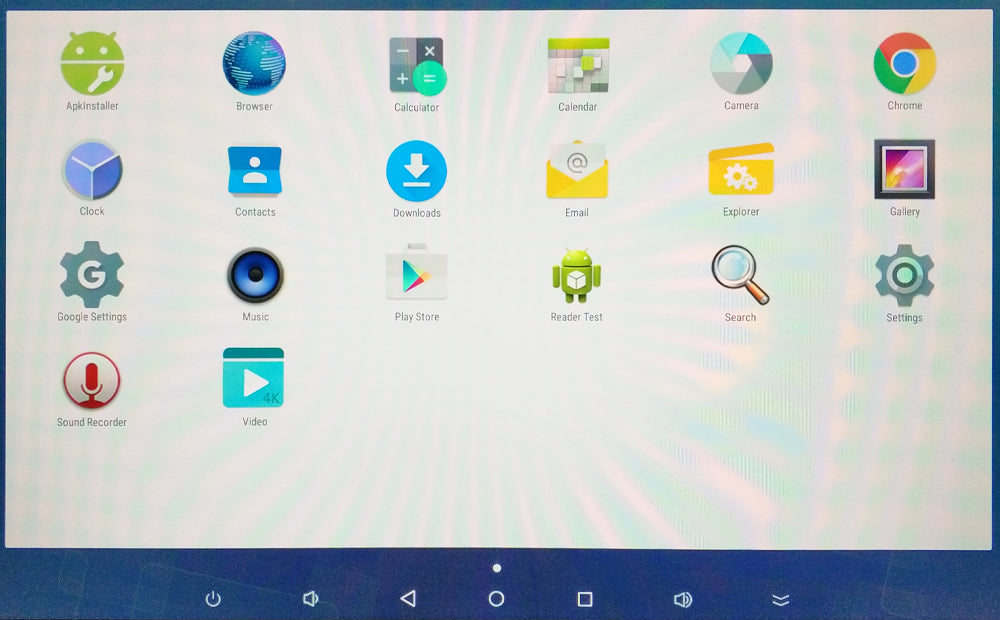

Android 11 (RK3568) or Windows 7/8/10 (i3/i5/i7), with the Google Play Store pre-loaded on Android units
Custom logo, startup animation and shell color for education, hospitality and retail floors

Specifications

Material: Sheet metal, Tempered glass

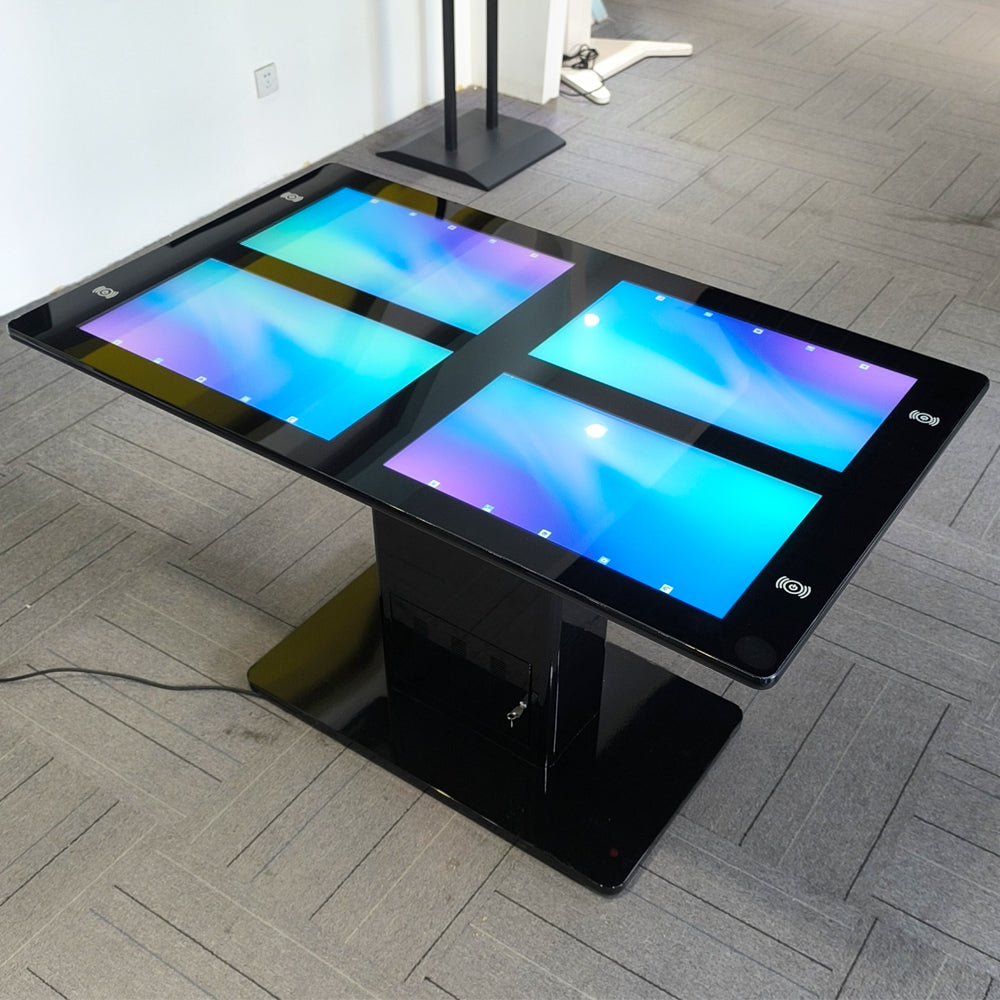

Color: White, black or custom color
Power: 60 W
Voltage: DC 12V 5A (50–60Hz)
Warranty: 13-month manufacturer warranty (extendable to 2/3/5 years)
Certifications: CE, RoHS, FCC, ISO9001
Customization: Printed logo / startup screen, shell color, size to order
Display size: 21.5 inch
Panel type: LED-backlit LCD
Resolution: 1920×1080 (2K)
Aspect ratio: 16:9
Brightness: 200 cd/m²
Contrast ratio: 1200:1
Viewing angle (H/V): 178/178 °
Response time: 6 ms
Color depth: 16.7M
Touch: 10 or 20-point PCAP
Operating hours: 7/24
Android processor: Rockchip RK3568 quad-core 2.0GHz
Android version: Android 11
Android RAM: 2/4/8 GB
Android storage: 8GB flash + up to 128GB external
Windows processor: Intel i3/i5/i7
Windows version: Win7/Win8/Win10
Windows RAM: 4/8/16 GB
Windows storage: up to 256GB external
Connectivity: HDMI, USB, Ethernet, VGA, Wi-Fi
Wi-Fi: 802.11 b/g/n
LAN: 10/100 Ethernet
Audio output: 5W, 8Ω (2 sets)
Special features: NFC payment reader, Qi wireless charging, optional microphone, built-in speakers
Mounting: Table-mounted, demountable
Operating temperature: 0 to 45 °C
Storage temperature: -10 to 55 °C
Storage humidity: 5–95 %
Included accessories: Power cable

Frequently asked questions

Which platform should we specify, Android or Windows?

Specify Android for menus, signage and ordering — Android 11 on a quad-core RK3568 with 2, 4 or 8GB RAM and the Play Store pre-loaded. Choose Windows 7/8/10 on an Intel i3/i5/i7 with 4, 8 or 16GB if you need desktop POS or back-office software.

How do we decide between the 10-point and 20-point touch panel?

Ten points covers one or two guests browsing a menu; the 20-point PCAP panel is the one to order if the table doubles as a group game or multi-user retail surface where four people tap at once.

How are payment and phone charging handled at the table?

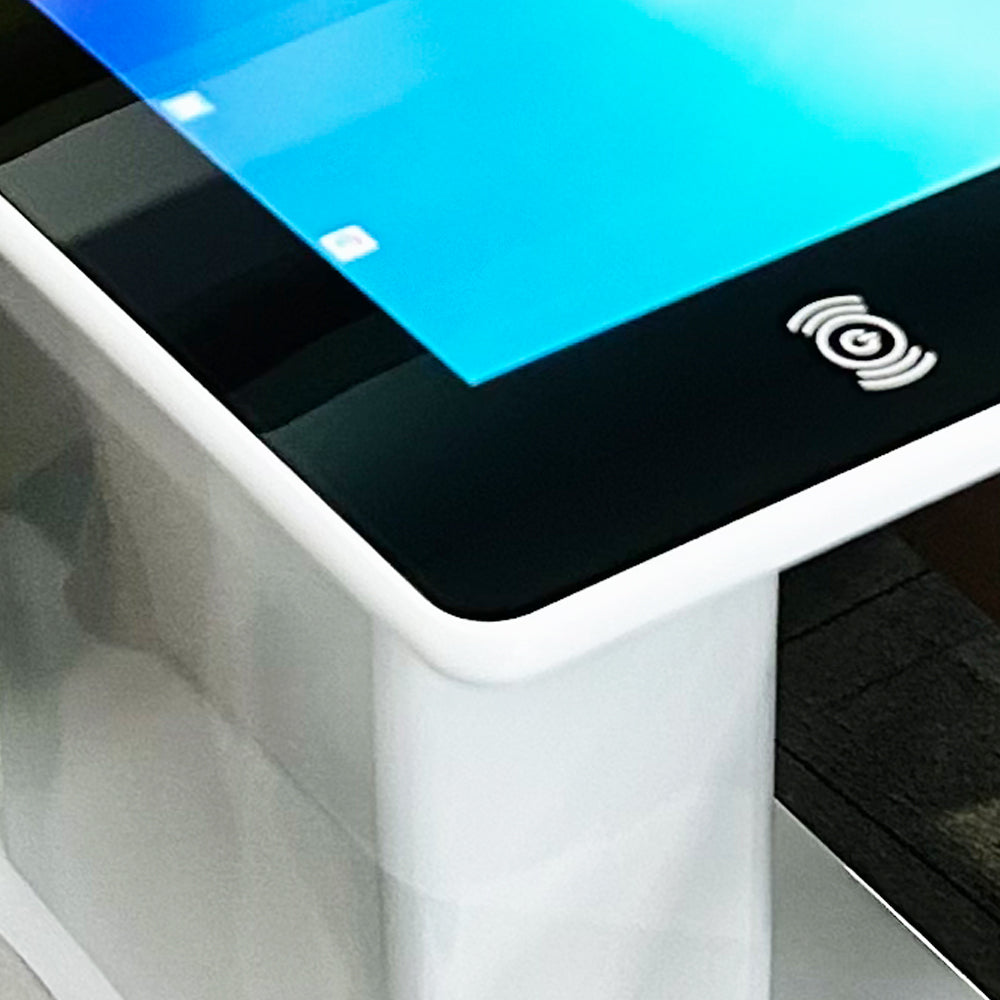

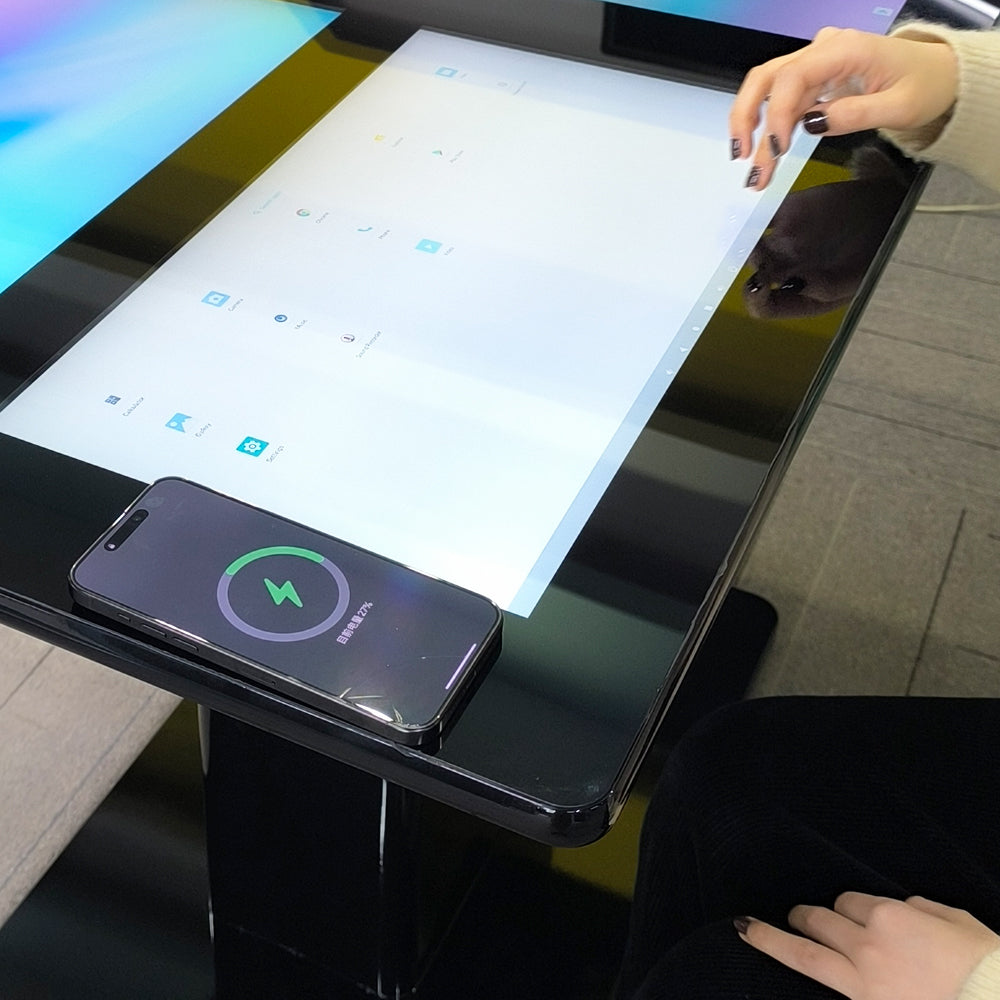

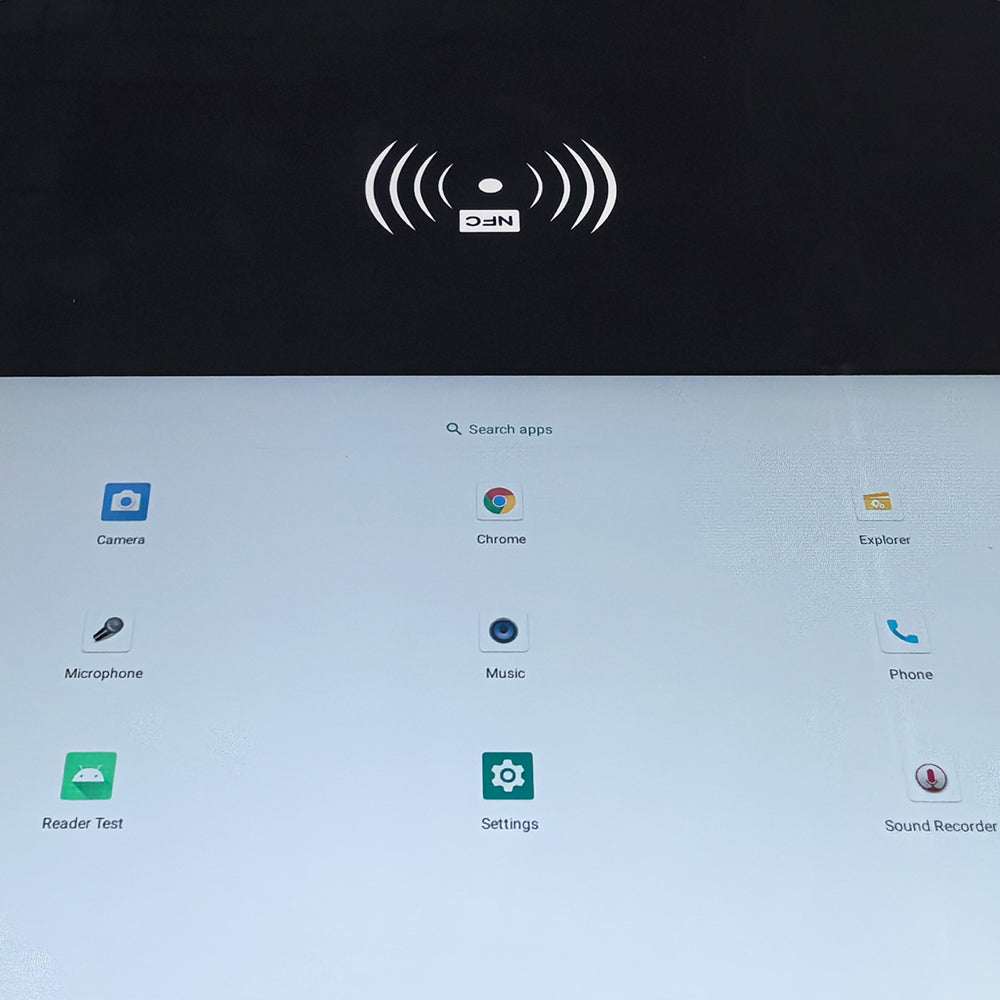

An NFC reader in the tabletop takes contactless cards, and a separate Qi pad charges a guest's phone while they sit — both integrated under the glass, so no reader or cable clutters the surface.

How far does the customisation go?

OEM work covers a printed logo, a custom startup screen or animation, a shell in white, black or a colour you nominate, and size adjustments to your requirement. Send artwork and the colour reference with the order.

Will the surface survive a busy dining room?

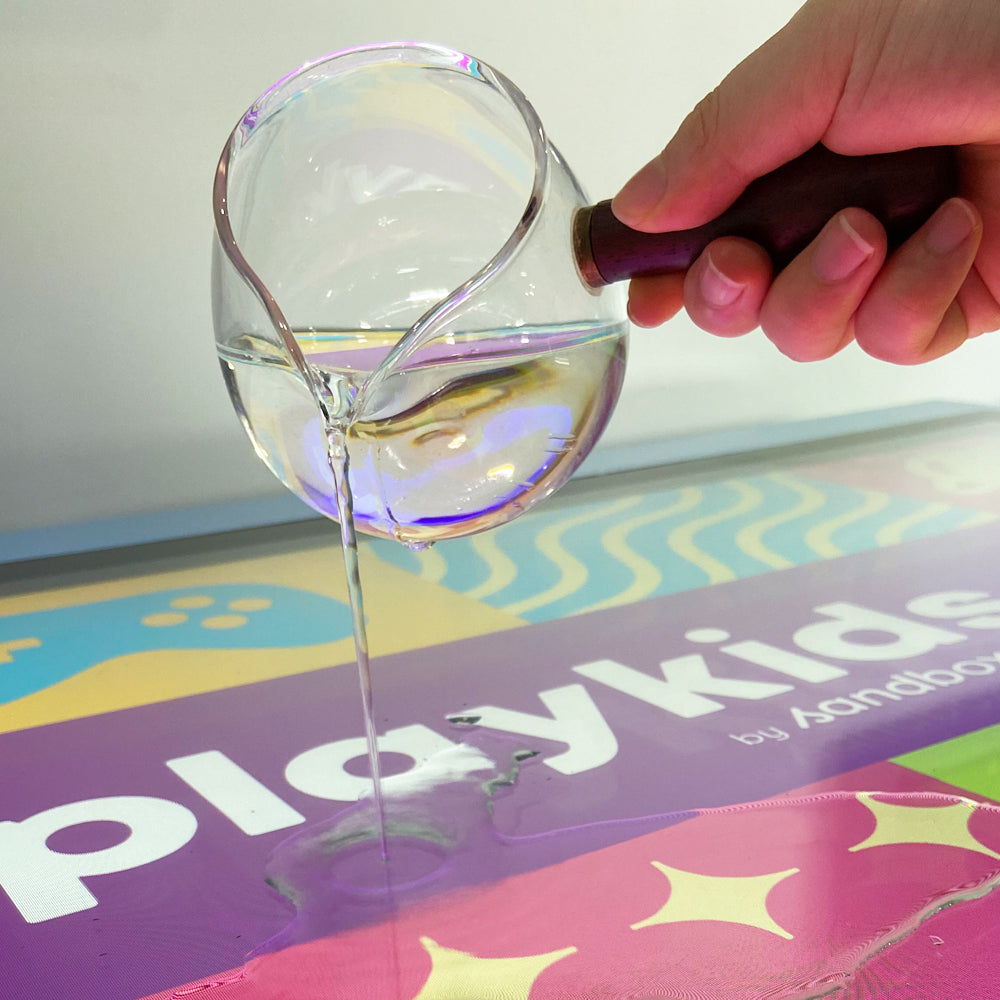

Tempered glass forms the tabletop, waterproof and heat-resistant, with rounded corners on the housing to soften knocks. The panel itself is rated for 7/24 operation, so it can stay live through a full trading day.

What does the warranty cover and what connections does the table give us?

A 13-month manufacturer warranty applies, extendable to 2, 3 or 5 years if you request it at order. Ports run to HDMI, USB, VGA and 10/100 Ethernet, with 802.11 b/g/n Wi-Fi and two sets of 5W speakers on board.
