Adjustable Yellow Safety Laser Projector — Boundary Warning Marking

An IP67 yellow laser projector that casts a bright, adjustable warning line to mark boundaries and no-go zones on factory and workshop floors.

From29,542.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

MOQ: 2

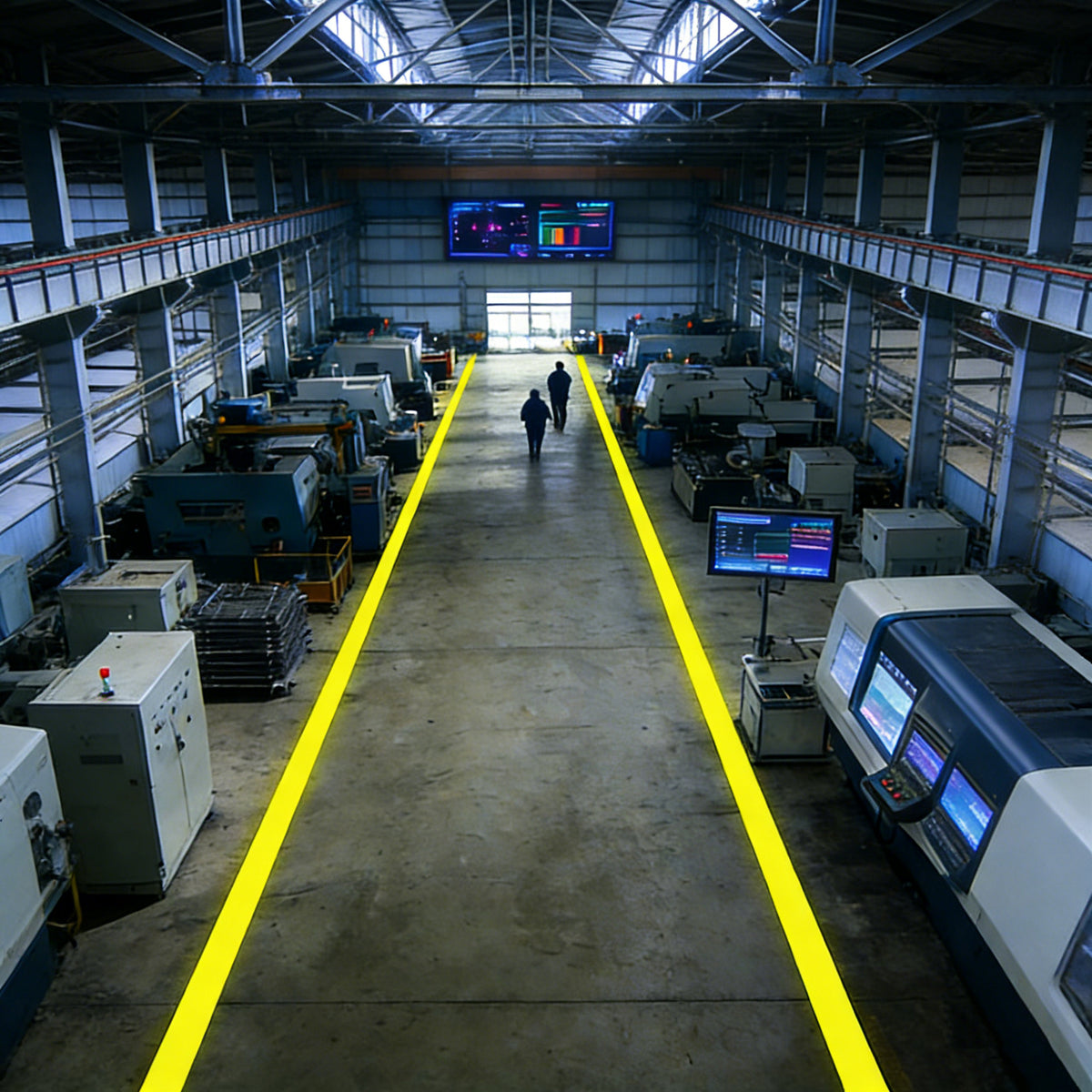

A safety laser projector marks a clear visual boundary on the floor without paint, tape or a physical barrier — the beam simply casts a bright yellow warning line where forklifts, pedestrians and machine hazards meet. It suits warehouses, production lines, loading bays and workshops that need a line that can be re-drawn in seconds when the layout changes.

The unit runs on AC 220V and projects at 5000 lumens with a 6000K daylight-alert tone, so the mark stays legible under bright plant lighting. Both the beam width and the line thickness adjust, letting you set anything from a tight walkway edge to a wide keep-clear zone. The aluminum-alloy housing carries an IP67 rating for dust and water resistance, and a rated 20,000-hour lifespan keeps maintenance visits rare.

  • Adjustable beam width and line thickness for walkways, aisles and no-go zones
  • IP67 aluminum-alloy housing rated from -20 to 60°C
  • Custom patterns and logos available on request

Specifications

Material
Aluminum alloy
Color
Yellow
Weight
1.0 kg
Voltage
AC 220V (±10%)
Warranty
2-year manufacturer warranty
Certifications
RoHS CE
Customization
Custom projected patterns and logos available on request
Light source
Laser
Luminous flux
5000 lm
Luminous efficiency
75 lm/W
Color rendering index (Ra)
95
Color temperature
6000 K
IP rating
IP67
Lifespan
20000 h
Working temperature
-20 to 60 °C
Power source
AC
Dimmer support
No

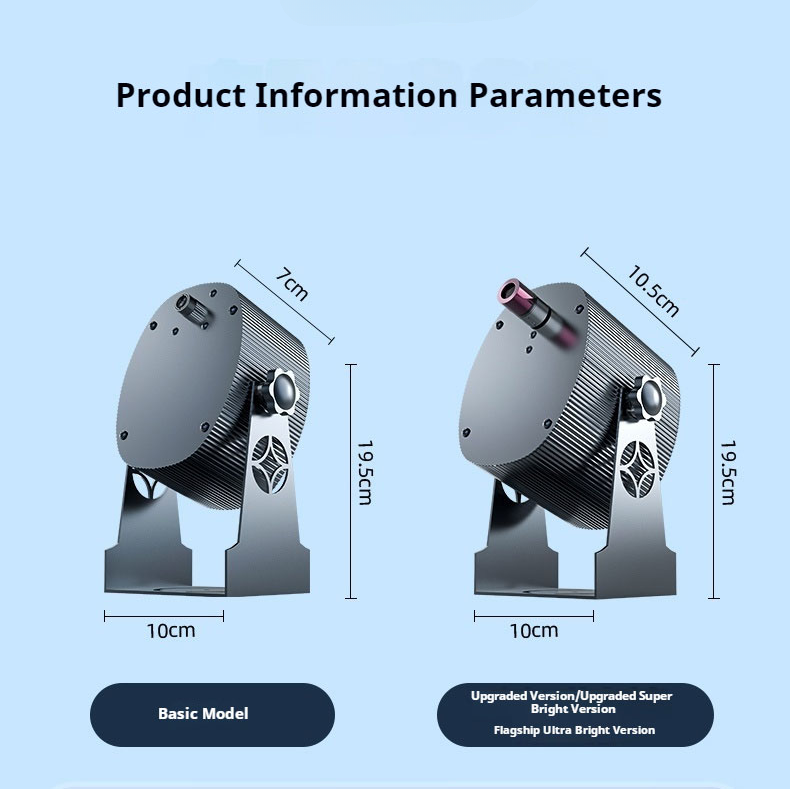

Length
20 cm

Frequently asked questions

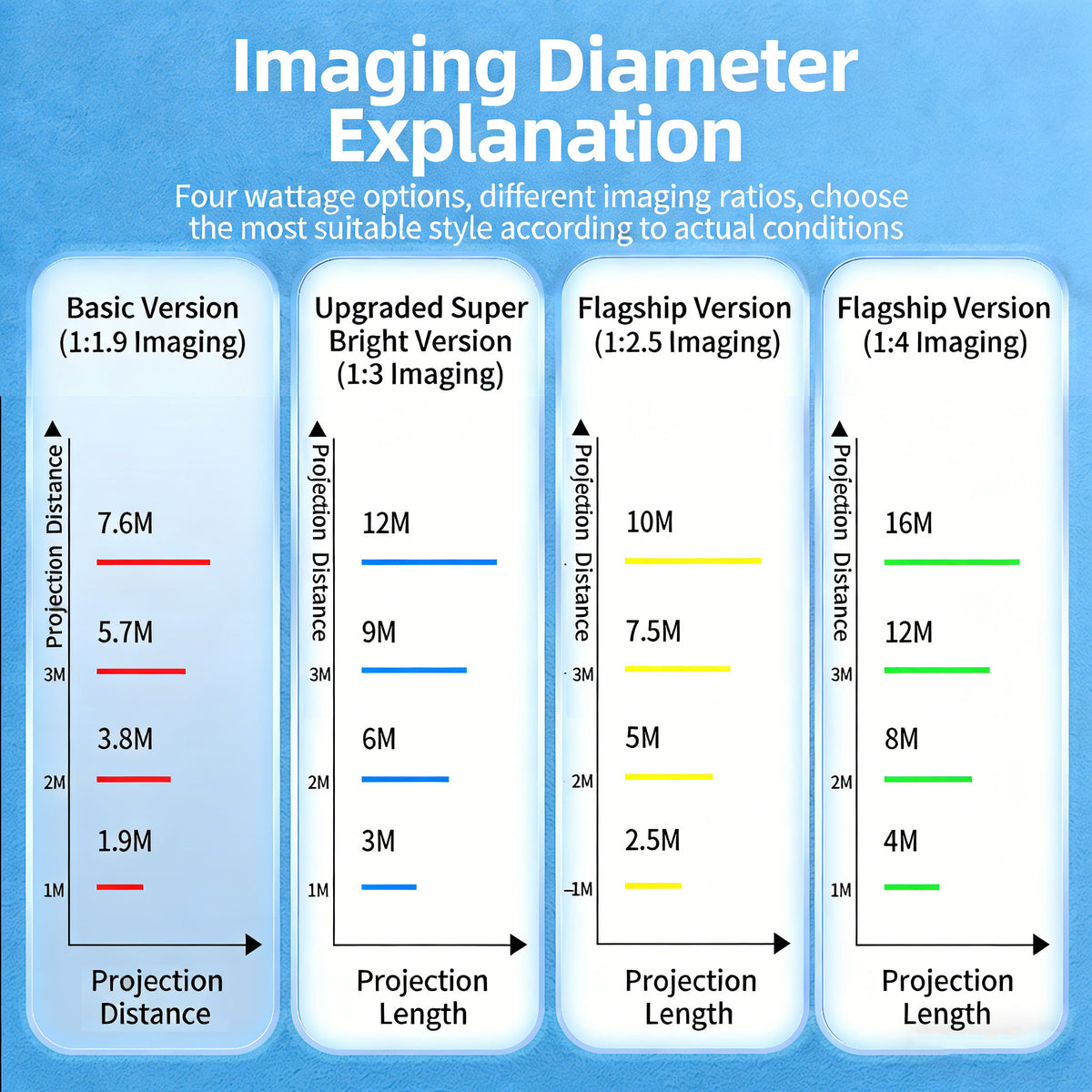

How tight or wide can the projected line be set?

Beam width and line thickness both adjust on the unit, so the same projector draws a narrow walkway edge or a broad keep-clear perimeter. Set it at the mounting height you have rather than ordering to a fixed line width.

Will the line still read under bright plant lighting?

5000 lumens at 6000K is what keeps it legible — the daylight-alert colour temperature stops the yellow washing out under high-bay lighting, which is where taped lines usually lose their contrast.

What supply and mounting conditions does it need?

AC 220V (±10%) mains, and the housing is rated from -20 to 60°C with an IP67 seal against dust and washdown, so it can sit over a loading bay or a dusty production cell. The unit is 20 cm long.

How far does the custom pattern option go, and what is the lead time?

Custom projected patterns and logos are made to order, including full colour. Send artwork before production starts; samples of one or several pieces ship within 3 to 5 working days of payment.

What is the service life and warranty position?

The laser source is rated at 20,000 hours, with a 2-year manufacturer warranty on the unit. Housing is aluminium alloy and the product carries CE and RoHS.

Why choose a projected line over painted or taped floor marking?

It redraws in seconds when the layout changes — no lifting tape, no repainting, and nothing on the floor for forklift wheels to scuff off. Useful where aisles, staging areas and machine zones move between shifts.
