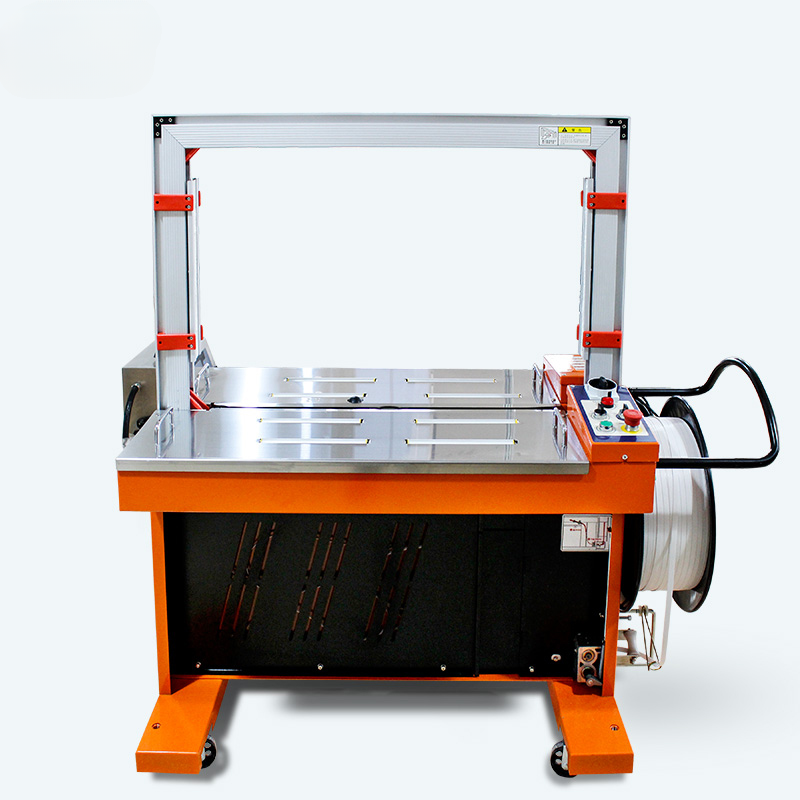

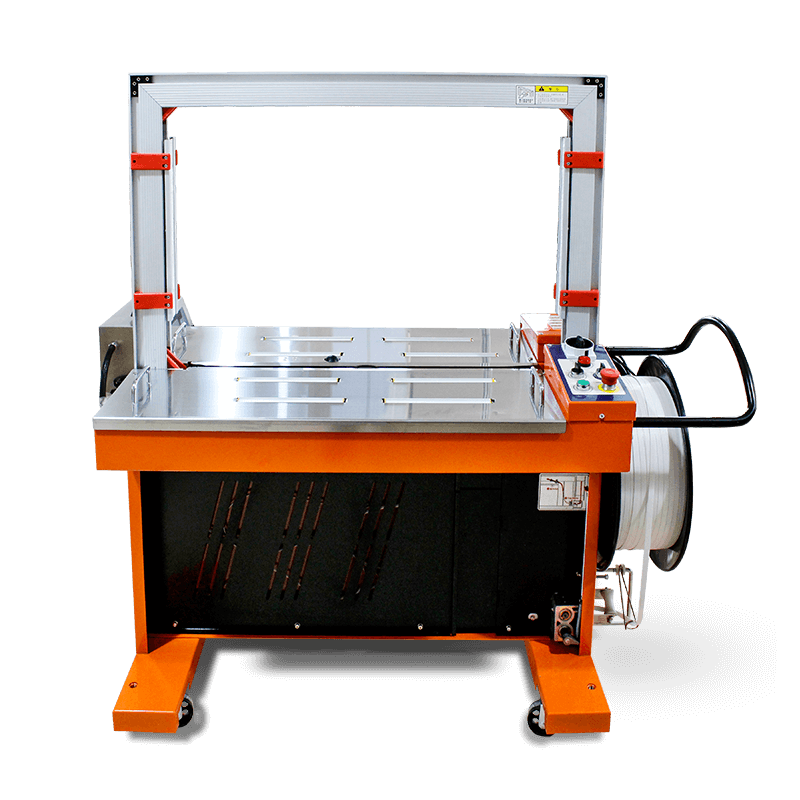

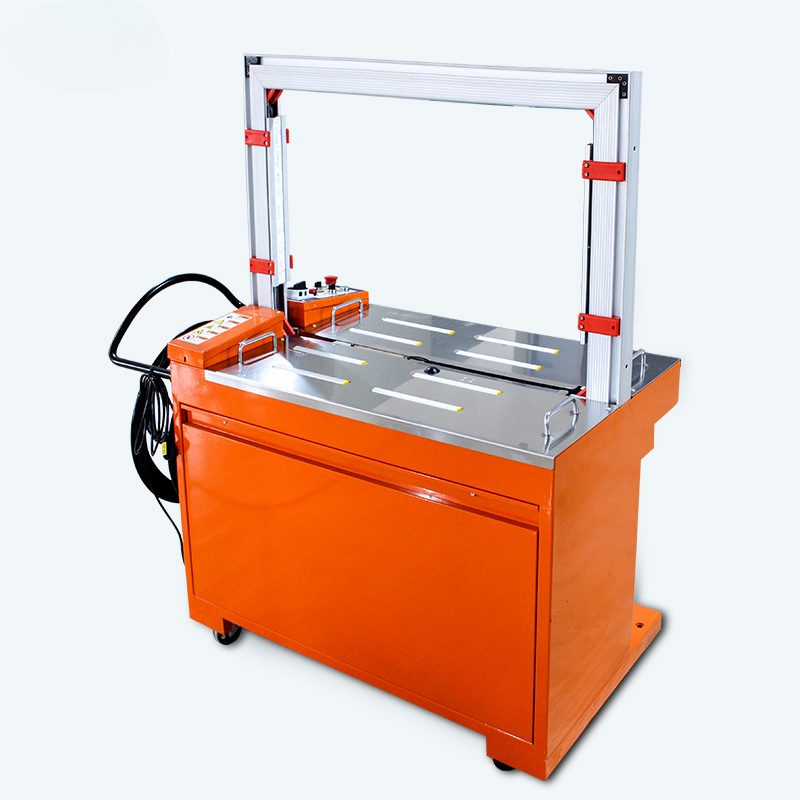

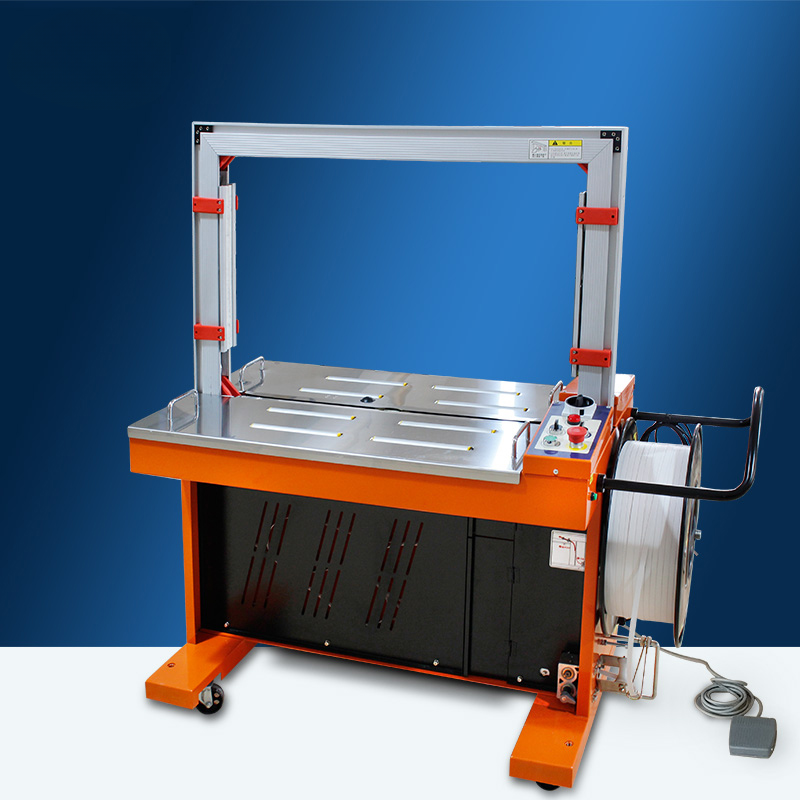

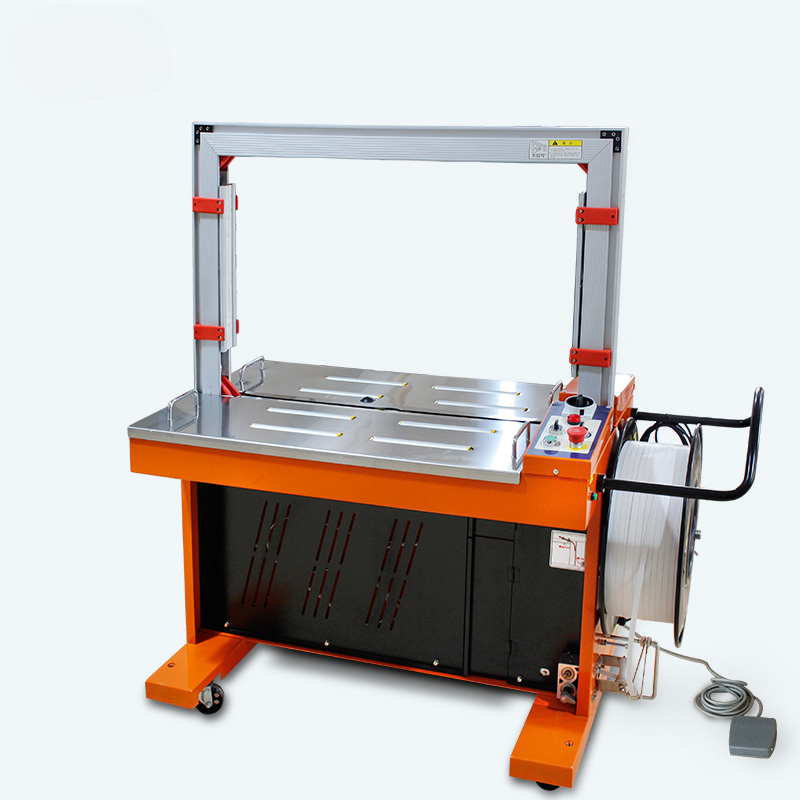

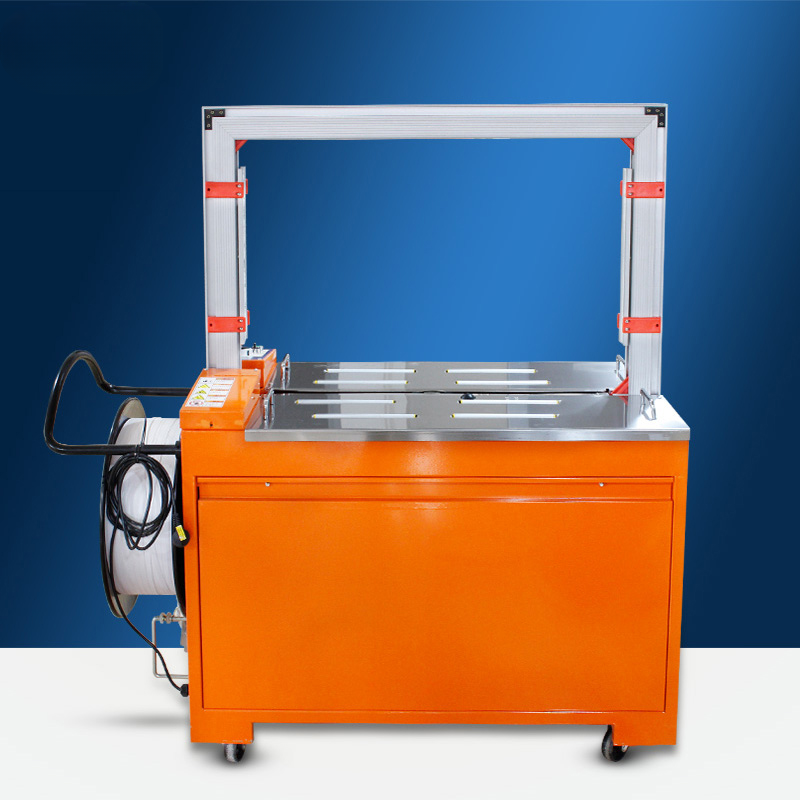

An automatic PP strapping machine that bundles cartons and boxes at up to 40 cycles per minute with adjustable strap tension.
$ 1 560$ 1 85615% discount
Shipping calculated separately
Lead time: 2–4 weeks

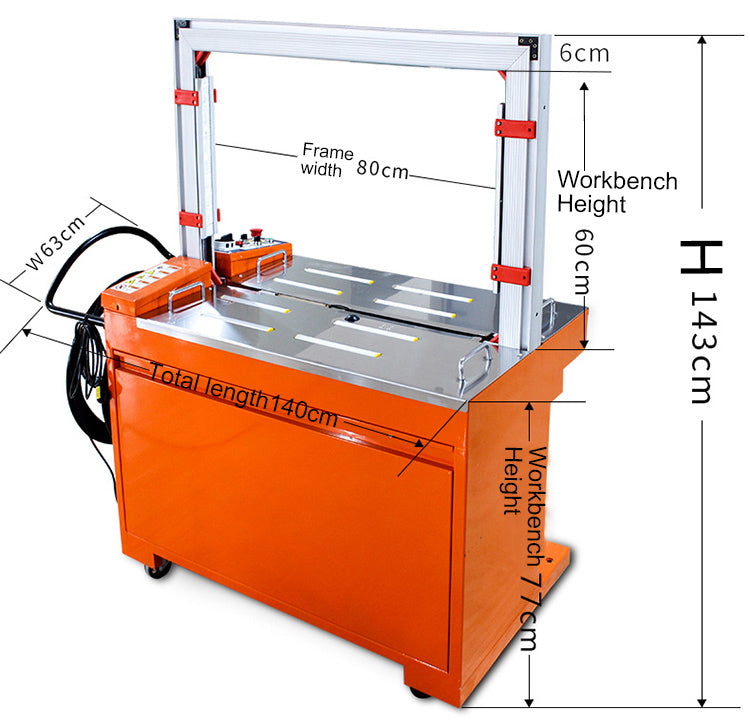

An automatic PP strapping machine seals and secures cartons, cases and bundled goods at the end of a packing line. It feeds, tensions, heat-welds and cuts polypropylene strap in one cycle, so a single operator can strap boxes as fast as they leave the packing bench — up to 40 cycles per minute. The compact 1170 × 585 × 1420 mm frame rolls into place next to a conveyor or work table and fits tight production floors without a dedicated bay.
Tension is adjustable from 0 to 45 kg, letting you go soft on lightweight cartons and firm on heavy pall-bound cases, while an electronic heater controls the weld temperature for a consistent joint. The machine runs standard 0.5–0.8 mm strap in 8–9 mm widths from a high-capacity reel, with automatic strap feeding and end detection to keep throughput steady across a shift.
Strapping speed up to 40 cycles/min for line-end packing
Tension adjustable 0–45 kg for light cartons through heavy cases
Automatic strap feed, end detection and heat-weld sealing
Customizable arch size and 850 mm worktable height
Runs on single-phase 220 V, no three-phase supply needed

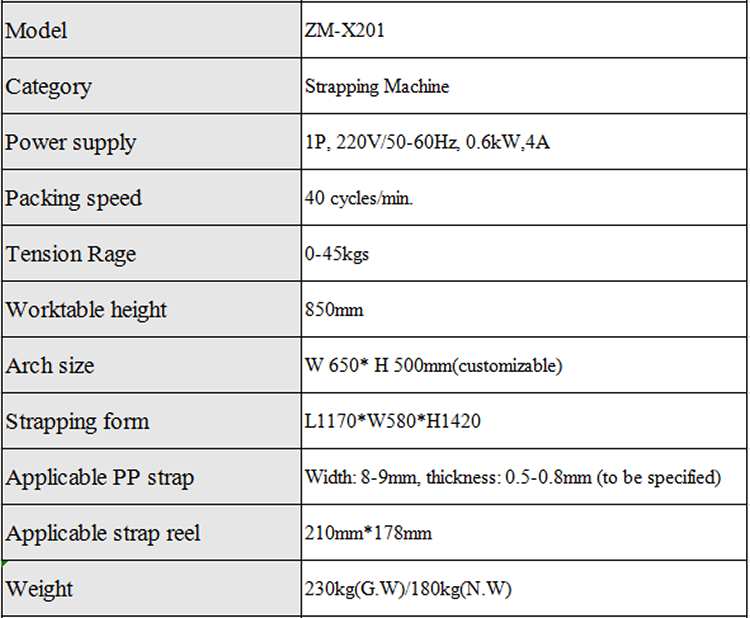

Specifications
Dimensions (L × W × H)
585 × 1170 × 1420 mm
Weight
150.0 kg
Power
600 W
Voltage
220V / 50-60Hz, single-phase (4A)
Warranty
1-year manufacturer warranty
Customization
Arch size customizable
Automation grade
Automatic
Driven type
Electric
Packing speed
40 cycles/min
Tension range
0-45 kg
Strap thickness
0.5-0.8 mm
Strap width
8-9 mm
Strap material
PP (polypropylene)
Worktable height
850 mm

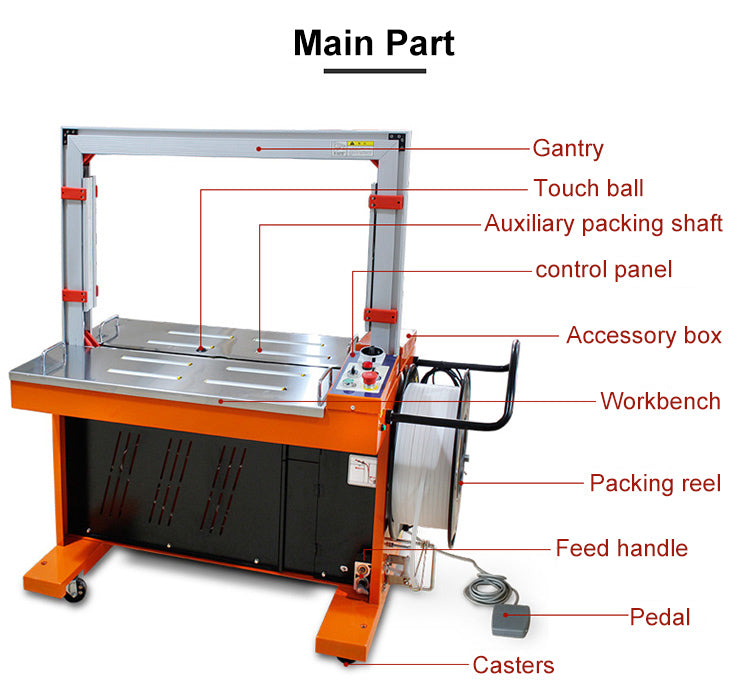

Core components
Motor
Temperature control
Electronic heater
After-sales service
Online support, video technical support
Frequently asked questions
What strap type and size does this machine use?
It runs polypropylene (PP) strap in 8–9 mm widths and 0.5–0.8 mm thickness. Load the width and thickness you plan to use, and set the machine to match. Contact us to confirm the best strap spec for your cartons.
How fast can this strapping machine work?
The machine reaches up to 40 cycles per minute, so it keeps pace with a busy line-end packing station. Actual throughput depends on carton size, how many straps per box and operator handling.
Can I adjust the strap tension for different products?
Yes. Tension is adjustable from 0 to 45 kg, so you can strap soft on lightweight cartons and firm on heavy cases without changing machines.
What power supply does the machine require?
It runs on single-phase 220 V at 50–60 Hz, drawing 0.6 kW (about 4 A). No three-phase supply is needed, so it plugs into a standard commercial outlet.
Can the arch be sized for my carton dimensions?
Yes, the arch size is customizable to suit your carton range. Share your largest and smallest box sizes and we'll confirm the right arch. Contact us to specify.
Is the machine covered by a warranty?
It is backed by a 1-year manufacturer warranty, with online and video technical support for setup and troubleshooting.
