Circular Magnetic LED Track Light System — 48V Dimmable

Name: Circular Magnetic LED Track Light System — 48V, Dimmable
Brand: BarEquip.Pro
SKU: BEP-0245-04

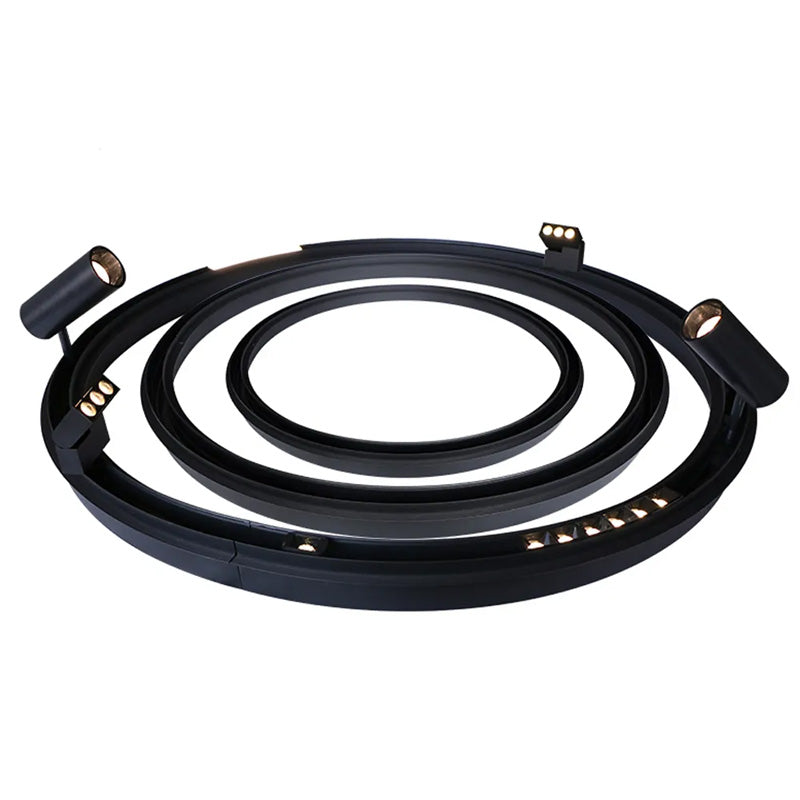

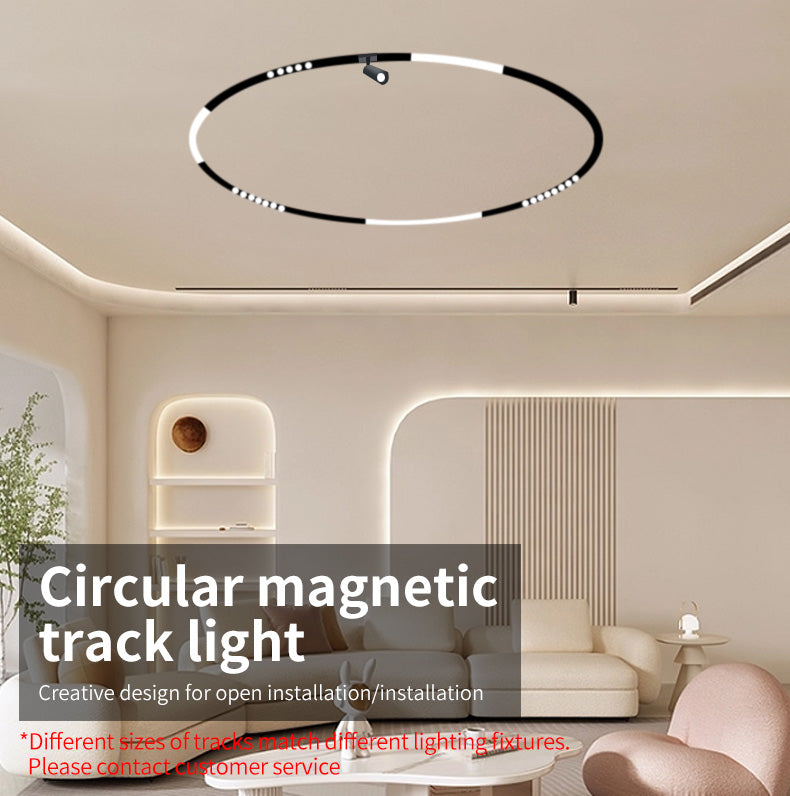

A circular magnetic track lighting system built for hospitality and retail interiors, where a clean ceiling line and flexible accent lighting matter. The 1 m aluminum ring carries a low-voltage 48V DC busbar; heads snap onto the track magnetically, so a venue can reposition, add or swap fixtures without rewiring. That makes it a practical fit for hotels, bars, restaurants, showrooms and exhibition halls that re-merchandise or re-light zones as displays change.

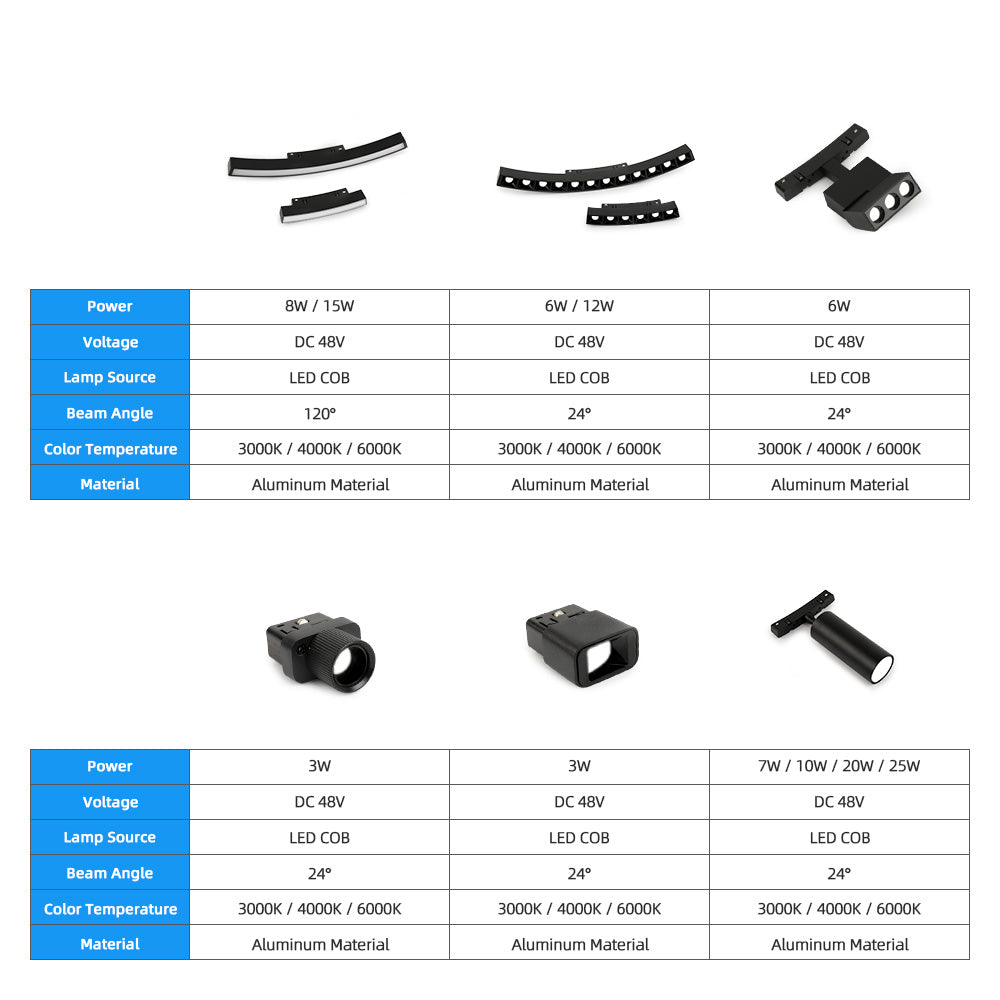

The system mixes head types on a single track, letting you tune the look per zone:

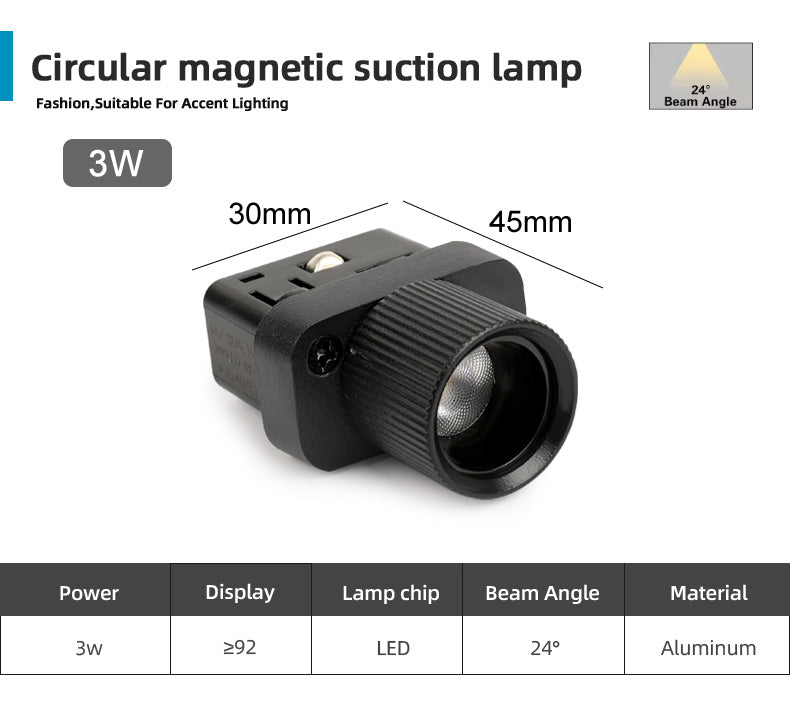

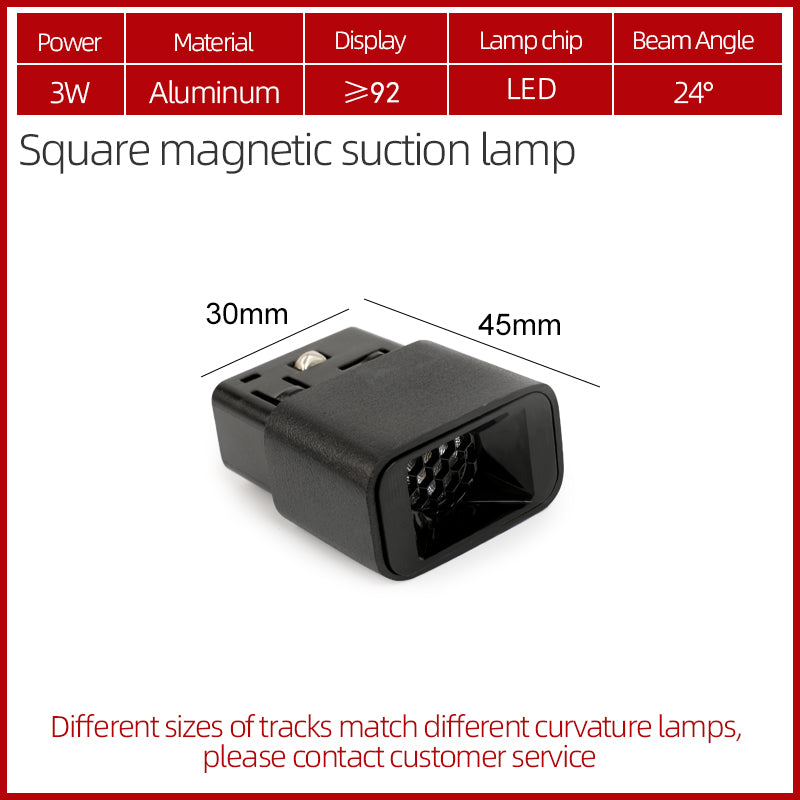

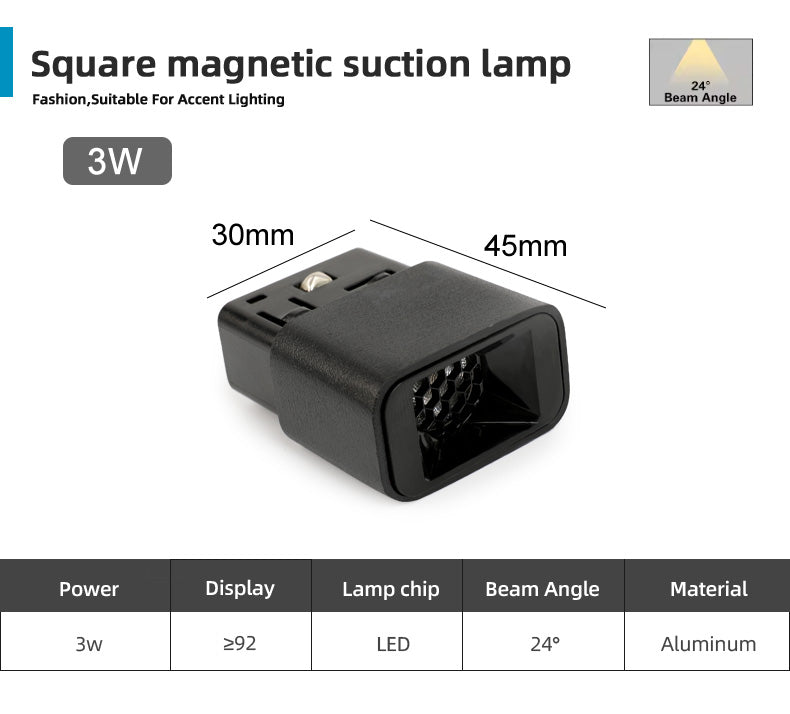

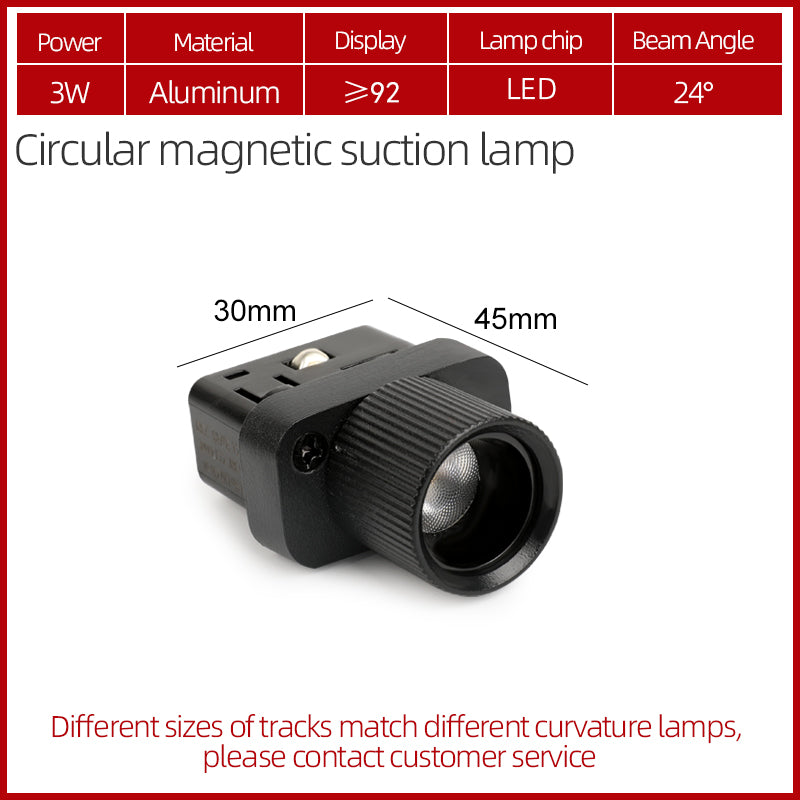

Spotlights and single-head modules (3–7 W) for tight accenting of tables, art or product;

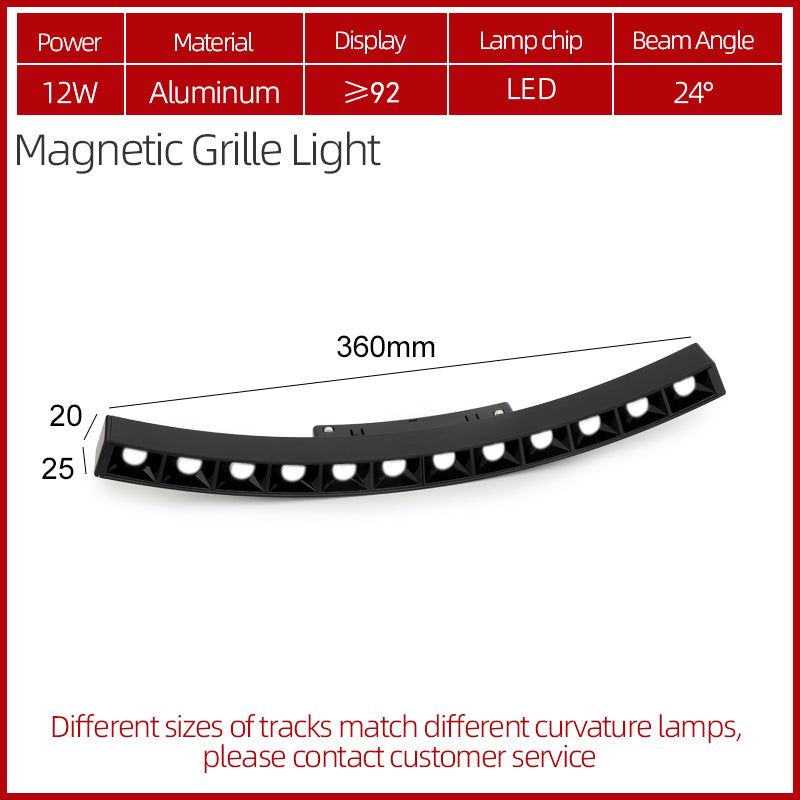

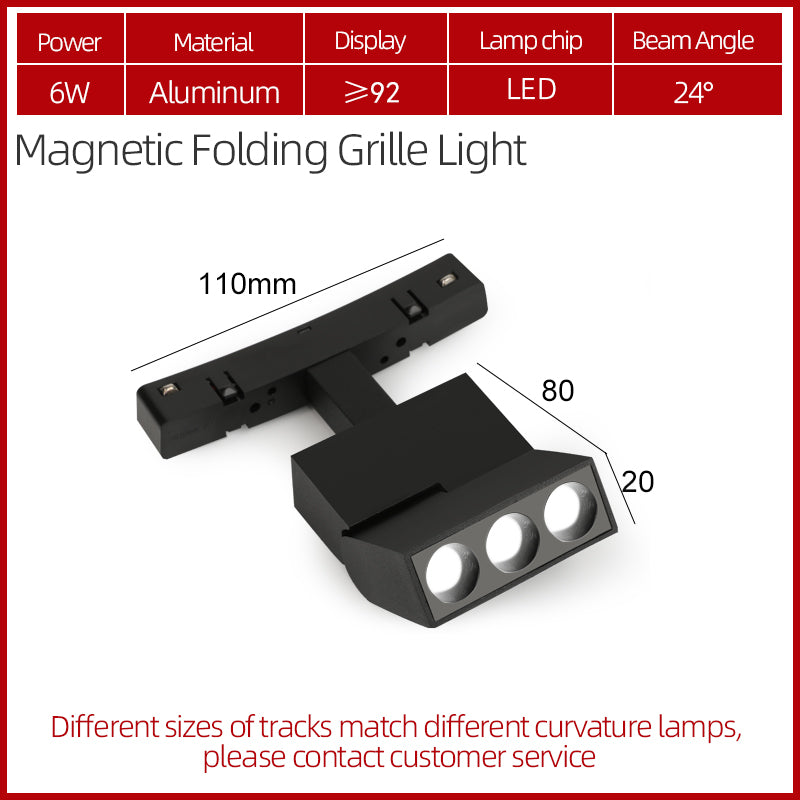

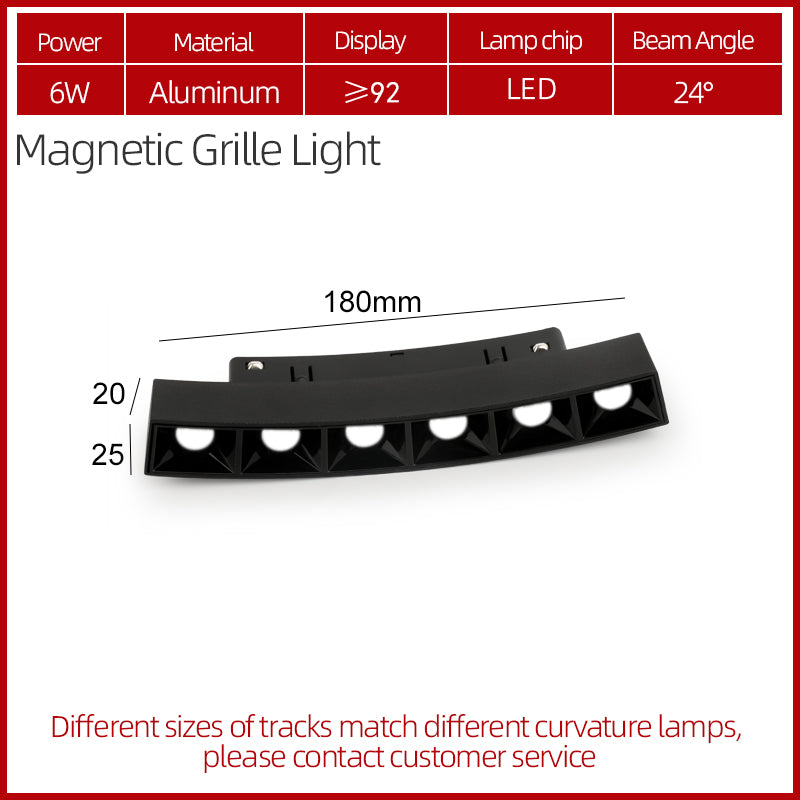

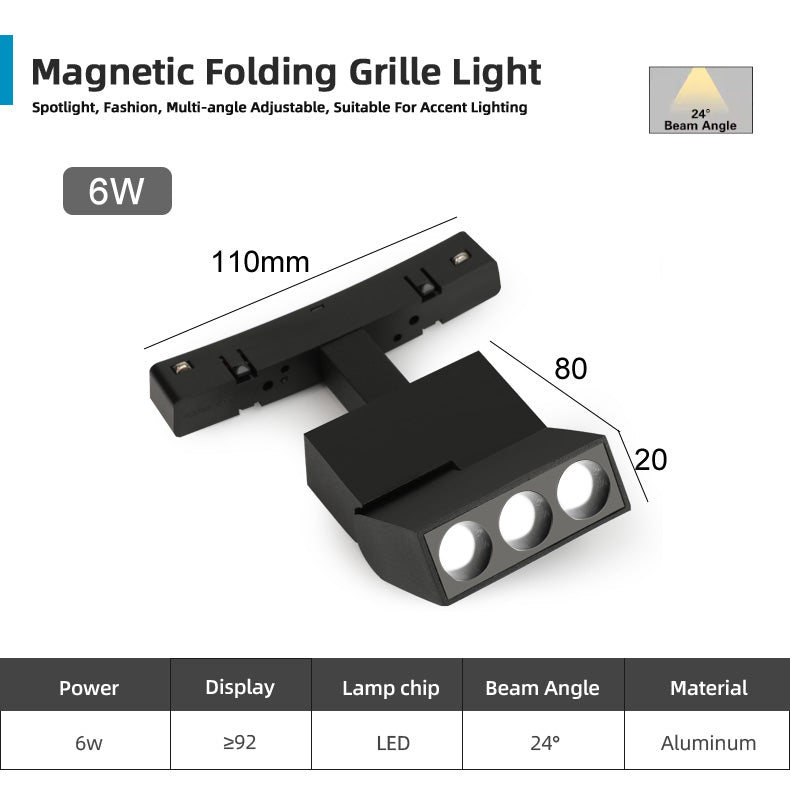

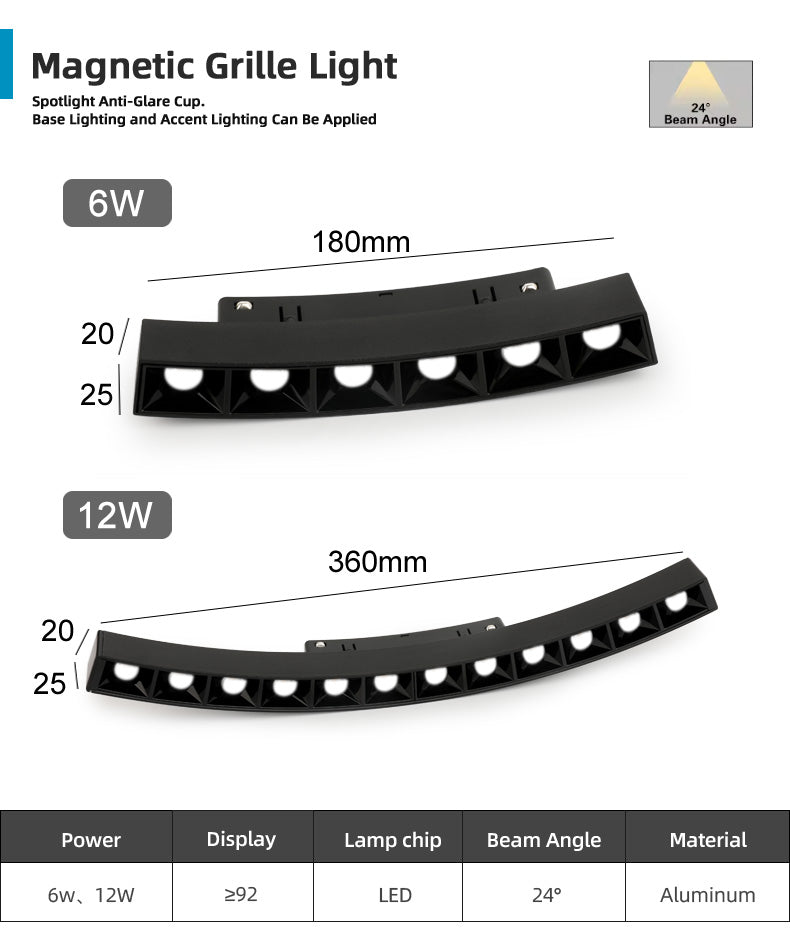

Grille and folding grille heads (6–12 W) for low-glare wall washing;

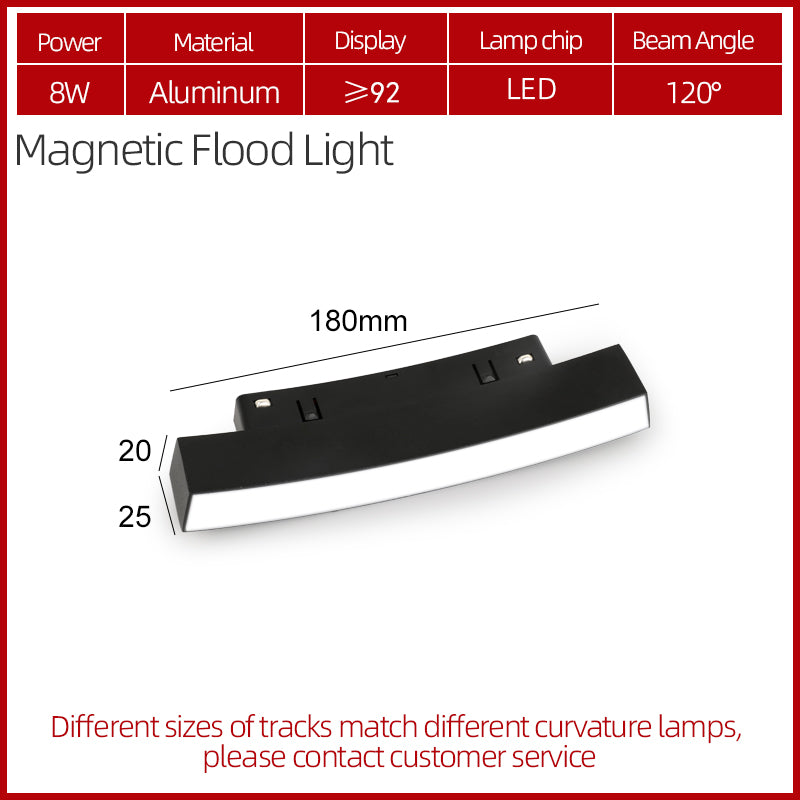

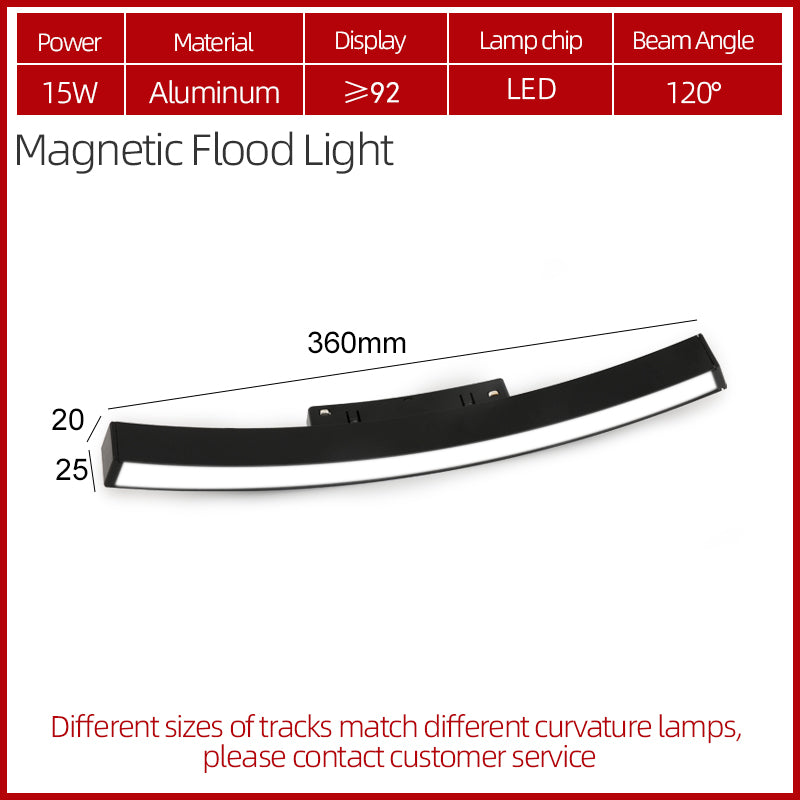

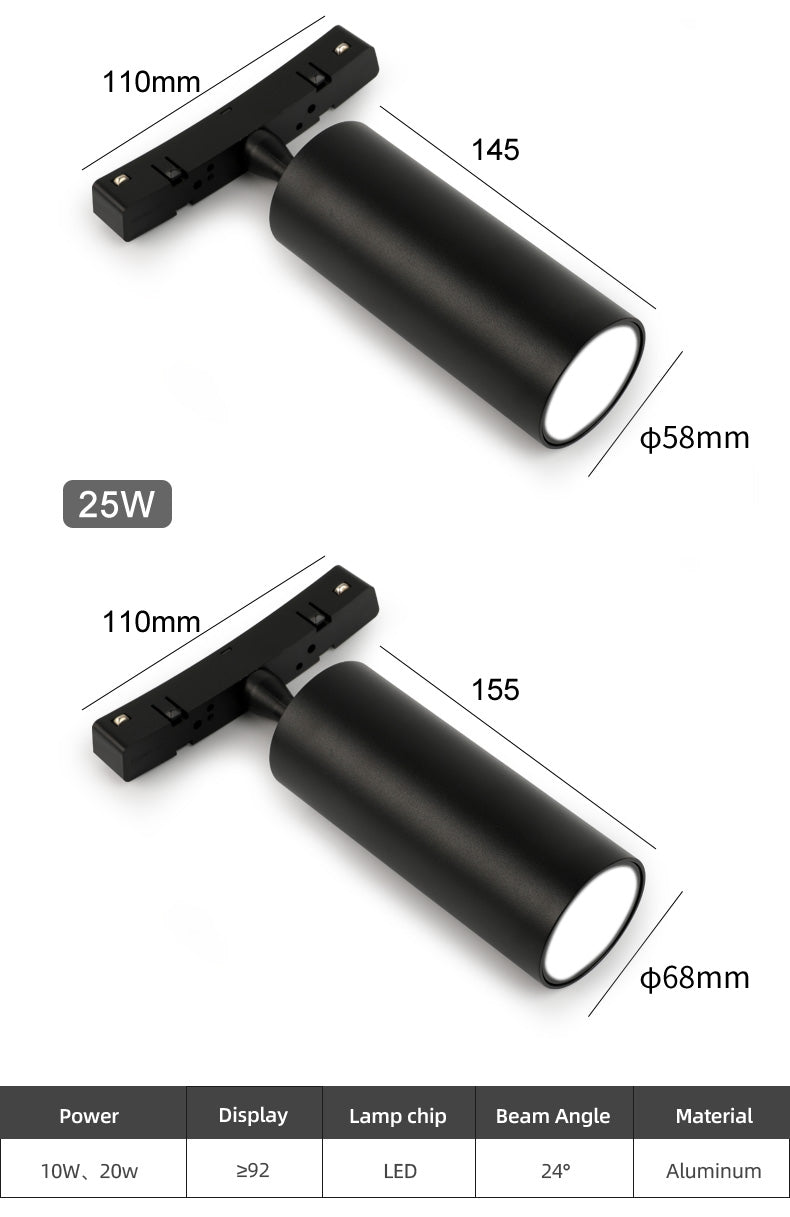

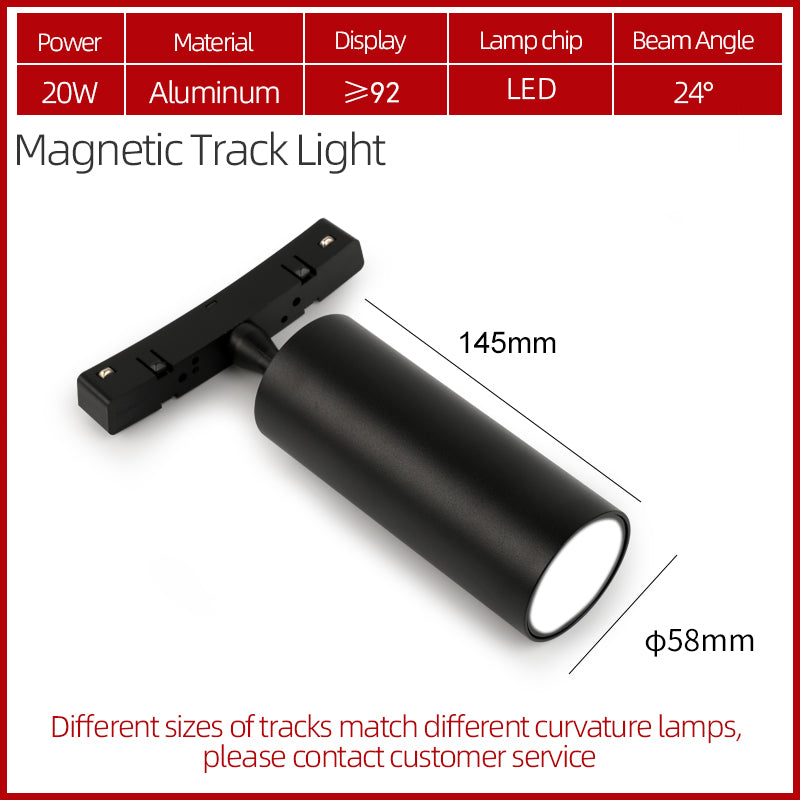

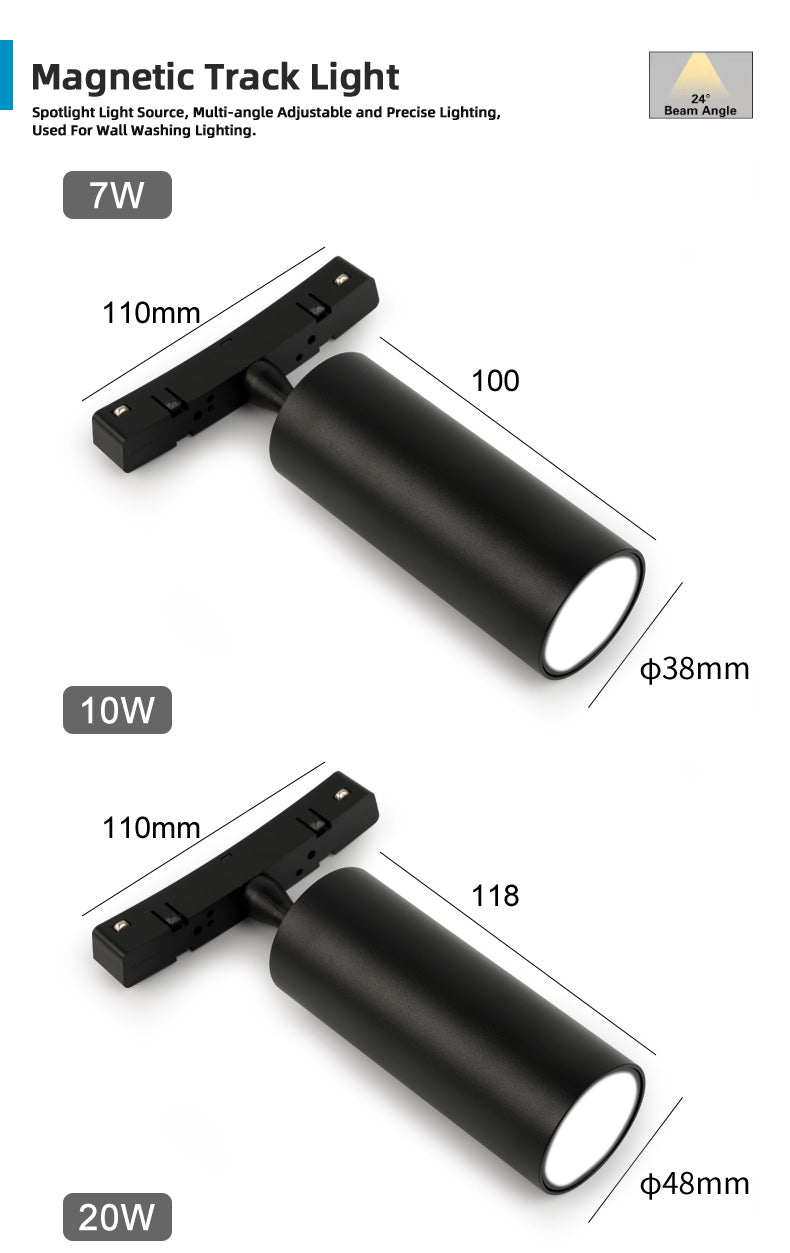

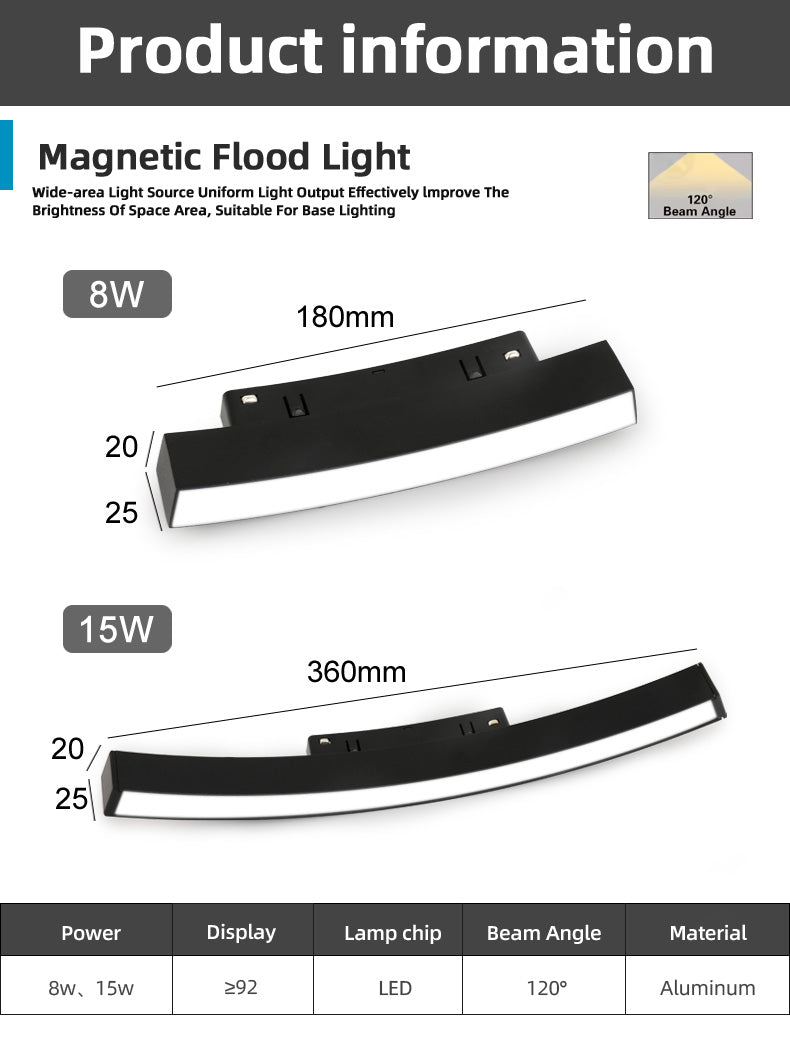

Arc floodlights (8–15 W) and curved track lights (10–25 W) for broad, even coverage.

Each head is available in 3000K, 4000K or 6000K, the LEDs are dimmable, and rated efficacy reaches 100 lm/W with a CRI of 92 for accurate color rendering on plated food, drinks and merchandise. Rated life is 50,000 hours. The track installs recessed (embedded) or surface-mounted, and dedicated built-in power supplies of 100 W and 200 W drive the run. Backed by a 3-year manufacturer warranty.

Specifications

Material: Aluminum
Color: Black Universal [Single Head Square] -3W, Black Arc shaped floodlight -8W, Black Curved grille light -6W, Black Universal [Single Head Round] -3W, Black curved track light -7W, Black curved track light -10W, Black Curved grille light -12W, Black Curved Folding Grille Light -6W, Black Arc shaped floodlight -15W, Black curved built-in power supply 100W, Black curved track light -20W, Black curved track light -25W, Black curved built-in power supply 200W, Black Circular magnetic track [Surface mounted model], Black Circular Magnetic Track [Embedded]
Weight: 0.08 kg
Voltage: 48V DC
Warranty: 3-year manufacturer warranty
Certifications: FCC, Declaration of Conformity, UKCA, EMC, RoHS, CE, CCC
Customization: Lighting and circuitry design, DIALux evo / Litepro DLX / AGi32 layout, project installation
Color temperature: 3000K / 4000K / 6000K
Color rendering index (CRI): 92 Ra
Luminous efficacy: 100 lm/W
Rated life: 50000 h
Light source: LED (COB / SMD)
Dimmable: Yes

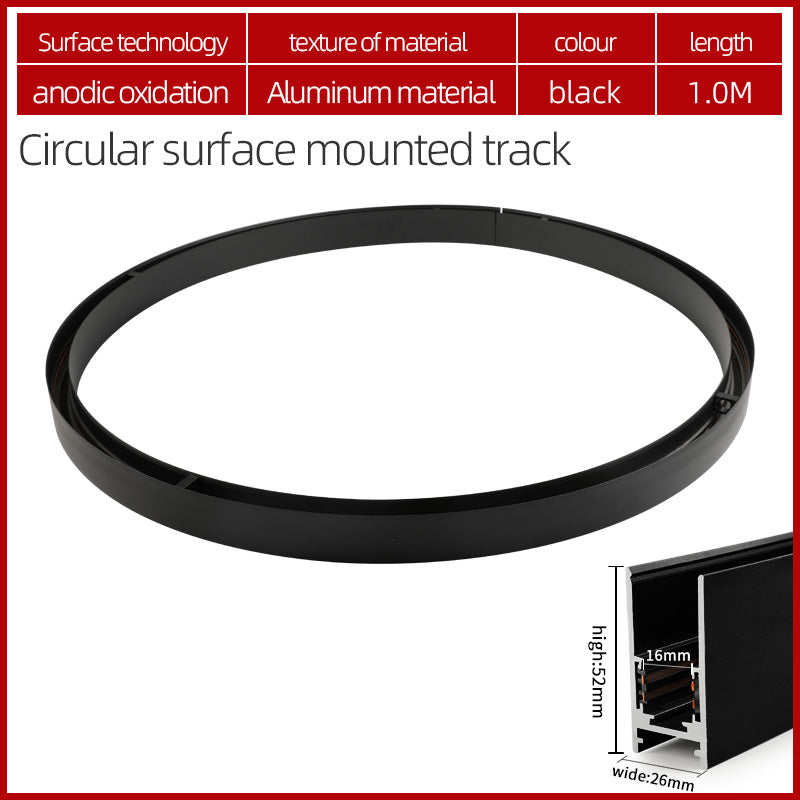

Track type: Circular magnetic track, 2-wire magnetic adaptor

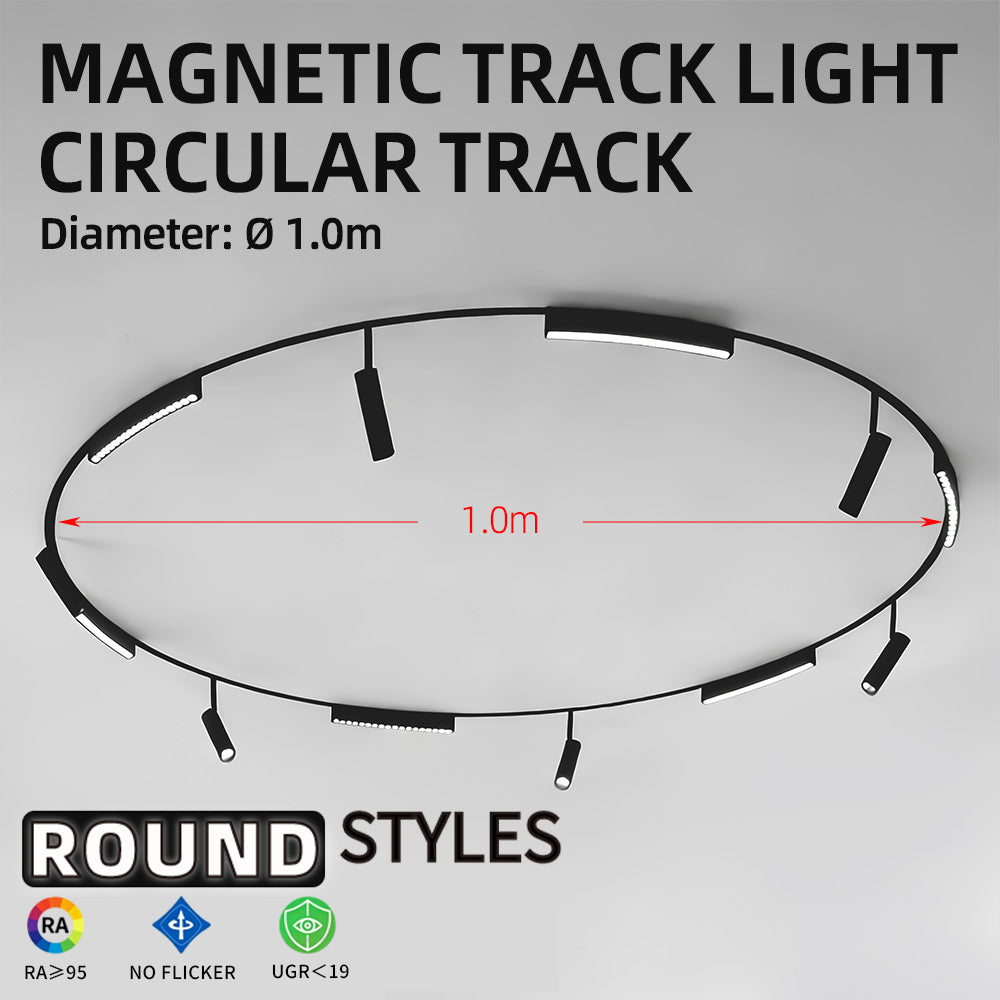

Track diameter: 1 m

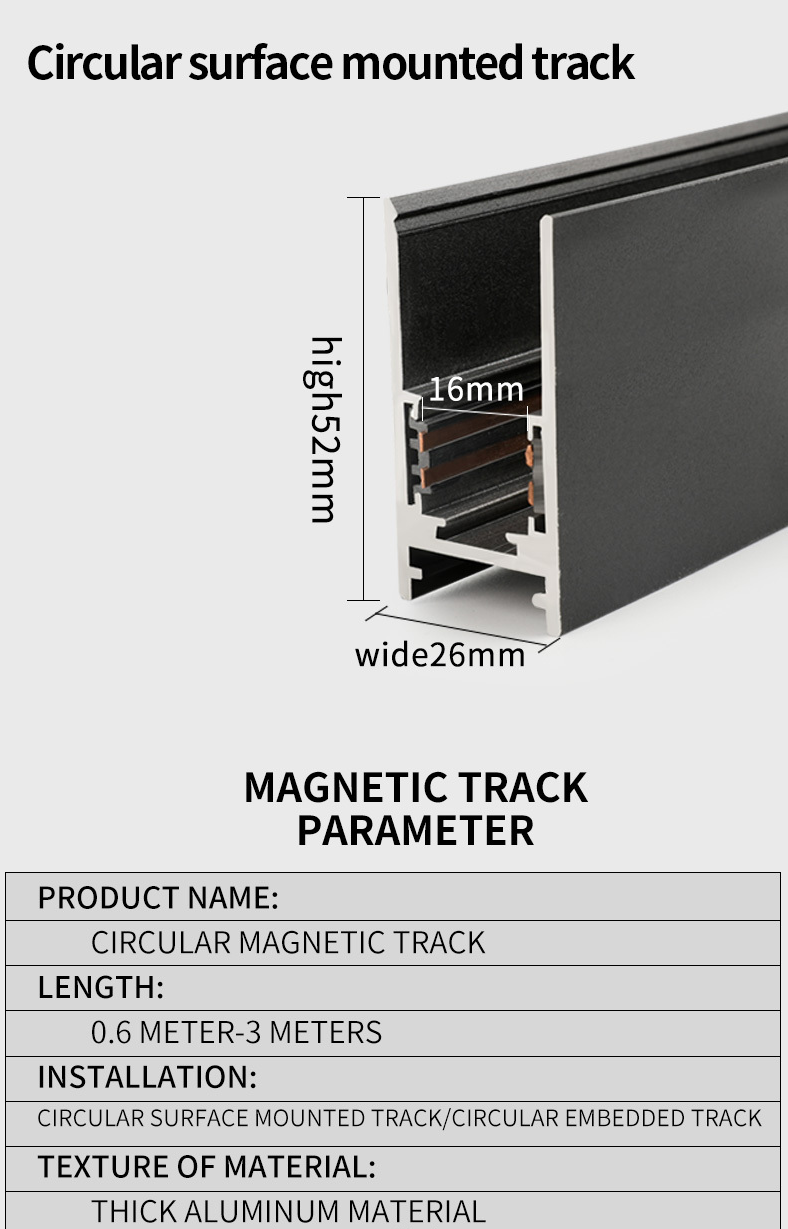

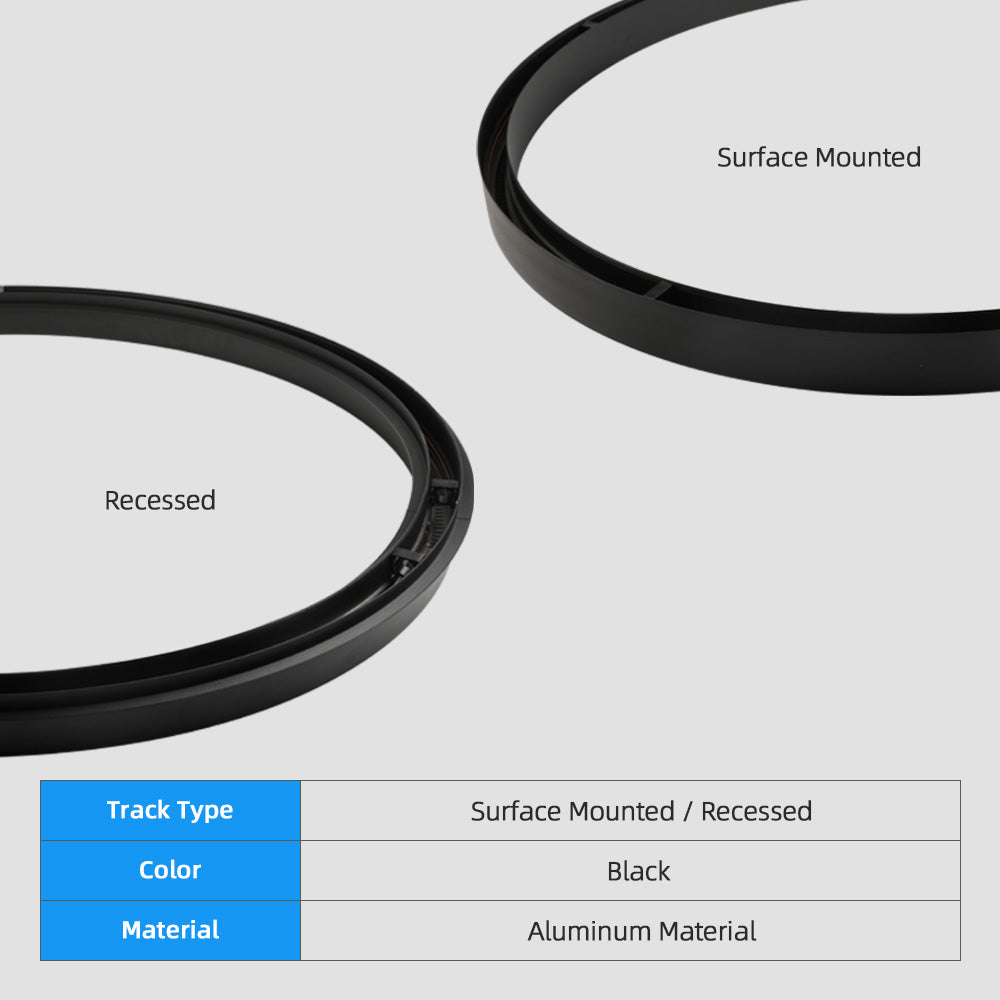

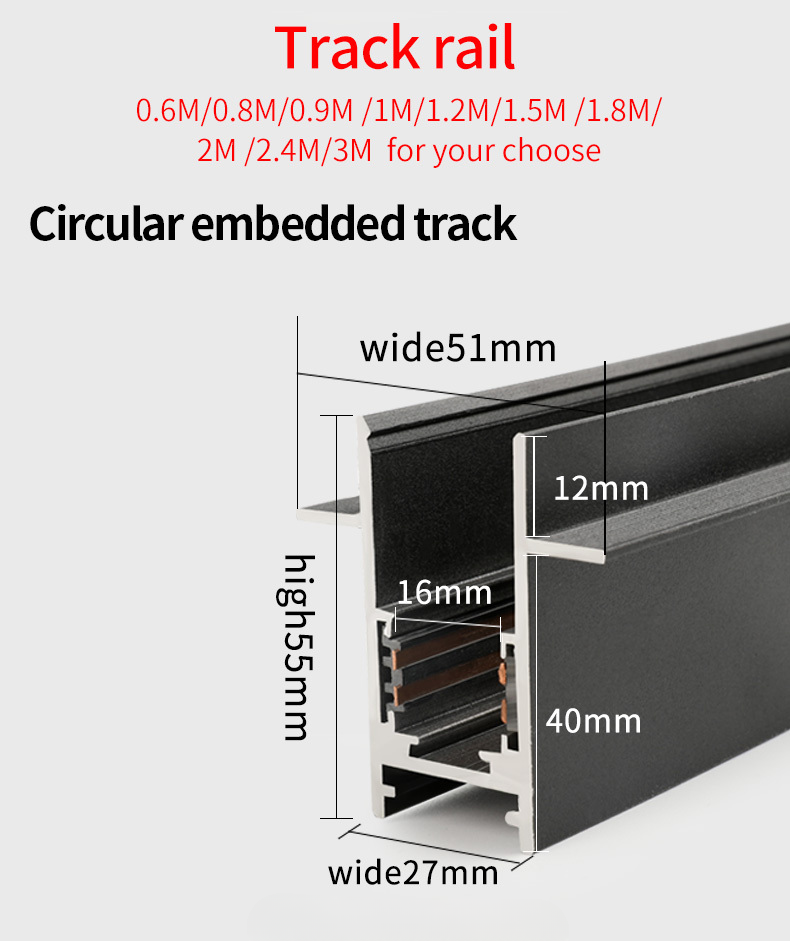

Installation: Recessed (embedded) or surface mounted
Power supply options: 100 W / 200 W built-in
Head power range: 3-25 W
Design style: Modern

Frequently asked questions

How do the lighting heads attach to the magnetic track?

Each head clips onto the 48V DC busbar magnetically, so you can add, remove or reposition fixtures by hand — no tools and no rewiring. This makes it easy to re-light a zone whenever your layout or displays change.

What color temperatures and dimming options are available?

Every head is offered in 3000K warm, 4000K neutral or 6000K cool white, and all heads are dimmable. With a CRI of 92 the light renders food, drinks and merchandise accurately.

Can the track be recessed into the ceiling or surface mounted?

Both. The aluminum circular track installs either recessed (embedded) or surface mounted, so it suits new fit-outs and retrofits alike. Confirm your ceiling type when ordering so we supply the matching track version.

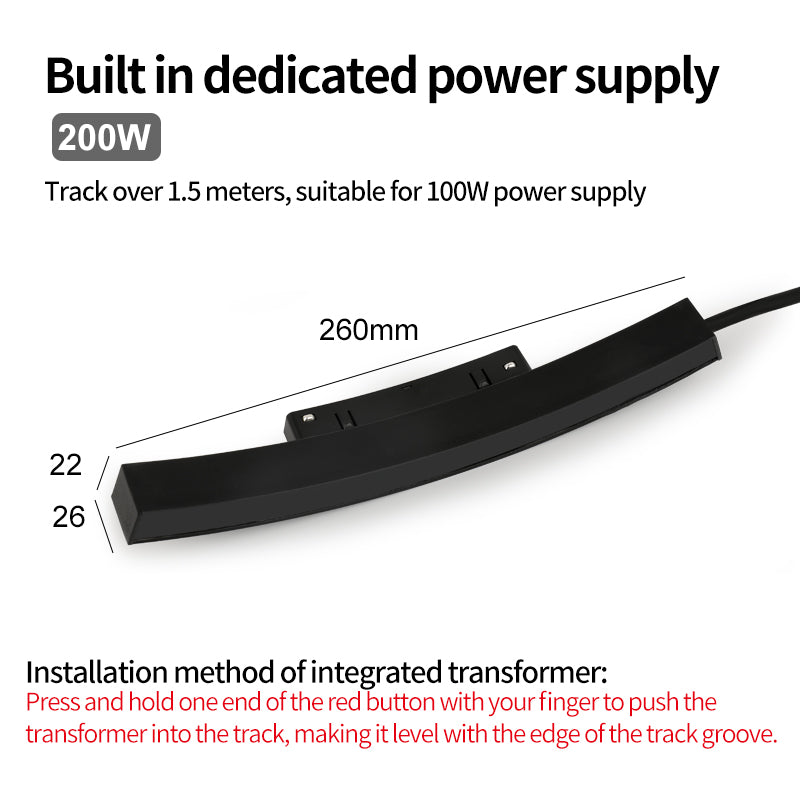

What power supply does the system need?

The track runs on 48V DC from a dedicated built-in power supply, available in 100 W and 200 W ratings. Choose the size based on the total wattage of the heads connected to the run — contact us to confirm the right capacity for your layout.

Which head types can I mix on one track?

You can combine single-head spots (3 W), grille and folding-grille heads (6-12 W), curved track lights (7-25 W) and arc floodlights (8-15 W) on the same ring, so one track handles accent, wall wash and general light together.

What warranty and certifications does it carry?

It is backed by a 3-year manufacturer warranty and certified to CE, RoHS, EMC, UKCA, FCC and CCC. Rated life is 50,000 hours.
