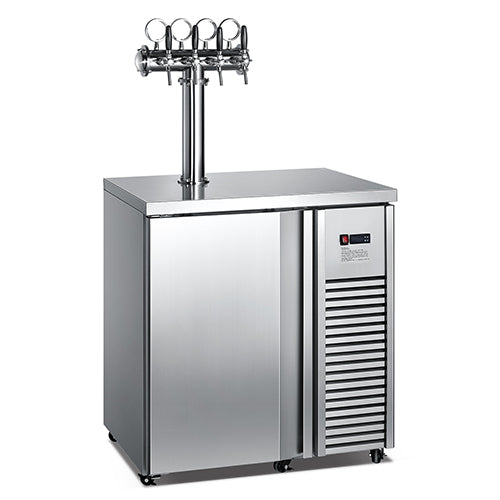

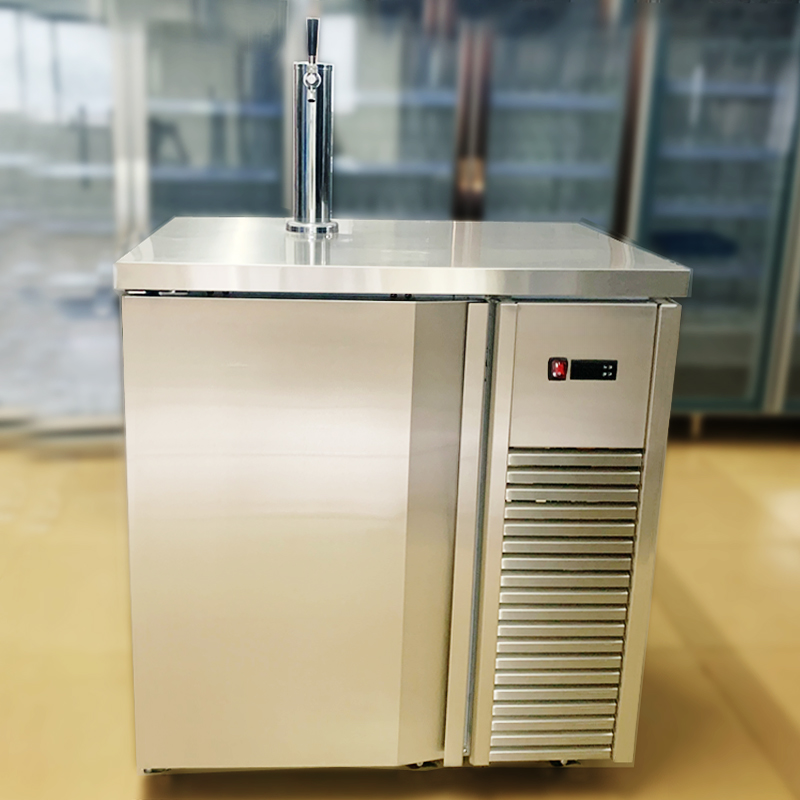

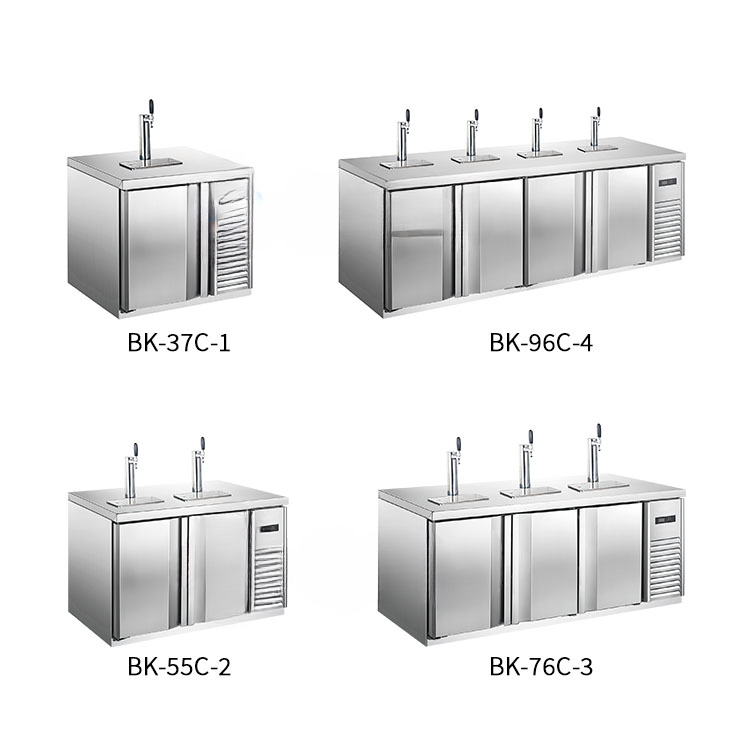

Commercial Draft Beer Kegerator — Undercounter Back Bar Cooler

A stainless steel undercounter kegerator that holds draft beer at a stable 2–8 °C with a customizable tower for 4–16 taps.

From57,246.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

This kegerator is a self-contained draft beer cooler built to sit under the bar and pour cold, consistent pints through service. It holds beer at a stable 2–8 °C using a fan-cooled, air-cooling system with a brand-name compressor, so kegs stay at pouring temperature even at a 32 °C ambient — the kind of load a busy venue puts on it. The digital controller shows and holds the setpoint across a 0–10 °C adjustable range, and automatic defrost and draining keep it running without manual intervention.

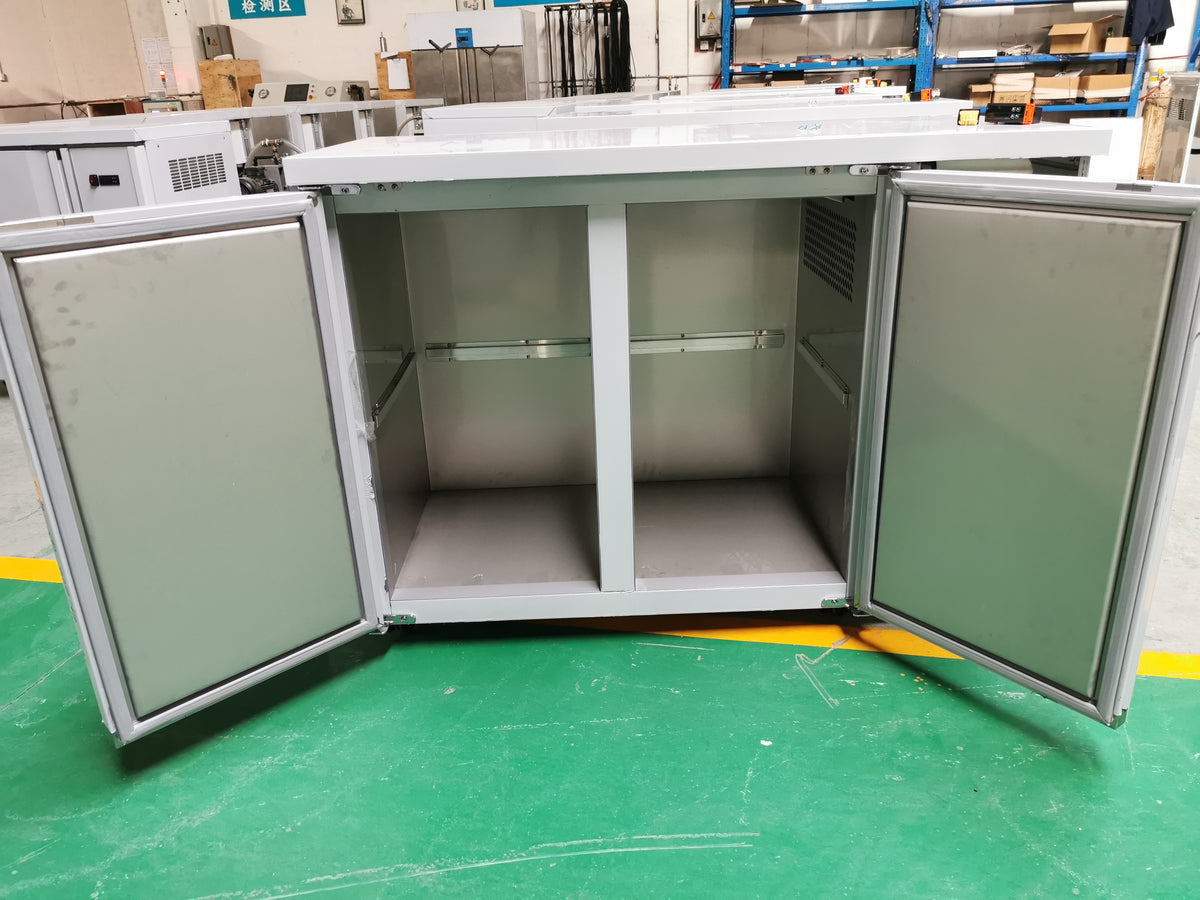

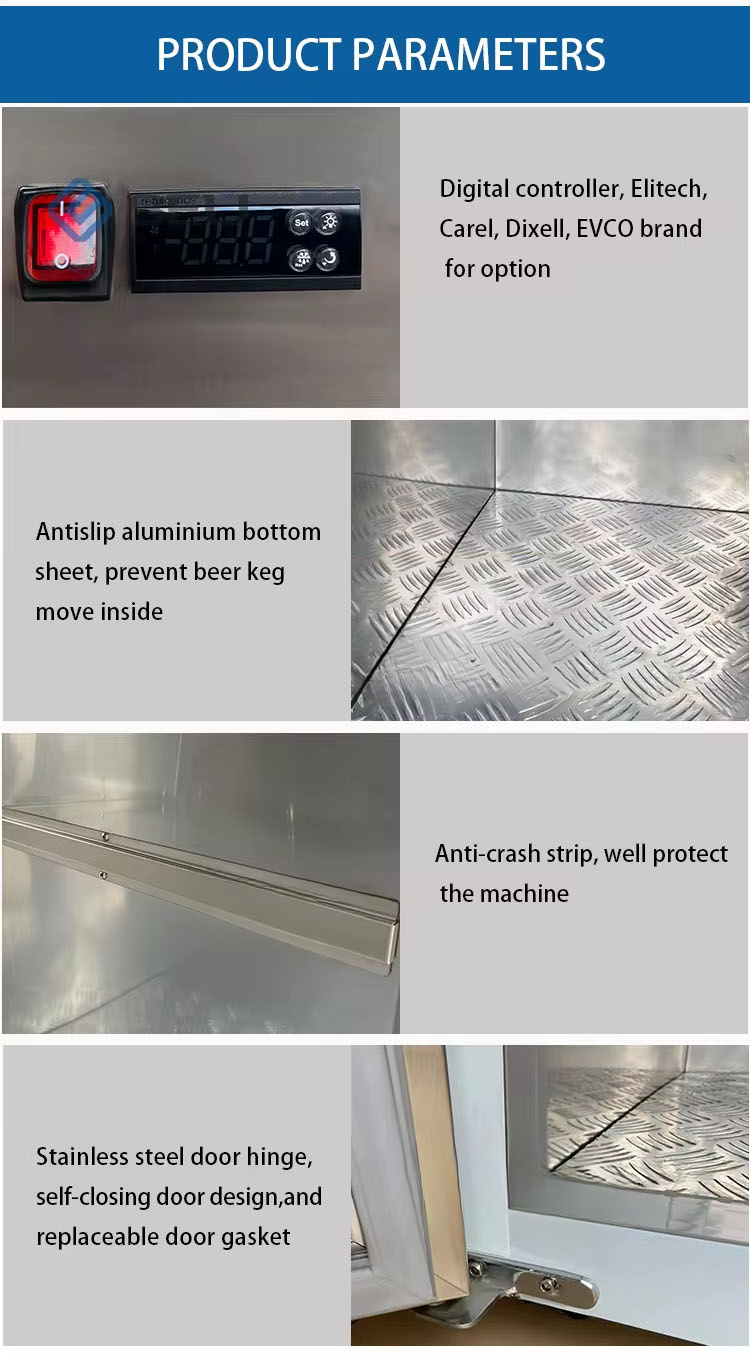

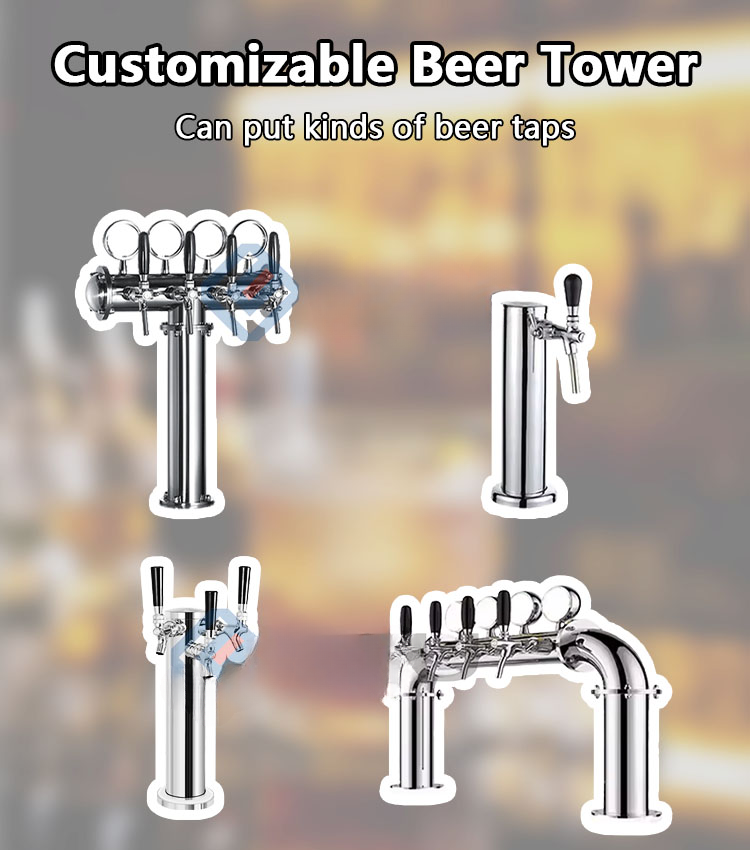

The cabinet is food-grade AISI 304/201 stainless steel with 50 mm high-density insulation, an anti-slip aluminum base and an anti-crash strip along the front. Doors are self-closing with replaceable gaskets, and the interior shelves adjust to fit your keg layout. The beer tower is the part you spec to the venue:

  • Choose a tower and tap count from 4 up to 16 keg outlets.

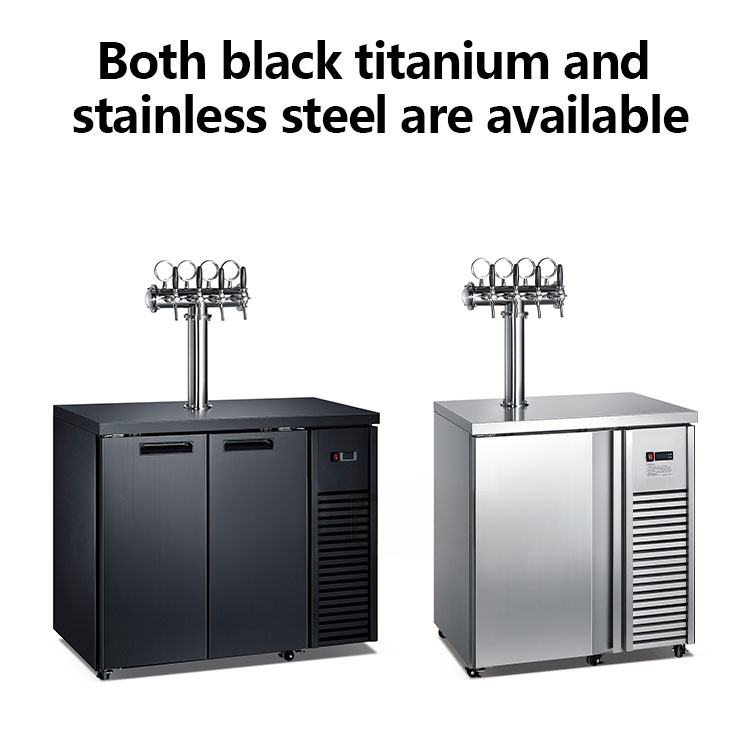

  • Black titanium or stainless steel finishes to match the back bar.
  • Door lock and precise digital temperature control as standard.

It fits venues that pour draft in volume — bars, hotels, restaurants, KTV rooms and outdoor catering — where the undercounter footprint keeps the tap line short and the beer cold from keg to glass.

Specifications

Material
AISI 304 stainless steel, AISI 201 stainless steel
Color
Black titanium or stainless steel
Dimensions (L × W × H)
700 × 940 × 965 mm
Voltage
220-240 V
Certifications
CE, LVD, CCC, ETL, RoHS, ErP
Customization
Beer tower and tap count configurable (4-16 keg outlets); black titanium or stainless steel finish; OEM/ODM available
Cooling system
Air cooling / fan cooling, compressor
Temperature range
0-10 °C
Stable cooling range
2-8 °C
Defrosting
Automatic defrost and draining
Refrigerant
R290 / R134a / R404A
Insulation thickness
50 mm
Control type
Digital electronic thermostat with display
Number of doors
1
Installation
Undercounter / freestanding / countertop
Special features
Adjustable shelves, self-closing doors, door lock, replaceable gaskets
Max ambient temperature
32 °C

Frequently asked questions

How many taps can the tower be built with, and what finishes are available?

Towers are built from 4 up to 16 keg outlets, in black titanium or stainless steel. Specify tap count and finish when ordering so the tower matches your keg layout and back bar trim.

Will it keep beer at pouring temperature in a hot bar?

It holds a stable 2-8 °C and stays rated up to 32 °C ambient, so a warm room behind the bar doesn't push it off setpoint. The digital thermostat is adjustable across 0-10 °C and shows the setpoint on the display.

How much undercounter space does this back bar cooler need?

Allow for 940 mm wide, 965 mm high and 700 mm deep. It is built as an undercounter back bar cooler but can also be run freestanding or on a countertop, and the anti-slip aluminium base keeps it planted on a wet floor.

What refrigerant and power supply should we specify?

Supply is 220-240 V, and the refrigerant is R290, R134a or R404A depending on configuration — name the one your site or import rules require when you order.

Which parts wear out and can be replaced in service?

Door gaskets are replaceable, and the hinges are stainless steel. Defrost and condensate draining run automatically, so nobody on shift has to empty a tray or thaw the cabinet by hand.

What certifications does this kegerator carry?

Certified to CE, LVD, CCC, ETL, RoHS and ErP. The cabinet is food-grade AISI 304/201 stainless steel with 50 mm high-density insulation, and OEM/ODM builds are available.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
