DMX512 Triple-Way Flame Machine — 200W Stage Fire Effect

A 200W DMX512 flame machine that fires three jets up to 3.5–4 m for stage, club and outdoor show effects.

11,418.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

A triple-way flame machine puts three controllable fire jets on your stage, driven by a 200W burner that pushes flames 3.5–4 m high. It runs on DMX512 over 5 channels, so a lighting operator cues the bursts straight from the console alongside the rest of the show — no separate operator improvising with a foot switch. For a club, concert stage or outdoor event, that means fire hits land on the beat and clear of the setlist.

  • 200W output for dense, high-visibility flames
  • Three independent jets for layered fire patterns
  • DMX512 control over 5 channels for cue-synced bursts
  • Iron housing sized 39 × 28 × 38 cm for tight rigging spots
  • Available in 110V and 220V builds for regional power

Rig it downstage, along a runway or across an outdoor set, and pair units for a wall of synchronized fire. Always operate flame effects with the venue's fire-safety clearances and an approved fuel; contact us to confirm the fuel and setup for your room.

Specifications

Material
Iron
Dimensions (L × W × H)
28 × 39 × 38 cm
Weight
7.08 kg
Power
200 W
Voltage
AC 110V / 220V, 50/60Hz
Warranty
1 year
Product type
Flame machine
Control mode
DMX512
DMX channels
5
Flame height
3.5-4 m
Jets
Triple-way
Application
Disco / Bar / Club / Stage

Frequently asked questions

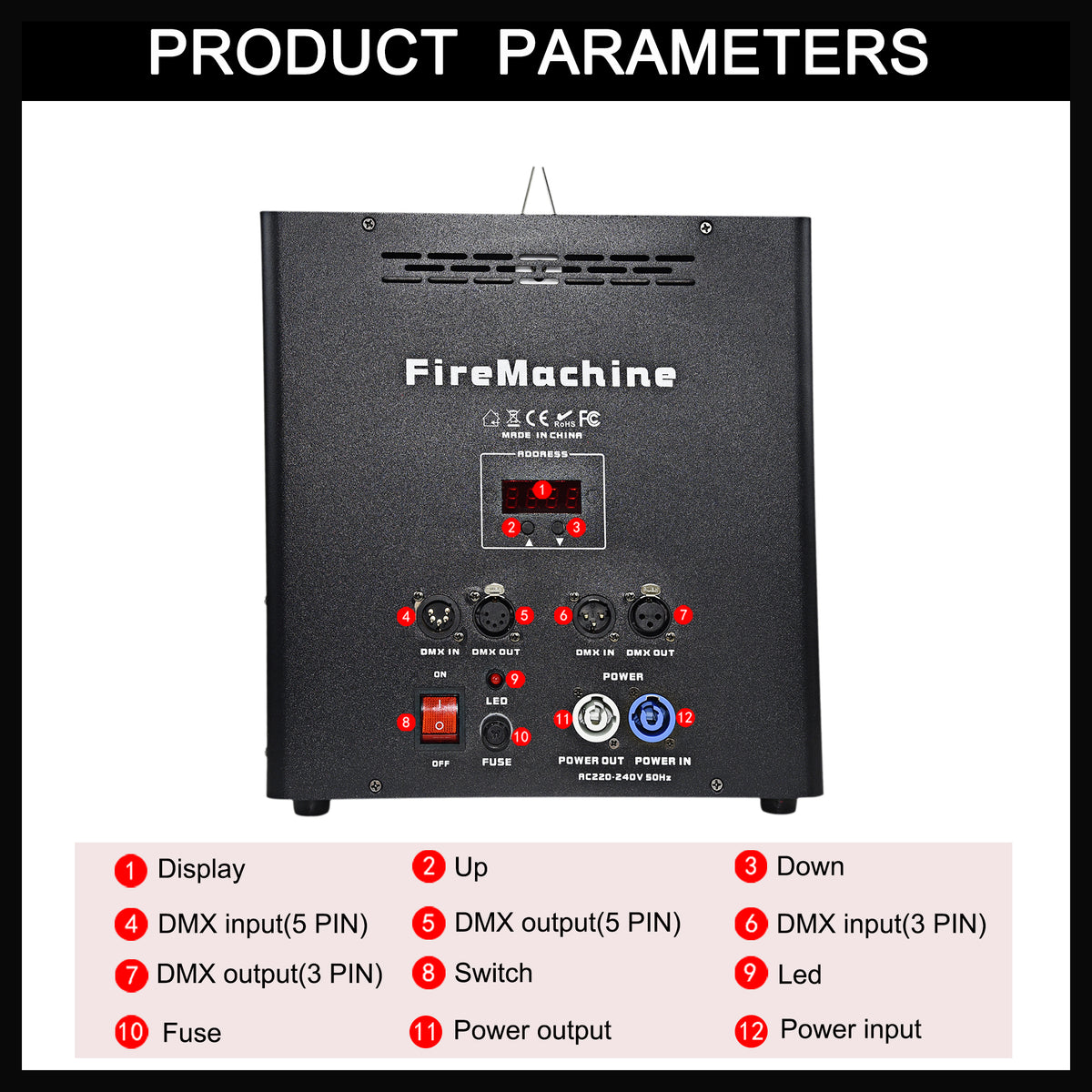

How many DMX channels does it take, and can the operator run it from the lighting desk?

Five DMX512 channels, patched straight into the lighting console, so flame cues sit in the same stack as the rest of the show rather than on a separate foot switch.

How much trim height do I need above the unit?

Flames reach 3.5-4 m from the 200W burner, so the effect needs clear air to that height plus whatever clearance your venue's fire-safety rules add on top.

Which voltage build should I order?

Specify 110V or 220V when you order - both builds are rated 50/60Hz, and the machine is supplied wired for one or the other, not switchable in the field.

Can I run several units together across a stage or runway?

Multiple units address individually over DMX512, so a row of them can be cued together for a synchronized wall of fire downstage, along a runway or across an outdoor set.

What does the three-jet layout give me over a single-jet machine?

Three independent jets fire separately, so you can stagger or chase them into layered patterns from one unit instead of getting one flat column per cue.

What is the footprint and warranty?

The iron housing measures 39 x 28 x 38 cm, small enough to tuck into tight rigging positions, and the machine carries a 1 year warranty.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

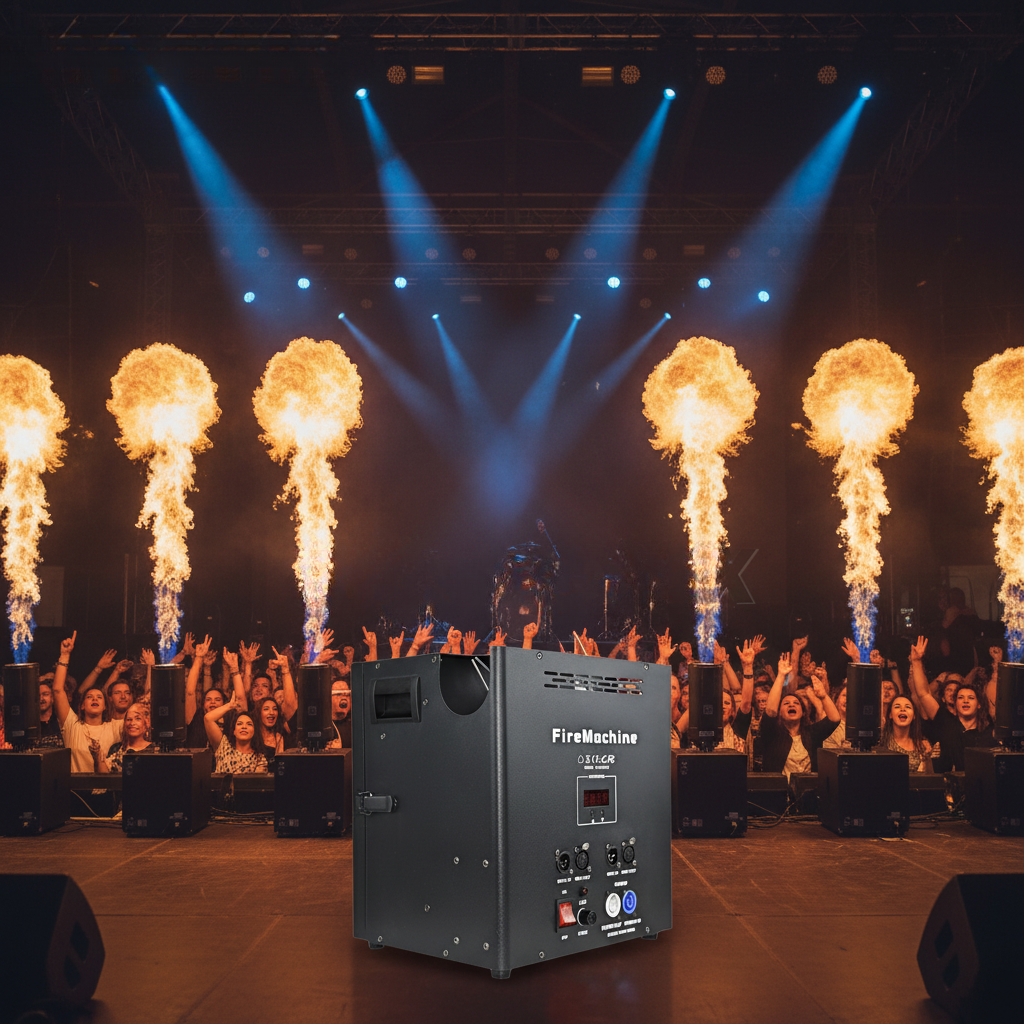

Black stage effects fire machine on stage floor with six tall flame bursts and blue lighting behind cheering crowd
