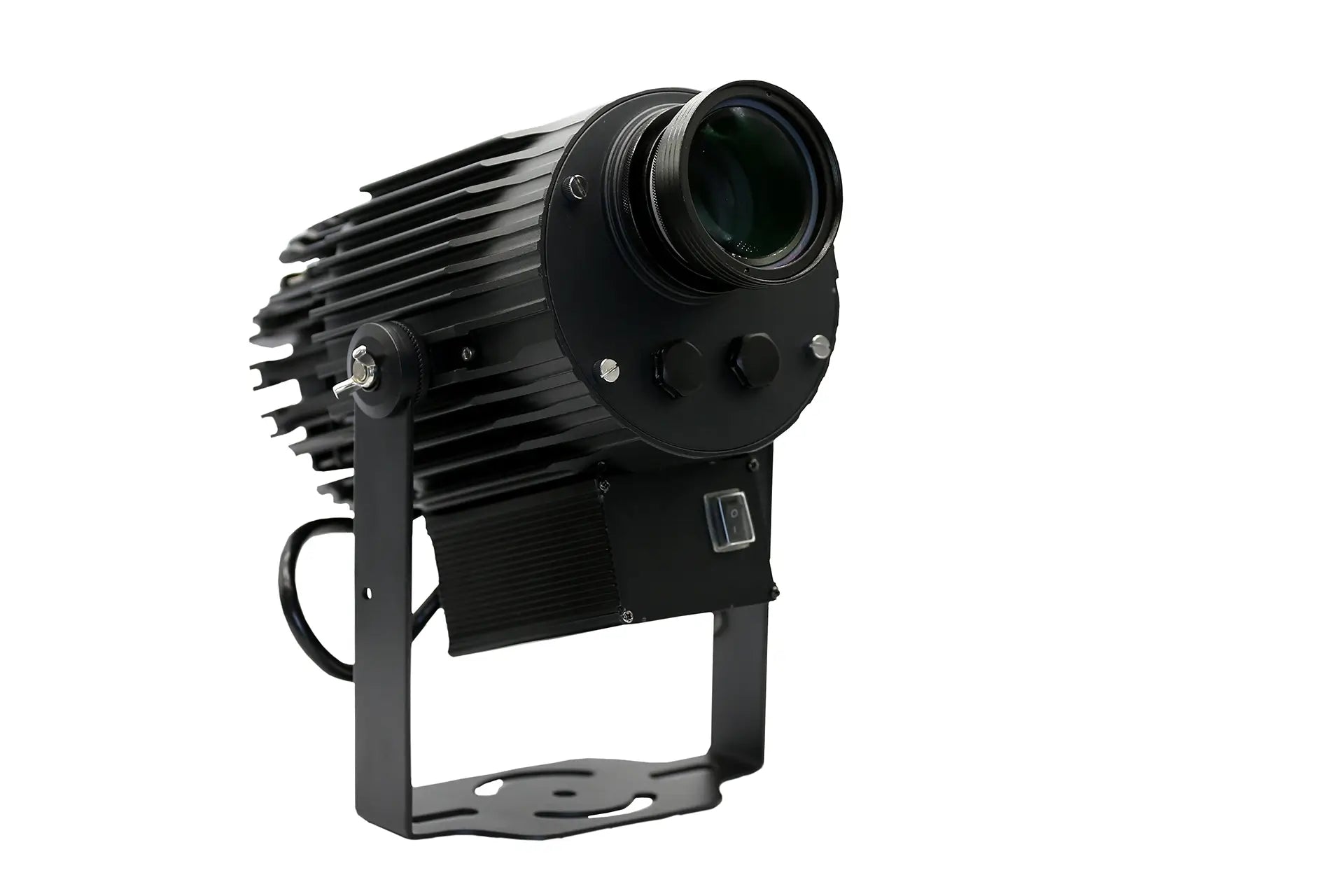

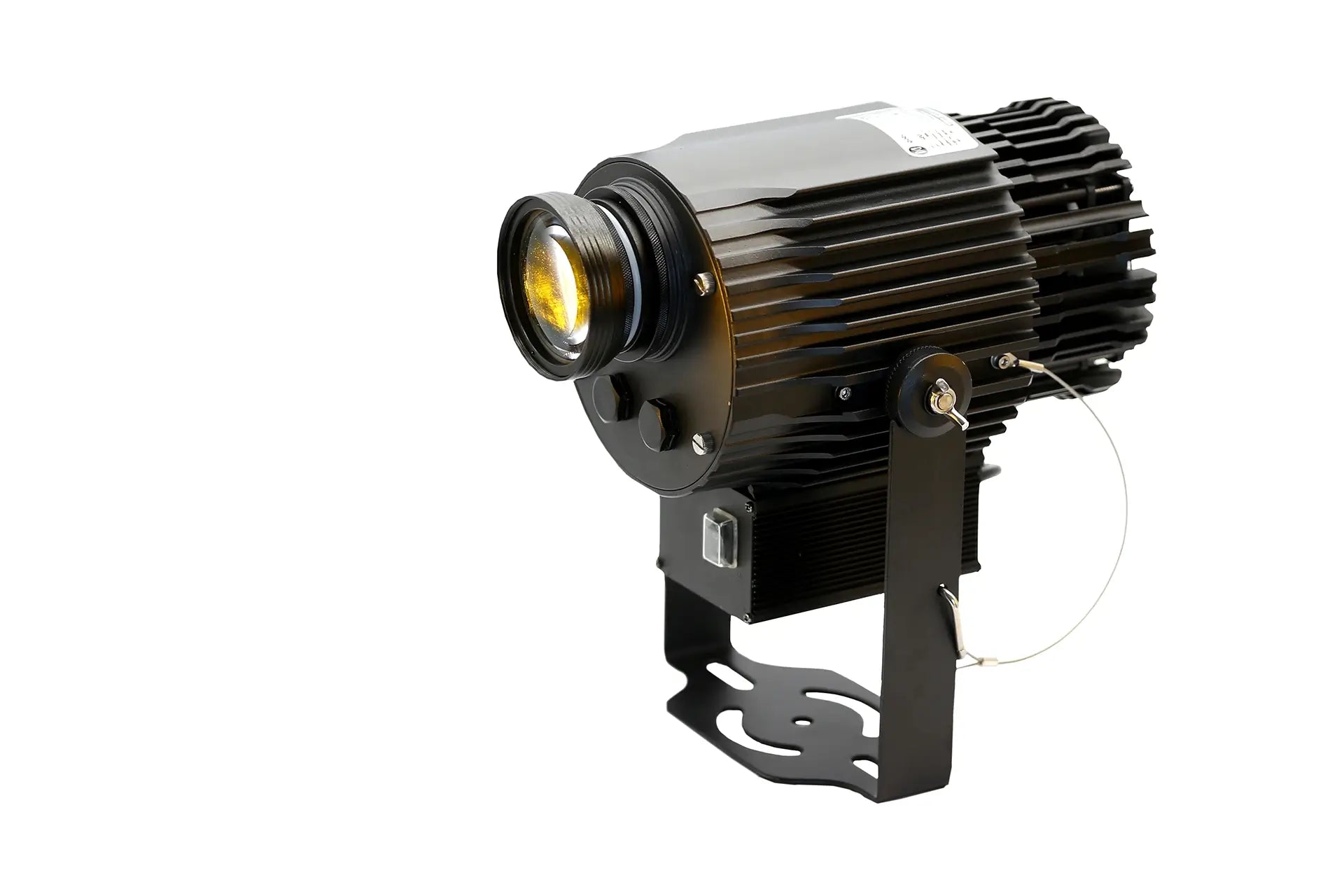

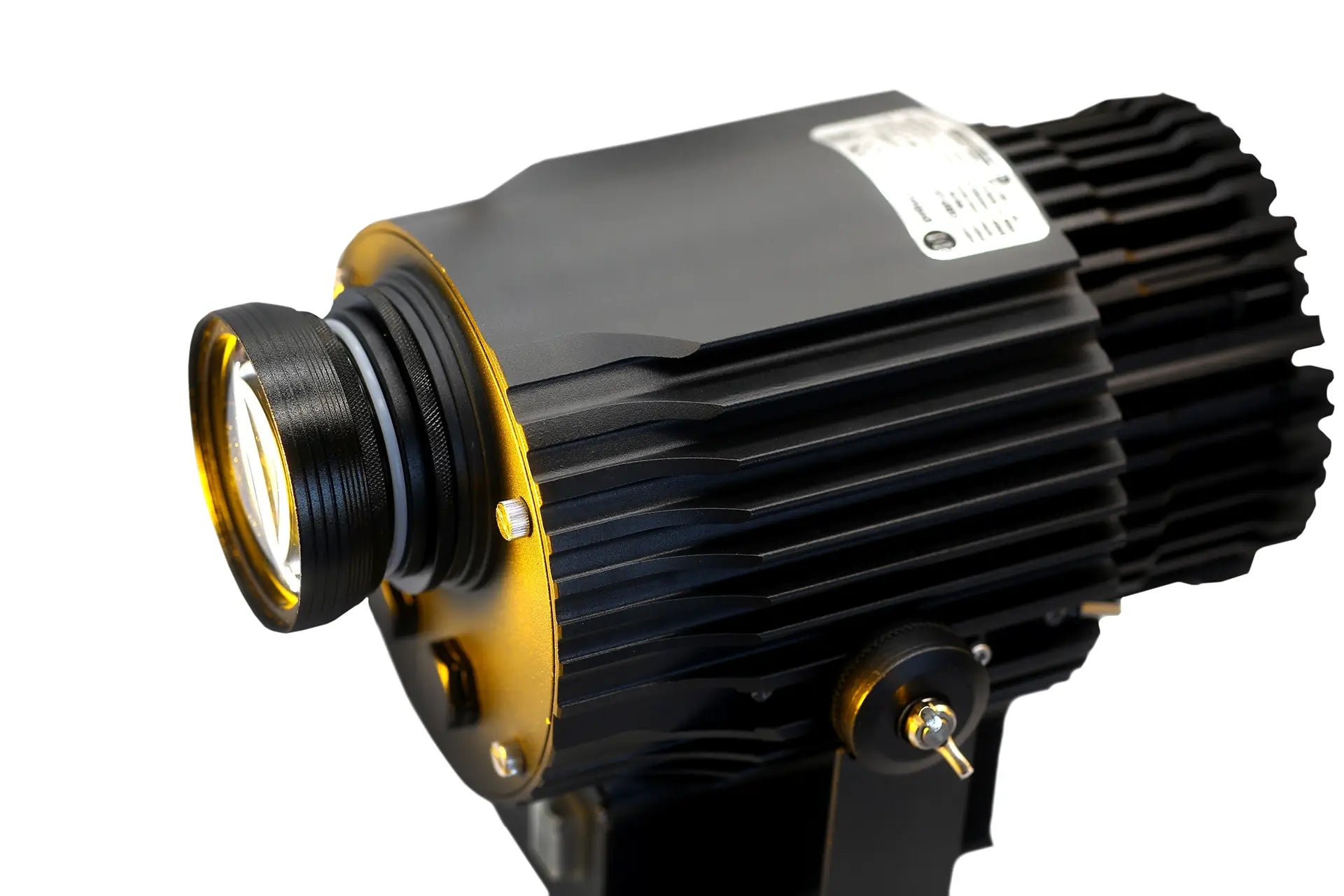

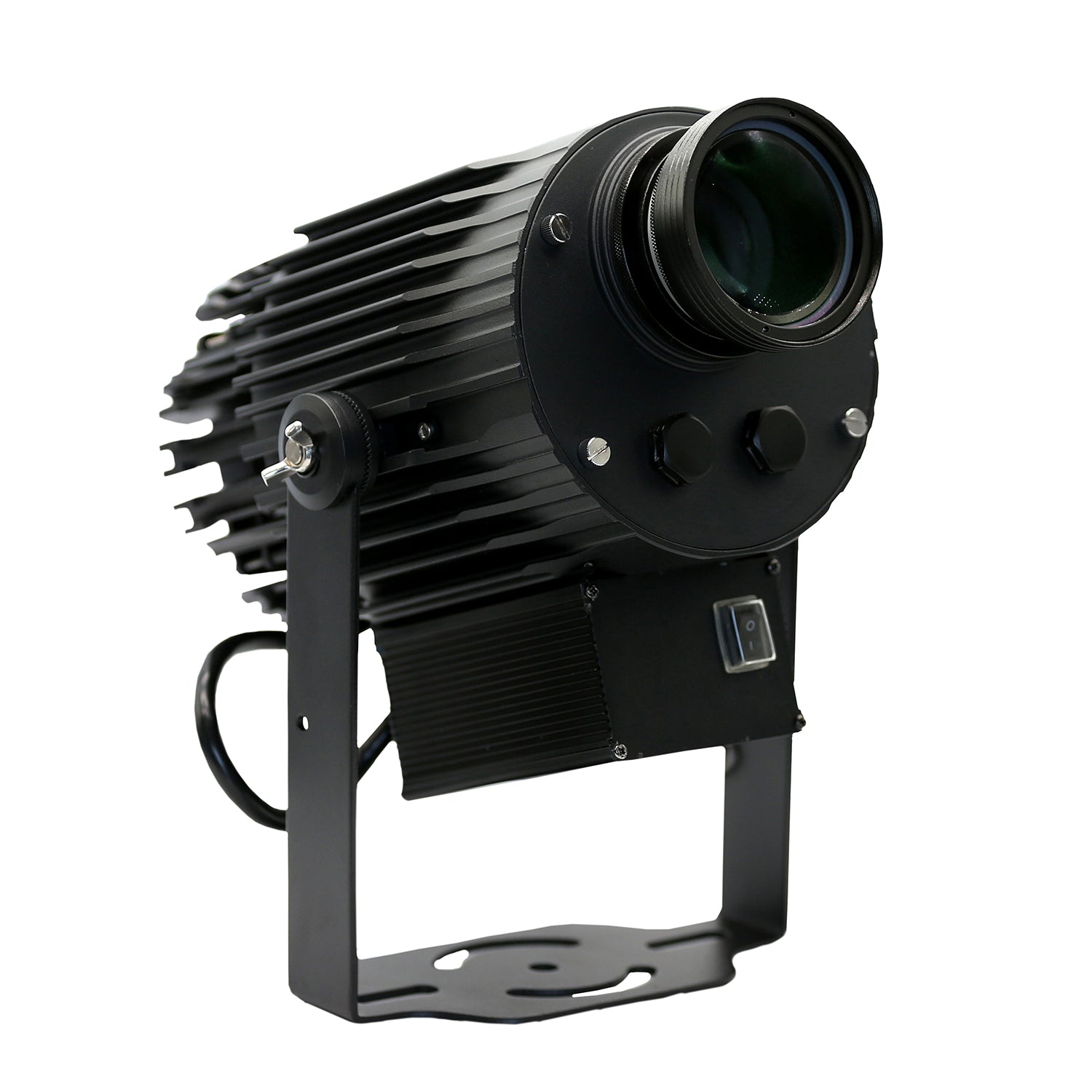

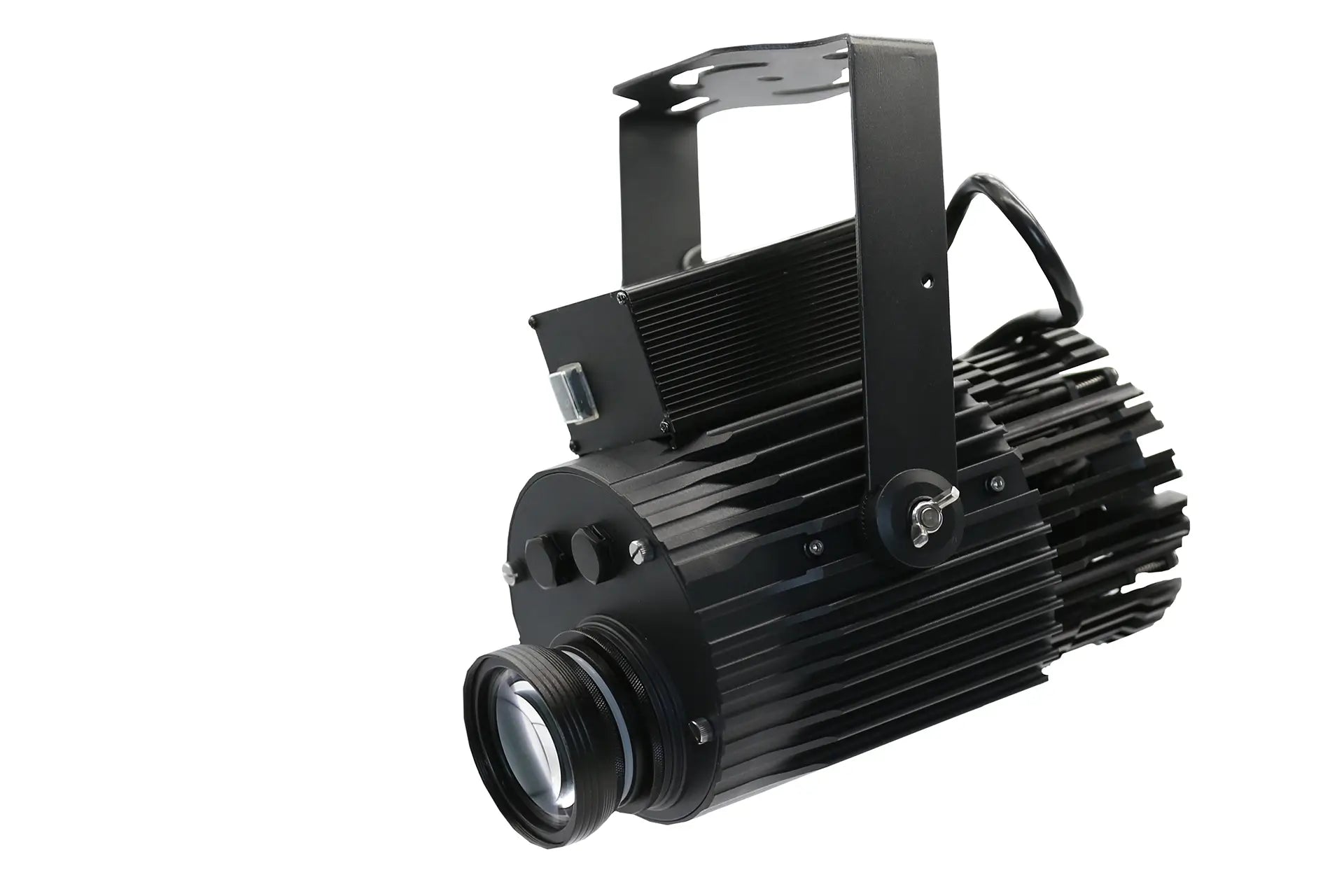

A gobo light projector — also called a gobo or logo projector — turns your logo or artwork into a sharp, oversized image on a wall, floor, or building facade. At 240W with an OSRAM LED, the GBP-20004 is a long-throw model that holds a clear image from 5 meters out to 200 meters, so one unit can cover a facade-scale projection, a building entrance, or large-area outdoor advertising. Its aluminum-alloy body is rated IP65 against dust and water for permanent outdoor installs.
240W OSRAM LED for bright, long-range projection up to 200 m
IP65 aluminum-alloy housing for outdoor walls, courtyards, and facades
Image rotation, dimming, and strobe by remote control for live and club use

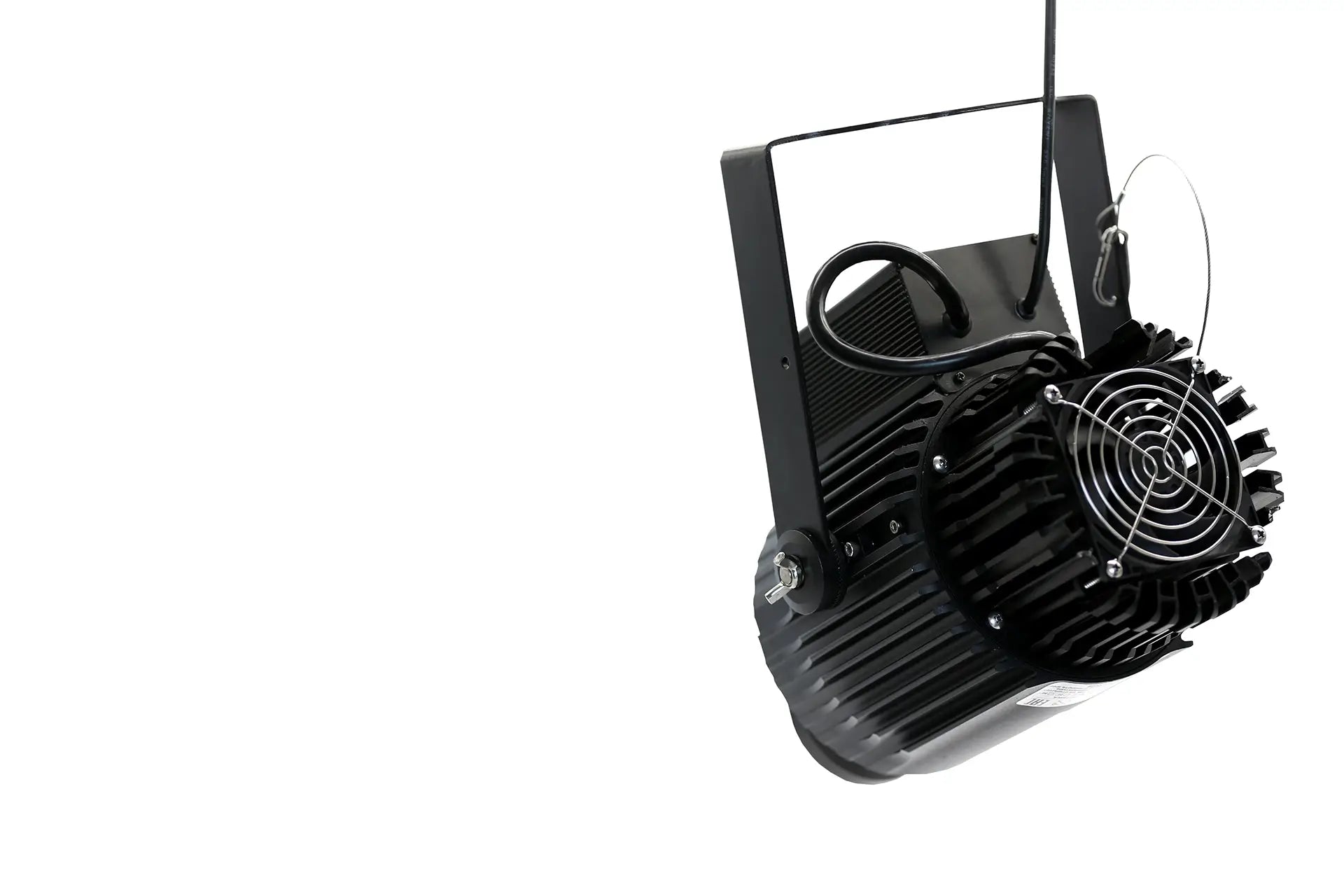

Active cooling for continuous, long-term operation
Standard (15°), wide (30°), and ultra-wide (50°) optics to match throw distance and image size
This projector needs a gobo slide to operate, and custom logo design is included in the slide price. Send us your logo and the mounting distance, and we'll match the right slide and optics so the projection lands sharp at your venue.
Specifications
Material
Aluminum
Dimensions (L × W × H)
280 × 210 × 290 mm
Weight
6.4 kg
Power
240 W
Voltage
85-265V
Warranty
2 Years
Slide capacity
1 slide
Gobo slide diameter
48 mm
Projection distance
5-200 m
Light source
OSRAM LED
Protection rating
IP65
Cooling
Active
Remote control
Yes
Rotation
Yes
Dimming
Yes
Strobe
Yes
Frequently asked questions
Which optics should I order for my throw distance?
Match the lens to the gap between projector and surface: standard 15° for long throws toward the 200 m end, wide 30° for mid-range walls and courtyards, ultra-wide 50° for close mounting from around 5 m. Give us the mounting distance and we'll set the slide to suit.
What does it need to run, and what does the remote control?
Wire it to 85-265V — the unit draws 240W and runs active cooling for continuous operation. The remote handles image rotation, dimming and strobe, which is what makes it usable for club and live work as well as static branding.
Is a gobo slide included, and how many can it hold?
The slide is bought separately and the projector won't produce an image without one. It takes a single 48 mm slide at a time, and custom logo design is included in the slide price — send your artwork with the order.
