A gobo light projector — also called a gobo or logo projector — turns your logo or artwork into a sharp, oversized image on a wall, floor, or building facade. The GBP-24004 pairs a 240W OSRAM LED with a vibration-resistant aluminum-alloy body, built for permanent outdoor installs and demanding sites. It holds a clear image from 5 to 200 meters, so one unit covers facade-scale projection, architectural lighting, or industrial-area signage.
240W OSRAM LED for bright, long-range projection up to 200 m
IP65 aluminum-alloy body with vibration-resistant components for harsh outdoor sites

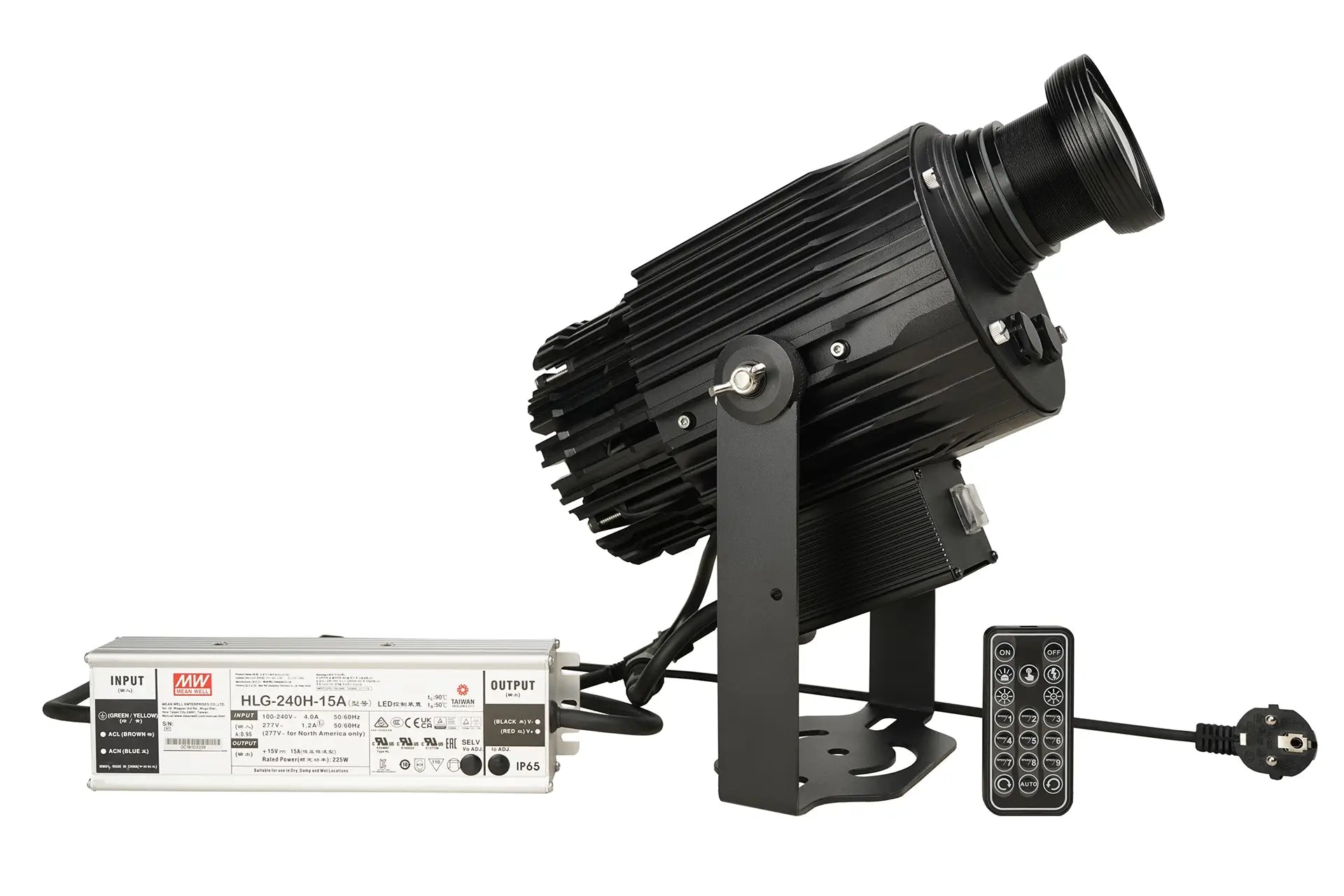

Image rotation, dimming, and strobe by remote control
Adjustable brightness and power draw to suit limited or battery power sources
Standard (15°), wide (30°), and ultra-wide (50°) optics, with tempered-glass gobo slides
This projector needs a gobo slide to operate, and custom logo design is included in the slide price. Send us your logo and the mounting distance, and we'll match the right slide and optics so the projection lands sharp at your venue.
Specifications
Material
Aluminum
Dimensions (L × W × H)
280 × 210 × 290 mm
Weight
6.4 kg
Power
240 W
Voltage
85-265V
Warranty
2 Years
Slide capacity
1 slide
Gobo slide diameter
48 mm
Projection distance
5-200 m
Light source
OSRAM LED
Protection rating
IP65
Cooling
Active
Slide material
Tempered glass
Remote control
Yes
Rotation
Yes
Dimming
Yes
Strobe
Yes
Frequently asked questions
What do I need to specify to get the right unit and a sharp image?
Send your logo and the mounting distance. That sets the optics — 15° standard, 30° wide or 50° ultra-wide — and the slide, which comes in 1, 2, 3, 4-colour or full-colour; custom logo design is included in the slide price.
Does the projector come with a gobo slide?
No — the slide is a separate purchase and the unit will not project without one. It holds a single 48 mm tempered-glass slide at a time, so a second design means a second slide.
What power supply and mounting space should I plan for?
Wide-range 85–265 V input at 240 W, with brightness and power draw adjustable for limited or battery supplies. Allow for a 210 × 290 × 280 mm actively cooled aluminium body plus rigging; warranty is 2 Years.
Is shipping included in the price?
For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.
How long does delivery take?
In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.
Are import duties and taxes included?
In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.
Do your products come with a warranty?
Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
