Industrial Dual-Shaft Food Waste Shredder — 3–7.5 kW

A heavy-duty dual-shaft shredder that tears through food and organic waste for volume reduction and fertilizer pre-treatment.

77,514.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

This industrial food waste shredder is a dual-shaft cutting system built to break down food residues, fruit and vegetable leftovers, market garbage and other organic waste into a uniform, low-volume output. For a processing plant, waste-transfer station or large kitchen operation, it turns bulky wet waste into material ready for organic-fertilizer fermentation or sanitation transport, cutting the cost and handling of moving raw waste.

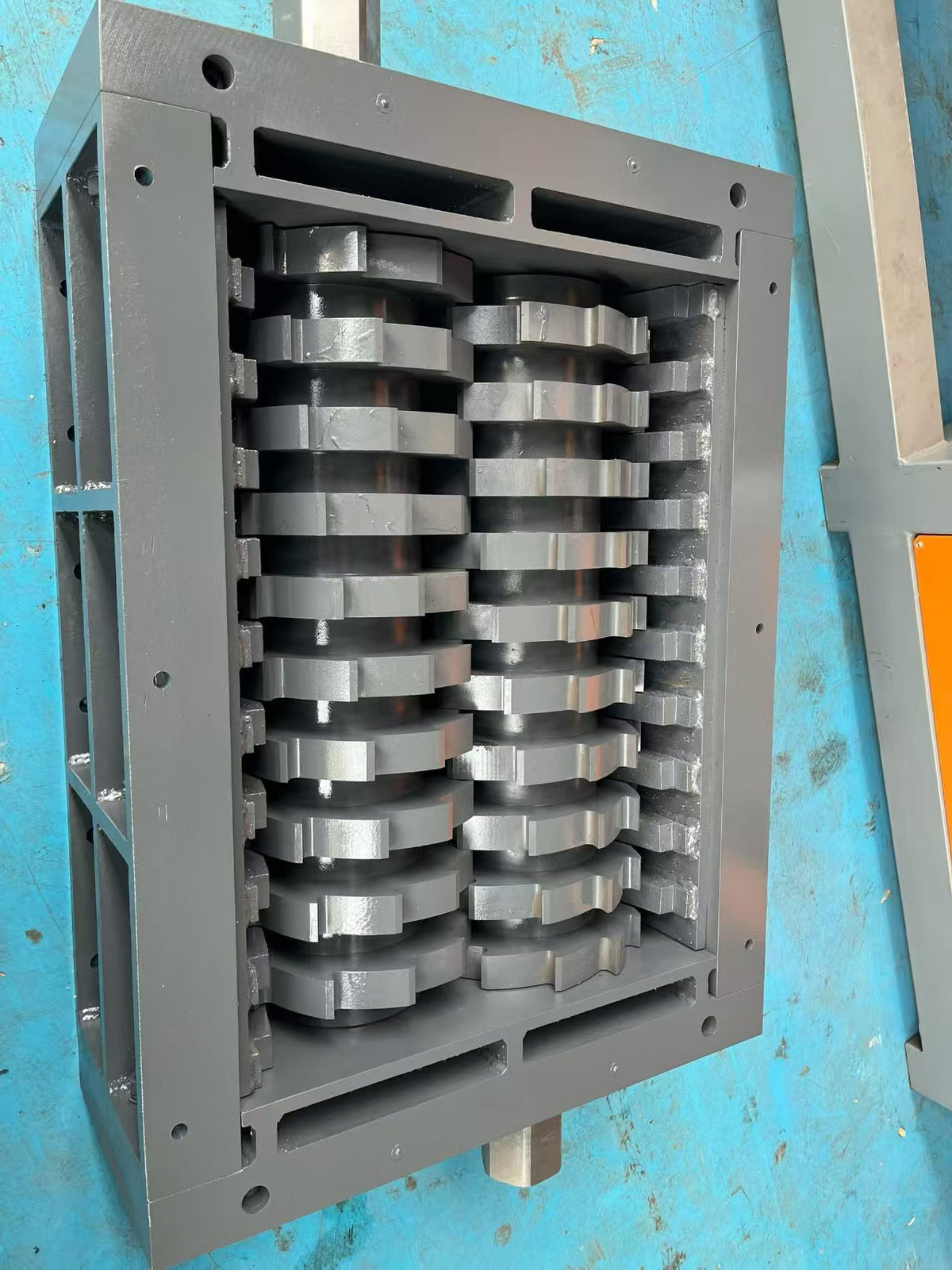

The cutting chamber runs two counter-rotating 90 mm 42CrMo quenched-and-tempered shafts carrying 30 blades (180 mm diameter, 10 mm thick), turning at a slow, high-torque 10–12 r/min through a K77 gearbox. Low speed with high torque is what lets it grip and tear tough, mixed loads without jamming, and the 300 × 380 mm feed opening handles a steady infeed rather than one piece at a time. Blade material can be specified from NM-500, H13, alloy tool steel or imported Hardox 550 depending on how abrasive the waste stream is.

  • Motor options of 3 kW, 5.5 kW or 7.5 kW
  • Throughput rated at 200 kg per hour
  • Forged, quenched and CNC-ground blades for wear resistance and reduced replacement frequency
  • PLC control with motor, bearing and gearbox as core components

The same dual-shaft platform is offered in larger model sizes for solid, bulky and industrial waste, and the manufacturer supports build-to-drawing customization. Backed by a 1-year manufacturer warranty and CE conformity to 2006/42/EC.

Specifications

Material
42CrMo (quenched and tempered) shafts, Alloy tool steel / NM-500 / H13 / Hardox 550 blades
Dimensions (L × W × H)
600 × 1500 × 1400 mm
Weight
650.0 kg
Power
3000 W
Warranty
1 Year
Certifications
2006/42/EC
Customization
Available in various sizes and specifications; build-to-drawing / OEM/ODM customization supported.
Type
Dual-shaft food waste shredder
Model number
GLDS-30-10
Motor power options
3 / 5.5 / 7.5 kW
Production capacity
200 kg/hr
Blade diameter
180 mm
Blade thickness
10 mm
Blade quantity
30 pcs
Shaft diameter
90 mm
Reducer model
K77
Rotational speed
10–12 r/min
Effective tear opening size
300 x 380 mm
Core components
Motor, Bearing, PLC, Gearbox, Reducer, Blade

Frequently asked questions

What waste streams is this configuration built for?

Food and organic waste — kitchen residues, fruit and vegetable trimmings, market garbage — reduced to a uniform output suitable for fertilizer fermentation or lower-volume transport. Larger dual-shaft sizes cover solid, bulky and industrial waste.

How is 200 kg/hr achieved at only 10-12 r/min?

Torque does the work, not speed. The K77 gearbox turns the two 90 mm 42CrMo shafts slowly enough to grip wet, mixed loads and tear them instead of skating over them, and the 300 x 380 mm opening takes a steady infeed rather than piece-by-piece feeding.

Which motor should I specify?

Choose 3 kW, 5.5 kW or 7.5 kW at order. The 3 kW is the base build; step up to 5.5 or 7.5 kW where the feed is denser or more abrasive and the machine will be running loaded for long spells.

What are the blades made of and can that be changed?

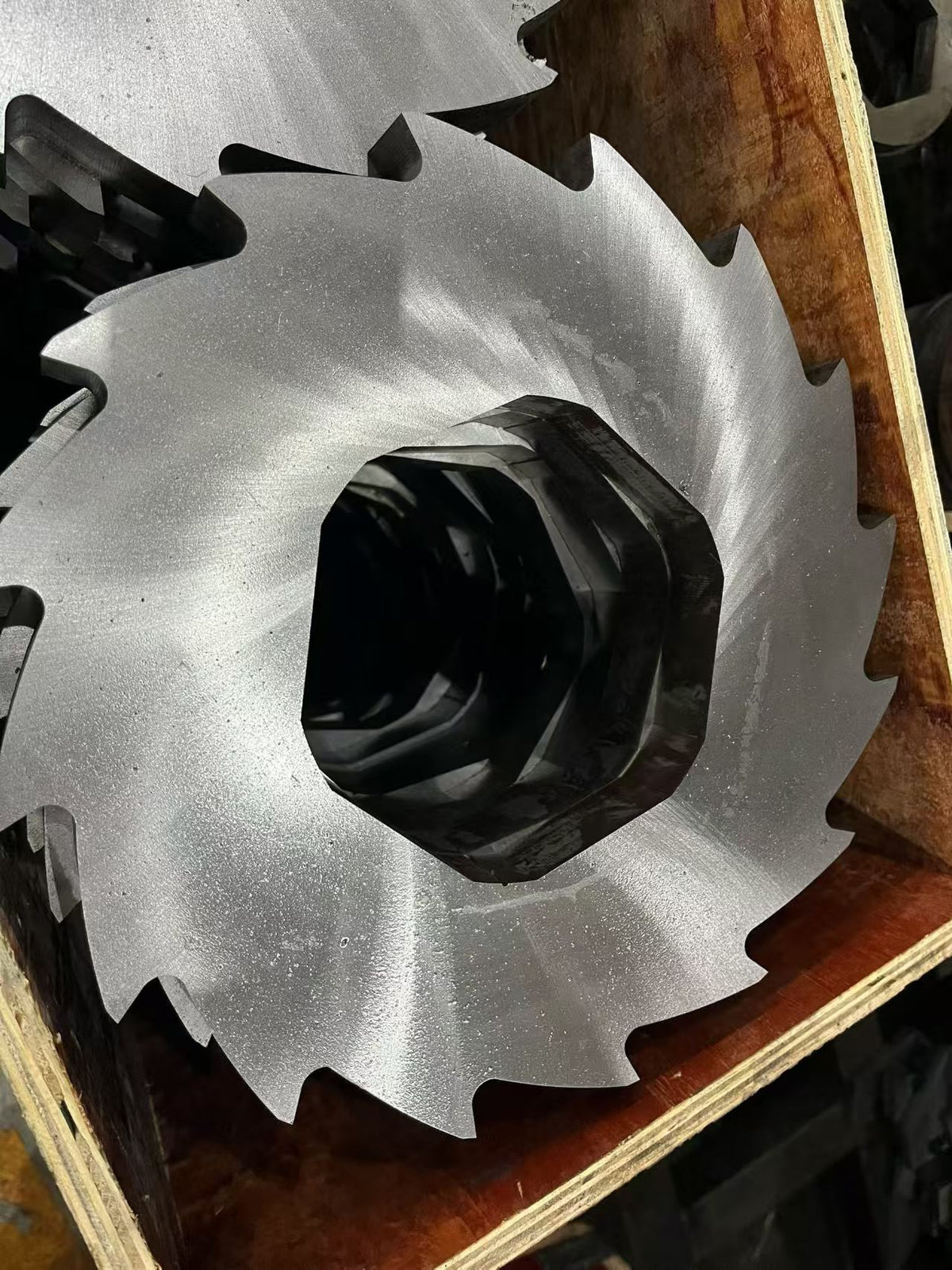

Thirty 180 mm x 10 mm blades, forged, quenched and CNC-ground for hardness. Blade steel is specified at order from alloy tool steel, NM-500, H13 or imported Hardox 550 — pick the harder grades for abrasive streams.

How much floor space does it need, and how is it controlled?

Footprint is 1500 x 600 mm with an overall height of 1400 mm. Operation runs through PLC control, with motor, bearing, gearbox, reducer and blades as the core components.

Can it be built to our own drawing, and what backs it?

Build-to-drawing and OEM/ODM customization are supported, with the dual-shaft platform available in other sizes and specifications. The machine conforms to CE Directive 2006/42/EC and carries a 1 Year manufacturer warranty with online video guidance.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

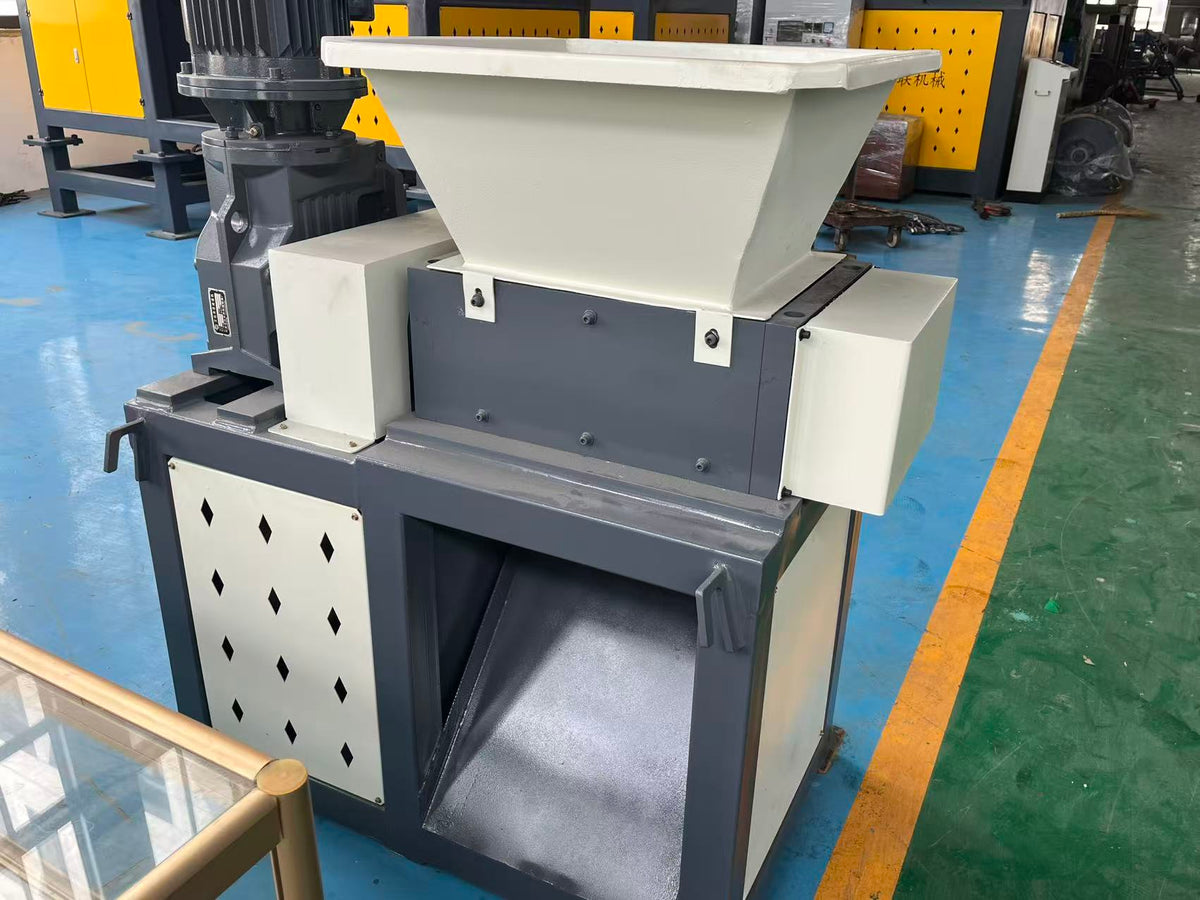

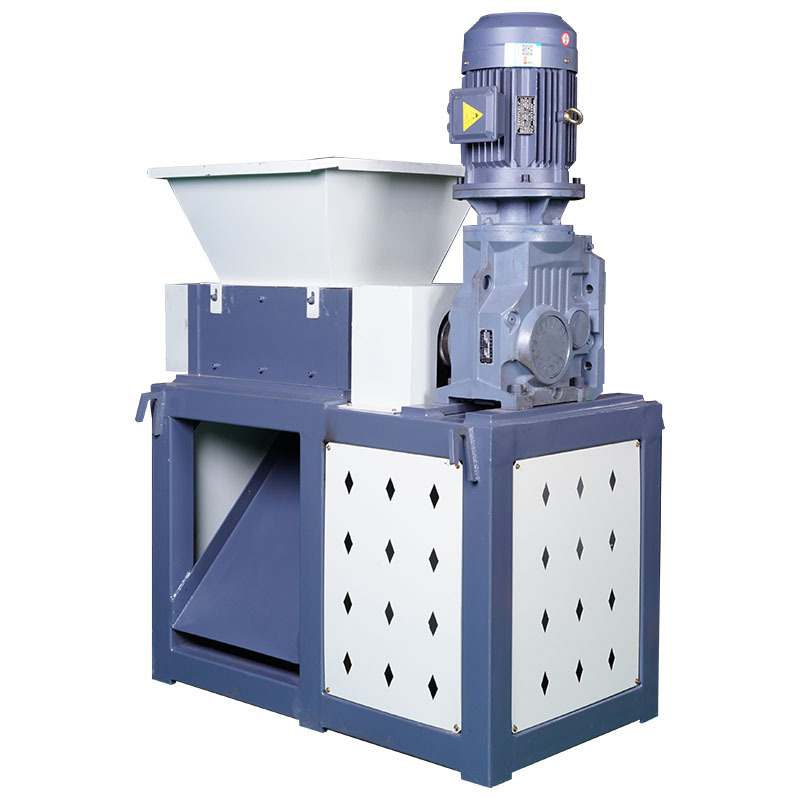

Industrial dual-shaft food waste disposer with white hopper, gearmotor drive, and diamond-panel base
