Outdoor Waterproof LED Display Screen — IP65 Fixed Digital Signage

Outdoor digital signage built for 24/7 fixed installs: an IP65-rated LED display with a die-cast aluminum cabinet and 6,000-nit brightness that stays readable in direct sun.

From20,450.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

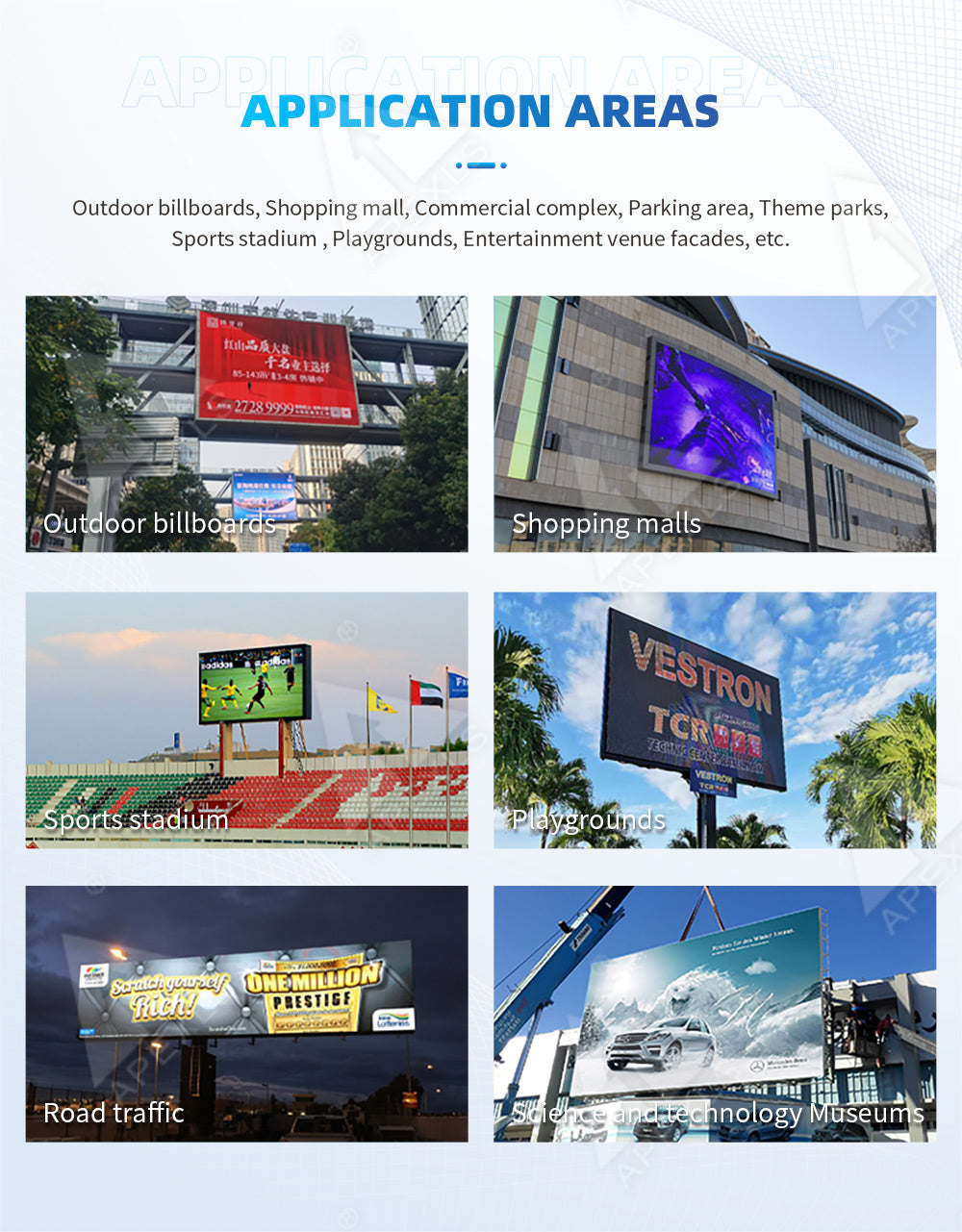

This outdoor LED display screen is a permanently installed, full-color signage panel for venues that need to run advertising and messaging outdoors around the clock. The die-cast aluminum cabinet is rated IP65 against rain and washdown, so it holds up in exposed spots — poolside, on a building facade, in a parking area, or across a stadium or theme-park entrance. Brightness reaches 5,500–6,000 cd/m² (6,000+ nits), enough to stay legible against direct sunlight, and the panel runs across a -20°C to 60°C operating range.

Pixel pitch is selectable from P2.97 to P10, so you match resolution to viewing distance: tighter pitches for close-up storefronts and menu boards, wider pitches for long-range billboards where viewers stand back. Standard 960×960 mm and 1000×1000 mm cabinets tile into larger walls, and custom sizing is available for non-standard runs. Both front and rear service access are supported, and mounting covers floor stand, wall, ceiling and custom brackets.

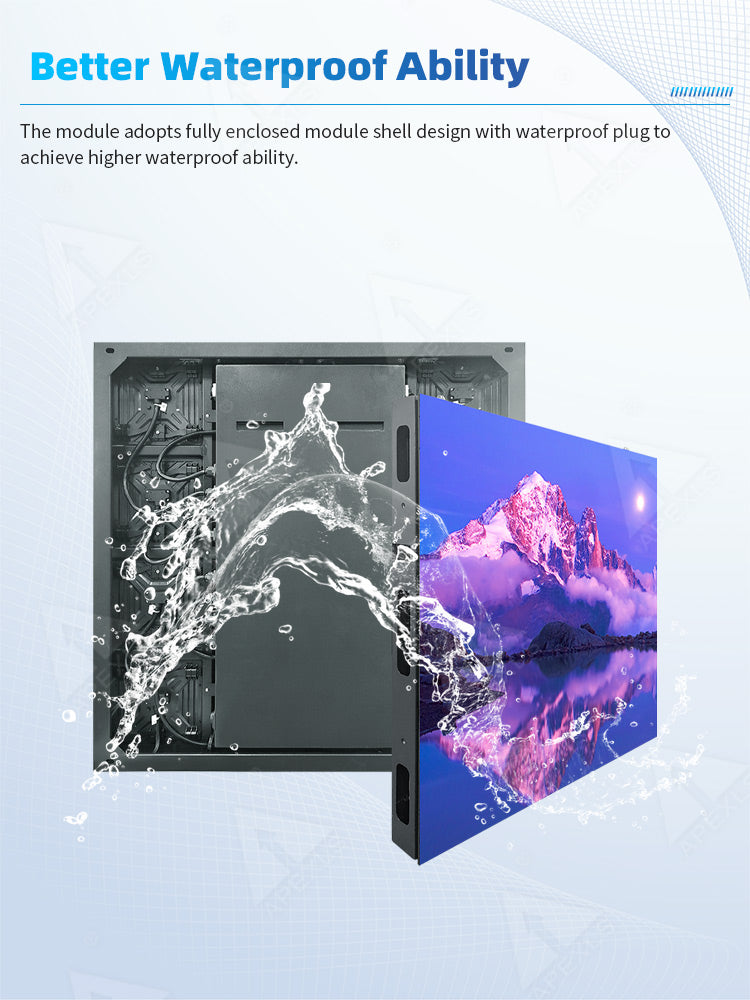

  • IP65 die-cast aluminum cabinet for outdoor, high-moisture sites

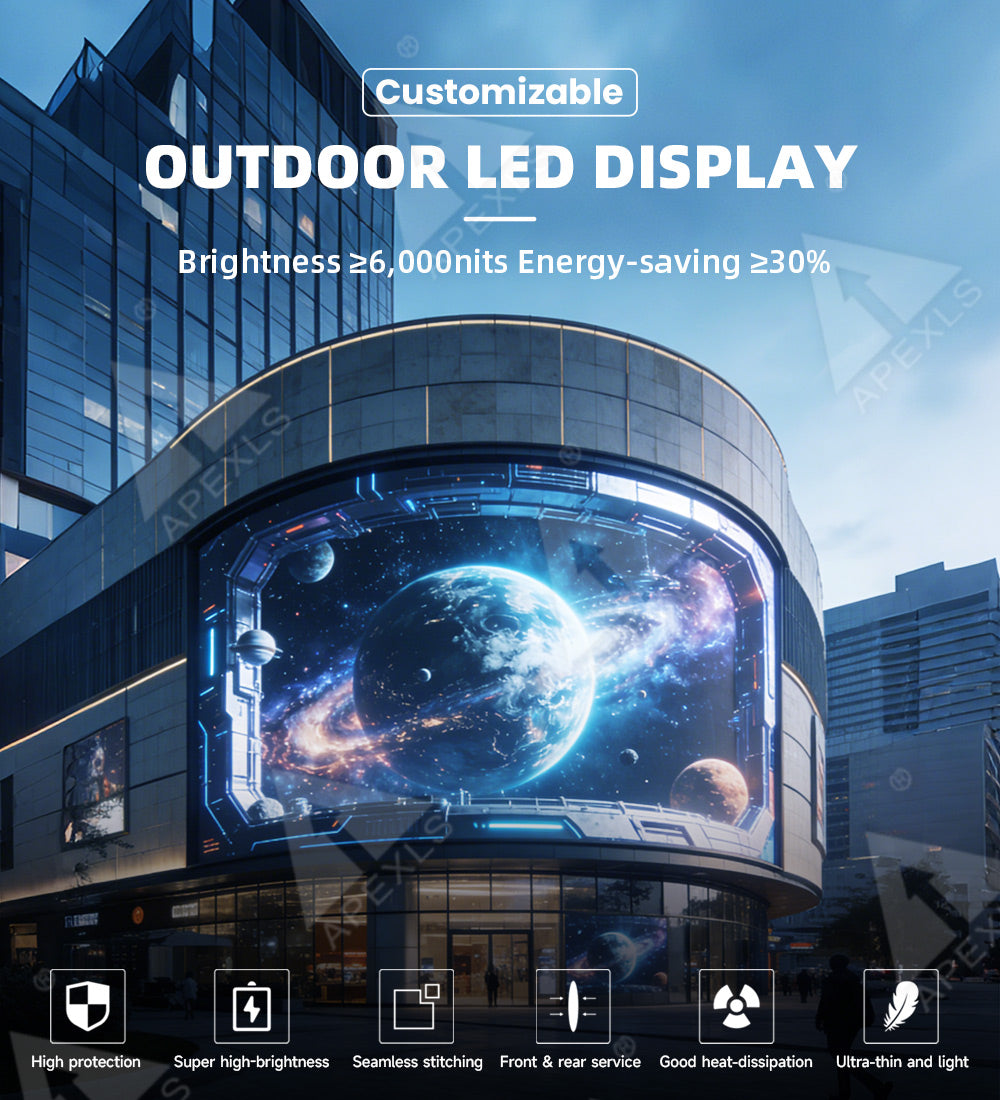

  • 5,500–6,000 cd/m² brightness (6,000+ nits) for daylight readability
  • Selectable pixel pitch from P2.97 to P10 to suit viewing distance
  • ≥30% energy savings versus comparable panels
  • Front and rear service access for easy maintenance

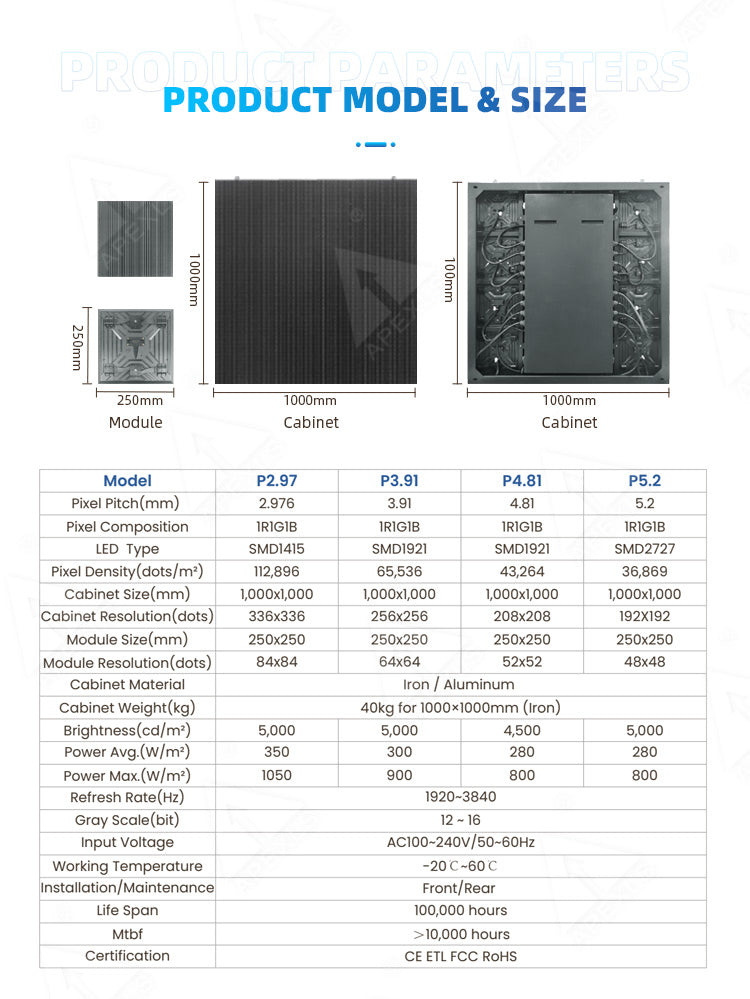

Specifications

Material
Die-cast aluminum
Color
Full color
Warranty
2 Years
Certifications
IP65, EMC, CCC, CE, CQC, ETL, FCC
Customization
Customizable size, content management system and remote device management
Application
Outdoor
Brightness
5500-6000 cd/m² (6000+ nits)
Color depth
14-16 bit
Pixel pitch options
P2.97, P3.91, P4.0, P6.67, P8, P10

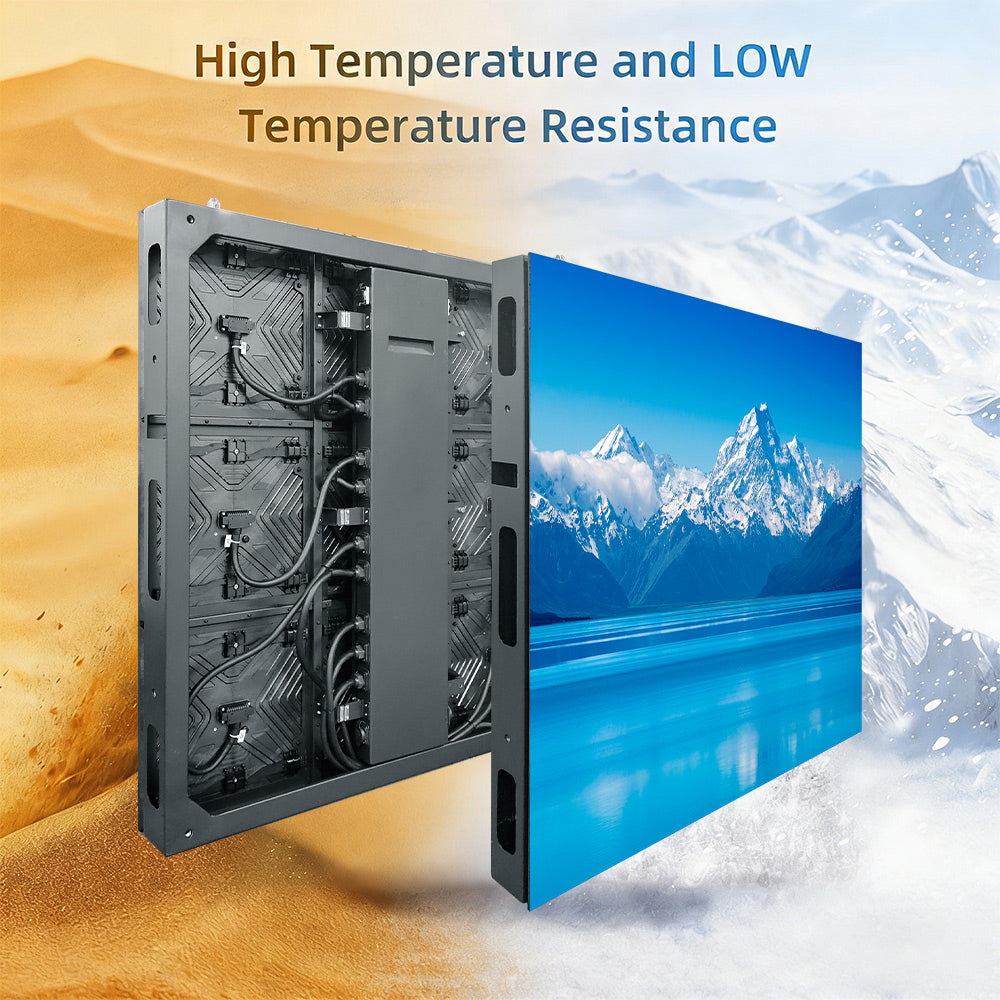

Operating temperature
-20 to 60 °C
Energy saving
≥30 %
IP rating
IP65
Mounting options
Floor stand, wall mount, ceiling mount, custom mount
Installation / maintenance access
Front & rear

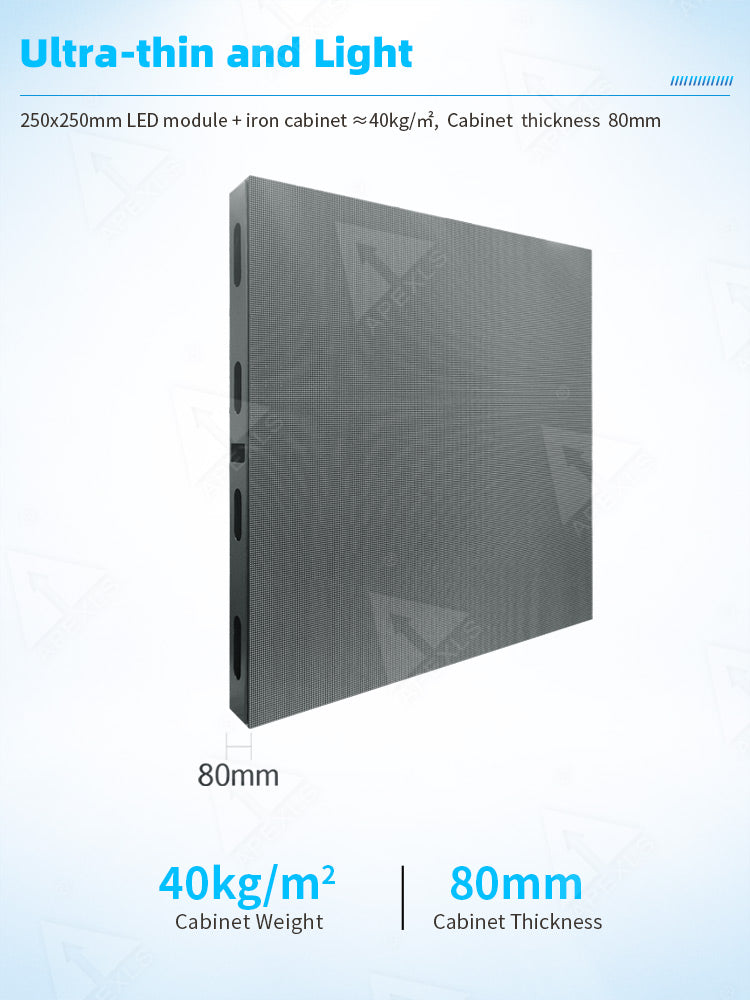

Cabinet sizes
960x960 mm, 1000x1000 mm, customizable

Frequently asked questions

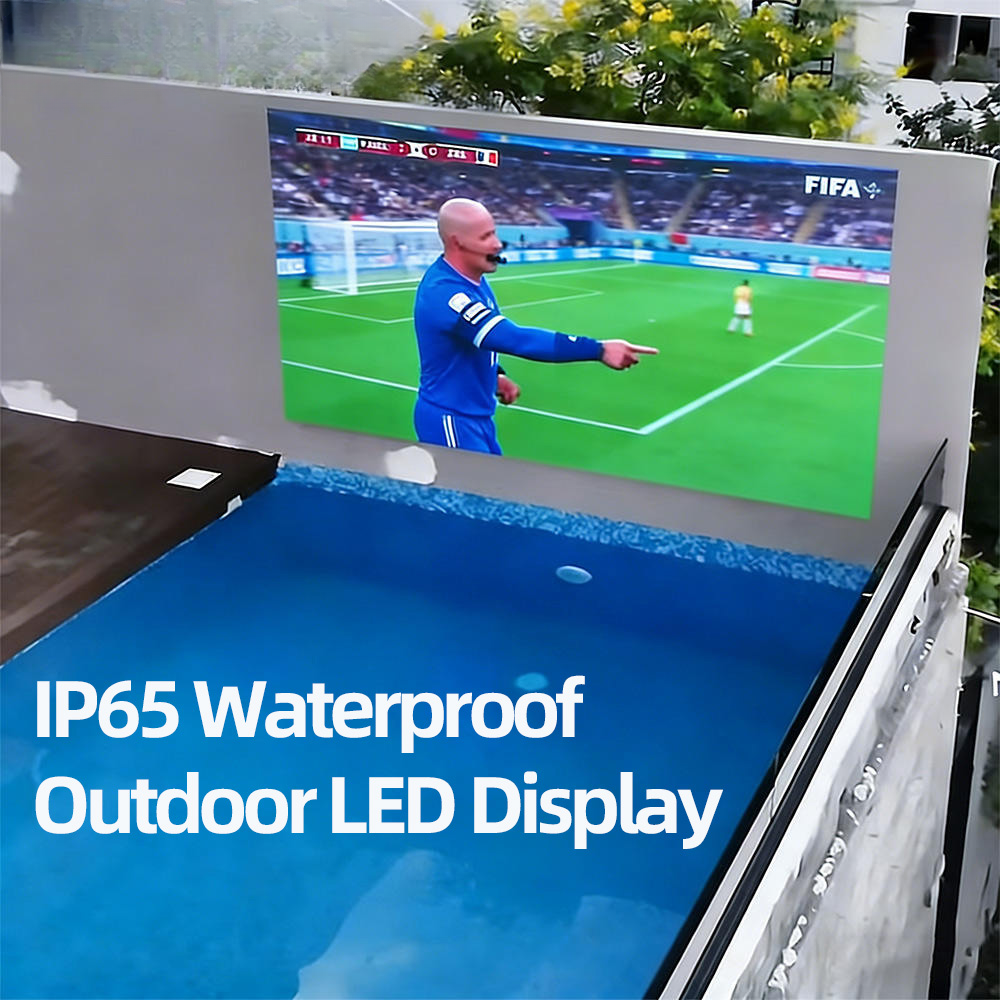

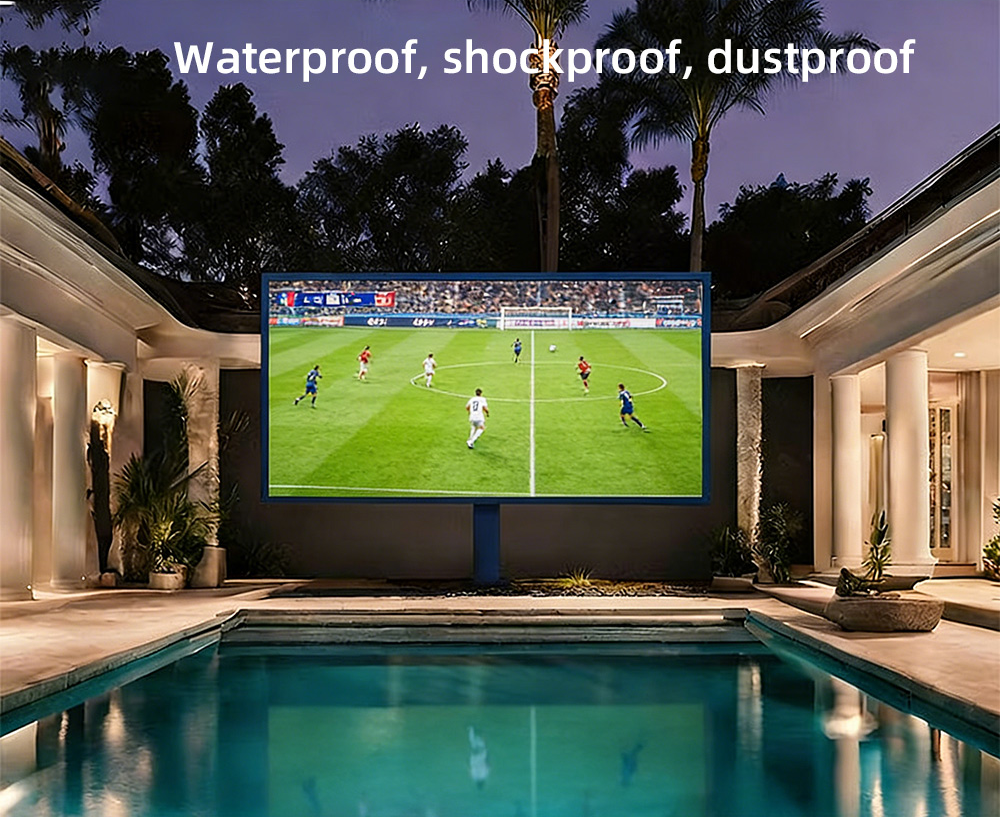

Can this be installed poolside or on an exposed facade?

Poolside, facade, parking area and stadium entrance installs are all within its range — the die-cast aluminum cabinet carries an IP65 rating against rain, dust and washdown, and the panel operates from -20°C to 60°C.

Which pixel pitch should I specify for my viewing distance?

Specify P2.97 or P3.91 for close-up work like storefront windows and menu boards, P6.67 or P8 for mid-range, and P10 for billboards where viewers stand well back. P4.0 is also available.

How do the cabinets tile, and can the overall size be customised?

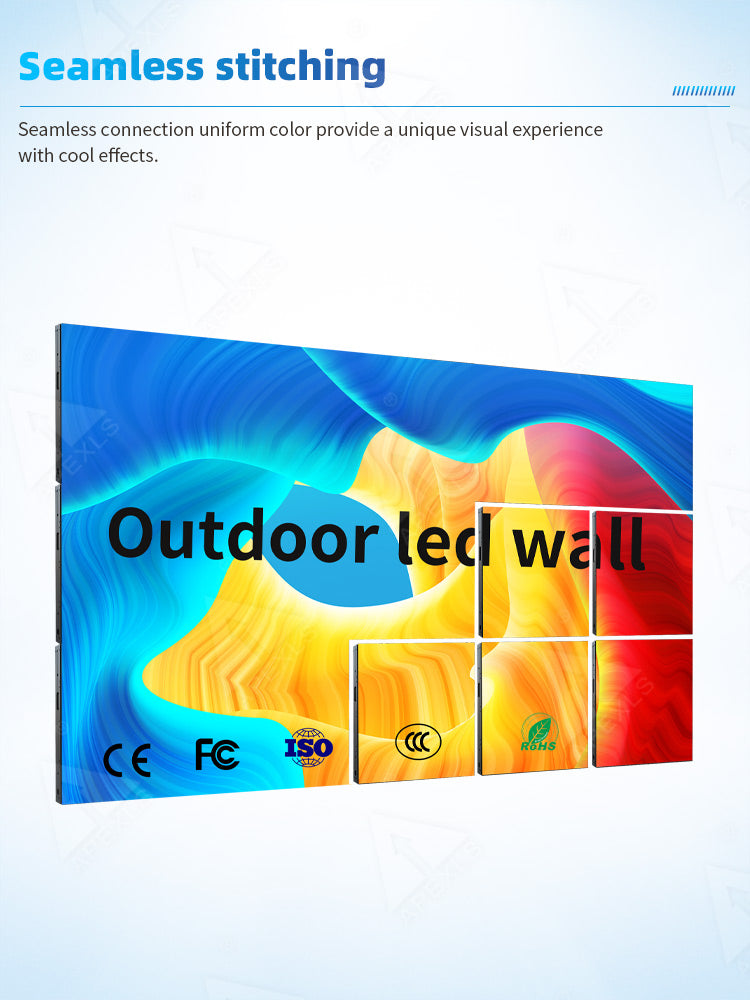

Standard 960×960 mm and 1000×1000 mm cabinets tile into larger walls, and custom cabinet sizing covers non-standard runs. Mounting options include floor stand, wall, ceiling and custom brackets.

Will this outdoor digital signage stay readable in direct sunlight?

Brightness runs 5,500–6,000 cd/m², over 6,000 nits, which is what keeps outdoor digital signage legible in full daylight. Colour depth of 14–16 bit holds contrast and saturation at that output.

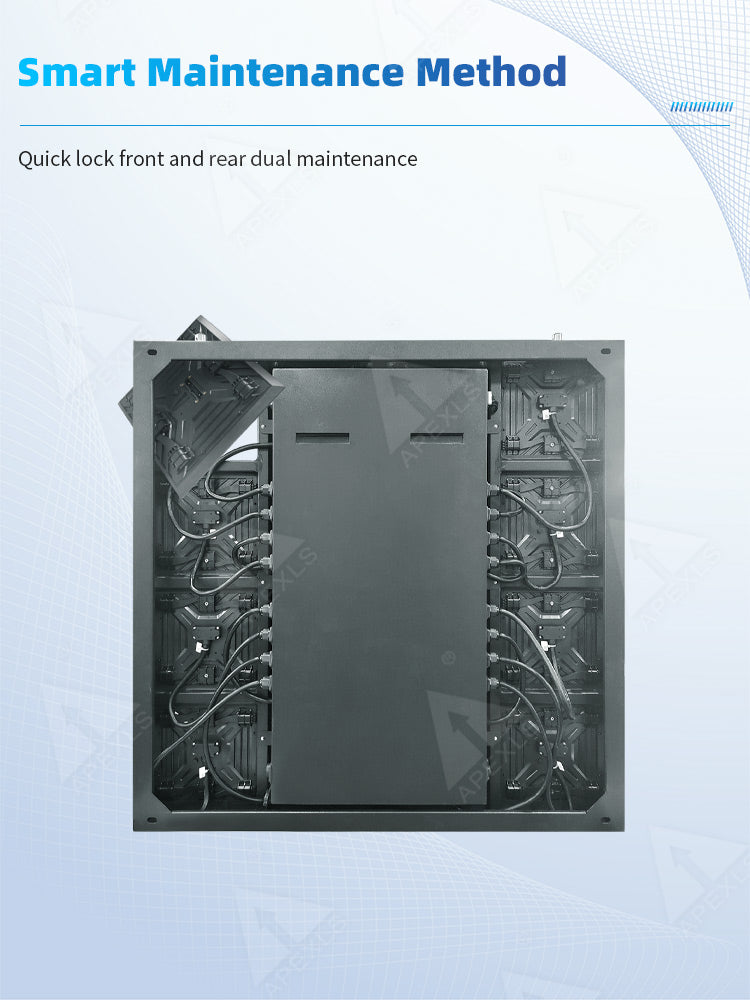

What does servicing the screen involve once it is mounted?

Service access is supported from both the front and the rear, so a wall-mounted unit with no rear clearance can still be maintained from the face. The display is covered by a 2-year warranty.

Is this the right screen for outdoor signage displays?

It is built for exactly that: IP65 against rain, a die-cast aluminium cabinet, 5,500–6,000 nits so it stays readable in direct sun, and a −20 to 60 °C operating range for a facade that never comes indoors. What led signage outdoor usually fails on is brightness and sealing rather than resolution — an indoor panel moved outside washes out by mid-morning and takes water at the first storm.
