Ultra-Wide Stretched Bar LCD Display — Digital Signage Screen

An ultra-wide stretched-bar LCD screen for shelf-edge and aisle advertising, built for indoor retail and exhibition displays with built-in Android CMS.

From$ 239 $ 282 15% discount
Custom order
Made to order to your spec — you choose the size and configuration.

MOQ: 6

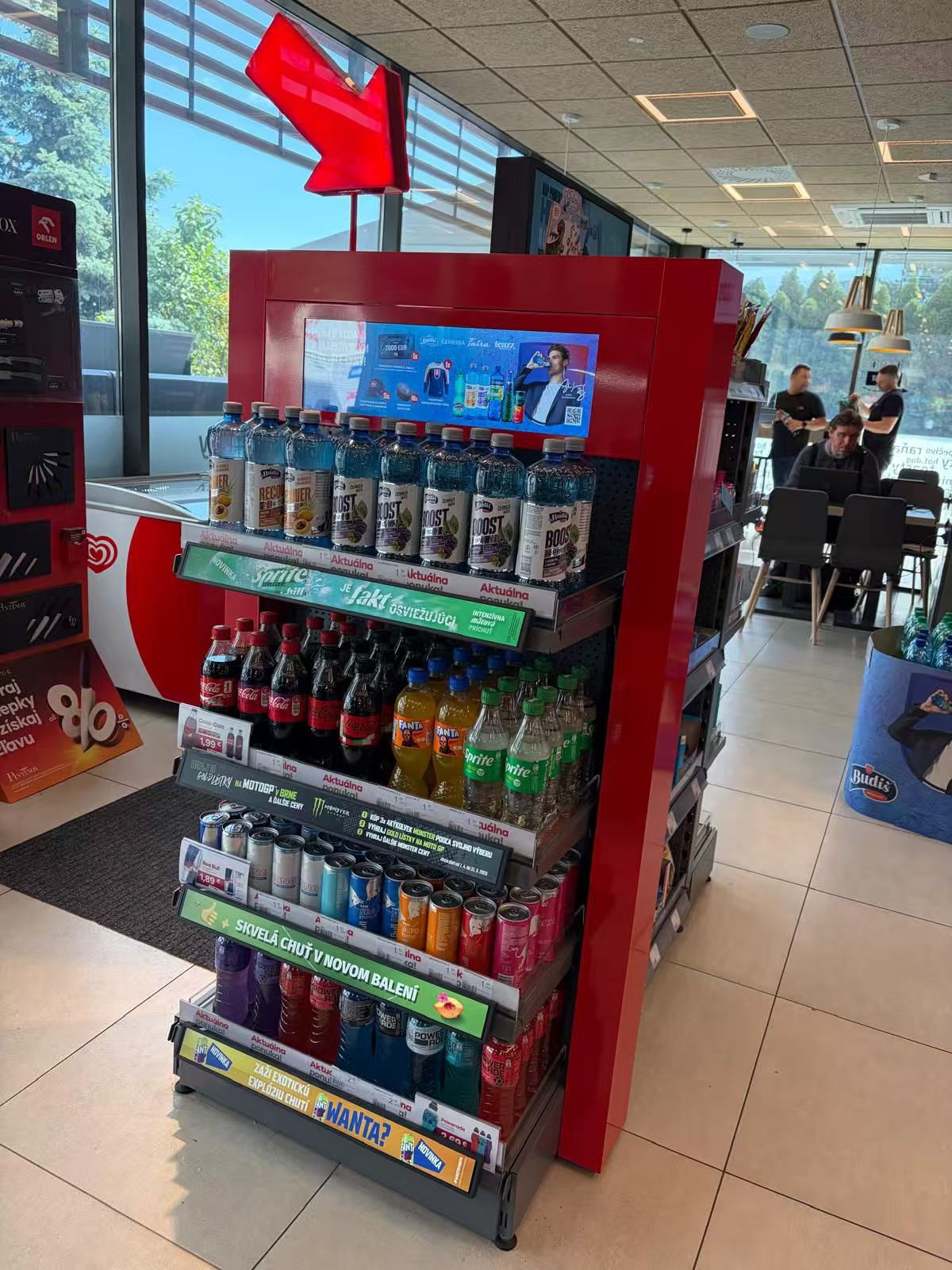

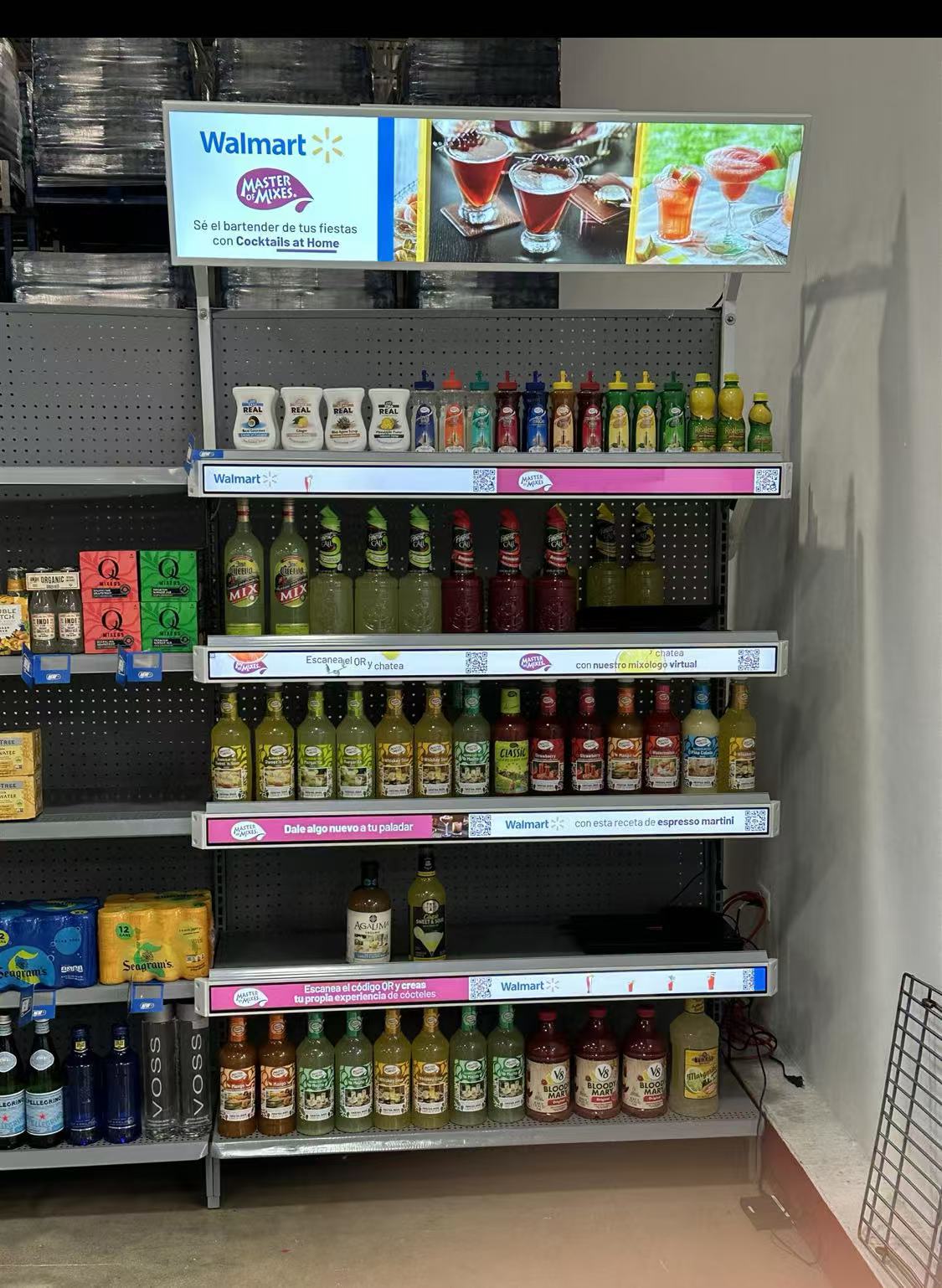

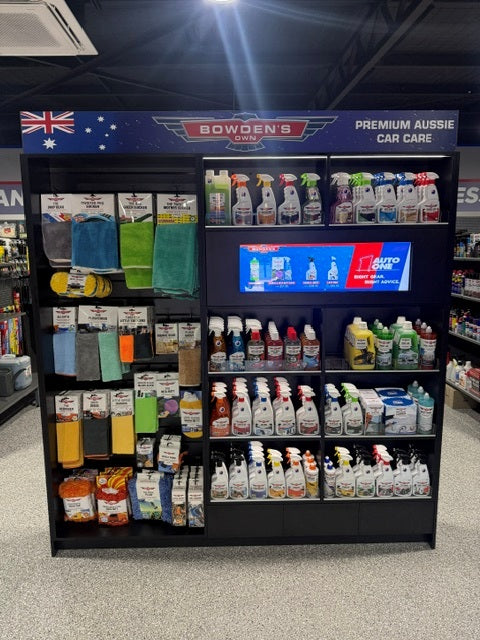

An ultra-wide stretched-bar display is a shelf-fit signage screen with an extreme aspect ratio, made to slot into the narrow spaces where a standard 16:9 monitor won't go — shelf edges, aisle ends, checkout rails, and exhibition stands. It runs your looping promo content without a separate media player: the built-in Android system and CMS handle scheduling and playback on the device itself.

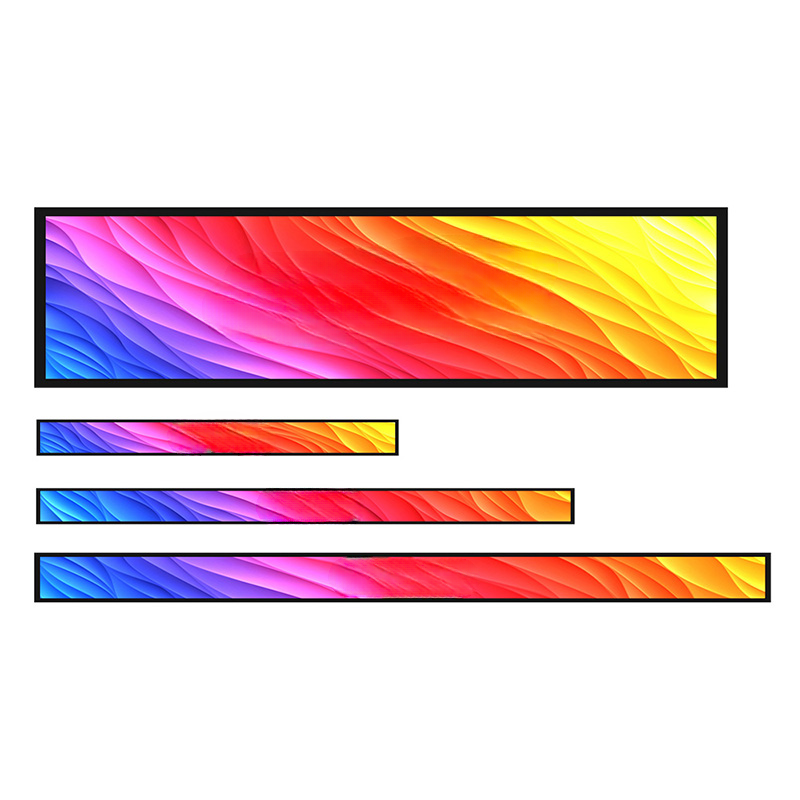

The panel is available across a wide size range, from compact 16.4-inch strips up to 47.1-inch, in both non-touch and capacitive touch versions, so you can match the format to the fixture rather than the other way around. Direct-lit LED backlighting delivers 350–700 nits with a 178° viewing angle, keeping content legible off-axis and under retail lighting.

  • Built-in Android OS with an onboard CMS — schedule, update, and manage content remotely, no external player required
  • Supports common image (JPEG, PNG, BMP, GIF) and audio (MP3, WMA) formats for straightforward playlists
  • VESA wall-mount compatible for shelf, rail, or stand installation
  • 60,000-hour rated panel lifespan for continuous commercial duty

Certified to CE, RoHS, CCC, and CQC, it suits retail chains, showrooms, and trade-show operators that need dependable, always-on messaging in tight display real estate.

Specifications

Voltage
AC 110/220V
Warranty
1 Year
Certifications
LVD, CE, CCC, RoHS, CQC
Customization
Custom LCD display sizes available from 5 to 107 inches
Display type
LCD / TFT
Backlight type
Direct-Lit LED
Brightness
350-700 nits
Viewing angle
178 °
Response time
8 ms
Contrast ratio
1200:1
Display color
16.7M
Panel lifespan
60000 h
Operating system
Android
Content management
Built-in CMS with remote content management
Touchscreen support
Non-touch or capacitive touch

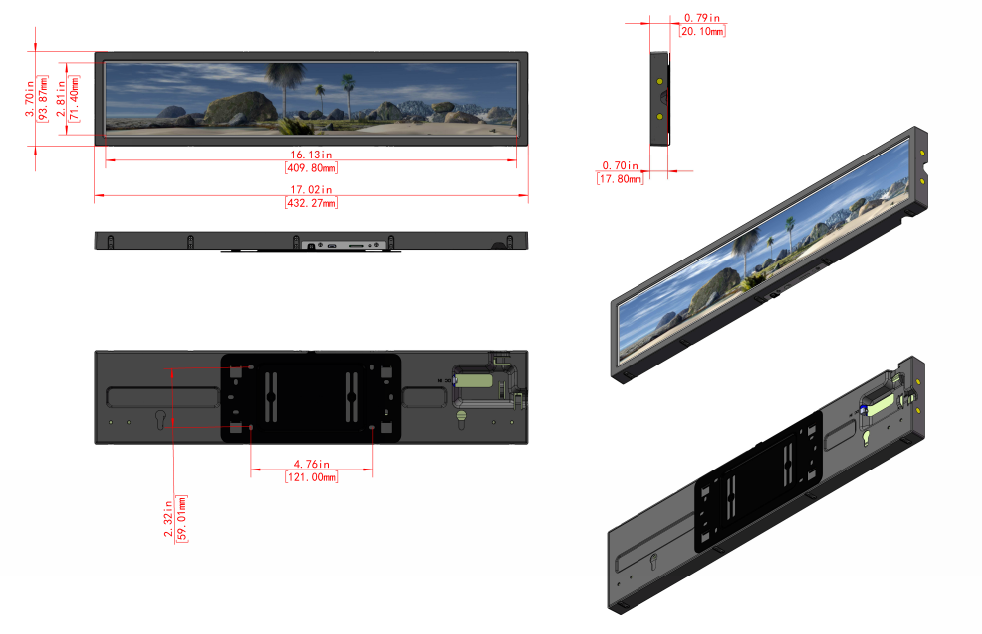

Mounting
VESA wall mount
Operating temperature
0–50 °C
Supported image formats
GIF, JPEG, PNG, BMP
Supported audio formats
MP3, WMA
Application
Indoor

Frequently asked questions

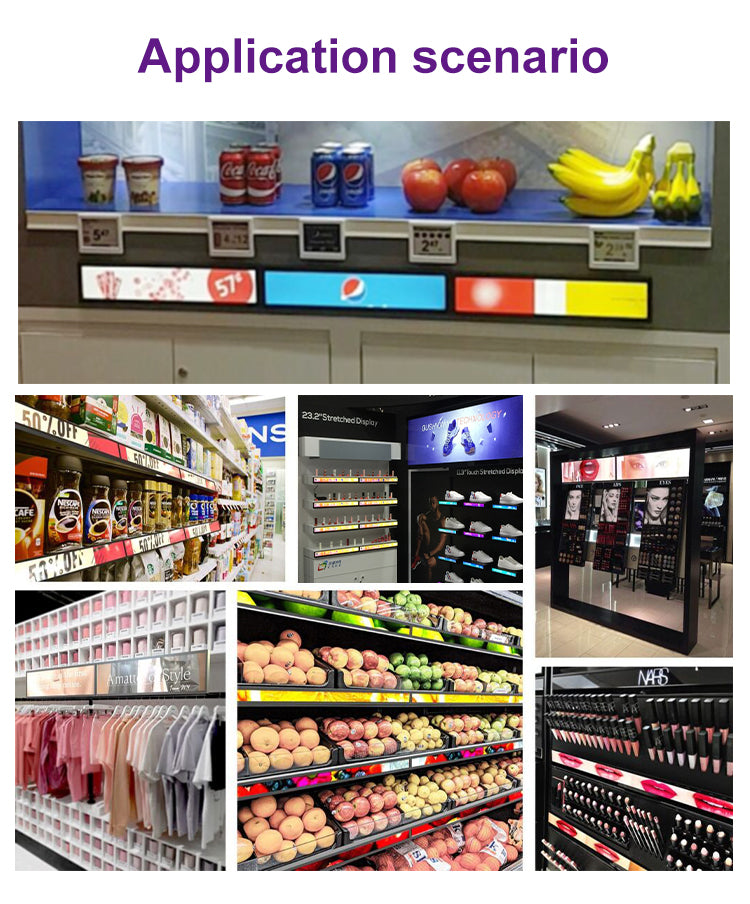

Where does an ultra-wide stretched-bar display fit best?

It's designed for narrow spaces a standard 16:9 screen can't fill — shelf edges, aisle ends, checkout rails, showroom fixtures, and exhibition stands. The extreme aspect ratio turns tight retail real estate into an advertising surface.

Does the screen need a separate media player?

No. It runs a built-in Android system with an onboard content management system, so it plays and schedules content on the device itself. You can also manage content remotely across multiple screens.

What sizes and touch options are available?

The screen comes in a range from 16.4-inch up to 47.1-inch, in both non-touch and capacitive touch versions. Contact us to confirm the exact size and touch combination you need.

How bright is the display and can it be read off-angle?

It delivers 350–700 nits with a 178° viewing angle and an 8 ms response time, so content stays legible off-axis and under retail lighting.

Is the display suitable for continuous, all-day operation?

Yes. The panel is rated for 60,000 hours and operates across a 0–50 °C range, which suits always-on commercial signage. It's backed by a 1-year manufacturer warranty.

How is the screen mounted?

It's VESA wall-mount compatible, so it can be fitted to shelves, rails, or display stands with standard mounting hardware.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
