5-Head Stage Flame Machine — 8–10m Jet Fire Effect, DMX512, IPX3 Outdoor

A five-nozzle liquid-fuel flame machine that throws 8–10m jets of fire on DMX cue for large outdoor concerts and festivals.

133,839.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

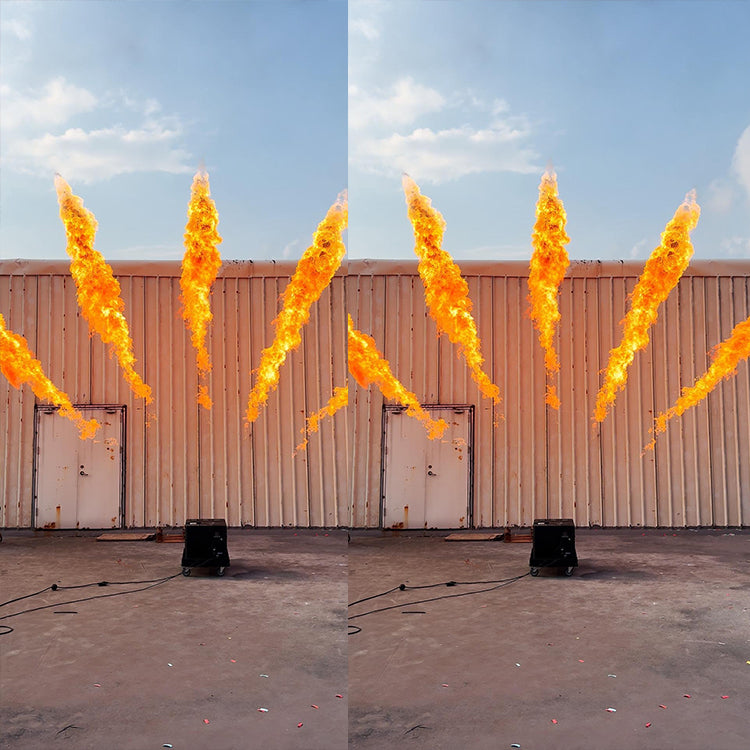

This is a five-head stage flame machine — a DMX-controlled fire effect unit that shoots liquid-fuel jets 8–10 meters high (in windless conditions) to punctuate a show's biggest moments. It runs on isopropyl alcohol or isoparaffin fed from a 40L built-in tank and pump, so no external gas source or bottle swap is needed during a set. Each of the five nozzles fires independently across five spray directions, giving a lighting operator room to choreograph fans, walls and staggered bursts rather than one flat blast.

Control runs over DMX512 on five channels, with a dual 3-pin and 5-pin waterproof interface that drops into any standard console or lighting rig. The full stainless-steel body and waterproof connectors carry an IPX3 rainproof rating, so the unit stays dependable at open-air festivals and large events where weather is a factor.

Safety features are built for touring rather than one-off use:

  • Fuel-level sensor with an oil-empty alarm
  • 45-degree tilt auto-shutoff
  • E-lock safety interlock
  • Optional remote fuel supply for automatic refilling

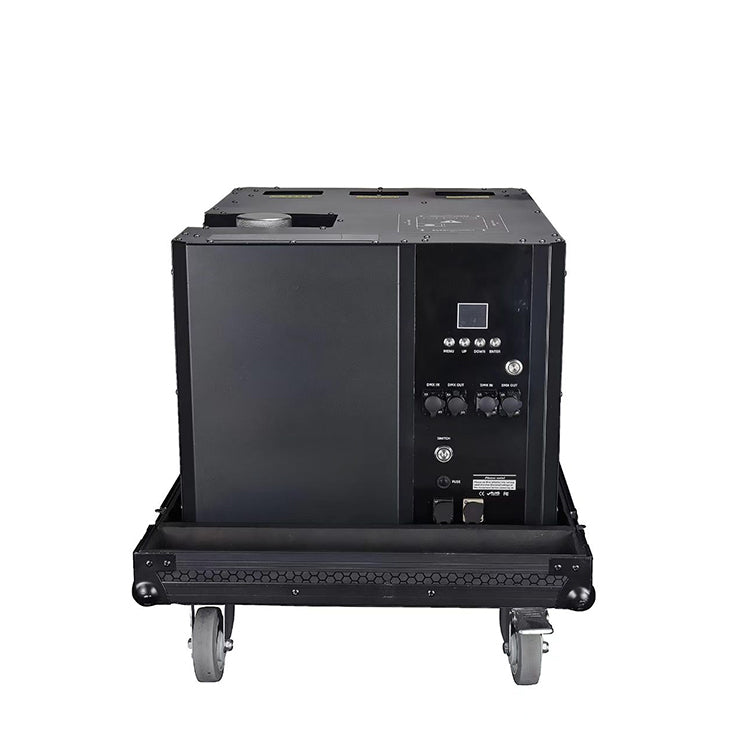

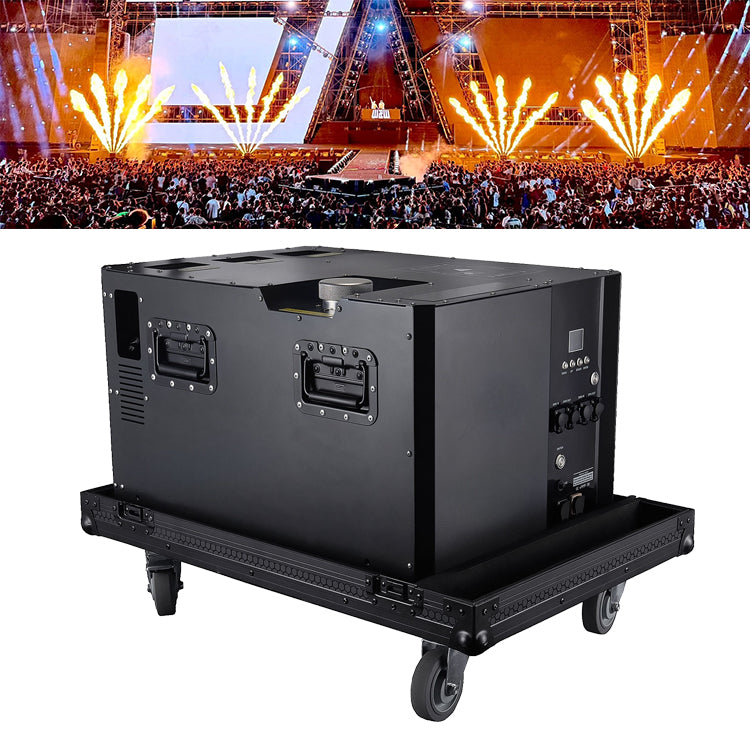

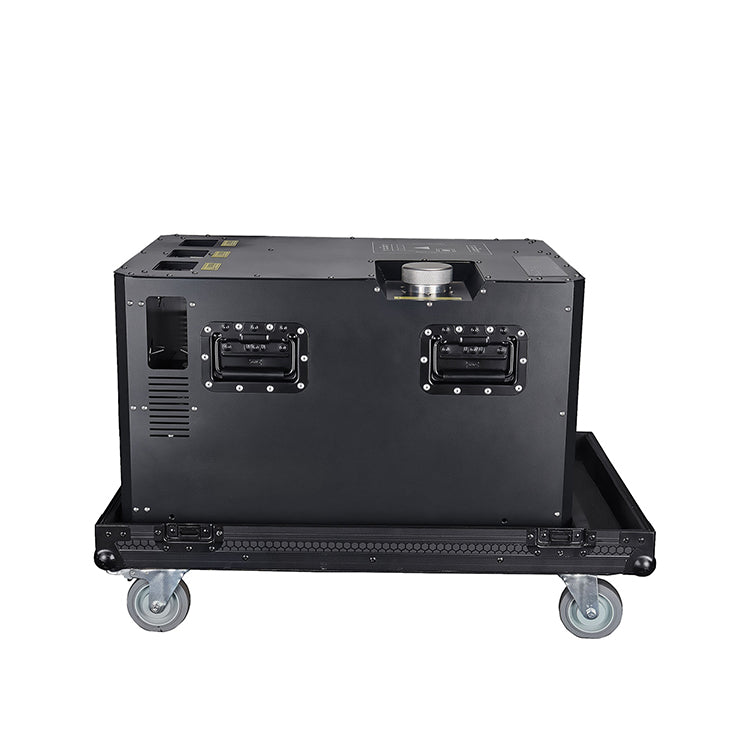

The unit ships in a road case (86 × 59 × 67 cm) sized for repeated load-in and load-out, and its five independent nozzles cover setups where a 3-head machine would fall short. Fuel draw is roughly 60 ml per second per nozzle at full output — plan tank refills against your cue sheet accordingly.

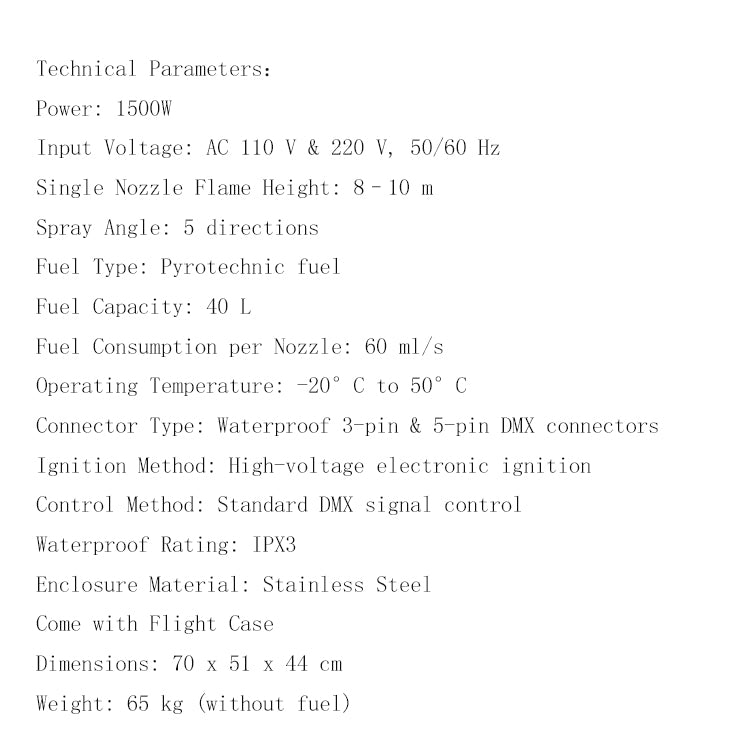

Specifications

Material
Stainless steel
Capacity
40000 ml
Color
Single color
Weight
65.0 kg
Power
1500 W
Voltage
AC 110-240V 50-60Hz
Warranty
1-year manufacturer warranty
Number of heads
5
Spray height
8-10 m (windless)
Spray directions
5
Fuel type
Isopropyl alcohol / isoparaffin G/H/L/M
Fuel consumption
60 ml/s per nozzle
Control
DMX512
DMX channels
5
DMX interface
3-pin / 5-pin dual waterproof
Waterproof level
IPX3 (rainproof)
Scope of use
Indoor and outdoor
Power source
AC
Safety features
Fuel-level sensor, oil-empty alarm, 45° tilt auto-shutoff, E-lock interlock
Refilling
Optional remote fuel supply for automatic refilling

Frequently asked questions

What fuel does it take, and how long does a tank last?

Isopropyl alcohol or isoparaffin grades G/H/L/M, fed from the 40L built-in tank by an internal pump — no gas bottle. Each nozzle burns roughly 60 ml per second at full output, so cost your cue sheet against that figure.

How high do the flames reach, and how much clearance do I need?

8–10 meters in windless conditions, and less or off-axis once wind picks up. Plan clearance above the 10m maximum rather than the average you expect on the night.

How many DMX channels does it take, and how do the heads patch?

Five channels over DMX512, one per nozzle, so all five fire independently across five spray directions — fans, walls and staggered bursts rather than a single flat blast. The dual 3-pin and 5-pin waterproof interface drops onto any standard console.

What do I specify when ordering, and what arrives?

The unit runs AC 110-240V 50-60Hz at 1500W, so no voltage variant is needed. It ships in a road case measuring 86 × 59 × 67 cm; remote fuel supply for automatic refilling is an option to add at order.

What safety interlocks are built in?

A fuel-level sensor with oil-empty alarm, 45-degree tilt auto-shutoff and an E-lock interlock. These are machine-side protections only — local permits, licensed operators and venue clearances still govern use.

What warranty comes with it?

A 1-year manufacturer warranty covers the unit. The stainless-steel body and waterproof connectors carry an IPX3 rainproof rating, so open-air use in rain is within normal operation.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

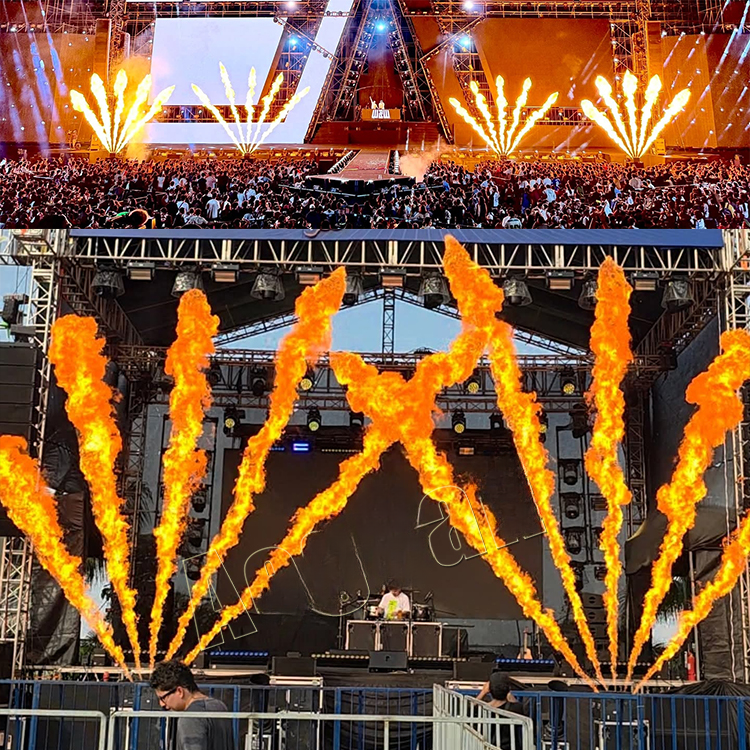

Stage effects flame machine firing fan-shaped fire jets above a large crowd at a concert with pyramid truss and screens
