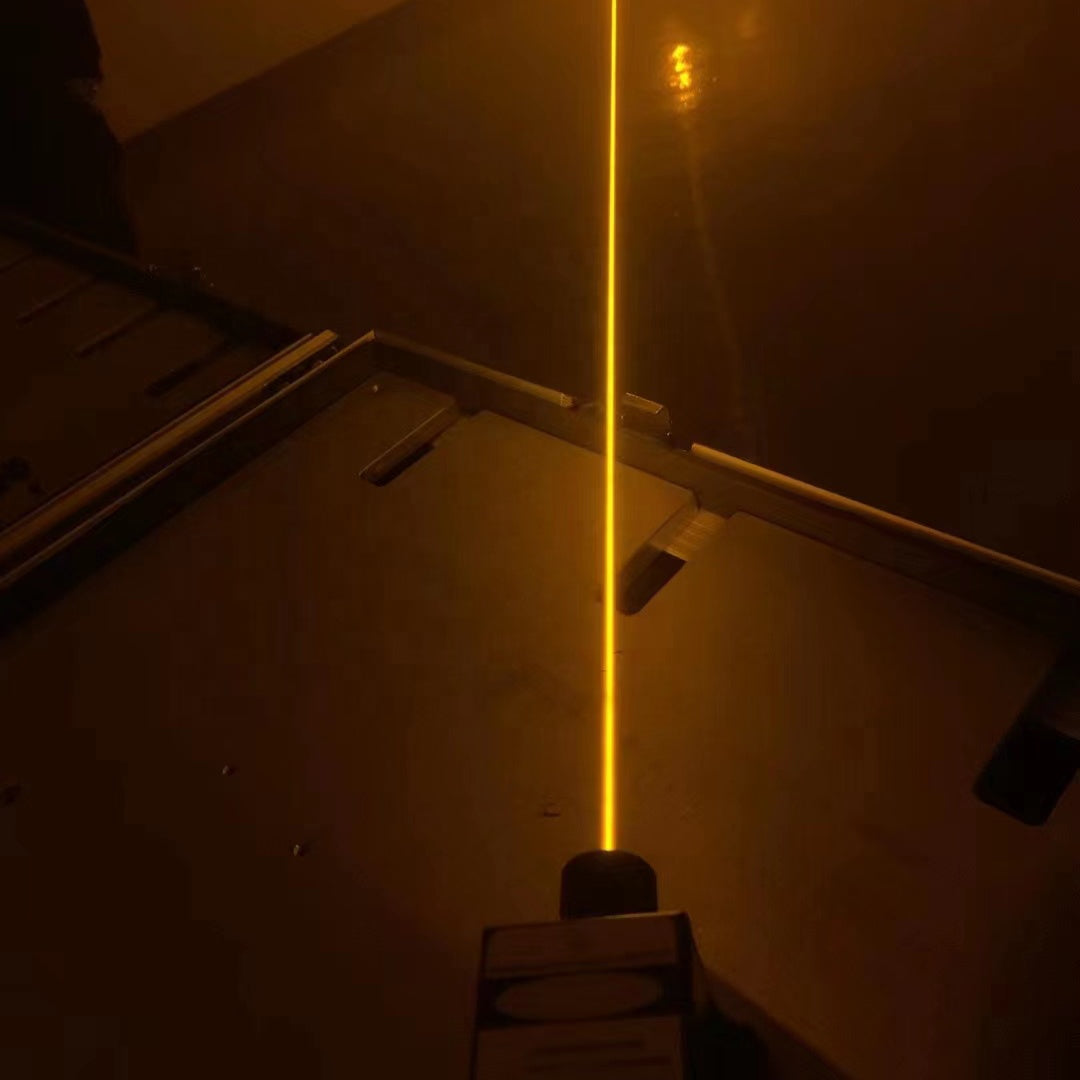

A 589 nm yellow DPSS laser module delivering 500 mW of stable CW output with TTL and analog modulation for industrial and lab use.
$ 4 538$ 5 26413% discount
Shipping calculated separately
Lead time: 2–4 weeks
This is a diode-pumped solid-state (DPSS) laser module that produces a 589 nm yellow beam at 500 mW continuous-wave output — a wavelength that's hard to reach with direct diodes, which is why DPSS is the go-to for stable yellow light. It runs in TEM00 spatial mode with a beam diameter around 3 mm and full-angle divergence under 1 mrad, so the spot stays tight over distance. Power stability holds at 2–3% RMS over four hours at 25 °C, and warm-up takes under a minute.

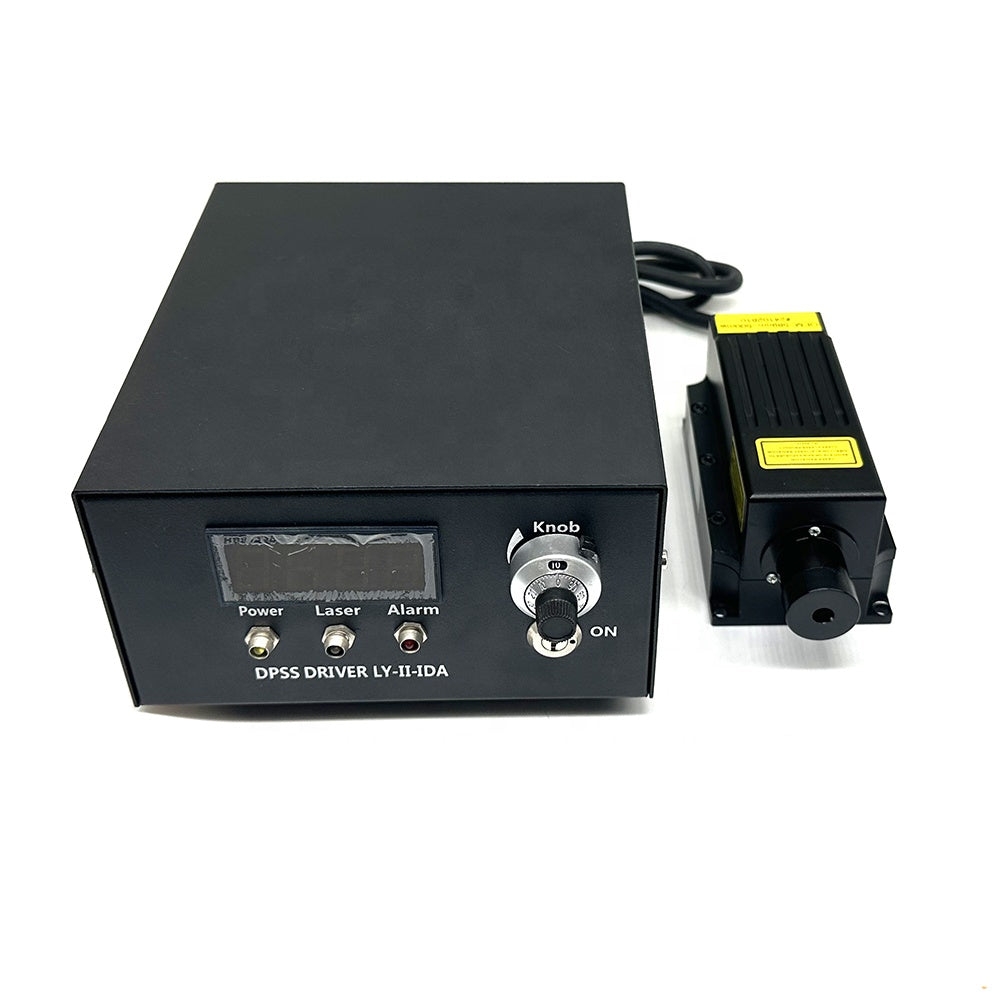

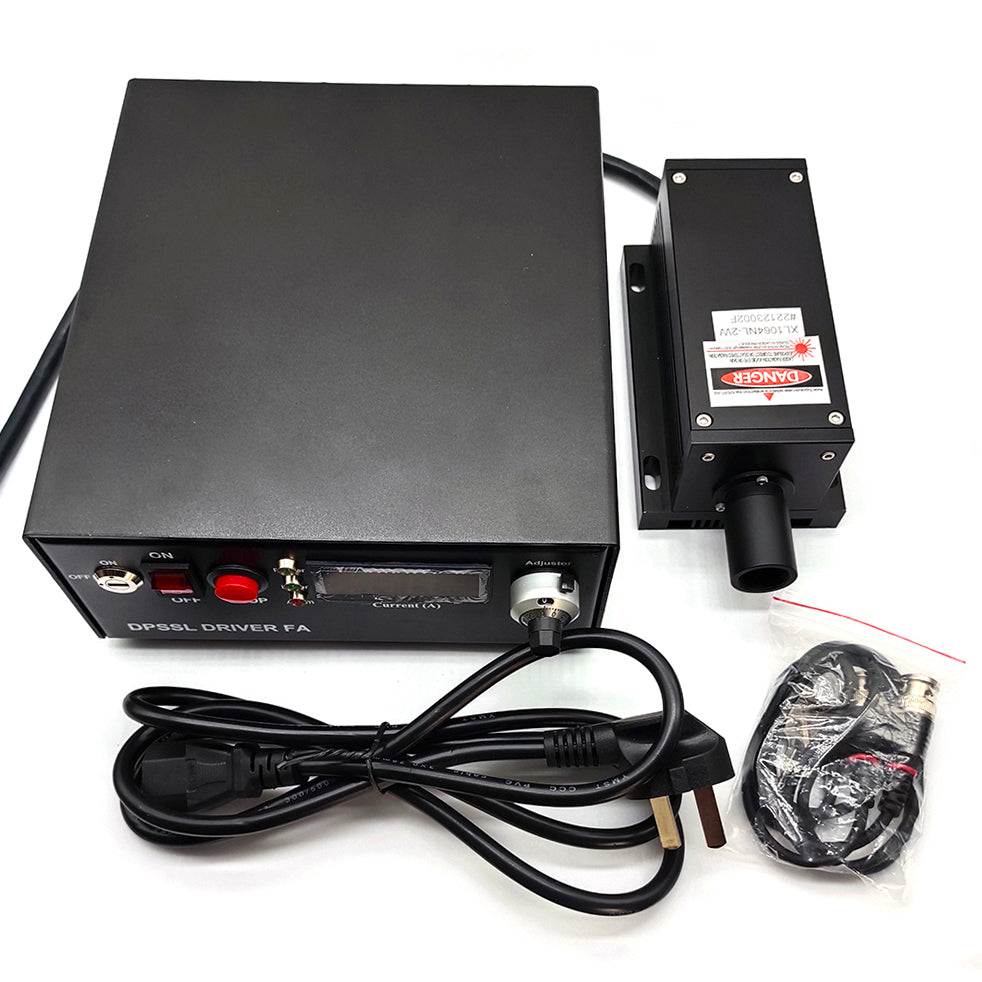

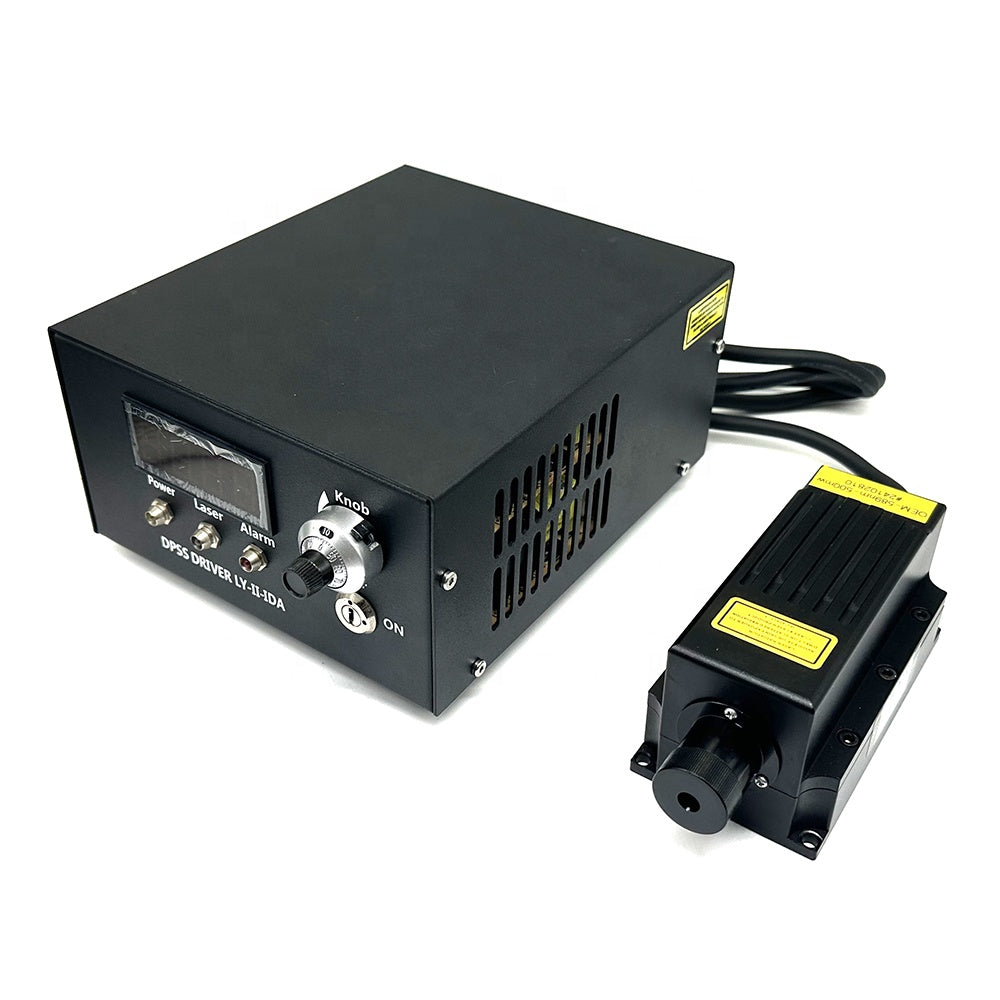

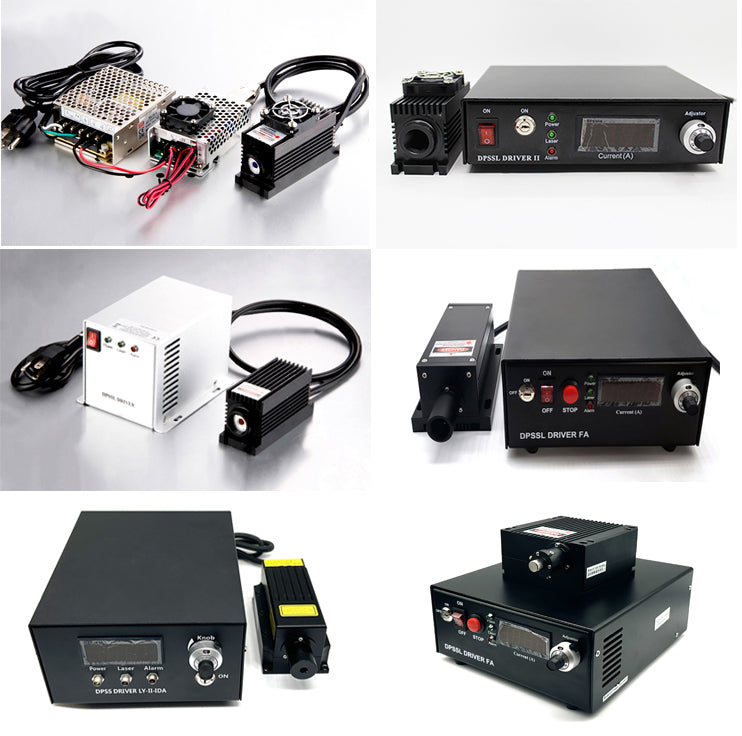

The system ships as a complete bench setup for integration and testing:

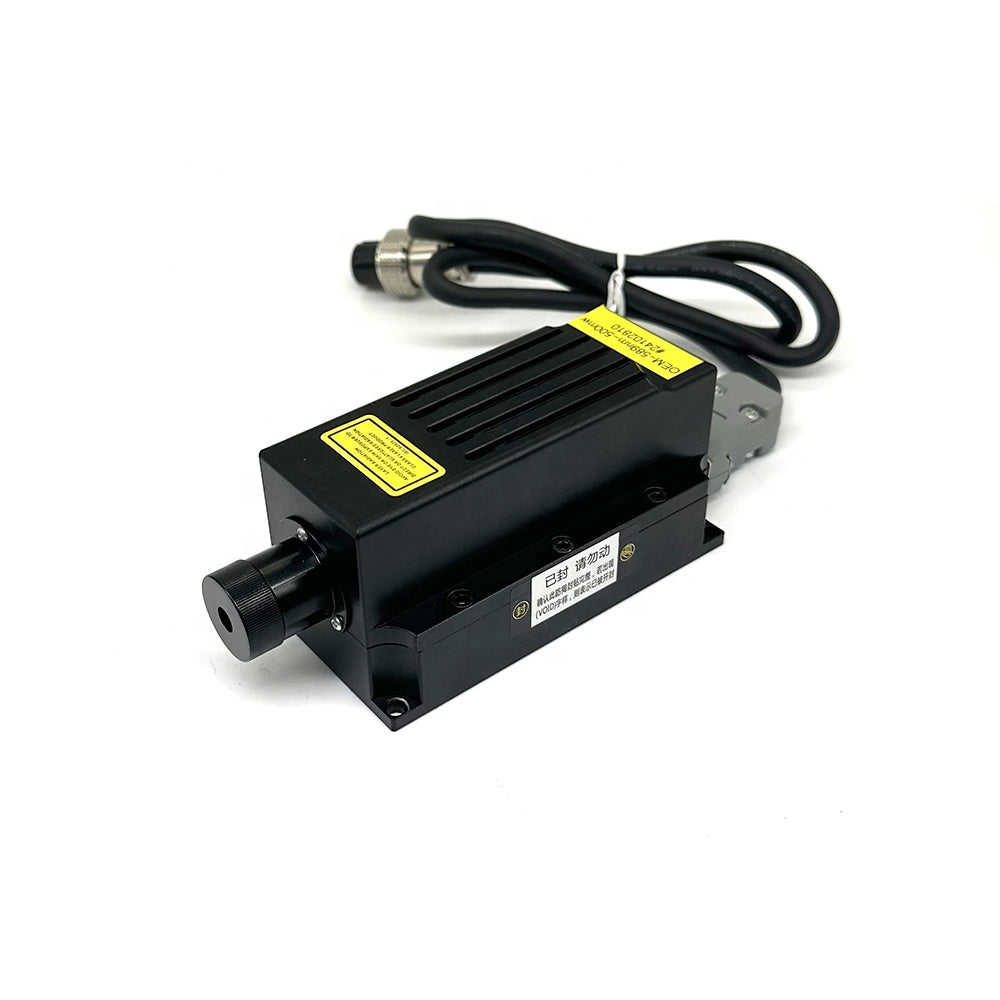

Laser head running at 5 V / 18 A, cooled by a combined thermal-controlled and air-cooled design

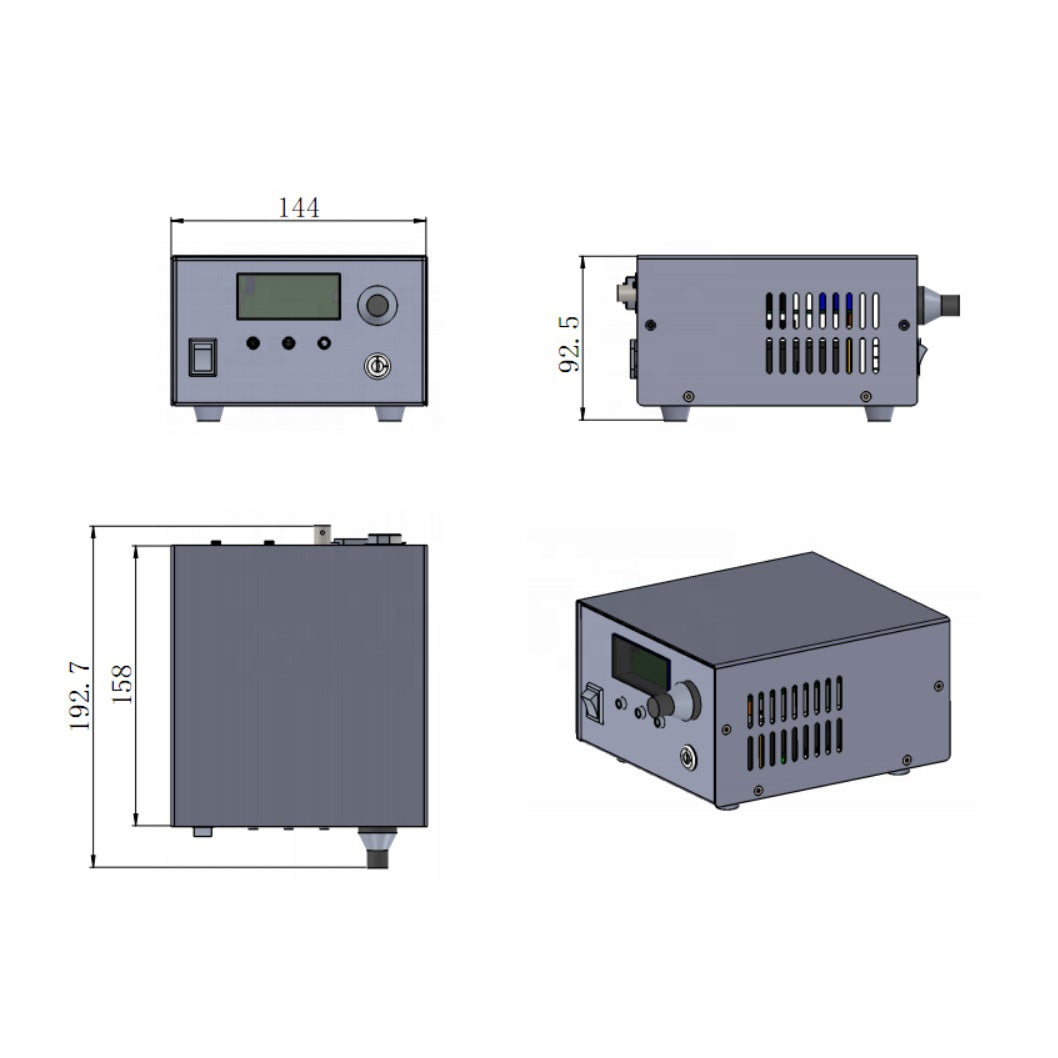

Lab adjustable power supply accepting 86–260 V input
Power cable, connecting cable, and two keys for interlock operation
TTL or analog modulation up to 30 kHz makes it suitable for scanning, imaging, and OEM instrument builds, and a rated MTTF of 10,000 hours supports continuous industrial duty. Operating temperature sits at 25 ±3 °C, with storage tolerated from −45 °C to +60 °C.
Specifications
Weight
3.0 kg
Power
0 W
Voltage
5V 18A (head); 86–260V (power supply)
Warranty
1-year manufacturer warranty
Customization
OEM/ODM available
Wavelength
589 nm
Output power
500 mW
Laser type
DPSS / Semiconductor (diode-pumped solid-state)
Spatial mode
TEM00
Operating mode
CW
Power stability (RMS, 4 h at 25 °C)
2–3 %
Warm-up time
<1 min
Cooling method
TBC + air cooled
Beam size (1/e²)
~3 mm
Beam divergence (full angle)
<1 mrad
Beam height
29 mm
Operating temperature
25 ±3 °C
Storage temperature
-45 to +60 °C
Modulation
TTL or analog, 0–30 kHz
Adjustable power supply input
86–260 V
MTTF
10000 hrs
Included
Laser module, adjustable power supply, power cable, connecting cable, 2 keys
Frequently asked questions
Why does this laser use a DPSS design for 589 nm yellow?
Yellow light at 589 nm is very hard to produce with a direct laser diode, so this module uses a diode-pumped solid-state (DPSS) architecture. That approach delivers a clean 589 nm beam at 500 mW with stable CW output and TEM00 mode quality.
What power supply and voltage does the laser require?
The laser head runs on 5 V at 18 A. It's driven by the included lab adjustable power supply, which accepts a wide 86–260 V mains input, so it works across most regional grids.
Does the module support TTL and analog modulation?
Yes. It accepts both TTL and analog modulation at up to 30 kHz, so you can gate the beam on and off or ramp the output for scanning and imaging tasks.
What is included in the box with the laser module?
Each unit ships as a complete bench set: the DPSS laser module, the lab adjustable power supply, a power cable, a connecting cable, and two keys for interlocked operation.
How stable is the output power over long runs?
Power stability is rated at 2–3% RMS over four hours at 25 °C, with a warm-up time under one minute and a rated MTTF of 10,000 hours for sustained industrial duty.
