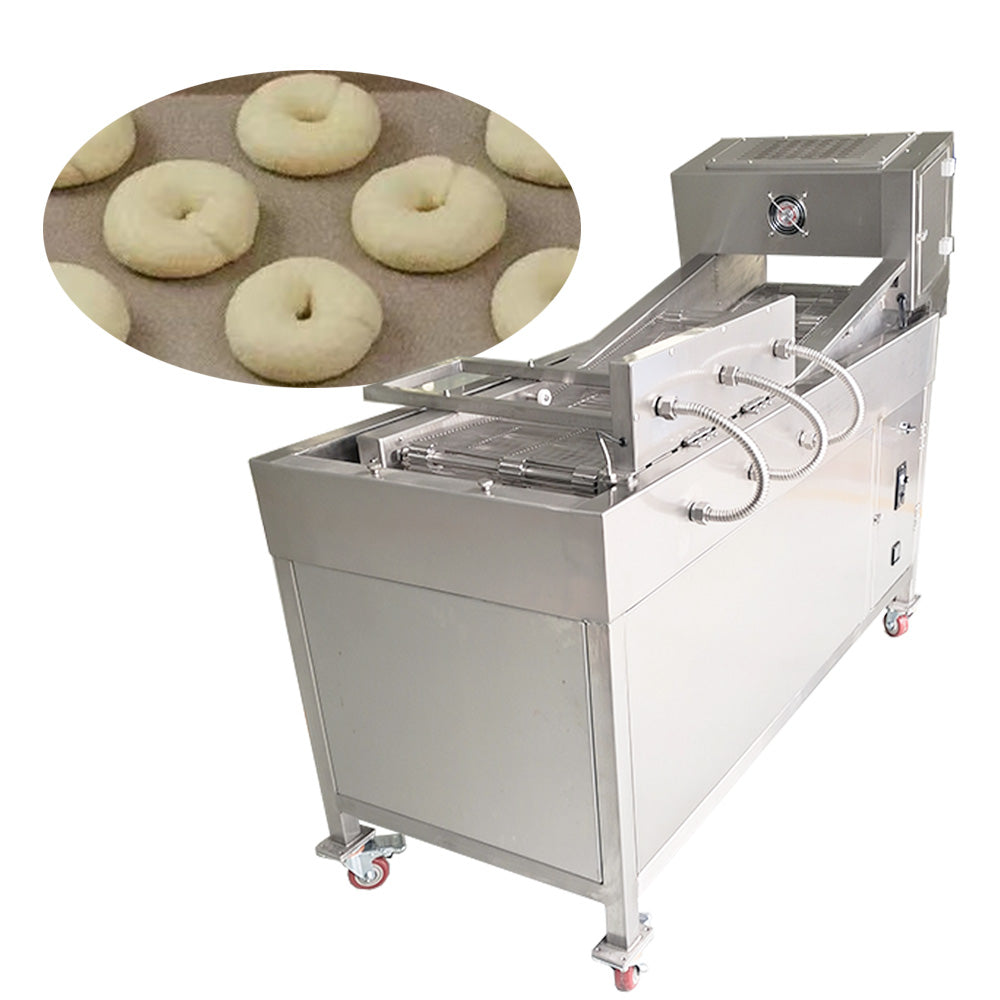

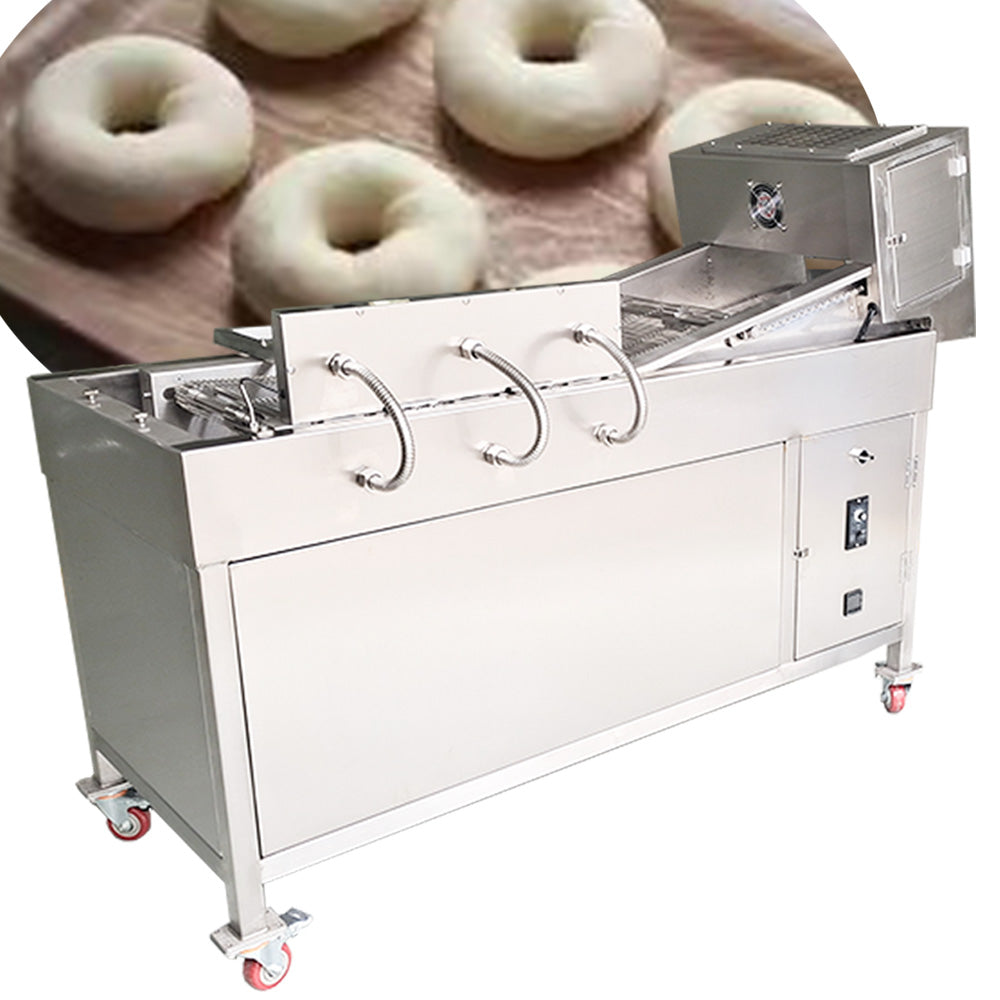

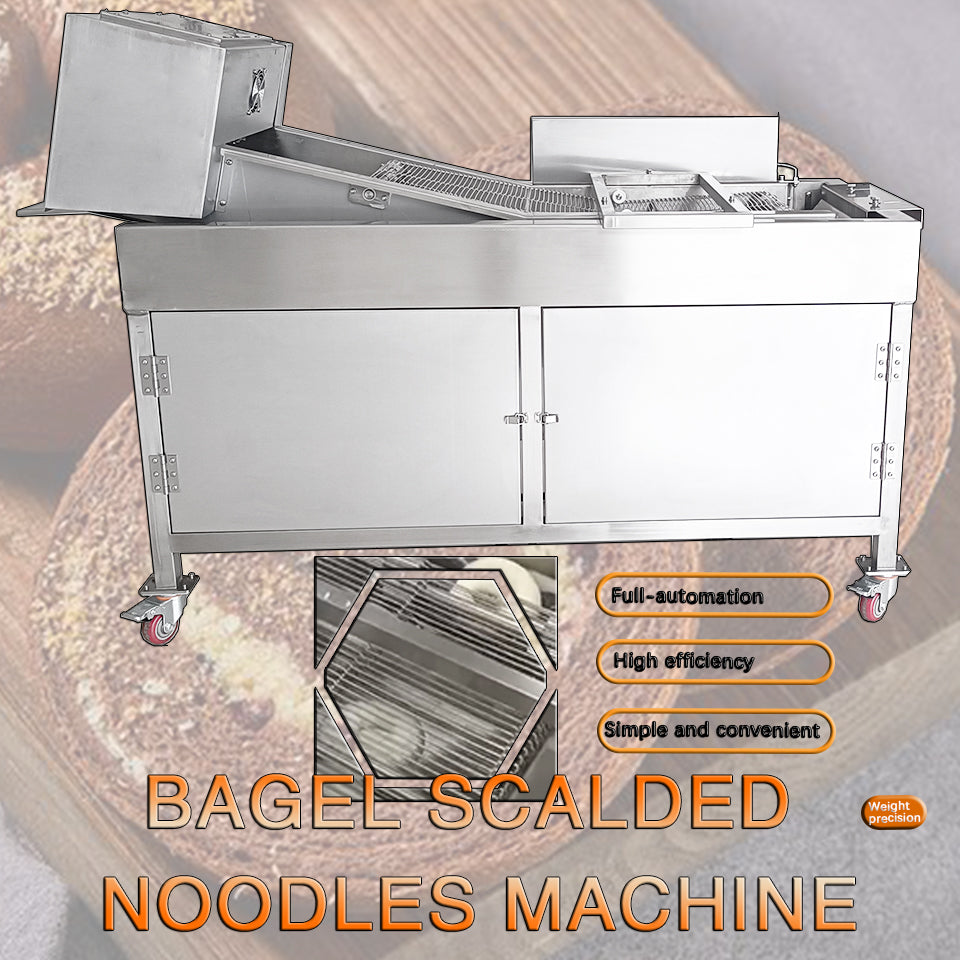

Automatic Bagel Boiling & Frying Machine — Electric
An electric continuous-chain machine that boils, alkaline-baths, and oil-fries bagels and dough products at up to 3,000 pieces per hour.
211,503.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

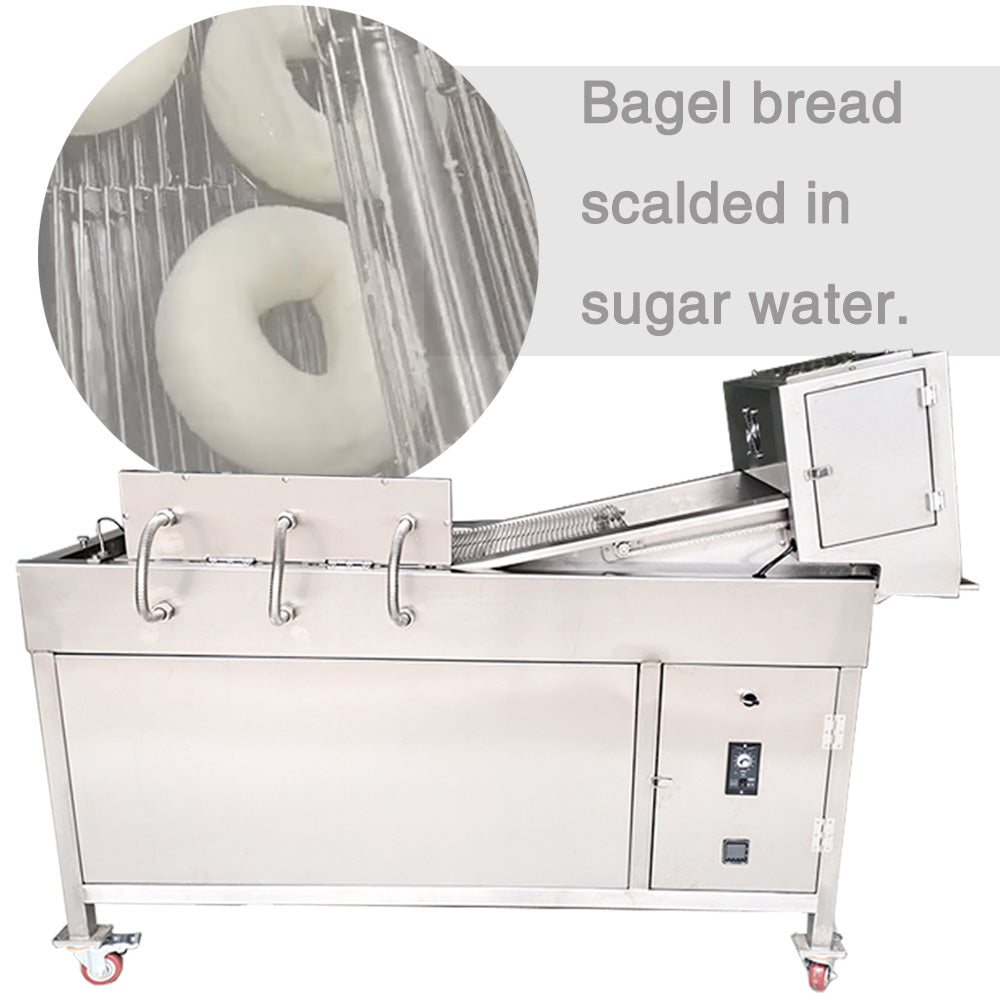

This machine handles the wet stage of bagel and dough production on a single continuous chain: it scalds product in boiling water, runs it through an alkaline (lye) or sugar bath, and can also fry in oil — the three steps most craft and mid-volume bakeries do by hand. Three heating pipes bring the water up fast and hold it, so a busy line keeps a steady 2,000–3,000 pieces per hour without stalling between batches.

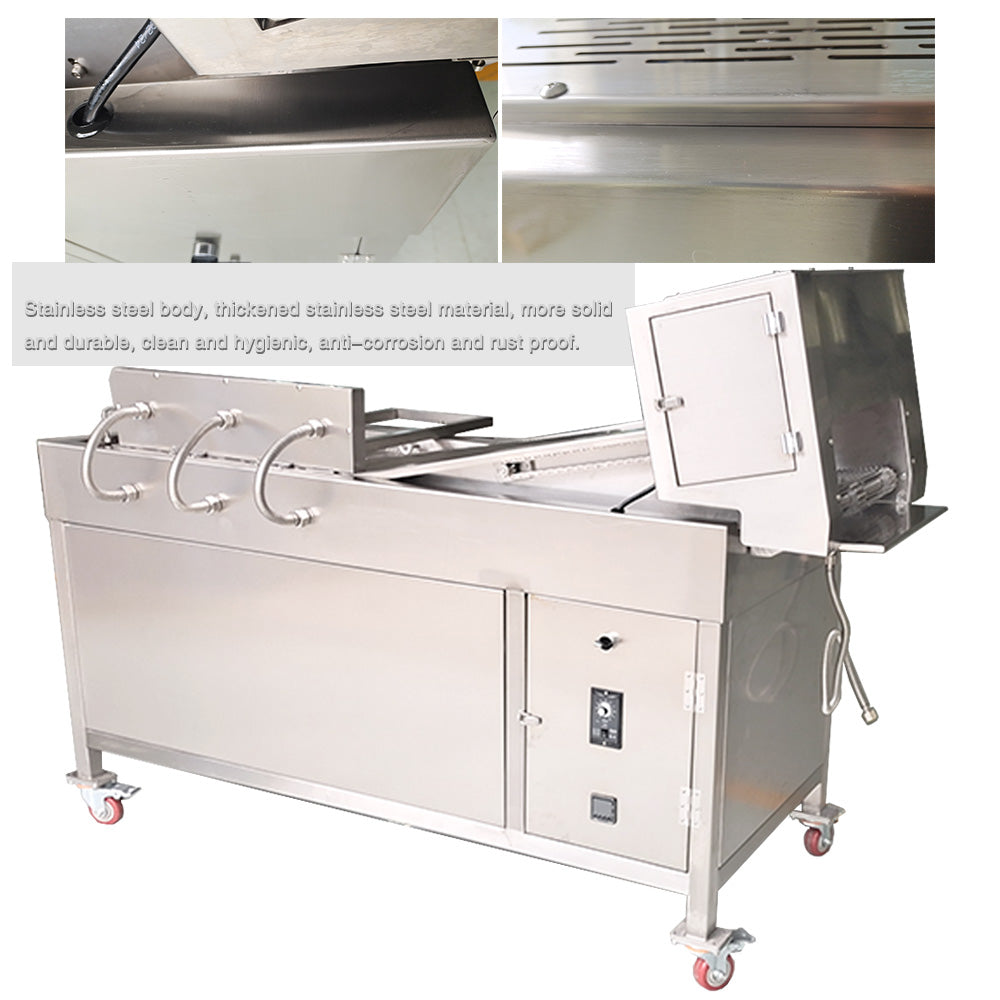

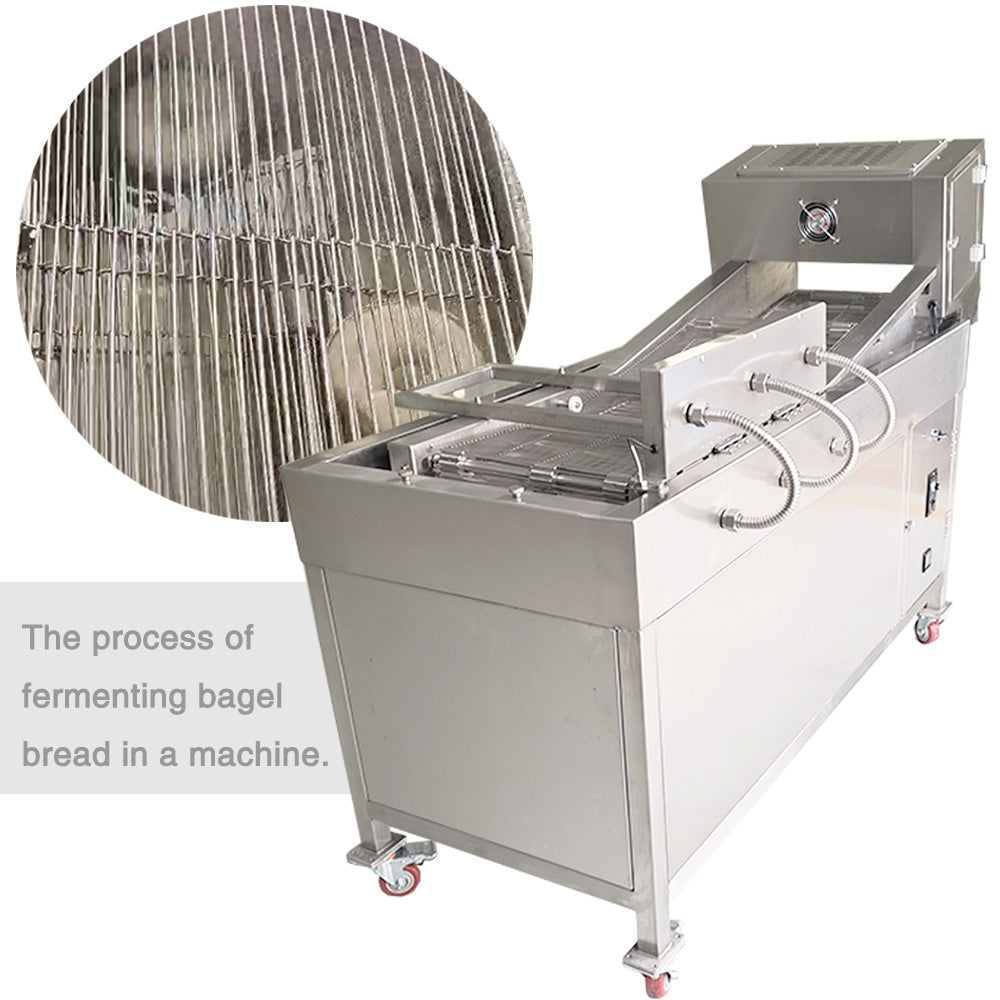

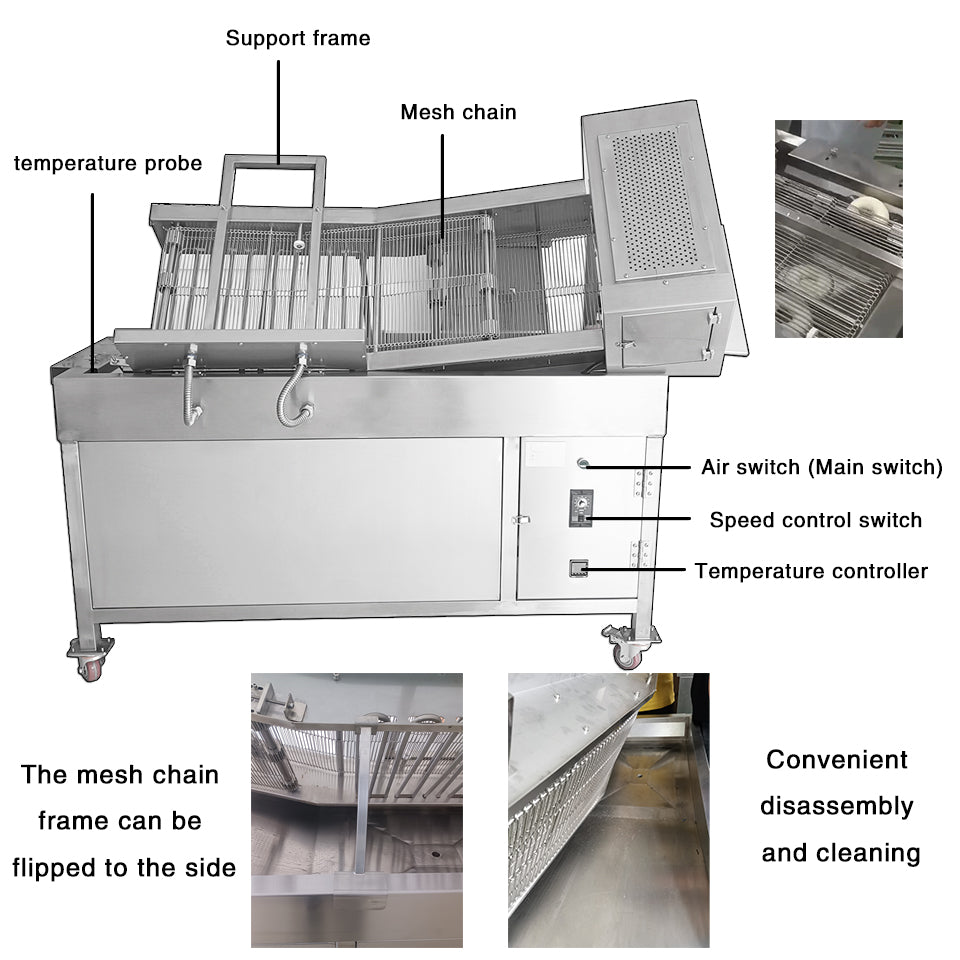

The conveyor net-chain lifts on a stay bar for cleaning, and the 304 food-grade stainless body resists corrosion and wipes down between runs. Temperature and water depth are visible at a glance, and the switch panel controls both chain speed and temperature, so an operator can dial in a stable water or oil temperature and leave it. The chain length and configuration are customizable to fit your throughput and product size.
Boil, alkaline/sugar bath, or oil-fry on one chain conveyor
Three heating pipes for fast, stable water temperature

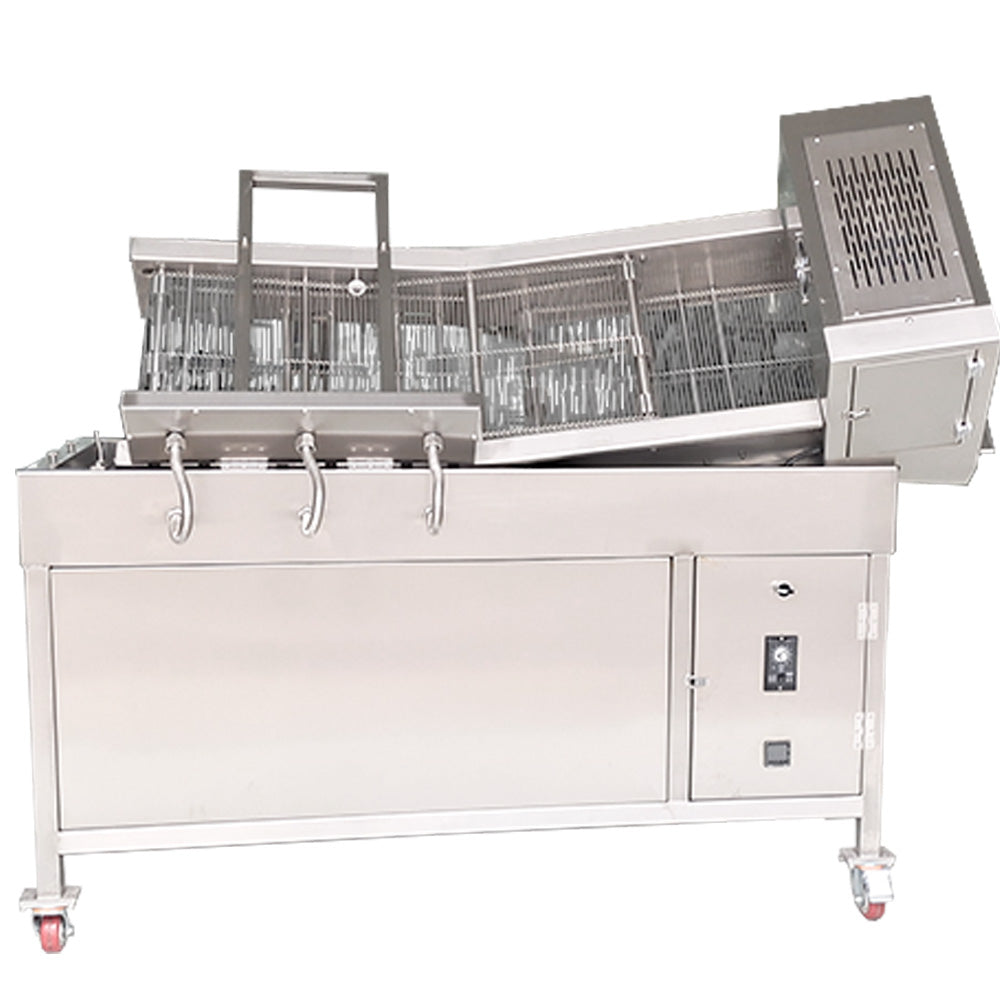

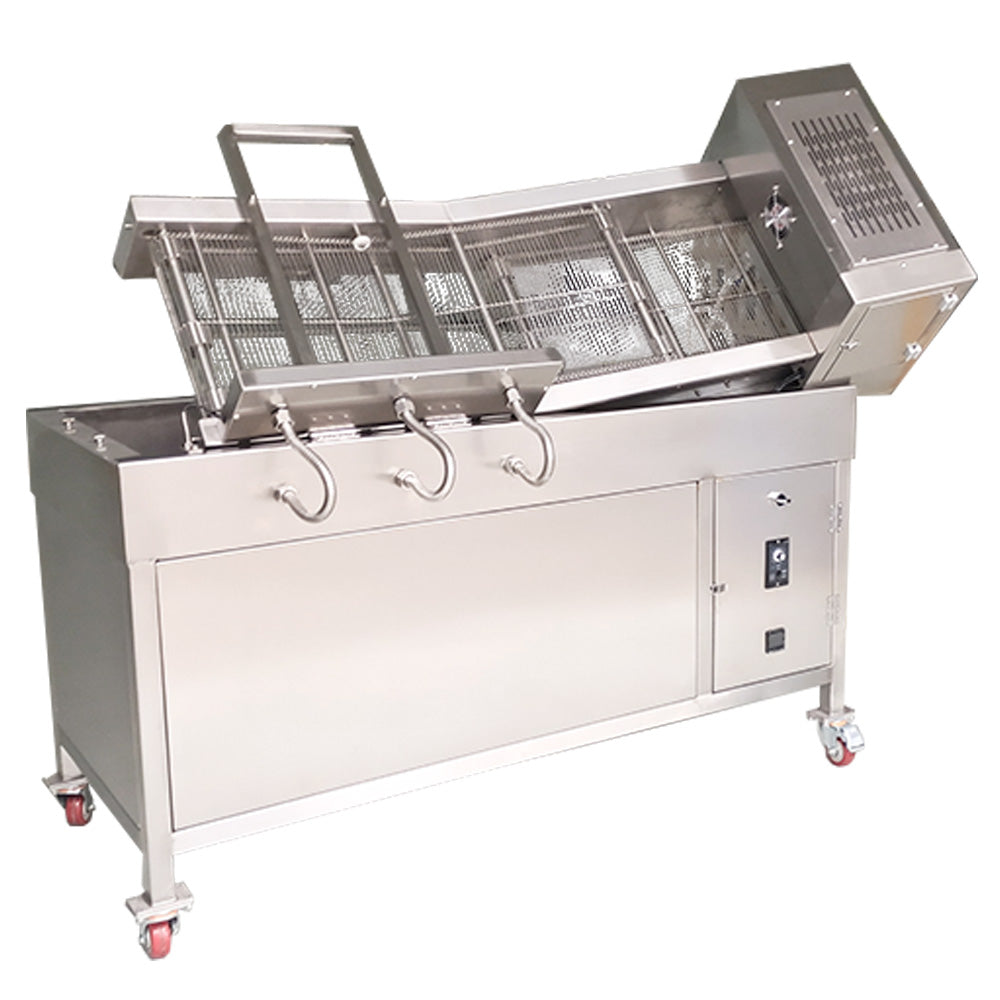

Lift-out net-chain on a stay bar for easy cleaning
380 V, 16 kW electric heat; 2,000–3,000 pieces/hour
Specifications
Material
304 food-grade stainless steel
Dimensions (L × W × H)
930 × 1580 × 1190 mm
Weight
95.0 kg
Power
16000 W
Voltage
380V
Warranty
1 year
Customization
Customizable chain length and configuration; OEM/ODM available
Heat source
Electric
Throughput
2000-3000 pieces/hour
Function
Boiling, alkaline/sugar bath, oil frying
Application
Bagel and dough production
Frequently asked questions
Can one machine do the boil and the lye bath, or is that two passes?
All three wet steps run on the one continuous chain — scalding in boiling water, an alkaline (lye) or sugar bath, and oil frying. Set the tank for the process you need and the chain carries product straight through.
Will it hold 3,000 pieces an hour without dropping temperature between batches?
Three heating pipes bring the water back up fast and hold it, which is what keeps a line at a steady 2,000–3,000 pieces per hour instead of stalling between batches. Actual figures depend on product size and your wet-stage settings.
What electrical supply do I need to have ready before delivery?
380 V with 16 kW of electric heat, so the bakery needs a three-phase supply sized for that load in place at the install position before the machine arrives.
How far does the customisation go?
Chain length and configuration are both built to order, so the dwell time and chain width can be matched to your throughput and product size. OEM and ODM builds are available.
How do you get into the tank at the end of a run?

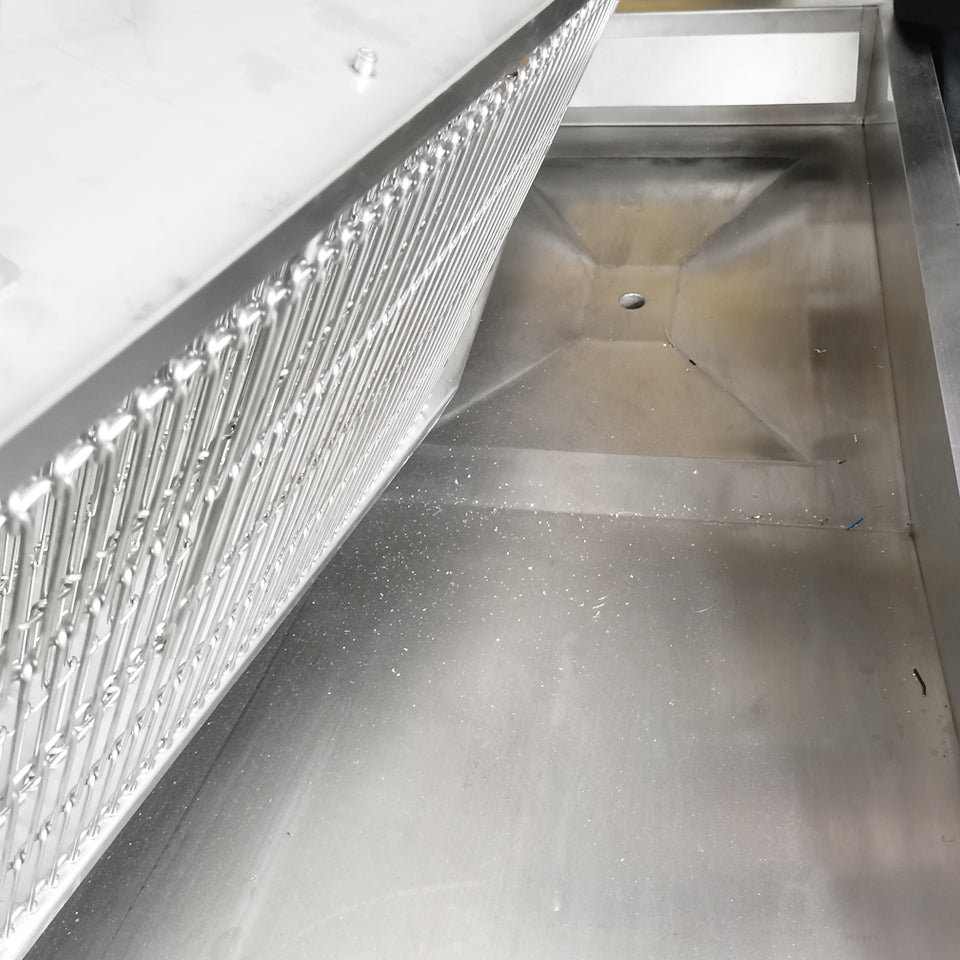

Lift the net-chain conveyor and prop it on the stay bar — that opens up the tank underneath for access. The 304 food-grade stainless body wipes down and resists corrosion between runs.
What footprint should I allow, and what comes with the machine?
1580 mm wide by 930 mm deep and 1190 mm high, plus room to swing the chain up on its stay bar. It ships tested and adjusted with a setup video and instructions, under a 1 year warranty.
