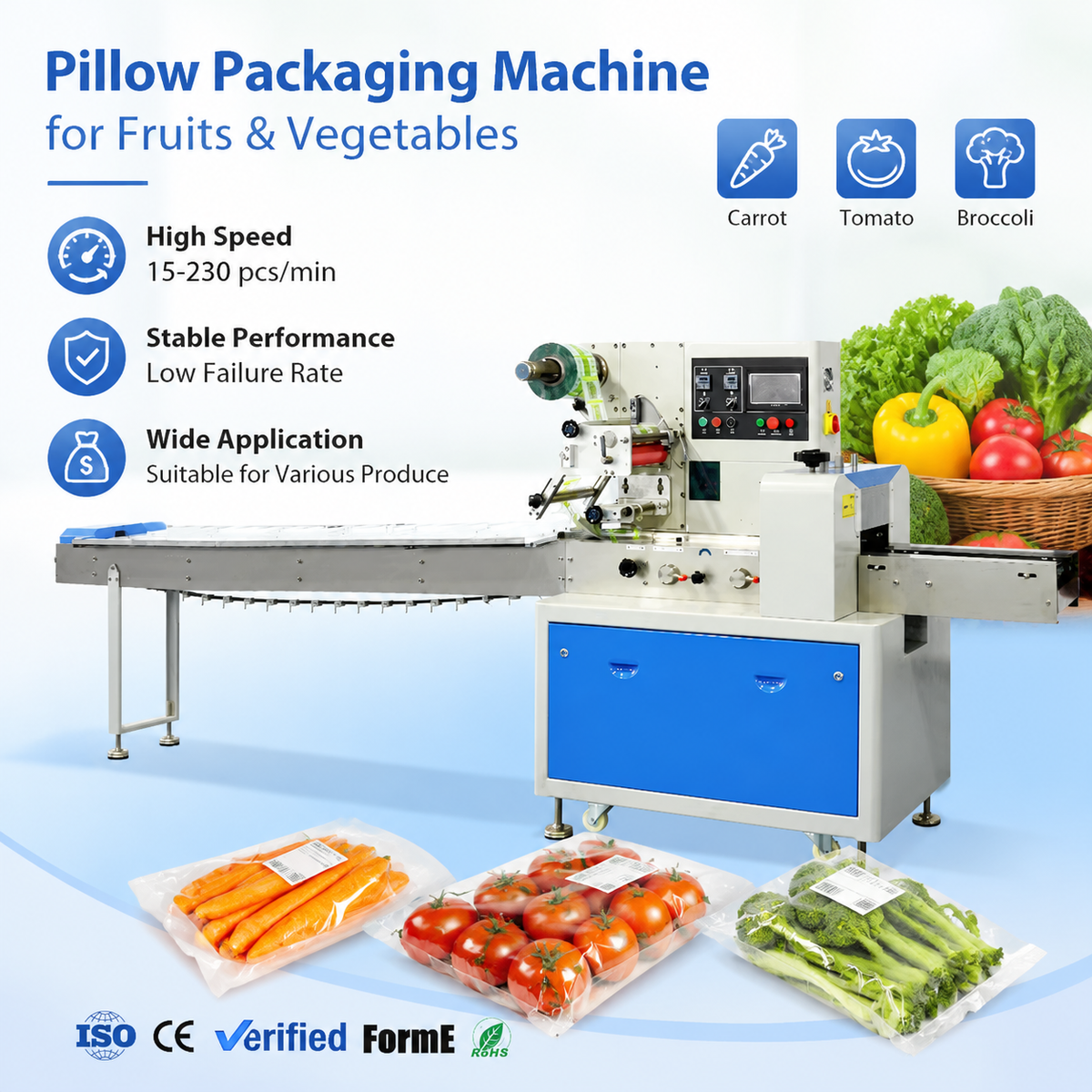

Automatic Pillow-Pack Flow Wrapping Machine

Continuous horizontal flow wrapper that seals food and hardware in pillow bags at up to 230 bags per minute.

From$ 4 500 $ 4 995 9% discount
Custom order
Made to order to your spec — you choose the size and configuration.

A pillow-pack flow wrapping machine automates the whole horizontal wrapping cycle — filling, folding film into a pillow bag, sealing and counting — so a production line packs consistent, tamper-evident units without manual handling. It suits food producers, co-packers and hardware or consumer-goods lines that need repeatable back-seal or gusset bags at volume.

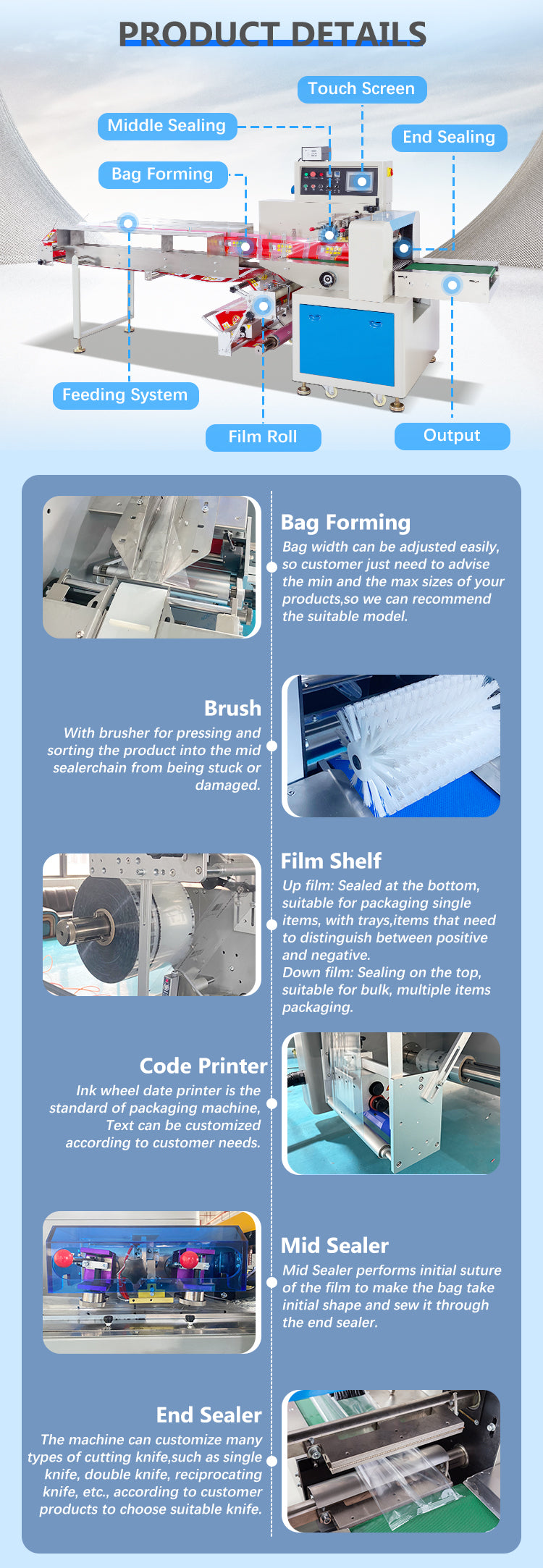

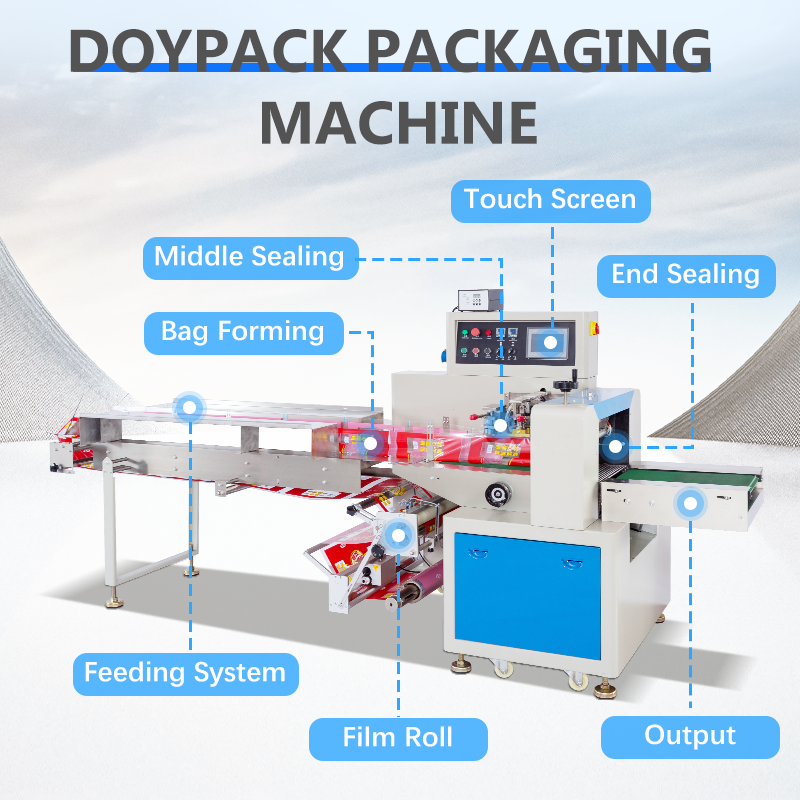

The machine builds a pillow bag from roll film and closes it with adjustable heat sealing, running continuously via a roller rotation mechanism. Throughput spans 20–230 bags per minute depending on the configuration, and it handles powder, paste, granule and liquid fills across a bag width of 50–150 mm.

  • 304 or 316 stainless steel construction for food-contact hygiene and washdown durability
  • PLC control with adjustable seal temperature and motor speed for different products
  • 220 V single-phase supply; models draw 2.4–3 kW
  • Remote monitoring and low-noise operation for staffed production floors

CE and ISO certified, the machine ships with field installation, commissioning, operator training and online technical support. Contact us to confirm the model and bag size that match your product and target speed.

Specifications

Material
304 stainless steel, 316 stainless steel
Weight
300.0 kg
Voltage
220 V single-phase, 50/60 Hz
Warranty
1 Year
Certifications
CE ISO
Customization
Bag size and fill type configurable to product
Function
Filling, wrapping, sealing, counting
Bag type
Pillow bag (back seal / gusset)
Fill material
Powder, paste, granule, liquid
Packing speed
20-230 bags/min
Bag width
50-150 mm
Bag length
65-190 / 120-180 mm
Power
2.4-3 kW
Automatic grade
Fully automatic
Drive type
Electric
Core components
Motor, pump, PLC, gear, bearing, gearbox

Frequently asked questions

What products can this pillow-pack machine wrap?

It forms and seals pillow bags around a wide range of items — food such as fruit, vegetables and snacks, plus daily necessities, disposable items, hardware, plastics, toys, stationery and industrial or automotive parts. It also fills powder, paste, granule and liquid products.

How fast does the flow wrapper run?

Packing speed ranges from 20 to 230 bags per minute depending on the model and product. Contact us to confirm the throughput of the configuration that fits your line.

What bag sizes does the machine handle?

It produces pillow bags with a width of 50-150 mm and a length in the 65-190 / 120-180 mm range. Bag dimensions are set to your product, so share your item size for an exact match.

What power supply does it need?

The machine runs on 220 V single-phase power at 50/60 Hz. Depending on the model, it draws between 2.4 and 3 kW.

Is the machine certified and food-safe?

Yes. It carries CE and ISO certification and is built from 304 or 316 stainless steel for food-contact hygiene and easy cleaning.

What after-sales support is included?

The machine is backed by a 1-year manufacturer warranty and comes with field installation, commissioning, operator training, video technical support and online support.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
