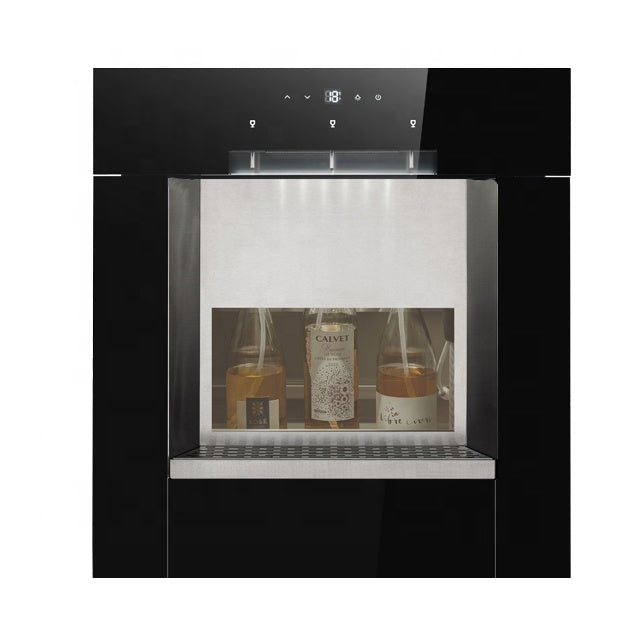

Black built-in bottle cooler with touch panel and three wine bottles visible in dispensing window

Built-In Wine Bottle Cooler & Dispenser — 40L Single-Zone

Name: Built-In Wine Bottle Cooler & Dispenser — 40L Single-Zone
Brand: BarEquip.Pro
SKU: BEP-0334-14
Price: 44750.0 THB
Availability: BackOrder

A built-in single-zone wine cooler with a compressor system and drawer-style glass door that holds bottles at a steady 5–22°C.

44,750.00 ฿

Shipping calculated separately

Lead time: 2–4 weeks

This built-in wine cooler keeps bottles at serving temperature in a compact 40L cabinet designed to slot under a counter or into cabinetry. A compressor with fan-assisted cooling holds the interior at a set point anywhere from 5°C to 22°C, so a venue can dial in white, red, or sparkling storage on the same unit and hold it there through a busy service.

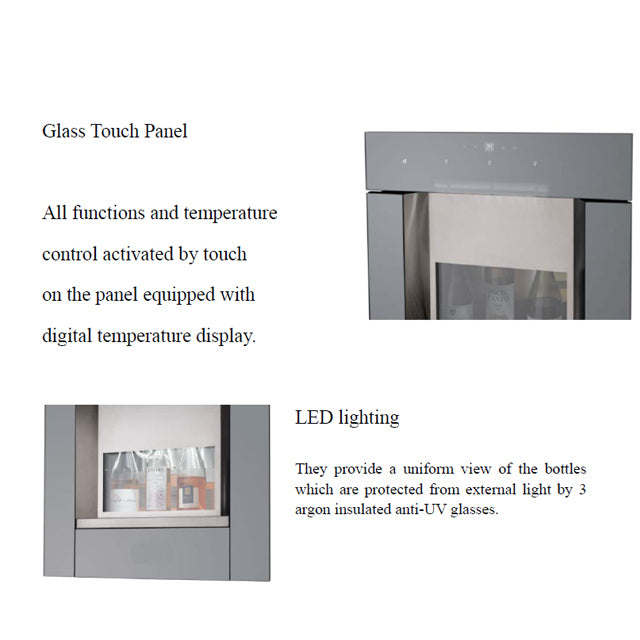

The drawer-type door pulls bottles toward the user instead of swinging out, which suits tight bar backs and prep lines where clearance is short. An adjustable thermostat, insulated glass door, and interior LED light make stock easy to read and manage, and the unit runs on the R600a refrigerant common to modern wine storage.

40L single-zone capacity with a 5–22°C range for whites, reds, or sparkling
Compressor fan cooling with an adjustable thermostat for a constant hold

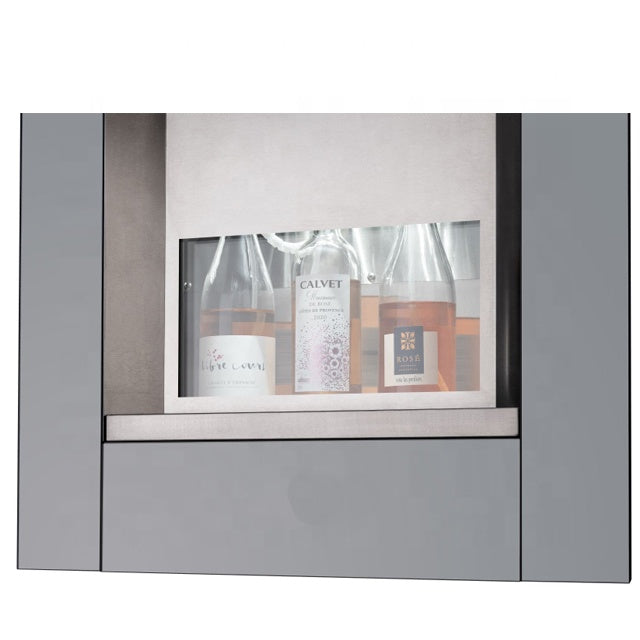

Insulated glass drawer door with a safety lock and interior LED lighting
Built-in footprint (395 × 597 × 637 mm) for undercounter or cabinetry installation
Certified to CB, CE, GS, and RoHS

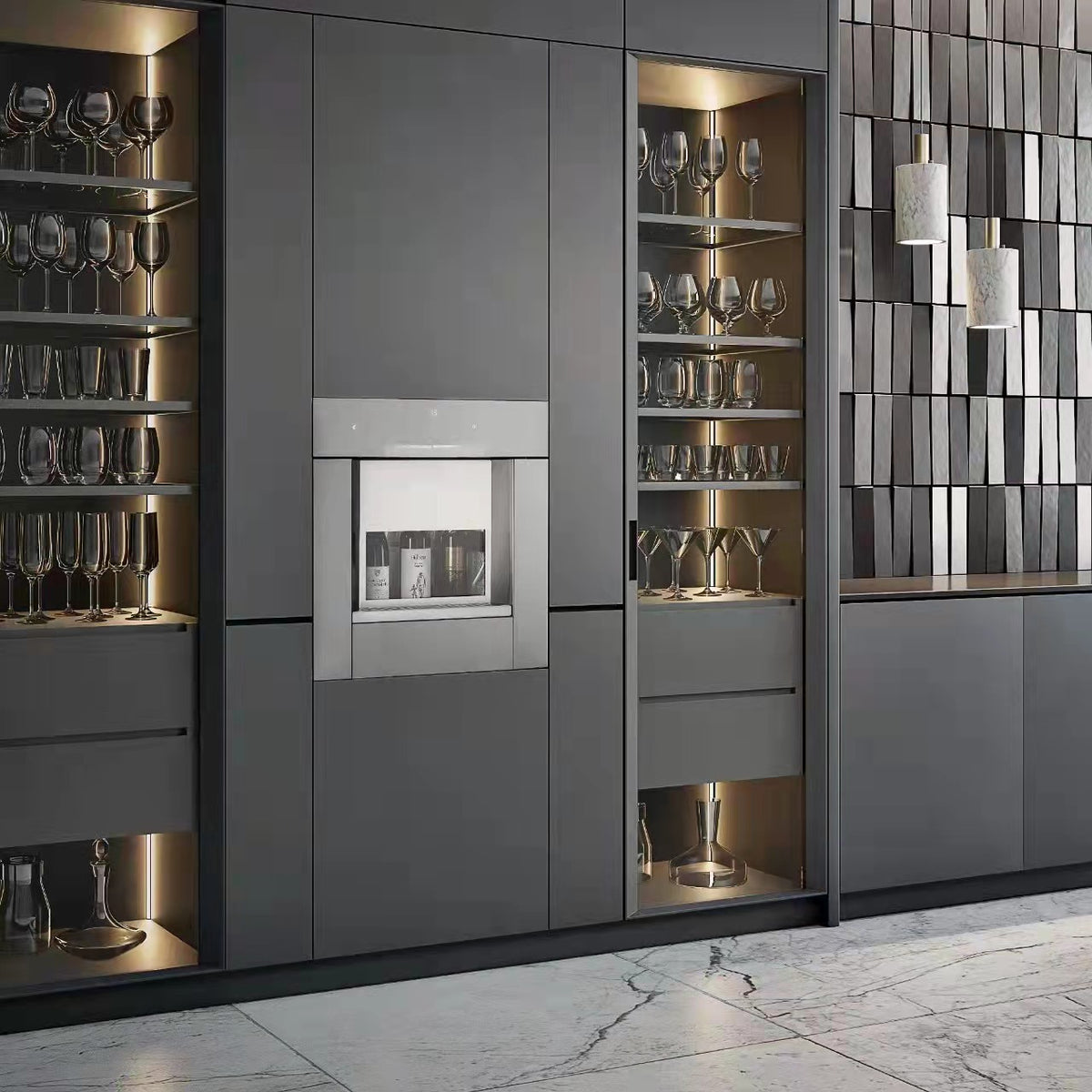

At home, this built-in wine cooler fits into a kitchen island or bar cabinet and keeps a working collection ready to pour. The single zone adjusts from 5°C to 22°C, so you can set it for chilled whites or cellar-temperature reds, and the insulated glass door with LED light lets you check the shelf without opening it. A safety lock keeps the contents secure, which is useful in a family kitchen or a shared entertaining space.

Specifications

Material: Glass
Capacity: 40000 ml
Dimensions (L × W × H): 395 × 597 × 637 mm
Power: 60 W
Voltage: 220-240V/50Hz, 110-120V/60Hz
Warranty: 1 Year
Certifications: CB, ce, GS, RoHS
Refrigeration type: Compressor Refrigerator
Cooling system: Compressor Fan Cooling
Temperature zone: Single-Zone
Temperature range: 5-22 °C
Temperature control: Adjustable Thermostat
Refrigerant: R600a
Door opening: Drawer type
Feature: Insulated glass door, safety lock, LED light, constant temperature
App-controlled: Yes
Function: Wine fresh
Operating language: English, German, French, Dutch, Spanish

Frequently asked questions

Can one single-zone cabinet handle both whites and reds?

Only one at a time. The thermostat sets a single hold anywhere from 5°C to 22°C, so pick the set point for the wine you pour most and run a second cabinet if you need two serving temperatures side by side.

What opening does the cabinet need for undercounter installation?

Build the aperture around 395 mm deep, 597 mm wide and 637 mm high. The drawer-type door slides bottles toward you rather than swinging out, so no side clearance is needed in front of a tight bar back.

What do I need to specify when ordering?

Nominate voltage and plug type: 110-120V/60Hz or 220-240V/50Hz, with US, UK, EU, AU or KC plugs. The interface language is also set from English, German, French, Dutch or Spanish.

How much power does it draw in service?

60W, from a compressor with fan-assisted cooling running R600a refrigerant. That load is low enough to sit on a shared bar-back circuit alongside other undercounter equipment.

What else is on the cabinet besides the cooling?

An insulated glass drawer front with a safety lock, interior LED lighting to read stock without opening up, and app control over the set point on top of the onboard thermostat.

What certifications and warranty does it carry?

Certification covers CB, CE, GS and RoHS, and the cabinet comes with a 1 Year warranty.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
