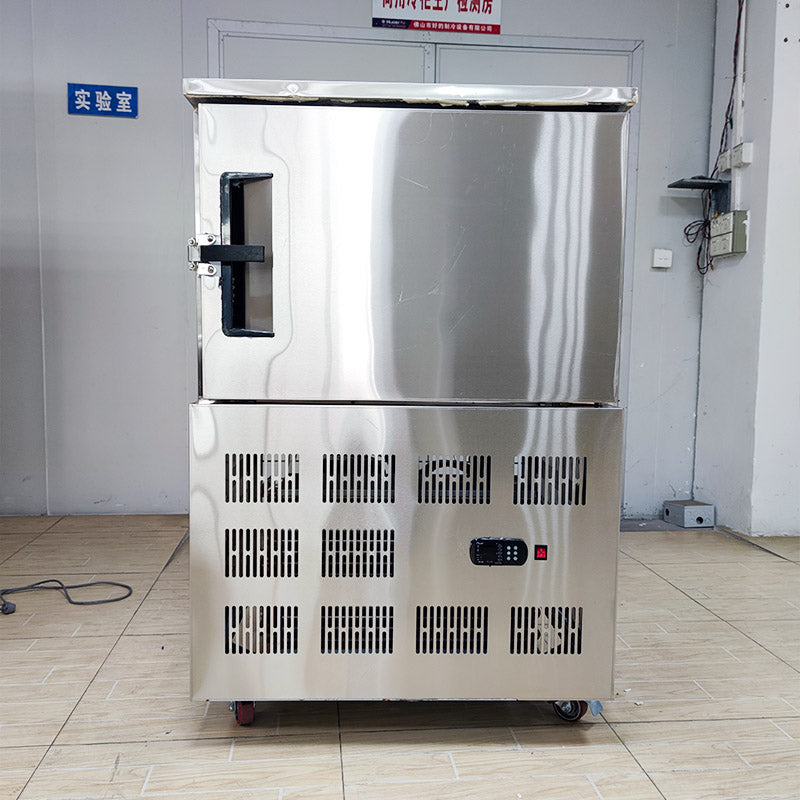

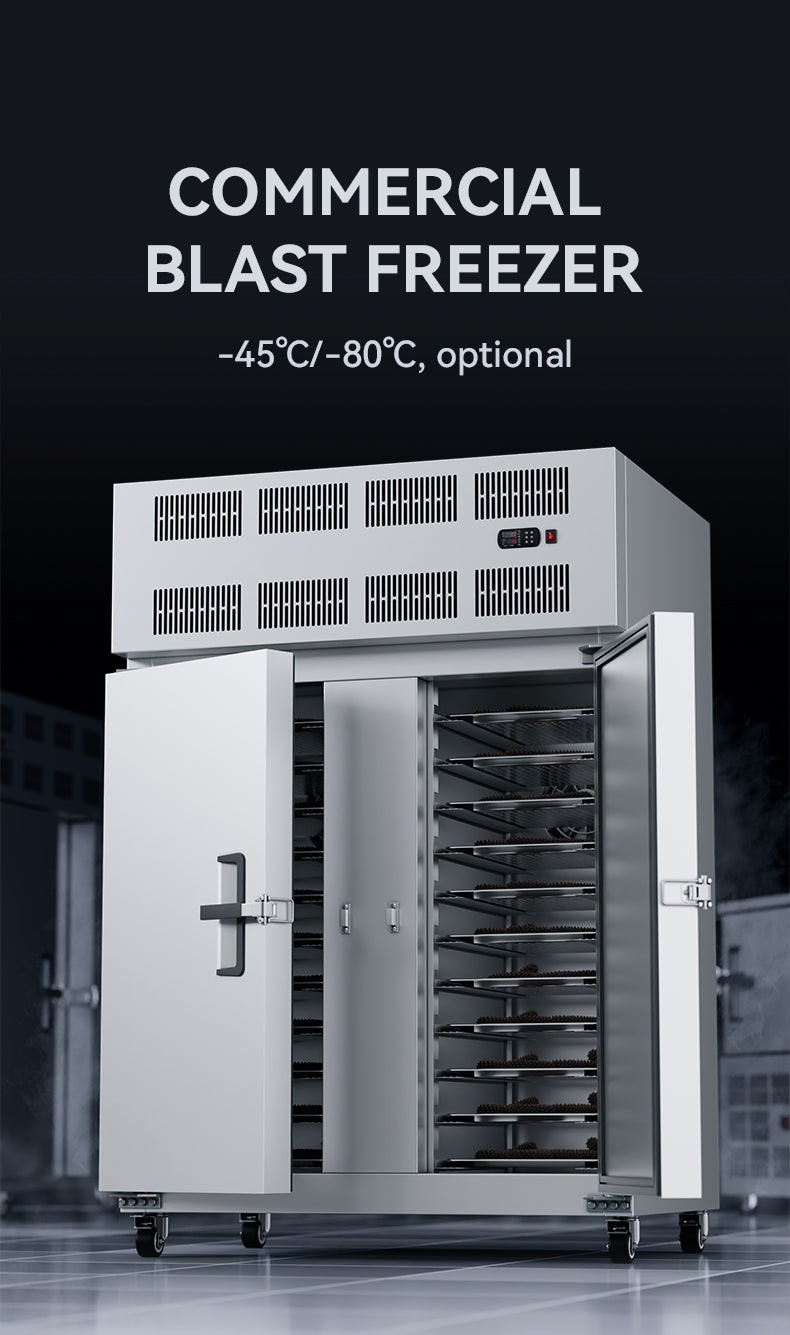

A stainless steel plate blast freezer that pulls gelato, ice cream and prepped food down to -45°C fast, locking in texture and safety.
From76,332.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.
A blast freezer is the piece that turns fresh gelato, ice cream and cooked food into shelf-stable stock without the ice crystals a domestic freezer leaves behind. This unit drives product temperature down to -45°C (-49°F) so water freezes in tiny crystals — the difference between a smooth scoop and a grainy one, and between safe holding and spoilage. It suits gelaterias, restaurants, farm shops and food producers that batch-freeze on a schedule.

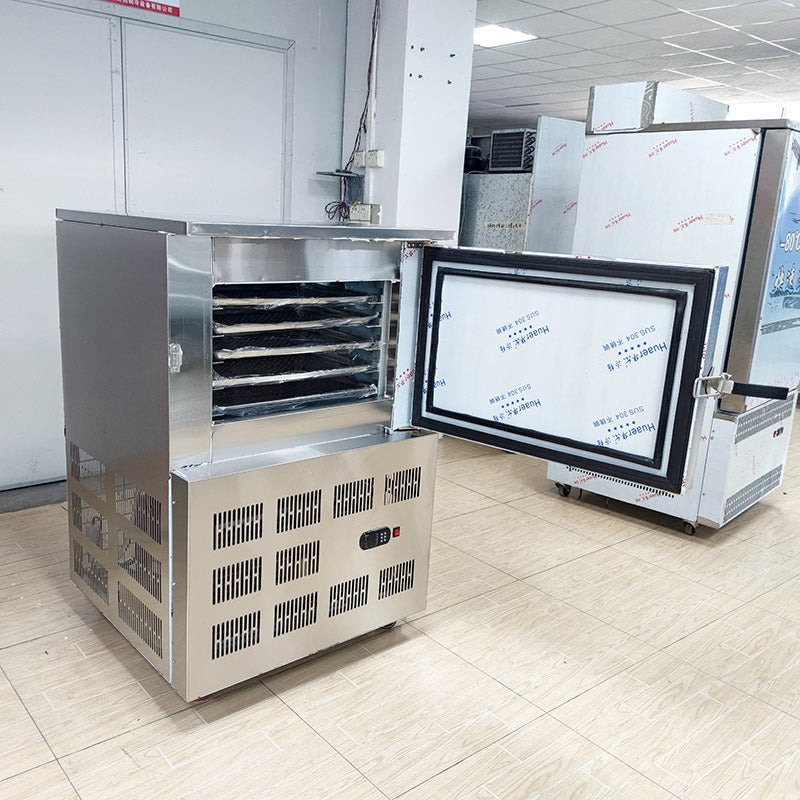

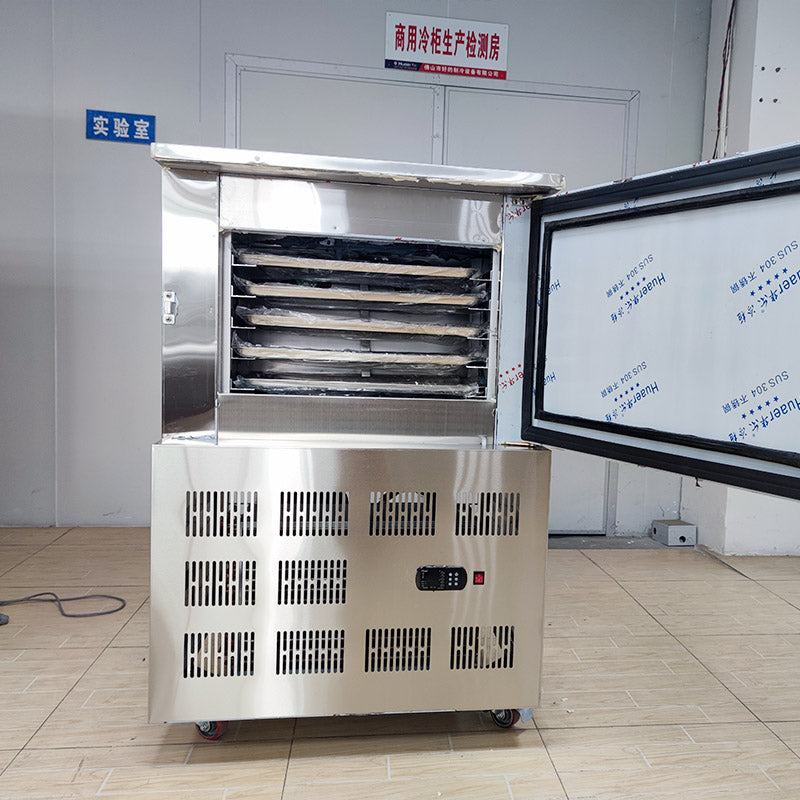

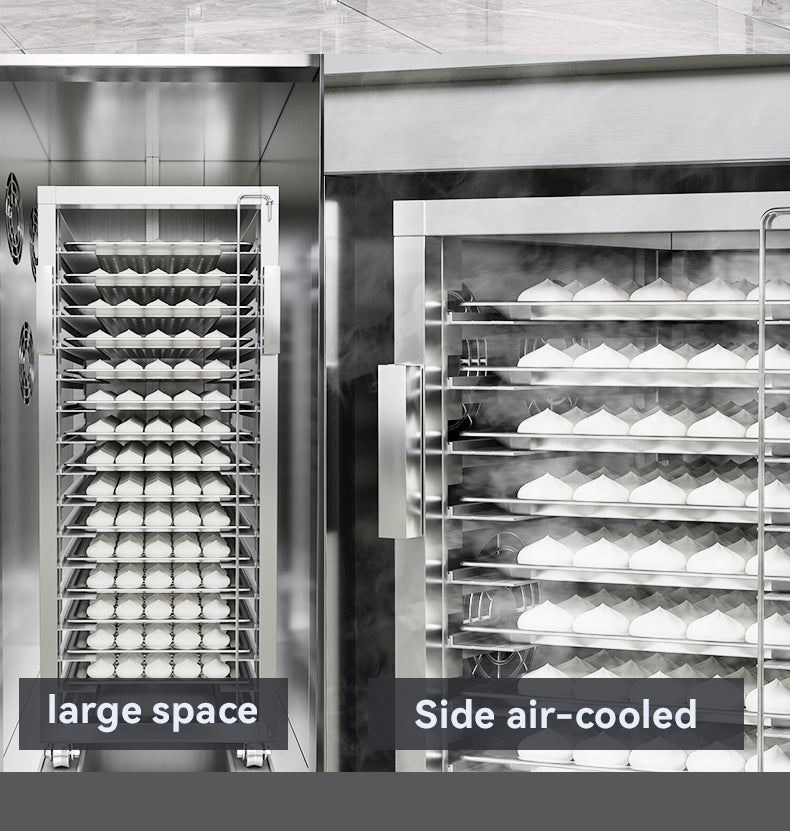

The cabinet is built from 304/201 stainless steel and runs on air cooling with a Tecumseh compressor and R404a refrigerant. Trays measure 400×600×25 mm — standard GN-friendly pans — and the family scales from a 5-tray, 150 L undercounter unit up to a 30-tray, 1000 L floor cabinet, so you can match throughput to output.

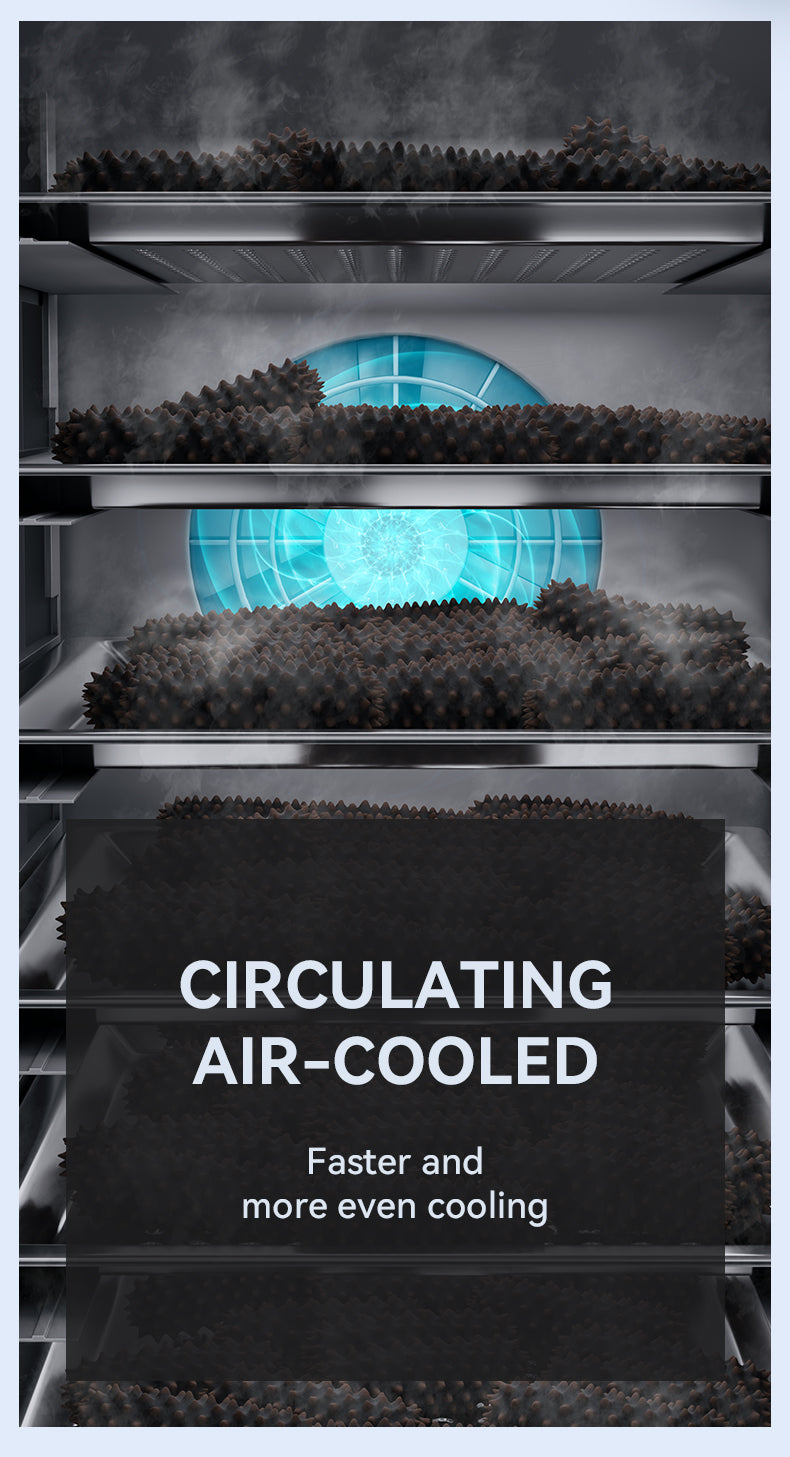

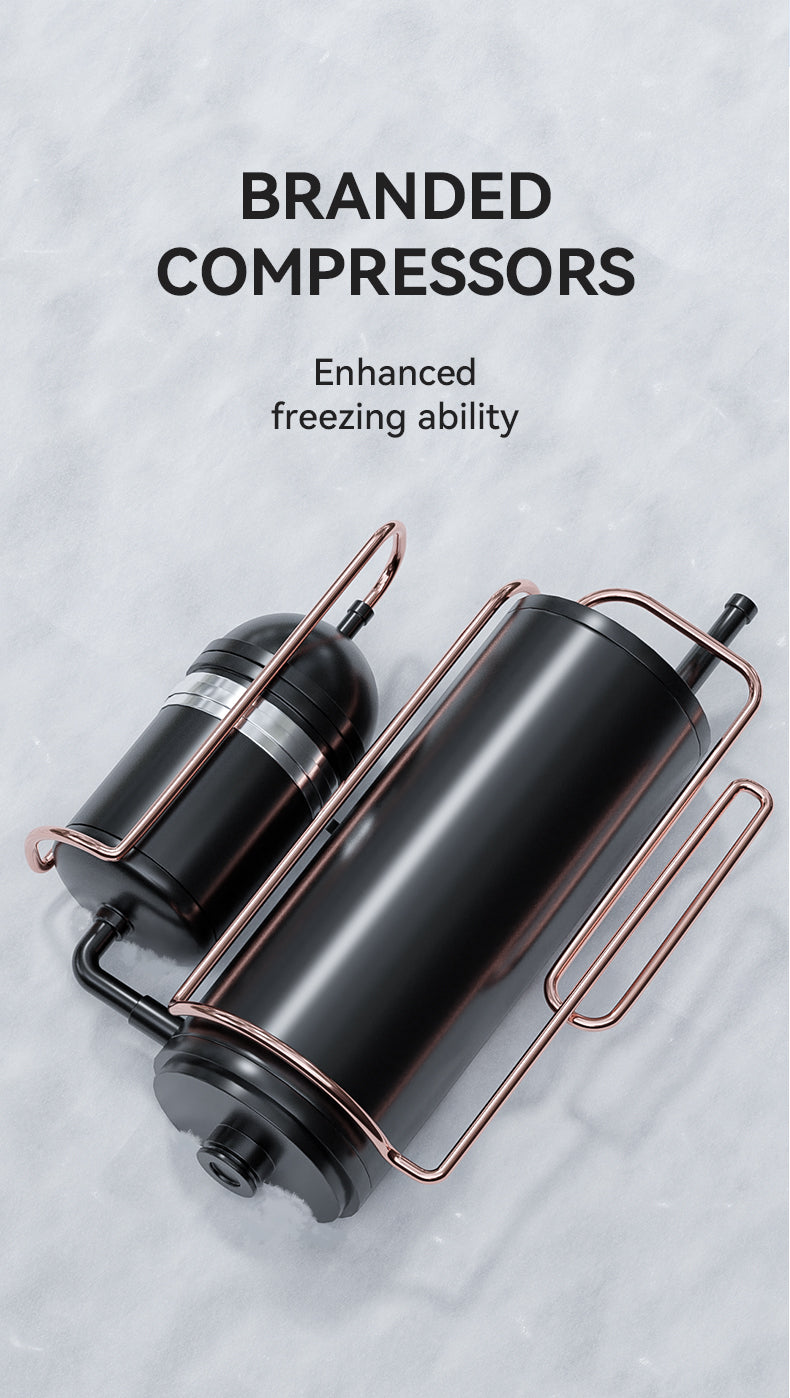

Air-cooling system with a Tecumseh compressor on R404a
-45°C (-49°F) blast pull-down for gelato, ice cream and cooked food

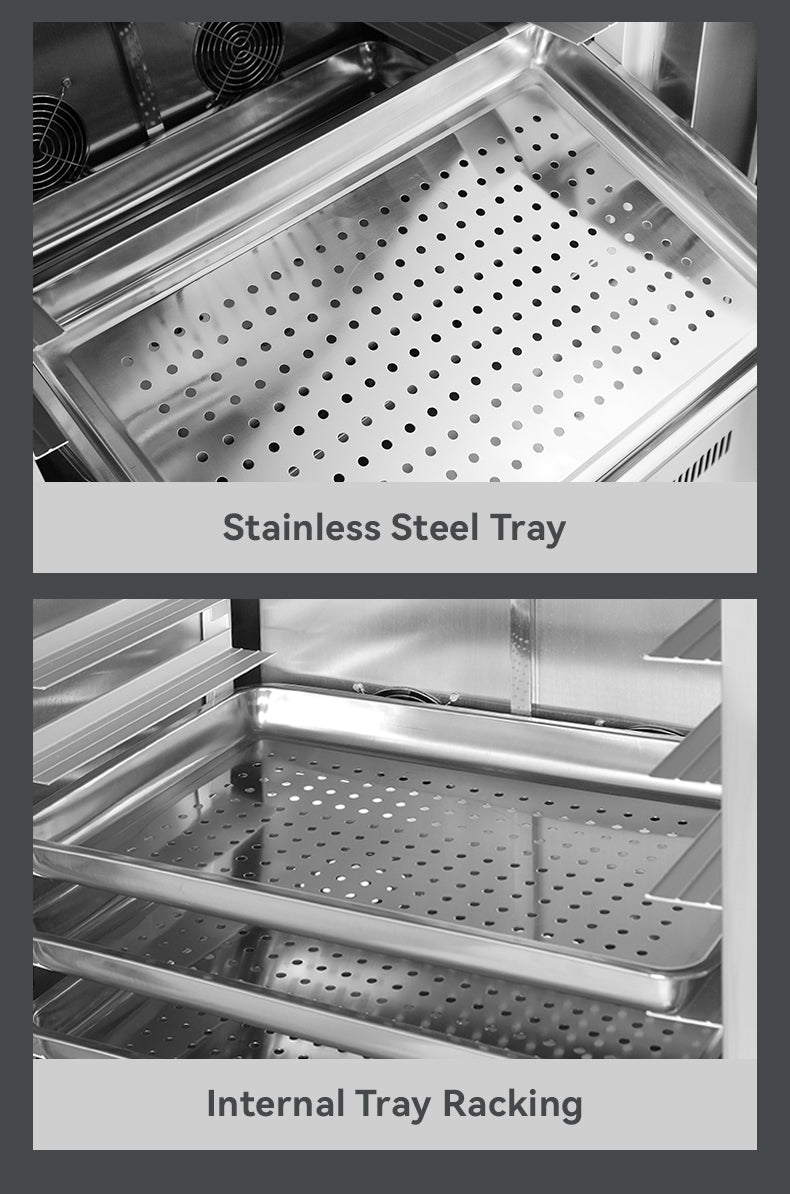

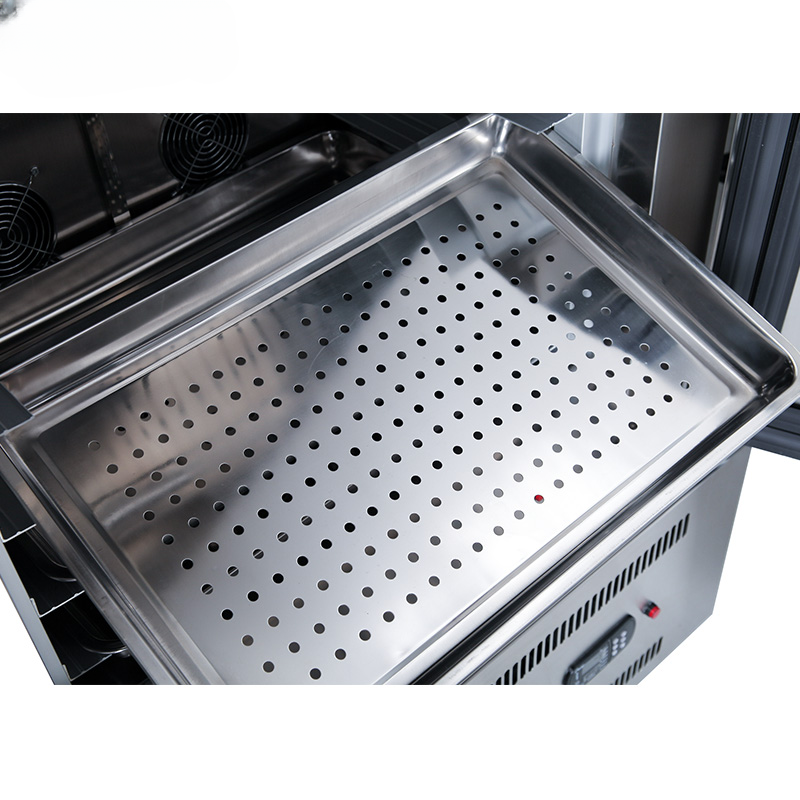

400×600×25 mm trays, from 5 to 30 pans depending on model
304/201 stainless steel body, CCC certified
Specifications
Material
Stainless Steel 304/201
Capacity
150000 ml
Dimensions (L × W × H)
850 × 880 × 1340 mm
Weight
90.0 kg
Power
1500 W
Voltage
220V
Warranty
1 Year
Certifications
CCC
Customization
OEM service available, including logo printing
Type
Plate freezer
Cooling system
Air cooling
Compressor
Tecumseh
Refrigerant
R404a
Cooling temperature
-45°C (-49°F)
Trays
5 pans
Tray size
400×600×25 mm
Application
Gelato and ice cream blast freezing
Frequently asked questions
How cold does it pull product, and why does that matter for gelato?
Down to -45°C (-49°F). Driving water through the freezing point that fast keeps ice crystals tiny, which is the difference between a smooth scoop and a grainy one — a storage freezer sitting at -18°C only holds what is already frozen.
How do I size the cabinet to my batch output?

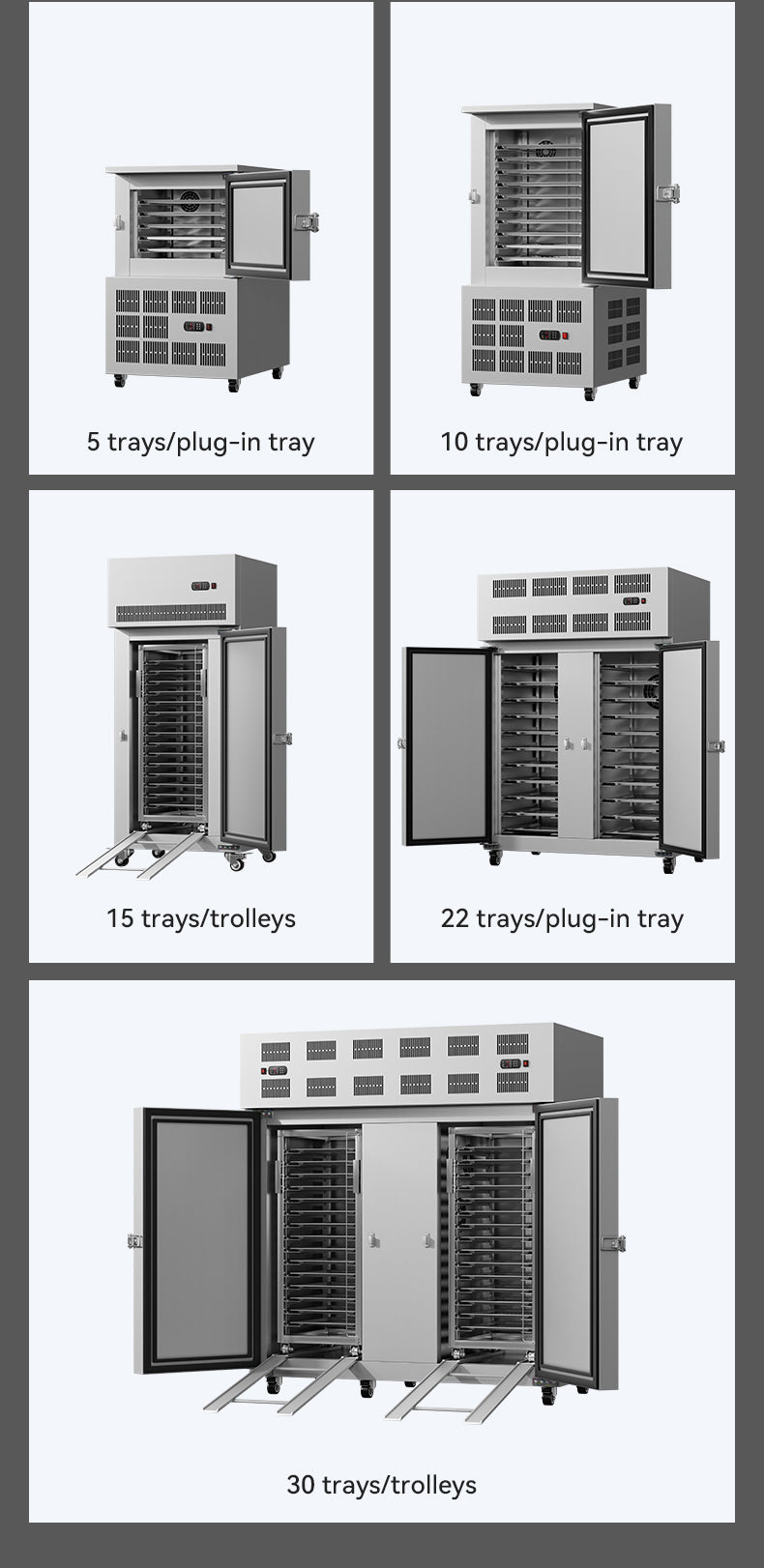

Count pans per batch: the range runs 5, 10, 15, 22 and 30 trays, from 150 L up to 1000 L, all on 400×600×25 mm GN-friendly pans. Specify the tray count that matches one full production run rather than your daily total.
What footprint does the 5-tray model need?

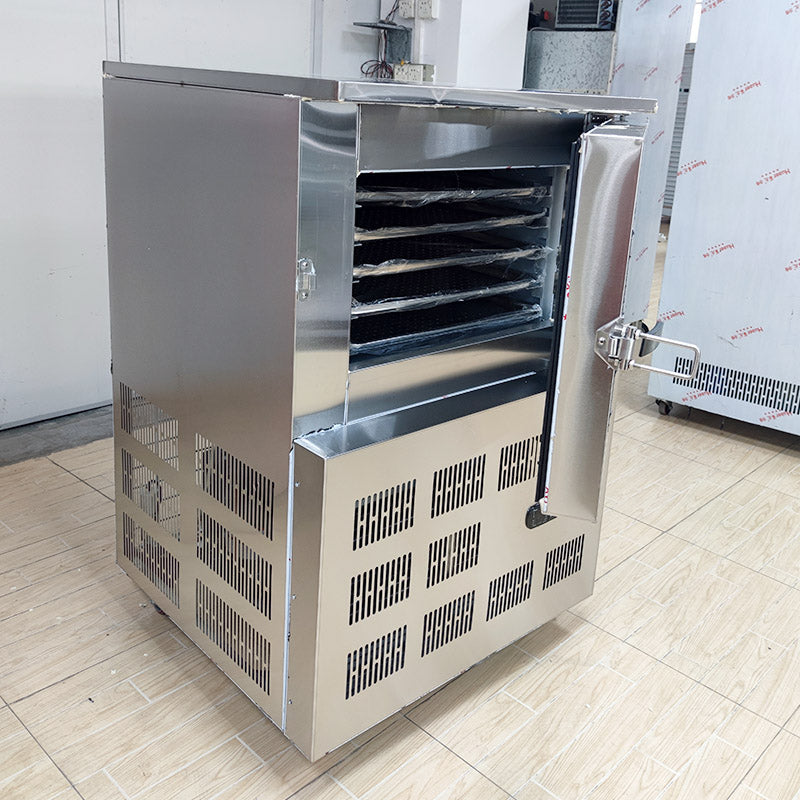

880 mm wide, 850 mm deep and 1340 mm high on the 150 L undercounter unit. Cooling is by air, so the cabinet needs airflow around it rather than a water connection.
What are the refrigeration internals and the power supply?
A Tecumseh compressor on R404a refrigerant, drawing 1500 W at 220 V. The body is 304/201 stainless steel and the unit carries CCC certification.
How far does customisation go?
OEM service is available, including logo printing on the cabinet. Send artwork with the order along with your chosen tray count.
What warranty comes with the freezer?
1 Year, covering the core components including the Tecumseh compressor.
