Commercial Coffee Vending Machine — 22" Touchscreen, 180–320 Cups

Fully automatic self-service coffee vending machine that brews espresso-based drinks in about 45 seconds, with a 22" touchscreen, cashless payment and cloud monitoring.

From167,569.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

MOQ: 3

How it works? Learn more

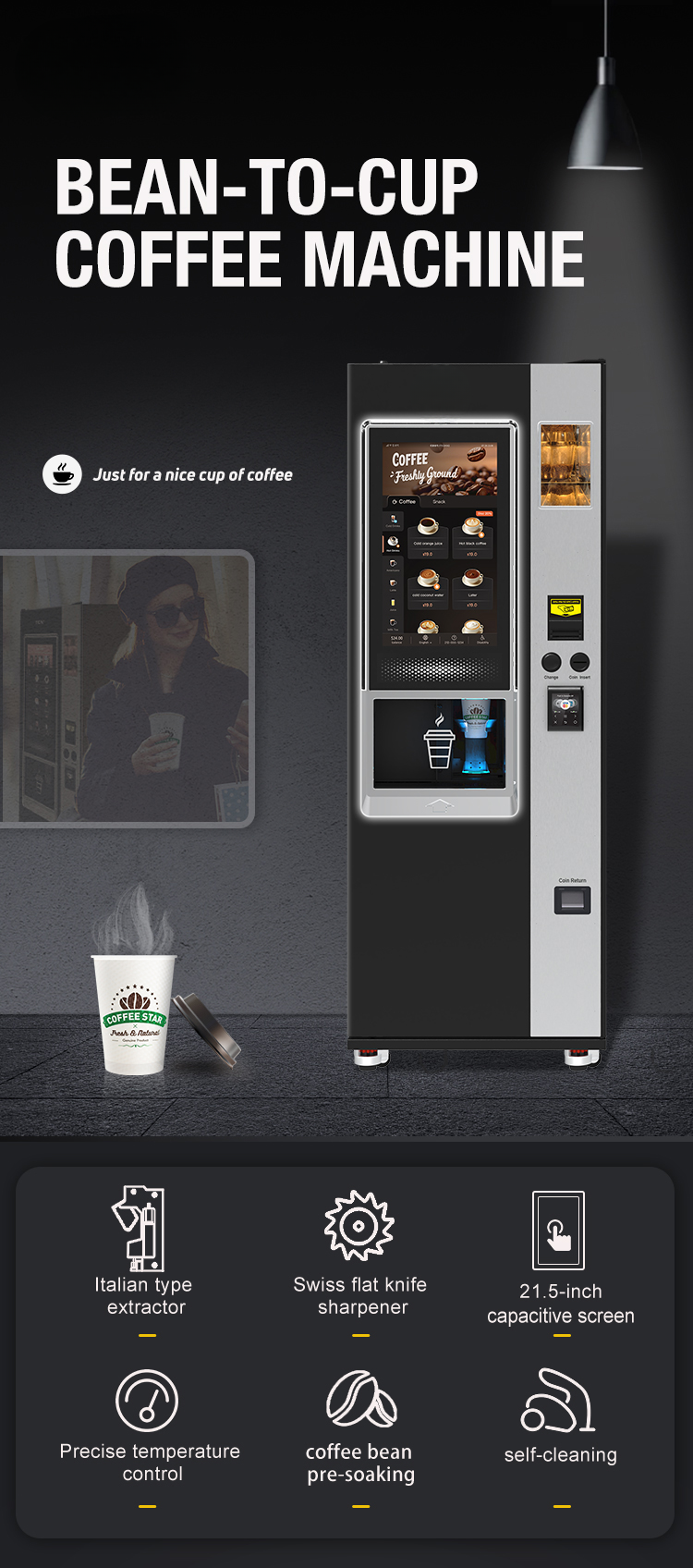

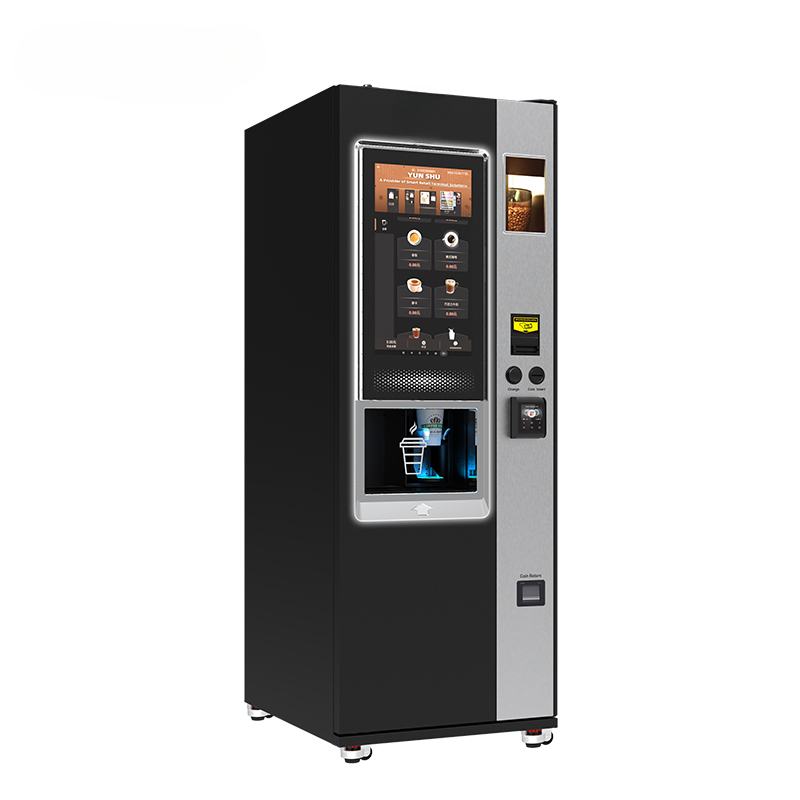

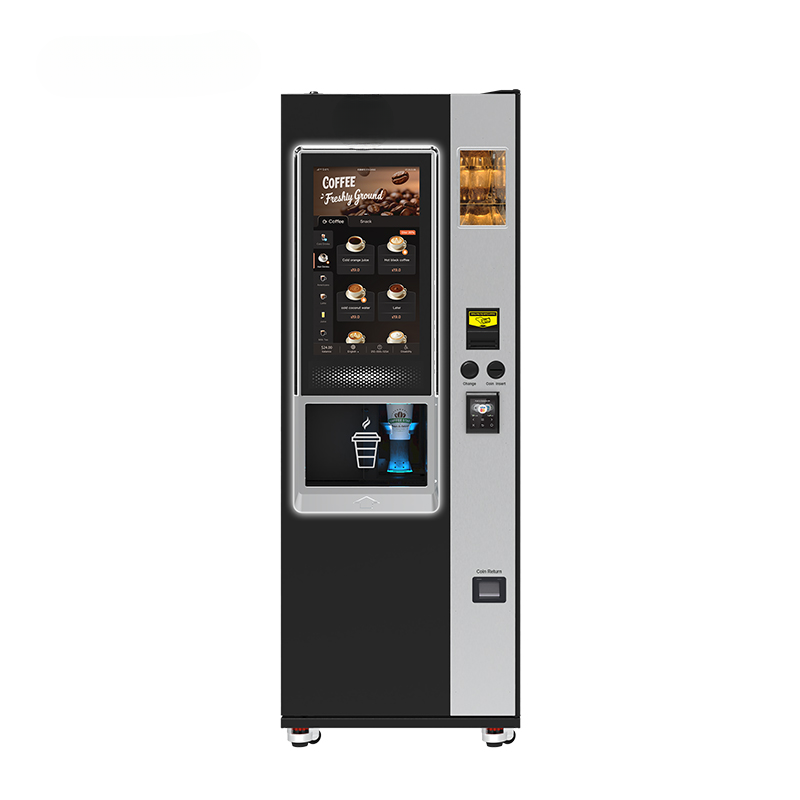

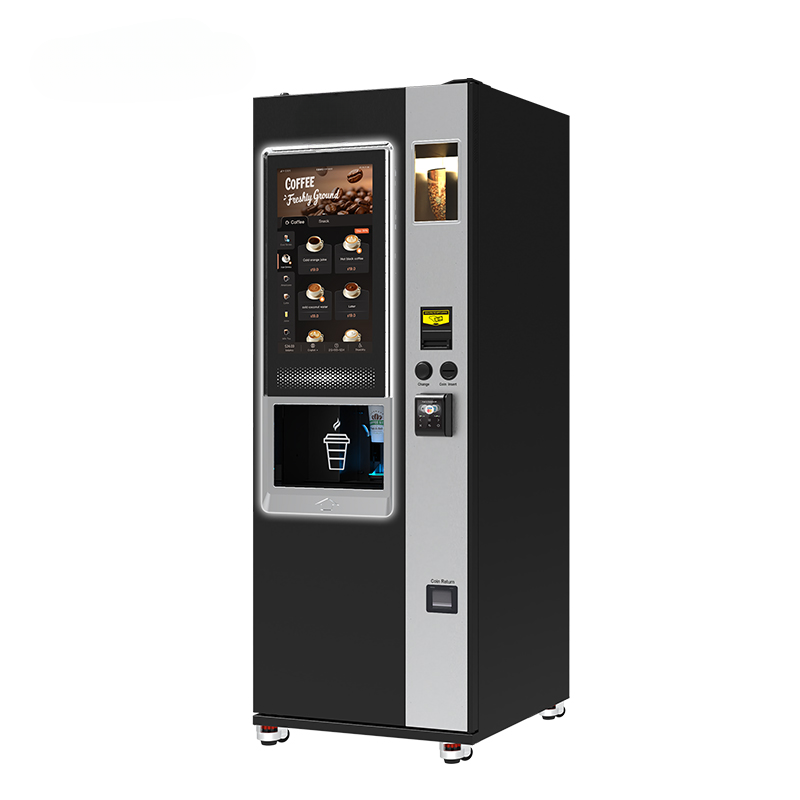

The coffee vending machine is a fully automatic, free-standing unit that turns an unattended corner into a working coffee point. It brews espresso-based drinks from a 1.5 kg bean hopper plus three instant canisters, serving a cup in about 45 seconds at 92–98 °C — fast enough for a morning queue in a mall, subway station, airport, hotel lobby, school or office floor. A single load covers 180–320 cups depending on configuration, so staff refill less often and the machine keeps earning between service visits.

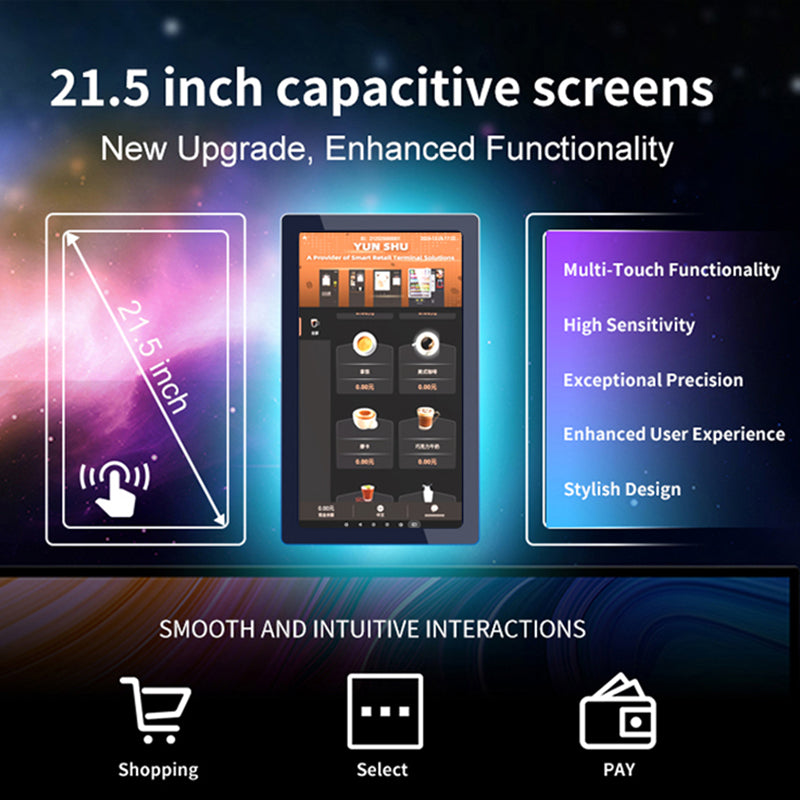

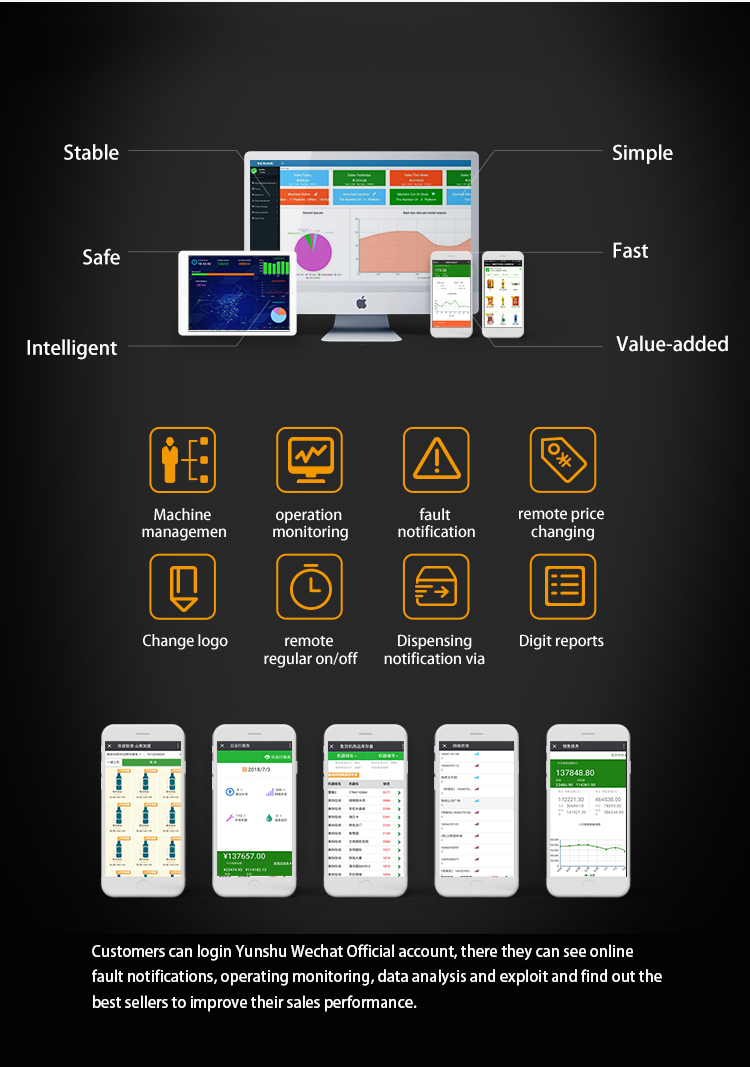

Guests order on a 22" HD touchscreen and pay the way they prefer. Payment hardware is selectable by variant — coin, banknote, credit card and contactless — and the machine returns coin change where that module is fitted. Operators manage the fleet from a cloud dashboard reachable by web and mobile app.

  • Sales figures and takings per machine
  • Ingredient levels and low-stock alerts
  • Machine status, faults and remote configuration

The stainless-steel body resists daily cleaning and public wear, and water comes from the 20 L internal tank, direct plumbing or an optional external filter — so you can site it where there is a tap or where there is only a power socket. Cup sizes run from 6.5 to 12 oz, and the nameplate and graphics can be laser-carved and customized to your brand. Peak draw is 3200 W at 230 V (2000 W at 110 V), dropping below 100 W on standby.

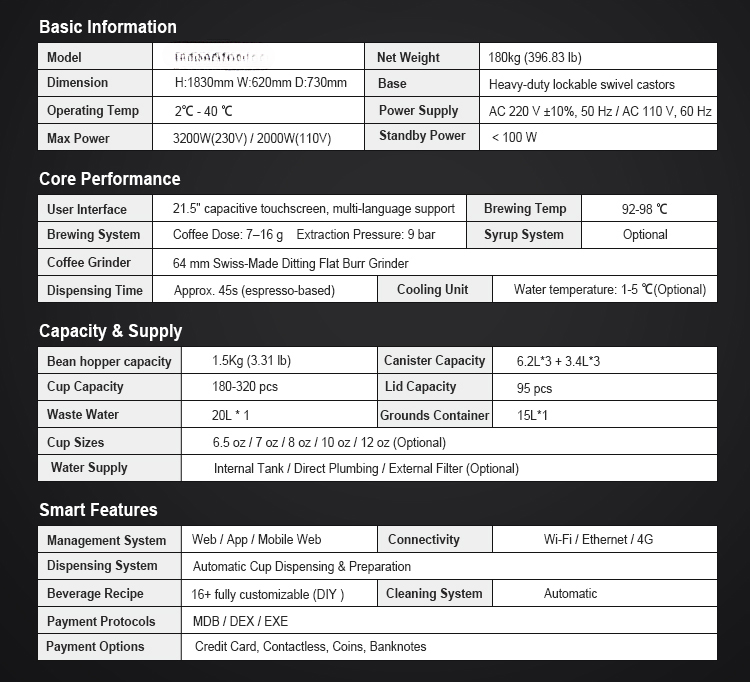

Specifications

Material
Stainless steel
Color
Black (OEM colors available)

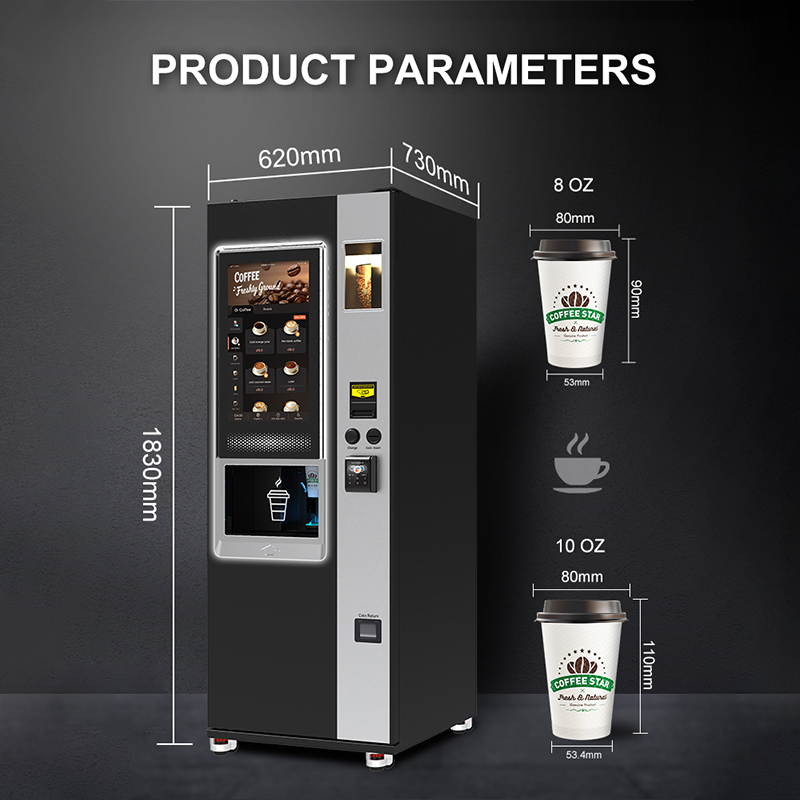

Dimensions (L × W × H)
730 × 620 × 1830 mm
Weight
180.0 kg
Power
3200 W
Voltage
AC 110–120 V / 220–240 V, 50/60 Hz
Warranty
1 year
Certifications
CB, CE, FCC, RoHS
Customization
Custom graphics, laser-carved nameplate, OEM color
Cup capacity
180–320 cups
Touchscreen
22" HD
Making time
45 s
Serving temperature
92–98 °C
Standby power
<100 W
Coffee bean hopper
1.5 kg
Instant canisters
6.2 L ×3 + 3.4 L ×3
Brewer dose
7–16 g powder
Water tank capacity
20 L
Water supply
Internal tank / direct plumbing / external filter (optional)
Cup sizes
6.5 / 7 / 8 / 10 / 12 oz (optional)
Cooling system
Compressor
Payment options
Credit card, contactless, coins, banknotes
Payment protocols
MDB / DEX / EXE
Special features
Coin change return, multiple payment options, remote monitoring
Remote management
Cloud system via web and mobile app
Function
SDK

Frequently asked questions

Where can this coffee vending machine be installed?

It is designed for unattended self-service in high-traffic public spaces — shopping malls, subway stations, airports, hotel lobbies, schools and office floors. The stainless-steel body stands up to daily cleaning and public use, and the free-standing cabinet needs only floor space, a power socket and a payment method you select.

How does the machine get its water?

Three ways, chosen to suit the site: the built-in 20 L internal tank for locations with no plumbing, a direct mains connection for high-volume spots that never want to refill, or an optional external filter inline with the supply for better water quality.

What payment methods does it accept?

Payment hardware is selected by variant — coin, banknote, credit card and contactless, or combinations of these. Variants with a coin module also return coin change. Choose the payment configuration that matches your site when ordering.

How many cups can it serve before a refill?

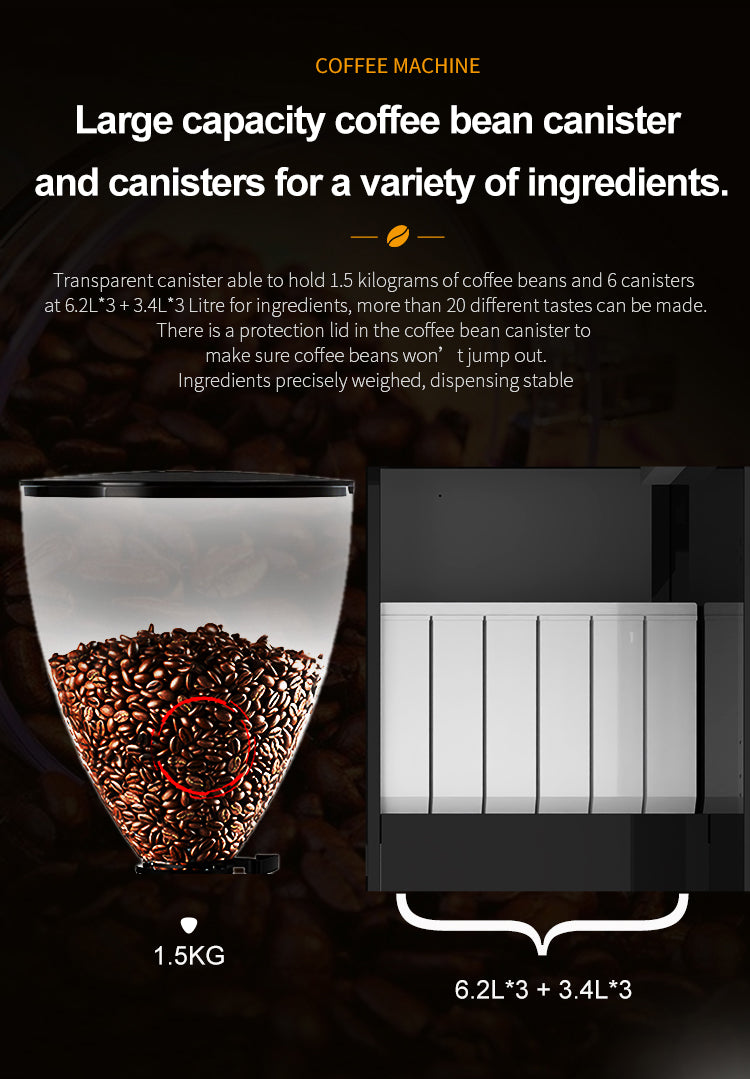

Between 180 and 320 cups per load depending on configuration and cup size. A 1.5 kg bean hopper feeds fresh-ground espresso drinks, and three instant canisters hold milk, chocolate and other mixes, so the machine runs long stretches between service visits.

Can operators monitor the machine remotely?

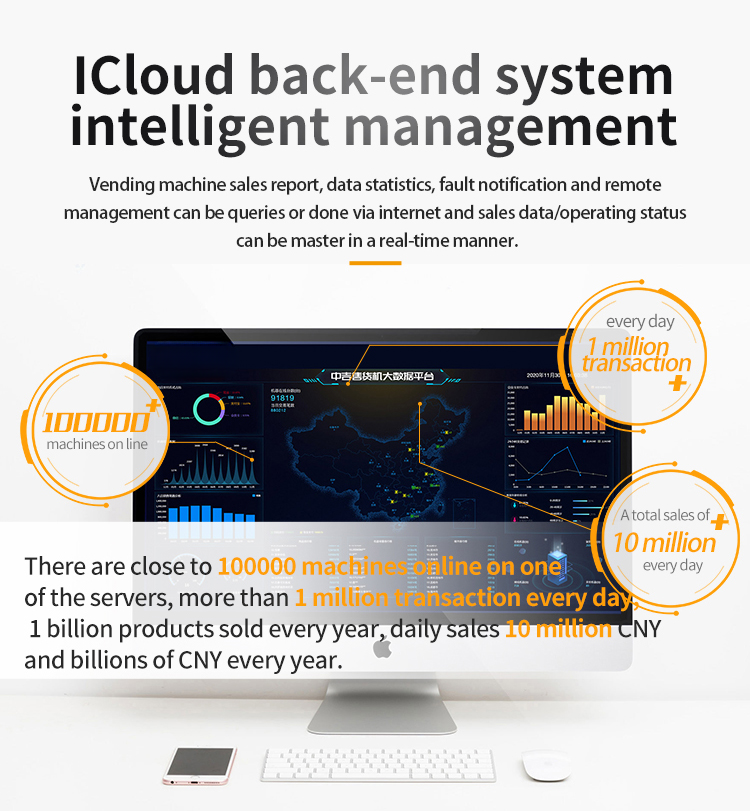

Yes. A cloud management system reachable by web and mobile app reports sales data, ingredient inventory, machine status and faults, and allows remote configuration — so you can run a machine sited where nobody is on hand to check it.

What power supply does the coffee vending machine need?

It runs on AC 110–120 V or 220–240 V at 50/60 Hz, with peak draw of 3200 W at 230 V (2000 W at 110 V) and standby below 100 W. Specify your voltage and plug type when ordering so the machine ships ready for your market.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
