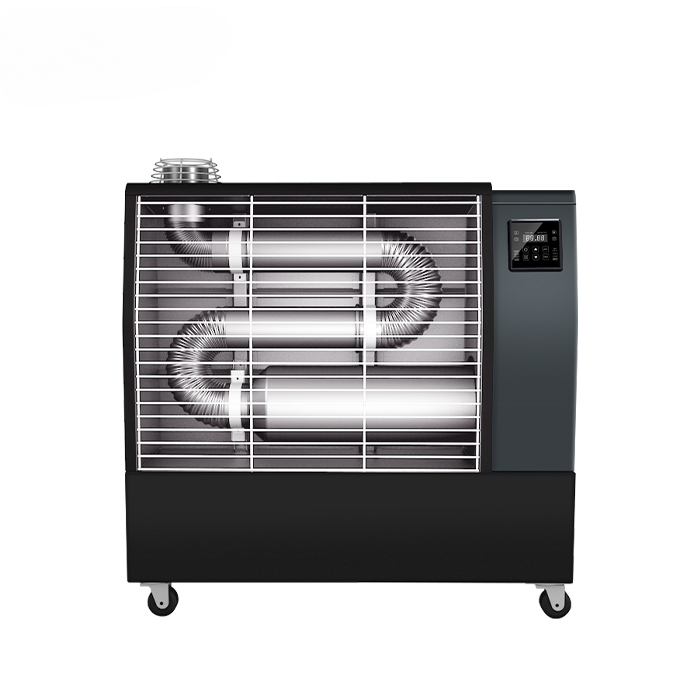

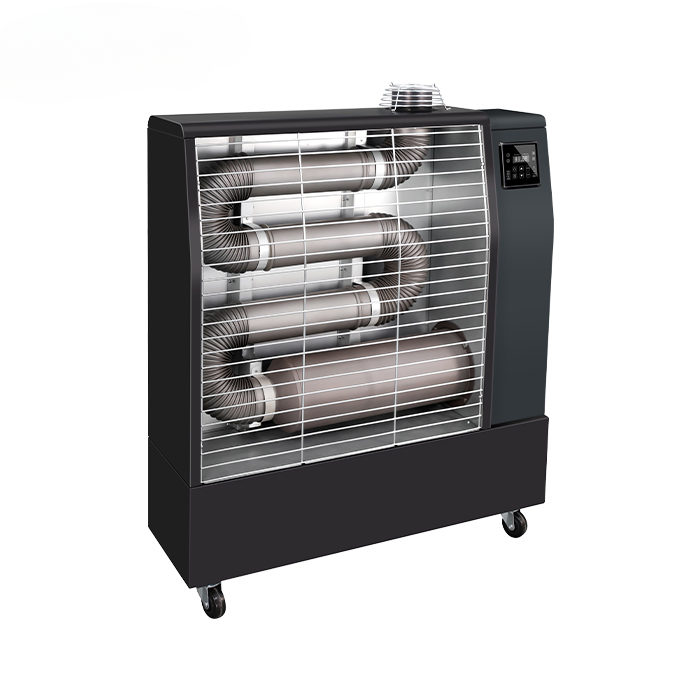

Commercial Diesel Radiant Heater — 13–19 kW, 50–70 L Tank

A freestanding diesel radiant heater in 13, 16 and 19 kW that warms 91–137 m² of garage, workshop or hospitality space from a single 50 or 70 L tank.

From31,891.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.
Heat output: 13 kW

MOQ: 5

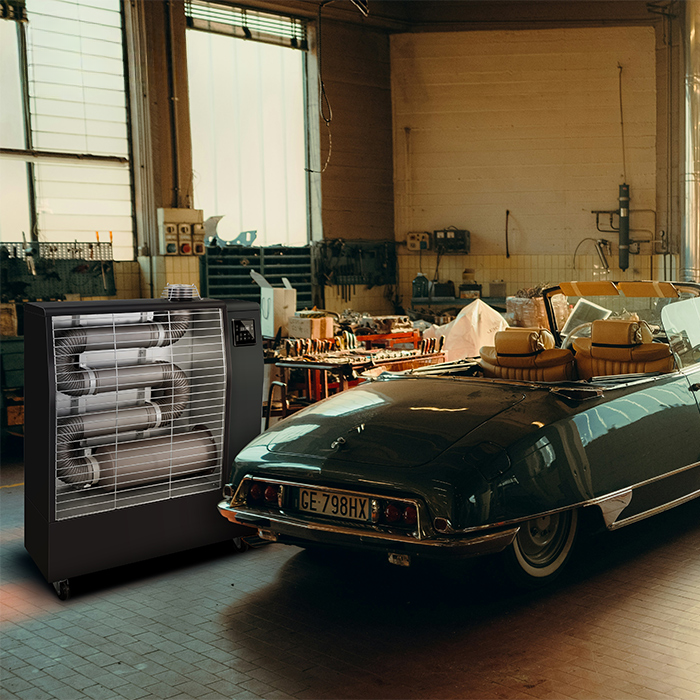

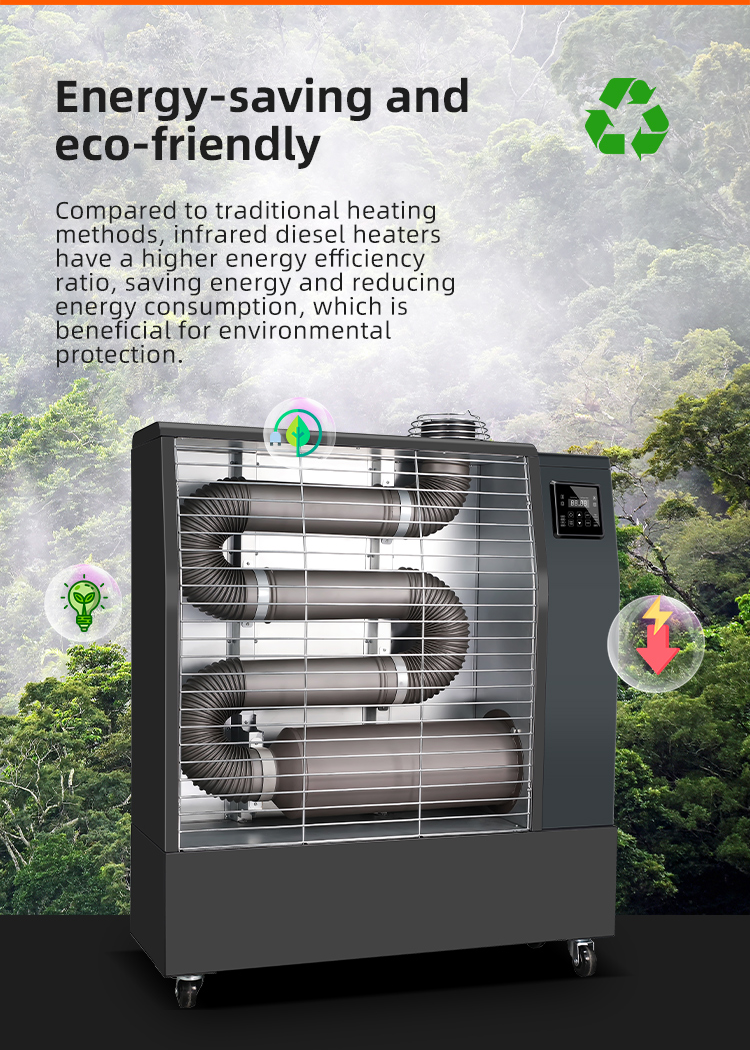

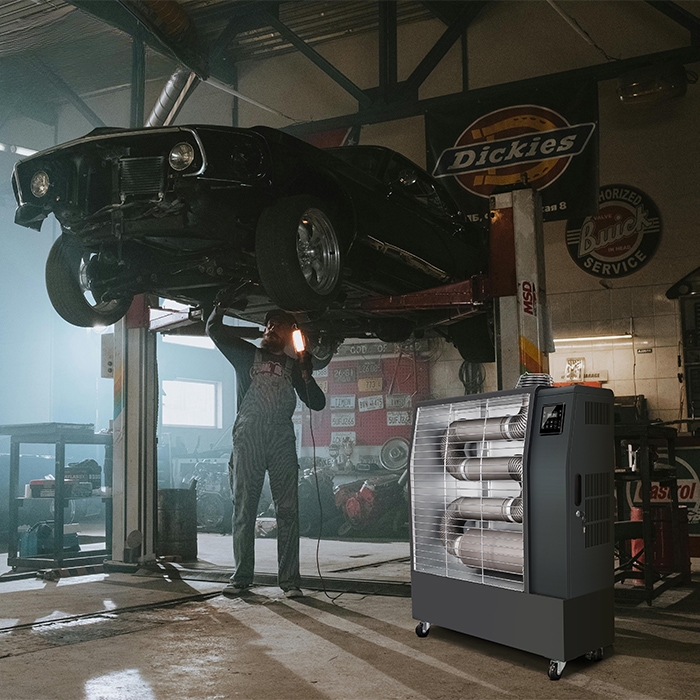

A commercial diesel radiant heater delivers directed infrared warmth to spaces that a fan-forced unit struggles to hold — open garages, service bays, workshops and unheated back-of-house areas. It comes in three outputs: 13 kW for 91–108 m², 16 kW for 108–125 m² and 19 kW for 125–137 m². The two smaller models run from a 50 L tank and the 19 kW from a 70 L tank, burning 1.15–1.58 kg of diesel an hour, so a full tank sustains long shifts without a mid-day refuel.

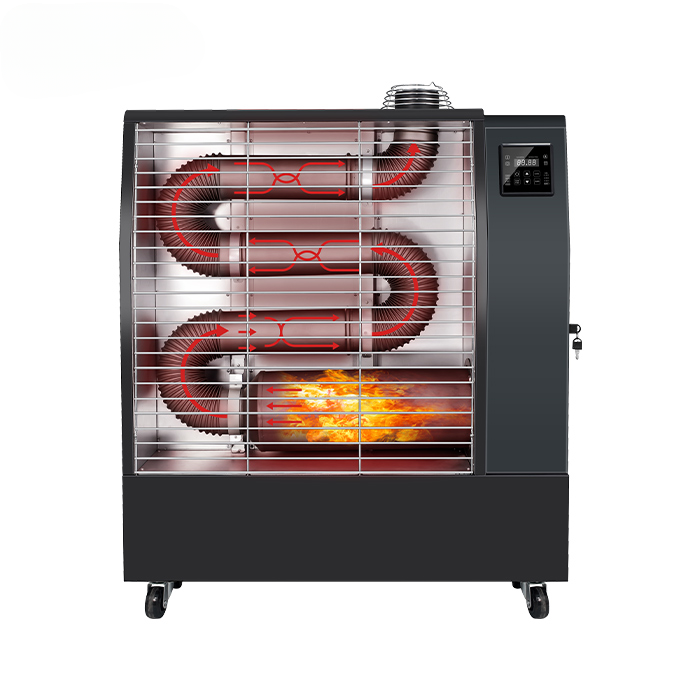

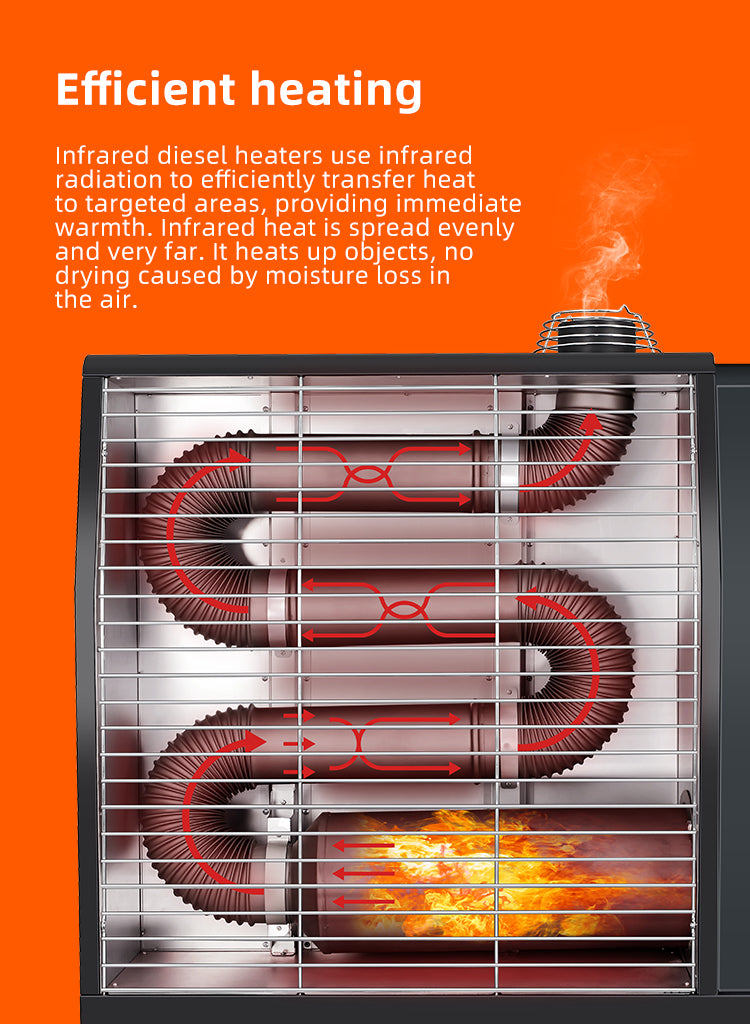

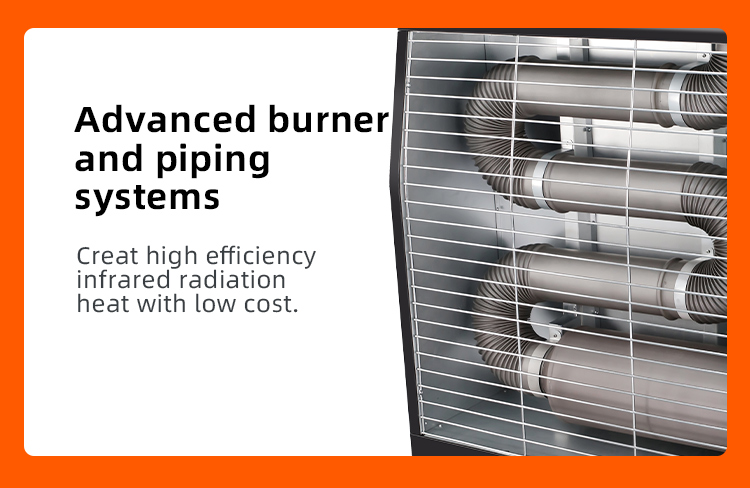

It ignites on an electric piezo starter and needs only 80 W of mains power for its controls and fan, keeping the running load off your circuits while the diesel does the heating. Radiant output warms surfaces and people directly rather than the surrounding air, which suits high-ceiling or draughty rooms where convected heat would drift.

  • Adjustable thermostat with a settable target temperature

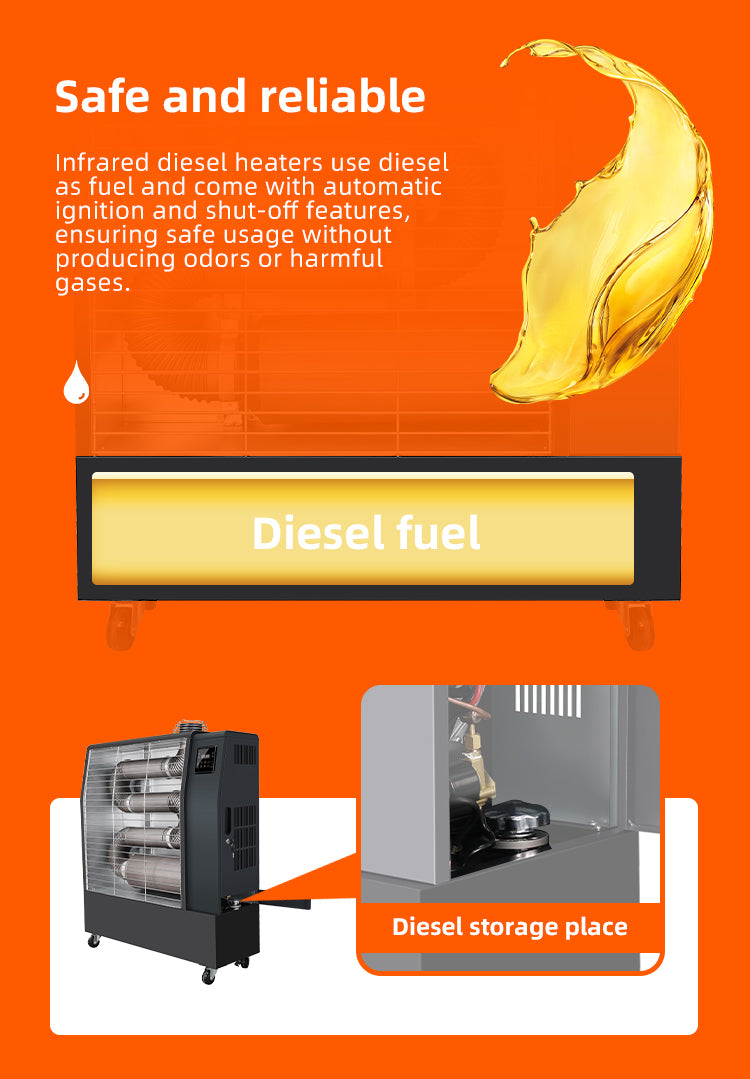

  • Overheat protection with manual reset and tip-over cut-off
  • Metal chimney for flue routing in enclosed installs
  • Class A energy efficiency rating

The heater ships as a single freestanding unit, ready to position and fuel. It's rated to EMC and LVD standards and carries a 1-year manufacturer warranty.

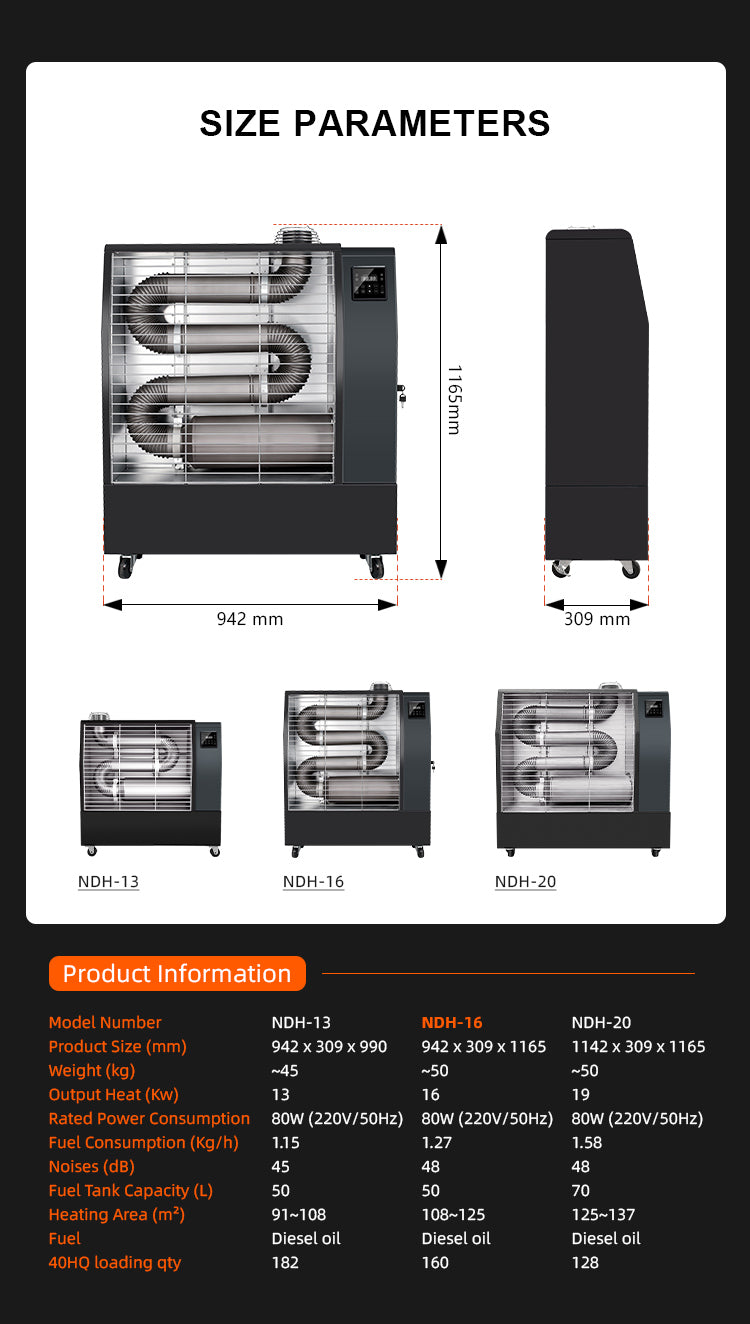

Specifications

Heat output13 kW16 kW19 kW
Dimensions (L × W × H)309 × 942 × 990 mm309 × 942 × 1165 mm309 × 1142 × 1165 mm
Power80 W80 W80 W
Weight45.0 kg50.0 kg50.0 kg
MaterialMetalMetalMetal
Warranty1 Year1 Year1 Year
CertificationsEMC, LVDEMC, LVDEMC, LVD
CustomizationOEM/ODM, private mold availableOEM/ODM, private mold availableOEM/ODM, private mold available
Fuel typeDieselDieselDiesel
Heater typeRadiant / infraredRadiant / infraredRadiant / infrared
Ignition typeElectric piezoElectric piezoElectric piezo
InstallationFreestandingFreestandingFreestanding
Chimney typeMetalMetalMetal
Overheat protectionManual resetManual resetManual reset
Safety featuresAdjustable thermostat, overheat protection, tip-over protectionAdjustable thermostat, overheat protection, tip-over protectionAdjustable thermostat, overheat protection, tip-over protection
Energy efficiency ratingClass AClass AClass A
ModelNDH-13NDH-16NDH-20
Heat output13 kW16 kW19 kW
Fuel tank capacity50 L50 L70 L
Fuel consumption1.15 kg/h1.27 kg/h1.58 kg/h
Heating area91–108 m²108–125 m²125–137 m²
Noise45 dB48 dB48 dB

Frequently asked questions

Which output should I choose for my space?

Size it by floor area: 13 kW covers 91–108 m², 16 kW covers 108–125 m² and 19 kW covers 125–137 m². High ceilings and open doorways eat into those figures, so step up a size if the space is open or exposed.

How long does a tank last on one fill?

The 13 kW burns 1.15 kg of diesel an hour and the 16 kW 1.27 kg/h, both from a 50 L tank; the 19 kW burns 1.58 kg/h from a 70 L tank. Any of them carries a long shift or an overnight run without a mid-day refuel.

Does it need a power outlet as well as fuel?

Yes — 80 W of mains power drives the controls and fan, so position it within reach of a socket. It won't run on diesel alone, but the load is small enough to share a general-purpose circuit.

What does the install involve?

Nothing fixed — each heater arrives as a single freestanding unit, ready to position and fuel: 942 × 309 × 990 mm for the 13 kW, 942 × 309 × 1165 mm for the 16 kW and 1142 × 309 × 1165 mm for the 19 kW. For enclosed rooms, the supplied metal chimney lets you route the flue out.

What safety cut-offs does it have?

Three: an adjustable thermostat you set to a target temperature, overheat protection with manual reset, and a tip-over cut-off. The manual reset means someone has to inspect the unit before it will relight.

What's the warranty, and can the unit be branded?

Cover runs 1 Year from the manufacturer, with free spare parts for after-sales servicing. OEM/ODM work is available, including a private mould if you want the housing changed rather than just badged.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
