A stainless steel ice-bank draft beer dispenser that pours chilled beer at 3–5 °C, with 2- to 6-coil options for busy bars.
From24,301.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

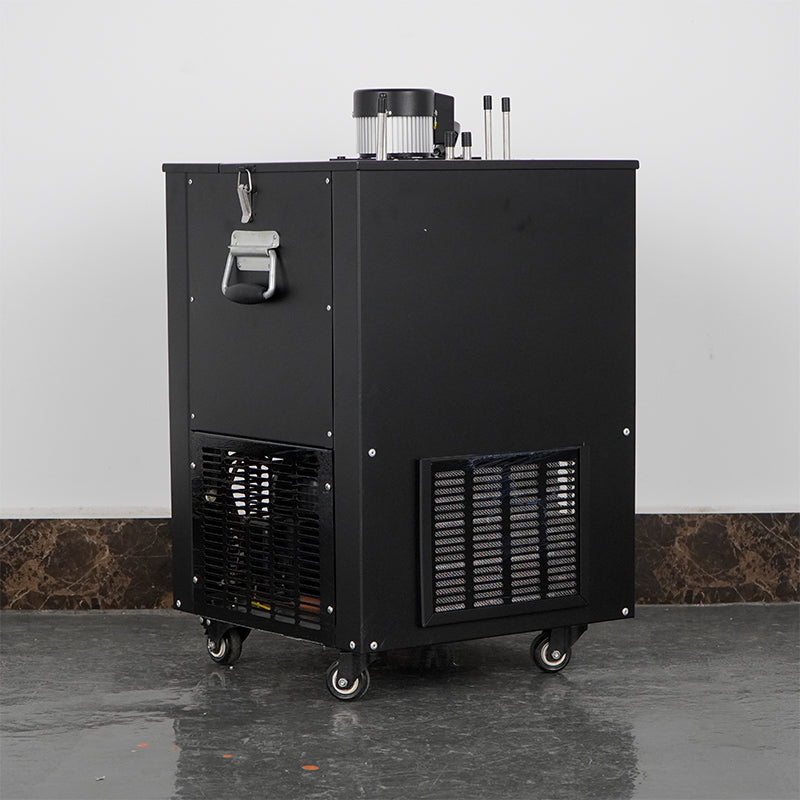

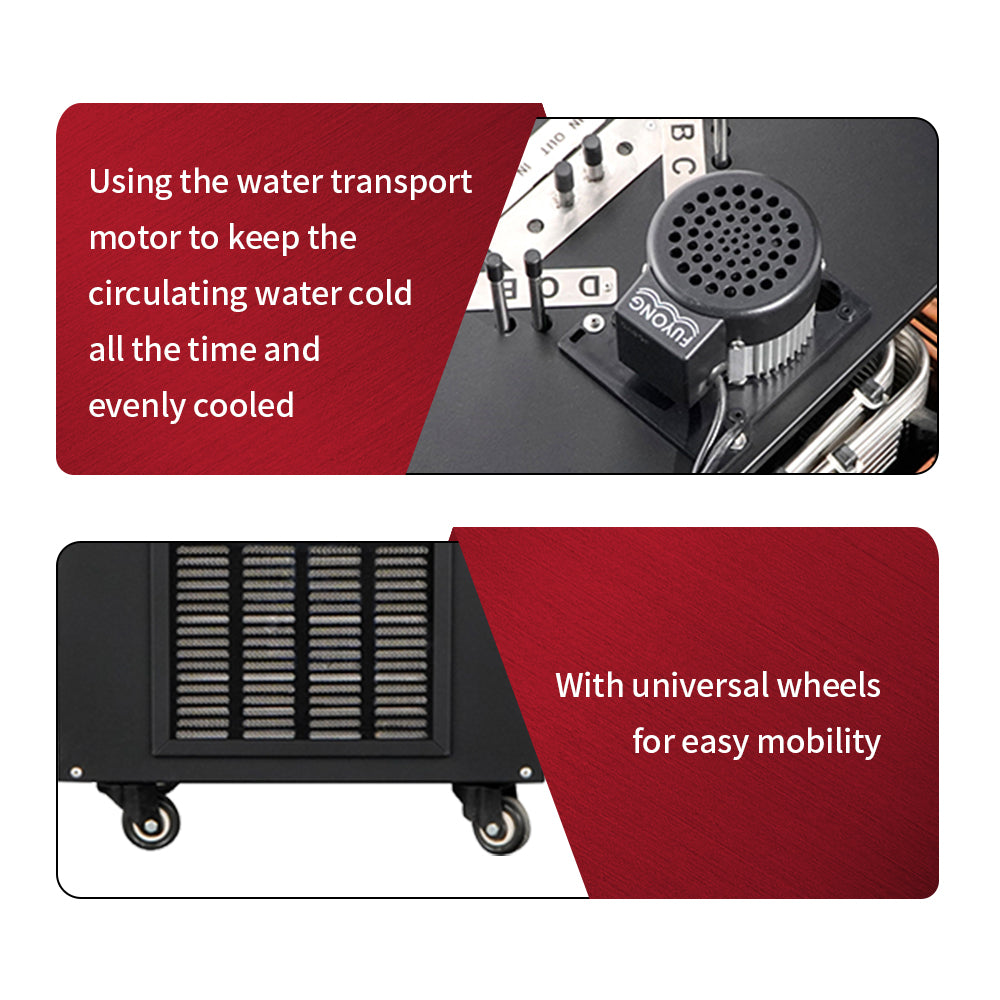

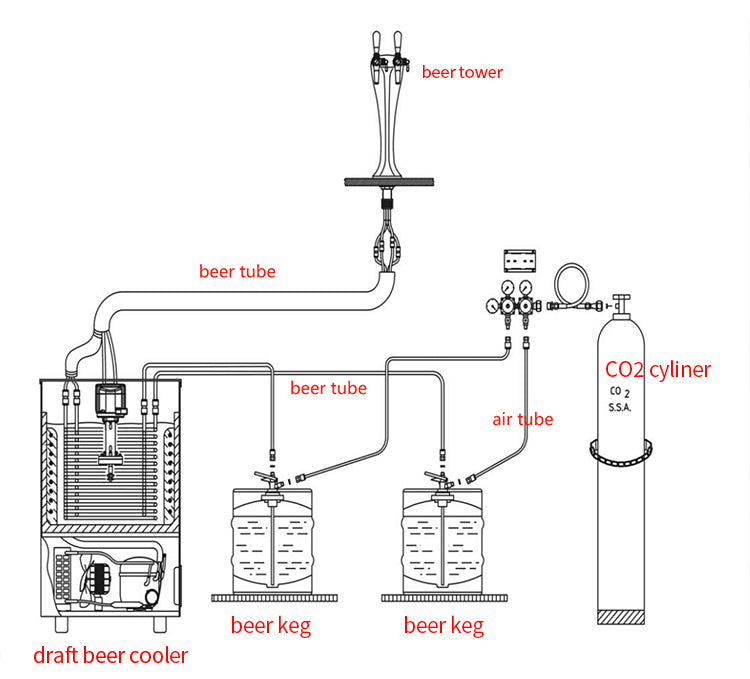

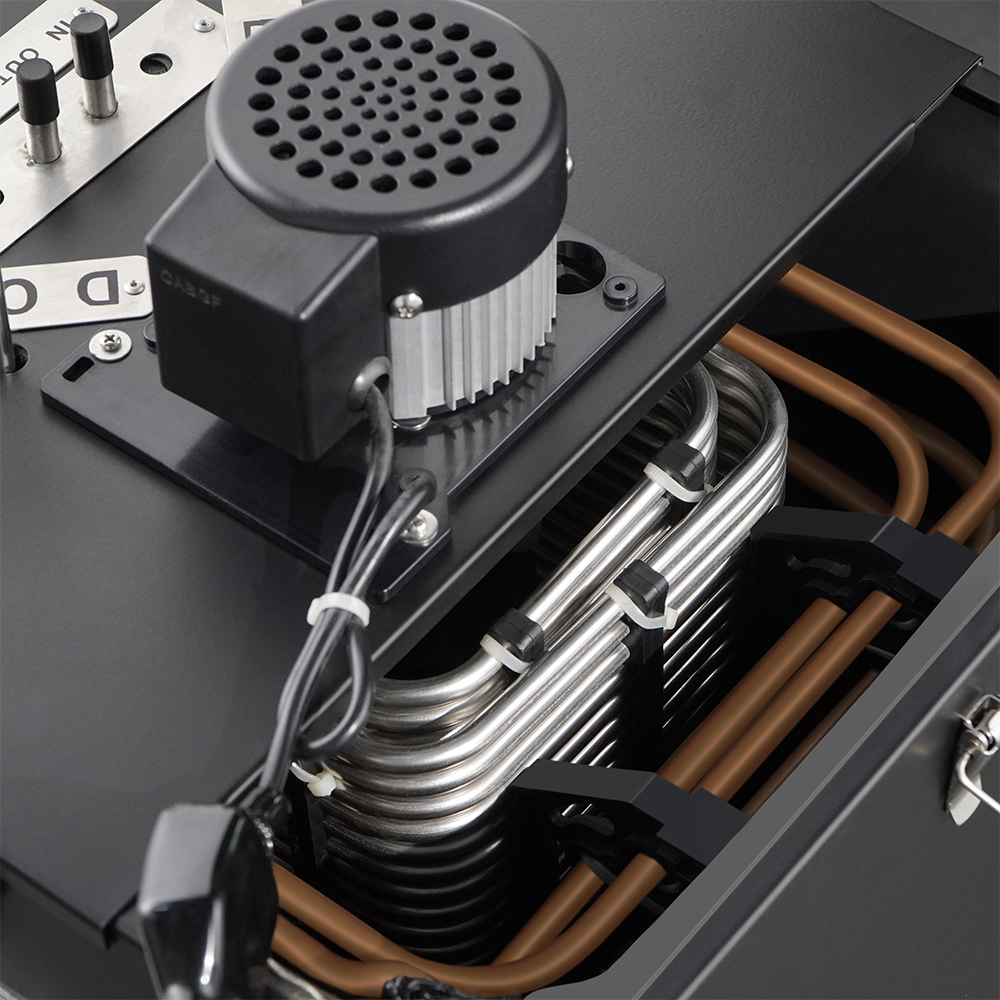

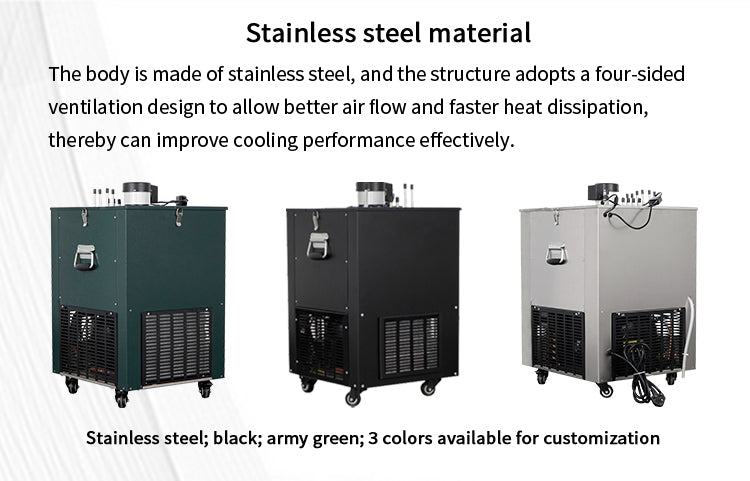

An ice-bank draft beer dispenser holds a reservoir of chilled water around the beer coils, so the first pour of the shift lands as cold as the last. This unit runs the beer line through a 33-liter water bath cooled to hold pour temperature at 3–5 °C, which keeps foam under control during a rush and lets one line serve several taps without warm-up between pours. The freestanding stainless steel cabinet drops into a back bar or beer station and wipes down fast at close.

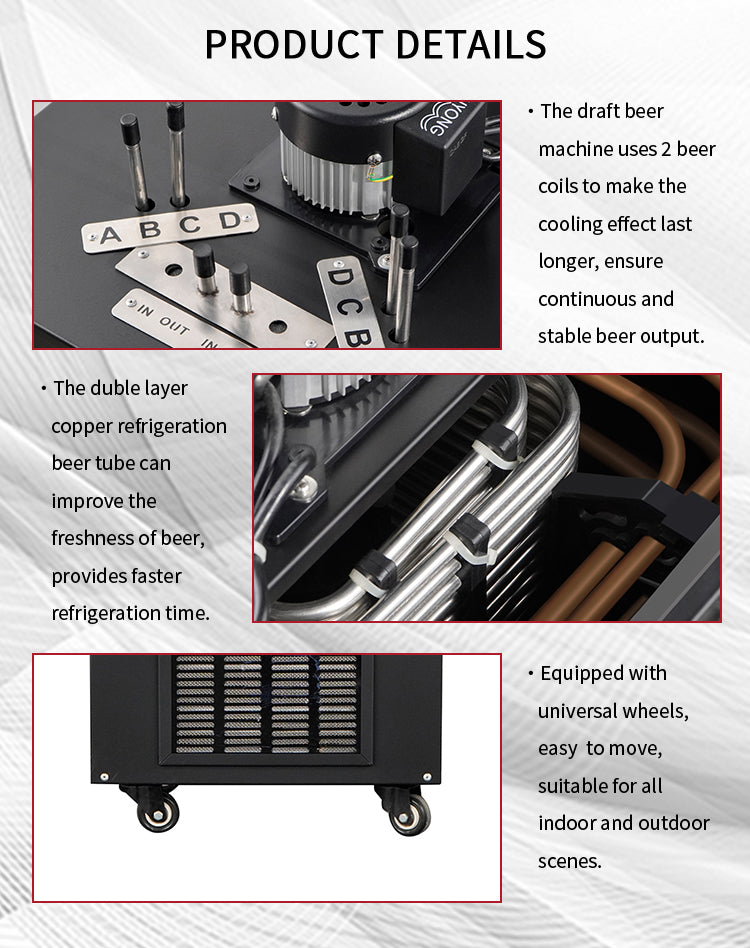

Coil count sets throughput: pick a 2-coil model for a single busy line, or step up to 4- or 6-coil versions to run multiple kegs or styles at once. Core hardware stays consistent across the range:
Water-cooling ice-bank system with R290 refrigerant
450 W draw on 220–240 V, 1/3 HP compressor
Cools down in roughly 3 hours from a cold start
Backed by a 1-year manufacturer warranty. Contact us to confirm the tap tower and plug type for your market.

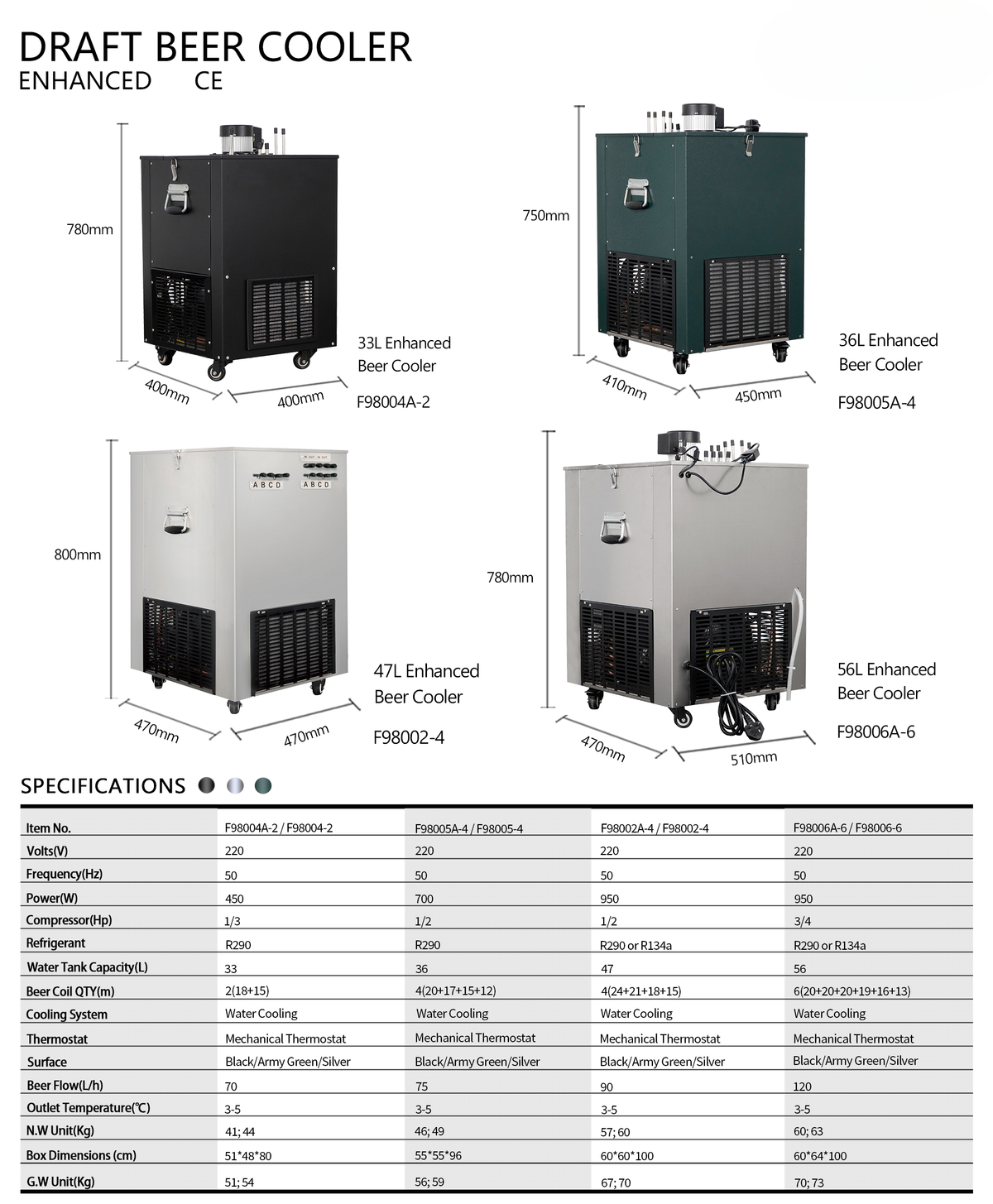

Specifications
Material
Stainless Steel
Capacity
33000 ml
Color
Black

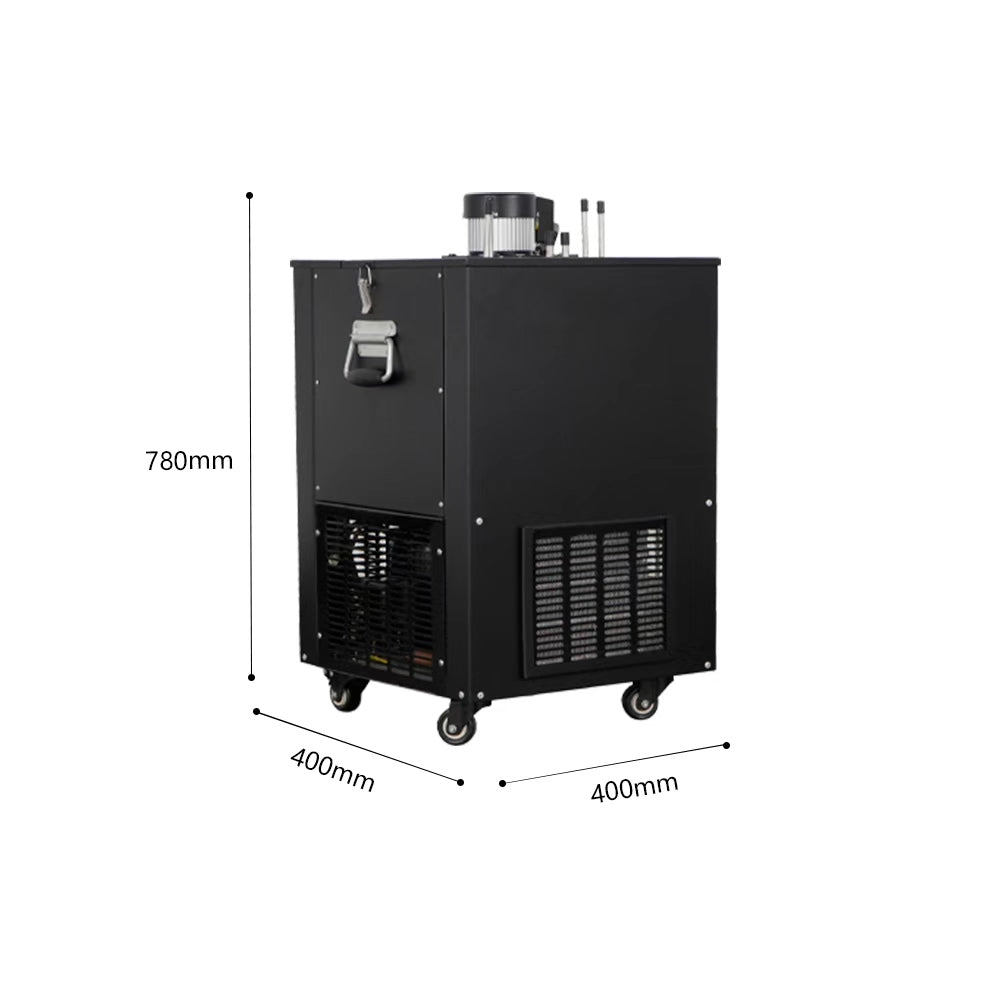

Dimensions (L × W × H)
400 × 400 × 780 mm
Weight
41.0 kg
Power
450 W
Voltage
220-240V
Warranty
1 Year
Certifications
CE
Refrigeration Method
Ice / Electric
Cooling System
Water Cooling
Refrigerant
R290
Compressor
1/3 HP
Outlet Temperature
3-5 ℃

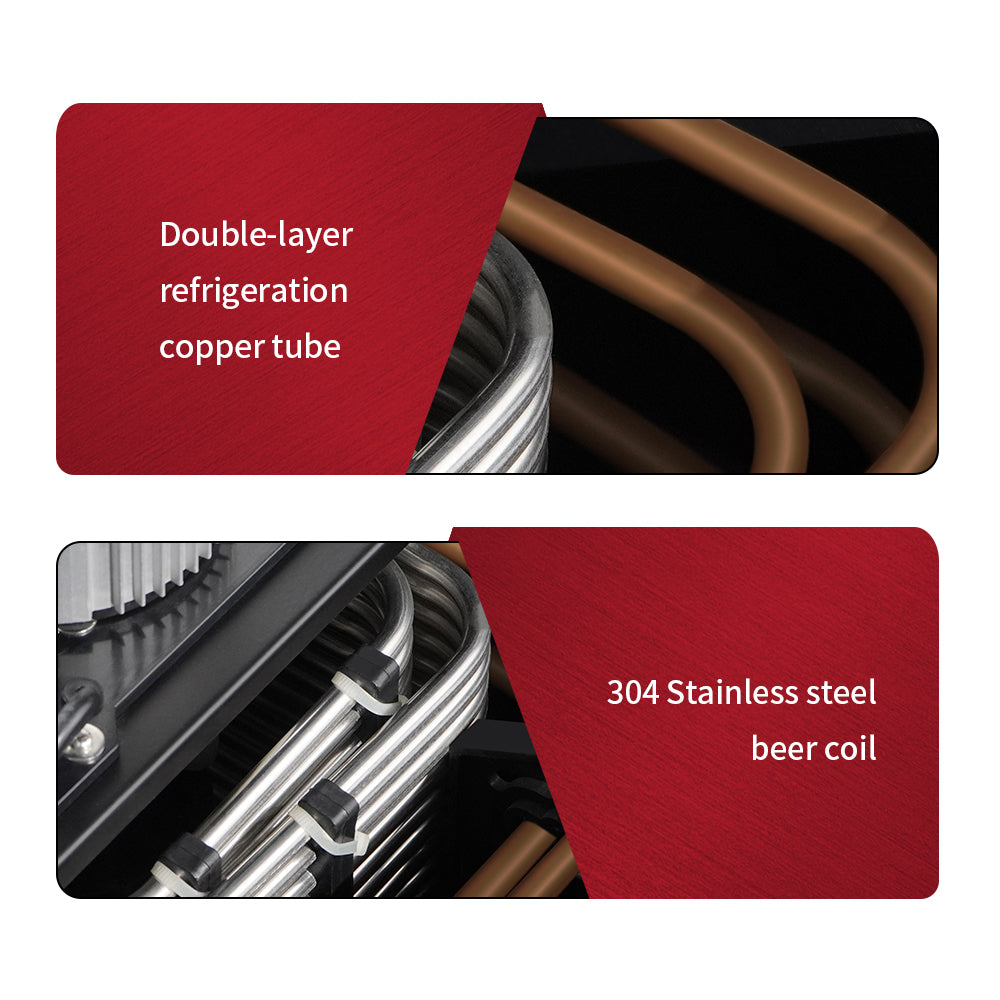

Beer Coils
2-6

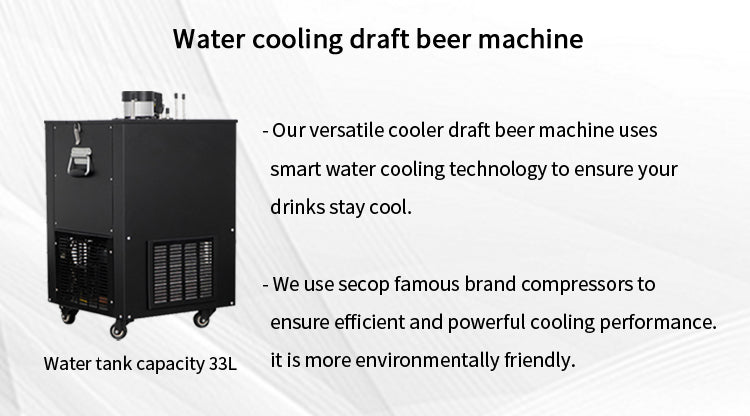

Water Tank Capacity
33 L
Installation
Freestanding
Shape
Square
Grade
Food Grade
Plug Type
US / UK / EU
Power Supply
Plug Powered
Cool-down Time
~3 hours
Frequently asked questions
How cold does it pour, and does it hold that through a rush?
Outlet temperature sits at 3-5 °C. The 33-litre ice bank around the coils carries the chill through consecutive pours, so beer comes out as cold on the fiftieth glass as the first and foam stays manageable.
How do I choose between the 2-, 4- and 6-coil versions?
Match coil count to the number of lines you need chilled at once: 2 coils for a single hard-working tap, 4 or 6 to run several kegs or styles in parallel. Specify the coil count when ordering.
How early before service does it need to be switched on?
Allow roughly 3 hours from a cold start for the water bath to chill fully. Practically, that means powering it up at prep rather than at open.
What power supply do I need to specify?
220-240 V, 450 W, drawing through a standard plug-powered connection with a 1/3 HP compressor. US, UK and EU plug types are available, so state which you need on the order.
What footprint does it take in a back bar?
The cabinet measures 400 mm wide by 400 mm deep by 780 mm high and installs freestanding, so it drops into a back bar or beer station without built-in cabinetry work.
What refrigerant does it use, and is it certified?
R290 runs the water-cooling circuit with a 1/3 HP compressor, and the unit carries CE certification. Coverage comes with a 1 Year manufacturer warranty.
