Commercial Ductless Range Hood — ESP Fume Purifier, 3000 m³/h

A ductless recirculating range hood with electrostatic fume purification that removes ≥99% of cooking smoke — no external duct required.

From59,371.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.

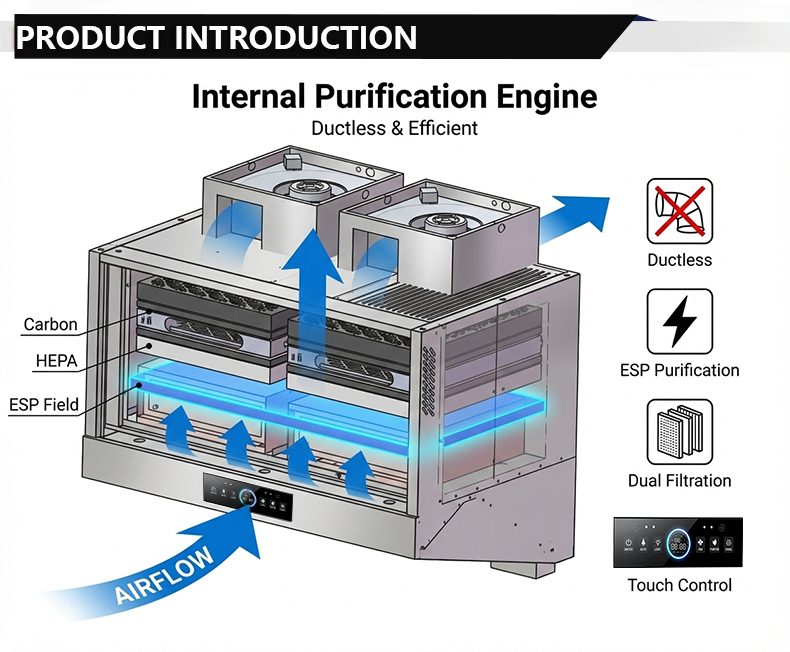

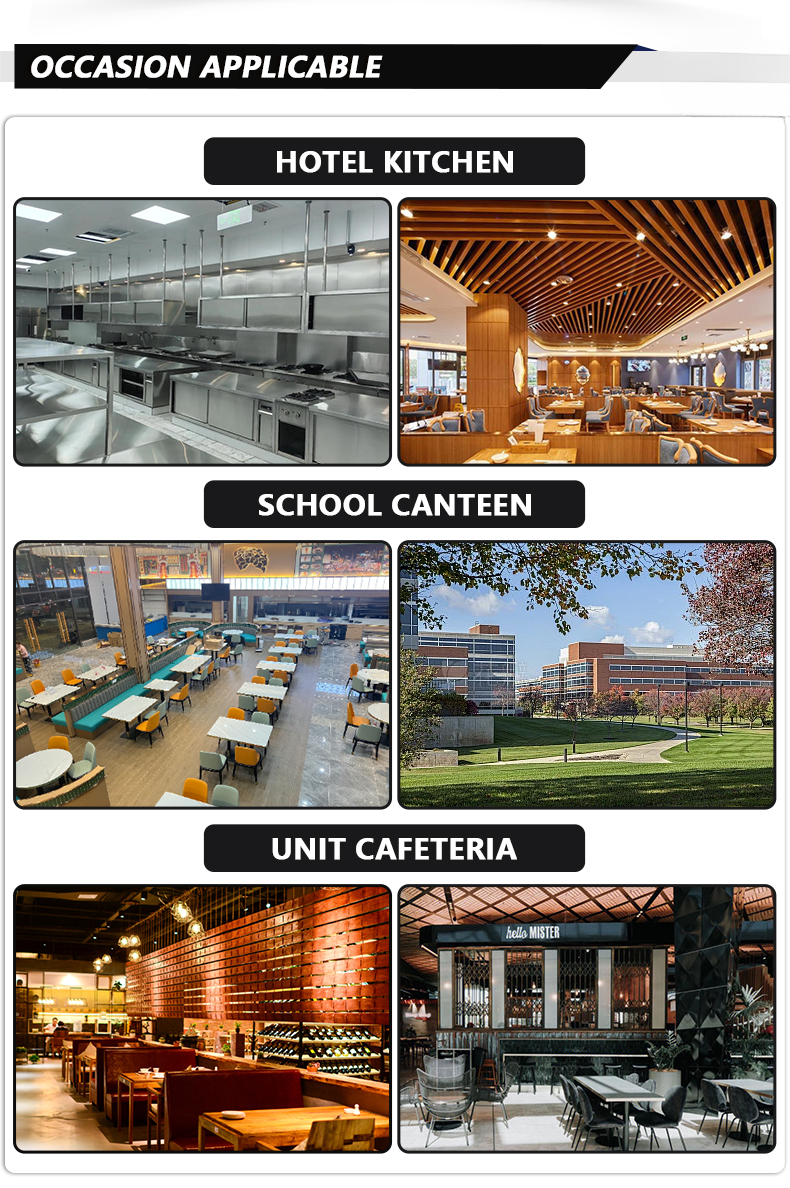

A ductless internal-circulation range hood built for commercial kitchens that cannot run an external exhaust duct. It draws cooking fumes through an electrostatic precipitator (ESP) and an activated-carbon filter, then returns cleaned air to the room — reaching ≥99% purification efficiency with no visible smoke. That makes it a practical fit for restaurants, hotel kitchens and food courts inside malls or basements where cutting a duct to the outside isn't an option.

The unit moves 3000 m³/h on a 1300 W motor and is housed in 201 stainless steel for daily wash-down. Its PLC-controlled high-voltage supply includes power-off protection, and the stainless-steel electric field is designed for a long service life and easy cleaning. Configuration is flexible — the ESP core can be paired with UV photocatalytic or activated-carbon deodorizing stages depending on the menu and local emission rules.

  • Duct-free recirculation — clean-air return with no outdoor exhaust run
  • ESP + activated-carbon filtration rated at ≥99% fume removal
  • PLC control with high-voltage power-off protection
  • 201 stainless steel body, corrosion-resistant and wash-down ready

OEM/ODM customization is available, including a branded logo on the control panel. Backed by a 1-year manufacturer warranty.

Specifications

Material
201 Stainless Steel
Dimensions (L × W × H)
900 × 1000 × 1000 mm
Weight
130.0 kg
Power
1300 W
Voltage
220V/50Hz
Warranty
1 Year
Certifications
CE, ISO 9001
Customization
OEM/ODM available; customizable logo; ESP / UV / activated-carbon configurations
Airflow
3000 m³/h
Purification efficiency
≥99 %
Function
Fume filter (electrostatic precipitator)
Core components
PLC, ESP
Filtration stages
1 stainless-steel ESP group + activated-carbon filter

Frequently asked questions

Does this range hood need an external exhaust duct?

No duct is needed — fumes pass through the electrostatic precipitator and activated-carbon stage and the cleaned air returns to the room. That is what makes it workable in basements, mall food courts and leased spaces where no outdoor run exists.

How much smoke does it actually remove, and how do I keep it at that level?

Rated ≥99% fume purification with no visible smoke. Holding that figure means pulling the stainless-steel ESP cell and washing it on a schedule set by your cooking volume, and swapping the activated-carbon filter when it loads up.

What airflow, power and footprint should I plan for?

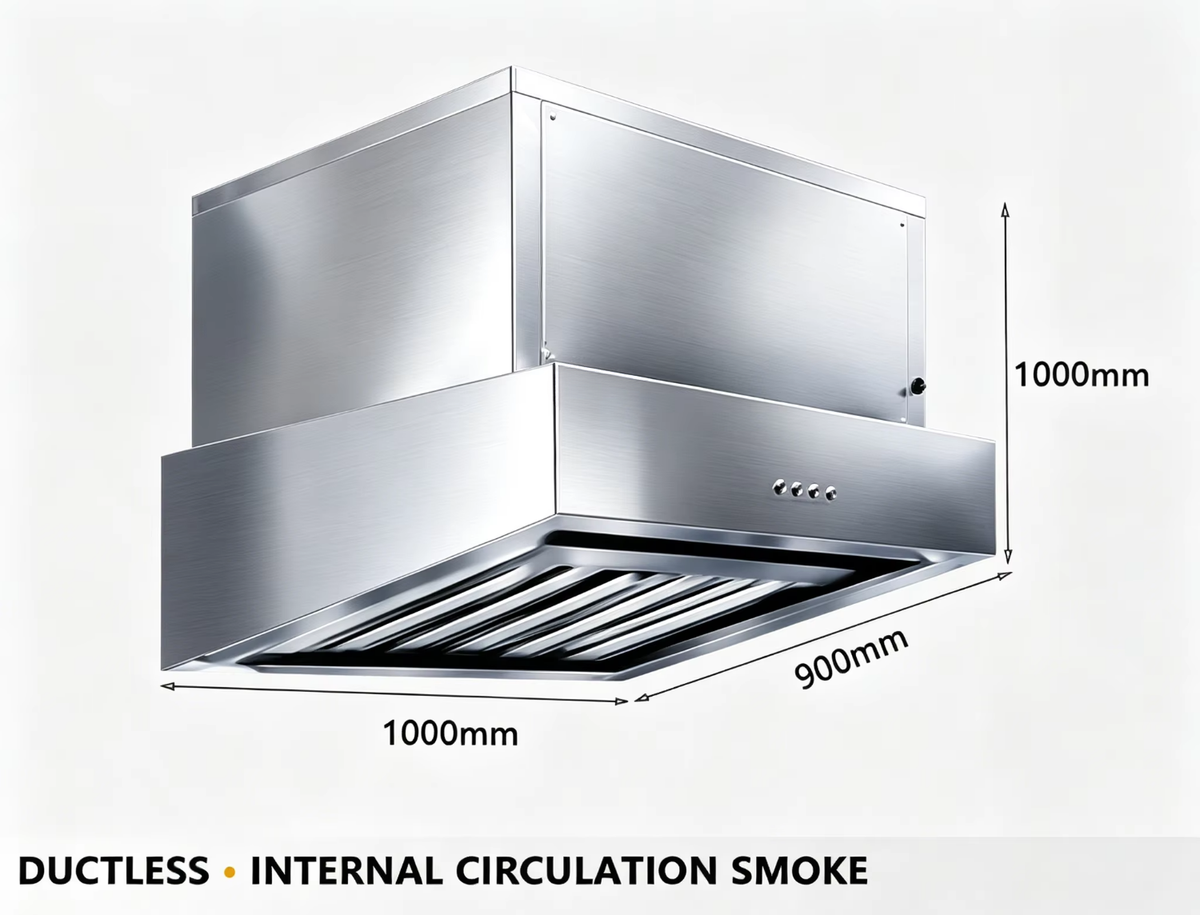

3000 m³/h from a 1300 W motor on 220V/50Hz single phase, in a body measuring 1000 mm wide x 900 mm deep x 1000 mm high. Allow for that full height above the cooking line when you plan the hood position.

How far does the customisation go, and what is the lead time?

OEM/ODM is available: your logo on the control panel, and the ESP core configured with UV photocatalytic or additional activated-carbon deodorising stages depending on your menu and local emission rules. Samples run 7 days, mass orders 15 days.

What is the ESP cell made of and how long does it last?

Stainless steel throughout the electric field, rated for a service life of over 8 years and built to be washed and reused rather than replaced. The 201 stainless housing is corrosion-resistant and ready for daily wash-down.

What warranty and certifications come with the unit?

A 1 Year manufacturer warranty, with CE and ISO 9001 certification on file. The high-voltage supply is PLC-controlled with built-in power-off protection.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

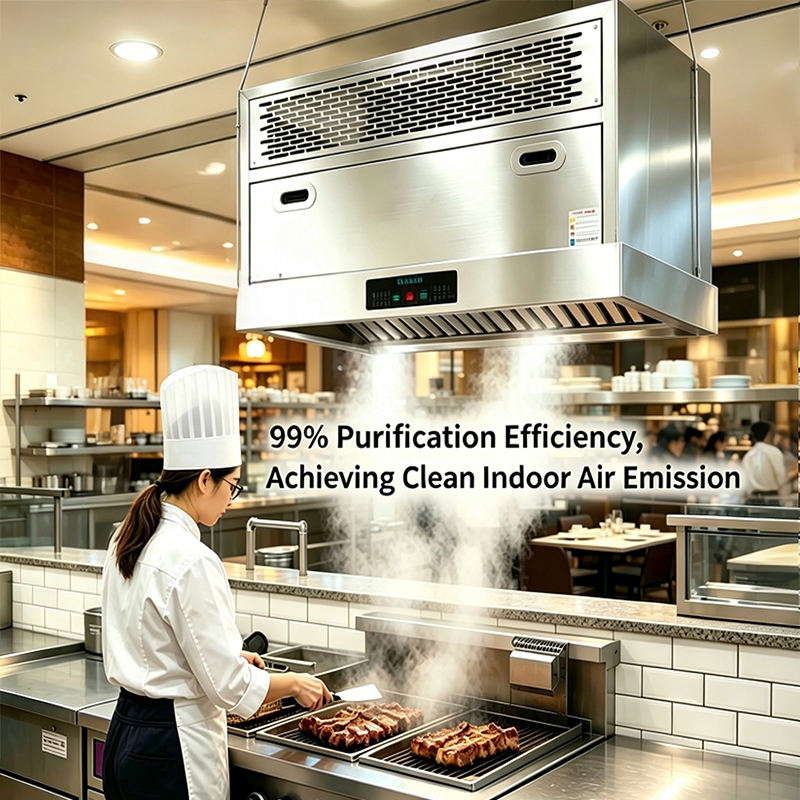

Chef grilling meat under a commercial range hood with rising steam and 99% purification efficiency text
