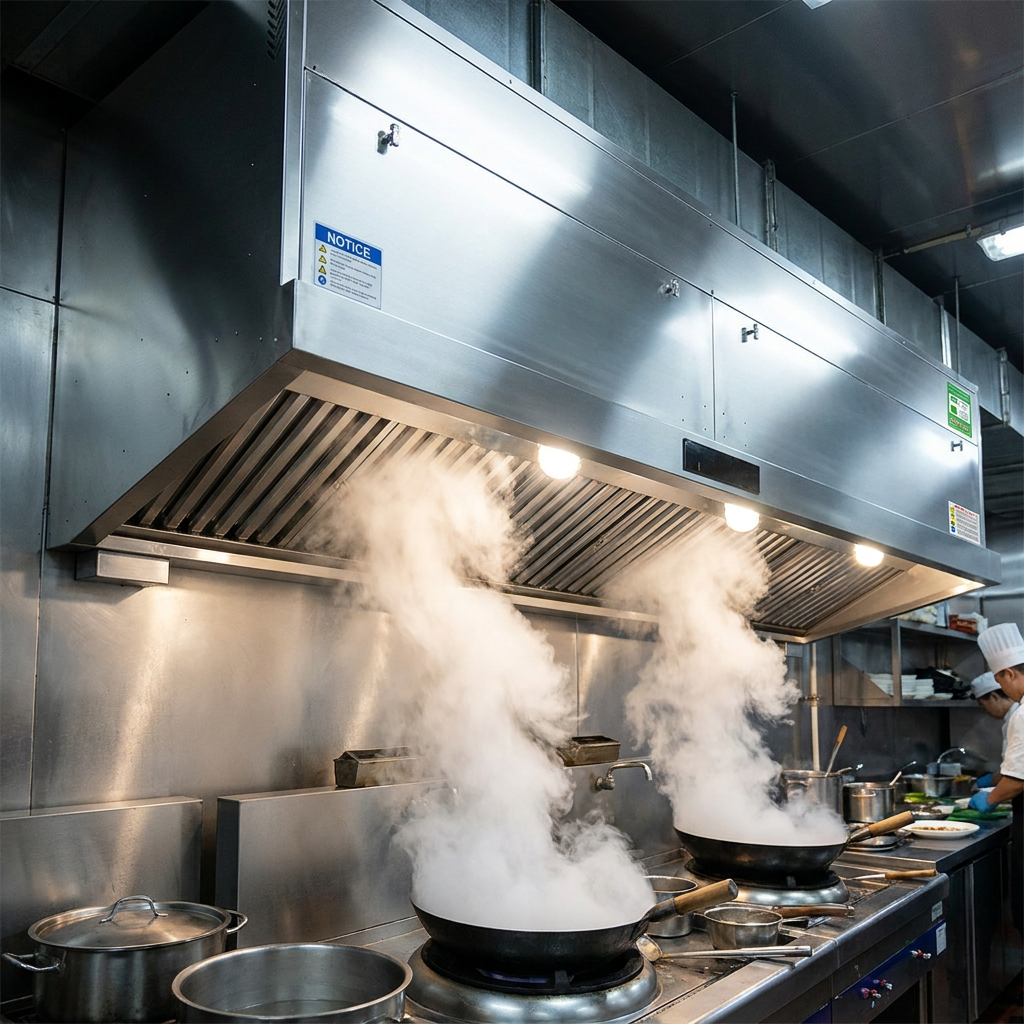

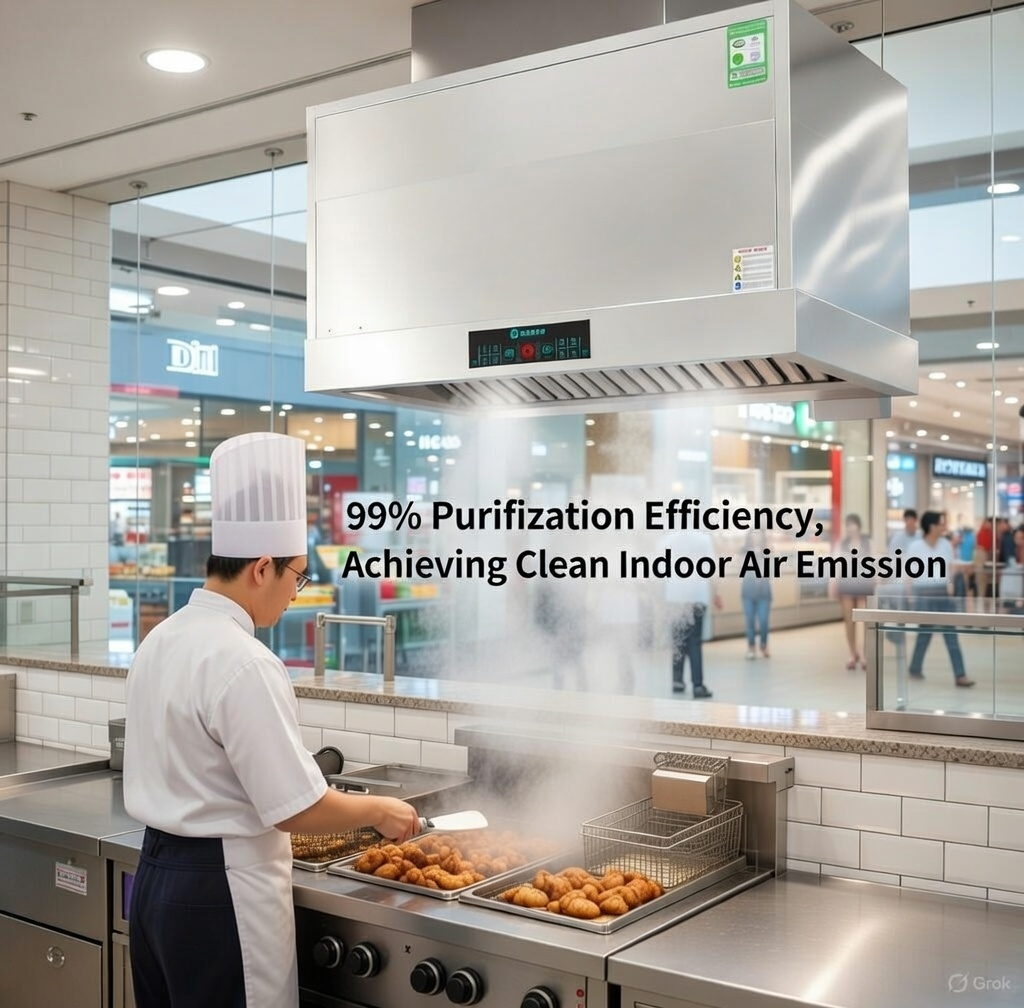

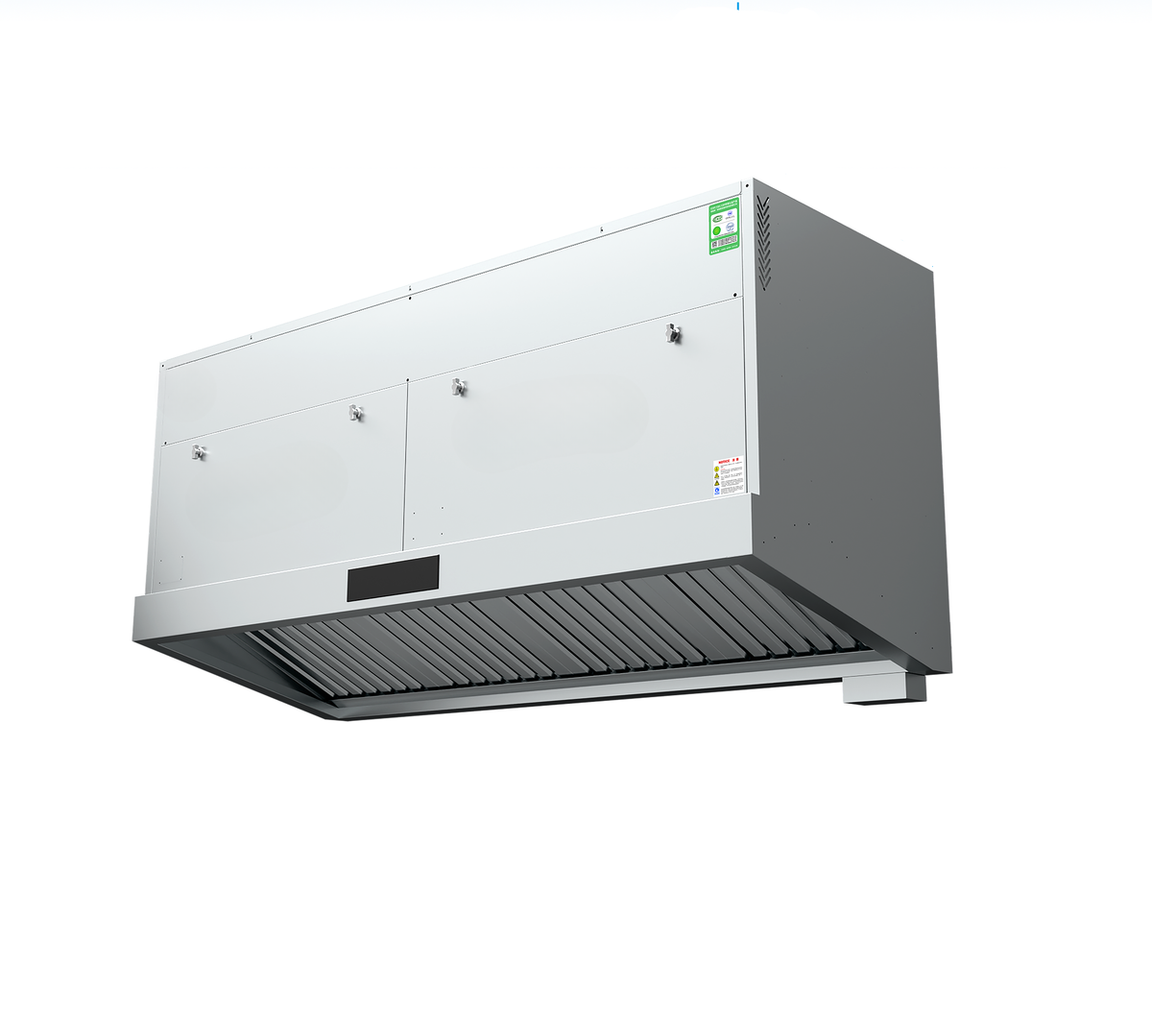

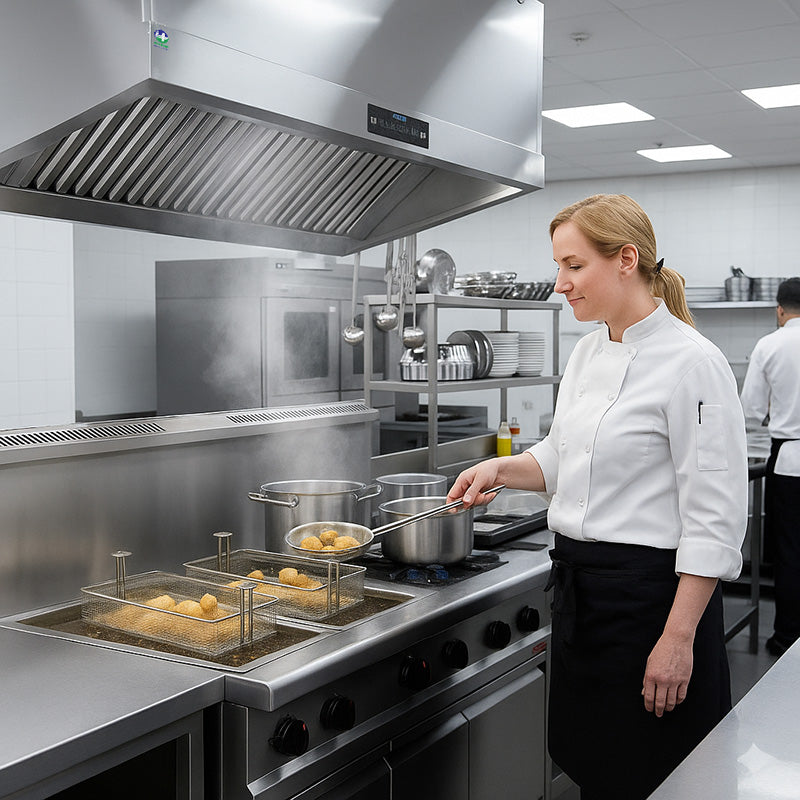

Commercial Ventless Exhaust Hood — ESP + HEPA Recirculating System
A ductless recirculating hood that captures grease, smoke, and odor through four-stage ESP and HEPA filtration, so light- to medium-duty cooking stations run without external ductwork.
131,584.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks
A ventless exhaust hood is a self-contained air treatment unit that sits over a cooking station and cleans the air on the spot, releasing it back into the room instead of pushing it through rooftop ducting. That makes it the practical choice for venues where external exhaust is impossible or prohibitively expensive — food-court kiosks, subway concourses, office basements, and historic buildings that can't be drilled or altered. A high-efficiency centrifugal fan draws the plume through the system, capturing grease and fine smoke particles for clean indoor recirculation.

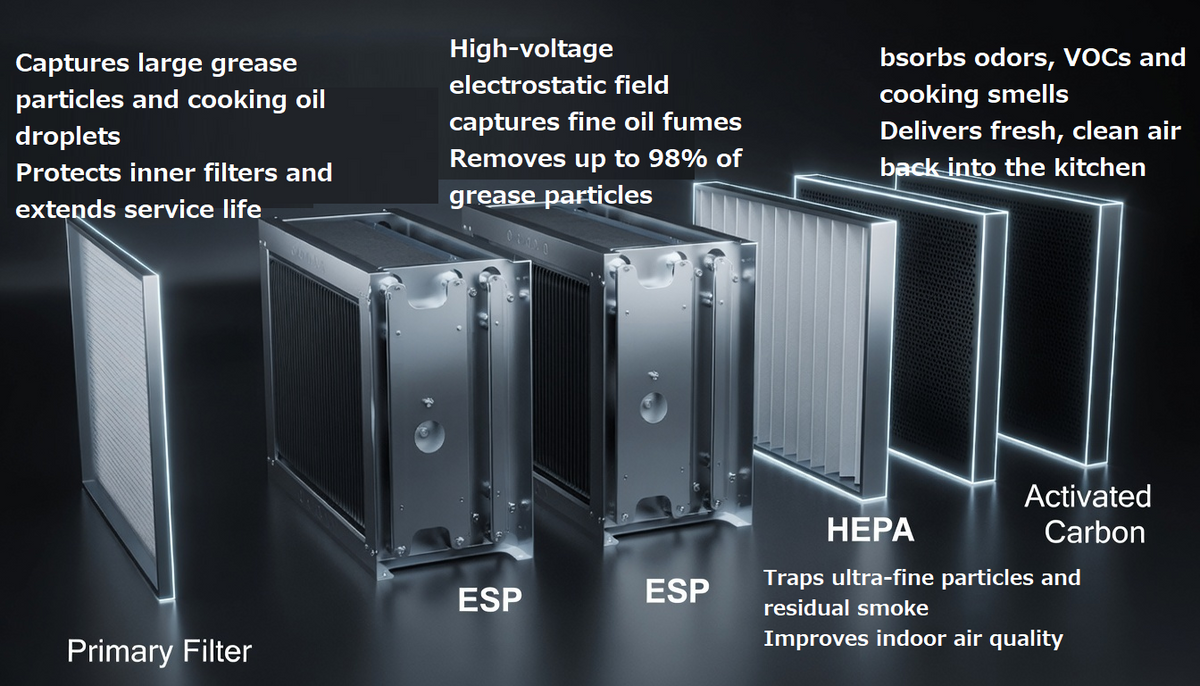

The filtration runs in four stages, each targeting a different contaminant:
Baffle filter — traps large grease particles at the intake.
Electrostatic precipitator (ESP) — captures 98% of fine smoke and grease mist electronically.
HEPA filter — removes remaining fine dust and airborne particulate.
Activated carbon — absorbs residual odors so the treated air is clean and neutral.
A PLC controller runs the system, and the compact single-box design integrates fan, motor, and filtration into one plug-and-play unit that drops over existing equipment and runs off a standard outlet. It is optimized for light- to medium-duty work — electric fryers, noodle boilers, teppanyaki, griddles, and steamers. For heavy wok stir-frying with high flames, a higher-airflow model is the better match; contact us to confirm the right fit for your menu. Low-noise fans keep the unit typically below 65–70 dB, comfortable for open-kitchen service. Backed by a 1-year manufacturer warranty and CE certified.
Where does a ductless hood make sense instead of a ducted one?
Anywhere a duct run to the roof is impossible or uneconomic — food-court kiosks, subway concourses, office basements, and historic buildings that cannot be drilled. The treated air goes back into the room instead of outside.
What does installation actually involve?
Positioning the unit over the cooking equipment and plugging it into a standard outlet. Fan, motor and filtration sit in one enclosure, so there is no wall drilling, no roof penetration and no ductwork contractor.
What does each of the four filter stages do?
The baffle filter catches large grease particles at the intake, the electrostatic precipitator removes 98% of fine smoke and grease mist, the HEPA stage takes out remaining fine dust and particulate, and activated carbon absorbs residual odor.
Will it cope with high-flame wok stir-frying?
No — this unit is rated light to medium duty, suited to electric fryers, noodle boilers, teppanyaki, griddles and steamers. Heavy wok work needs a higher-airflow model with greater contaminant capacity.
How loud is it in an open kitchen?
Typically 65–70 dB, thanks to a high-efficiency low-noise centrifugal fan. That is quiet enough to hold a normal conversation at the counter during service.
Can the hood be adapted to our station, and what warranty applies?
OEM customisation is available, so specify your station dimensions and requirements at the order stage. The unit is CE certified and carries a 1 Year warranty.
