A portable countertop beer chiller that pours cold draught at 3–7°C from one or two draught beer taps.
48,452.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

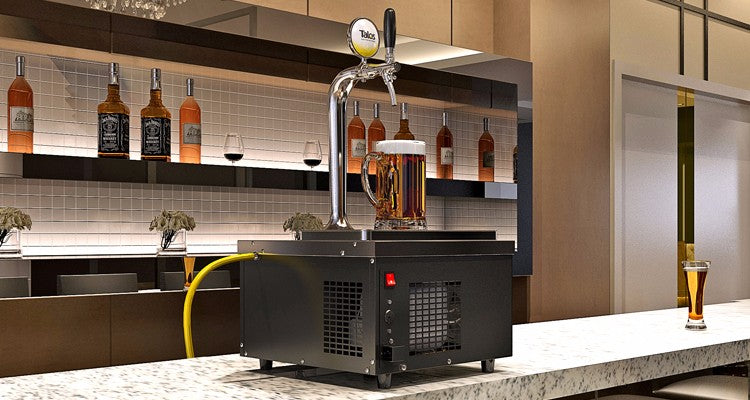

A countertop draught beer cooler chills kegged beer on demand right where it is served, so a bar, pub, hotel or restaurant can pour cold pints without plumbing in a full undercounter system. Beer runs from the keg through the cooler's coils, past the water-cooled ice bank, and out the tap at a steady 3–7°C. The compact 430 x 420 x 290 mm body sits on the bar top, keeping the setup mobile for pop-ups, catering and secondary service points.
Water-cooled system with a 14 L water tank and a 7–9 kg ice bank for stable pour temperatures under load
40 L/H cooling capacity, enough to keep up with steady table service
304 stainless steel body for durability and easy wipe-down in a wet bar environment

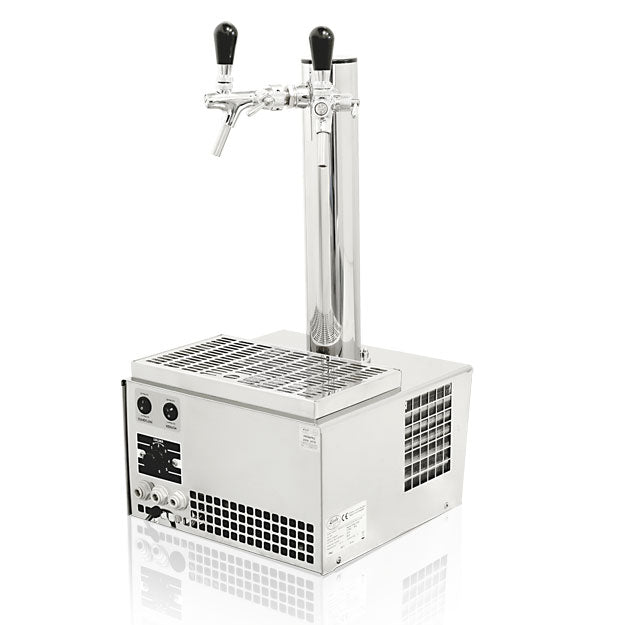

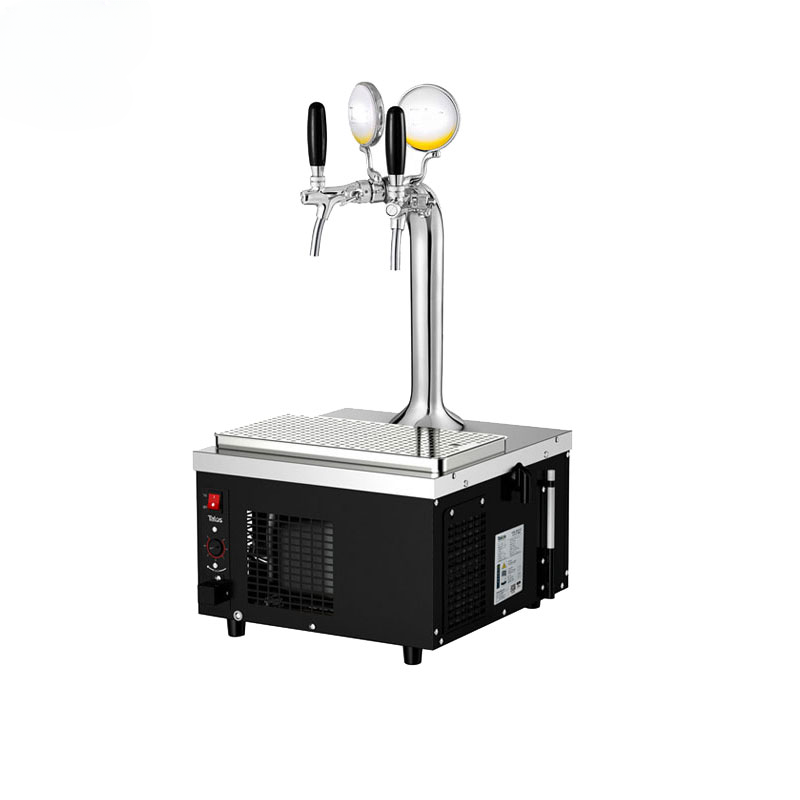

Available with one or two taps to match single- or dual-line service
Dual-voltage build (110–115V / 220–240V, 50/60 Hz) with an R134a refrigerant circuit and mechanical thermostat
Specifications
Material
304 Stainless Steel
Dimensions (L × W × H)
420 × 430 × 290 mm
Weight
21.0 kg
Power
220 W
Voltage
110-115V / 220-240V, 50/60 Hz
Customization
Custom packaging available
Cooling capacity
40 L/H
Outlet temperature
3-7 °C
Inlet temperature
25-28 °C
Cooling mode
Water-cooled
Refrigerant
R134a / 140g
Water tank
14 L
Ice bank
7-9 kg
Compressor power
1/4 Hp
Current
1.6 A
Thermostat
Mechanical
Beer coils
Two coils
Frequently asked questions
How does each draught beer tap pour at 3–7°C from a warm keg?
Beer from the keg runs through coils sunk in a water bath, where the compressor freezes a 7–9 kg ice bank around them. CO2 pressure pushes it through, so each draught beer tap pours at 3–7°C even from a keg sitting at 25–28°C.
How much service will 40 L/H actually keep up with?
Forty litres an hour of continuous pouring, with the 7–9 kg ice bank buffering short rushes beyond that. It suits steady table service or a second pour point rather than a main bar working flat out all night.
What does it need on site to run?
A power socket and 430 x 420 mm of bar top, 290 mm high. The 14 L water tank is self-contained, so there is no plumbing or drain to connect — fill it, plug it in and let the ice bank build before the first pour.
What do I need to specify when ordering?
Tap count and voltage. Choose the one-tap or two-tap build for single- or dual-line service, and specify 110–115V or 220–240V for your region; the unit draws 220 W at 1.6 A on a 1/4 Hp compressor with R134a.
What comes with it, and can packaging be branded?
The cooler ships with the keg connector, spear, faucet and beer tower assembly, plus wine labels. Kegs, CO2 and the regulator are separate. Custom packaging is available — raise it at the time of order.
