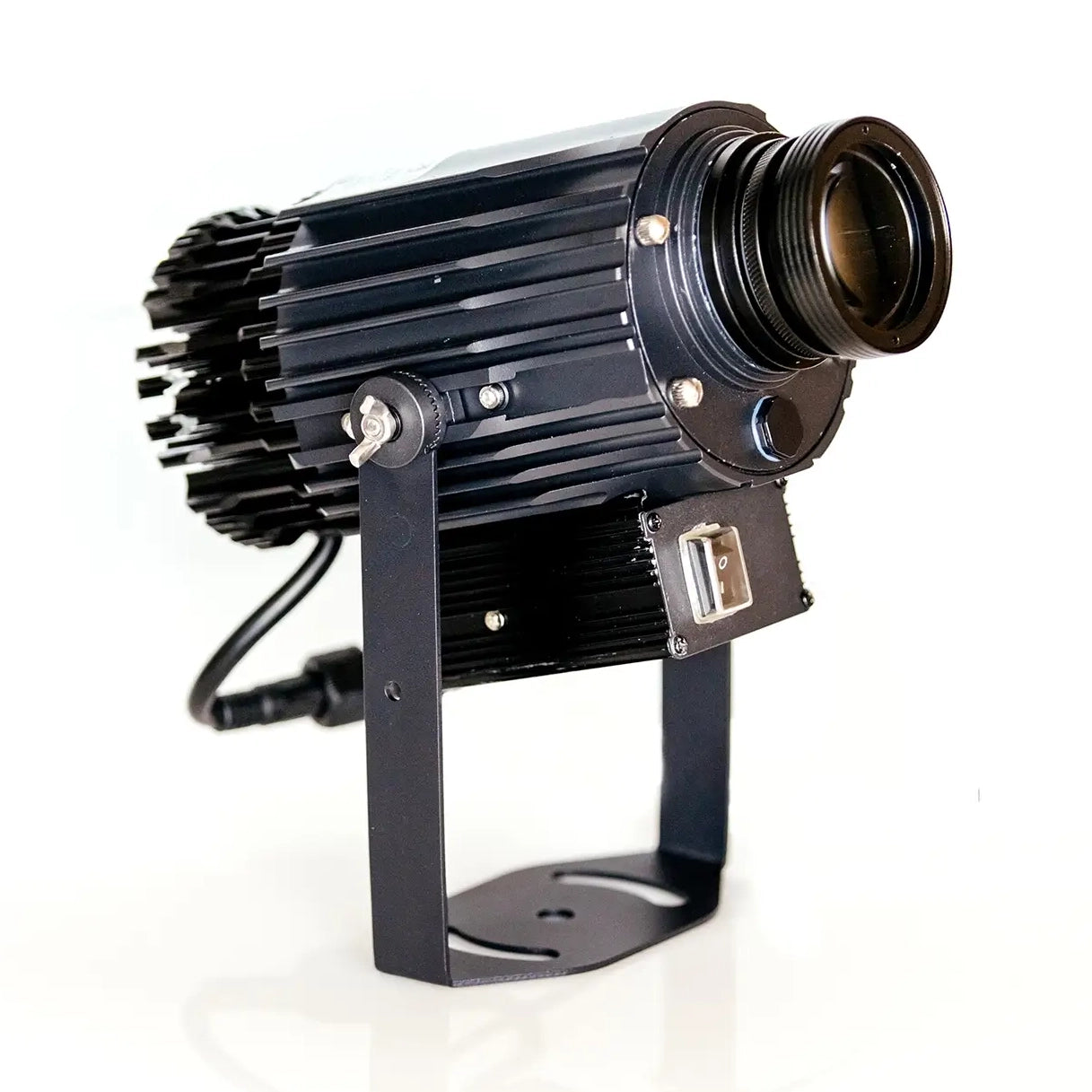

A gobo light projector — also called a gobo or logo projector — casts your logo or artwork as a crisp image on a wall, floor, or sidewalk. The GBP-4004 is a 40W mid-range model with passive cooling, so it runs silent — a real advantage in a dining room, hotel lobby, or any space where fan noise would carry. The OSRAM LED holds a sharp image from 2 to 50 meters, covering most shop fronts, bars, and warehouse signage.
Passive cooling means silent operation for quiet rooms and overnight signage
Aluminum-alloy IP65 housing for outdoor walls and dusty industrial areas
Standard (15 degrees), wide (30 degrees), and ultra-wide (50 degrees) optics to match throw and image size
Image rotation for a moving logo or pattern
37 mm single-slide carousel with custom logo design included in the slide price
This projector needs a gobo slide to operate. Send us your logo and the mounting distance, and we'll match the right slide and optics so the projection lands sharp.
Specifications
Material
Aluminum alloy
Dimensions (L × W × H)
250 × 160 × 220 mm
Weight
2.85 kg
Power
40 W
Voltage
85-265V
Warranty
2 Years
Slide capacity
1 slide
Gobo slide diameter
37 mm
Projection distance
2-50 m
Light source
OSRAM LED
Protection rating
IP65
Cooling
Passive
Image rotation
Yes
Dimming
No
Strobe
No
Frequently asked questions
What do I need to send you to get a working projection?
Your logo artwork and the mounting distance. The projector needs a 37 mm gobo slide to operate — custom logo design is included in the slide price, and the distance tells us which optics to pair with it.
Which optics should I order — 15, 30 or 50 degrees?
Pick by throw and image size: standard 15° for long distances and a tighter image, wide 30° for mid-range, ultra-wide 50° for close mounting where the wall or floor is only a few metres away. Anything from 2 to 50 m is covered.
Can it run overnight on an exterior wall without a fan?
Yes — cooling is passive, so there is no fan noise and no fan to fail, and the aluminium-alloy IP65 housing handles dust and moisture outdoors. It takes 85-265V and carries a 2 Years warranty.
