Professional Digital Audio Processor — 2-In / 4-Out DSP Matrix, 1U

Name: Professional Digital Audio Processor — 2-In / 4-Out DSP Matrix, 1U
Brand: BarEquip.Pro
SKU: BEP-0163
Price: 645.0 USD
Availability: BackOrder

A 1U rack-mount DSP audio processor with 2 XLR inputs and 4 XLR outputs for tuning conference, auditorium and live-sound systems.

$ 645 $ 755 14% discount

Shipping calculated separately

Lead time: 2–4 weeks

This is a 2-input, 4-output digital audio processor — a rack-mount DSP unit that sits between your mixer and amplifiers to shape, route and protect a sound system. It runs a 40-bit DSP core with 24-bit A/D and D/A conversion and a 192 kHz sampling frequency, so signal-routing, EQ, crossover and limiter work stays clean across the full 20 Hz–20 kHz band (-0.5 dB). For an auditorium, conference room or house of worship, it lets an integrator dial in matrix routing and speaker management from one 1U slot.

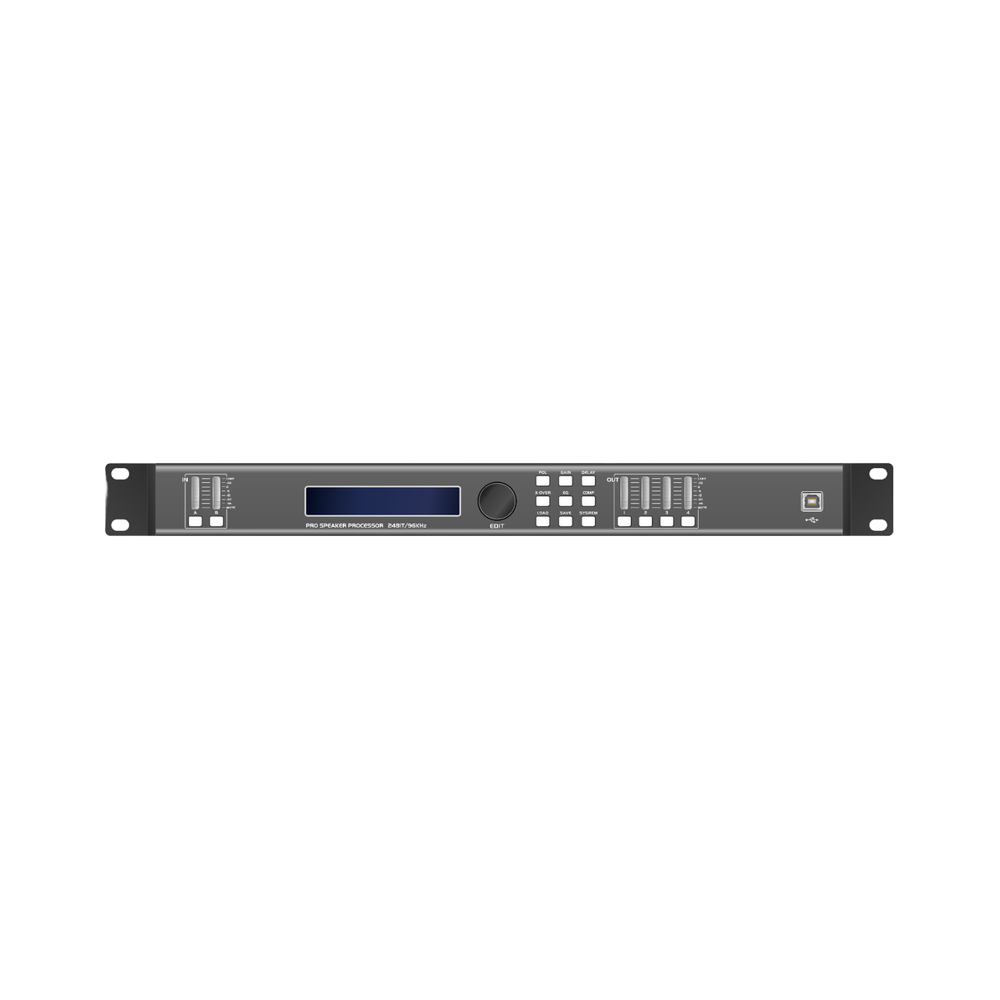

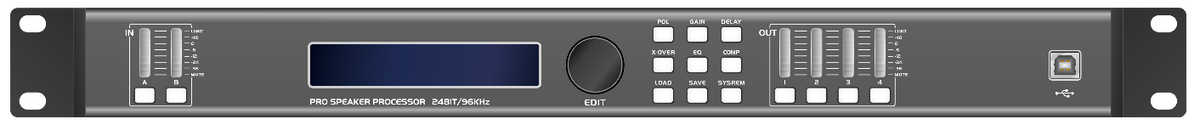

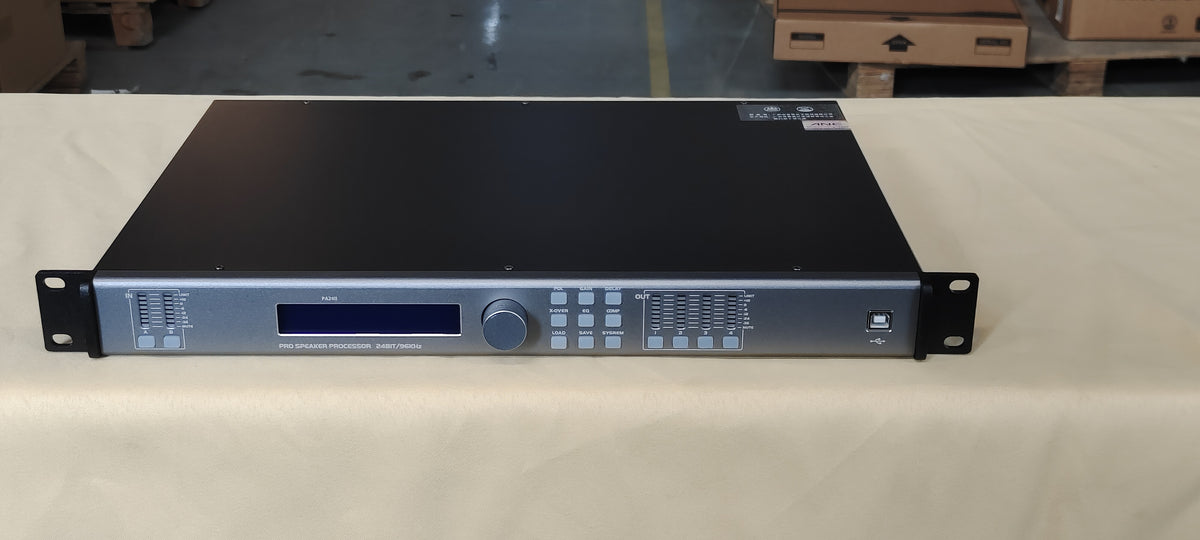

The front panel carries a 2×24 blue-backlit LCD and an 8-segment LED meter that shows precise input/output levels, mute and edit status at a glance. Setup and recall run two ways:

A front-panel USB port for direct PC editing.

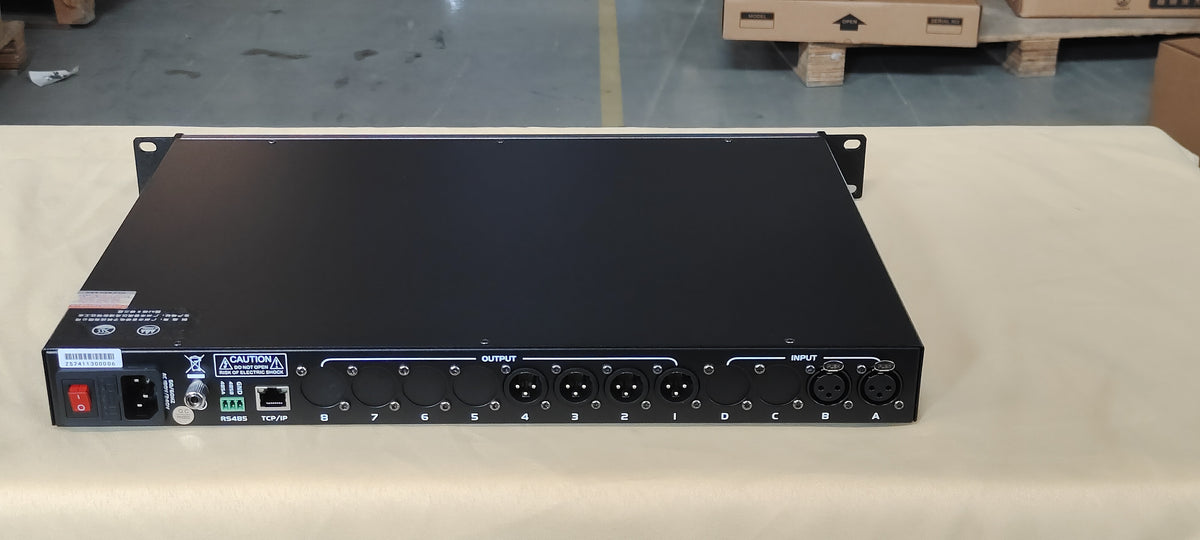

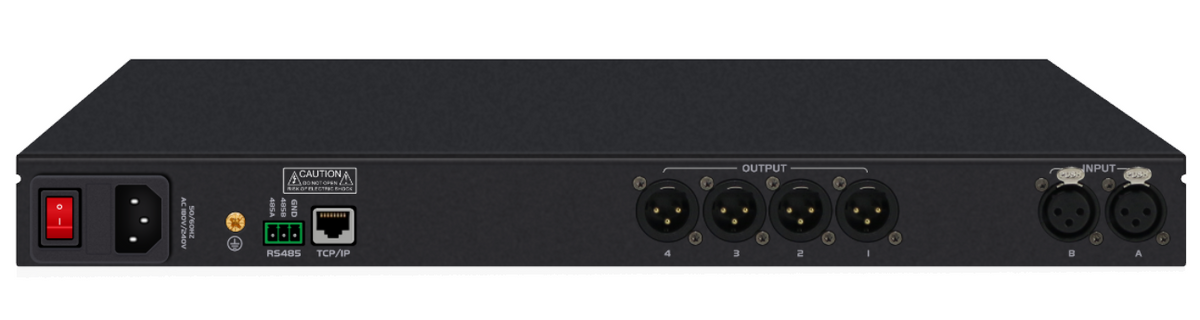

A rear-panel TCP/IP port (RJ-45) for network control and remote management.

Balanced XLR I/O (20 kΩ in, 100 Ω out), a >108 dB signal-to-noise ratio and >110 dB channel separation keep the audio path quiet and isolated. Draw is under 25 W, and the unit runs on either 110 V or 220 V mains across a 0–50 °C operating range.

Specifications

Material: Metal shell
Color: Black
Dimensions (L × W × H): 270 × 421 × 44 mm
Weight: 3.48 kg
Power: 25 W
Voltage: 110 V / 220 V
Warranty: 3-year manufacturer warranty
Certifications: CCC, CQC
Customization: OEM/ODM available
Inputs: 2-way XLR female
Outputs: 4-way XLR male
Input impedance (balanced): 20 kΩ
Output impedance (balanced): 100 Ω
Frequency response (-0.5 dB): 20 Hz–20 kHz
Signal-to-noise ratio: >108 dB
Channel separation (1 kHz): >110 dB
Total analog ratio (1 kHz): >70 dB
Distortion: <0.01% @ 0 dBu/1 kHz
Noise floor: ≤-85 dBu
Input range: ≤+18 dBu
Max input level (line): +15 dBu
Max output level (line): +15 dBu
Processor: 40-bit DSP, 24-bit A/D & D/A, 192 kHz sampling
Display: 2×24 blue-backlit LCD + 8-segment LED level meter
Control: Front USB port, rear TCP/IP (RJ-45)
Operating temperature: 0–50 °C
