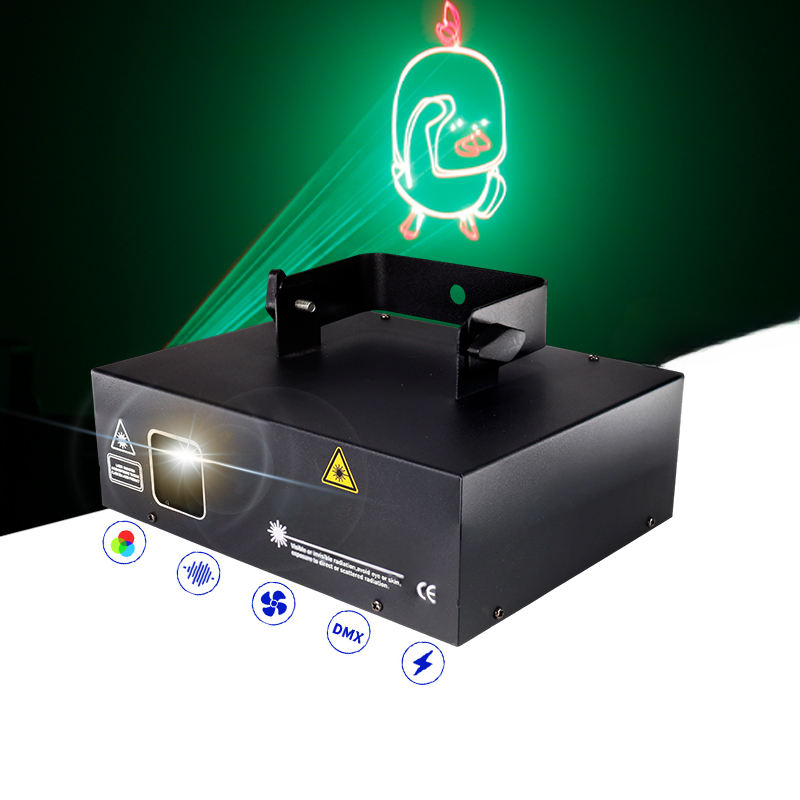

Black laser light show projector casting a green beam that forms an animated cartoon chicken, with control icons below

RGB Animation Laser Light — 3D DMX Stage Laser (1–3W)

Name: RGB Animation Laser Light — 3D DMX Stage Laser (1–3W)
Brand: BarEquip.Pro
SKU: BEP-0485-01

A portable full-color RGB laser projector that throws 3D animations and beam shows across clubs, bars and event stages.

5,589.00 ฿

Shipping calculated separately

Lead time: 2–4 weeks

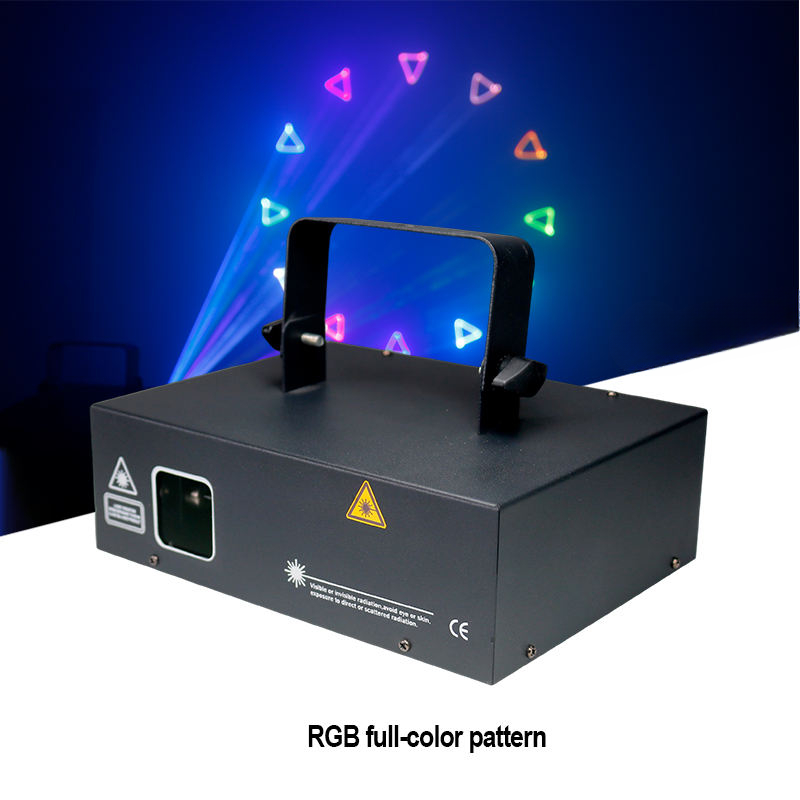

This is a full-color RGB stage laser that projects 3D animations, tunnels and beam effects to light up a dance floor, club or bar. It combines red (638 nm), green (520 nm) and blue (445 nm) diodes for true full-color output, and a 15 kpps galvanometer scanner keeps patterns crisp at speed. Housed in a compact 22 × 17 × 7 cm body, it drops into an existing rig or travels between venues without eating truss space.

Full-color RGB laser with a ±20° scan angle for wide-spread animation and beam work.
Multiple control modes — DMX (14/19 channels), sound-active, auto run, and master/slave linking for multi-fixture shows.
Rated at 60 W on a universal 100–250 V input, so it runs on any venue's mains.
Available in 1 W, 2 W and 3 W output tiers to match room size — a 3 W unit covers a small KTV or bar up to roughly 100 m².

Choose the power tier by the space: lower output suits intimate lounges and private rooms, while the 3 W model reaches further across a busier floor. All three share the same footprint, control set and mounting, so specifying across a chain of venues stays consistent.

Specifications

Power	1W	2W	3W
Dimensions (L × W × H)	17 × 22 × 7 cm	17 × 22 × 7 cm	17 × 22 × 7 cm
Power	60 W	60 W	60 W
Voltage	100–250V	100–250V	100–250V
Weight	1.8 kg	1.8 kg	1.8 kg
Color	RGB (Red 638nm, Green 520nm, Blue 445nm)	RGB (Red 638nm, Green 520nm, Blue 445nm)	RGB (Red 638nm, Green 520nm, Blue 445nm)
Warranty	1-Year	1-Year	1-Year
Light source	Laser	Laser	Laser
Galvanometer	15 kpps	15 kpps	15 kpps
Scan angle	±20 °	±20 °	±20 °
Laser diode type	TTL	TTL	TTL
Control modes	DMX 14/19 channels, sound-active, auto run, master/slave	DMX 14/19 channels, sound-active, auto run, master/slave	DMX 14/19 channels, sound-active, auto run, master/slave
Working temperature	-10 to 45 °C	-10 to 45 °C	-10 to 45 °C
IP rating	IP33	IP33	IP33
Lifespan	50000 h	50000 h	50000 h
Plug type	UK, EU, US, AU	UK, EU, US, AU	UK, EU, US, AU
Application	Stage, disco, clubs, bars, KTV	Stage, disco, clubs, bars, KTV	Stage, disco, clubs, bars, KTV
Dimmer support	Yes	Yes	Yes

Frequently asked questions

How do I pick between the 1W, 2W and 3W versions?

Size it by the room: the 3 W covers a small KTV or bar up to roughly 100 m², while 1 W and 2 W suit intimate lounges and private rooms. All three share the same body, scanner, control modes and mounting.

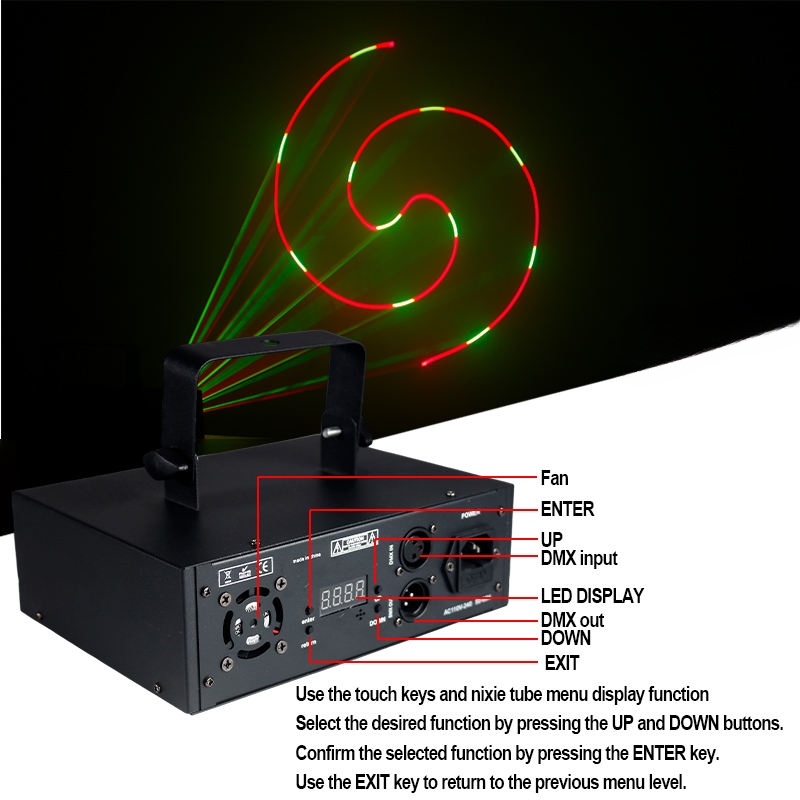

How do you control it during a show?

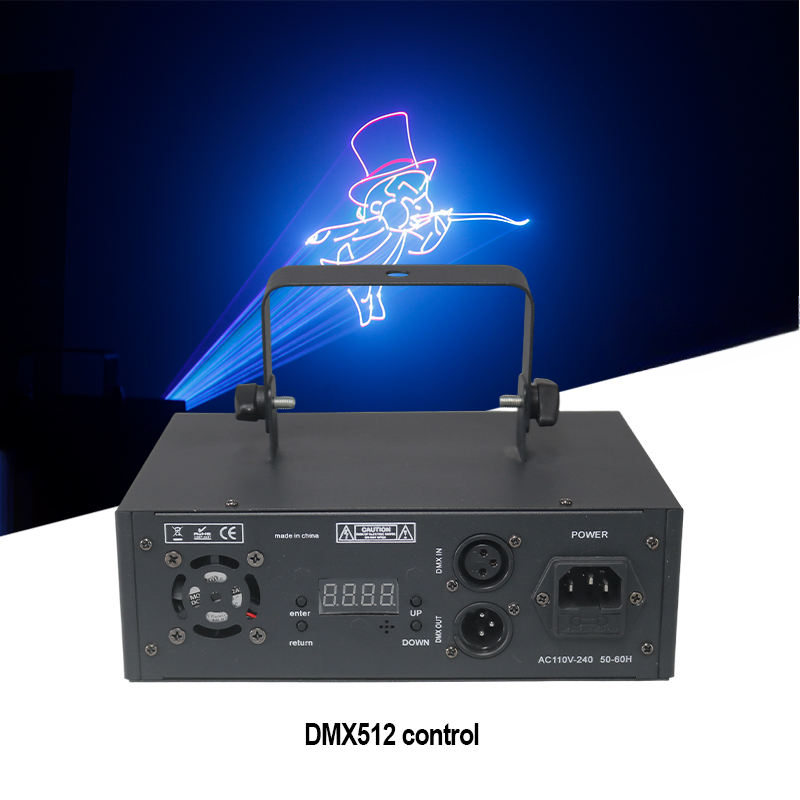

Four ways: DMX from a desk on a 14- or 19-channel map, sound-active off the music, auto run for a hands-off loop, and master/slave to sync several fixtures. Dimmer control is supported.

Will it hold pattern detail on fast animations?

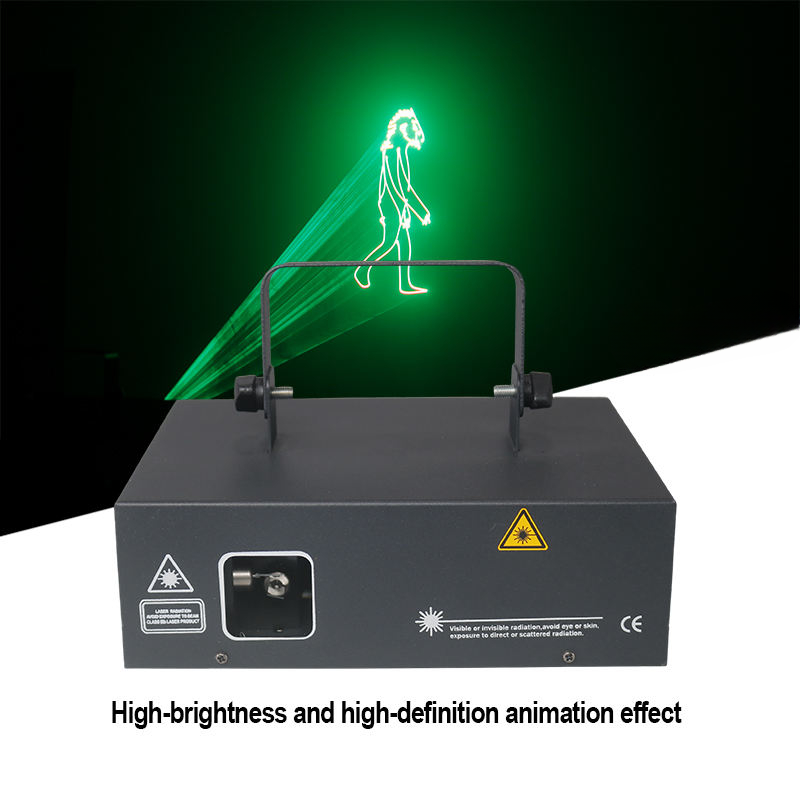

A 15 kpps galvanometer keeps tunnels and animations crisp at speed, and the ±20° scan angle spreads them wide across the floor for beam work.

What do I specify for power and plug when ordering?

The input is universal 100–250 V at 60 W, so no voltage variant is needed — just state UK, EU, US or AU when you order and the matching plug is supplied.

Can it go outdoors or in an unheated space?

IP33 means covered or indoor use only — exposed sites need a dedicated waterproof fixture. Operating range is −10 °C to 45 °C, so unheated but sheltered rooms are fine.

How much rig space does it take, and how long does the source last?

The housing is 22 × 17 × 7 cm, small enough to drop into an existing rig or travel between venues without eating truss space. Laser lifespan is rated at 50,000 hours, and the fixture carries a 1-Year warranty.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
