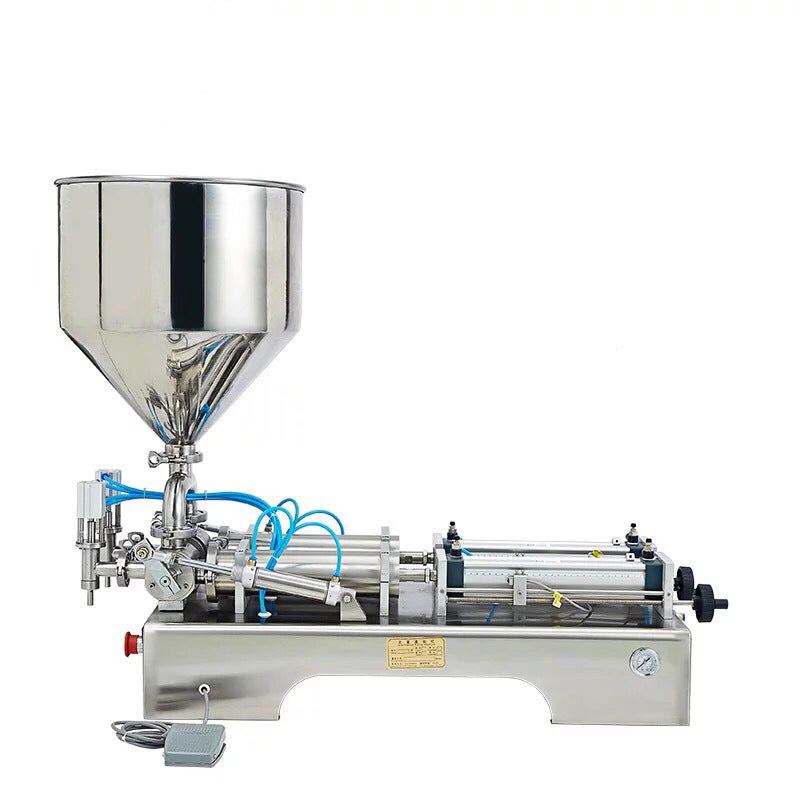

A pneumatic single-head piston filler for dosing liquids and pastes into bottles, jars, and pouches at small to medium production volumes.
$ 1 000$ 1 20016% discount
Shipping calculated separately
Lead time: 2–4 weeks

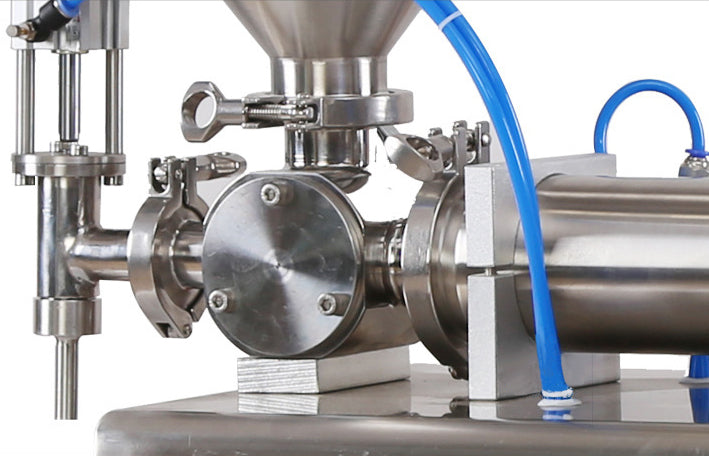

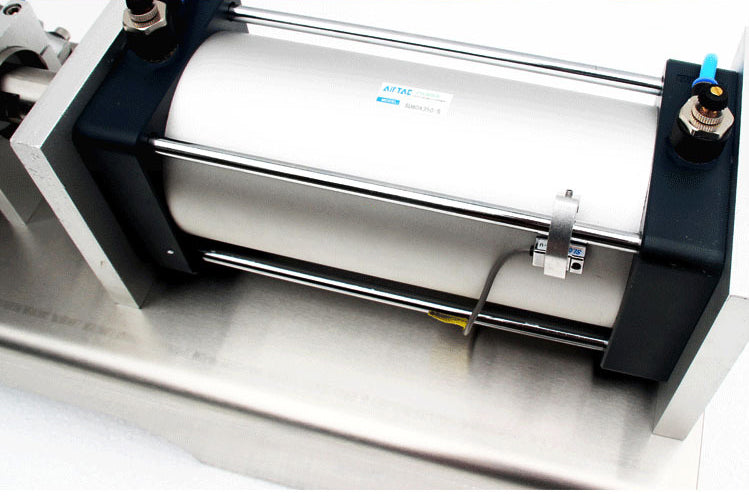

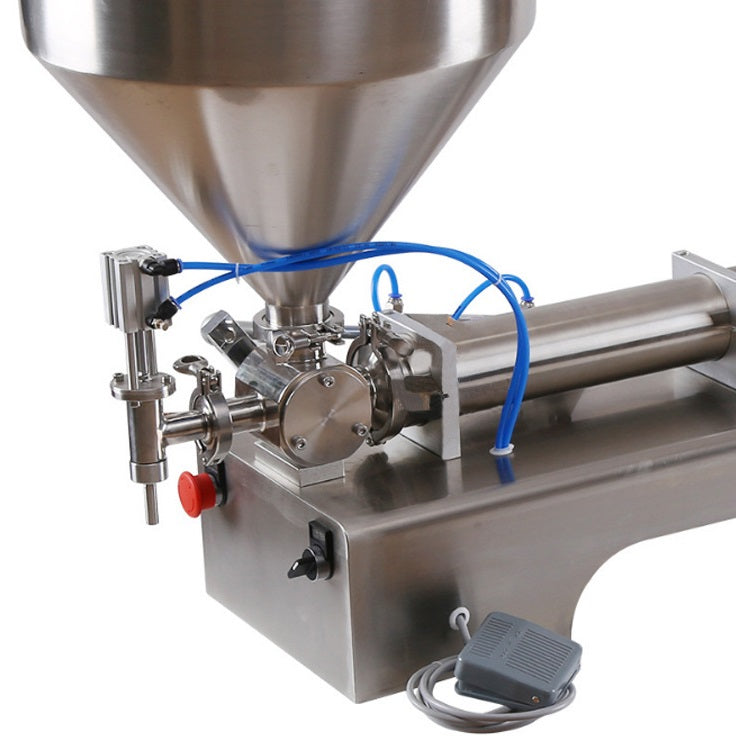

This semi-automatic piston filling machine doses free-flowing liquids and thicker pastes into containers on demand, making it a practical fit for small and medium producers who fill by batch rather than on a full line. A pneumatic cylinder draws product in and pushes it out, while a three-way rotary valve directs the material flow and a reed switch sets the cylinder stroke — so the shot volume stays repeatable once you dial it in.

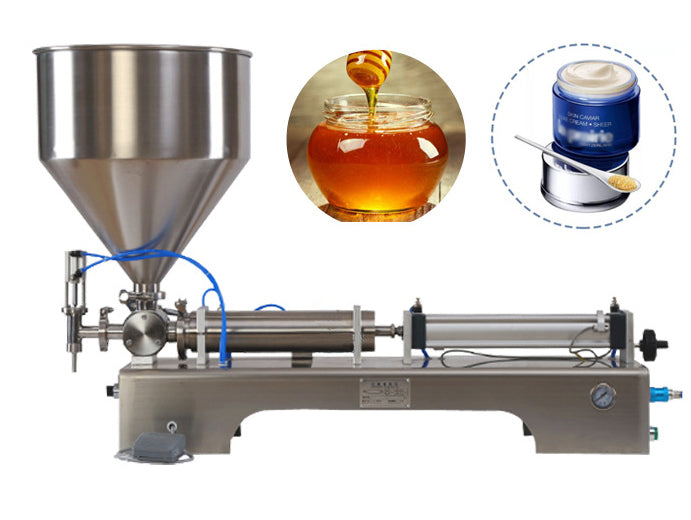

The operator adjusts the fill volume by changing the cylinder stroke, and controls the intake air to run each shot fast or slow depending on how the product behaves. That range makes it suited to honey, oil, cream, juice, sauce, liquid soap, and yogurt, across food, beverage, cosmetics, and household goods.
Pneumatic drive running on 0.4–0.8 MPa shop air
Adjustable fill volume from roughly 5 g up to 1000 g depending on the head setup
Throughput of 10–30 bottles per minute
Backed by a 1-year manufacturer warranty, with online and video technical support for setup and troubleshooting.
It fills both free-flowing liquids and thicker pastes — honey, oil, cream, juice, sauce, liquid soap, and yogurt among them. The pneumatic piston and three-way rotary valve move viscous material as well as thin liquids, which suits food, beverage, cosmetics, and household goods.
How do you adjust the fill volume on this machine?
You change the cylinder stroke, which sets how much product each shot draws and dispenses. The single-head setup covers roughly 5 g up to 1000 g depending on configuration, and you can tune the intake air to run each fill fast or slow.
What air supply and power does the machine require?
It runs on shop air at 0.4–0.8 MPa and draws 1–1.5 kW from a 220V single-phase supply at 50/60 Hz. Confirm your compressor output and outlet before installing.
How fast does the filling machine run?
It fills at 10 to 30 bottles per minute. Actual throughput depends on the fill volume, product viscosity, and how quickly the operator places and removes containers, since it is semi-automatic.
Does the filling machine come with a warranty and support?
It is backed by a 1-year manufacturer warranty. Online support and video technical support are provided for setup and troubleshooting, and the unit ships with a test report and outgoing-inspection video.
What are the dimensions and weight of the unit?
The machine measures 90 × 40 × 70 cm (L × W × H) and weighs about 45 kg. Plan a stable bench or floor space and account for the air line and product supply when positioning it.
