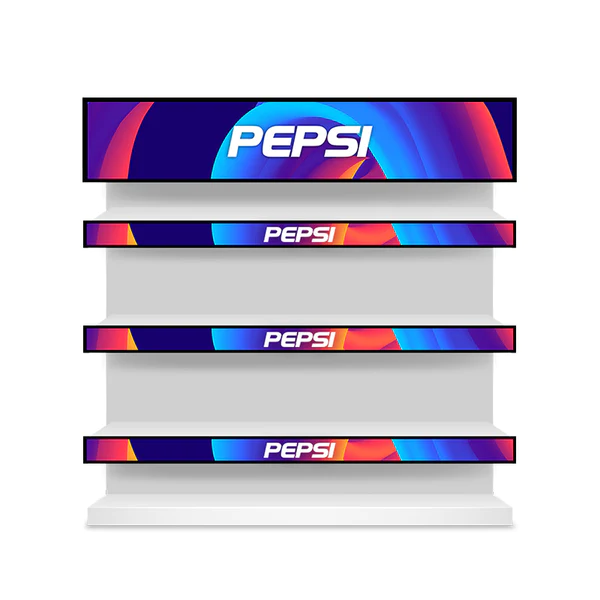

Pepsi-branded shelf edge display screens mounted on a four-tier white gondola shelving unit

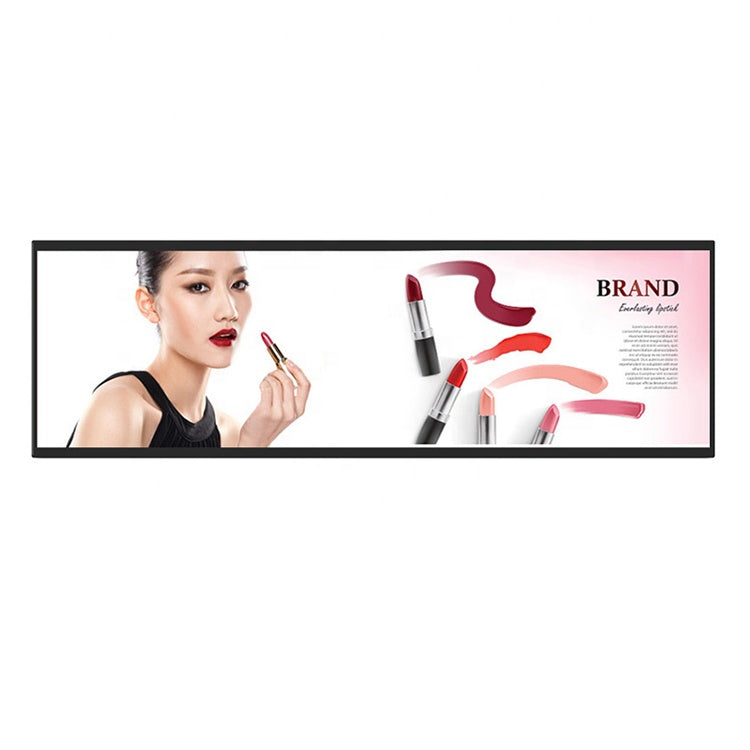

Ultra-Wide Stretch Bar LCD Digital Shelf-Edge Display

Name: Ultra-Wide Stretch Bar LCD Digital Shelf-Edge Display
Brand: BarEquip.Pro
SKU: BEP-0554-01
Price: 5078.0 THB
Availability: BackOrder

An ultra-wide stretched LCD screen that turns shelf edges into dynamic pricing and advertising signage across a retail floor.

From5,078.00 ฿

Custom order

Made to order to your spec — you choose the size and configuration.

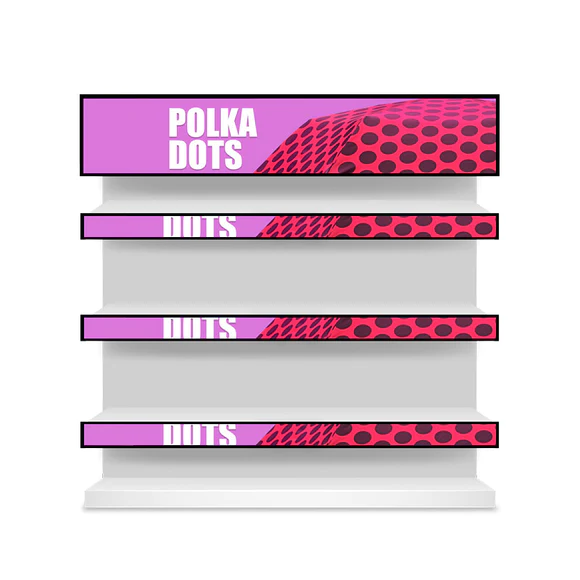

A stretch bar LCD is a commercial display built on an ultra-wide panel, sized to sit along the front edge of a shelf where a standard 16:9 screen never fits. Instead of a printed price rail, the shelf edge becomes a live surface for pricing, promotions, and short-form video — updated over the network rather than reprinted by hand. The elongated 0.67 aspect ratio and 1920-pixel-wide resolution keep text and product shots sharp along the full run of a gondola or cooler door.

It runs Android or Windows and is driven by a cloud-based CMS, so a manager schedules content, pushes price changes, and manages every screen in the store remotely. Intelligent split-screen lets one display carry several messages at once — a price on one section, a promo clip on another. The aluminum case with a tempered-glass front stands up to daily retail traffic, and the panel is rated for continuous indoor operation from 0 to 40 °C.

Ultra-wide 0.67 aspect ratio for shelf-edge, cooler-door, and gondola mounting
500 cd/m² brightness, 5000:1 contrast, 16.7M colors, 8 ms response
Cloud CMS with remote content management and intelligent split-screen
Android/Windows OS; AC 110–240 V, 50/60 Hz power input
Aluminum frame with tempered-glass panel; sizes from 16.4" to 58.5"

Specifications

Material: Aluminum case, Tempered glass panel
Color: Custom
Voltage: AC 110–240 V, 50/60 Hz
Warranty: 1 year
Certifications: CE, FCC, ISO9001, SGS test report
Customization: Custom size; OEM/ODM on enclosure, software, logo, and special functions
Display type: Ultra-wide stretch bar LCD
Resolution: 1920 x custom
Aspect ratio: 0.67
Brightness: 500 cd/m²
Contrast ratio: 5000:1
Display colors: 8-bit, 16.7M
Response time: 8 ms
Operating system: Android / Windows
Content management: Cloud-based CMS with remote management
Display functions: Video / Text / Picture / Time / 3D Text / Office / SWF

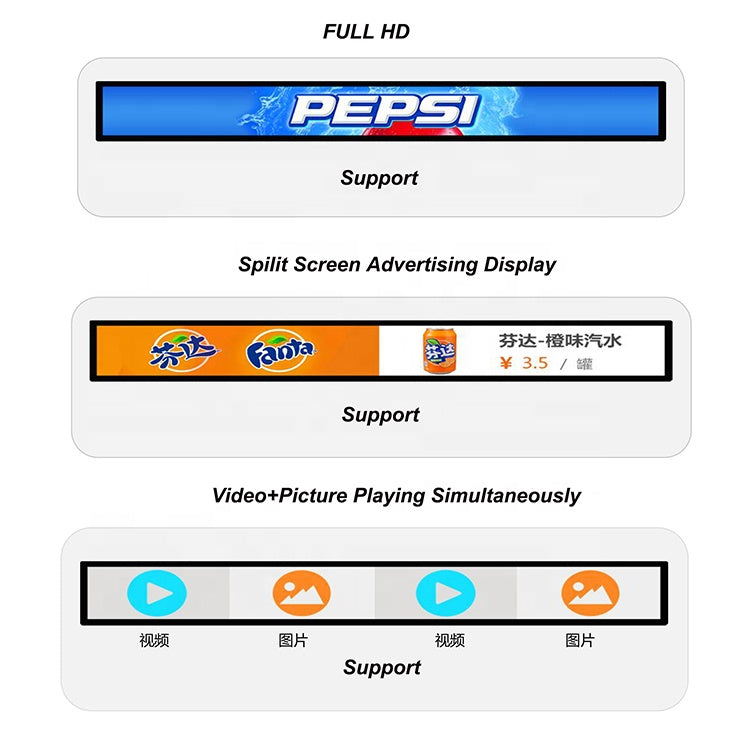

Feature: Intelligent split-screen
OSD languages: Chinese, English, etc.
Installation: Shelf
Application: Indoor
Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C
Humidity: 20–80% RH at 40 °C

Frequently asked questions

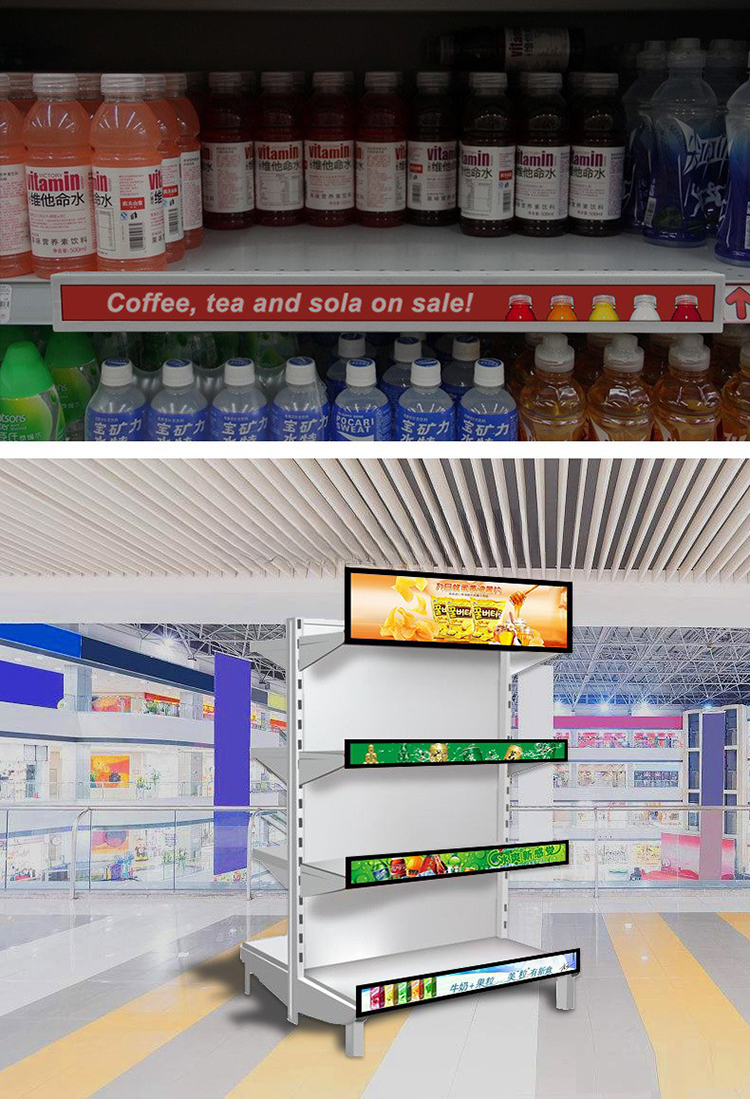

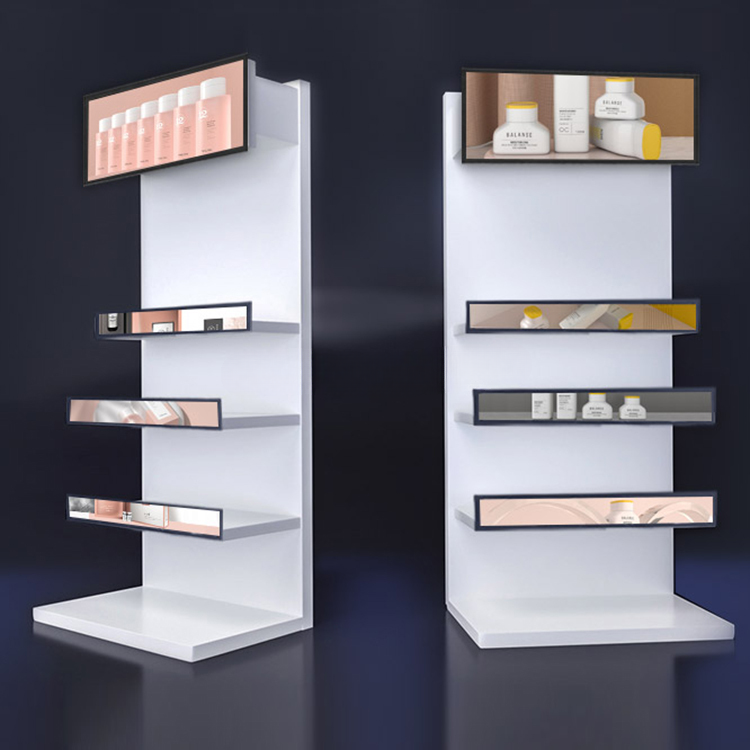

Where does a shelf edge display mount on a retail fixture?

Along the front edge of a shelf, a cooler door, or the length of a gondola — the ultra-wide 0.67 aspect ratio fits where a 16:9 panel cannot. As a shelf edge display it replaces the printed price rail with live pricing, promos, and short video.

How does a manager update prices across a whole store?

Through the cloud-based CMS, which schedules campaigns and pushes price changes to every screen remotely rather than screen by screen. Intelligent split-screen also runs several zones on one bar — a price on one section, a promo clip on another.

What sizes are available, and can the panel be cut to my fixture length?

Diagonals run from 16.4" to 58.5", all 1920 pixels wide on the 0.67 ratio, and custom sizes are made to order. Give your shelf or cooler-door dimension with the order so the bar matches the run.

Will it read clearly under aisle lighting?

500 cd/m² brightness with 5000:1 contrast keeps price text and product shots legible in a normally lit indoor aisle, and the 8 ms response time and 16.7M colours hold video clean rather than smeared.

What power and operating conditions does it need?

Mains AC 110–240 V at 50/60 Hz, so it takes standard supply in most regions without a step transformer. Keep it indoors between 0 and 40 °C at 20–80% RH; storage tolerates -20 to 60 °C.

How far does customisation go, and what OS does it ship with?

Specify Android or Windows when ordering, and OEM/ODM covers the enclosure, software, logo, and special functions alongside custom panel sizes. The display carries CE and FCC marks with an SGS test report, and warranty is 1 year.
