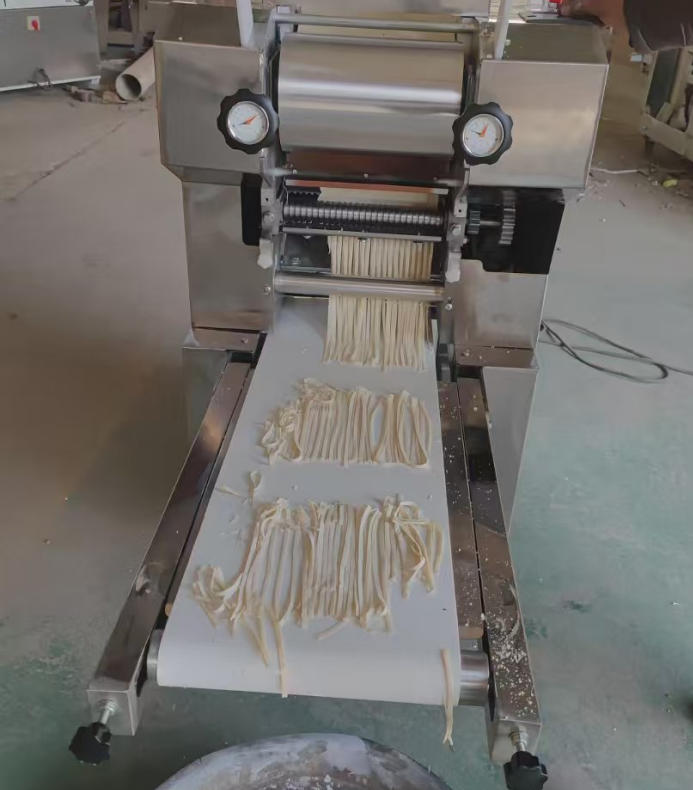

Commercial Automatic Fresh Noodle Machine — Mixer, Sheeter & Cutter

An all-in-one fresh noodle line that mixes, sheets, and cuts ramen, udon, and dumpling wrappers at up to 100 kg per hour.

From$ 4 500 $ 4 995 9% discount
Custom order
Made to order to your spec — you choose the size and configuration.

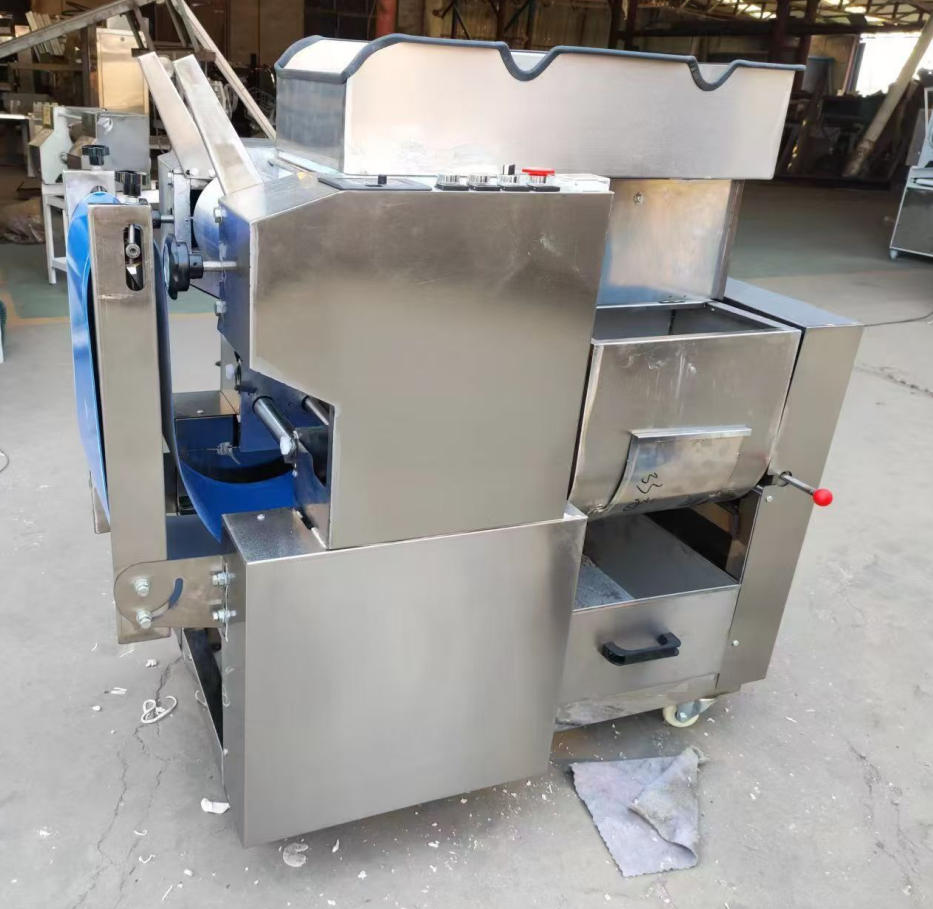

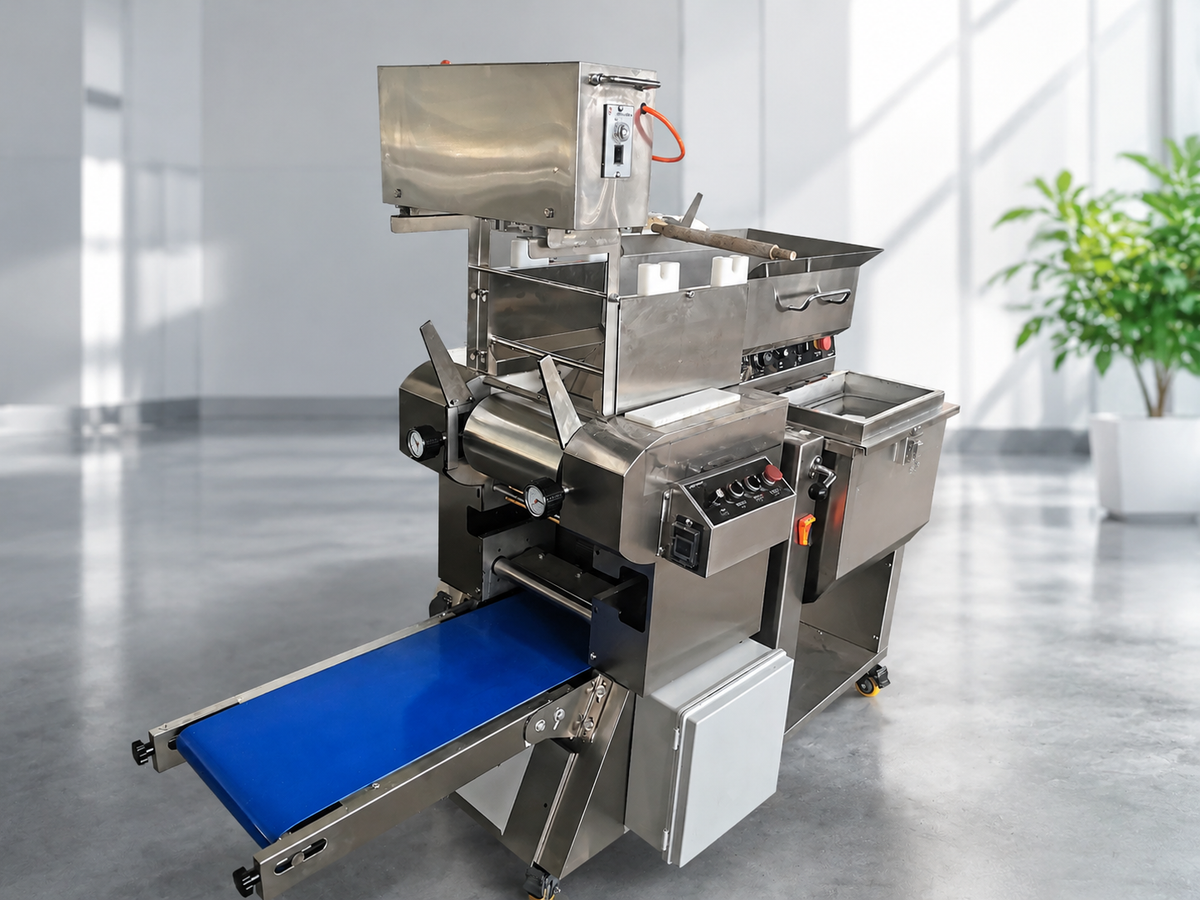

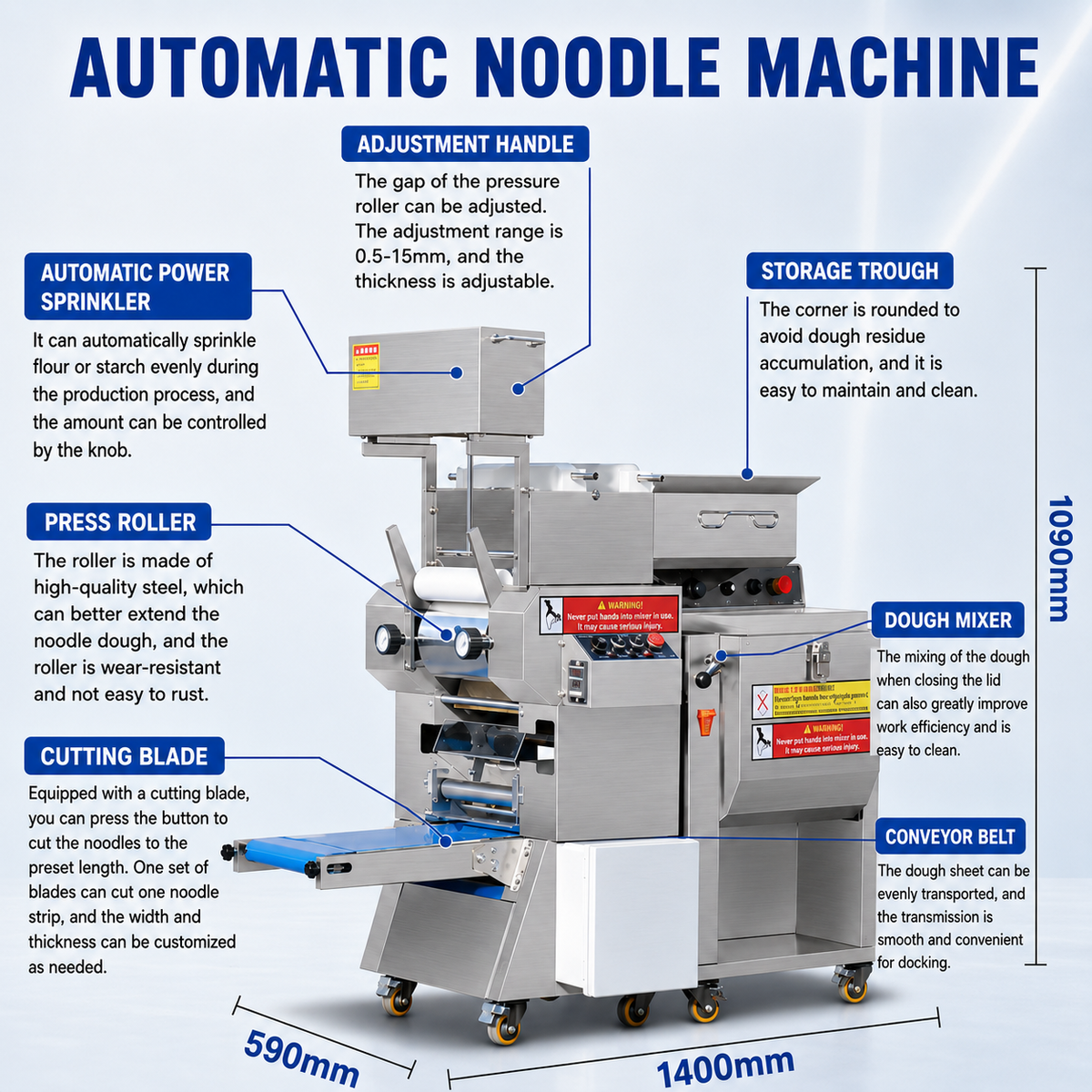

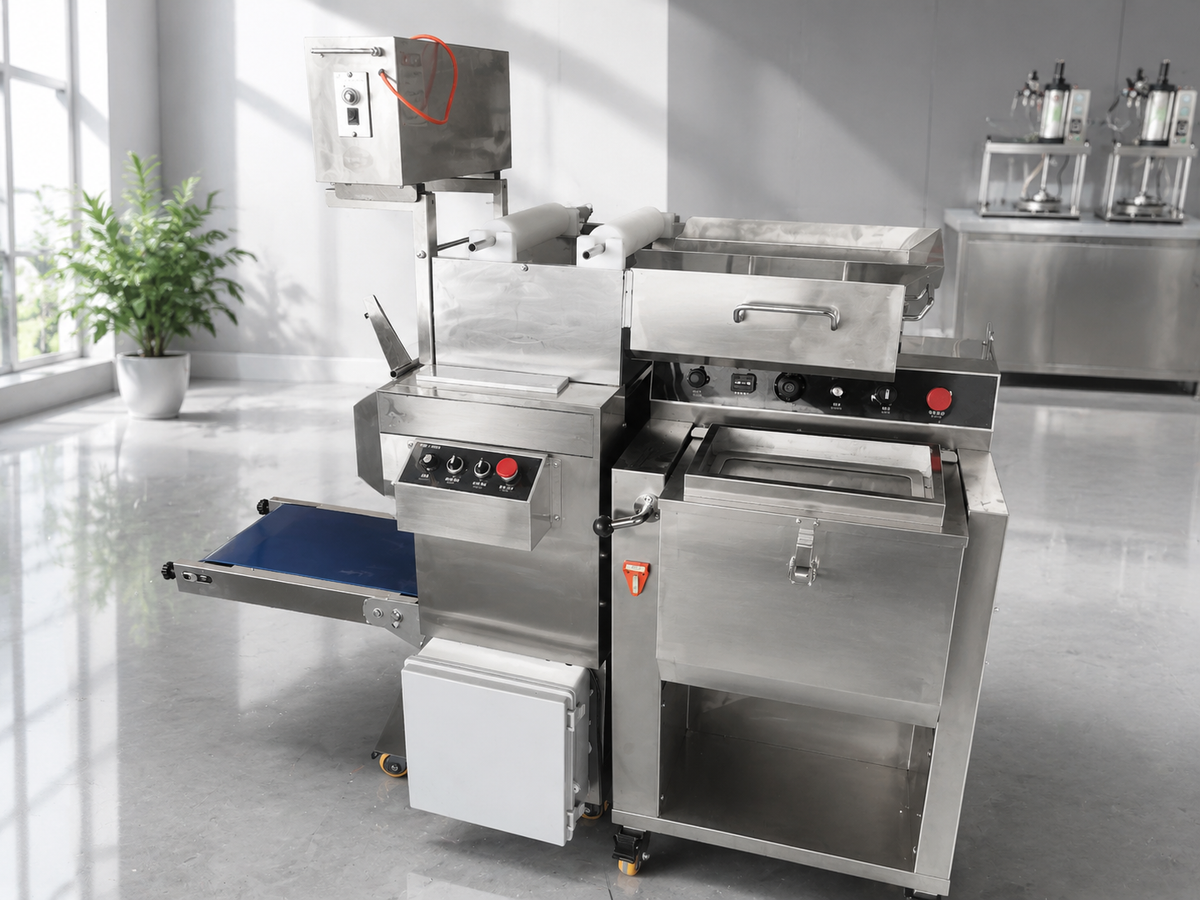

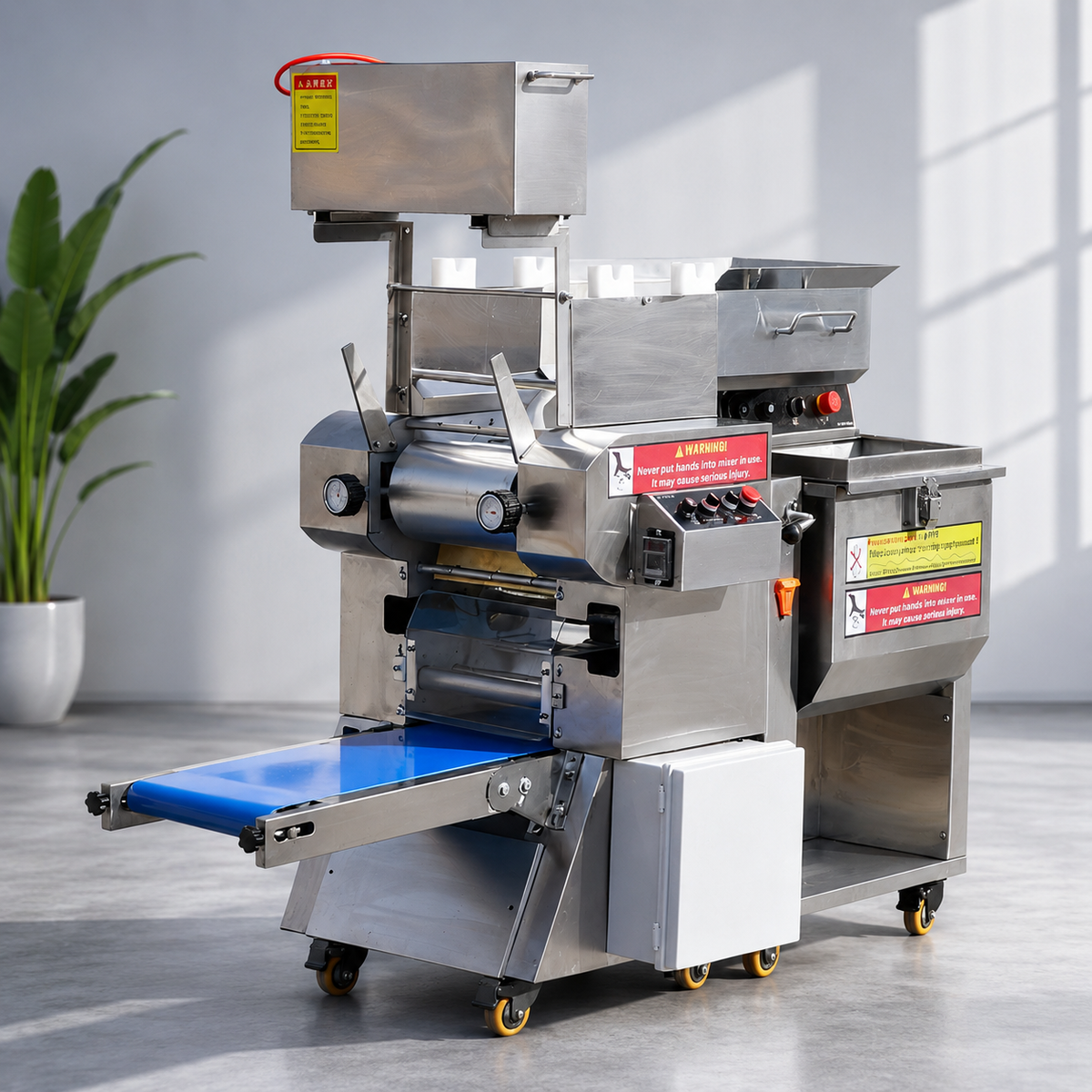

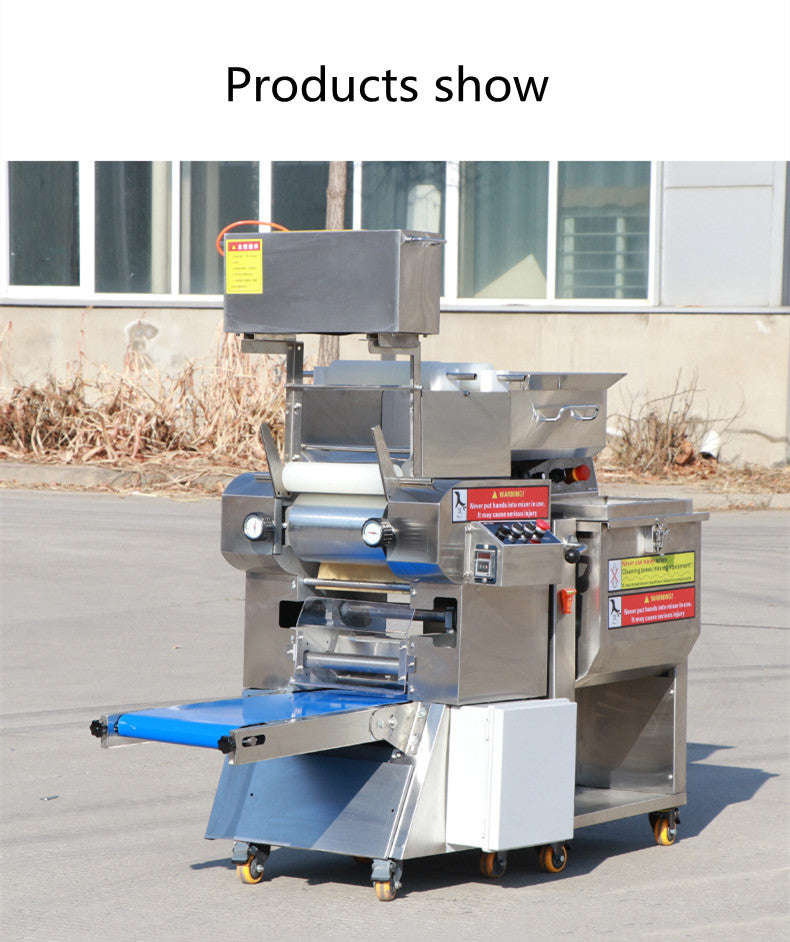

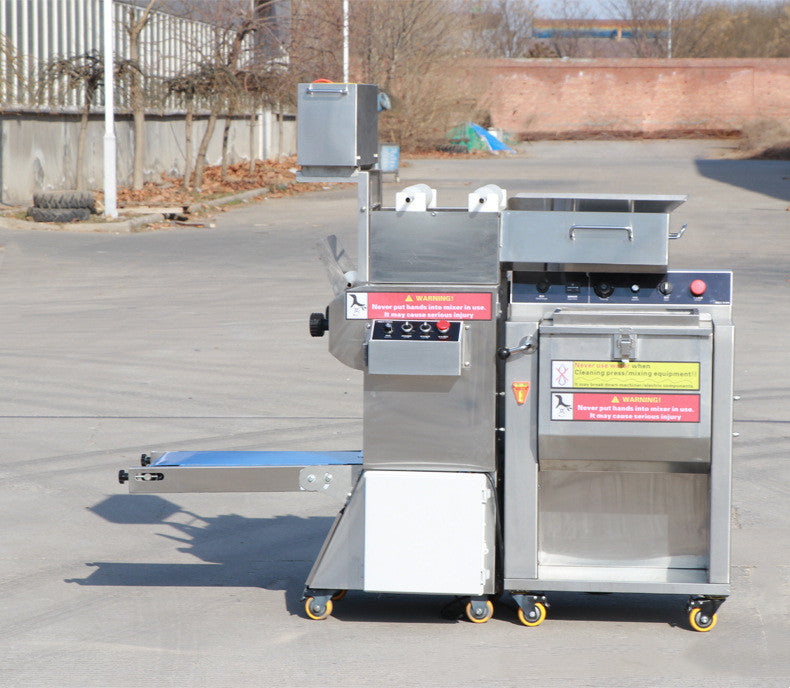

This commercial noodle machine combines dough mixing, multi-layer sheeting, anti-stick flour dusting, adjustable cutting, and a finished-noodle conveyor in one compact unit — so a noodle shop or central kitchen runs the whole fresh-noodle process from a single footprint instead of buying separate equipment. Add flour and water to the mixing bin, and the machine kneads uniform dough, calenders it through 168 mm × 260 mm stainless steel rollers, dusts it to prevent sticking, cuts noodles to a set length, and belts them out ready to cook.

Rated at 2.32 kW with a steady 80–100 kg/h output, it produces fresh ramen, udon, and alkaline wet noodles, and swaps forming parts to turn out dumpling wrappers and wonton skins. The full stainless steel body and universal casters suit fresh-noodle retail shops, processing factories, canteens, and catering central kitchens.

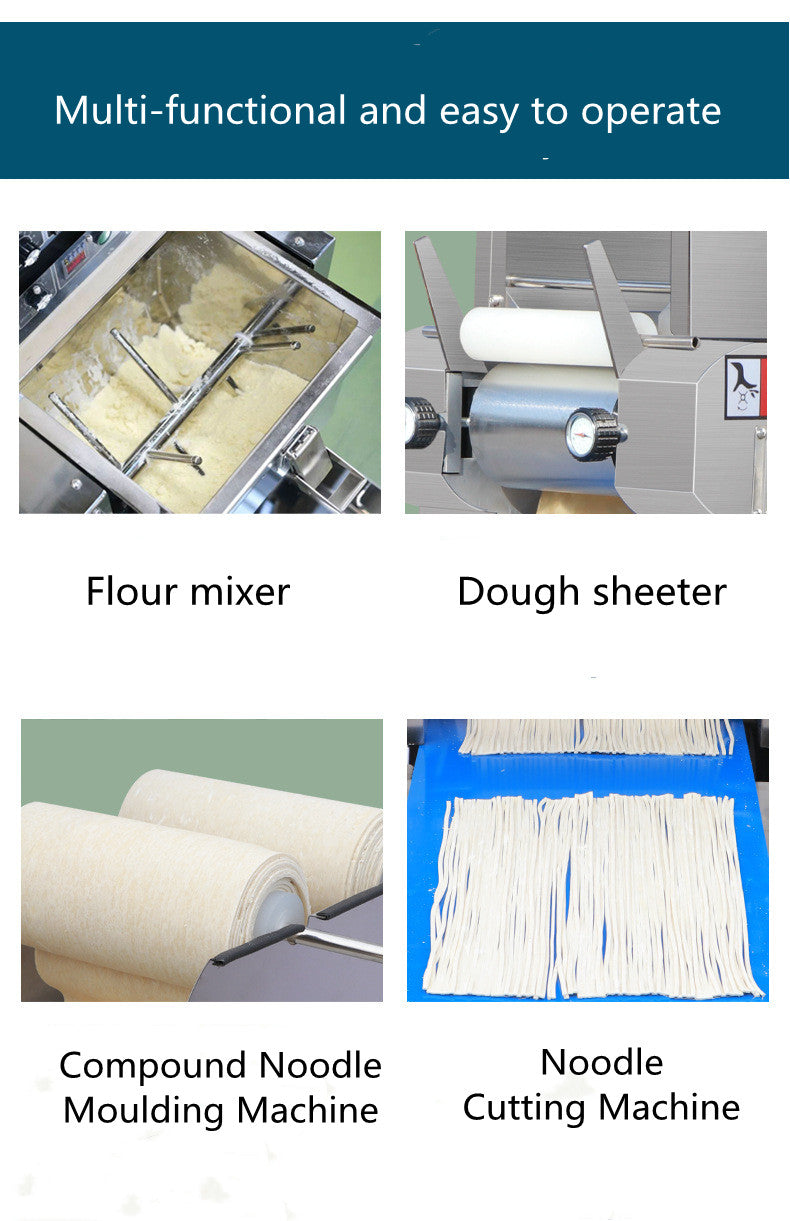

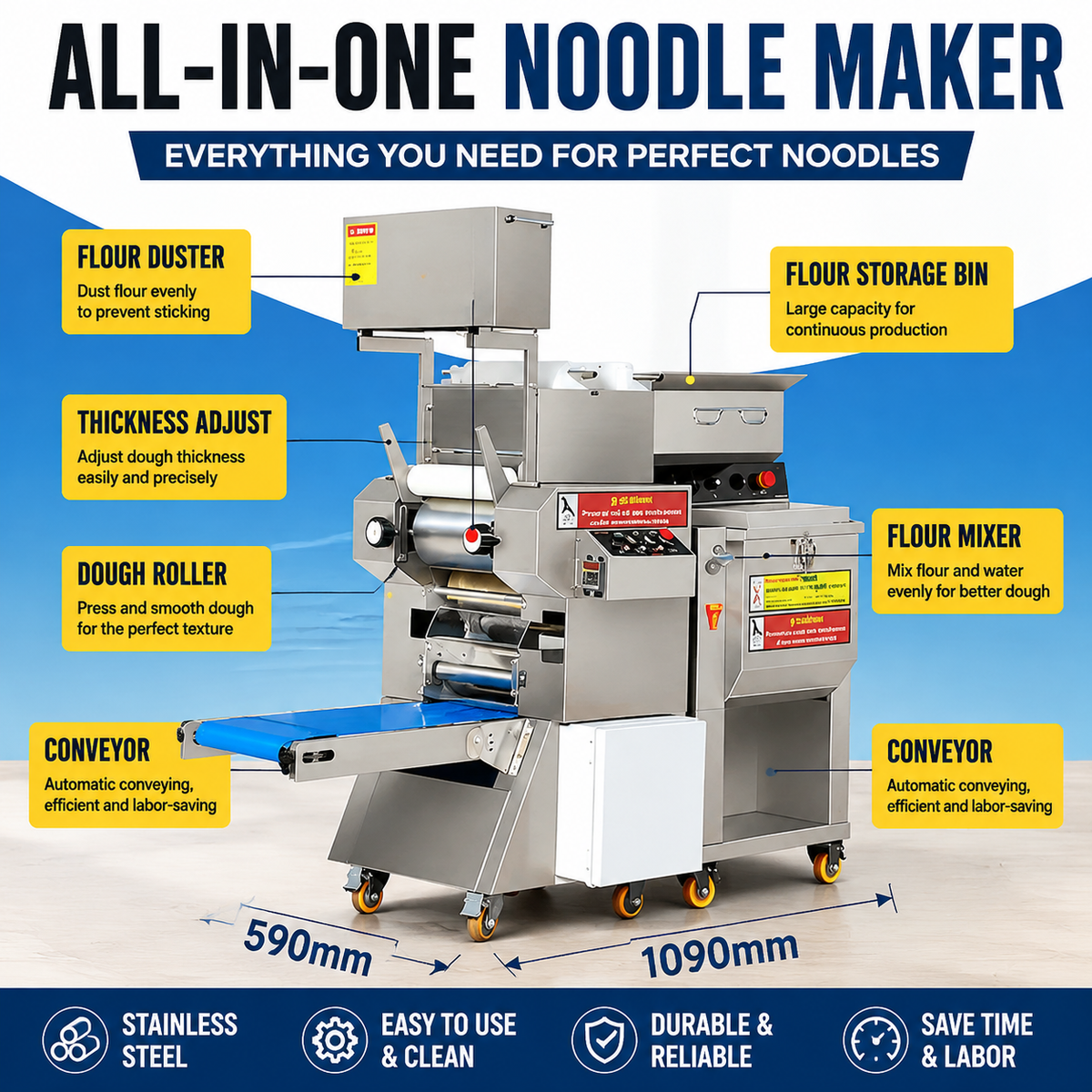

  • Integrated mixing, sheeting, flour dusting, cutting, and conveyor output

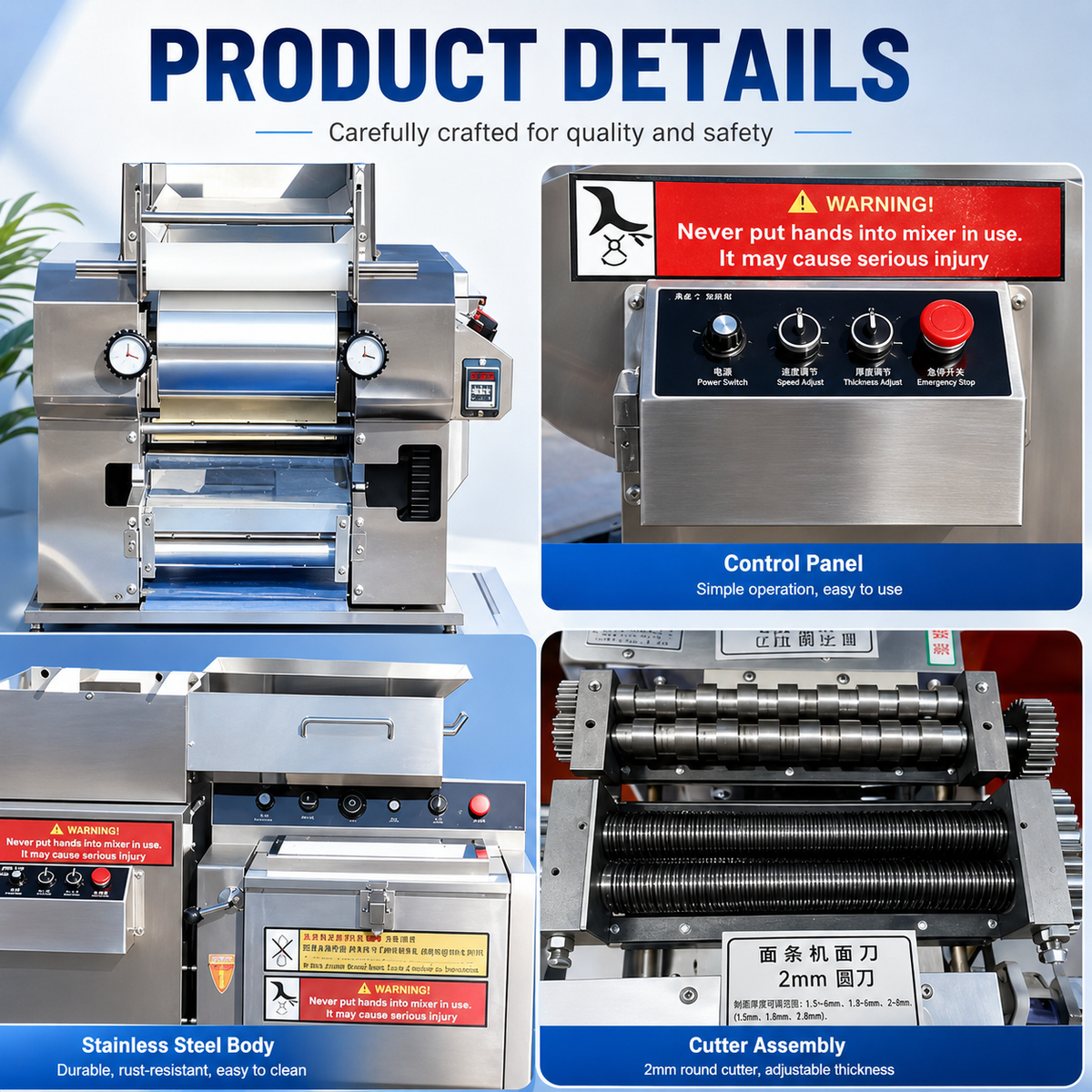

  • 168 mm × 260 mm stainless steel pressing rollers with adjustable thickness
  • Automatic anti-stick flour sprinkler for continuous, uniform dusting

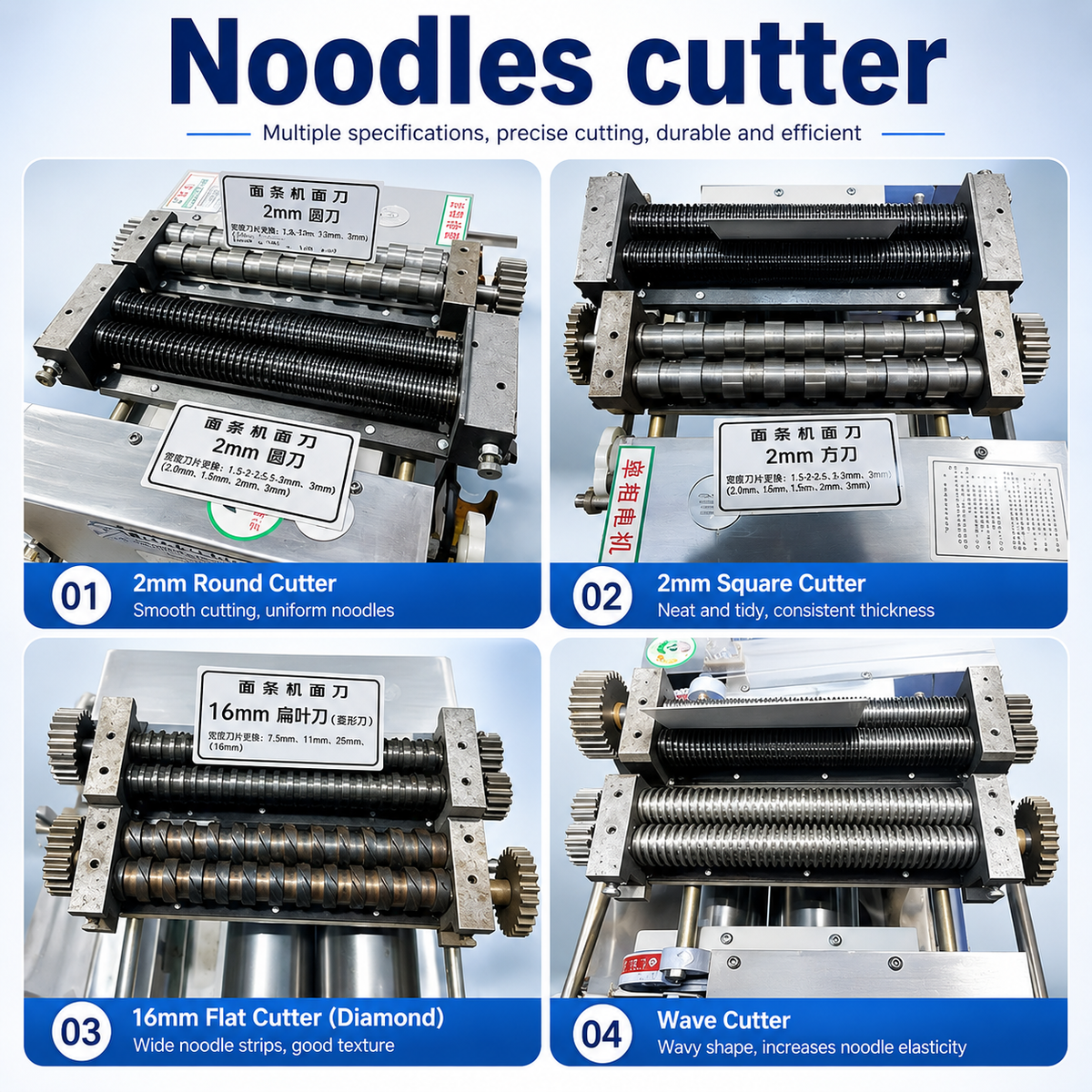

  • Adjustable cut length for ramen, udon, and alkaline noodles
  • Mobile casters for repositioning within a prep area

Specifications

Material
Stainless steel
Dimensions (L × W × H)
590 × 1100 × 1190 mm
Weight
420.0 kg
Power
2320 W
Voltage
220v/380v
Warranty
1 Year
Certifications
CE, 2006/42/EC
Production capacity
80-100 kg/h
Roller diameter
168 mm
Roller length
260 mm
Mobility
Universal casters
Products
Ramen, udon, alkaline noodles, dumpling wrappers, wonton skins
Core component
Motor

Frequently asked questions

What types of noodles can this machine make?

It produces fresh ramen, udon, and alkaline wet noodles, and by swapping the forming parts it also turns out dumpling wrappers and wonton skins. Adjustable rollers and cut length let you set the gauge and shape for each style.

How much noodle output does it produce per hour?

The machine runs a steady 80–100 kg per hour, which suits busy noodle restaurants, processing shops, and canteens replacing manual production.

Does the machine mix the dough as well as cut noodles?

Yes. It integrates the full process in one unit: add flour and water to the mixing bin and the machine kneads uniform dough, sheets it through the rollers, dusts it against sticking, cuts to length, and belts the finished noodles out.

What are the power and size requirements?

Total power draw is 2.32 kW, and the unit measures 1100 × 590 × 1190 mm (L×W×H). It sits on universal casters so you can reposition it within a prep area.

Is the machine easy to move and clean?

The body is full stainless steel on universal casters, so it rolls between stations and wipes down between production runs.

Does it come with a warranty?

Yes. It is backed by a 1-year manufacturer warranty. Contact us to confirm current spare-parts and service options for your region.
