Commercial Beer Brewing System — Nano Brewery Brewhouse (100–400 L)

This system is available in 100 L, 150 L, 200 L, 300 L, and 400 L batch sizes, selectable by model. Each 100 L of batch capacity supports up to three brews per day, so the 100 L configuration can run up to about 9 tonnes of beer per month.

You can order the system with electric, steam, or direct-fire heating. On electric, the 200 L, 300 L, and 400 L models draw 24 kW, 36 kW, and 48 kW respectively; steam and direct-fire run around 10 kW. The right choice depends on the utilities available at your site — contact us to confirm what fits.

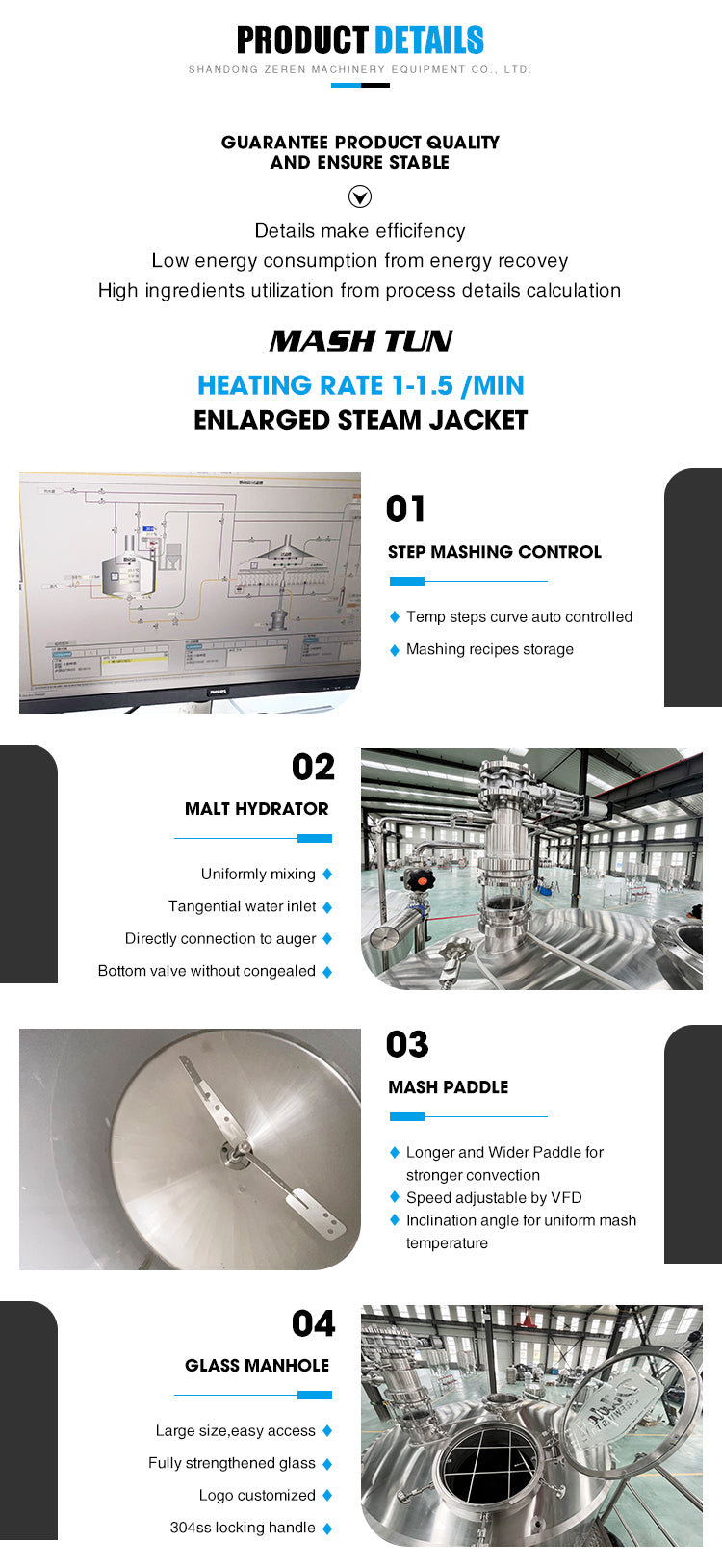

Both options are offered. The fully automated version runs on a Siemens PLC, and the semi-automated version uses a Schneider PID controller. In either case a PT100 temperature sensor feeds tank temperature back to the controller so mash and boil temperatures stay where you set them.

Wetted parts are made from SUS304 or SUS316 stainless steel, both standard grades for food and beverage production. The system is CE certified and ships with a machinery test report.

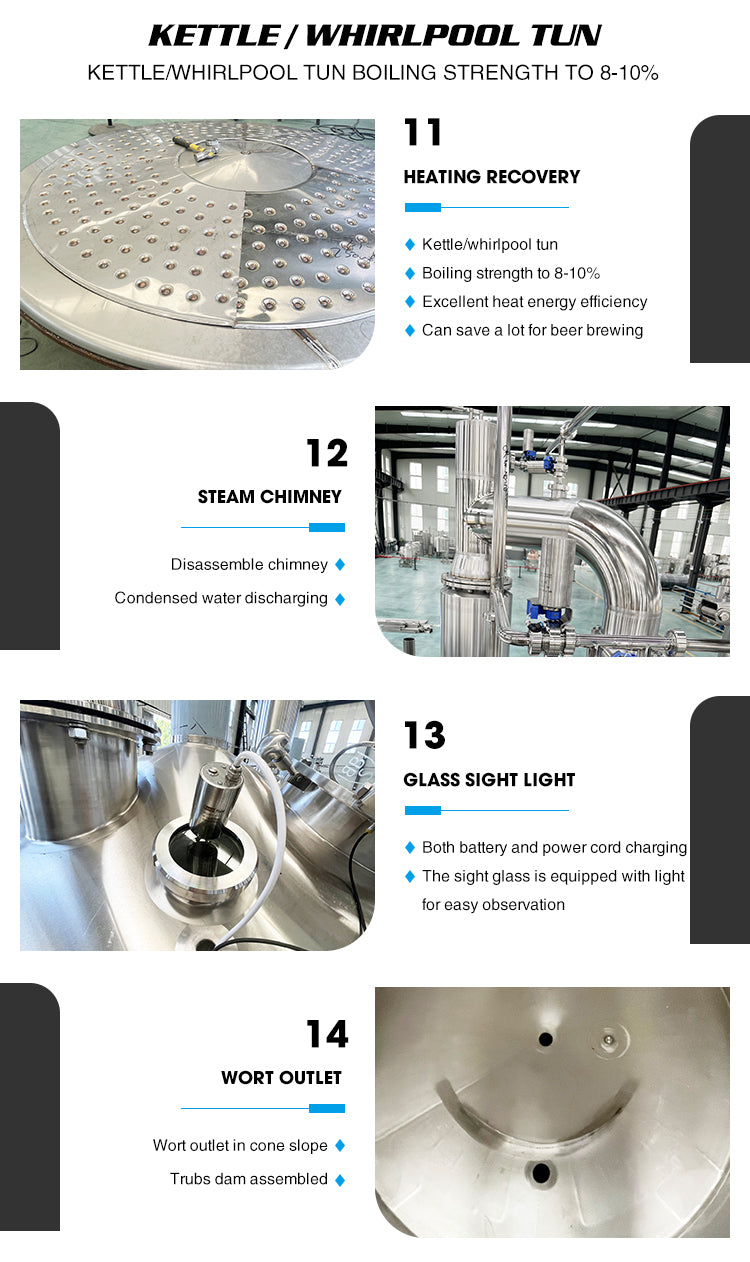

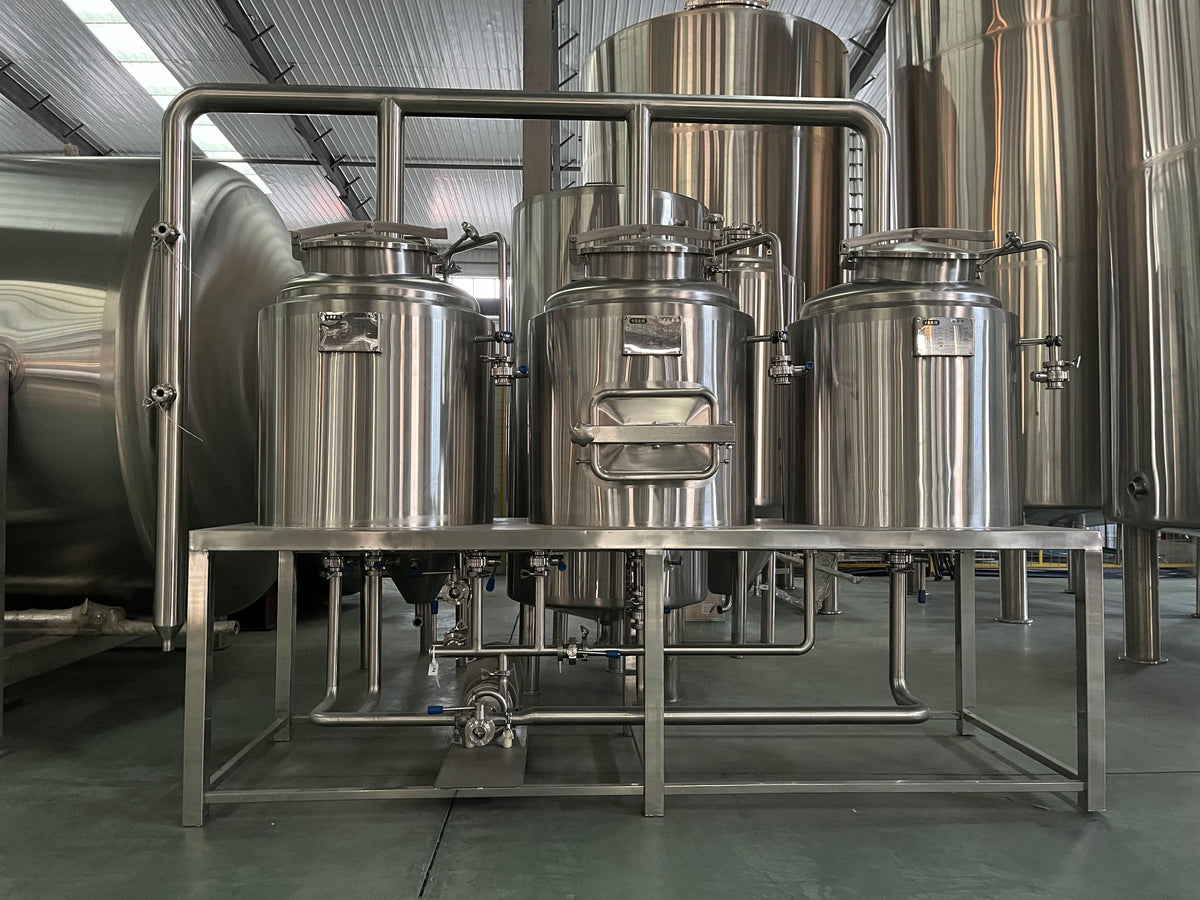

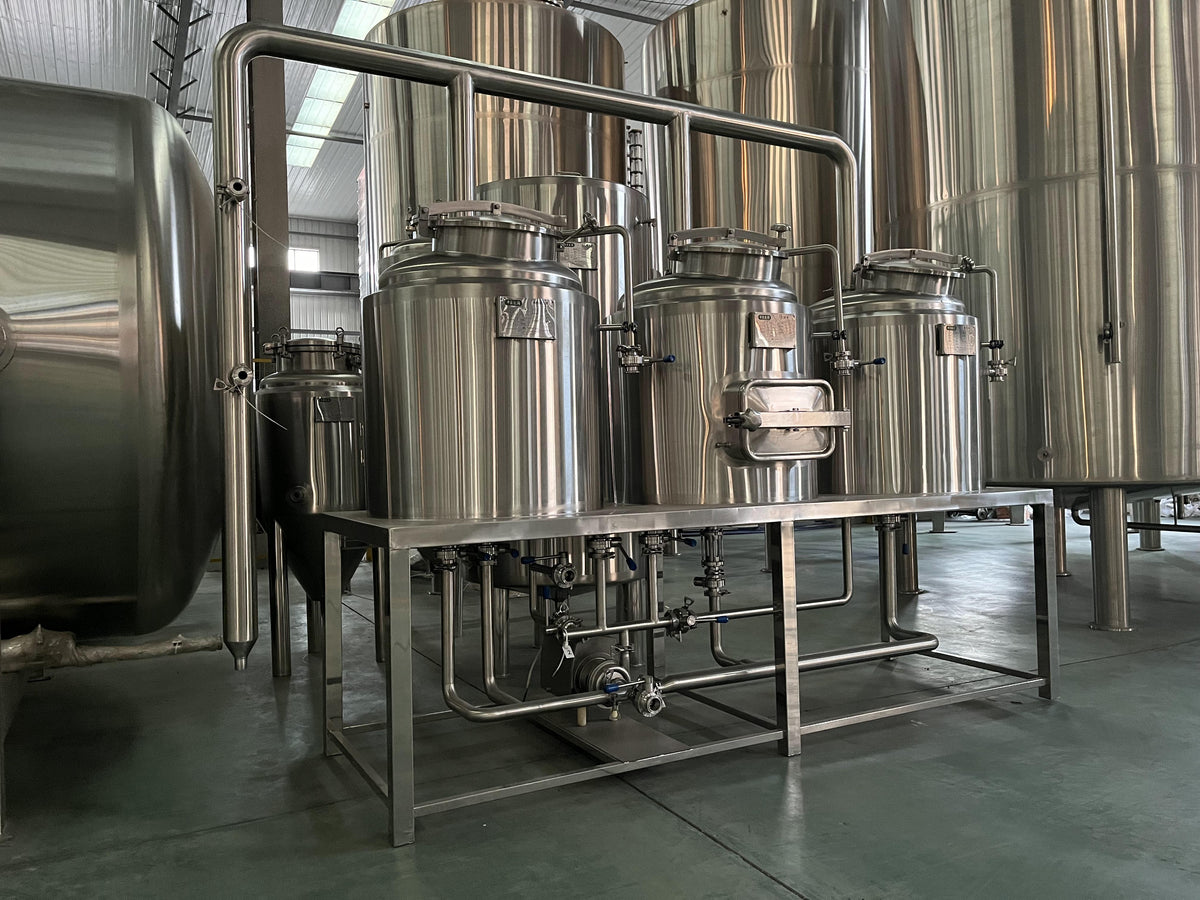

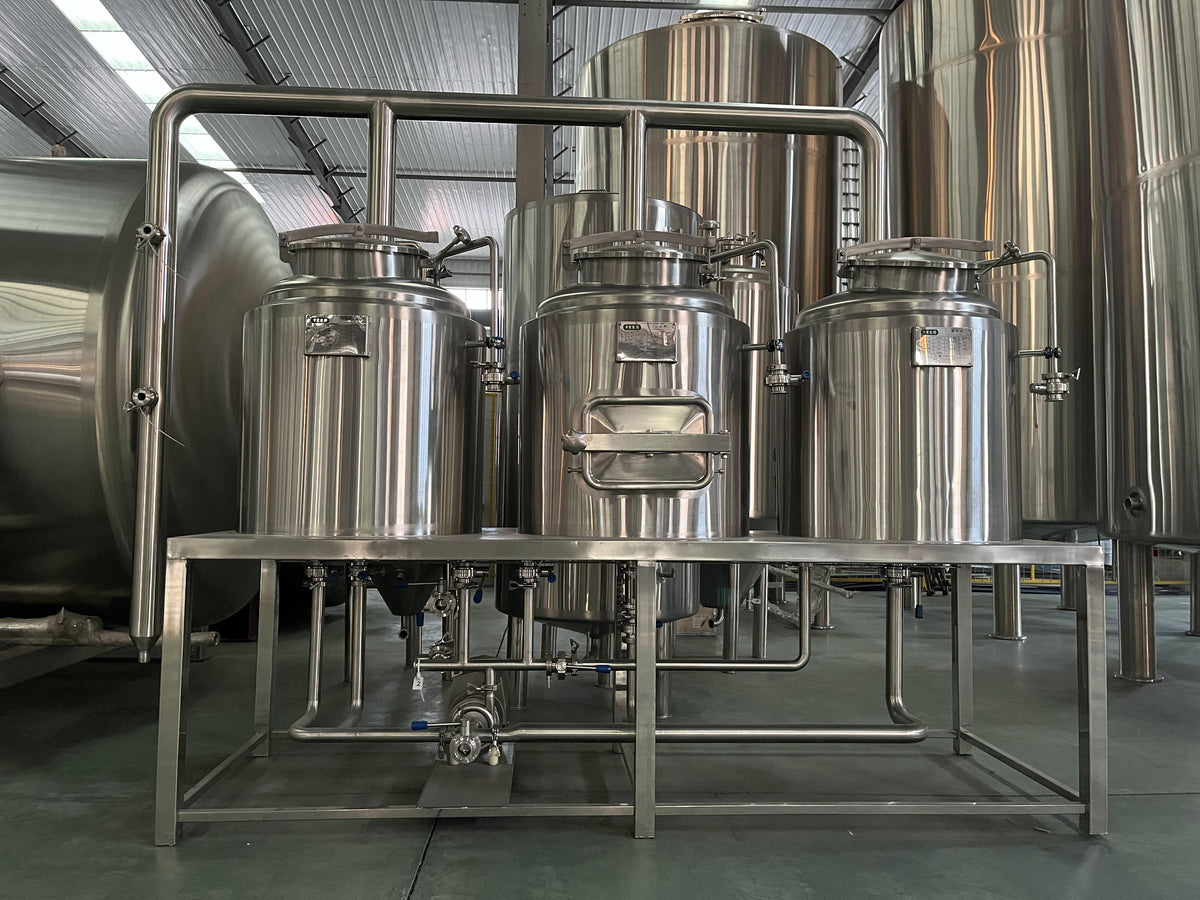

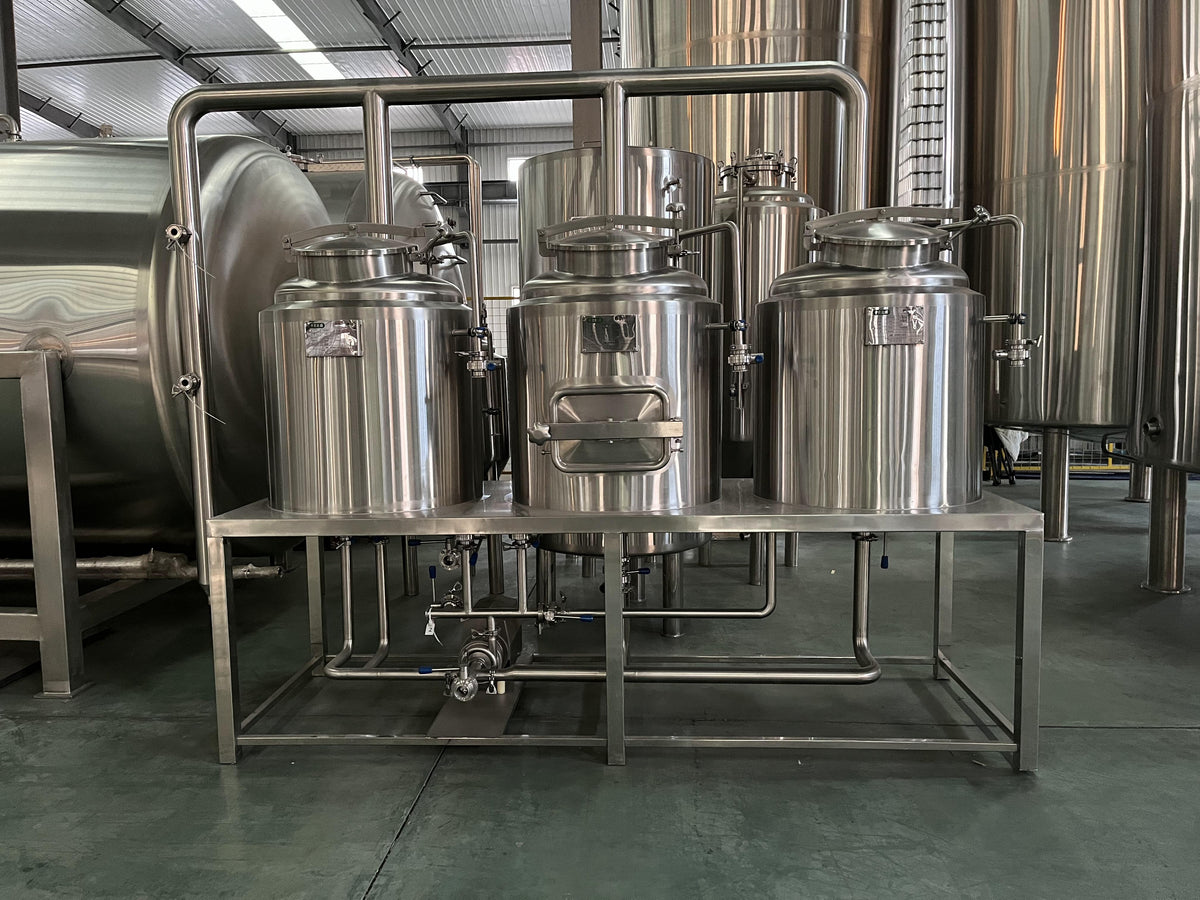

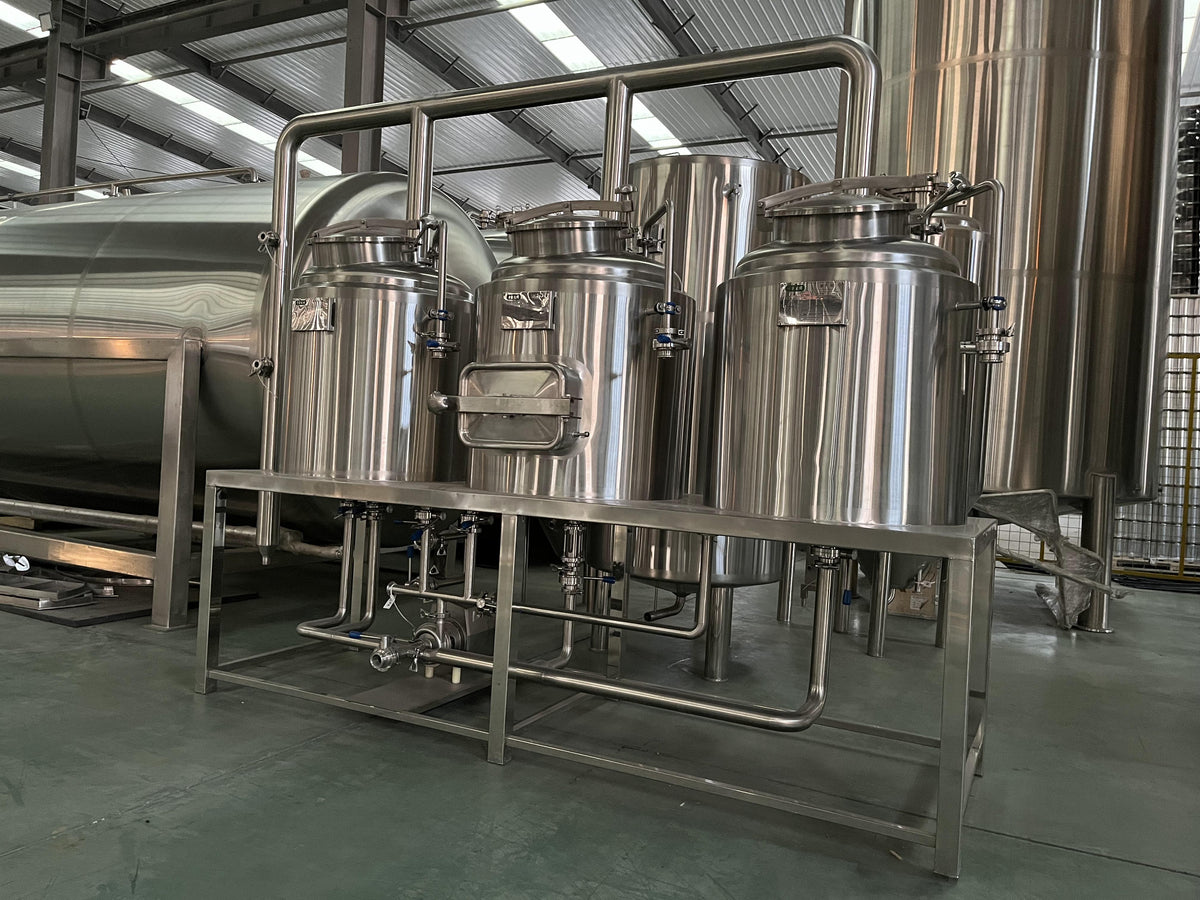

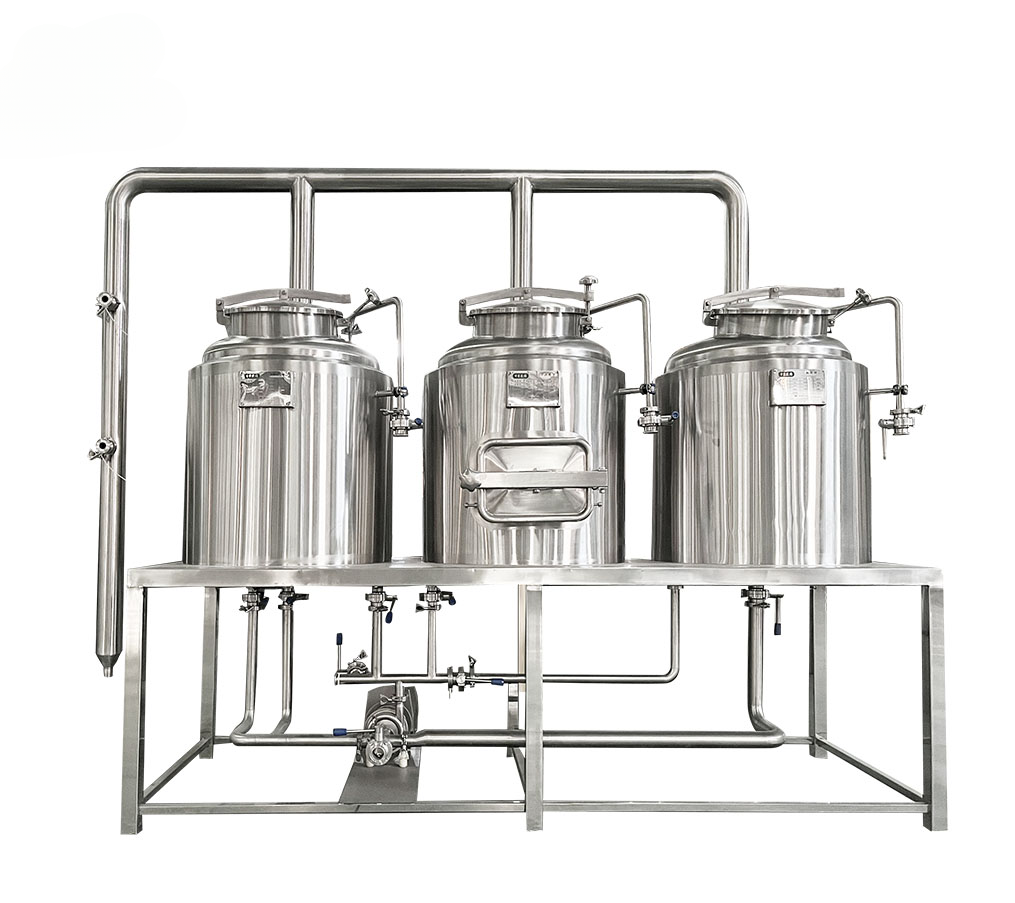

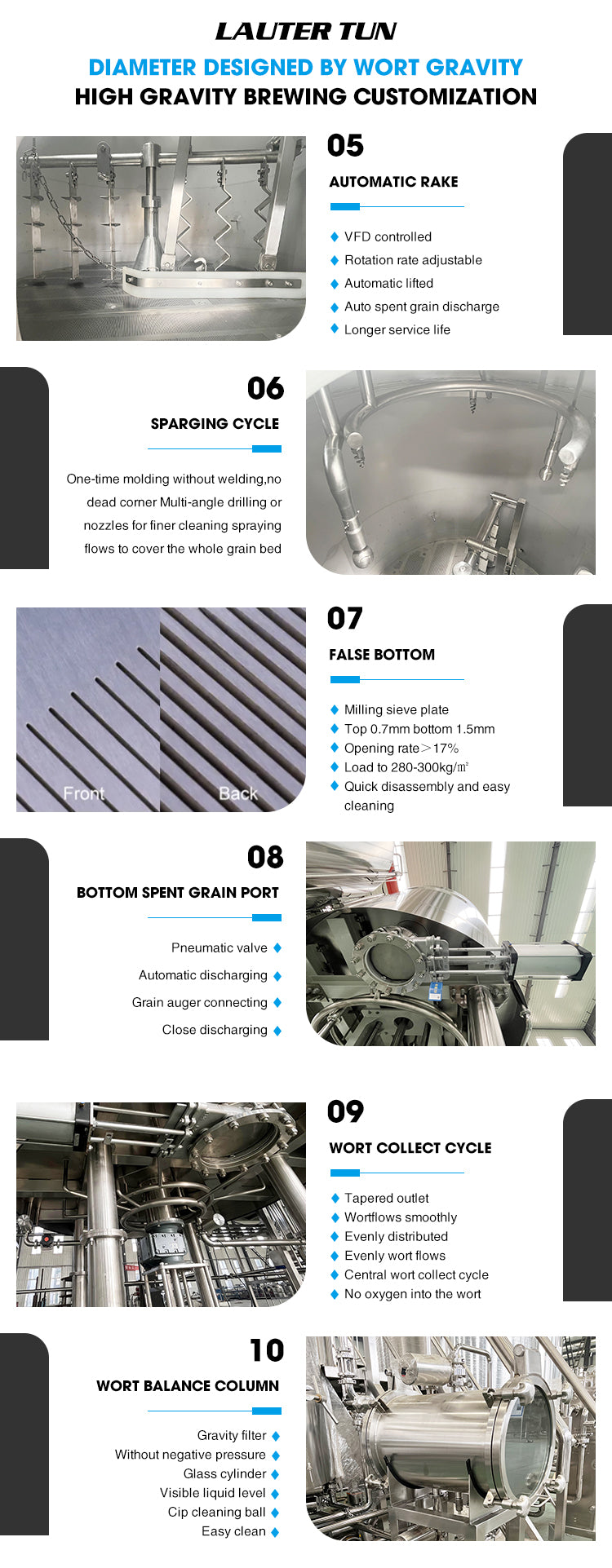

The brewhouse itself is a 2- or 3-vessel setup with a mash/lauter tun, boiling/whirlpool tank, pumps, and heat exchanger. It can be expanded into a full turnkey line with fermentation and bright beer tanks, a hot-water tank and boiler, a glycol tank and chiller, and an acid/lye CIP cleaning system. Contact us to spec the full configuration.

Lead time is typically around 30 working days for tanks and about 40 working days for a complete brewery project, timed from the final drawing confirmation. English installation instructions and online video-guided setup are provided, and on-site engineer commissioning is available.

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
