Touch-reactive LED panel for floors and walls — P3.91 pitch at 4500 nits, built for dance floors, exhibitions, gaming zones, and retail displays.
17,794.00 ฿
✓ Free worldwide shipping
Lead time: 3–5 weeks

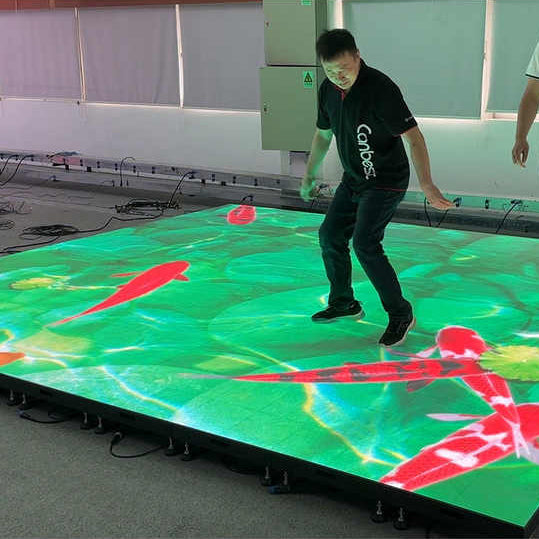

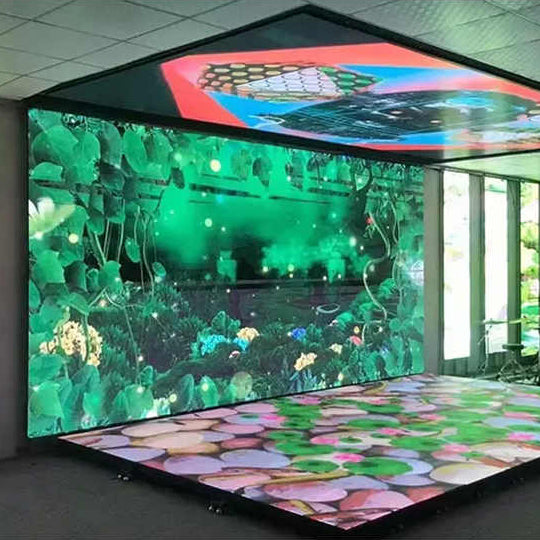

An interactive LED panel is a modular display that mounts on a wall or lays into a floor and reacts to touch and footsteps, so the image moves with the crowd. Each 500 x 500 mm cabinet runs a 3.91 mm pixel pitch at 4500 nits, sharp and bright enough to read in a lit room, and panels lock together into a larger video wall sized to your space. The 3840Hz refresh rate keeps video smooth and flicker-free on camera, which matters when guests are filming the floor.
Touch and step interaction for dance floors, gaming zones, and exhibition stands
P3.91 pixel pitch at 4500 nits — crisp, bright visuals up close
Die-cast aluminum cabinets built for foot traffic and heavy-duty use
3840Hz refresh rate for flicker-free video and content on camera
Tiles into a wall or floor video wall at the size your space needs

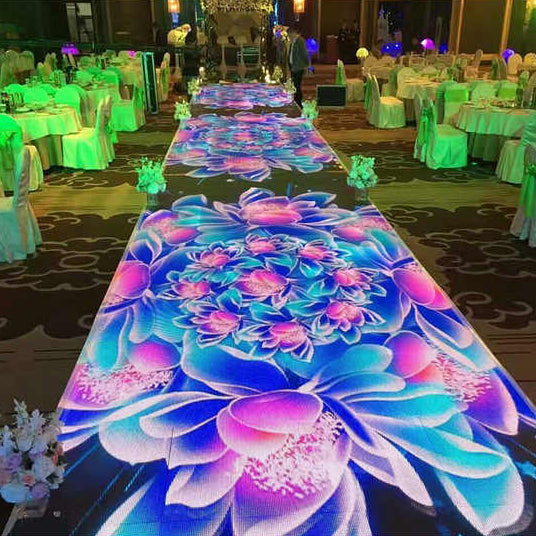

Used for nightclubs, event production, retail activations, and trade show booths that want an interactive floor or wall. Tell us the area you want to cover and we'll work out the panel count.
Specifications
Material
Die-cast aluminum
Dimensions (L × W × H)
500 × 500 × 87 mm
Weight
7.5 kg
Warranty
1 Year
Pixel pitch
3.91 mm
Brightness
4500 nits
Resolution
128x128 dots/cabinet
Module size
250x250 mm
Refresh rate
3840 Hz
Driving method
1/16 scan
Frequently asked questions
What does the panel add up to physically once it's installed?
Each cabinet measures 500 x 500 mm with an 87 mm depth, built from die-cast aluminum in 250 x 250 mm modules. Floors need that 87 mm allowed for beneath the walking surface; walls need the same depth off the face.
How do I work out the panel count and resolution for my space?
Work off 500 x 500 mm per cabinet and tile to the area you need, with each cabinet carrying 128 x 128 dots of resolution. Send us the floor or wall dimensions and we'll set the panel count and the finished pixel canvas.
Will it hold up on camera when guests are filming the floor?
The 3840Hz refresh rate is the reason it does — no scan lines or flicker through a phone camera. Paired with 4500 nits and a 3.91 mm pitch, the image stays crisp and readable under venue lighting rather than washing out. Warranty is 1 Year.
Is shipping included in the price?
For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.
How long does delivery take?
In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.
Are import duties and taxes included?
In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.
Do your products come with a warranty?
Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
