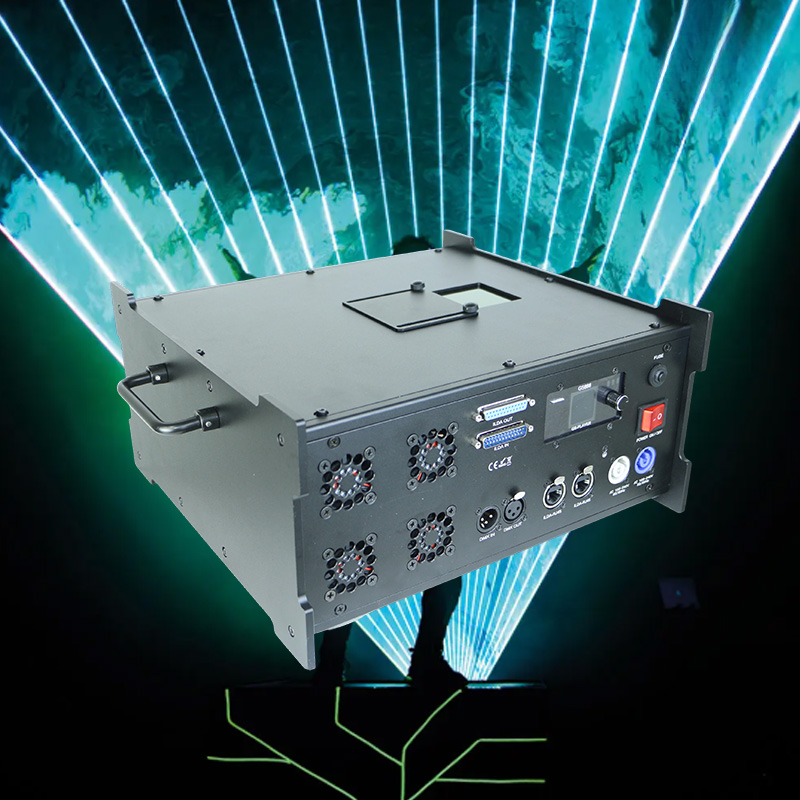

Laser light show projector housing with rear control panel visible, emitting teal beam array against dark background

Laser Man RGB Show System — 10W Beam & Animation Laser

Name: Laser Man RGB Show System — 10W Beam & Animation Laser
Brand: BarEquip.Pro
SKU: BEP-0483
Price: 66446.0 THB
Availability: BackOrder

A 10W full-color show laser with ILDA, DMX512 and FB4 control for beam and animation effects in clubs and theaters.

66,446.00 ฿

Shipping calculated separately

Lead time: 2–4 weeks

The Laser Man RGB Show System is a full-color stage laser built for high-impact beam and animation shows in nightclubs, theaters and live venues. It combines three laser sources — 3W at 638nm (red), 3W at 520nm (green) and 4W at 445nm (blue) — for a rated 10W of full-color output, with a fast DT50W scanner driving sharp beams, tunnels and projected graphics across a room.

Control is flexible enough to fit both a technician's rig and a walk-up setup: run it from laser design software over ILDA, integrate it into a lighting console via DMX512, or drive it from an FB4 interface. Sound-activated mode lets the fixture react to the music without an operator, which suits smaller clubs and mobile DJs.

Full-color RGB output rated at 10W (638nm / 520nm / 445nm sources)
DT50W high-speed scanner for beam and animation work
ILDA, DMX512 and FB4 control options
Sound-activated mode for standalone operation
Aluminum-alloy housing rated IP54 for dust and splash resistance
Ships in a flight case for touring and transport

The aluminum-alloy body is IP54-rated and finished for durability, and each unit ships in a flight case to survive the road. Backed by a 2-year manufacturer warranty. Contact us to confirm the safety documentation and interlock requirements for your region before installation.

Specifications

Material: Aluminum alloy
Color: RGB (full color)
Dimensions (L × W × H): 180 × 362 × 350 mm
Weight: 12.0 kg
Power: 10 W
Voltage: AC 100-240V, 50/60Hz
Warranty: 2-year manufacturer warranty
Laser sources: 3W/638nm, 3W/520nm, 4W/445nm
Total laser power: 10 W
Scanner: DT50W
Control methods: ILDA, DMX512, FB4, sound-activated
IP rating: IP54
Emitting color: RGB
Dimmer support: Yes
Rated lifespan: 20000 h
Working temperature: -20 to 40 °C
Plug types: UK, EU, US, AU

Frequently asked questions

How is the 10W split across the three colors?

Three separate sources make up the rating: 3W red at 638nm, 3W green at 520nm and 4W blue at 445nm. The DT50W scanner behind them is fast enough for both hard beam work and projected animation.

Which control method should I plan the rig around?

ILDA is the one to use if you are running laser design software and want graphics and text; DMX512 patches it into a lighting console alongside the rest of the rig; FB4 is the third option. Sound-activated mode covers nights with no operator.

Can it go on a covered outdoor stage?

IP54 on the aluminum-alloy housing handles dust and splashing water, and the working range is -20°C to 40°C, so covered stages and damp rooms are fine. Full immersion and heavy direct rain are not.

What do I need to specify when ordering?

Just the plug — UK, EU, US or AU. The input is universal AC 100-240V, 50/60Hz, so the same unit drops into any of those supplies without modification.

What arrives in the shipment, and how heavy is it?

The fixture ships in a flight case: 12kg for the unit, 21kg packed. Cabinet dimensions are 362 x 350 x 180mm. Cover is a 2-year manufacturer warranty, and the sources are rated for 20,000 hours.
