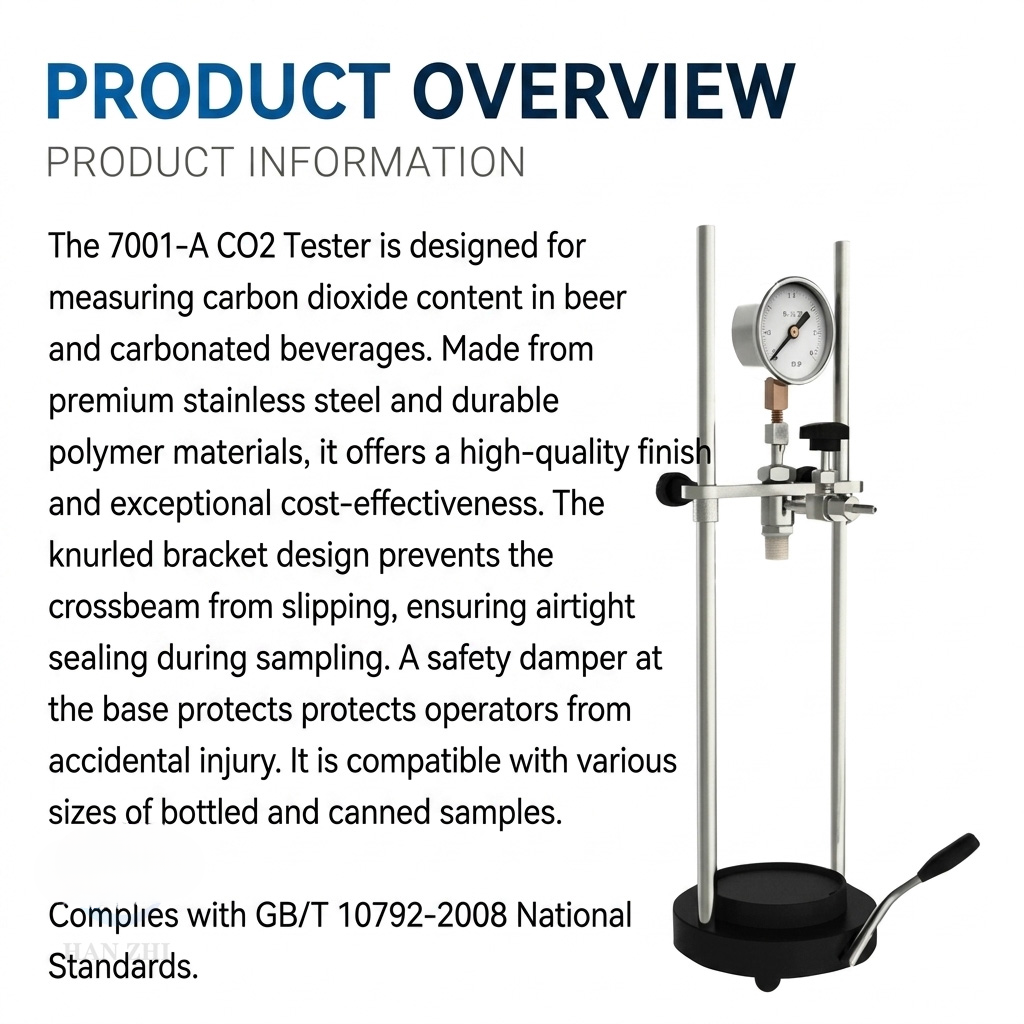

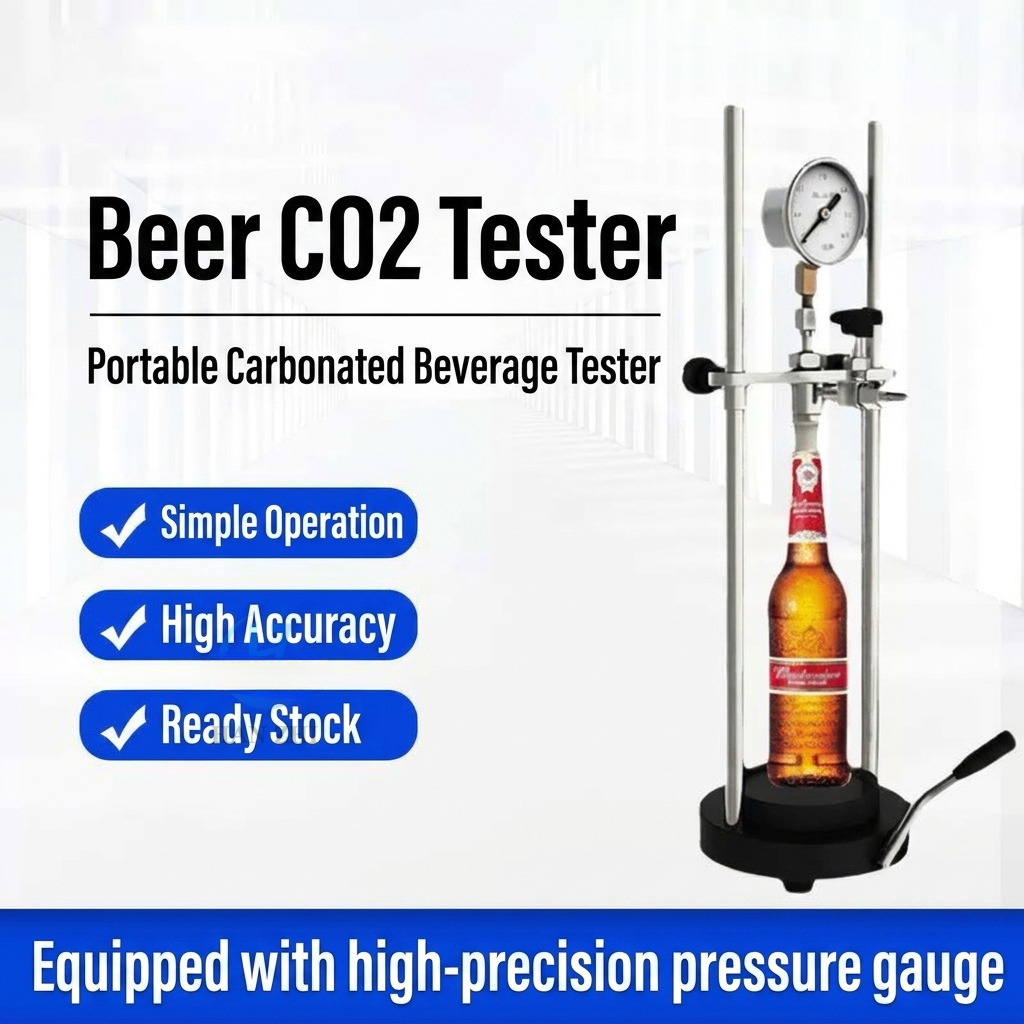

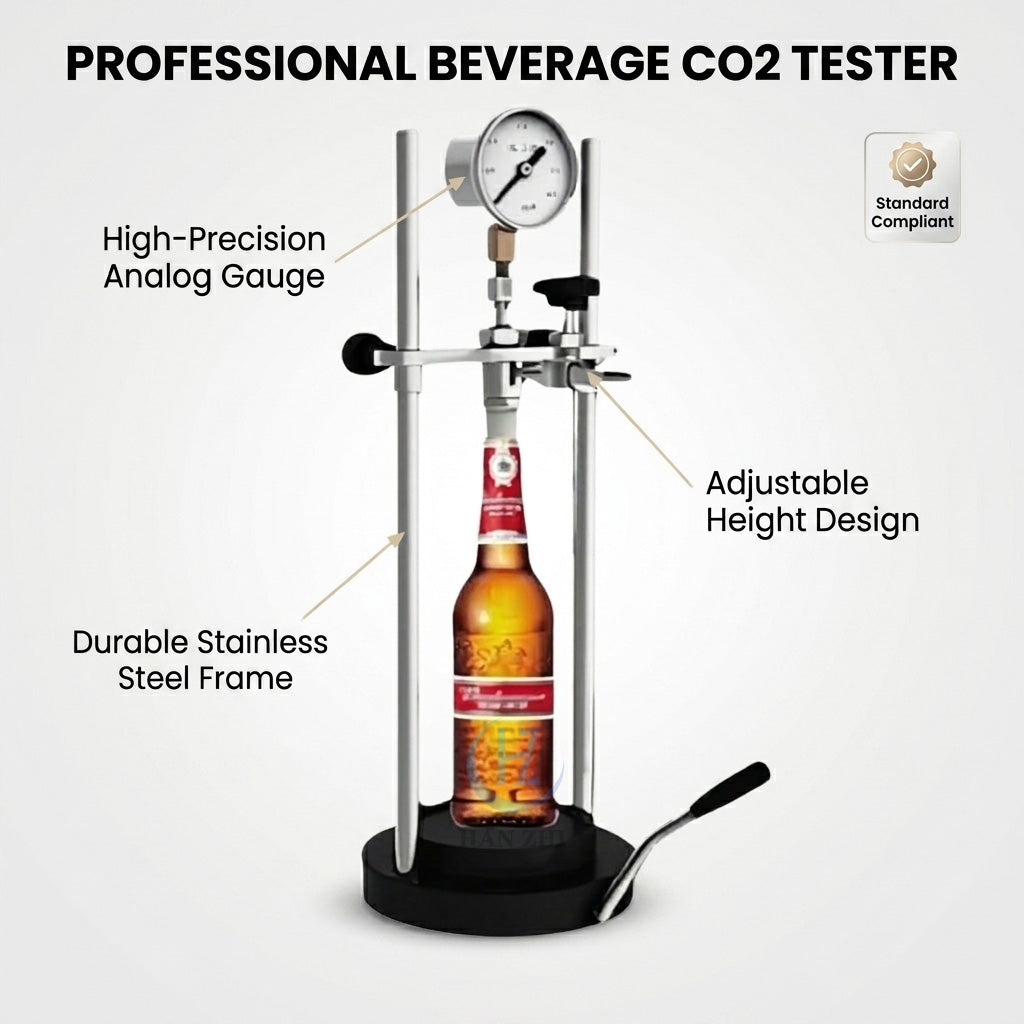

Portable kitchen CO2 tester with analog gauge, stainless steel frame, and beer bottle mounted for testing

Portable CO2 Volume Tester for Carbonated Drinks

Name: Portable CO2 Volume Tester for Carbonated Drinks
Brand: BarEquip.Pro
SKU: BEP-0508
Price: 15658.0 THB
Availability: BackOrder

Measures dissolved CO2 pressure in bottled beer, soda and sparkling drinks for consistent carbonation control.

15,658.00 ฿

Shipping calculated separately

Lead time: 2–4 weeks

A portable CO2 volume tester lets a beverage producer verify carbonation directly from the finished bottle, so every batch of beer, soda or sparkling water leaves the line at the target fizz. The unit pierces a sealed bottle, holds the pressure, and reads dissolved carbon dioxide across a 0–0.40 MPa range at ±1% full-scale accuracy — the kind of number a QC log needs, not a guess.

Fits bottles from 50 mm to 330 mm tall and up to 100 mm in diameter via an adjustable height mechanism.
Stainless steel body resists the acidic environment of soft drinks and beer for a long service life on the factory floor.

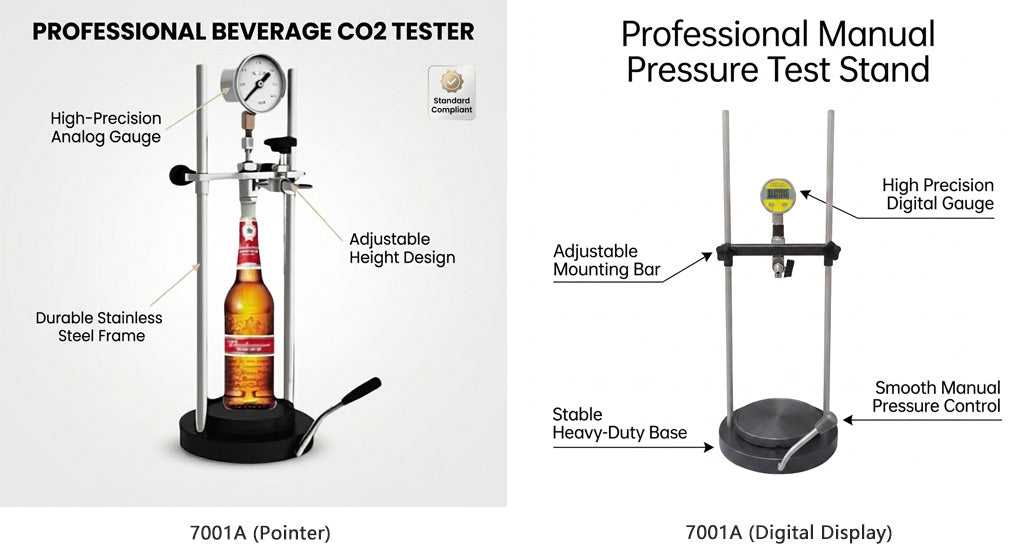

Choose a mechanical dial reading to 0.01 or a digital LCD model reading to 0.001 for lab-grade precision.

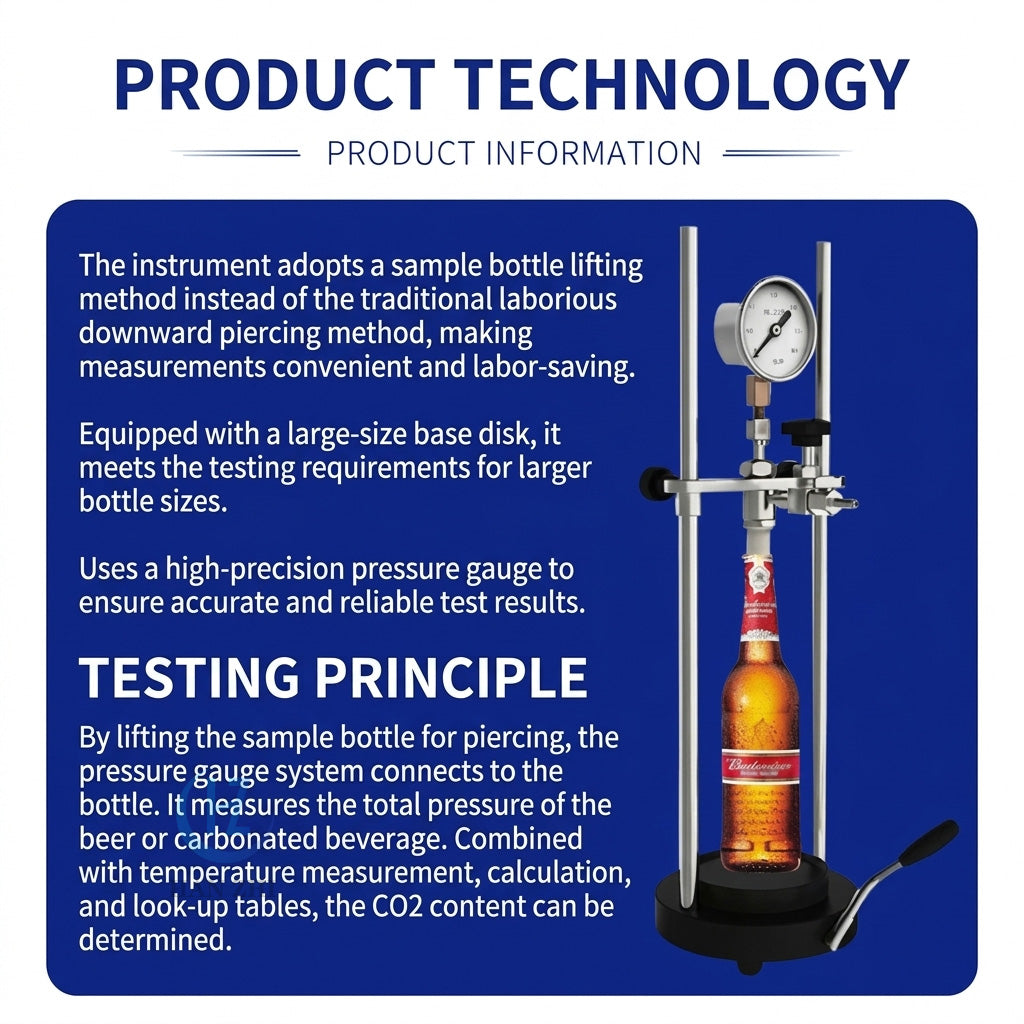

The manual piercing mechanism is built for a stable, repeatable seal, which keeps readings honest and helps prevent bottle breakage during the test. It suits breweries, soft-drink bottlers and sparkling-wine producers running routine carbonation checks.

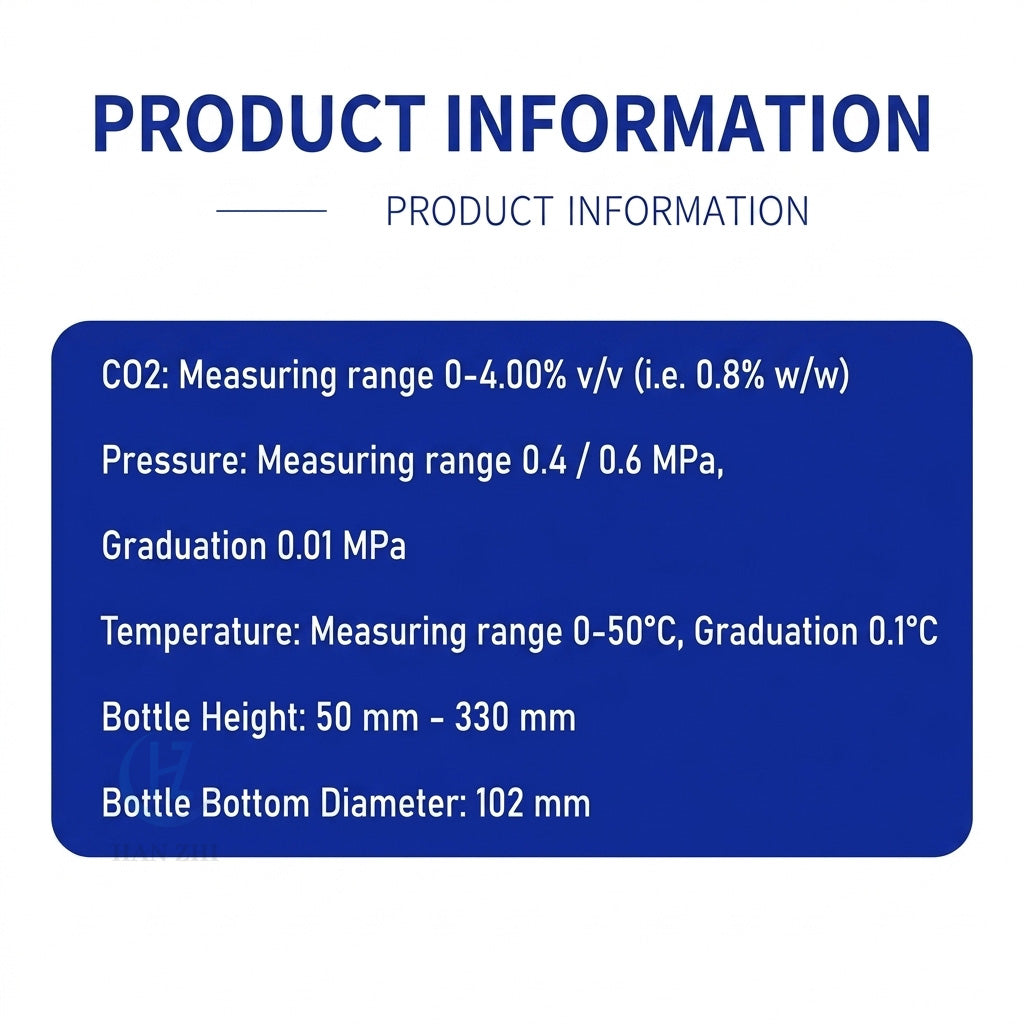

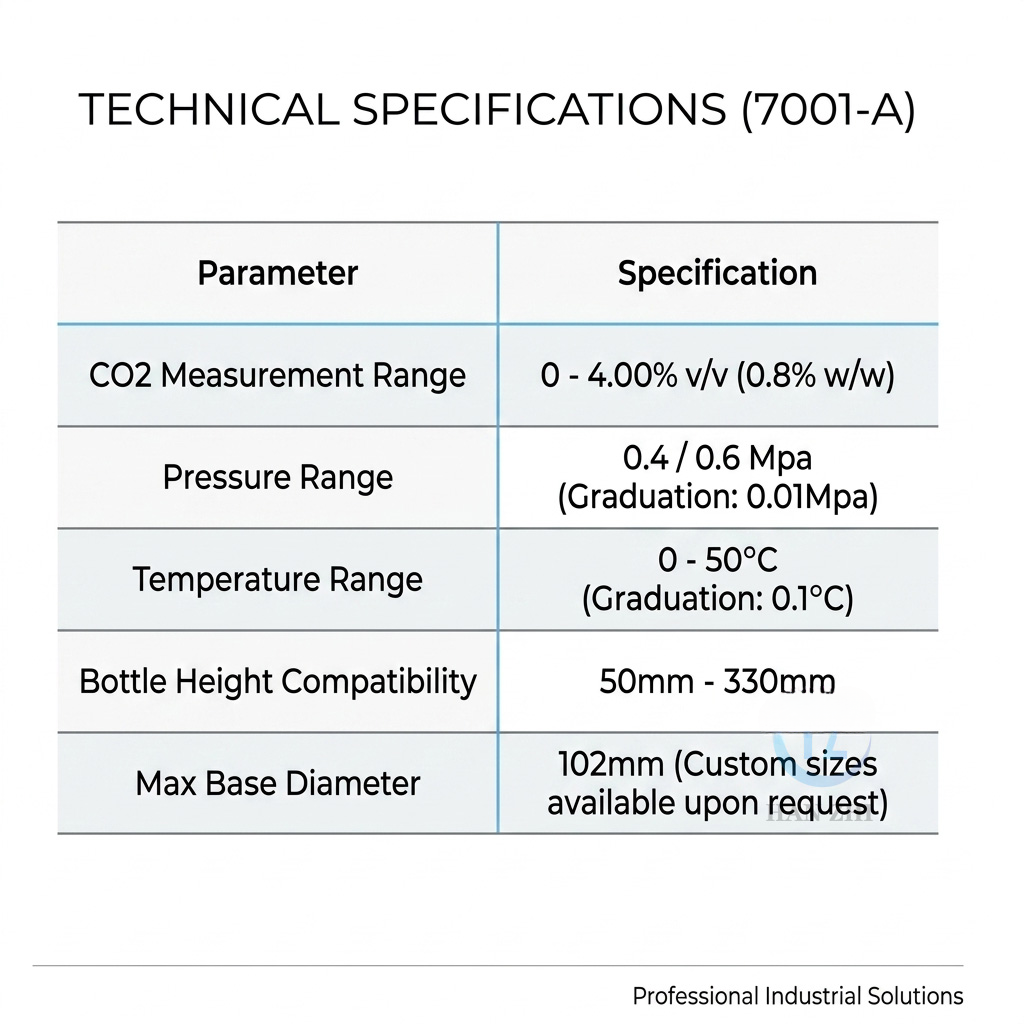

Specifications

Material: Stainless steel, Alloy
Weight: 5.0 kg
Voltage: 220V/50Hz (digital model, optional)
Warranty: 1 year
Customization: OEM, ODM, OBM
Target gas: Carbon dioxide
Measuring range: 0 - 0.40 MPa
Measuring range: 0.4-0.6 Vol
Accuracy: ±1% full scale
Resolution (pointer): 0.01
Resolution (digital): 0.001
Display type: Mechanical dial / digital LCD
Applicable products: Beer, soda, cola, sparkling wine, carbonated water
Bottle height range: 50 - 330 mm
Bottle diameter (max): 100 mm
Model: 7001-A

Frequently asked questions

What bottle sizes does it clamp?

Bottles from 50 mm to 330 mm tall and up to 100 mm diameter, set by the adjustable height mechanism — that covers most standard beer, soda and sparkling wine formats without changing parts.

Is the reading tight enough for a QC log?

Accuracy is ±1% of full scale across 0–0.40 MPa (0.4–0.6 Vol), so the figure stands up as a recorded batch result rather than an indication.

Dial or digital — which should I order?

Both measure the same way; the mechanical dial resolves to 0.01 and needs no power, the digital LCD resolves to 0.001 and takes an optional 220V/50Hz supply. Name the display type on the order.

How does it get at the CO2 without wrecking the bottle?

A manual piercing mechanism opens the sealed bottle and holds the pressure, built for a stable, repeatable seal that keeps readings honest and helps prevent breakage during the test.

Can the unit be branded or modified for us?

OEM, ODM and OBM work is offered on the 7001-A, and the stainless steel and alloy build is unchanged by it. Warranty is 1 year with technical support.
