Semi-Automatic Handheld Screw Capping Machine

A handheld semi-automatic capper that seals screw and ROPP caps on small vials and glass or plastic bottles at 10–20 bottles per minute.

18,681.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

This handheld screw capping machine tightens screw and ROPP (roll-on pilfer-proof) closures onto small vials, glass bottles and plastic bottles, giving a small production line or bench a consistent seal without a full automatic capper. An operator places the bottle in the positioning slot, lowers the capping head and the motor-driven mechanism locks the cap to a repeatable torque. Rated for 10–20 bottles per minute, it suits beverage, chemical, cosmetic and pharmaceutical filling lines running short or varied batches.

  • Aluminum body with a motor-driven capping head for screw and ROPP closures.
  • Positioning slot plus a wear-resistant rubber pad hold the bottle steady and protect the cap from marring.
  • Adjustable knob and hand-operated control rod set the head to each bottle height.
  • Foot-pedal switch frees both hands to load and unload bottles.

Dual 220V/110V voltage lets it drop into most workshops, and cap heads can be customized for closure diameters beyond the standard fit. Backed by a 1-year manufacturer warranty.

Specifications

Material
Aluminum
Dimensions (L × W × H)
45 × 45 × 75 cm
Weight
23.0 kg
Voltage
220V/110V
Warranty
1 Year
Certifications
CE
Customization
Cap heads can be customized for closure diameters beyond the standard fit
Automatic grade
Semi-Automatic
Driven type
Mechanical
Core components
Motor
Capping type
Screw / ROPP locking
Capping speed
10-20 bottles/min
Working method
Automatic / Manual
Suitable for
Glass and plastic bottles
Standard cap fit
26 mm
Control
Foot-pedal switch

Frequently asked questions

What caps and bottle types does it handle?

Screw and ROPP (roll-on pilfer-proof) closures on small vials, glass bottles and plastic bottles. The standard head is cut for a 26 mm cap; state your closure diameter when ordering if it differs, as heads can be customised.

What output can one operator get from this screw capping machine?

10-20 bottles per minute, and the figure is honest about the operator: this screw capping machine is hand-loaded, so pace and bottle format set the real number. It suits short or varied batches rather than continuous long runs.

What services does it need on the bench?

Electricity only, no compressed air. The motor-driven head is dual voltage 220V/110V, and a foot-pedal switch triggers each cycle so both hands stay free to load and unload.

How is it set up for a different bottle size?

An adjustable knob and hand-operated control rod drop the head to the new bottle height, while the positioning slot and wear-resistant rubber pad hold the bottle square and keep the cap from marring.

How much bench space does it take, and how is it built?

Allow 45 cm wide by 45 cm deep and 75 cm of height for the aluminum body. The unit is CE marked and carries a 1 Year manufacturer warranty, with video technical support available afterwards.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

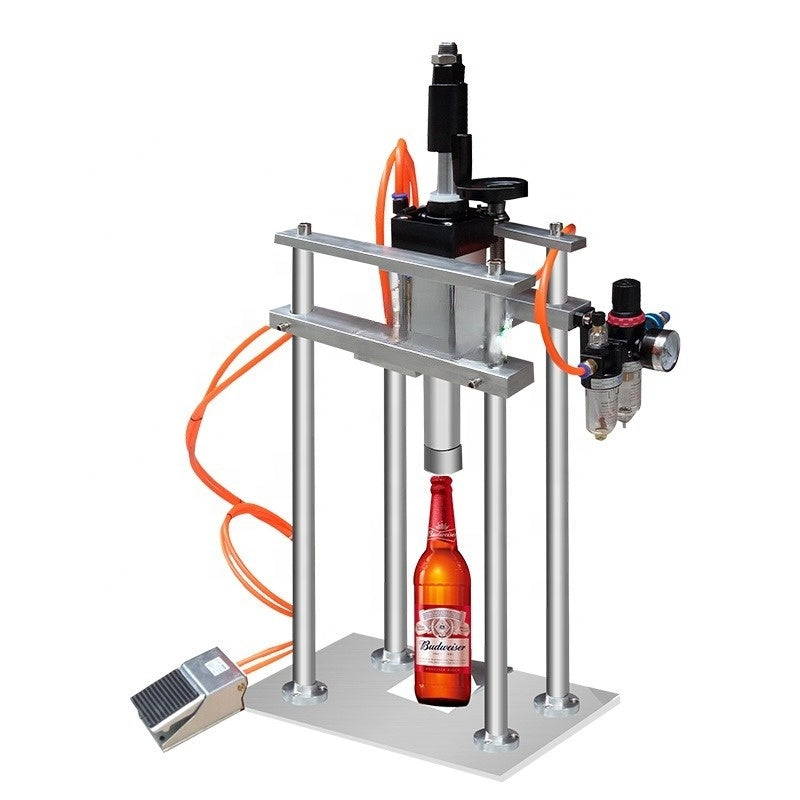

Semi-automatic screw capping machine with pneumatic head, orange hoses, foot pedal, and Budweiser bottle in place
