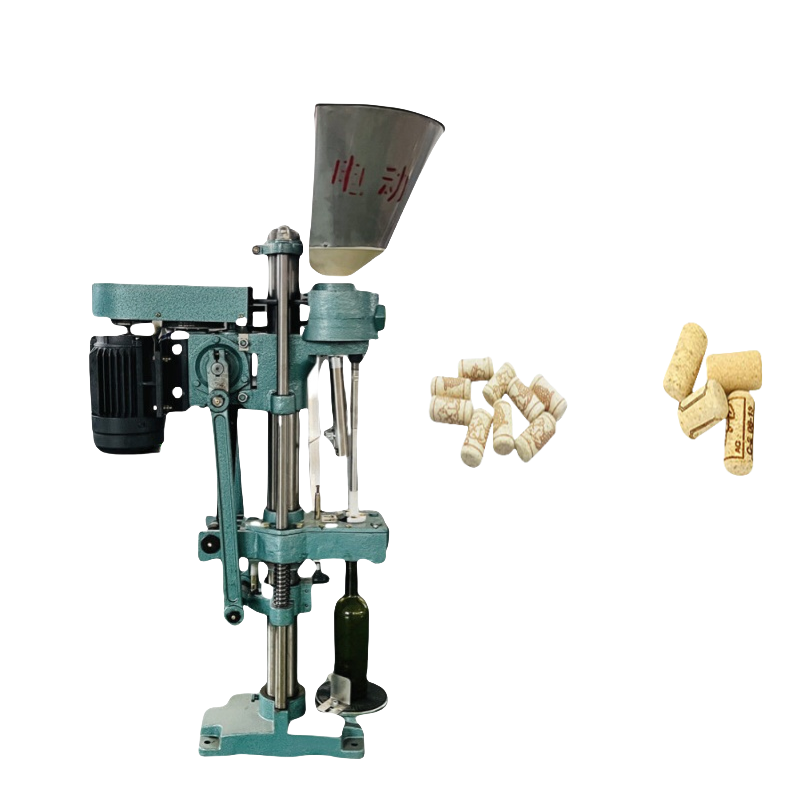

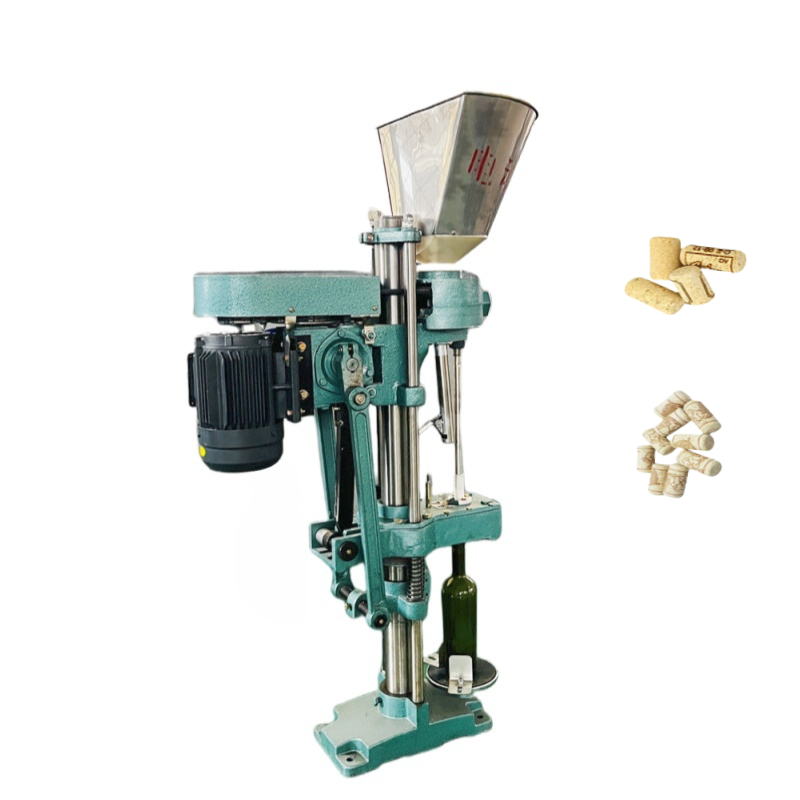

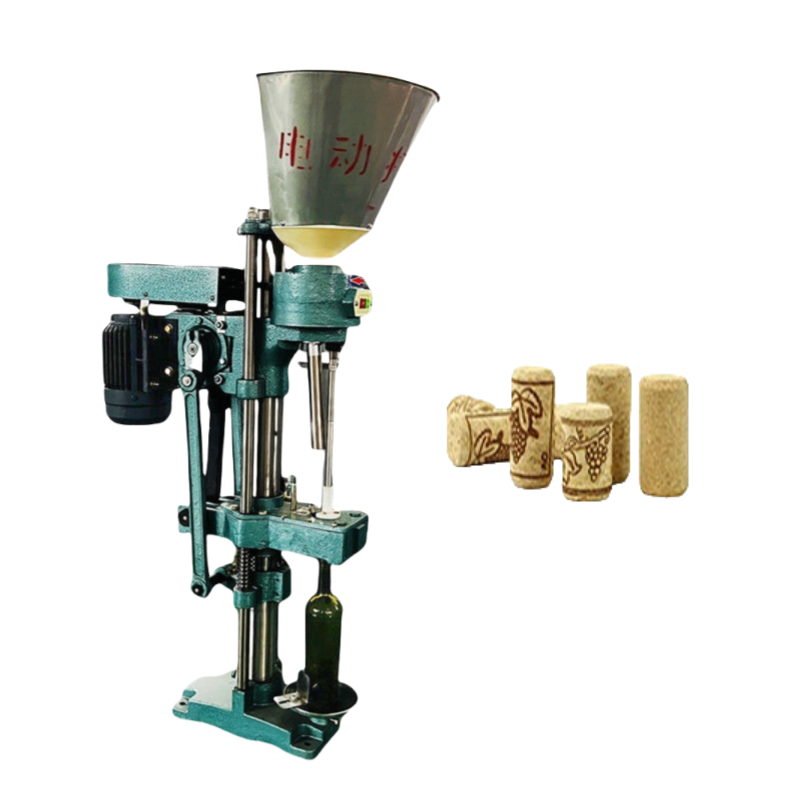

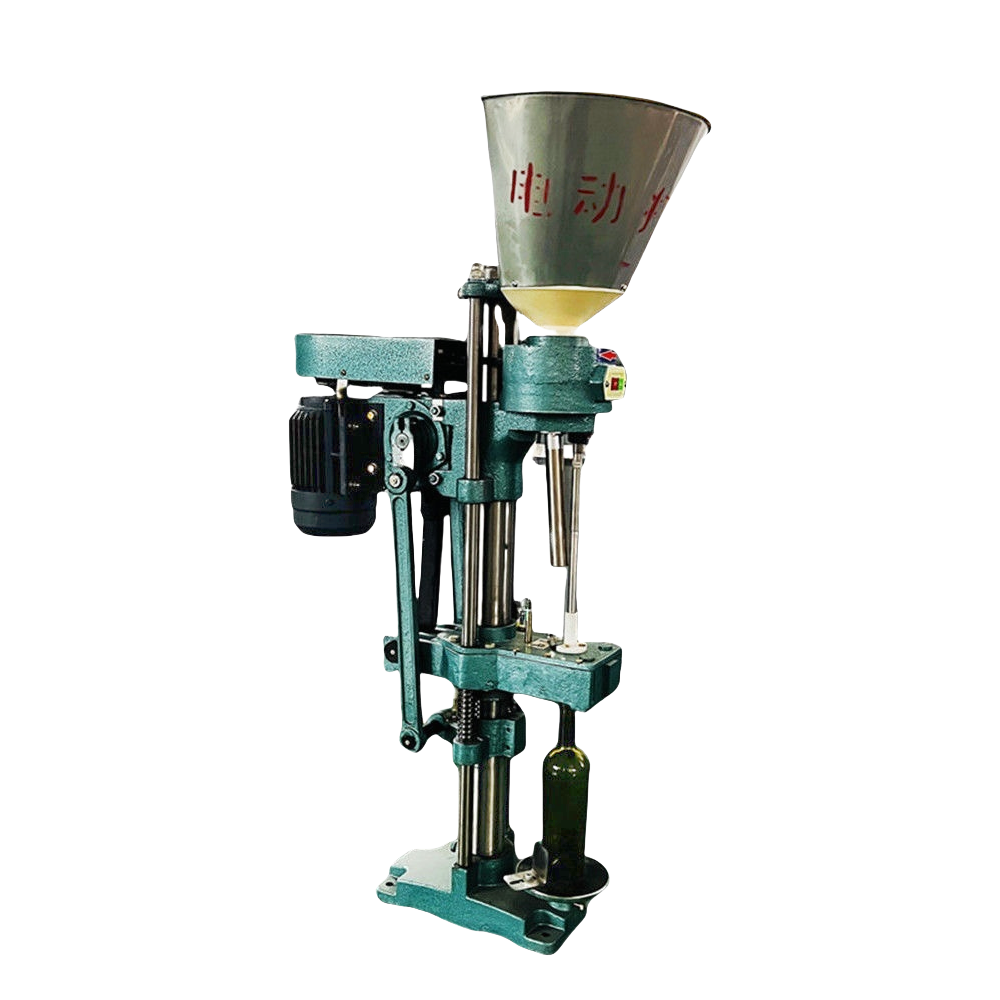

Semi-Automatic Wine Corking & Capping Machine

A benchtop semi-automatic corker that seats corks and seals still or sparkling wine bottles at up to 1,400 per hour.

40,859.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks

This semi-automatic corking and capping machine seals bottled wine and other liquids for wineries, cideries and beverage lines. An automatic feeding device drops each cork into the corker, so an operator only positions the bottle and cycles the machine — one person can seal up to 1,400 bottles per hour without the fatigue of hand corking.

It handles a wide bottle range: heights from 50 to 360 mm and neck diameters from 20.5 to 23.5 mm, covering standard wine, champagne and sparkling bottles as well as many beverage formats. The compact frame runs on a 220 V single-phase supply, so it fits a production bench or a small cellar line without dedicated infrastructure.

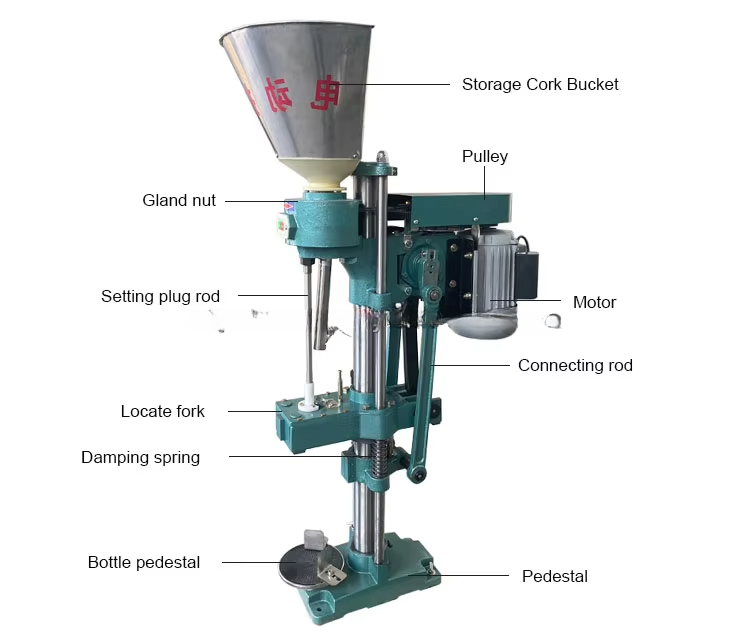

  • Automatic cork feeding into the corker head
  • Sealing speed up to 1,400 bottles per hour
  • Fits bottles 50–360 mm tall, 20.5–23.5 mm neck diameter

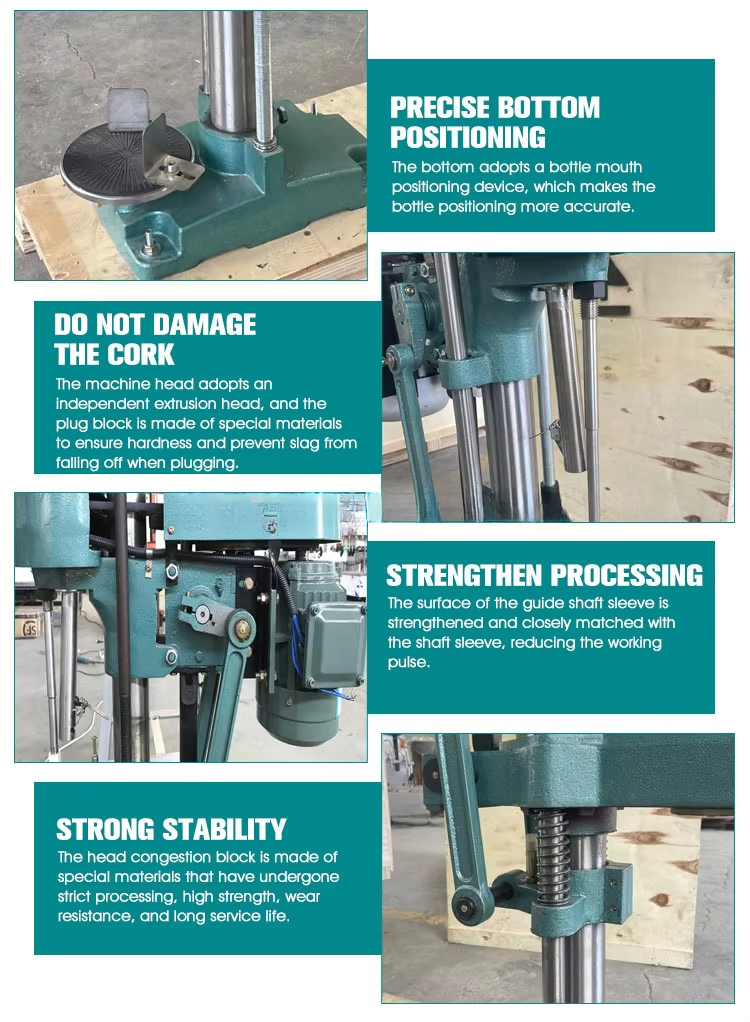

  • Simple structure for quick maintenance and cleaning

Specifications

Dimensions (L × W × H)
250 × 650 × 1150 mm
Weight
130.0 kg
Voltage
220V
Warranty
1 Year
Customization
Customizable plug type
Automatic grade
Semi-Automatic
Driven type
Electric
Sealing speed
1400 pcs/h
Bottle height range
50-360 mm
Bottle diameter range
20.5-23.5 mm
Core components
Motor, Engine
Working mode
Wine bottle corking, pressing, capping
Application
Beverage, food, commodity, machinery & hardware

Frequently asked questions

How many bottles an hour can one operator seal on this corking machine?

Up to 1,400 per hour. The feeder drops each cork into the corking machine head on its own, so the operator only sets the bottle in place and cycles it — that rate is one person's output, not two.

Which bottle formats will it take without changing anything?

Anything from 50 to 360 mm tall with a neck between 20.5 and 23.5 mm — standard wine, champagne and sparkling bottles sit inside that window, along with many beverage formats. Measure the neck bore before ordering; that is the tighter limit of the two.

Does it handle sparkling wine as well as still?

Both, provided the bottle falls inside the height and neck range. The machine corks, presses and caps, so still wine, sparkling and other bottled liquids run on the same head.

What power supply do I need to prepare?

A 220 V single-phase outlet — no three-phase feed or dedicated infrastructure. State your market's plug type with the order, as the plug is the customisable part.

How much bench and headroom does it need?

The frame is 650 mm wide, 250 mm deep and 1,150 mm tall, so it takes a narrow strip of bench but needs vertical clearance for the column and cork feeder above it.

What does upkeep involve, and what is the warranty?

The structure is deliberately simple — motor and engine as the core components — which keeps routine maintenance and cleaning quick between runs. A 1 Year warranty covers the machine.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

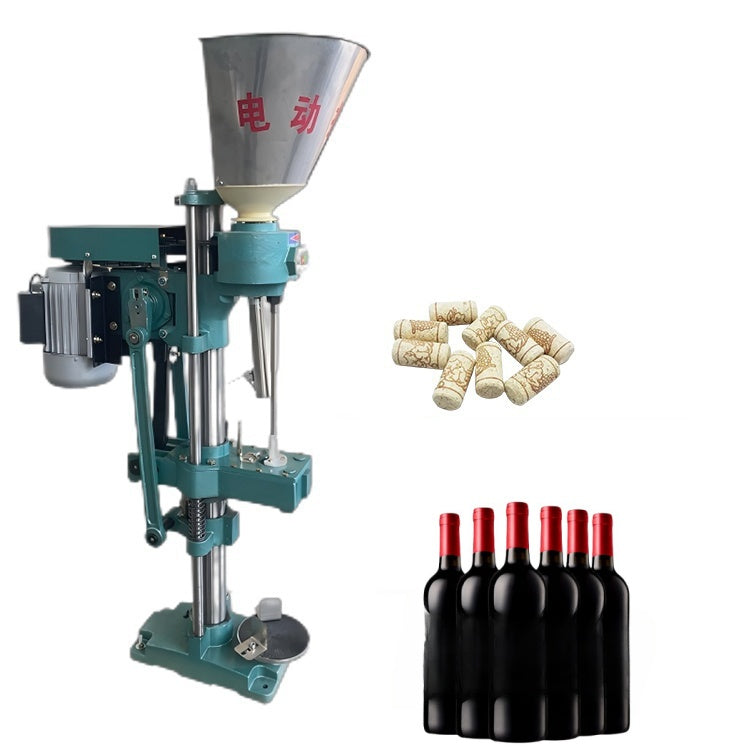

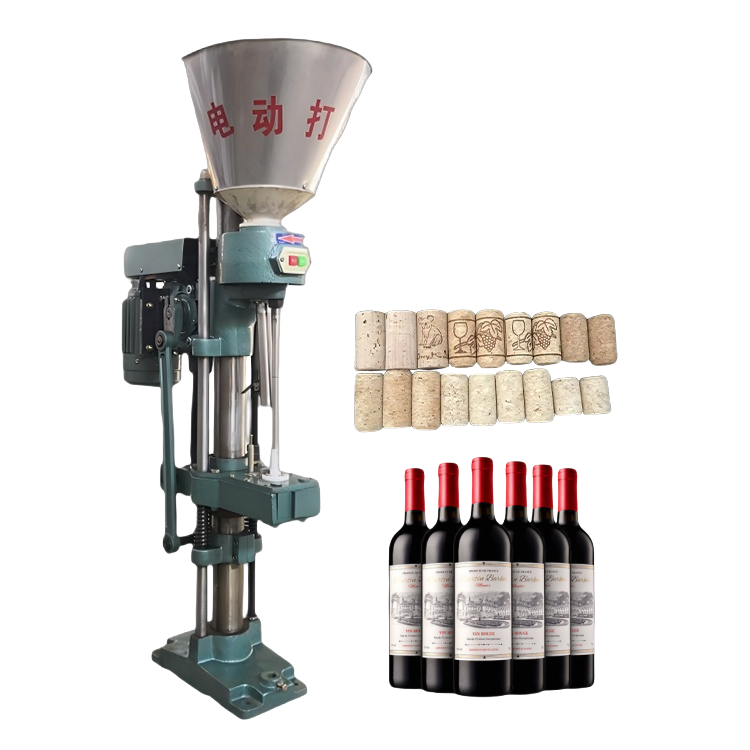

Semi-automatic wine corking machine with hopper, cork samples, and six bottles of red wine
