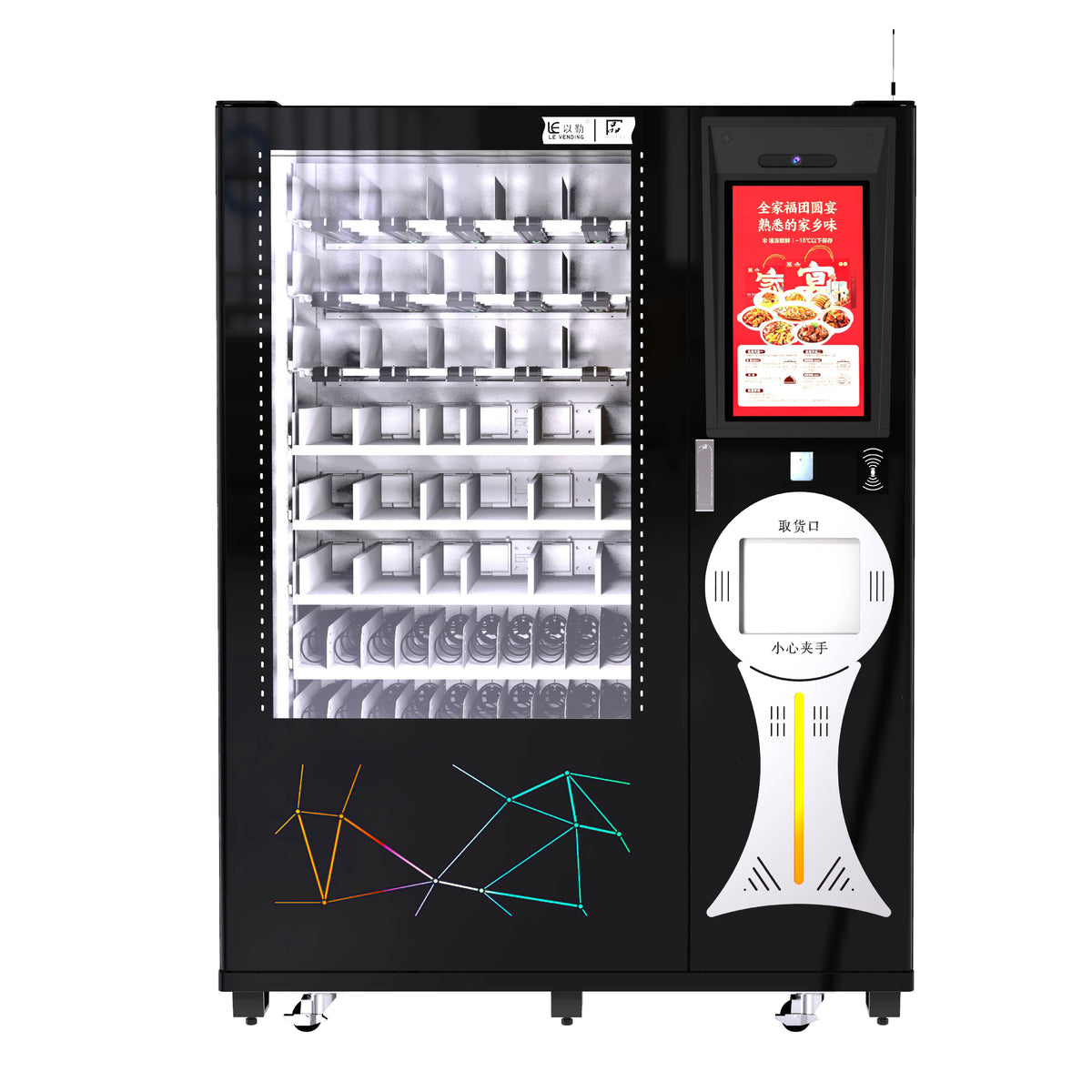

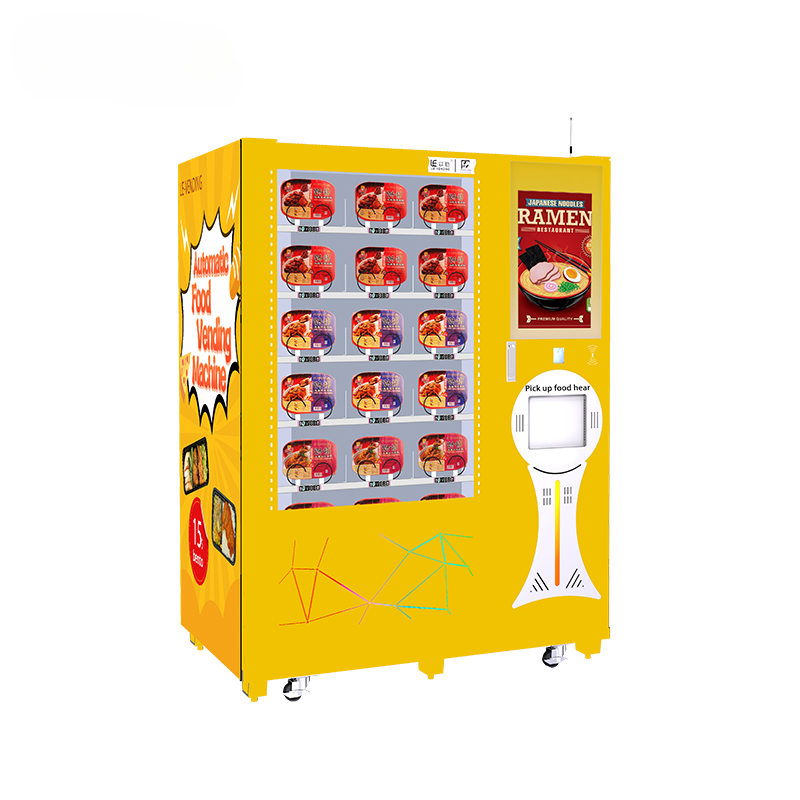

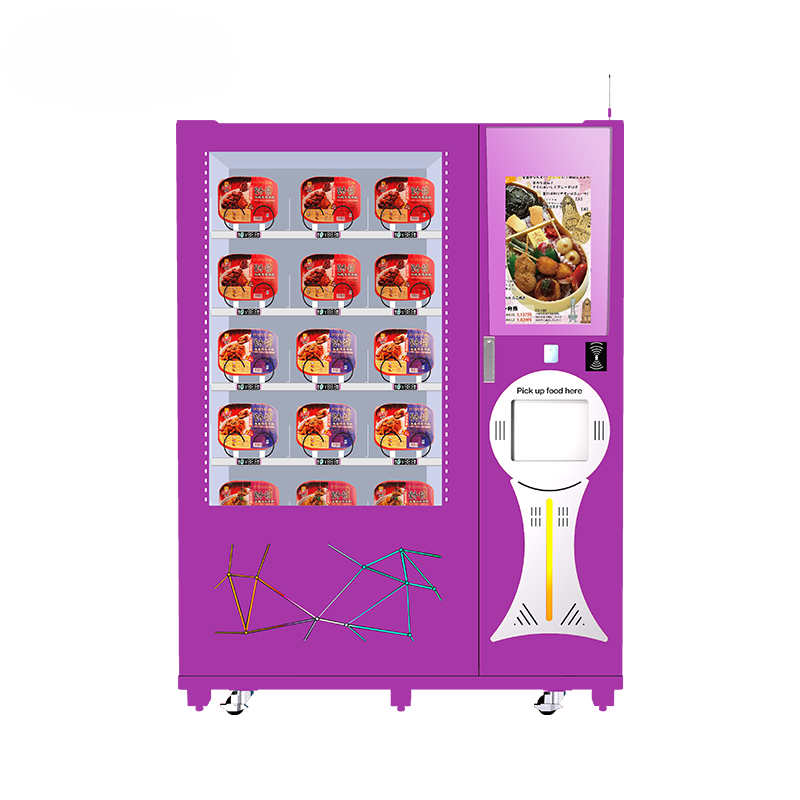

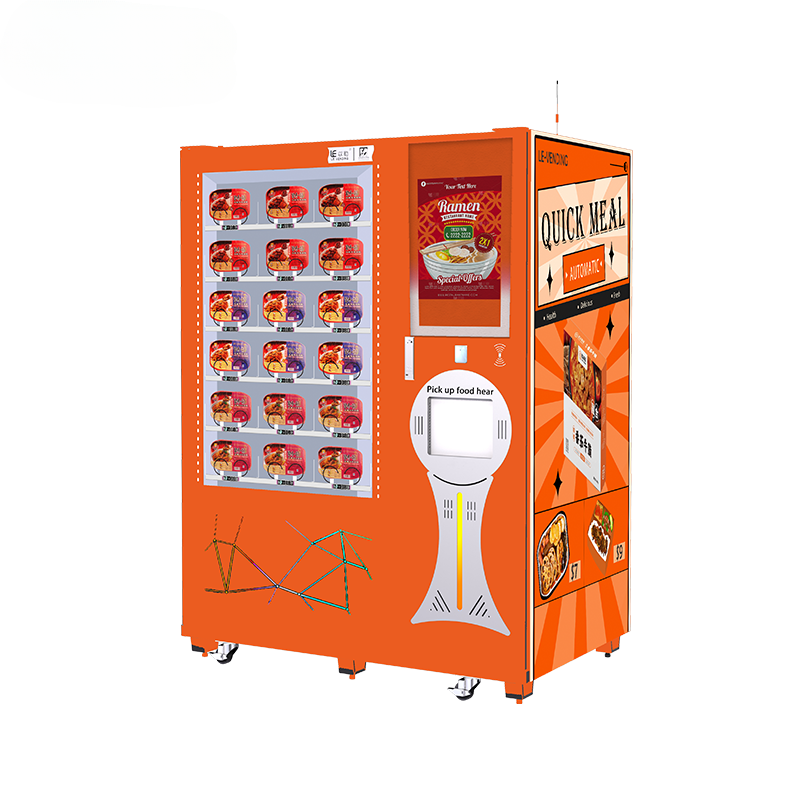

Automatic Hot Food Vending Machine — Cook & Serve

A self-serve vending machine that cools, heats, and serves hot meals on demand — up to ~350 items across six layers.

From298,054.00 ฿
Custom order
Made to order to your spec — you choose the size and configuration.
How it works? Learn more

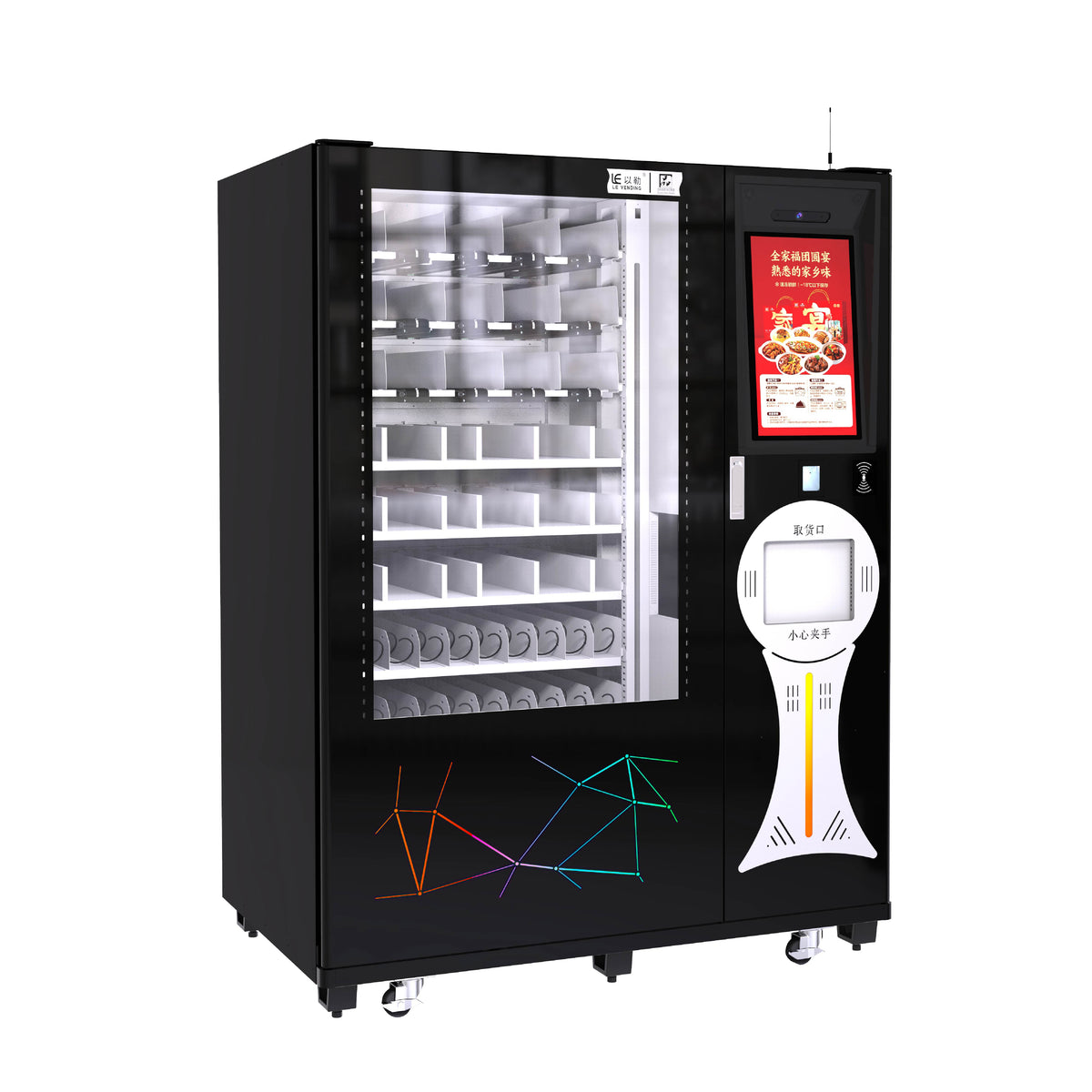

This automatic hot food vending machine stores meals chilled, then cooks each order to temperature on demand — a full unattended food-service point for offices, campuses, transit hubs, hospitals, and 24/7 venues where a staffed counter isn't practical. Chilled items sit in a compressor-cooled cabinet at 2–8 °C, and when a customer orders, an X/Y-axis lift system moves the selected item to a built-in commercial microwave that heats it before delivery to the anti-theft pickup port.

A 21.5-inch touchscreen handles ordering and menu display, and the machine runs on standard QR-code payment with card, Apple Pay, Google Pay, ID card, and badge options. Operators manage stock, sales, and machine status remotely over Wi-Fi, Ethernet, or 4G LTE through a PC and mobile back office with inventory-management integration.

  • Capacity of about 350 items across 6 layers, 10 slots each
  • Compressor refrigeration, 4–25 °C adjustable (cabinet held at 2–8 °C)
  • Commercial microwave heating module, ambient to 80 °C
  • Vandal-resistant build: double-layer tempered glass, anti-theft lock, galvanized steel door
  • Remote monitoring with automatic fault diagnosis and sales statistics

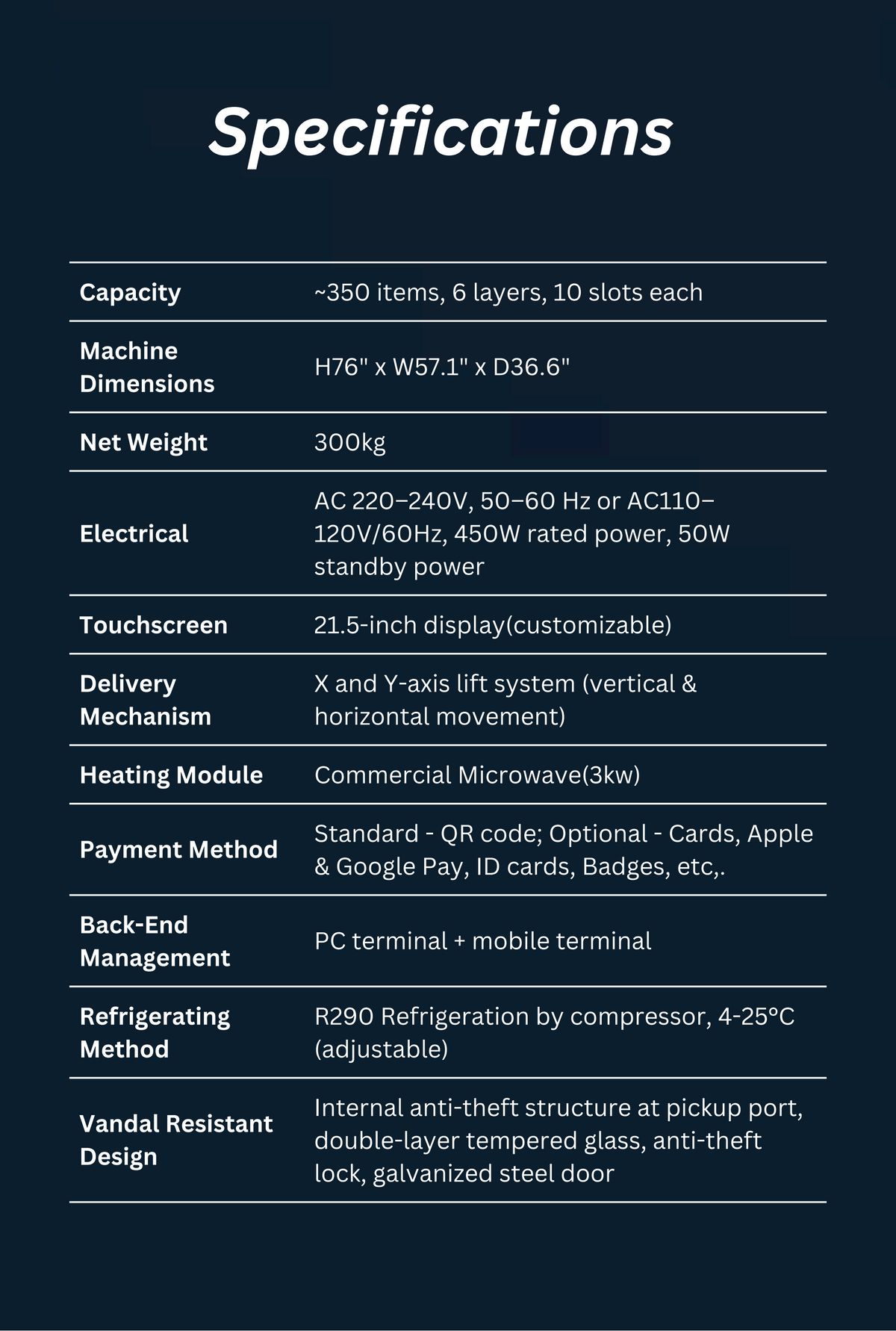

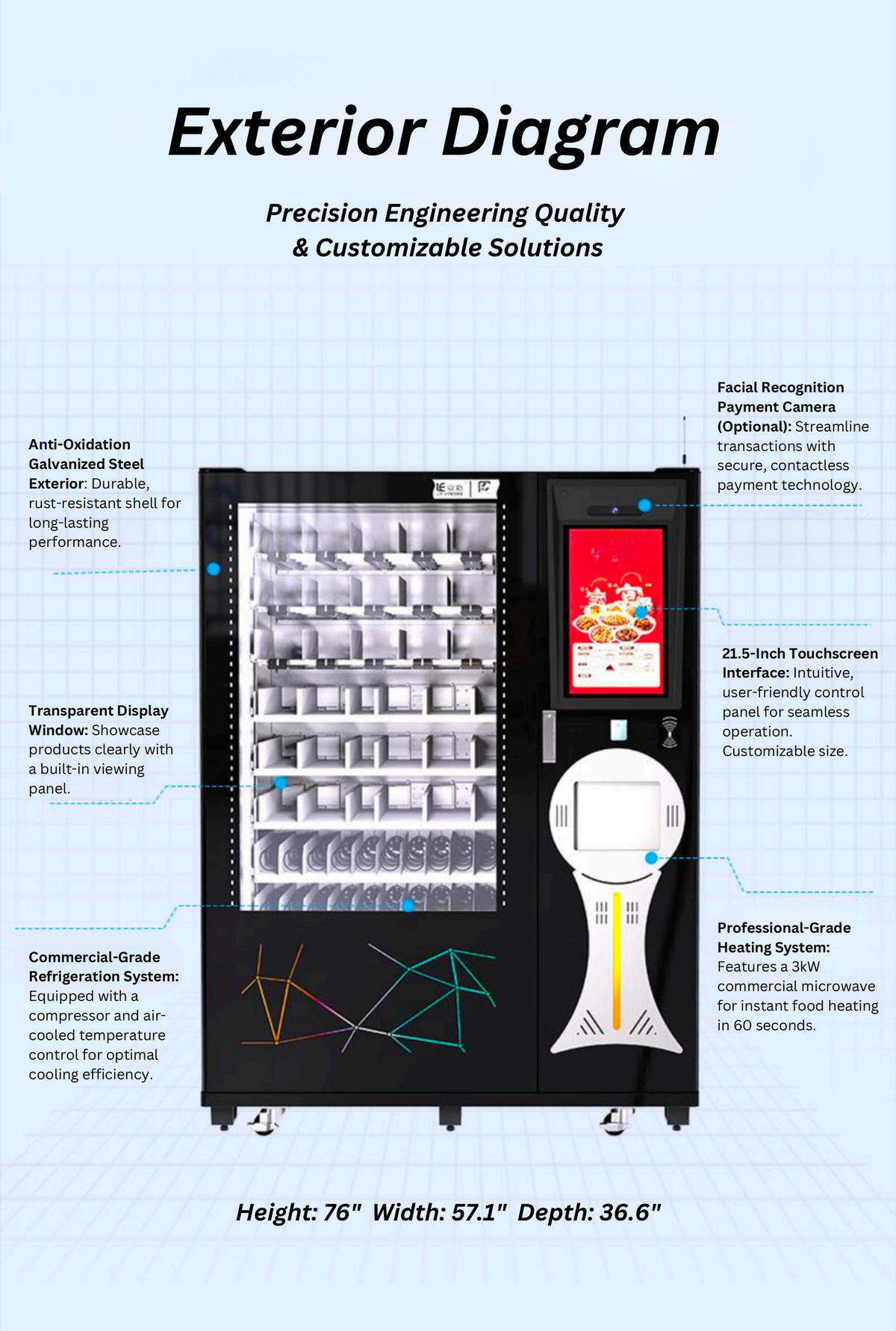

Specifications

Material
Galvanized steel, Tempered glass
Color
Black
Dimensions (L × W × H)
93 × 145 × 193 cm
Weight
300.0 kg
Power
450 W
Voltage
220-240V, 50-60Hz (110-120V/60Hz option)
Warranty
1 Year
Certifications
CE, Declaration of Conformity, CB, EMC, KC, RoHS, IEC 60335
Customization
Custom graphics, customizable touchscreen display
Capacity
~350 items, 6 layers, 10 slots each
Cooling system
R290 compressor refrigeration
Cabinet temperature
2-8 °C
Refrigeration range
4-25 (adjustable) °C
Heating module
Commercial microwave, 3 kW
Heating range
Ambient to 80 °C
Standby power
50 W
Touchscreen
21.5 inch
Delivery mechanism
X/Y-axis lift system (vertical & horizontal)
Display type
Touchscreen
Payment support
QR code (standard); cards, Apple Pay, Google Pay, ID cards, badges (optional)
Back-end management
PC terminal + mobile terminal
Network compatibility
Wi-Fi, Ethernet, 4G LTE
Security
Double-layer tempered glass, internal anti-theft pickup structure, anti-theft lock, galvanized steel door
Special features
Remote monitoring, automatic fault diagnosis, sales statistics, ad video support
Integration
Inventory management software, SDK

Frequently asked questions

How does a chilled meal come out hot?

Meals sit at 2-8 °C in the compressor cabinet until ordered, then an X/Y-axis lift carries the pack to a 3 kW commercial microwave that brings it up to as much as 80 °C before it drops to the pickup port.

How do I work out whether ~350 items suits my site?

Capacity is 6 layers of 10 slots, and each slot holds a stack, so the 350 figure assumes fairly slim packs. Plan the menu around 60 facings and size the stack depth to your restocking interval.

What payment methods does it take, and which are optional?

QR code is fitted as standard. Bank cards, Apple Pay, Google Pay, ID cards and staff badges are options — specify badge or ID card reading at order time if the machine is going into a closed office or campus site.

What can operators see and do remotely?

Stock levels, sales statistics, machine status and automatic fault diagnosis all report to a PC and mobile back office over Wi-Fi, Ethernet or 4G LTE. An SDK and inventory-management software integration are available for tying it into existing systems.

What power supply should I plan for?

Standard supply is 220-240V 50-60Hz, drawing 450W rated and 50W on standby. State 110-120V/60Hz at the time of ordering if you need the alternative supply, and allow 93 cm of depth plus 193 cm of height for the cabinet.

How is it protected in an unattended public location?

Double-layer tempered glass fronts the cabinet, the pickup port has an internal anti-theft structure, and the galvanized steel door takes an anti-theft lock. Warranty is 1 Year.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.

Request a quote

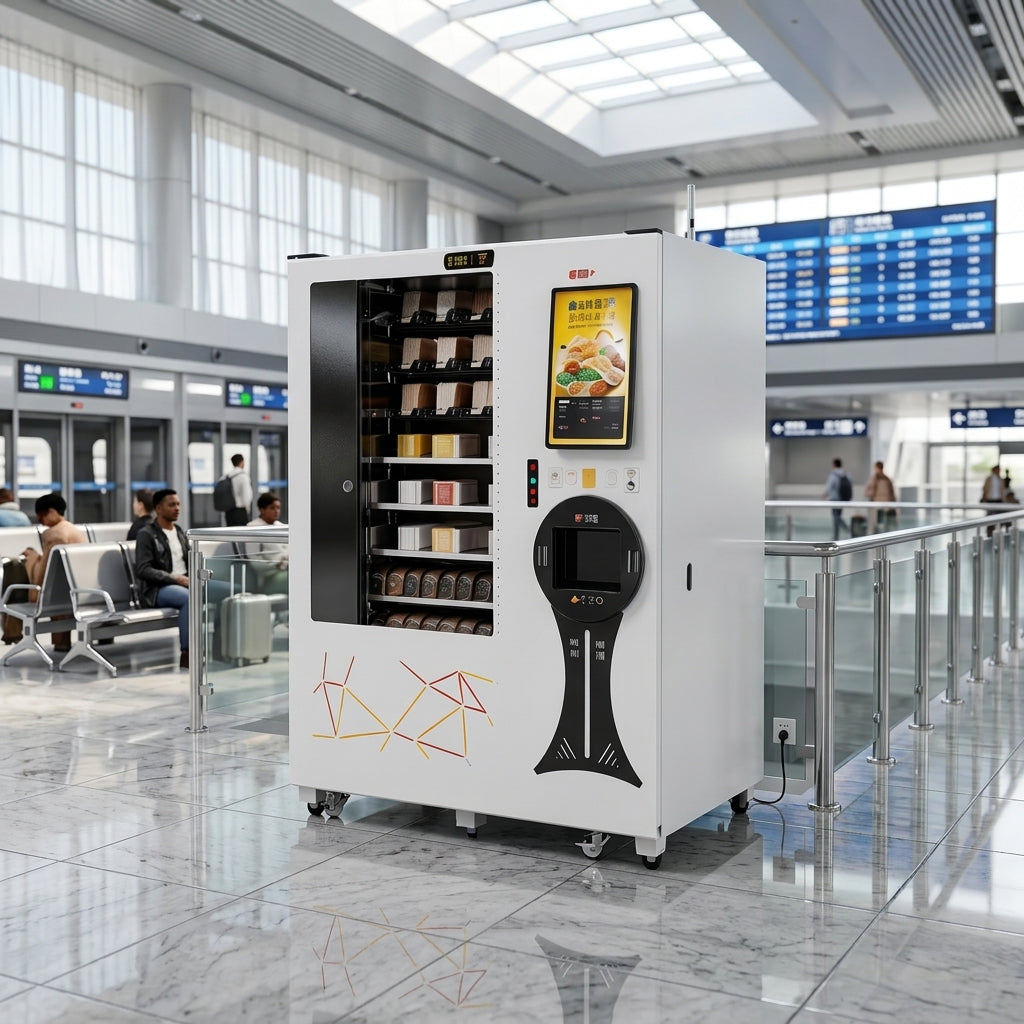

White food vending machine with touchscreen and pickup port in an airport terminal
