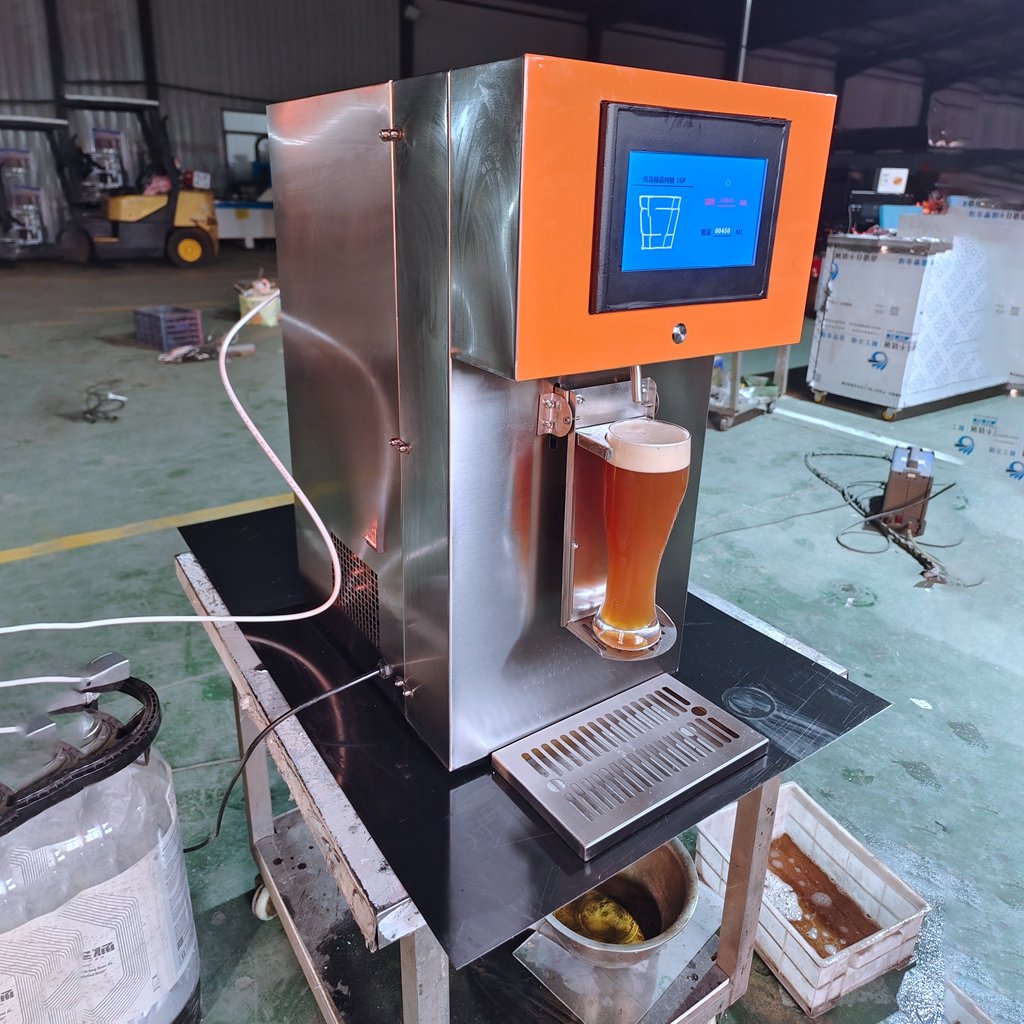

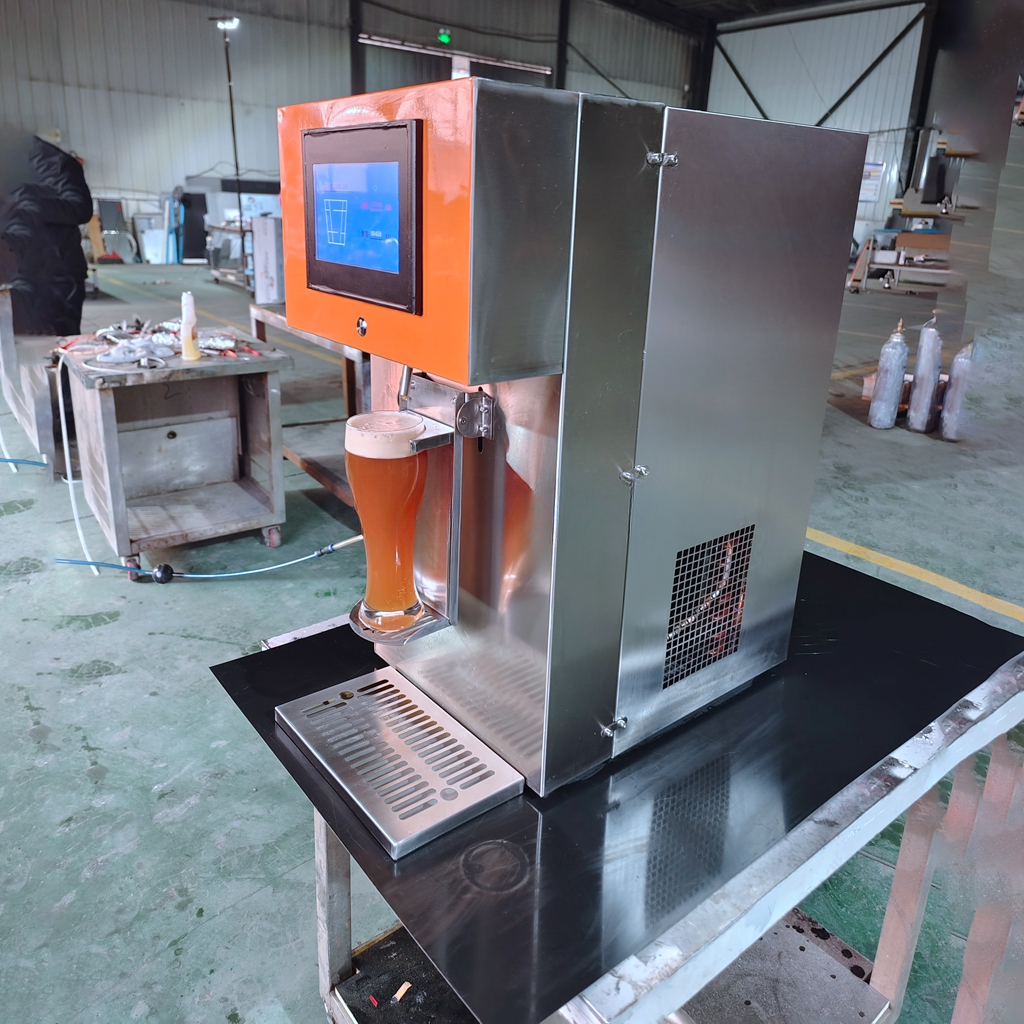

Automatic Self-Pour Draft Beer Dispenser — Water-Cooled, Single Tap
A countertop automatic draft beer dispenser that pours at the press of a button — the glass tilts, fills from the bottom up and finishes with a foam head.
61,050.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks
This automatic draft beer dispenser pours a glass on its own: the operator presses a button, the glass tilts under the tap, beer fills it from the bottom up to keep the head controlled, and the unit tops it with foam at the end. There's no lever to pull and no manual pour to judge, so every glass comes out the same across a busy shift and less-experienced staff serve like pros. A water-cooling system holds the beer at an outlet temperature of about 3–7 °C, and the unit reaches serving temperature in roughly 3 hours from a cold start.
Push-button auto-pour with automatic glass tilt and bottom-up fill, finished with a foam head
Water-cooling system with a 30 L water tank for stable, even chilling
1/3 HP compressor, 280 W, running on R134a refrigerant
Stainless steel body and single tap, available polished or brushed
100 L output capacity per session for bars, pubs and restaurants
Built for venues that serve draft beer to order — bars, hotels, restaurants and taprooms — it sits on a countertop and runs from a standard outlet. Finish and dimensions can be customized to match your bar layout.
Specifications
Material
Stainless steel
Capacity
100000 ml
Weight
35.0 kg
Power
280 W
Voltage
220-240V (110V configuration available)
Warranty
1 Year
Customization
OEM finish and dimensions; polished or brushed metal
Number of taps
Single tap
Cooling method
Water cooling
Water tank capacity
30 L
Outlet beer temperature
3–7 °C
Cooling time
3 h
Compressor
1/3 HP
Refrigerant
R134a
Installation
Countertop
Power supply
Plug powered
Tap material
Stainless steel
Frequently asked questions
How does the automatic pour work?
Set the glass in the holder and press the button: the holder tilts it, beer fills from the bottom up so the head stays controlled, and the unit finishes with a foam cap. No lever, no judgement call, so a new server pours the same glass as your best bartender.
How cold does it pour, and how long before service?
Beer leaves the tap at roughly 3–7 °C. Allow about 3 hours from a cold start to reach that temperature, so switch it on before opening rather than at the door.
Why water cooling rather than direct chilling?
A 30 L chilled water tank sits between the 1/3 HP, 280 W R134a compressor and the beer line, holding the cold steady through rush pours instead of letting outlet temperature drift as demand spikes.
How much can one tap serve in a session?
Output capacity is 100 L per session through a single stainless steel tap — enough for one busy line in a bar, pub, hotel or taproom. Venues running two beers at once will need a second unit.
What do I need on site to run it?
A countertop with a standard outlet is the whole installation — it is plug powered at 220–240 V, with a 110 V build available, so specify your voltage when ordering. Your keg and CO₂ supply connect to it.
How far does the customisation go?
OEM covers finish and dimensions: polished or brushed stainless on the body and tap, and the cabinet sized to your bar layout. Send your counter measurements and preferred finish with the order.
What warranty is included?
Every unit ships with a 1 Year warranty, covering the dispenser as supplied — cabinet, tap and the 1/3 HP water-cooling system.
