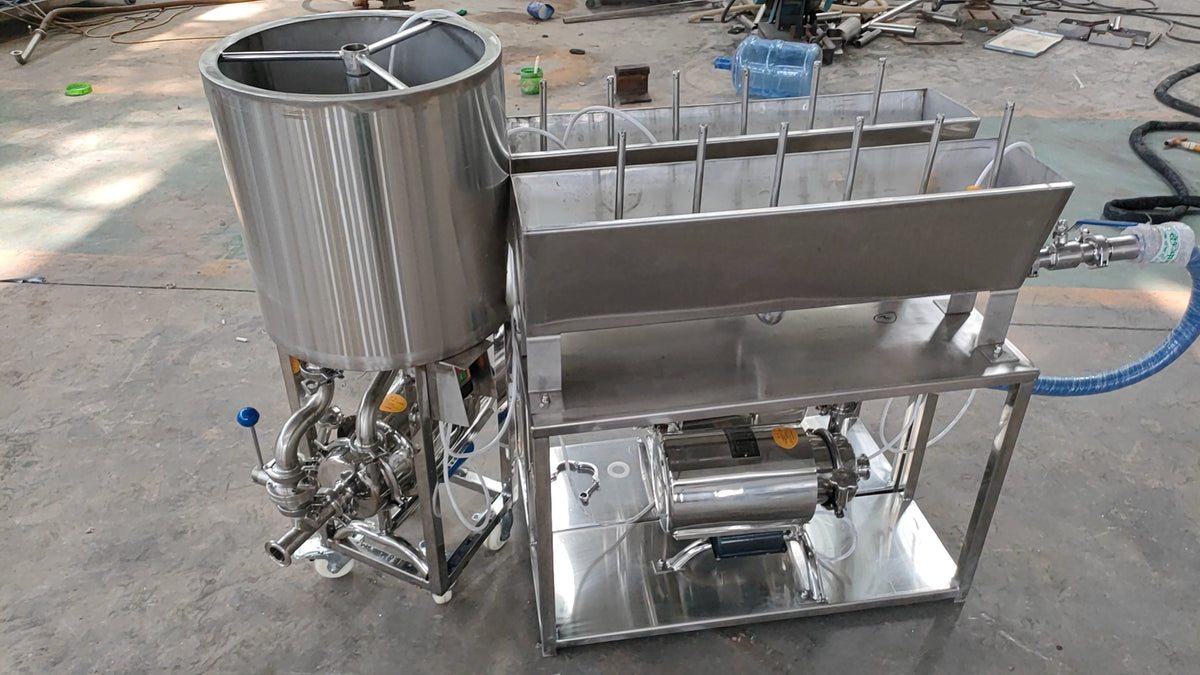

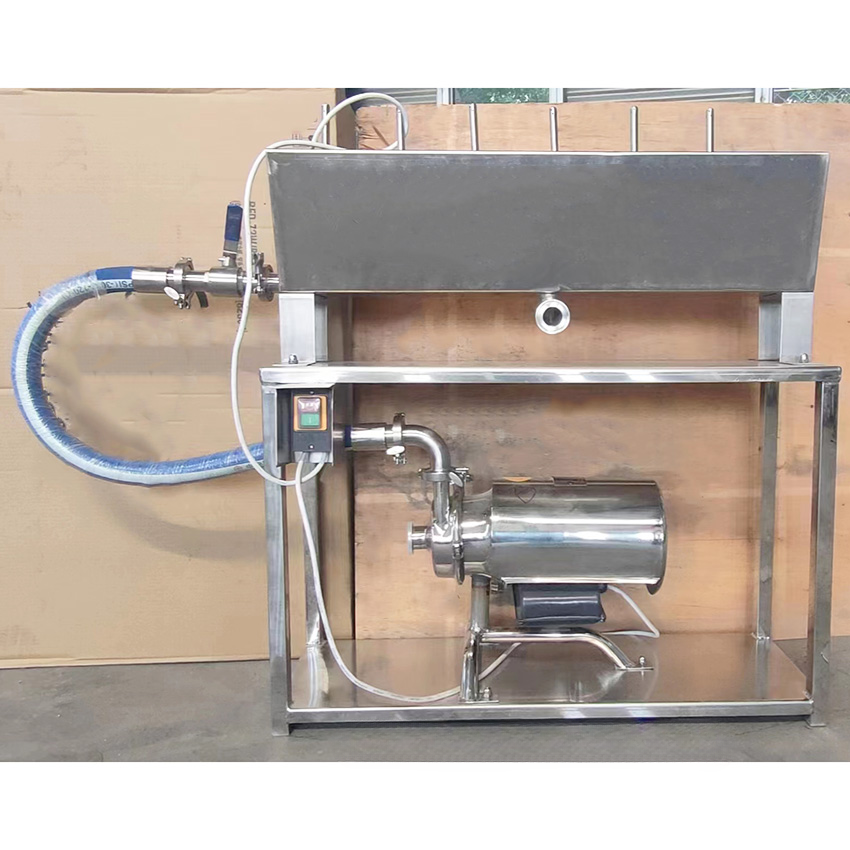

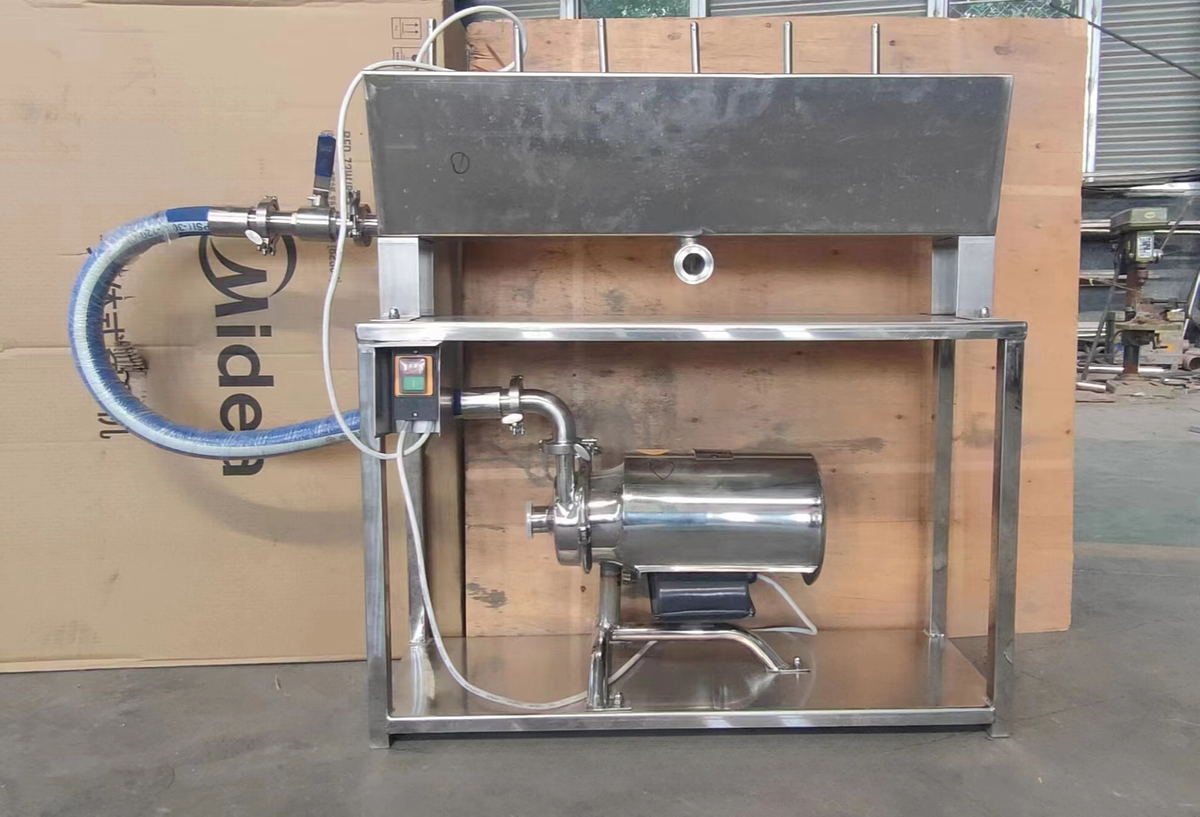

A pump-driven stainless steel rinser that flushes glass bottles clean before filling, with recirculated cleaning solution.
43,834.00 ฿
Shipping calculated separately
Lead time: 2–4 weeks
The bottle rinser prepares empty glass bottles for filling by flushing out dust, glass fragments and residue with a high-flow jet of cleaning solution. It's built for craft breweries, taprooms and small bottling lines that need clean, sanitary bottles without a full automated wash tunnel. A 750 W pump moves solution at 3 t/h, and the design recirculates that solution so a single batch cleans many bottles before it needs replacing.
Construction is stainless steel throughout, so it stands up to daily washdowns and the acids and caustics used in bottle cleaning. Operation stays simple: the pump runs on a straightforward on/off control while an operator loads and rinses bottles by hand, which keeps the unit affordable and easy to train on.
750 W pump delivering 3 t/h of rinse flow
Recirculated cleaning solution for lower water and chemical use
220V or 110V supply, with custom voltage available
Electric heating for warm rinse solution
Specifications
Material
Stainless steel
Weight
65.0 kg
Power
750 W
Voltage
220V 50Hz / 110V 60Hz (custom available)
Warranty
1 year
Customization
Custom voltage available
Pump flow
3 t/h
Heating
Electric
Control
Pump on/off
Design
Cleaning solution recirculated
Core component
Pump
Application
Glass bottles
Operation
Manual
Frequently asked questions
How many bottles can one batch of solution clean?
Many bottles per batch — the pump jets solution into the bottle and returns it to the reservoir rather than sending it to drain, so a single fill of cleaning solution keeps working until it is visibly loaded and you replace it.
What does the 750 W pump actually give you at the nozzle?

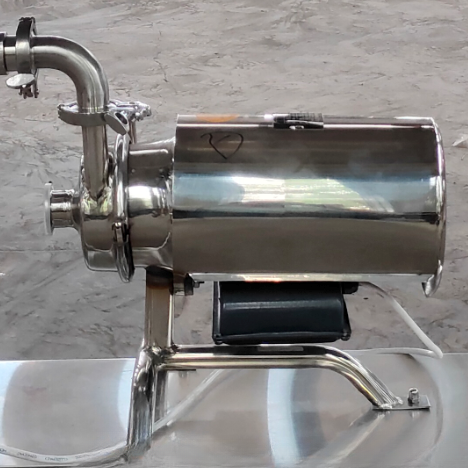

A rinse flow of 3 t/h, which is what clears dust and glass fragments out of a bottle in one pass rather than needing a second dunk. The pump is the only moving part in the cleaning circuit.
How many operators does it take to run?

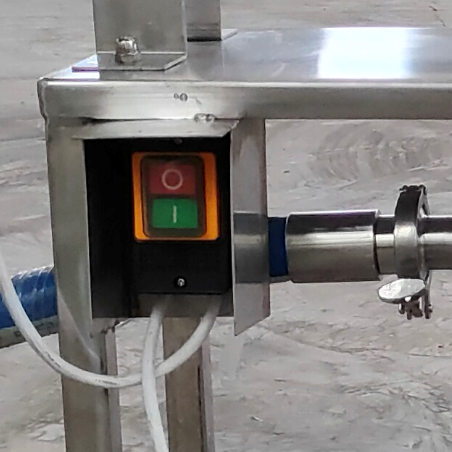

One. Loading and rinsing is done by hand while the pump sits on a simple on/off control, so there is no cycle timing or sequencing to learn — training a new staff member takes minutes, not a shift.
What do I need to specify when ordering?
Your supply voltage: 220V 50Hz or 110V 60Hz as standard, with custom voltage built to order. State it on the order rather than assuming the default, since the pump is wired for one or the other.
Will it stand up to caustic and acid cleaning chemicals?
Construction is stainless steel throughout, chosen for the acids and caustics used in bottle cleaning and for daily washdowns. The unit carries a 1 year warranty.
